| Project | Equipment parameters / brand |
|---|---|

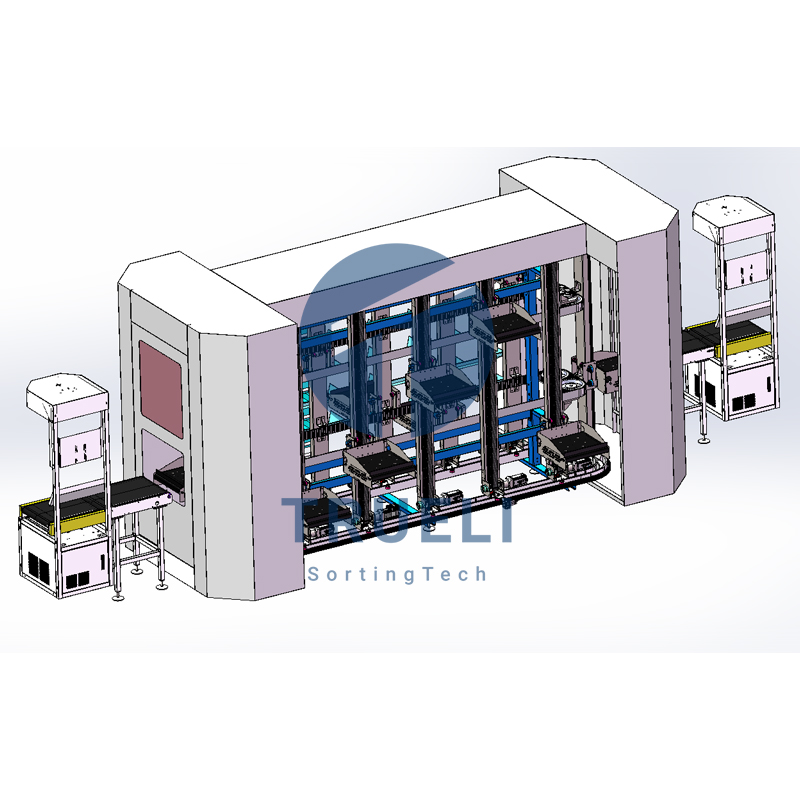

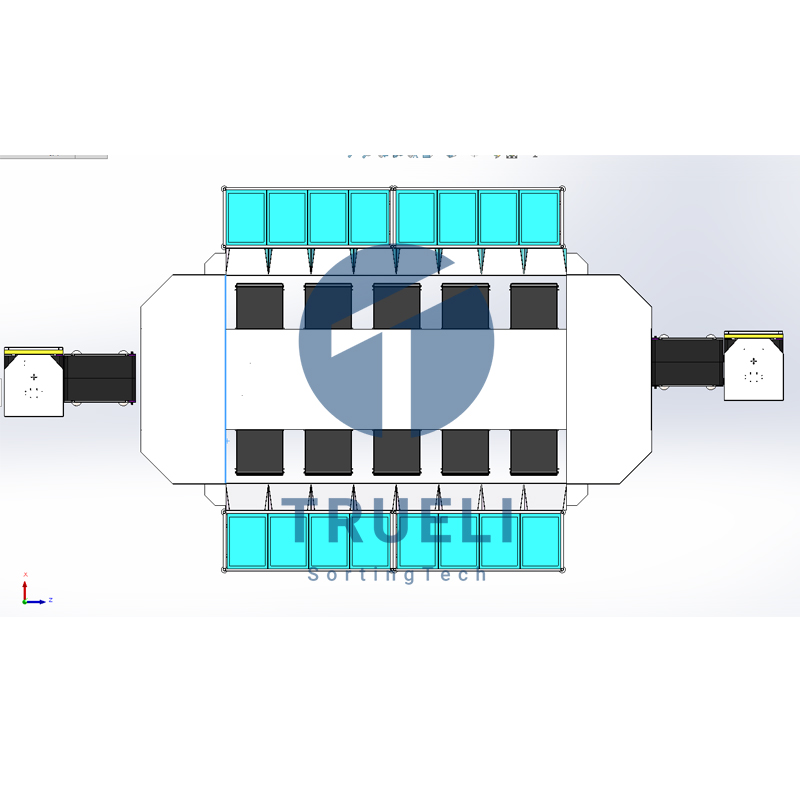

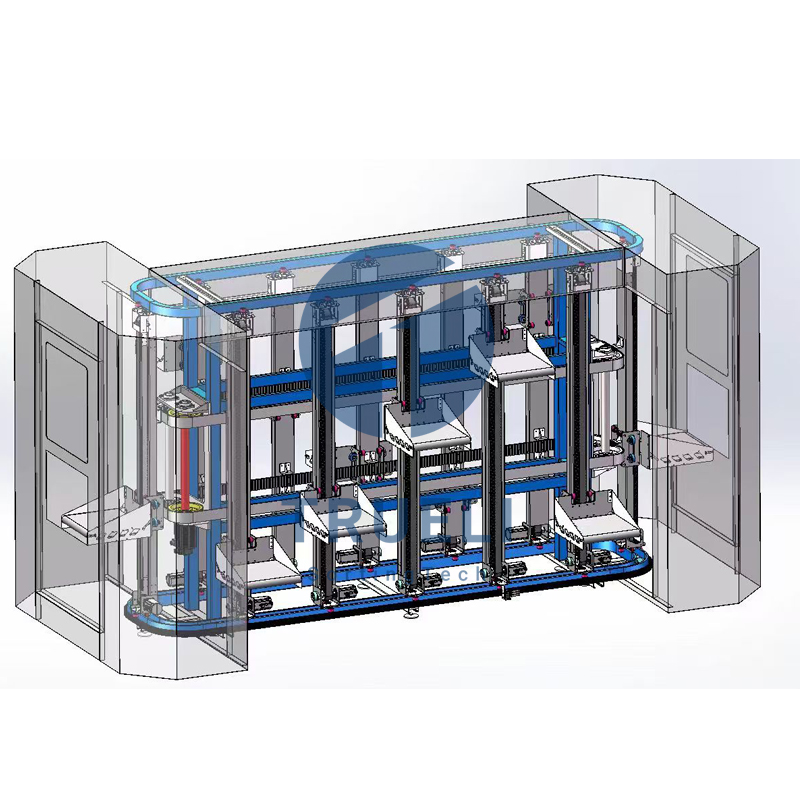

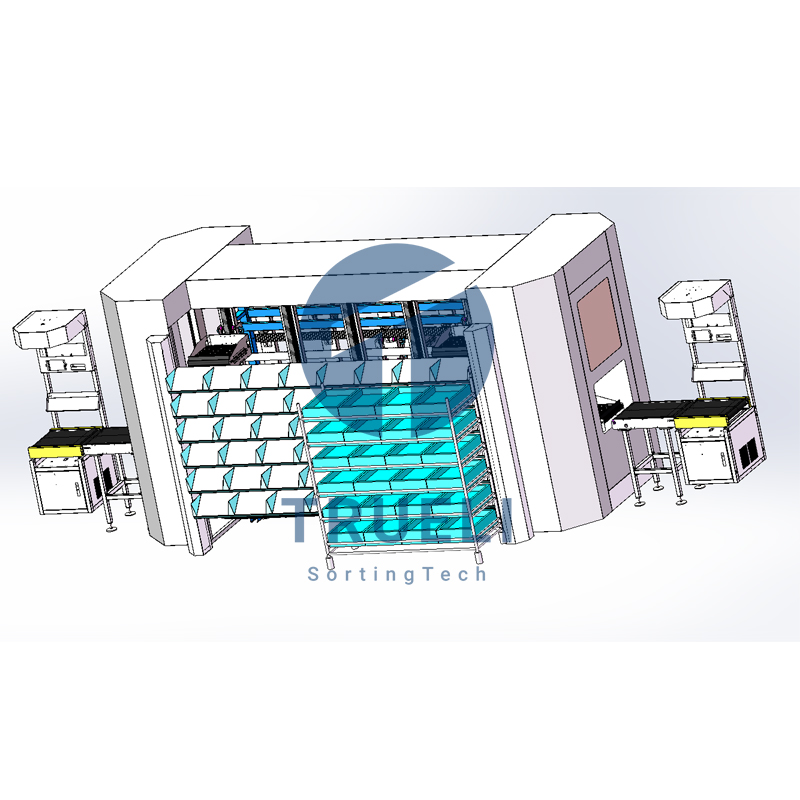

| Product Name | Wall Type 3D Sorting Machine |
| Comprehensive operation efficiency | 1000± 300 pieces / h (depending on the order of incoming material, operator and other factors) |
| Running speed | The maximum horizontal speed is 2 m/s, and the maximum lifting speed is 1. 5m / s |
| Sorting package minimum size | L * W * H (60mm * 40mm * 10mm) is not easy to roll the package |
| Maximum size of sorting packages | L * W * H (400mm * 300mm * 150mm) is not easy to roll through the package |
| Sorting package weight | 0.05kg-3kg |
| Size of grid material box | Appearance: 500x380x160 mm |
| The width of the mouth | 380mm |
| Supply height | 850mm±30mm |
| Plant capacity | 220v 4KW |
| Empty, contactor | Chint or equivalent quality |
| Status light, push-button switch, alarm | Domestic brand |
| Scan the code | Hand-held scan code / top scan code (optional) |
| Automatic detection of the code reading system | Hikvision (optional) |
| Servo motor | The letter |
| PLC | Letter (support Ethercat bus 8 axis) |
| Input module | The letter |
| Motorized pulleys | Zhuo blue |
| IPC | CPU i7 / 8G memory / 256G solid state |
| Leather belt | Heebe |
| Equipment size | L3000mm*W1695mm*H1987mm (The size, width and height of the material car will be adjusted slightly, and the height does not include three-color lights) |
| Equipment operating environment | Ambient temperature 0-40 30%~85% (no condensation) |
| Run the noise | 80 db (1 m from the equipment) |
