Product Description

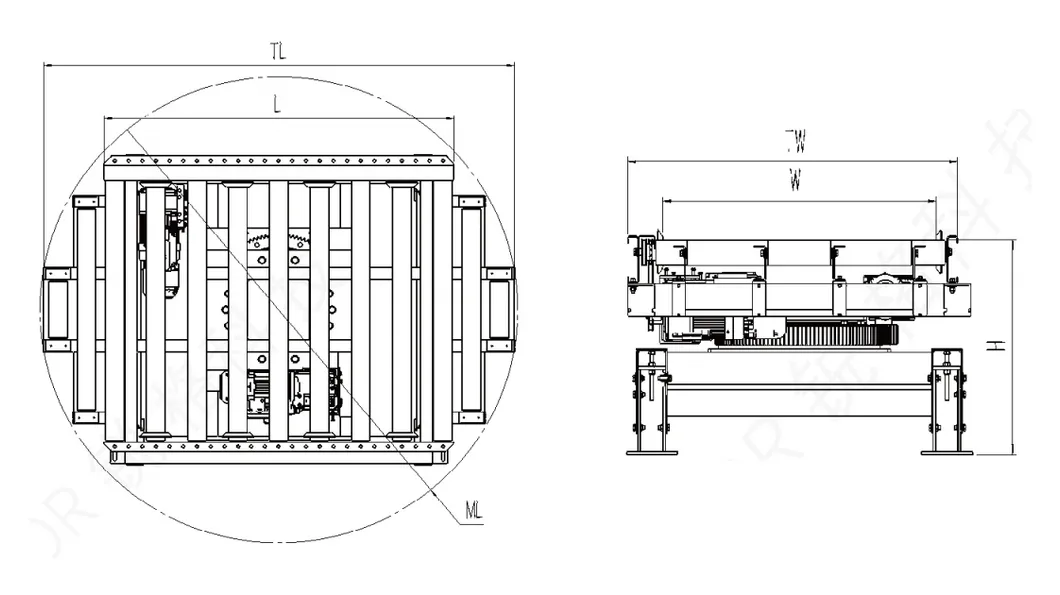

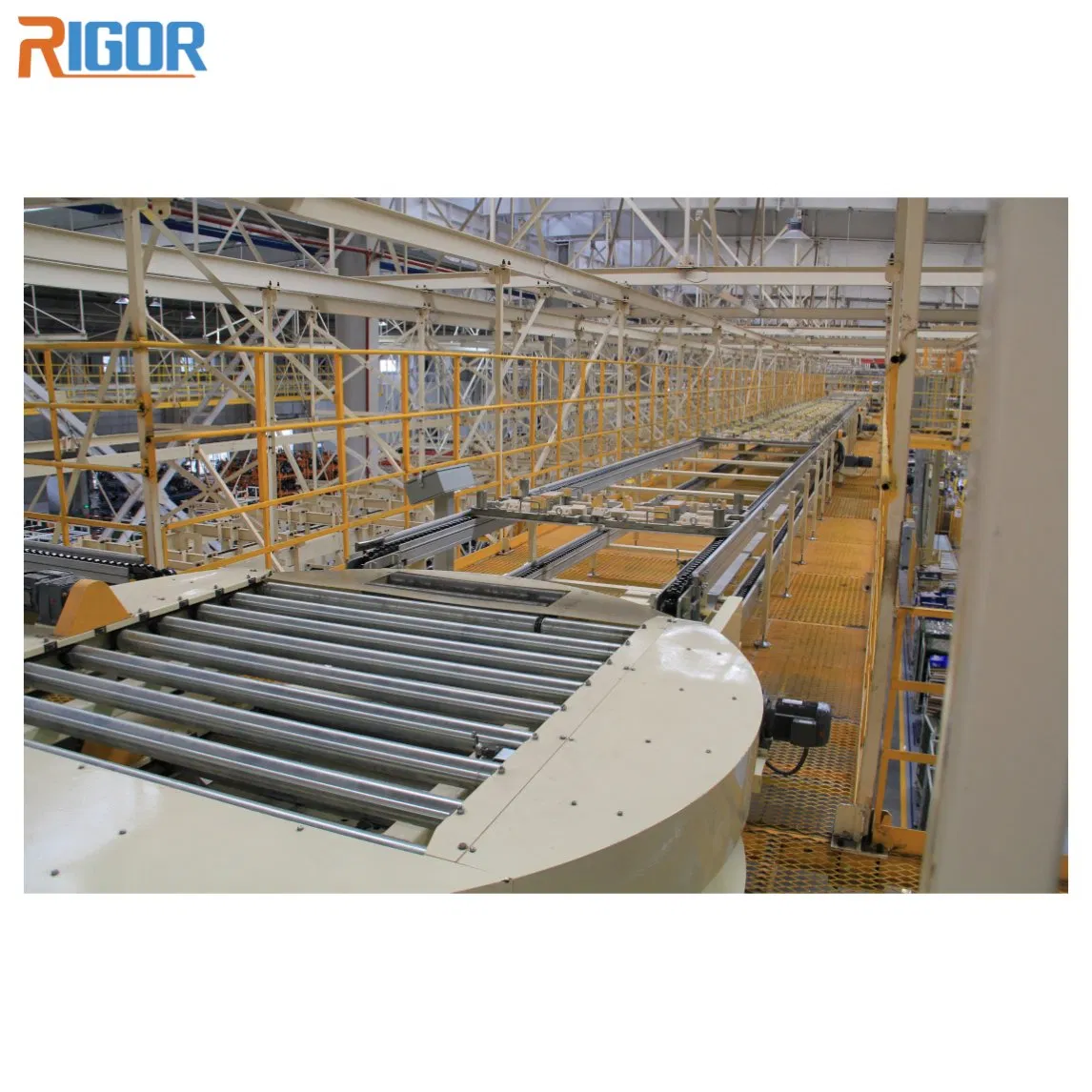

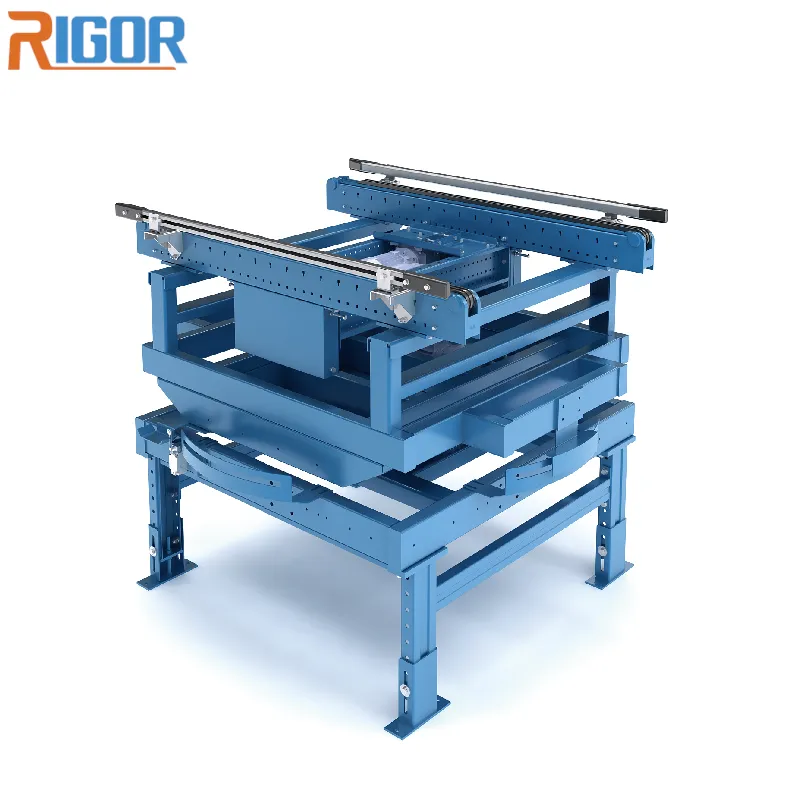

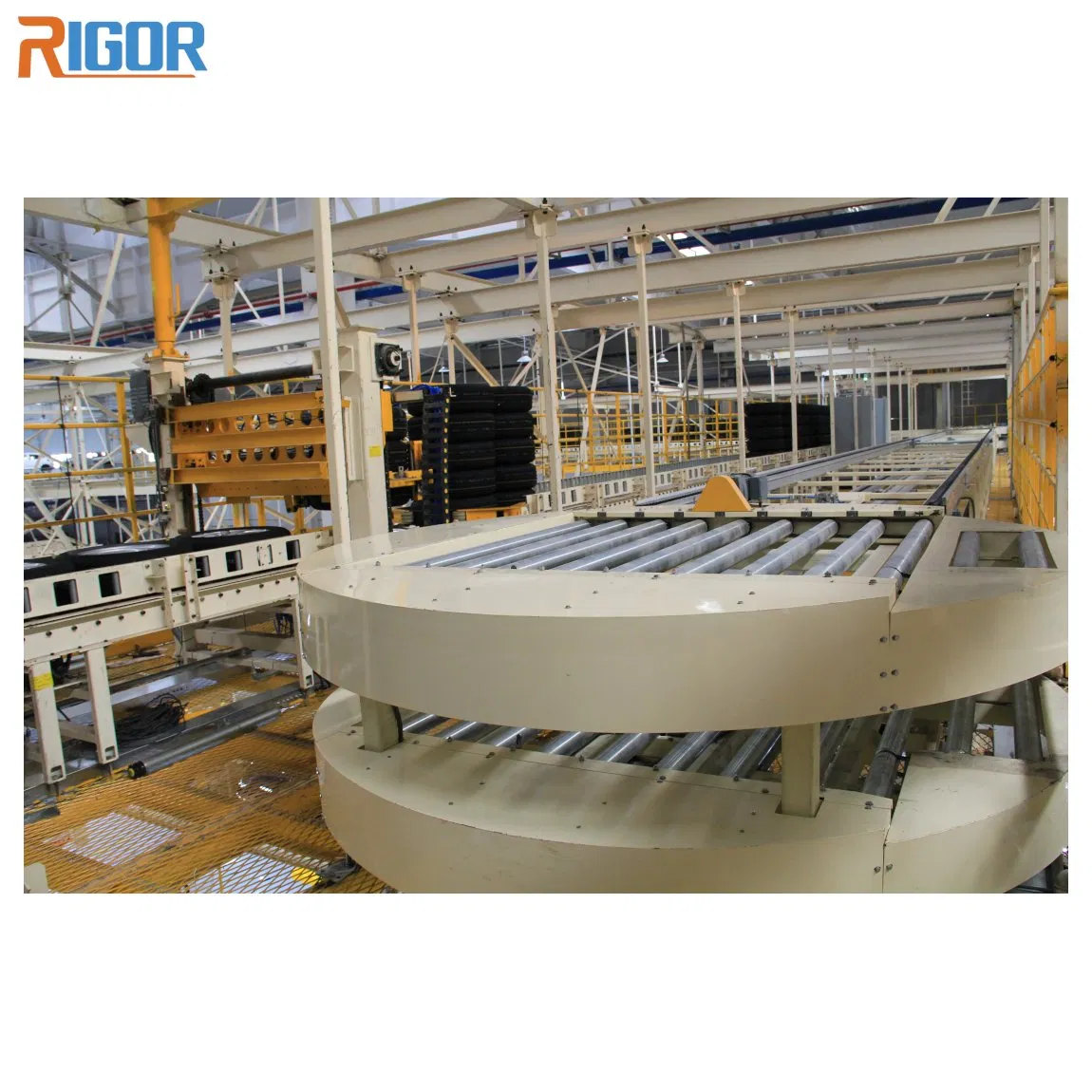

2PZG High Quality Turntable Rotation Conveyors Easy Maintenance Conveyor System

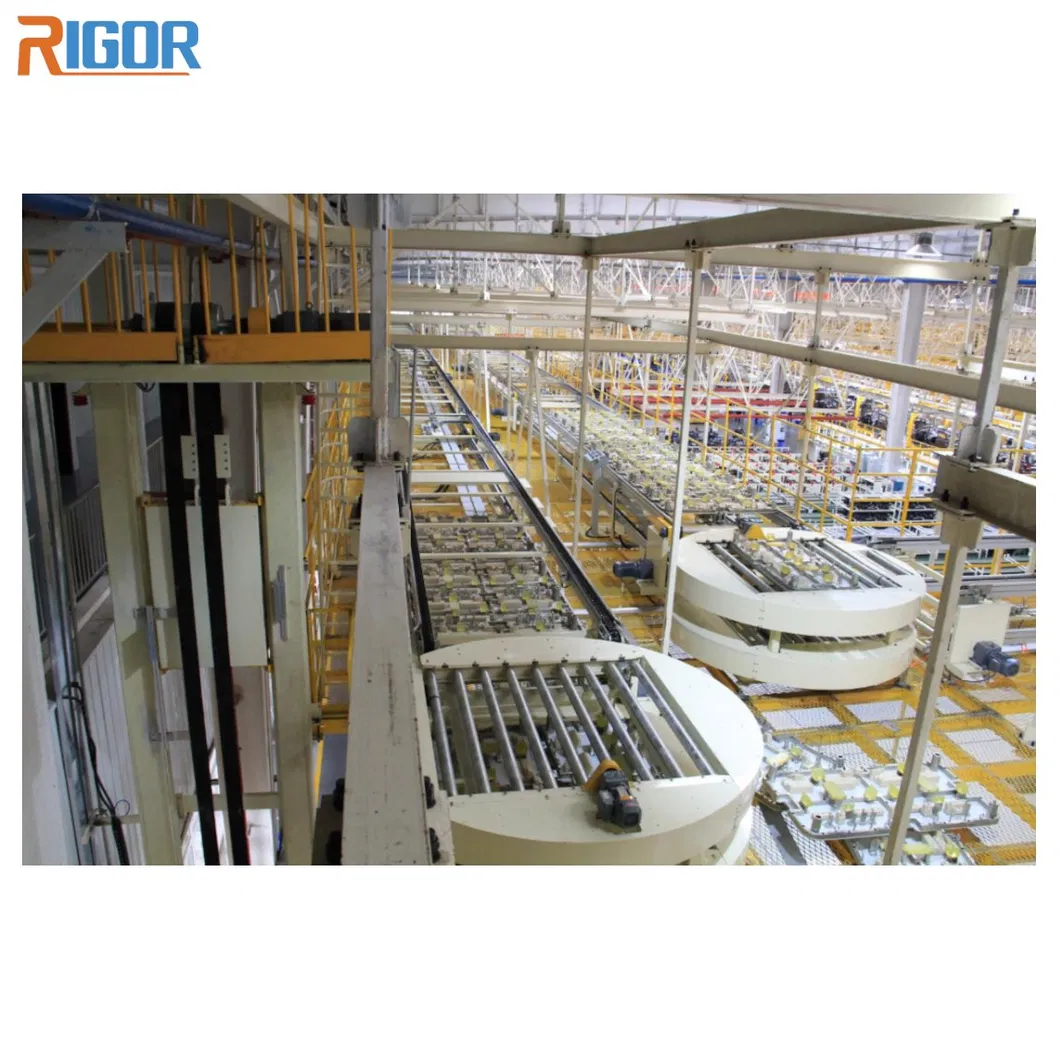

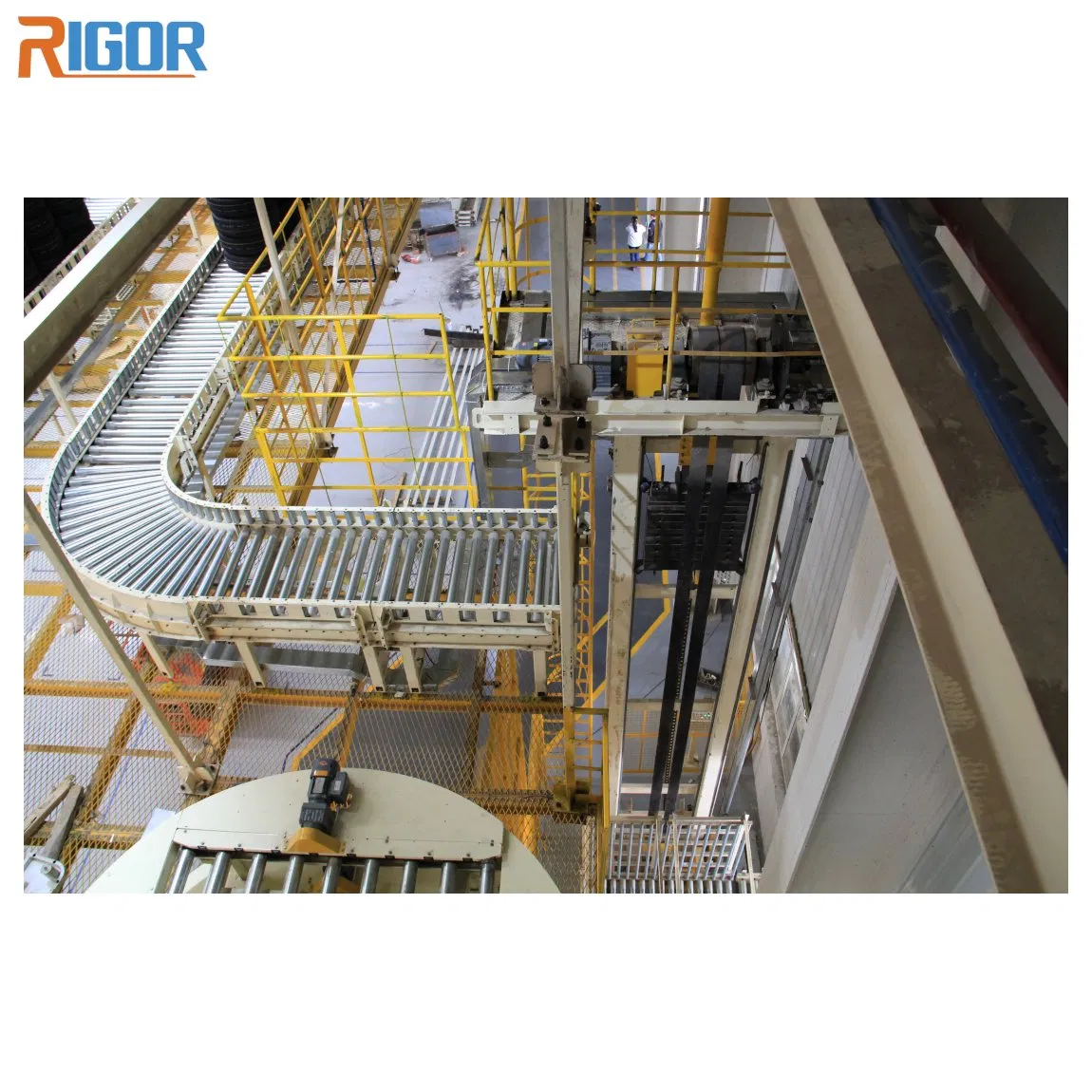

2PZG roller type turntable is used to change direction or rotate full and empty trays, with a rotation range of 0 ° to 360 ". When the ground is uneven, it can be easily compensated with adjustable legs.

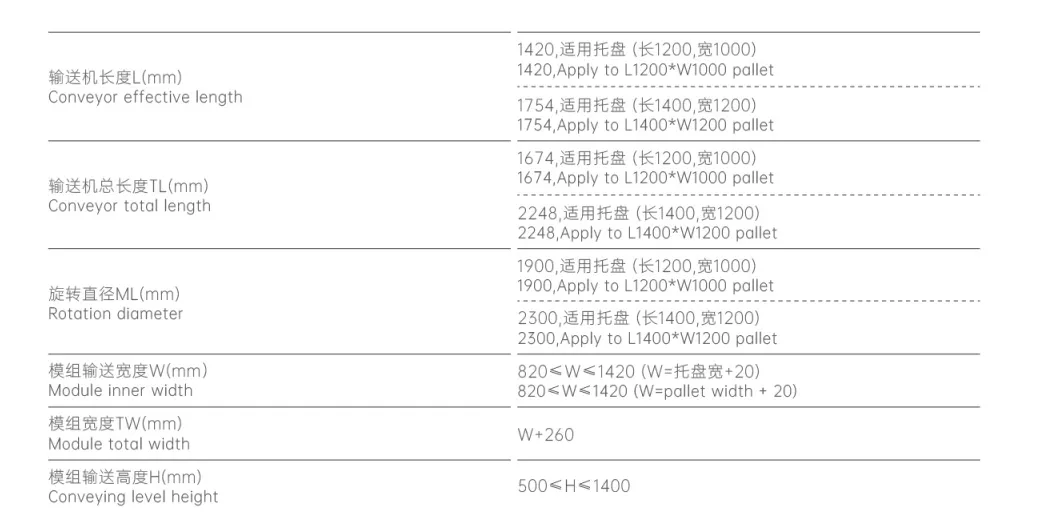

Specifications

Max Payload (kg)	1500
Conveying motor power (kW)	Default brands/Specified 0.37, 0.55
Rotating motor power (kW)	Default brands/Specified 0.37, 0.55
Roller diameter (mm)	φ76
Line speed (m/min)	13, 16, 18
Rotation speed	6s/90°
Roller tube material	Galvanized, SUS201, SUS304
Environment temperature (ºC)	-5~+40
Surface treatment	Powder coating with RAL color
Outer cover	Yes/No

Note: The combination of maximum values is not always achievable.

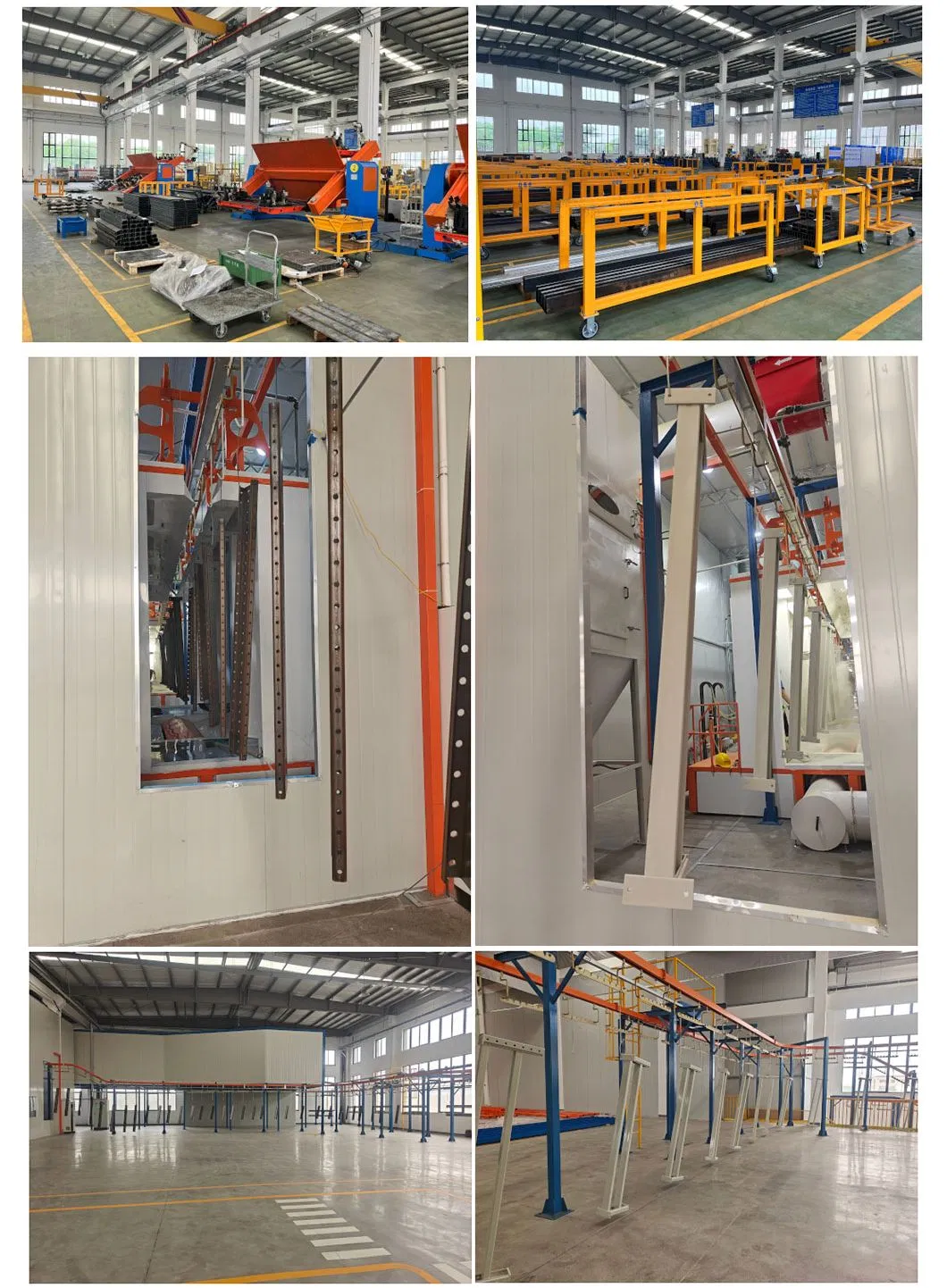

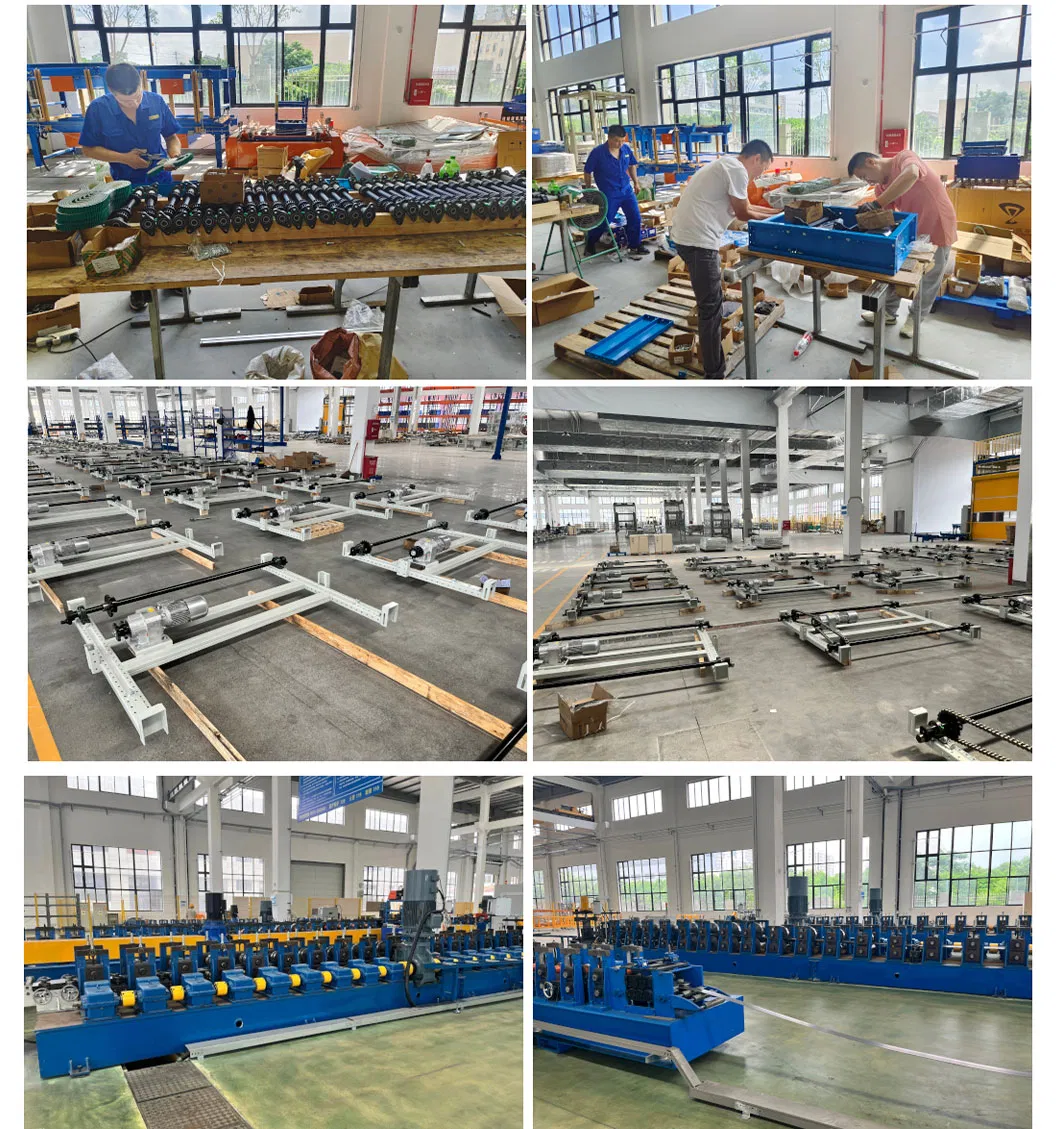

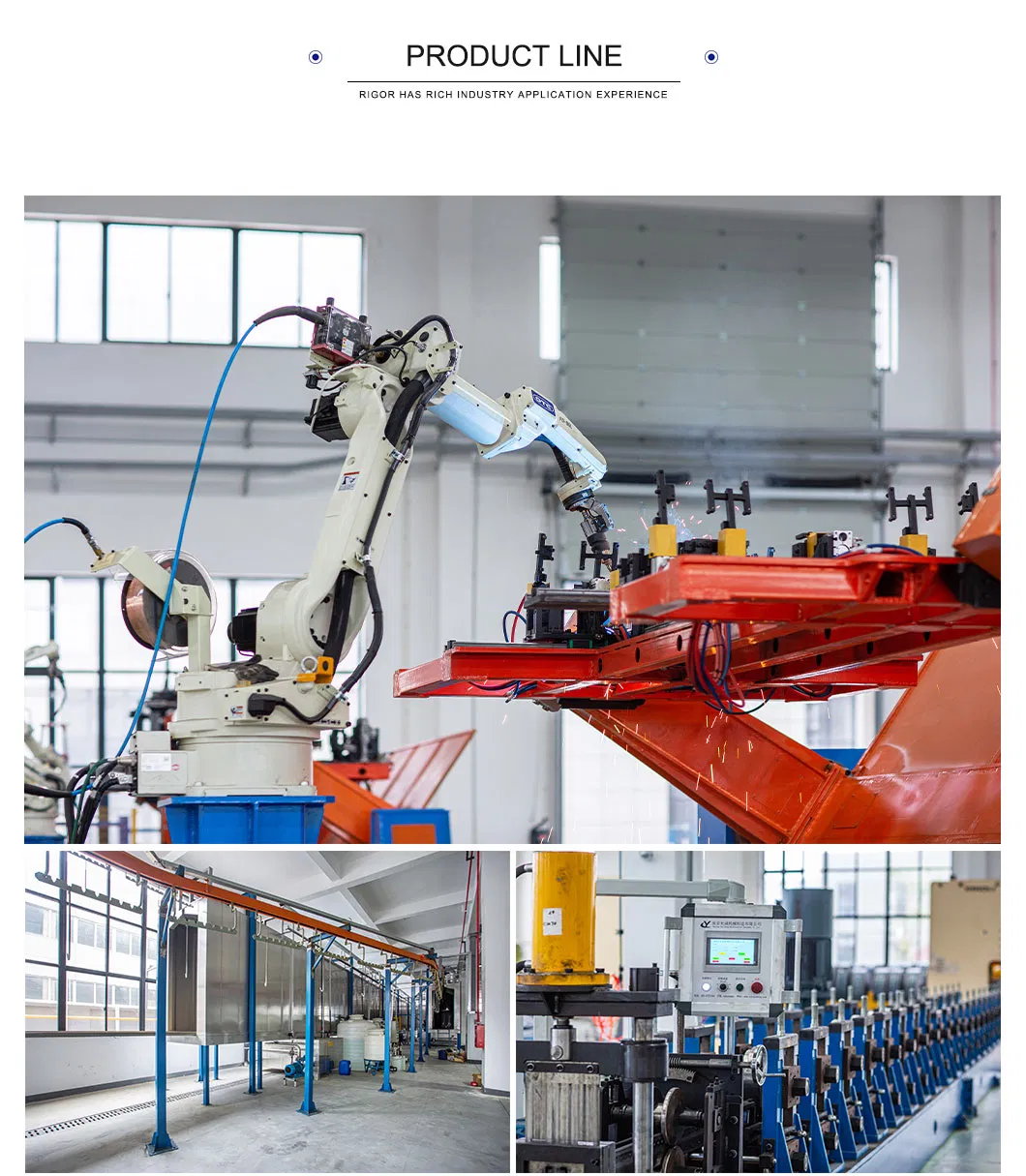

More than 300 employees and a plant area of more than 60,000 square meters. It has a sheet metal processing workshop, a profile processing workshop, an automatic electrostatic powder spraying line, a complete set of equipment (mechanical and electrical) assembly workshop and a research and development test and exhibition center.

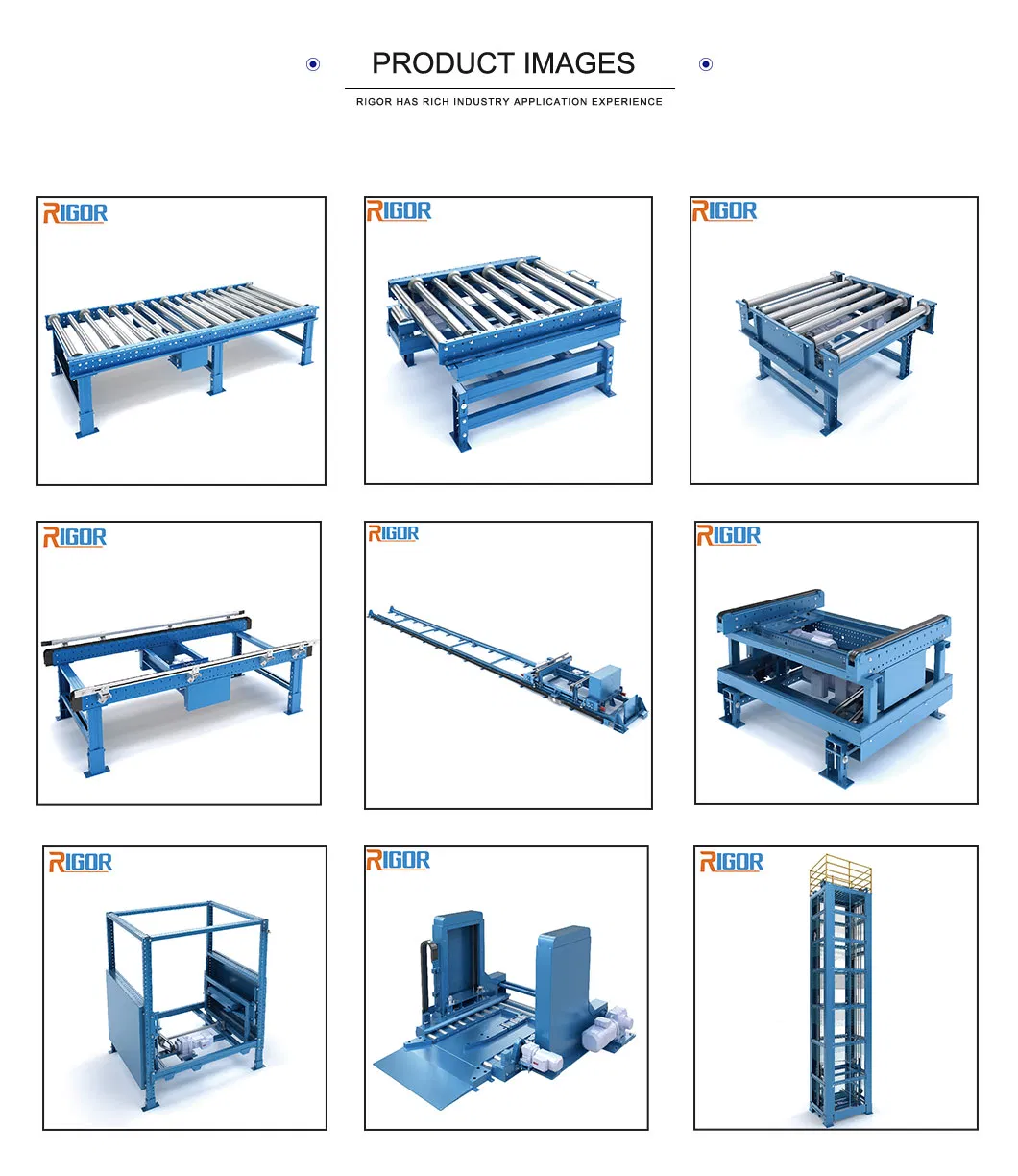

Related Products

Click for more information abot related products. If any questions occur, please contact sales person for more details.

Frequently Asked Questions

What is the rotation range of the 2PZG turntable conveyor?

The 2PZG roller type turntable is designed to change direction or rotate full and empty trays, featuring a flexible rotation range from 0° to 360°.

What is the maximum payload capacity of the conveyor system?

The system supports a maximum payload capacity of up to 1500 kg, making it suitable for heavy-duty warehousing and industrial applications.

How does the system handle uneven ground or floors?

When the ground is uneven, the system can be easily adjusted and compensated using its integrated adjustable legs to ensure level operations.

What materials are used for the roller tubes?

The roller tubes are available in multiple high-quality materials, including Galvanized steel, SUS201, and SUS304 stainless steel, depending on application needs.

What is the rotation speed of the turntable?

The standard rotation speed of the 2PZG turntable is approximately 6 seconds per 90-degree turn, facilitating rapid and efficient tray redirection.

Can the surface treatment and colors be customized?

Yes, the surface treatment is an electrostatic powder coating that can be applied with specified RAL colors to align with your facility's branding or safety codes.
