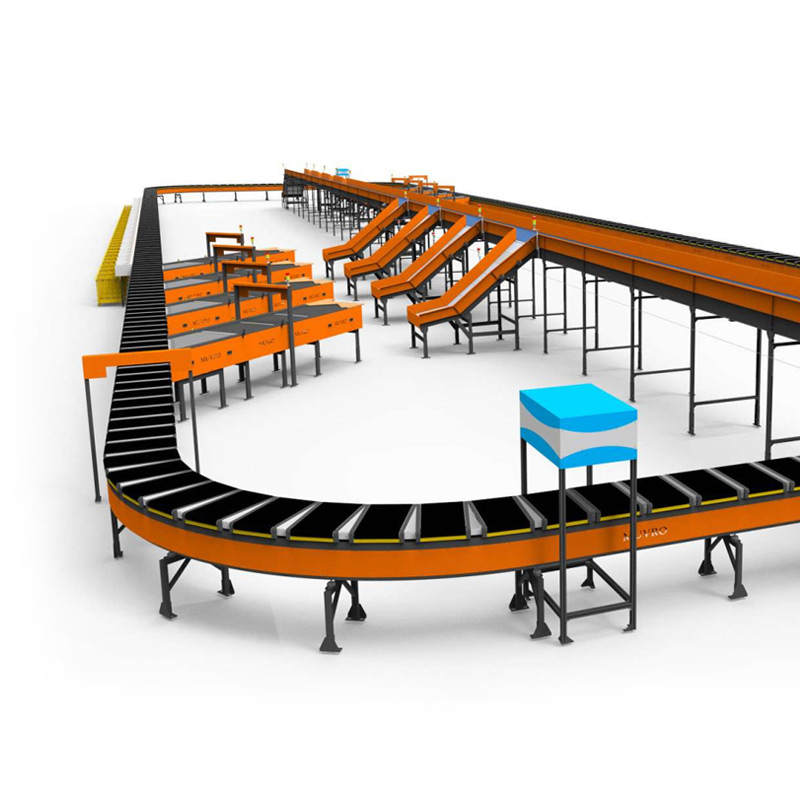

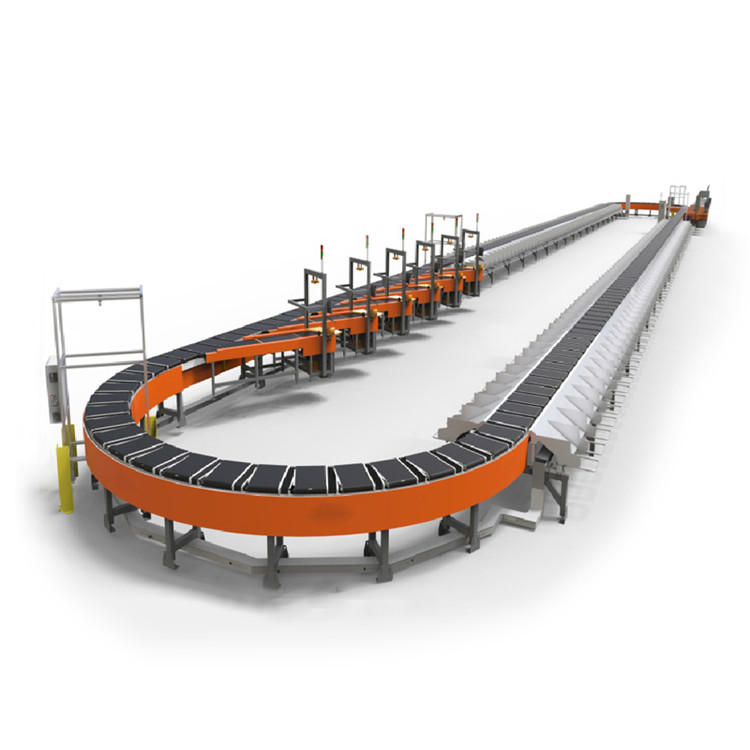

High Efficiency Z Sorter Belt Conveyors Cross-Belt Logistic Equipment Adjustable For Express Parcel Assembly Line Sorting

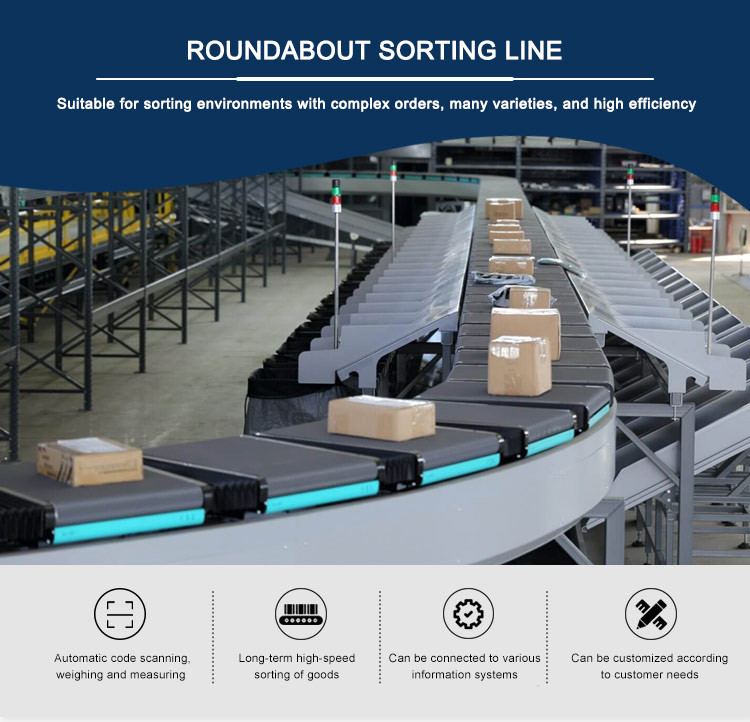

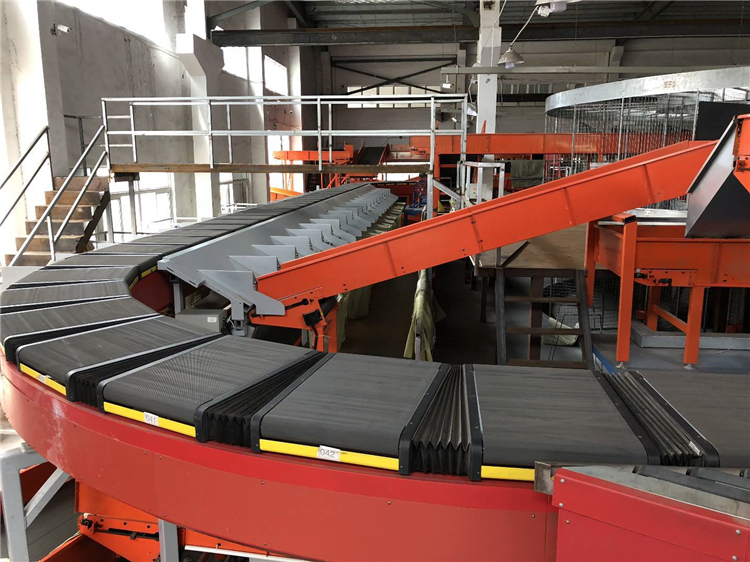

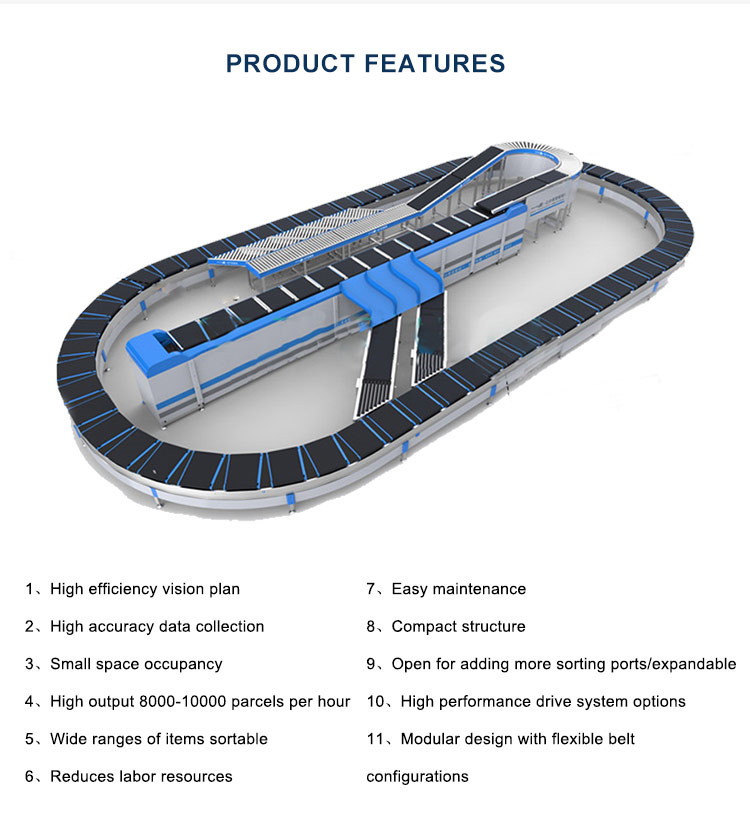

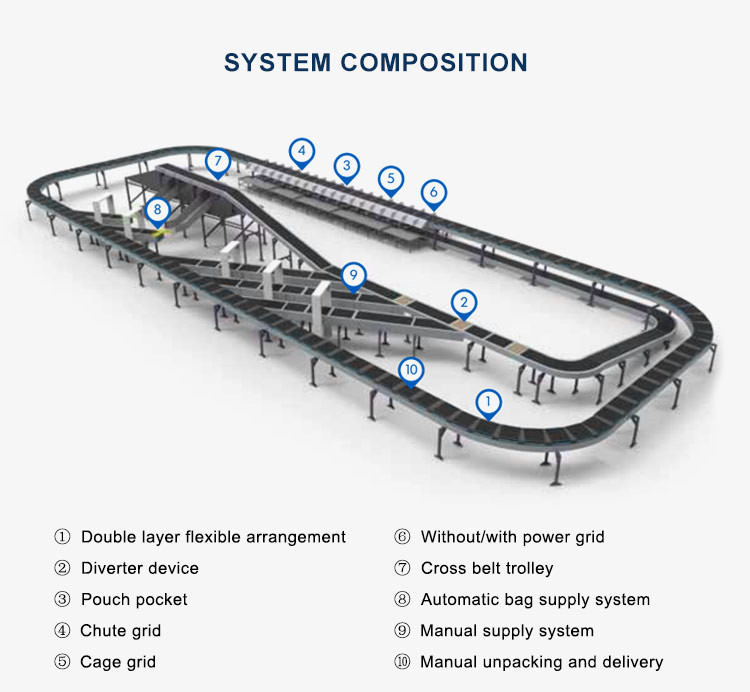

The Cross belt system is a robust, fault-tolerant system that offers unrivaled 99.99% accuracy and high sorting capacity regardless of item type. Energy-efficient and easy to maintain, it features gentle handling and total control of parcel position and behavior with no slipping or rolling.

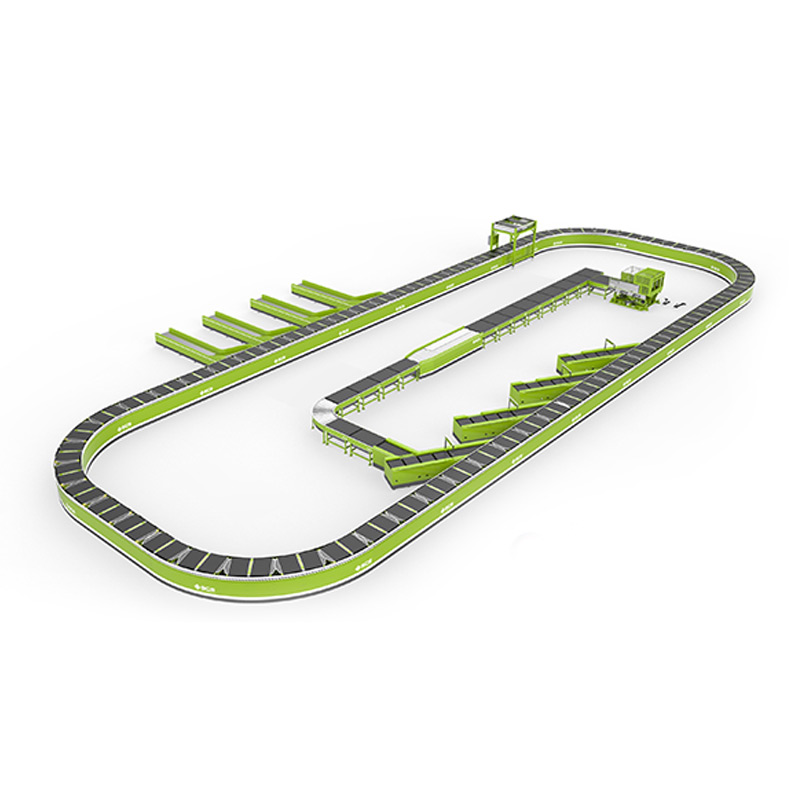

Its modular design means it can be adapted to any facility's size and dimensional constraints. Thanks to the Cross belt system's continuous train of carrier units equipped with high-friction belt conveyors, the system keeps items in a controlled, perpendicular alignment throughout transportation.
The continuous, closed-deck conveying surface provides streamlined parcel transport, even in curves and when ascending or descending. Belt-to-belt flat automatic loading of items ensures high capacity without sacrificing accuracy.
The system thus offers excellent flexibility for a wide range of items and configurations.
Parameter
Specifications
Product name
Cross belt sorter
Number of slots
180 (can be customized)
Grid width
750mm
Grid type
Landslide (customizable chute)
Number of cars
Customized according to needs
Car size
428*700mm
Main line speed
2.0m/s
Supply table speed
21600 single/hour (12 people in two zones for package)
Line height
1.9m (can be customized)
Package weight range
0.1-10kg
Package size (Minimum)
L100mm*W100mm*H10mm
Package size (Maximum)
L400mm*W400mm*H350mm
Sorting time limit
Actual 18000-21000, theoretical 40000 orders/hours
Running speed
2.5m/s max
Sorting capacity
12000pph for one side, 24000pph for two sides
Capacity for each induction
>2000pph
Carrier size
500*700mm, 600*700mm, 800*1100mm, customized
Load capacity
0.01-35kg
Dimension for package
100*100*1-600*1000*250mm per the dimension of carriers
Sorting error
≤0.01%
Bar-code reading
>99%
Noise
<72BD
Package
Envelope, plastic bag, carton, etc. suitable for kinds of packages.
Related Products
Production Capacity & Engineering

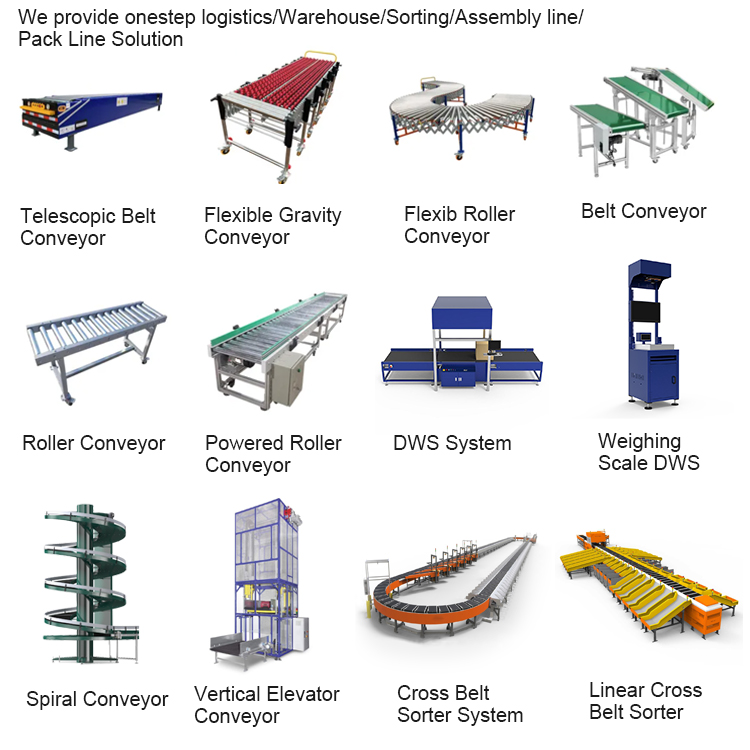

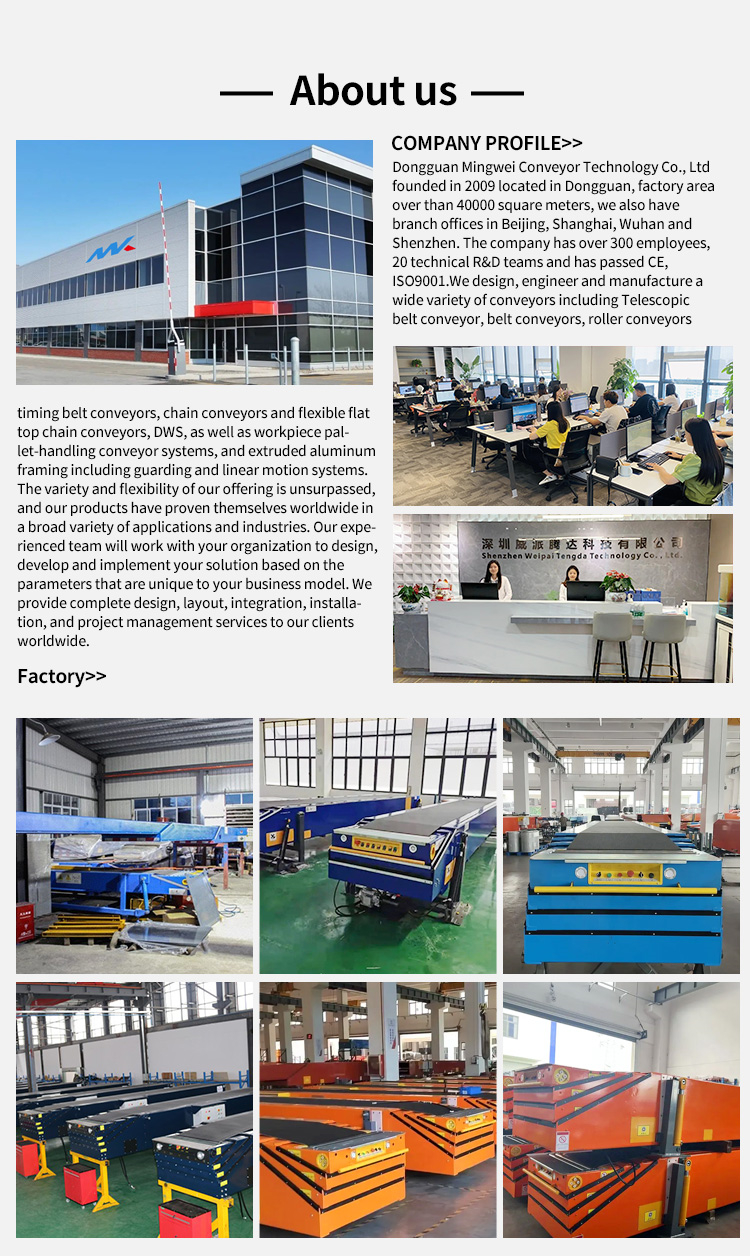

We design, engineer and manufacture a wide variety of conveyors including Telescopic belt conveyor, belt conveyors, roller conveyors, timing belt conveyors, chain conveyors and flexible flat top chain conveyors, DWS, as well as workpiece pallet-handling conveyor systems, and extruded aluminum framing including guarding and linear motion systems. The variety and flexibility of our offering is unsurpassed, and our products have proven themselves worldwide in a broad variety of applications and industries.

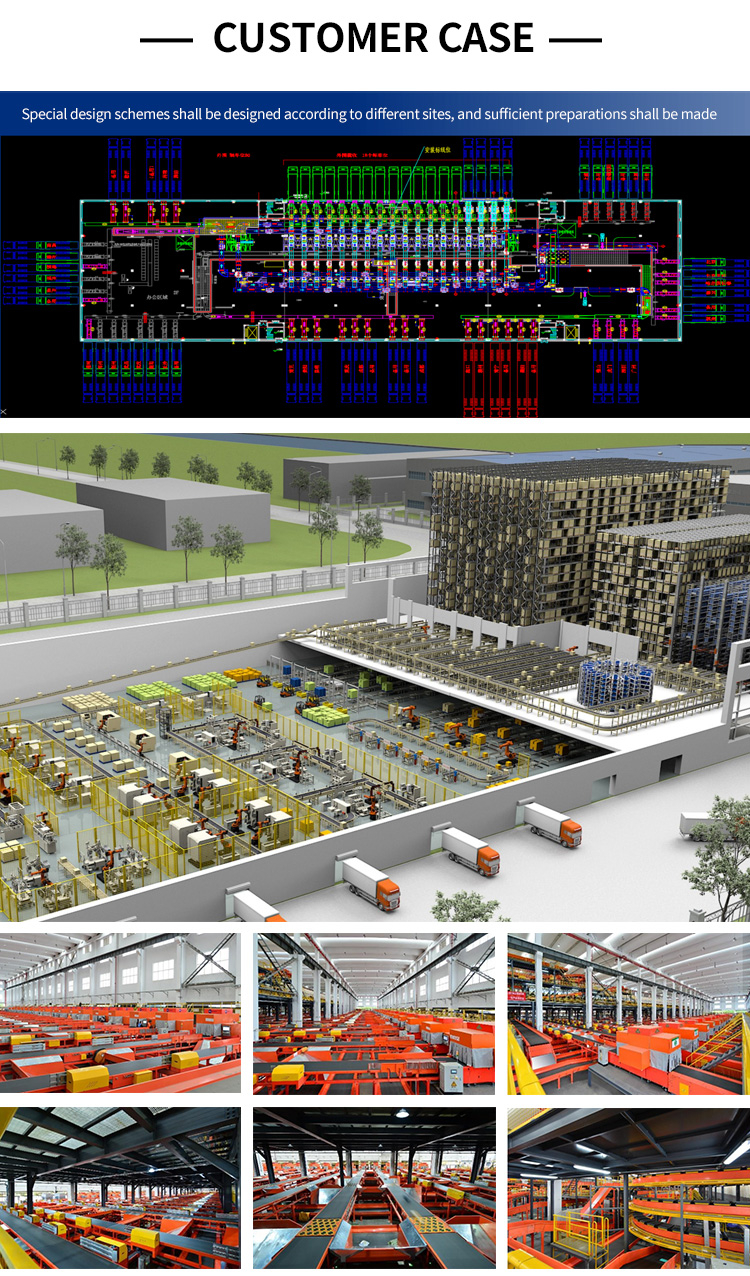

Our experienced team will work with your organization to design, develop and implement your solution based on the parameters that are unique to your business model. We provide complete design, layout, integration, installation, and project management services to our clients worldwide.
We welcome the opportunity to get involved early in your project. We have established strategic partnerships with our engineering affiliates to offer our clients complete design build capabilities. This often results in a streamlined project, based on input from the client, design team and engineering staff that delivers the efficiencies and storage requirements for the application.

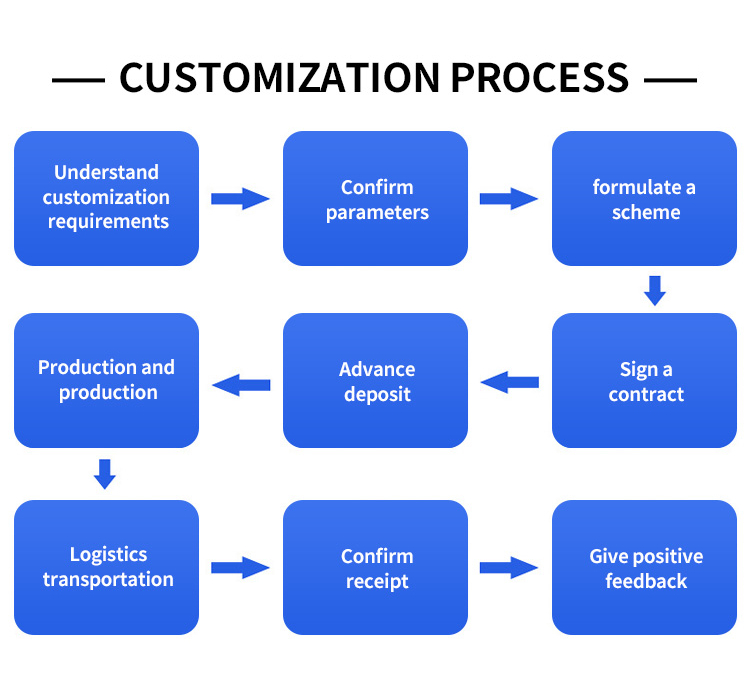

Customized Process
Frequently Asked Questions (FAQ)
Q1. What is your payment term?
A: Payment terms is T/T or other reasonable payment is acceptable.
Q2. What is your delivery time?
A: Our regular products delivery time is 40 calendar days. Customized products delivery time depends on the requirement of customer.
Q3. Can an extendable conveyor be used for both loading and unloading?
A: Yes. The belt can be run for both loading and unloading operations.
Q4. Can you perform OEM design?
A: Yes, we can do OEM and also print your logo directly on the machine.
Q5. Can you design according to our specific requirements?
A: Of course, we have a professional team of engineers dedicated to customized system design.
Q6. How do I know what type and quantity of logistics equipment I need?
A: You can provide us with your cargo type, cargo volume, weight size, and warehouse dimensions. Our professional engineer team will design the entire logistics equipment solution based on the information provided.
