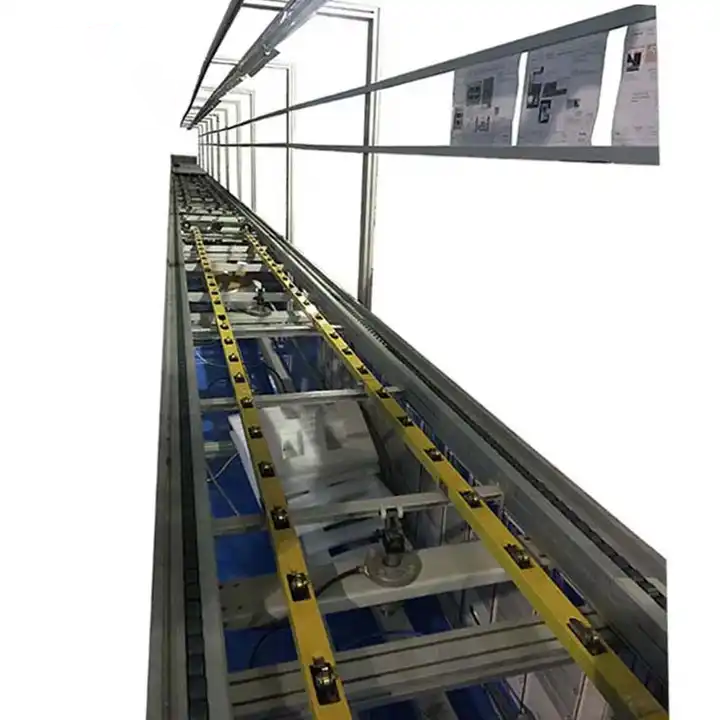

2025 Huayuan New Two-speed Chain Conveyor Automatic Computer Equipment Line

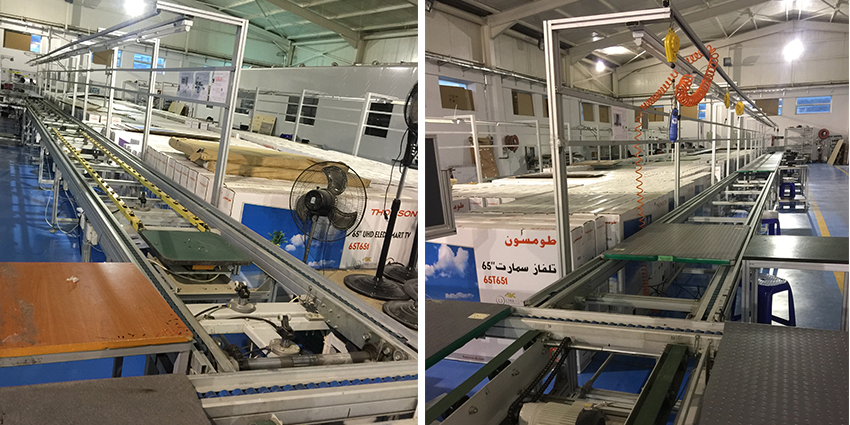

Products Overview

The computer equipment line is mainly used for the assembly, testing, aging and packaging of small and medium-sized products.

Wide Application of High-Speed Chain Conveyor:

Computer display production line

Computer host production line

Laptop computer assembly line

Air conditioning production line

TV assembly line

Microwave oven assembly line

Printer assembly line

Audio amplifier production line

Intelligent closing tool cover plate assembly line

Cleaning production line

Water purifier production line

Server production line

Engine assembly line

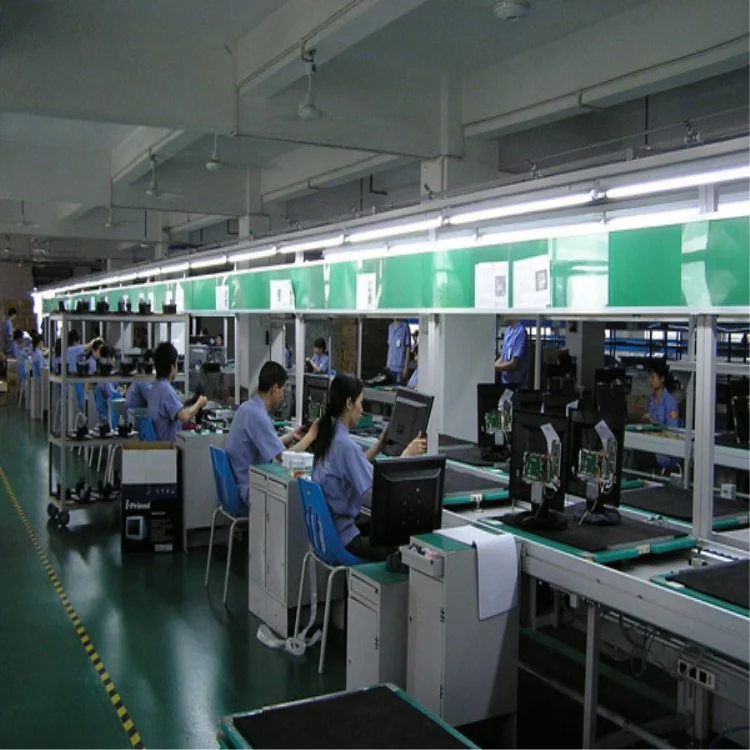

Double Speed Chain Assembly Line

This production facility is also known as double speed chain assembly line or differential speed chain assembly line. It can match with other settings to achieve different functions. If it is equipped with a lift to transport goods, it could achieve both transportation and storage purposes at the same time.

Computer Equipment Cable Specifications
Power	Electric motor, Air cylinder
Height	750-900mm
Load-bearing (Single)	1-300KG
Motor Power	750-2200W
Conveyor Speed	3-15m/min
Length of the assembly line	1-100m
Speed adjustment mode	Frequency Control
Frame Material	Iron square tube / Aluminium profile
Tooling plates material	Plank/PVC/Aluminium / Stainless steel plate
Display board	A4 hard rubber sleeve / Acrylic plate
Chain	2.5 or 3.0 speed chain
Light	16-40W(T8/T5)
Light frame	Hung ceiling / Stand column
Instrument material platform	Width: 300-400mm
Surface Treatment	Face of the Hardware: Stoving varnish
Distribution box	Metal plate distribution box

Metal Plate Distribution Box

Company Profile

Customers Visiting

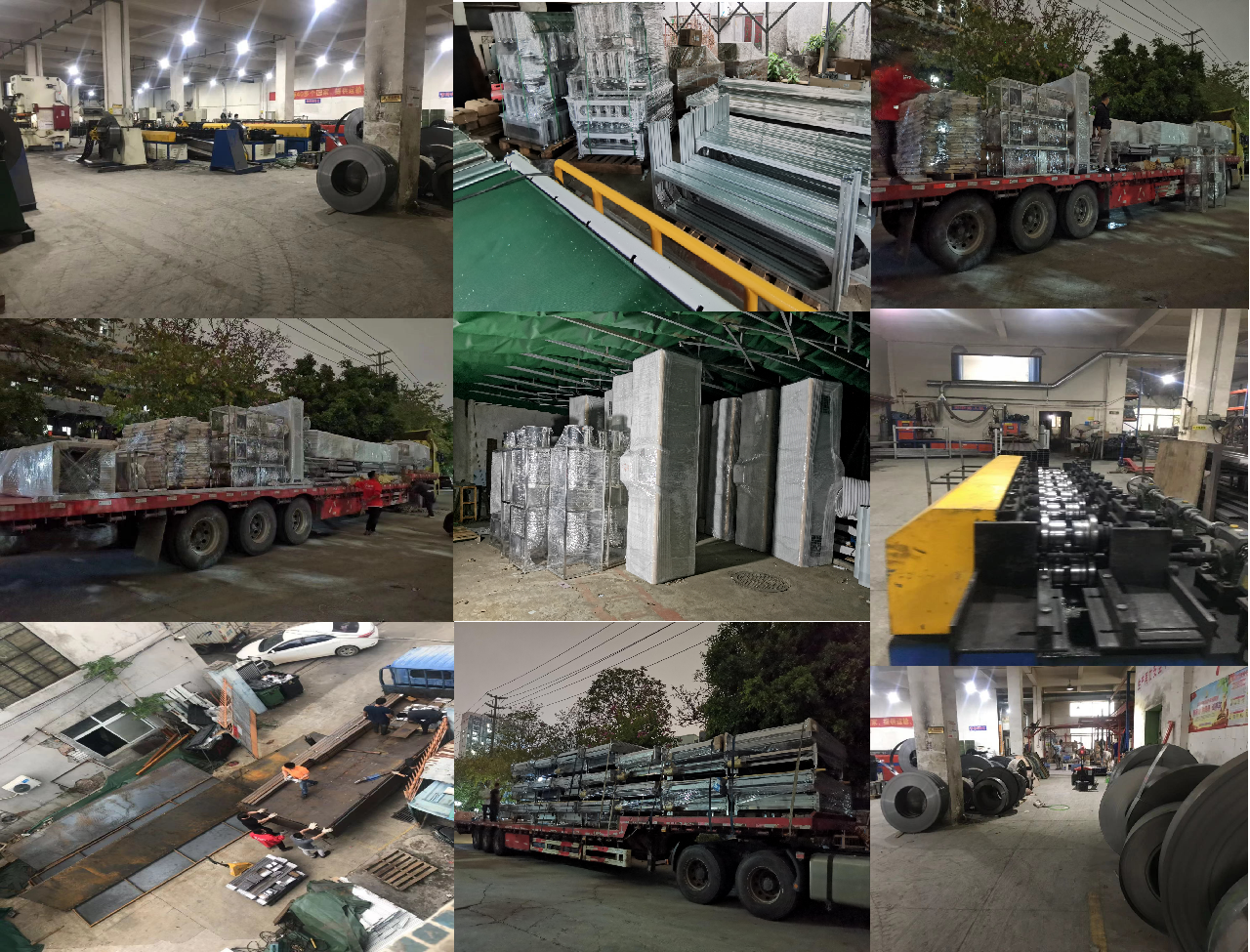

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

What are the primary applications of this computer equipment line?

This assembly line is mainly designed for the assembly, testing, aging, and packaging of small and medium-sized products. It is widely used in lines for computer displays, computer hosts, laptops, air conditioning systems, TVs, microwave ovens, printers, audio amplifiers, server units, engine assembly, and more.

What configurations and functions does the double speed chain assembly line support?

Also known as a differential speed chain assembly line, it can match with other settings to achieve diverse functions. For instance, when equipped with a lift, it can easily handle transport and storage simultaneously.

What are the standard structural materials used in the frame and tooling plates?

The frame is constructed using either iron square tubes or aluminum profiles. The tooling plates can be manufactured from plank, PVC, aluminum, or stainless steel plates, depending on your operational needs.

How is the conveyor speed managed, and what range does it support?

The conveyor speed ranges between 3 to 15 meters per minute. It utilizes a Frequency Control mode for smooth speed adjustment during operation.

What is the single-unit load-bearing capacity of this conveyor system?

The single-unit load-bearing capacity ranges from 1 KG up to 300 KG, allowing it to easily handle various lightweight to medium-weight products.

What steps are taken to ensure the safe delivery of the equipment?

To guarantee product safety during transport, professional, environmentally friendly, highly convenient, and efficient packaging services are provided for all deliveries.
