Intelligent Warehousing System Automated Storage Retrieval System Heavy Duty Industrial Warehouse Storage System ASRS

1 / 5

Intelligent Warehousing System Automated Storage Retrieval System Heavy Duty Industrial Warehouse Storage System ASRS

Send Inquiry

Product Description

One-stop solution

Structural design safety certificates, design solutions
Reduce costs, reasonable budget team, shorten the duration

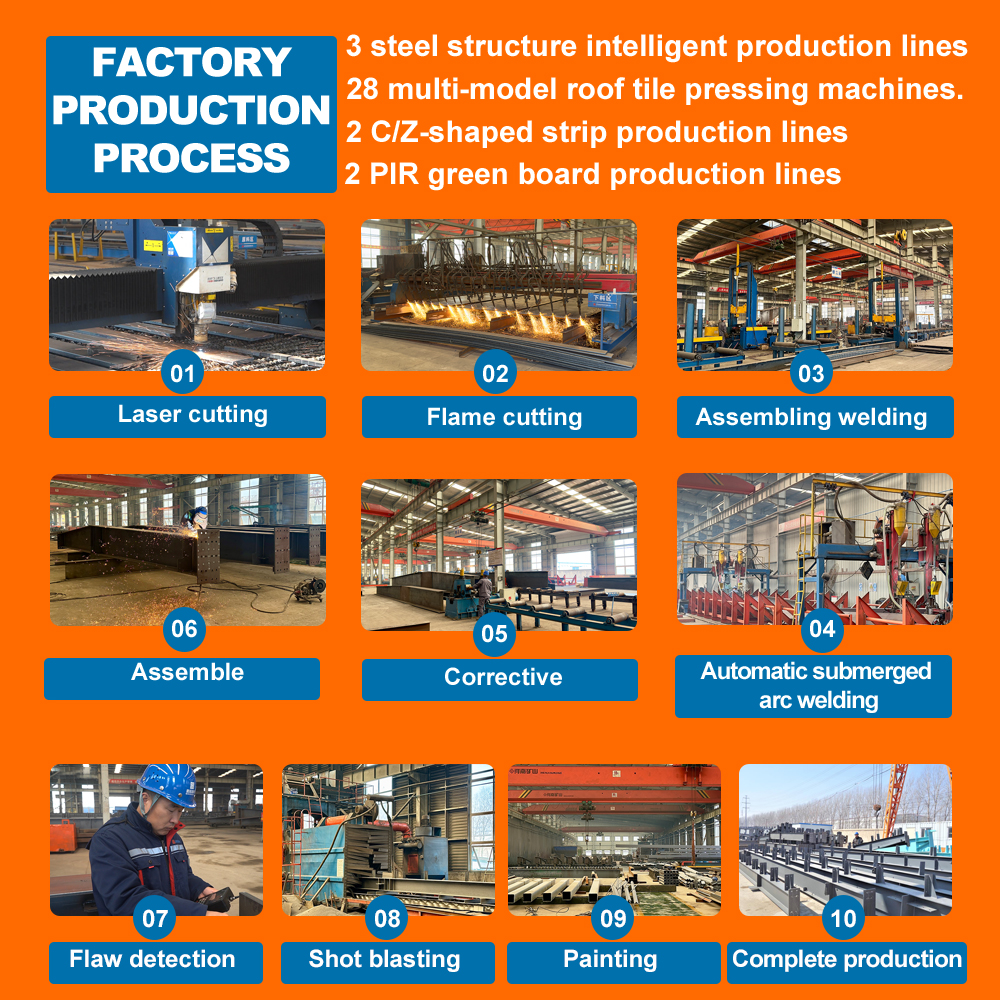

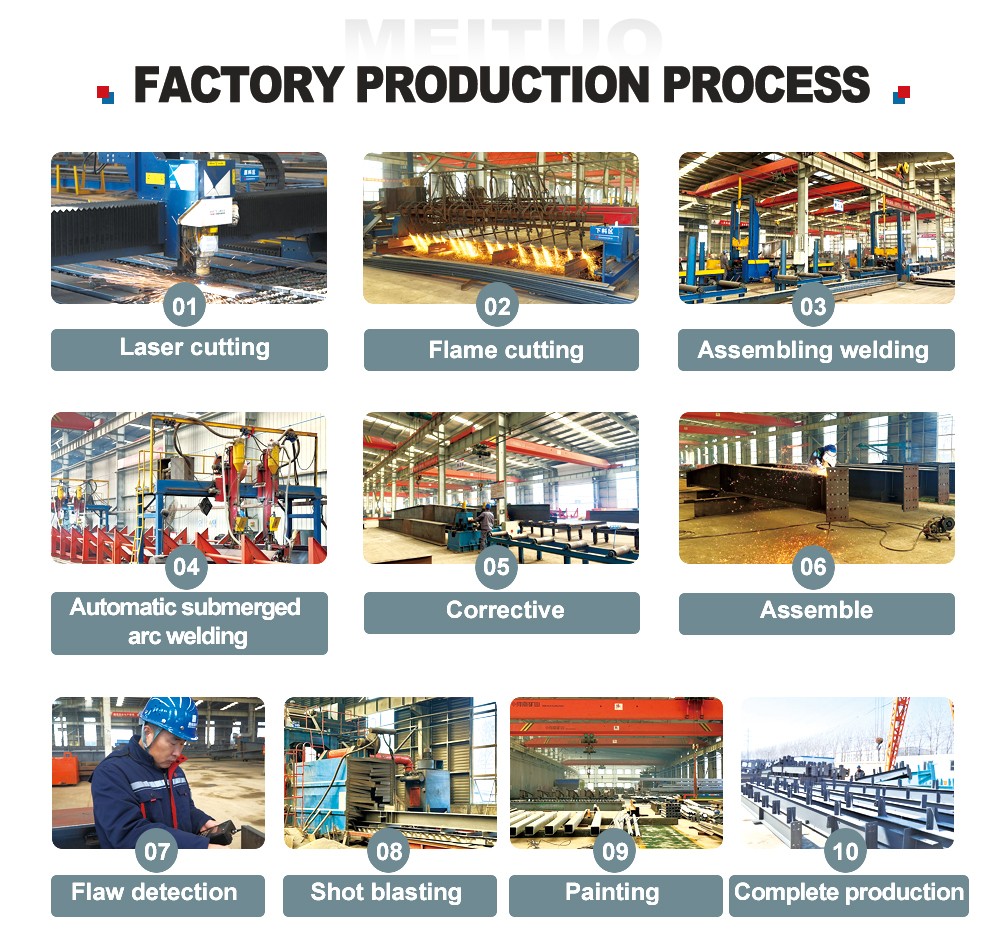

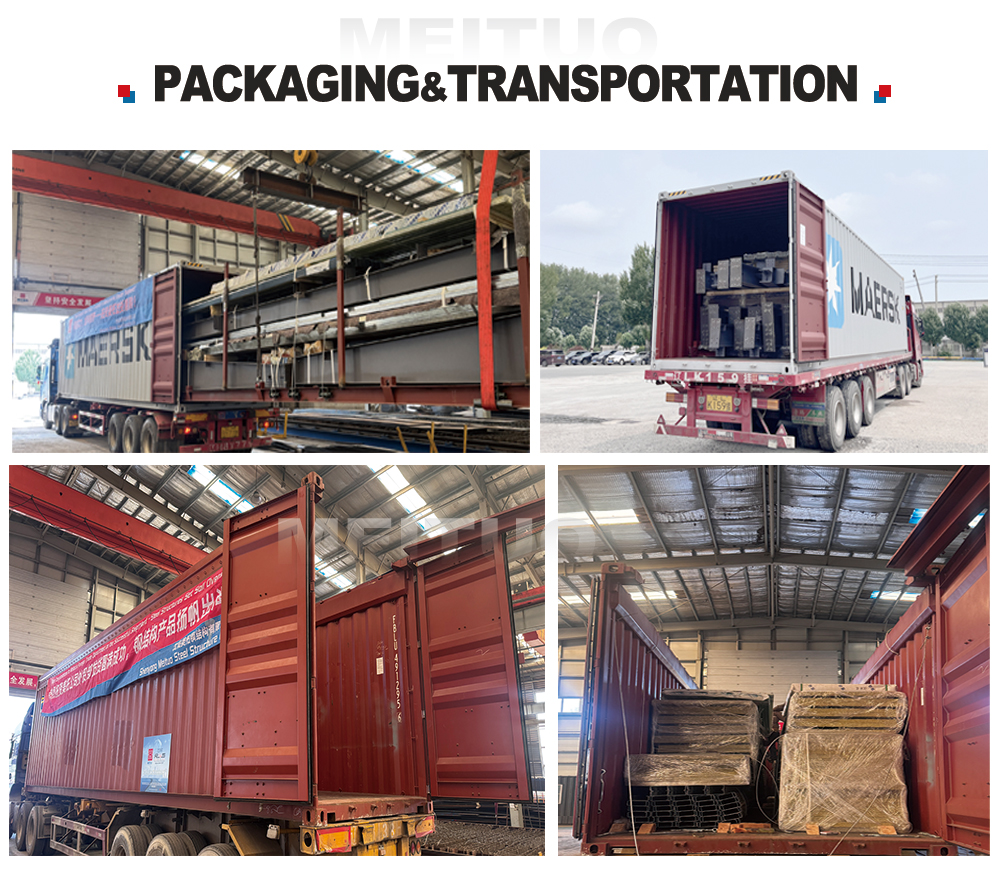

Whole process of project management Description from receipt of orders to design, production, quality control, packaging, delivery, installation guidance to ensure that the project is completed on time and in quality

Solutions (pain points and programs)

Design compatibility: Design standards are not compatible with local, our advantage: team engineers and other familiar with local specifications and design

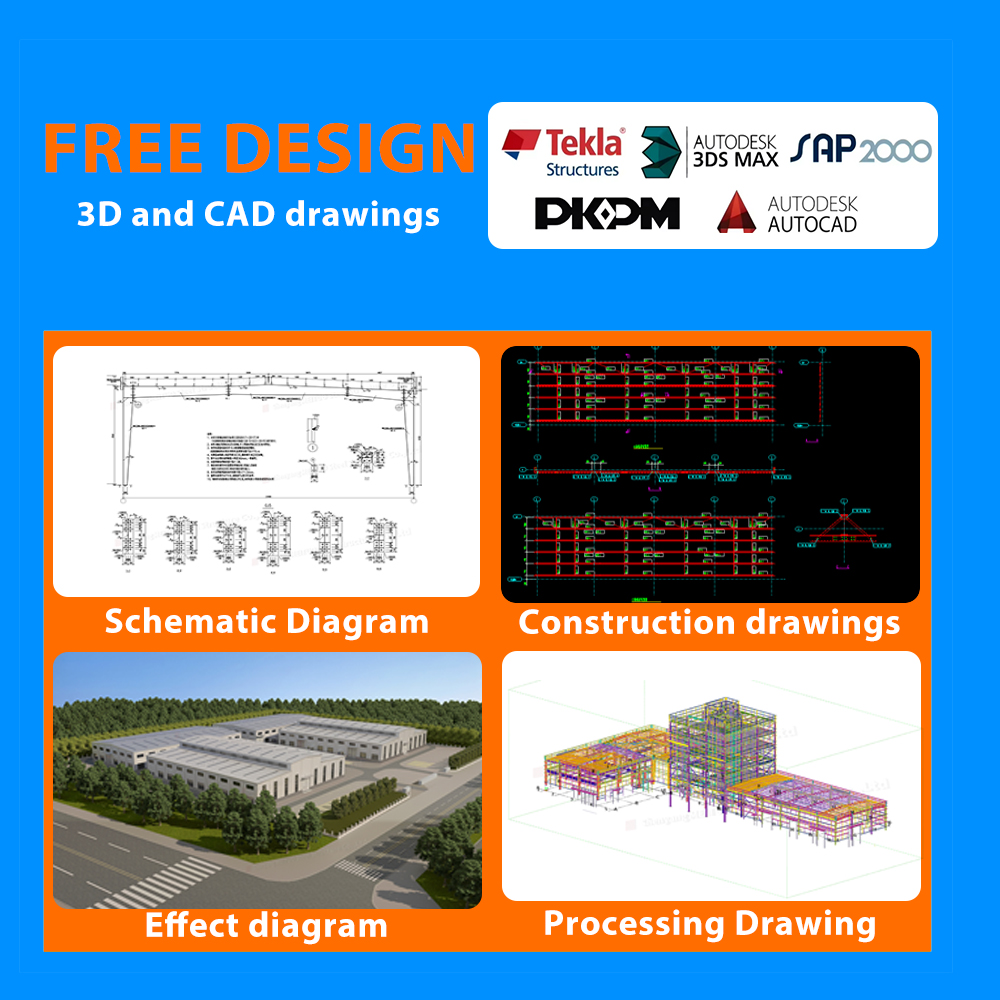

Installation Support: Worry about the lack of installation guidance, our advantage: provide installation drawings, etc.

Product Application Details

steel grade, design load, seismic grade, wind grade, fire rating requirements, etc.
Main Steel Q355B / Q235B High Strength Structural Steel: Ensure structural safety and stability in accordance with international standards.
Surface treatment: hot dip galvanizing / antirust paint (specify thickness and standard) → excellent anti-corrosion properties and rust prevention, prolonging the service life of the building and reducing maintenance costs.

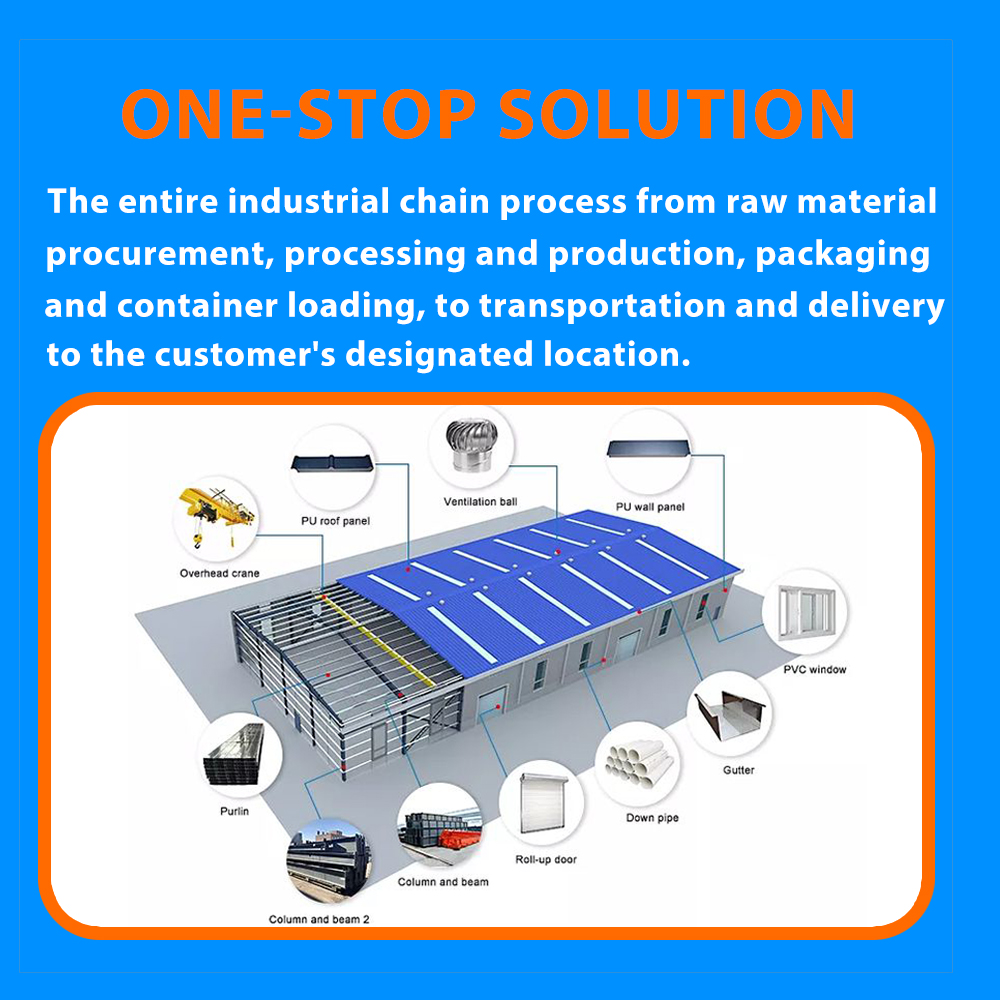

Structure & Materials Specification

Structure		Material	Details
Main Structure	Frame Columns and Beams	Q235B/Q355B Equivalent to S355JR, ASTM A572 Grade 50
	End Wall Column	Q235B/Q355B
	H-beam welding (columns and beams)	Automatic Submerged Arc Welding
	Rust Removal	Shot Blasting
	Surface Processing	Alkyd Paint/Epoxy Zinc Rich/Galvanized
	High-Strength Bolt	Grade 10.9/8.8
	Common Bolt	Grade 4.8
Secondary Structure	Flange Brace	Angle Steel
	Horizontal Support	Angle/Round Steel
	Vertical Support	Angle/Round Steel
	Tie Rod	Angle/Round Steel
	Tie Bars	Round Steel/Casing/Shaped Steel
	Purlin	Galvanized Z-beam/C-beam
Enclosure system	Roofing system	Roofing Materials	360°Locking Seam System / Locking Screw System / Composite Panel Roofing / Rockwool Maintenance System
		Daylighting Band	FRP Plate
		Gutter (inside/outside)	Stainless Steel/Colored Steel Plate
		Rain Pipe	PVC Pipe/Colour Steel Rainwater Pipe
	Wall System	Wall Materials	Locking Screw System / Composite Panel Wall / Rockwool Maintenance System
		Accessories	Sealant, Self-tapping Self-drilling Screws, etc.
		Edge Flashing	Color Plate/Stainless Steel
Others	Ventilator	Powered/Unpowered Axial Flow Ventilators	Customizable
	Ventilation tower	Finished Product	Customizable
	Door	Electric Rolling Door/Sliding Door/Fireproof door/Industrial Sliding Doors / Industrial Lift-Up Doors / Industrial High-Speed Stacking Doors / Aluminum Alloy Doors / Wooden Doors / Steel Fire-Rated Security Doors	Customizable
	Window	Aluminum Alloy/plastic Steel Window/Fireproof Window	Customizable

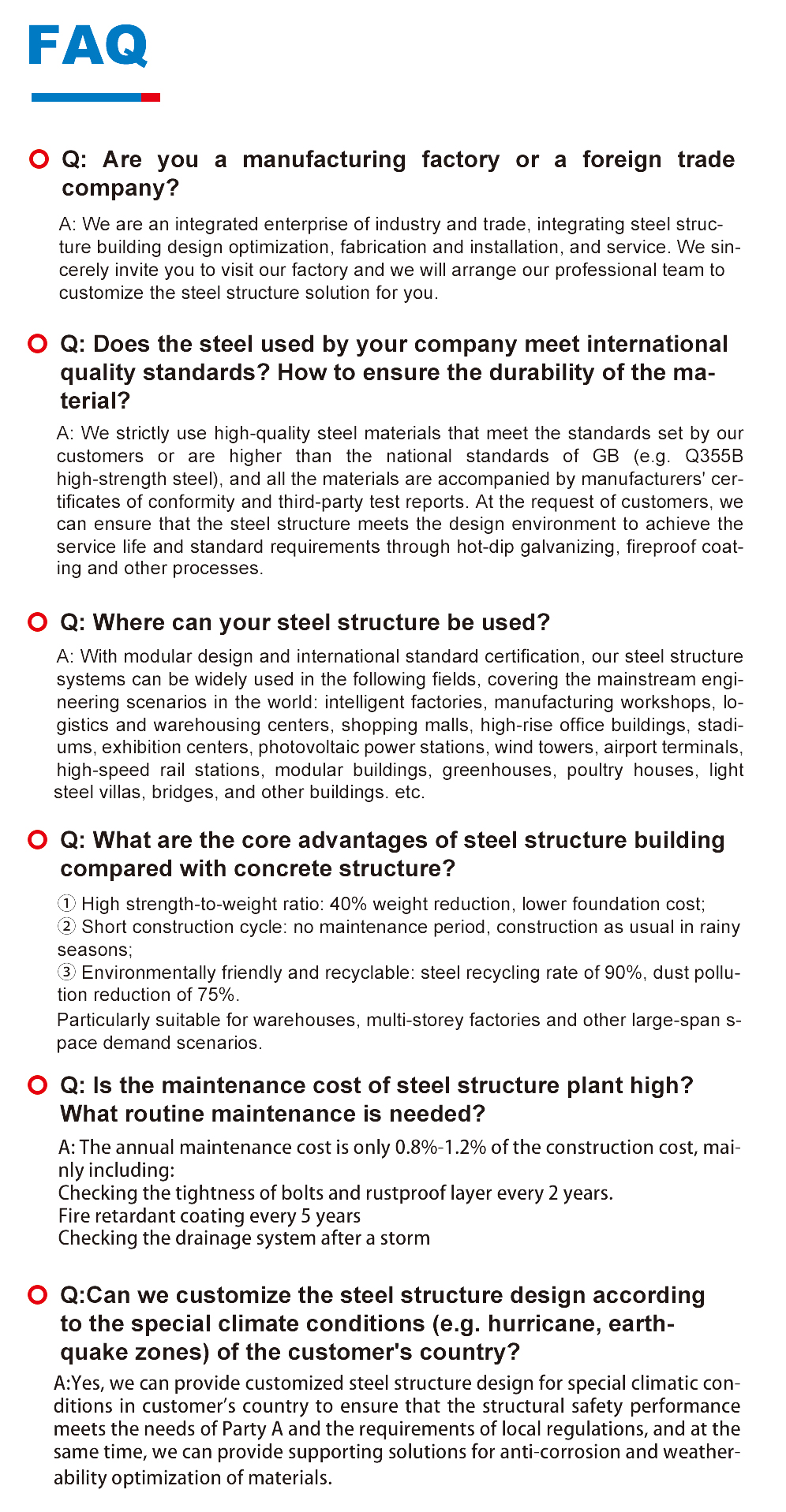

Frequently Asked Questions (FAQ)

1. How do you resolve local design standard compatibility issues?

Our design engineering team is highly familiar with different regional design codes and international specifications. We adapt our layouts to match your local regulations, ensuring smooth approval and safety compliance.

2. What assistance do you offer for installation?

We supply detailed, step-by-step structural installation drawings and guidance files, helping your local crew assemble the elements with confidence and accuracy.

3. What types of steel materials and protective finishes are used?

We primary employ Q355B and Q235B high-strength structural steel. The finishes include hot-dip galvanizing and multi-layer anti-rust paints to ensure durable corrosion resistance and minimal structural maintenance over time.

4. What is included in your one-stop solution workflow?

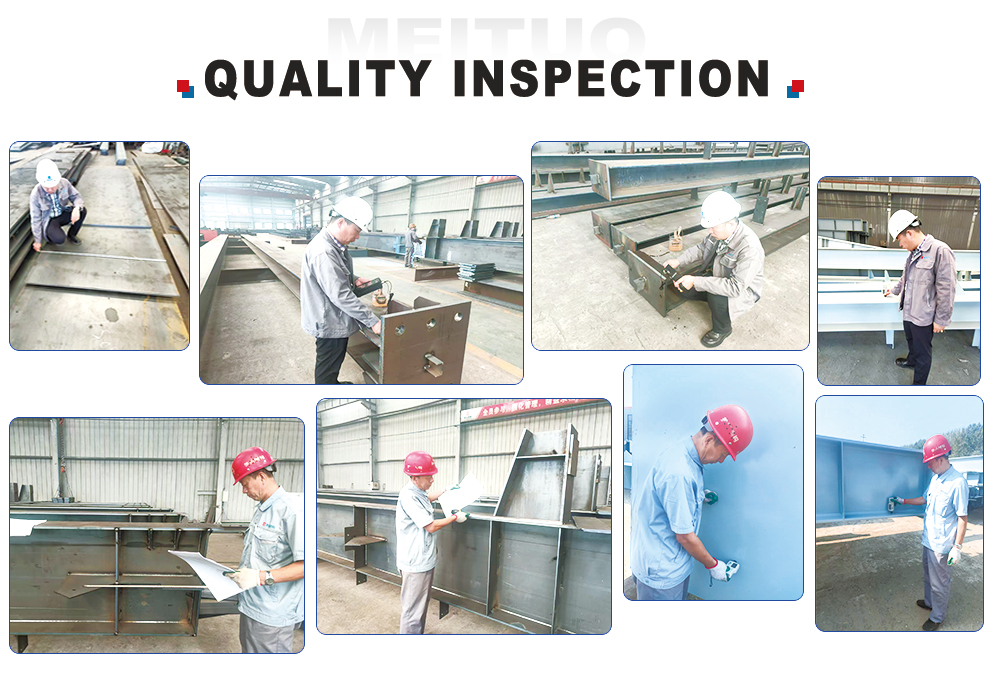

We manage the full cycle of your project: including structural design safety certification, manufacturing, thorough quality control inspections, optimized packaging, shipping logistics, and final installation guidance.

5. Are secondary systems like doors, windows, and ventilators customizable?

Yes. All accessory systems, including electric rolling doors, industrial sliding doors, fireproof windows, and powered or unpowered ventilators, are fully customizable in terms of size, standards, and layout configuration.

6. How are project budgets and schedules optimized?

Our integrated engineering and fabrication team works to reduce raw material waste and shorten lead times. Detailed coordination minimizes unexpected delays, keeping the project within budget constraints.
