Palletizers are specialized equipment used in automated warehousing and production line back-end systems. They neatly stack bagged and boxed materials onto pallets according to a fixed arrangement, replacing manual palletizing. They are widely used in the grain, feed, fertilizer, cement, food, chemical, and building materials industries.
Palletizer Classifications

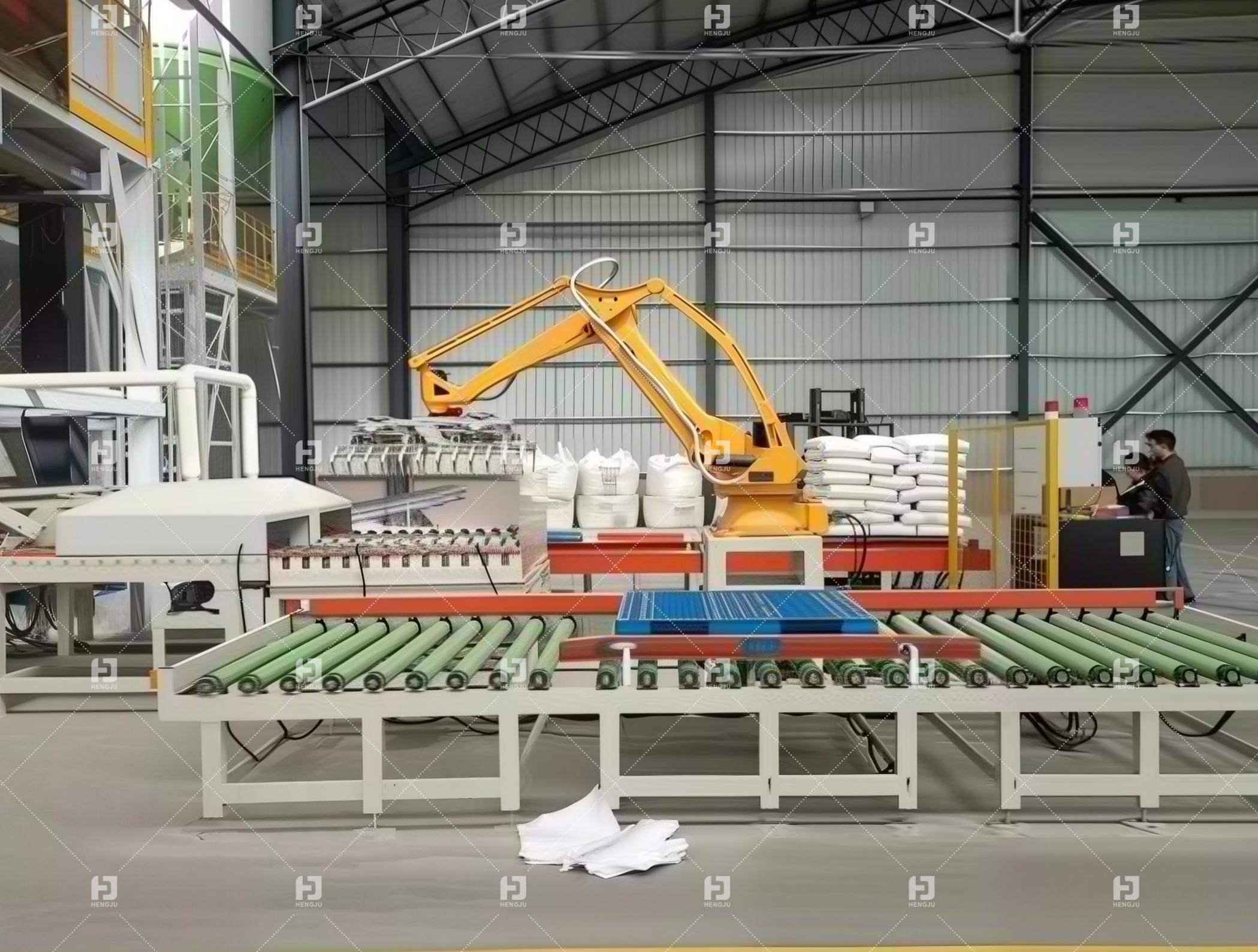

1. Robotic Arm Palletizer
A six-axis robotic arm provides flexible multi-station operation, capable of simultaneously palletizing multiple production lines and various specifications; high palletizing efficiency.

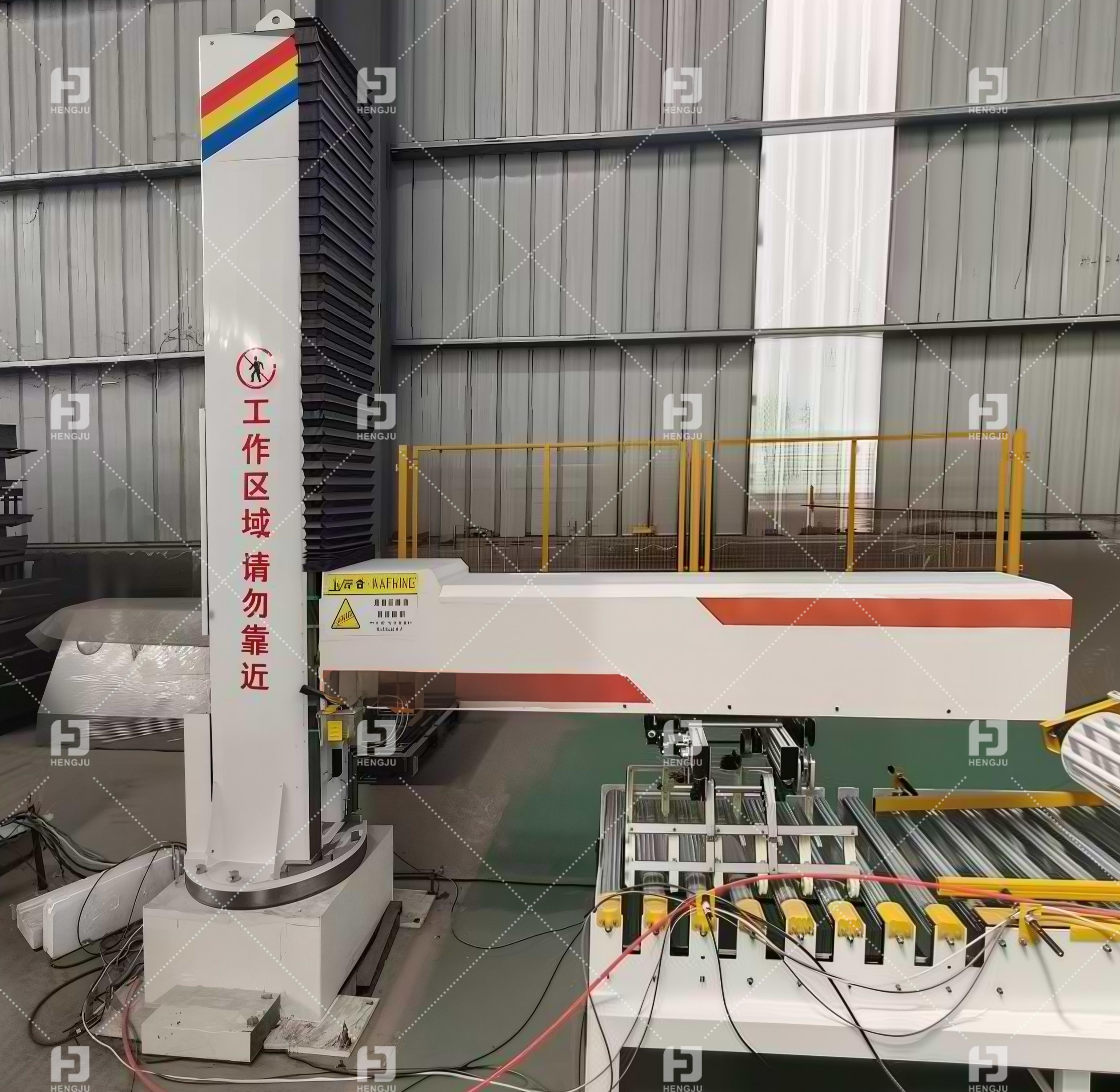

2. High-Position Straight Arm Double station Palletizer
The high palletizing column allows for layered stacking of finished products on both sides of the palletizer.

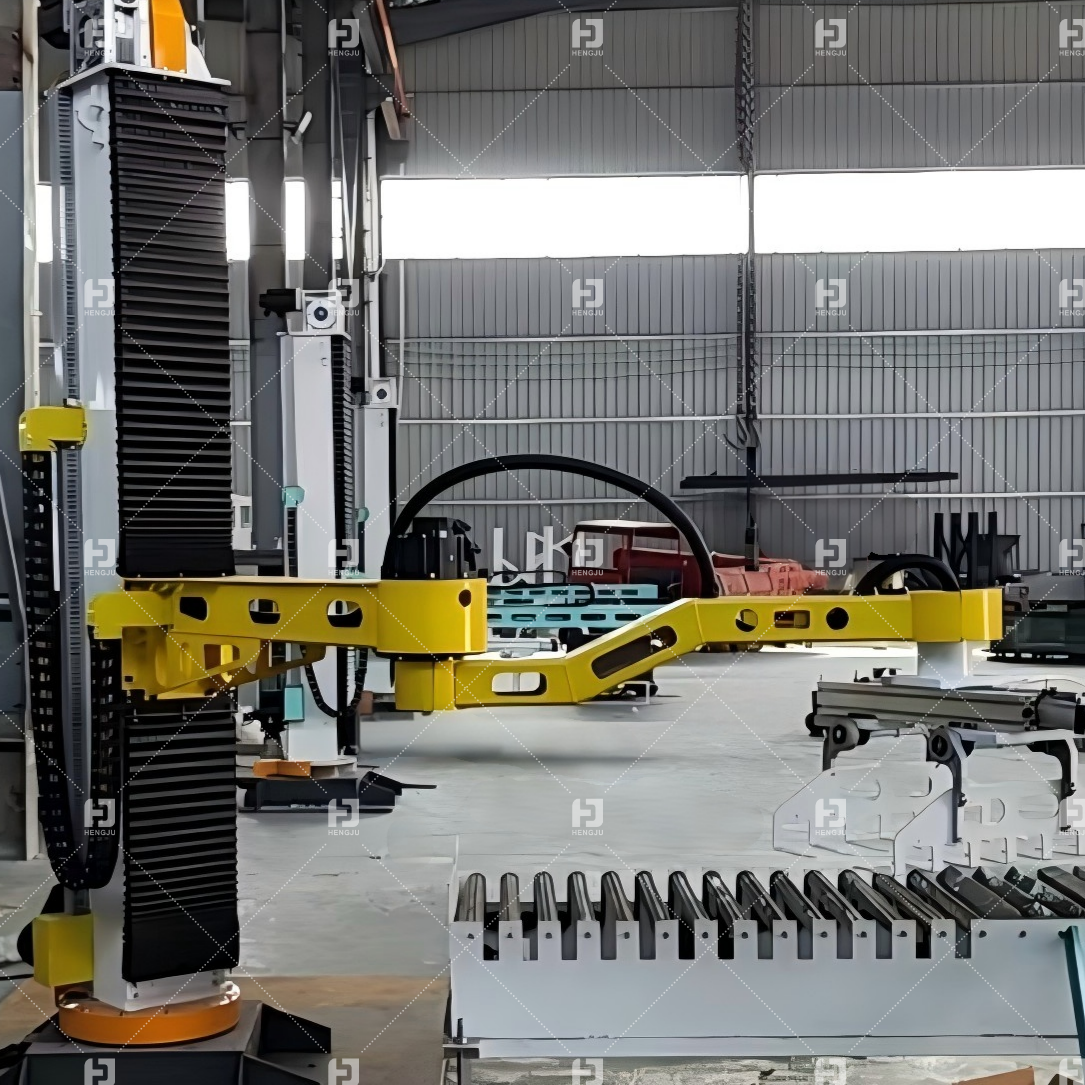

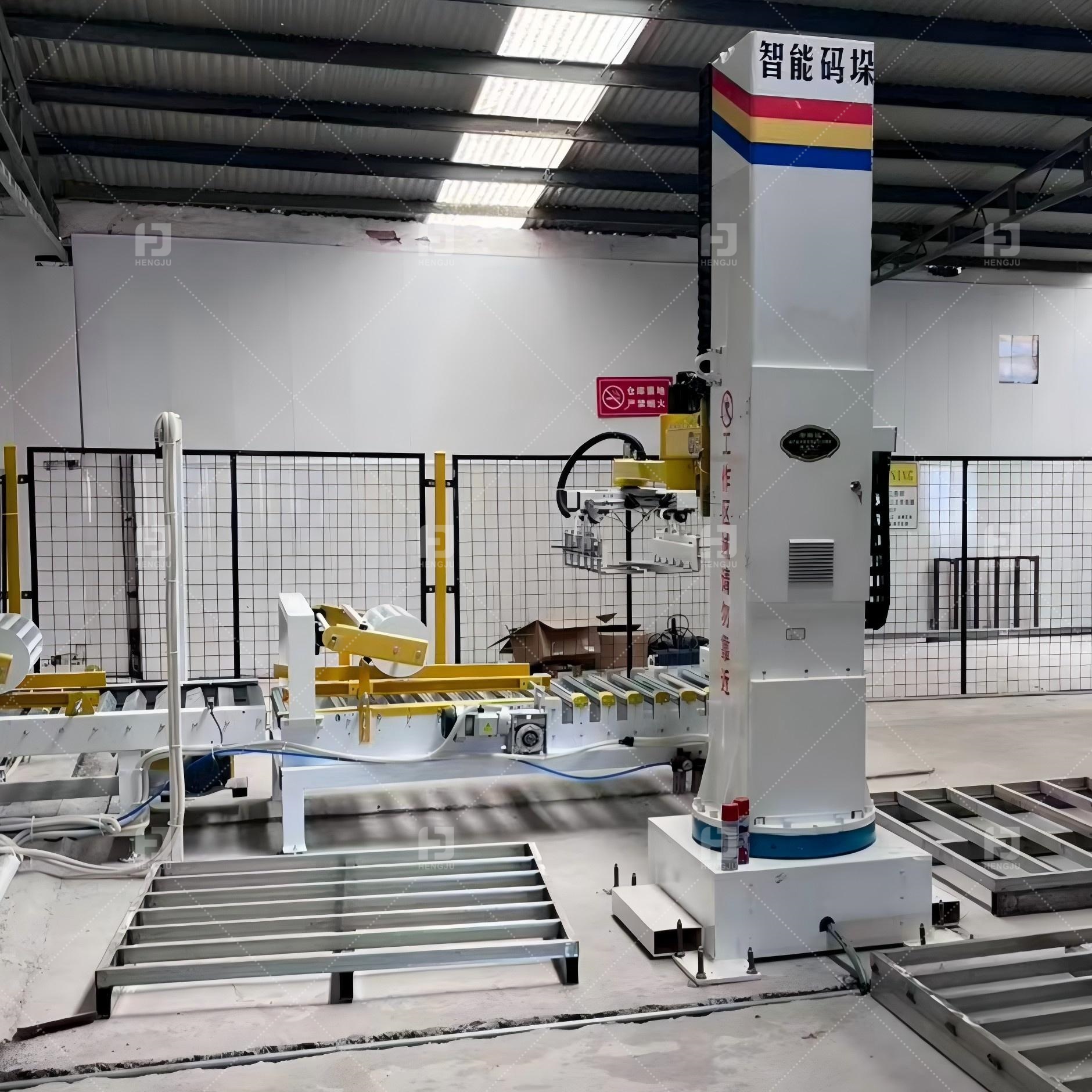

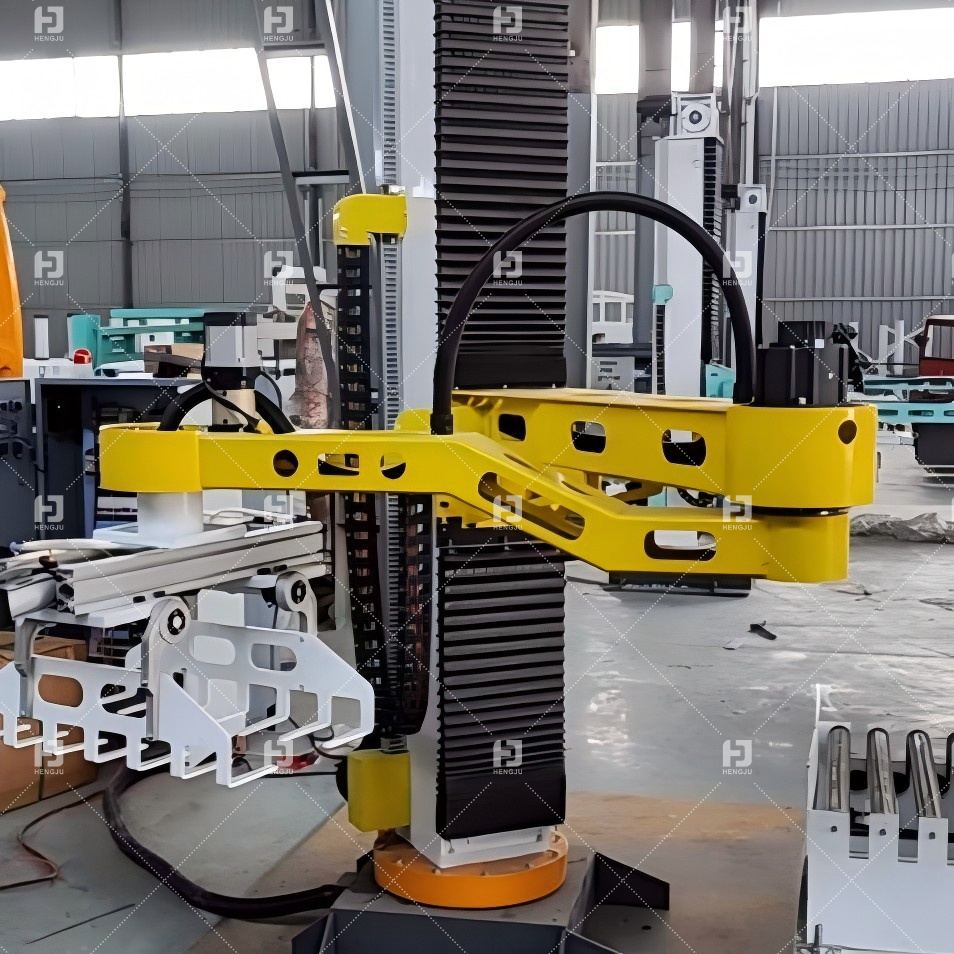

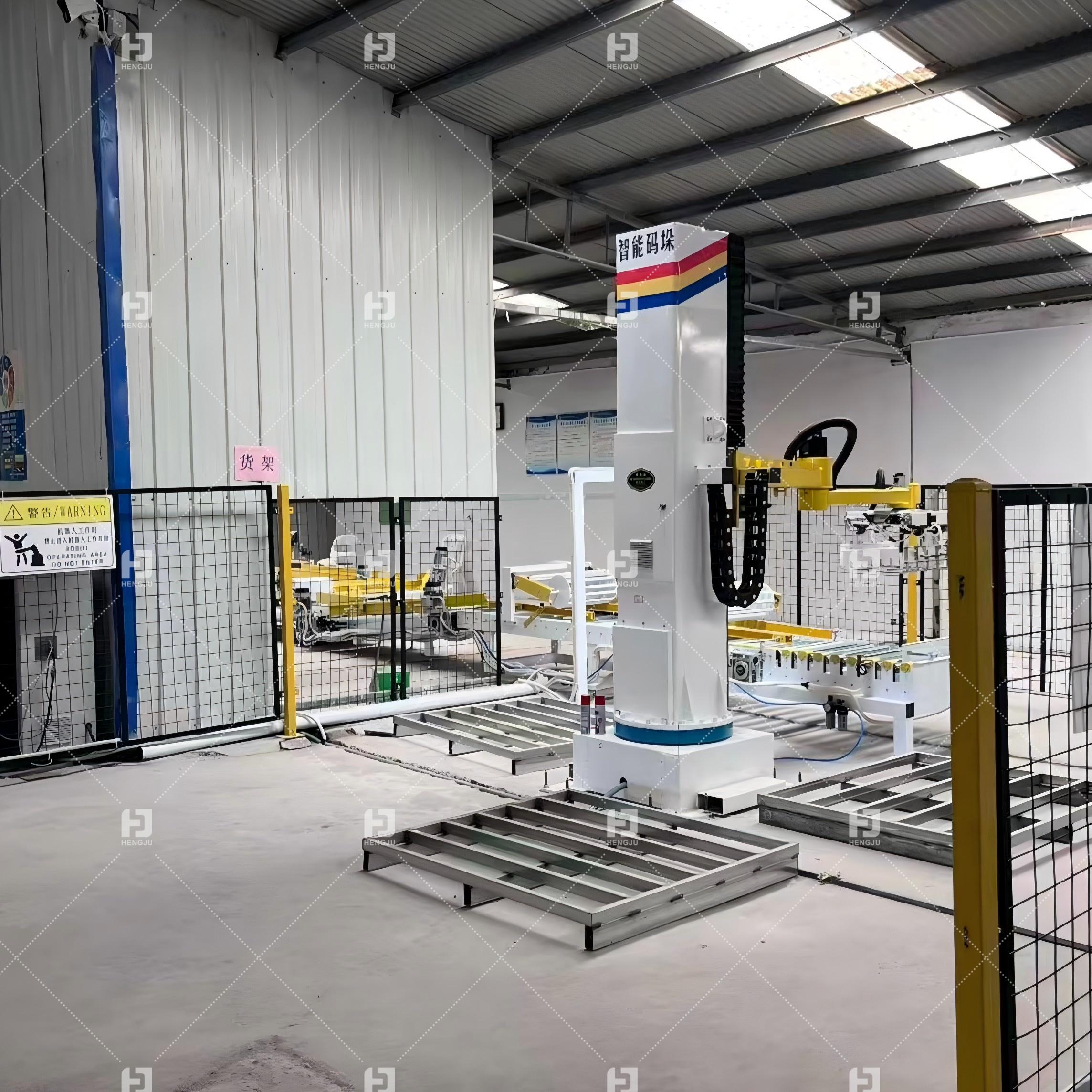

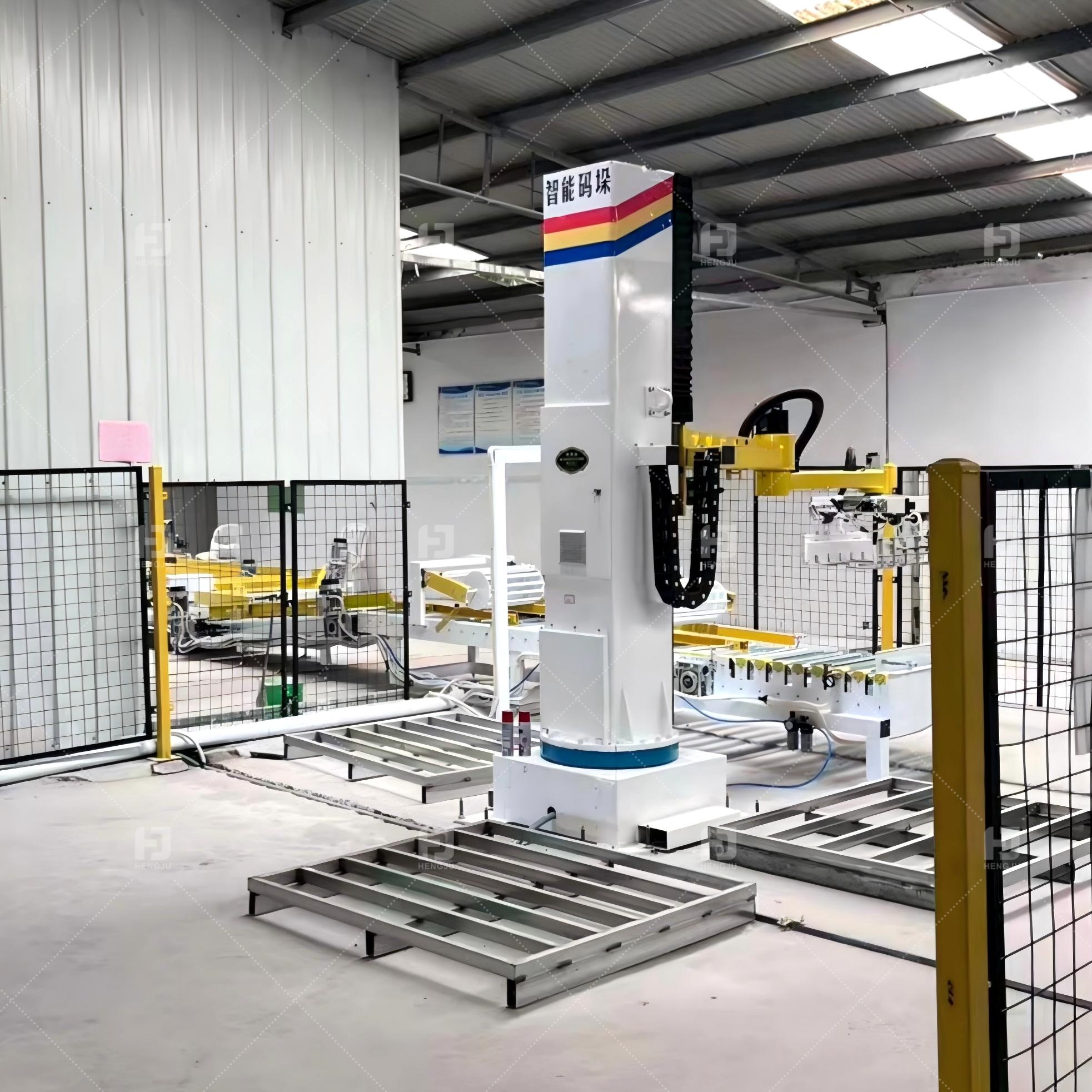

3. High-Position Rotary Arm Double station Palletizer
Small footprint, making it the preferred choice for palletizing in confined spaces.
Working Process & Components
Step 1

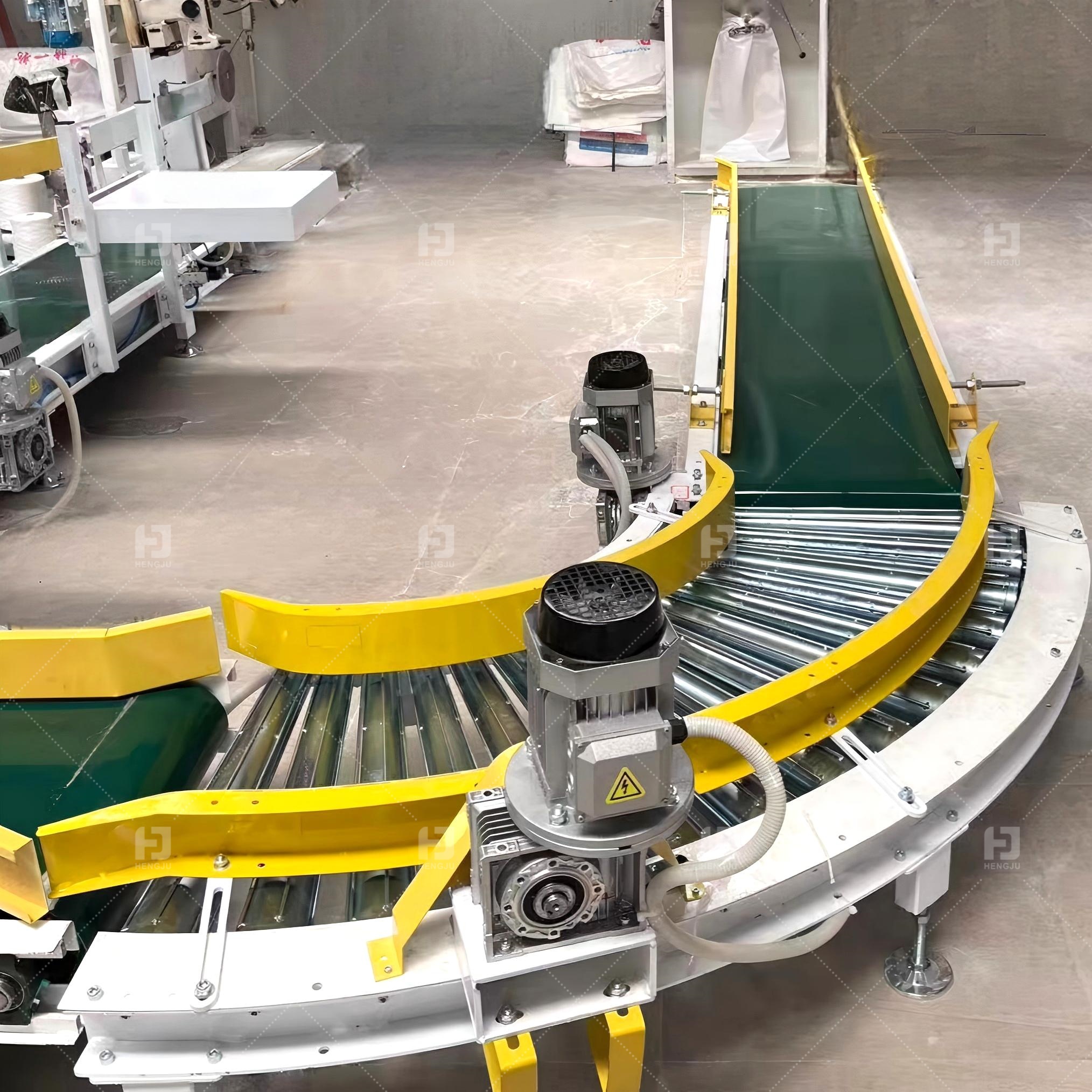

Low-speed conveyor
The packaged bags/boxes are smoothly transported from the sewing machine/sealing machine to the pushing, shaping, and grabbing station, and also serve as a buffer and queueing mechanism.
Step 2
Push-down conveyor
After being quantitatively packaged, the bagged materials are in an "standing" state. A pusher conveyor is used to push the bagged materials to a horizontal position to facilitate the next step of the operation.
Step 3
Shaping
Bags that are fluffy, crooked are flattened and degassed by the upper pressure rollers of the shaping conveyor, and then vibrated and aligned by the rotating rods at the bottom, ensuring that the stack is square, stable, and aesthetically pleasing, making it easier to handle.
Step 4
Scraping & Gripping
The system reliably picks up materials from the conveyor line without dropping or damaging them, and delivers them to the designated location on the pallet. It uses alloy grippers, which are durable and sturdy, offering high gripping accuracy. The column-type palletizer can handle 350-400 bags/hour; the palletizing robot can handle 800-1000 bags/hour.
Technical Parameters
Model
Palletizing capacity (bags/h)
Load capacity (kg/bag)
Machine footprint (m)
Straight Arm Palletizer
350-400
≤80 (Customizable available)
6 * 5.8 * 3
Rotary Arm Palletizer
350-400
≤80 (Customizable available)
6 * 5.8 * 3
Palletizing Robot
800 - 1000
≤80 (Customizable available)
7 * 6.3 * 3.5
Applications & Industries
Palletizers are widely used in food, grain and oil, feed and fertilizer, chemical building materials, pharmaceuticals and electronics, logistics and warehousing, and new energy and rubber and plastics industries. They can automatically stack different packaging materials such as cartons, woven bags, plastic drums, and ton bags. They include columns and robots and can adapt to various working conditions such as dust, low temperature, corrosion and explosion protection, replacing manual labor to complete the palletizing and warehousing operations at the end of the production line.
Factory Gallery & Project Cases
Frequently Asked Questions
Q: Are the machines you produce all of a uniform standard?
A: We will customize the machine for you according to your requirements.
Q: How to choose the right machine?
A: Please tell us your raw materials for production and the output you need as well as other requirements, we will recommend the most suitable products for you.
Q: How is the machine installed?
A: Under normal circumstances, we provide the whole machine for delivery. We will provide detailed installation drawings for each machine. We can also arrange technicians to go to the site to guide the installation.
Q: What about the supply of main parts?
A: Spare parts will always be available at cost and a spare parts list will be provided when you purchase the machine.
Q: Do you test the machine before shipping?
A: Yes, we will test each machine and production line before shipment, and send you working video. You can also inspect your purchased machine at our factory before delivery.
