The barcode scanning cabinet meets the business requirement for automated and precise management of items through barcode scanning technology. It is suitable for various scenarios such as power line inspection, railway maintenance, warehousing and logistics, machinery manufacturing, fire safety, tool warehouses, and maintenance workshops. Users can quickly complete the operations of taking out and returning items by scanning QR codes or barcodes, which simplifies the access process.
It supports multiple authentication methods, such as facial recognition, fingerprint recognition, IC cards, and passwords, ensuring that only authorized personnel can access specific items. Every access operation will be recorded, generating detailed usage audit logs for easy tracking and auditing.

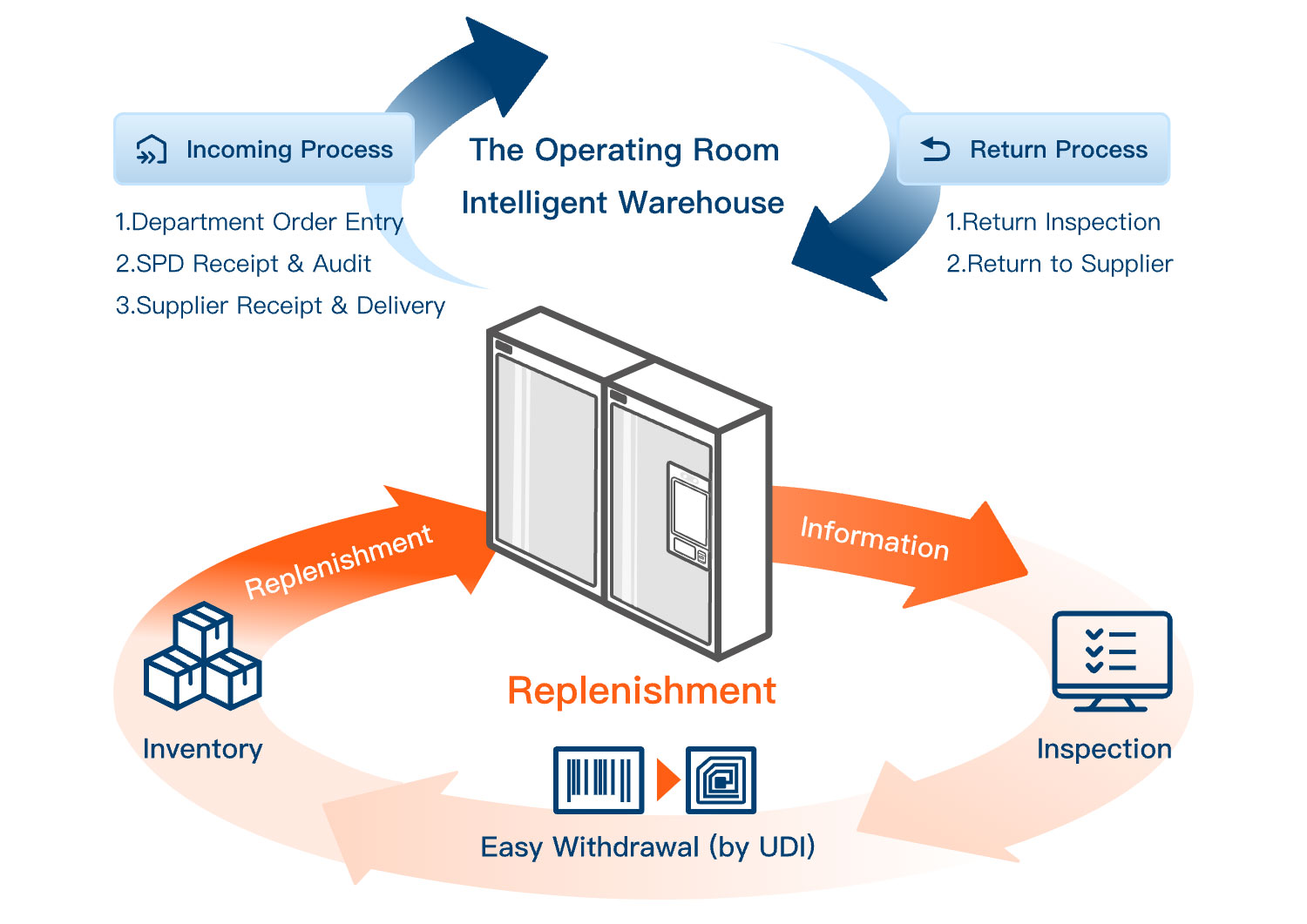

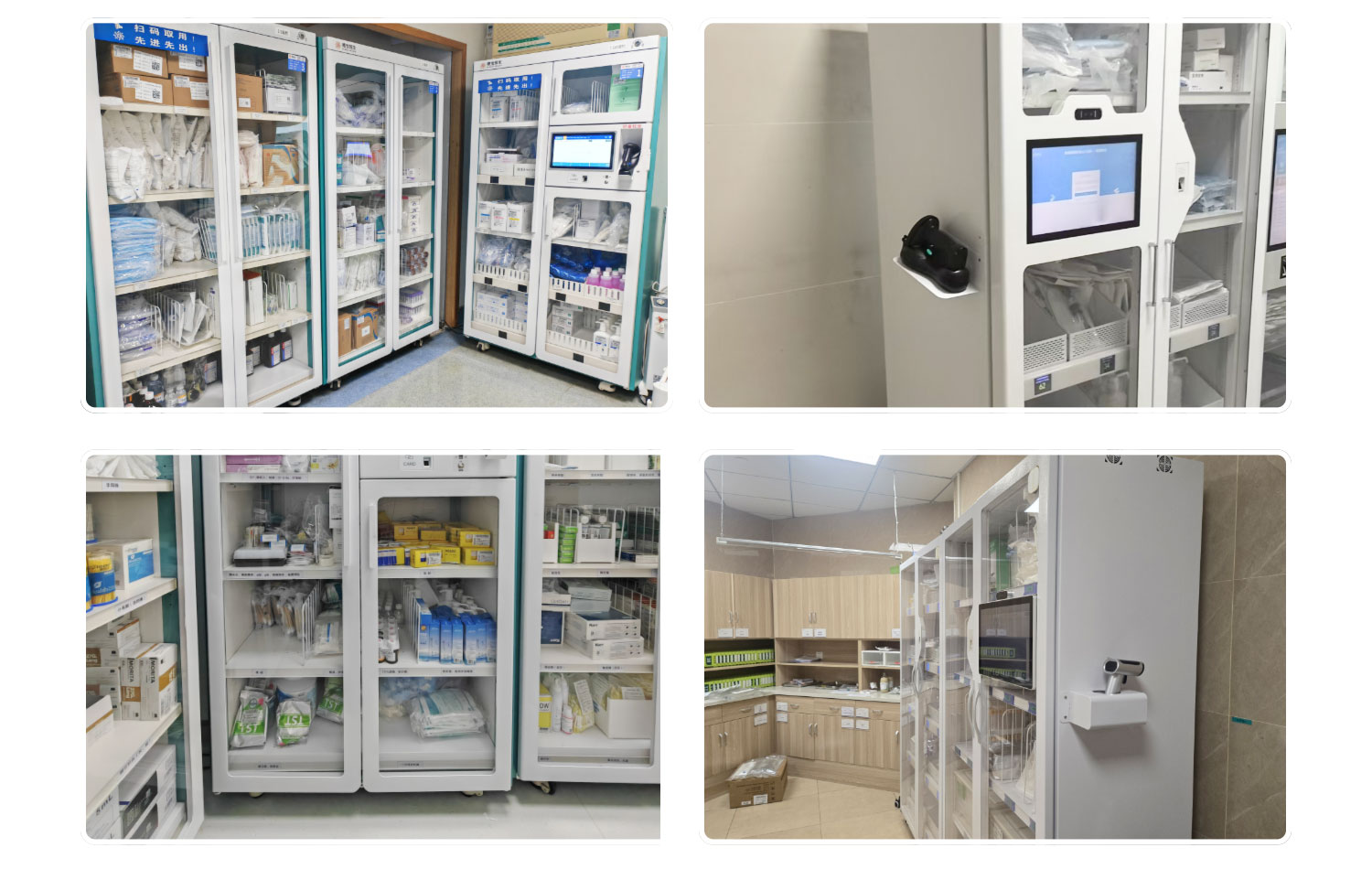

APPLICATION SCENARIOS

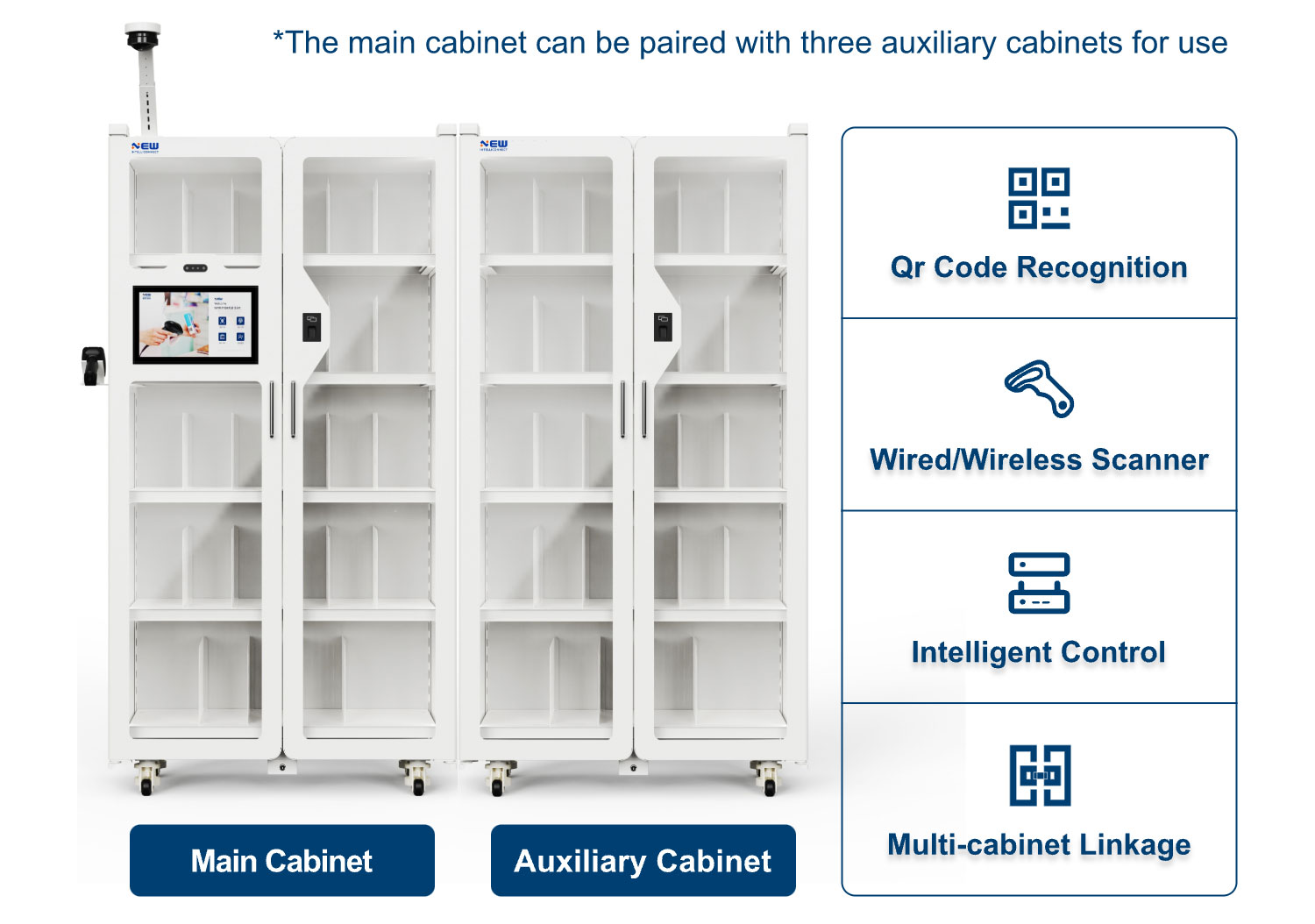

*The main cabinet can be paired with three auxiliary cabinets for use
Improve Efficiency
The automated process reduces manual operations and enhances work efficiency.
Reduce Costs
Precise inventory management minimizes the risks of excess inventory and stockouts, thus reducing operating costs.
Enhance Security
Through permission management and data tracking, the security and traceability of items are enhanced.
Easy Maintenance
The modular design facilitates maintenance. It also supports subsequent expansion and upgrading to meet the needs of different development stages.
OPTIONAL
SPECIFICATIONS
Basis
Article

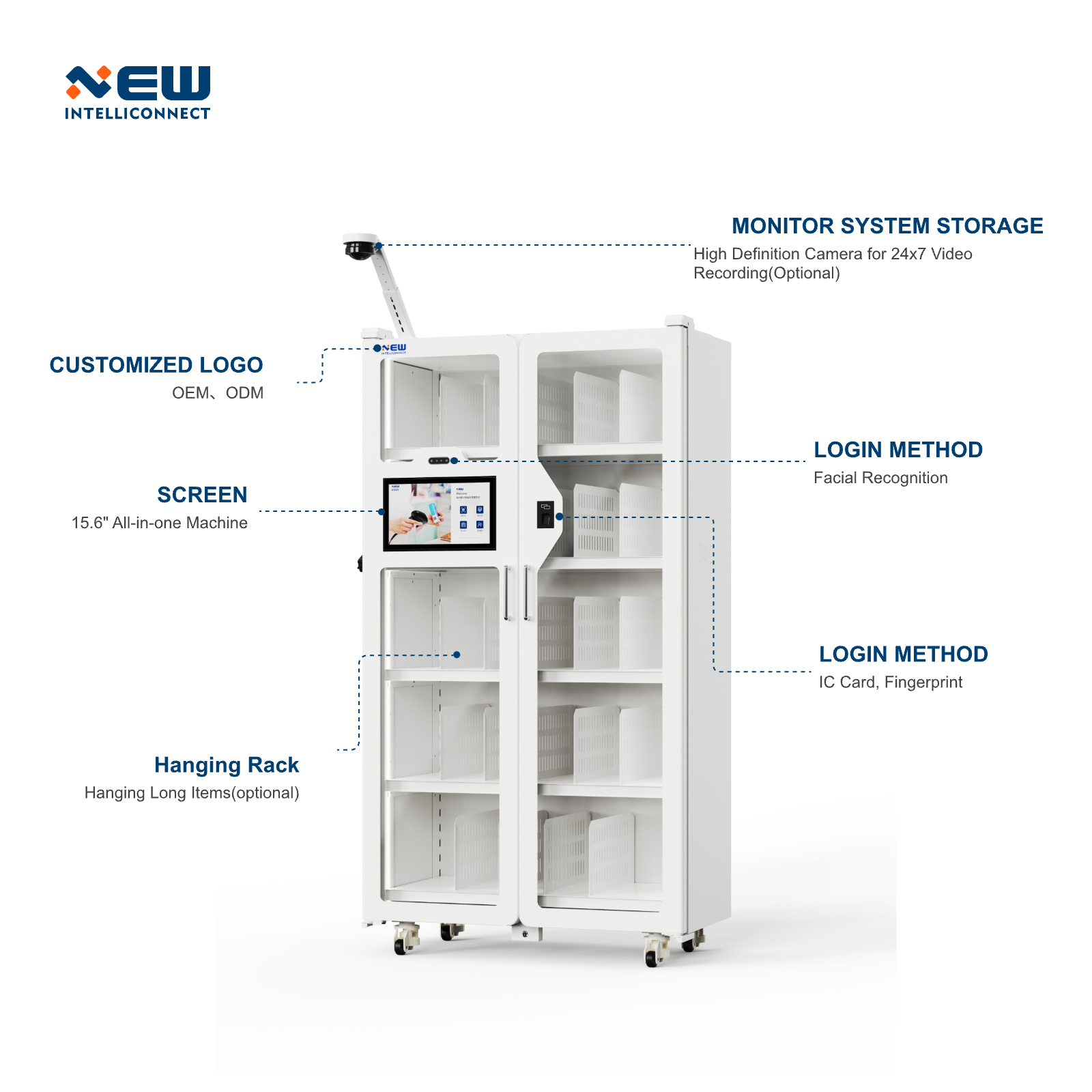

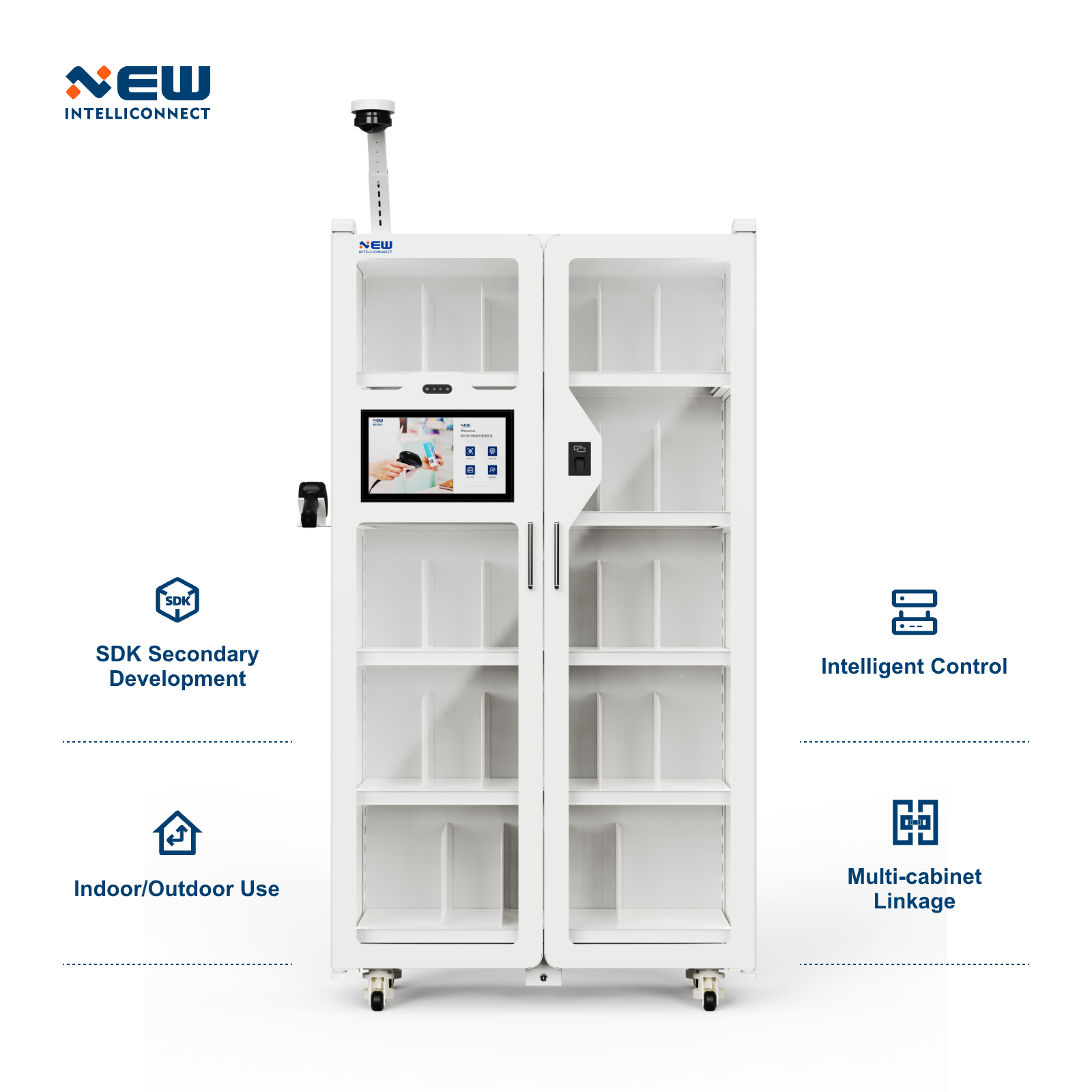

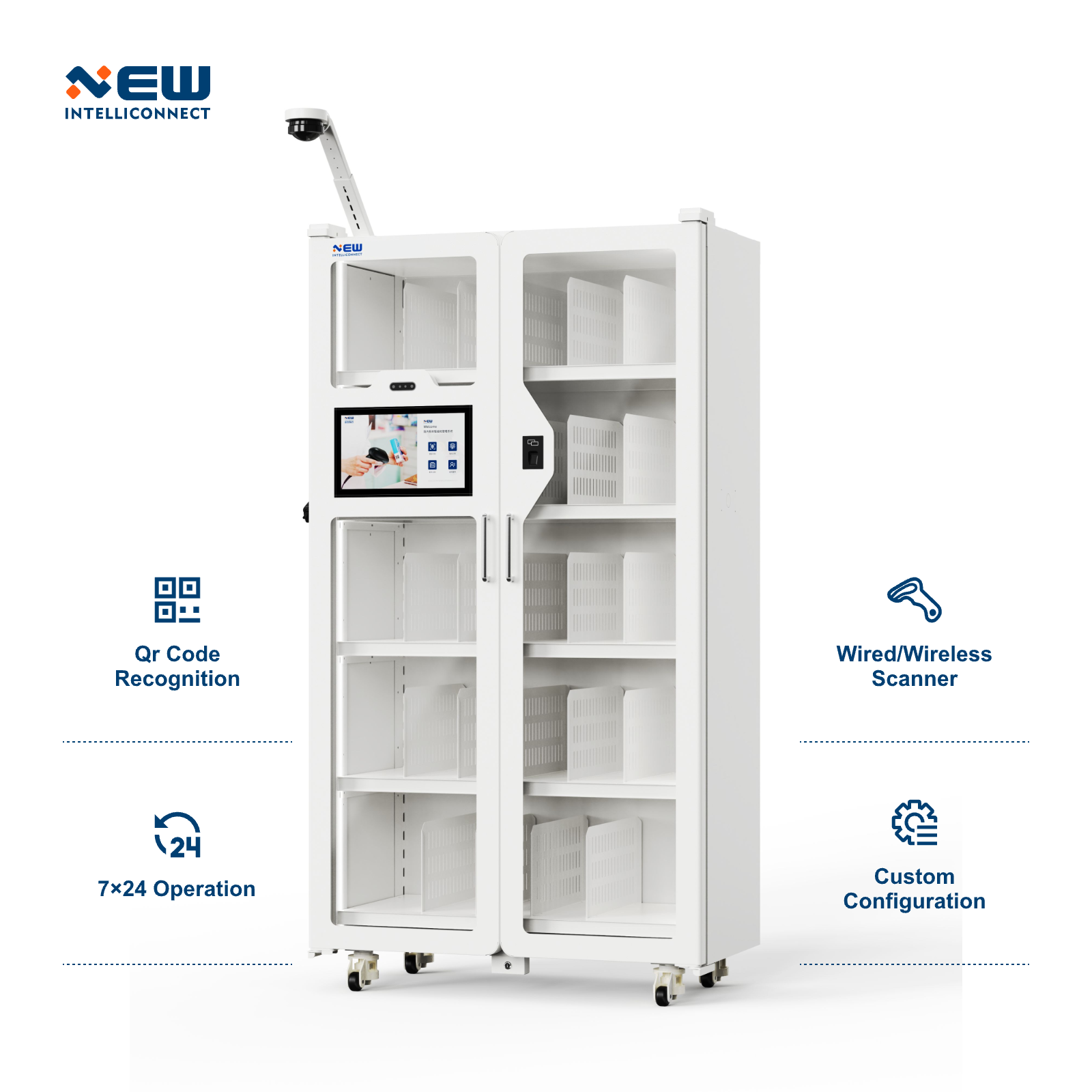

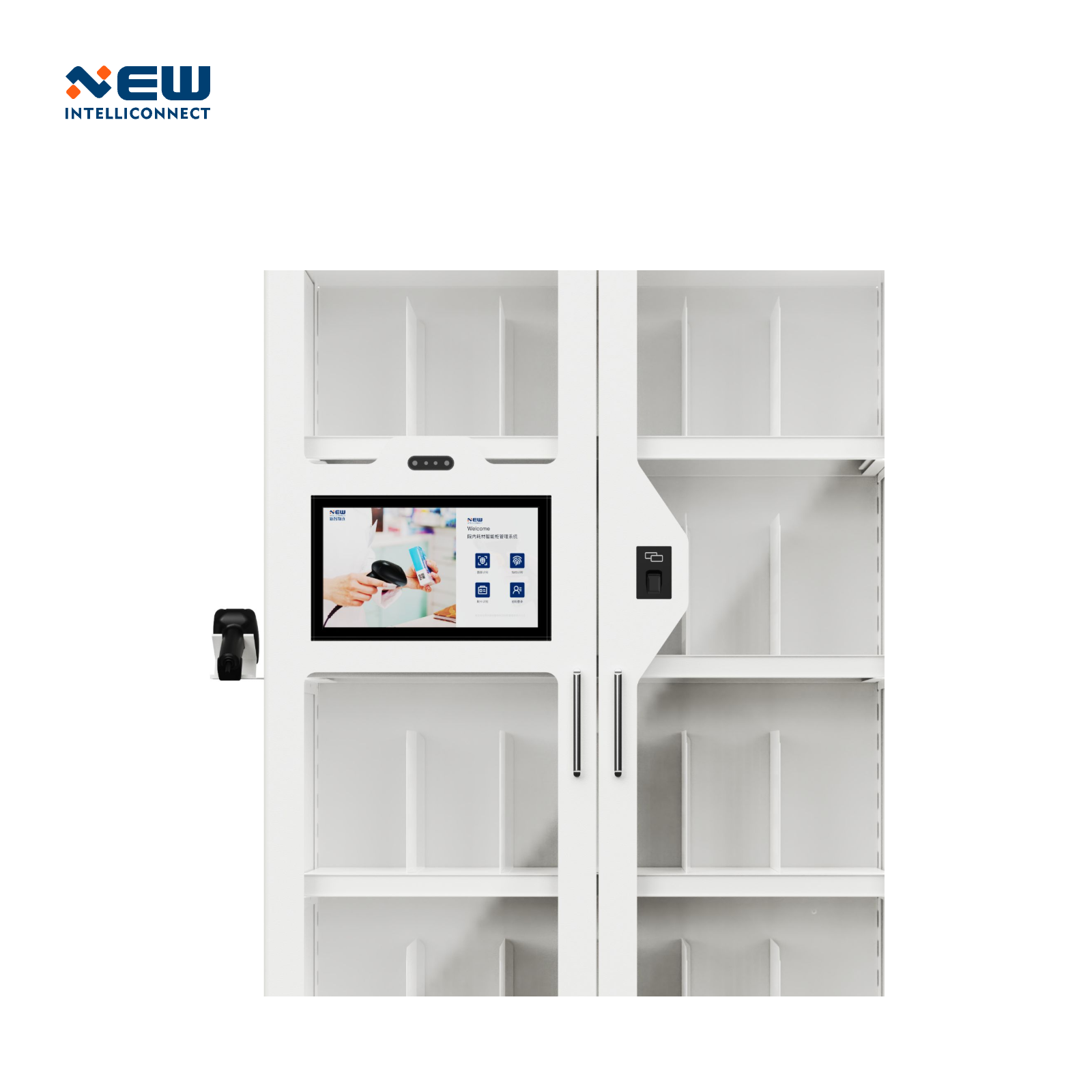

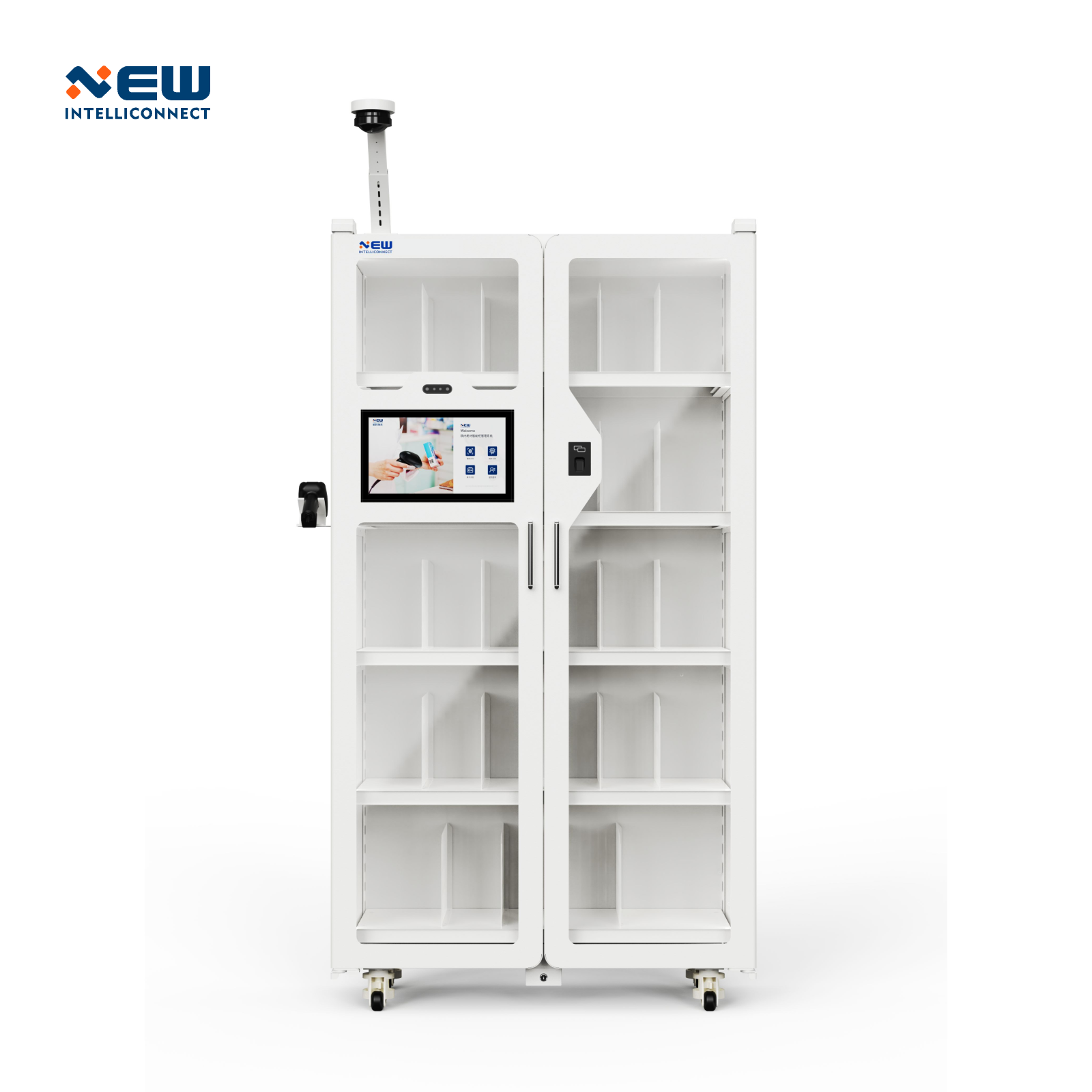

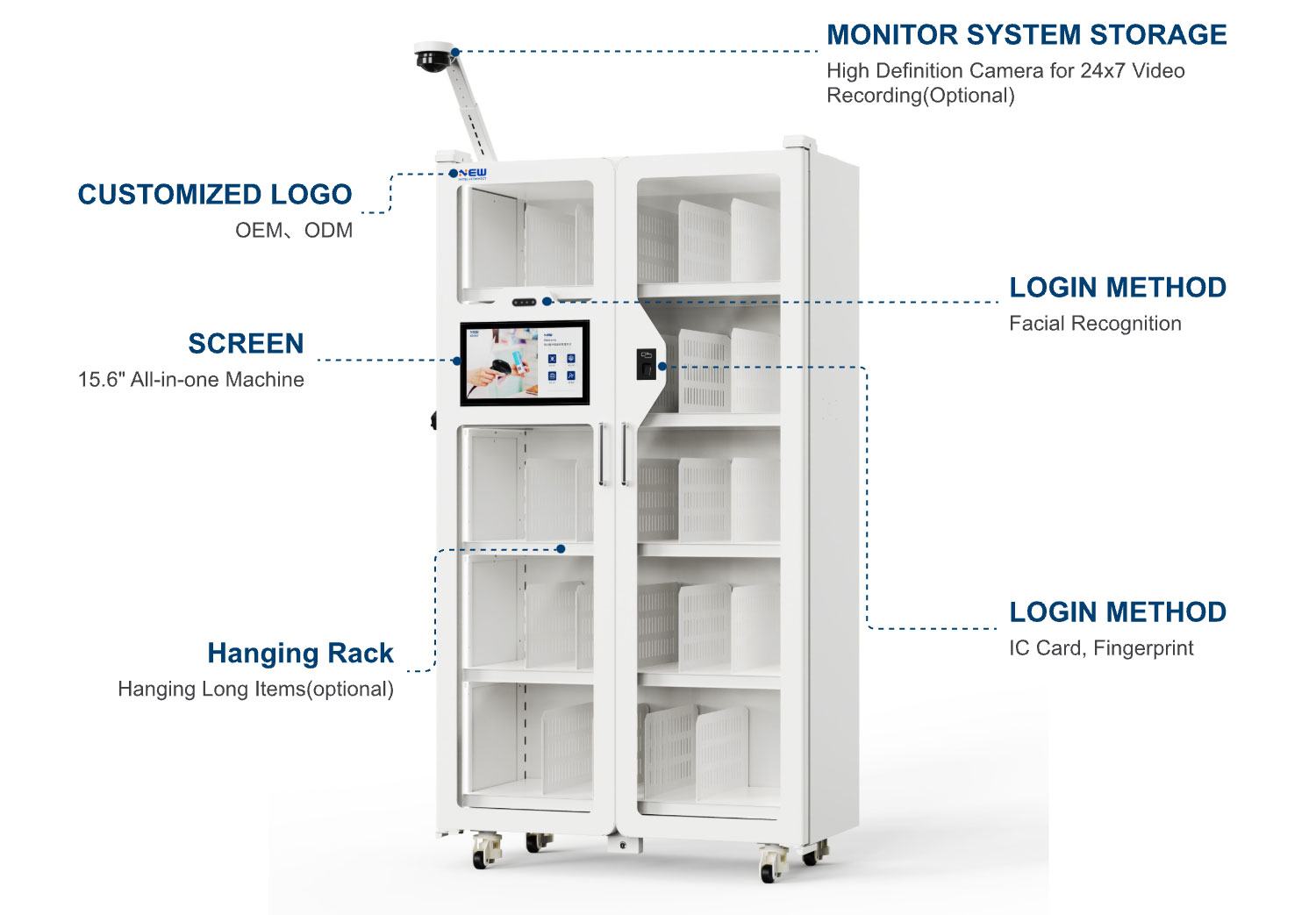

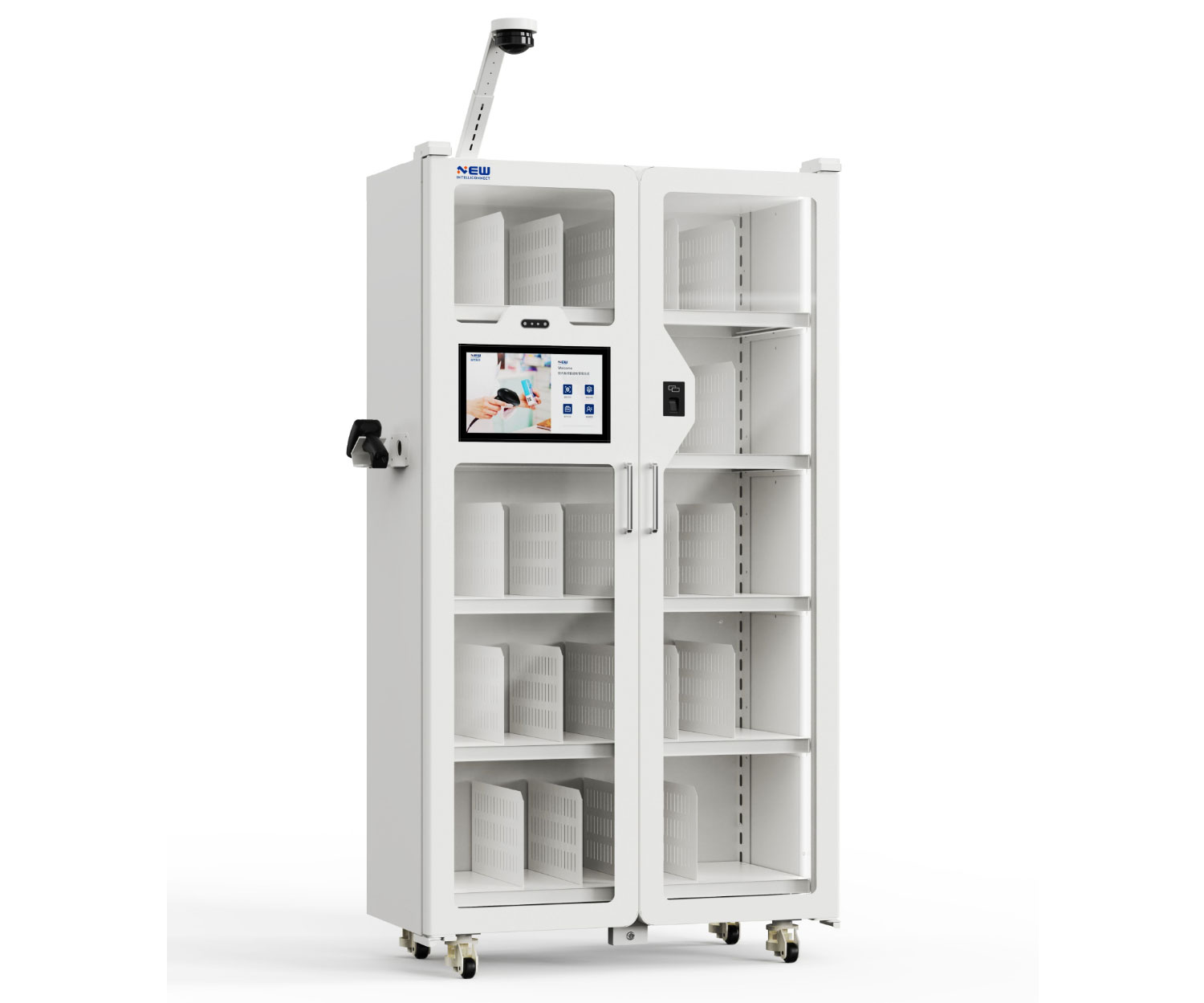

INTELLIGENT SCANNING MANAGEMENT MAIN CABINET
Model
XZ-SC780LM
Specification

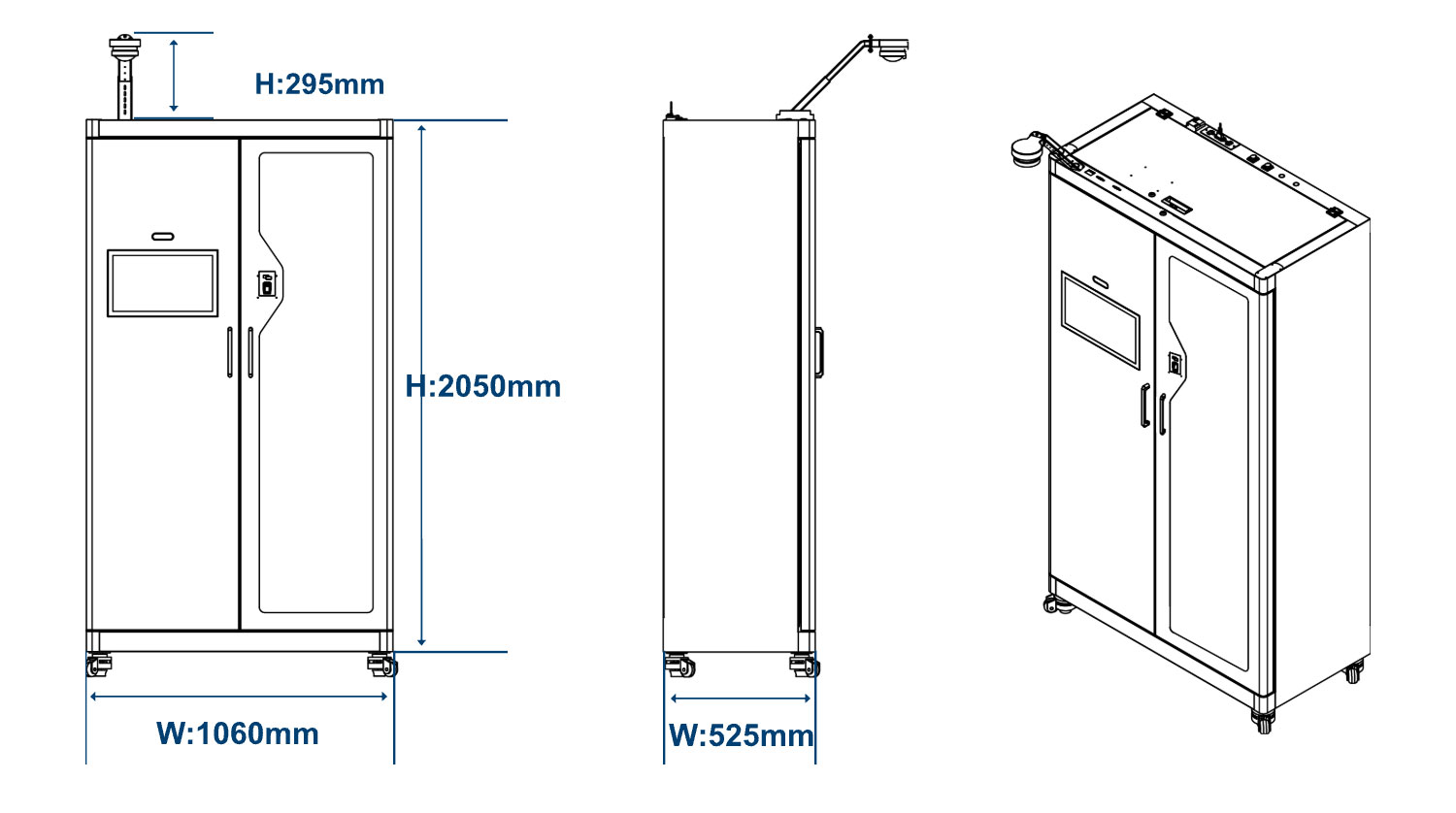

Cabinet Dimension
1060*525*2050 mm
Package Dimension
1210*725*2170 mm
N.W.
165 kg
G.W.
245 kg
Shell Material
Carbon steel plate cabinet
Screen
15.6'' all-in-one PC with resolution of 1920*1080; brightness: 250 cd/m², contrast ratio: 1000:1
Communication Interface
10M/100M adaptive Ethernet interface
Lock
Electronic lock + Emergency lock
Fixing/Moving Method
Bottom casters
Parameter
Volume
780 L
Identification Method
Barcode /QR Code
O.S.
Android(Windows Optional)
Industrial Control Configuration
RK3568, 4G+32G
Login Method
IC Card, Fingerprint, Facial Recognition, Username & Password
Scanner Performance
Communication Method
USB (USB-KBW, USB-COM), wireless 2.4G
Battery Capacity
2000 mAh
Continuous Working Time
≥16 hours
Image Sensor
CMOS global shutter, 300k pixels
Decoding Speed
65 CM/S
Readable Barcode Symbologies
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, Code 128, GS1-128, ISBT, Code 39, Code 32, Code 93, Code 11, Codabar (NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), NEC 2 of 5, MSI, Telepen, Trioptic, BC412, Febraban (Brazilian bank code), Coupon. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Pharma Code (One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc. Other Composite Codes: GS1 Databar (Omnidirectional, Limited, Expanded), GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR, Passport OCR, etc. Postal Codes: HongKong 2 of 5 (China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code
Power Supply
Power Source
AC100V~240V / 50Hz±1Hz
Rated Power
≤100W
Development Support
Development Support
SDK
Development Languages
JAVA, C#
Working Environment
Operating Temperature
0~50℃
Operating Humidity
10%RH-90%RH
Other configurations
Other configurations
Sensor for inside temperature and humidity monitoring

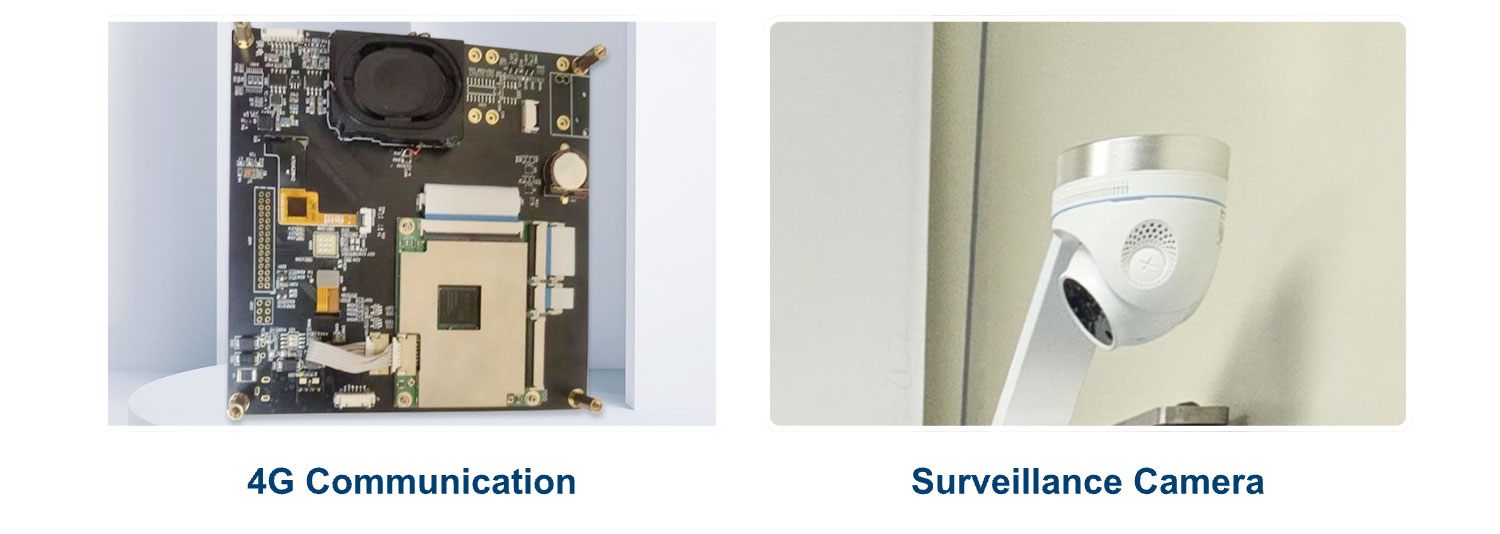

Surveillance camera (Optional)
4G communication (Optional)
Installation Method
Installation Method
Fomar casters at the bottom of cabinet, three-pin power cord (Regional Adaptation)
IoT Solutions
COMPANY INTRODUCTION
Our company (founded in 2014) is a National High-tech and SRCI enterprise specializing in intelligent storage hardware. With over a decade of industry leadership, we employ core technologies such as weighing sensors, RFID, AI vision, and IoT, to deliver end-to-end solutions for healthcare, logistics, manufacturing, oil and gas, military, and other sectors. Our core products cover dozens of categories, including intelligent cabinets and intelligent shelves.
We have established an independent full-industry chain system from R&D to integrated cabinet manufacturing through our northern and southern production bases. We hold more than ten domestic and international qualifications and certifications, including CE, FCC, RoHS, ISO9001/14001/45001/27701.
Aiming at global customers' real needs, we provide full-process OEM/ODM customization services, including hardware design, software function development, and other personalized solutions.
We look forward to collaborating with you in the near future and achieving mutual success!

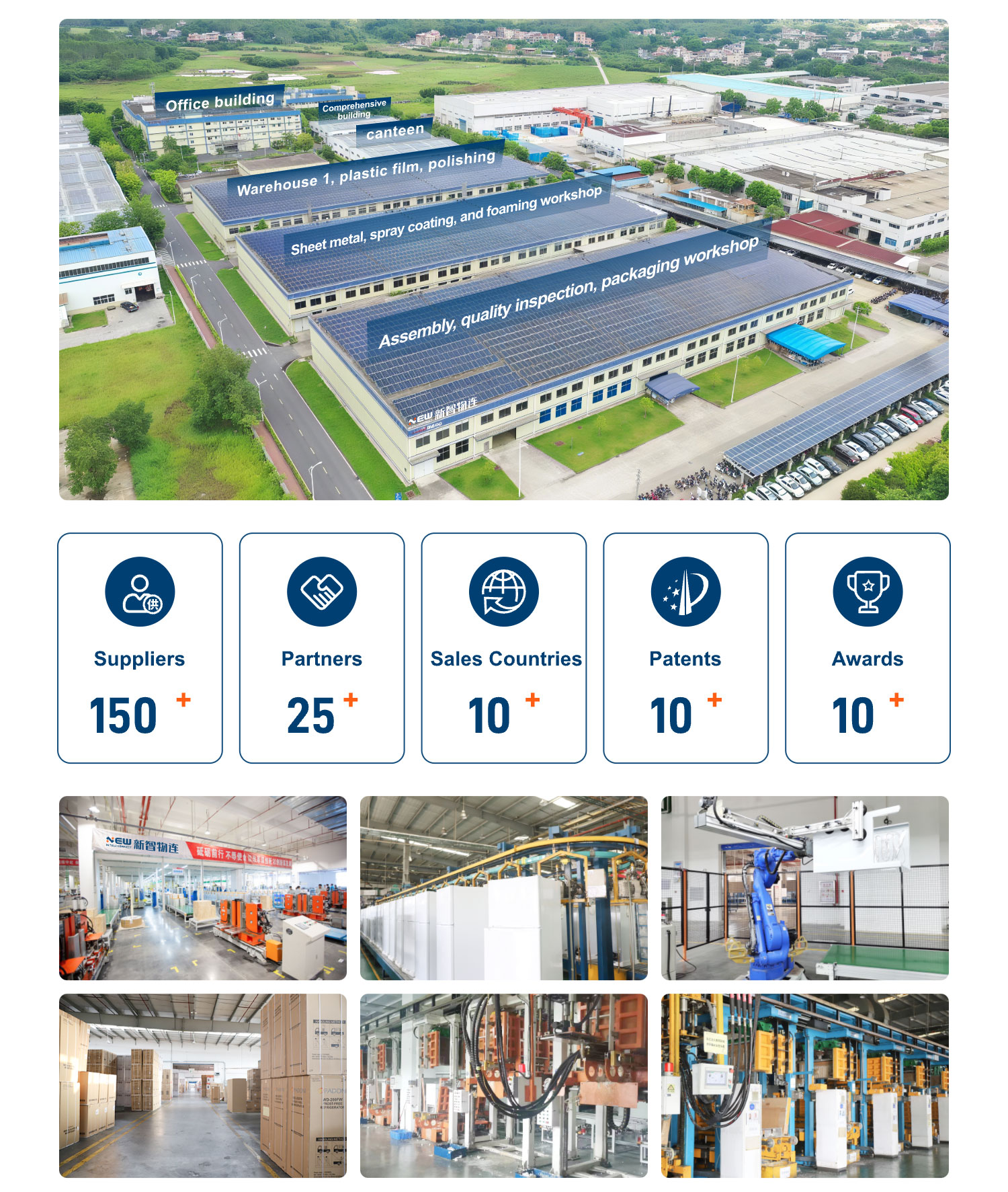

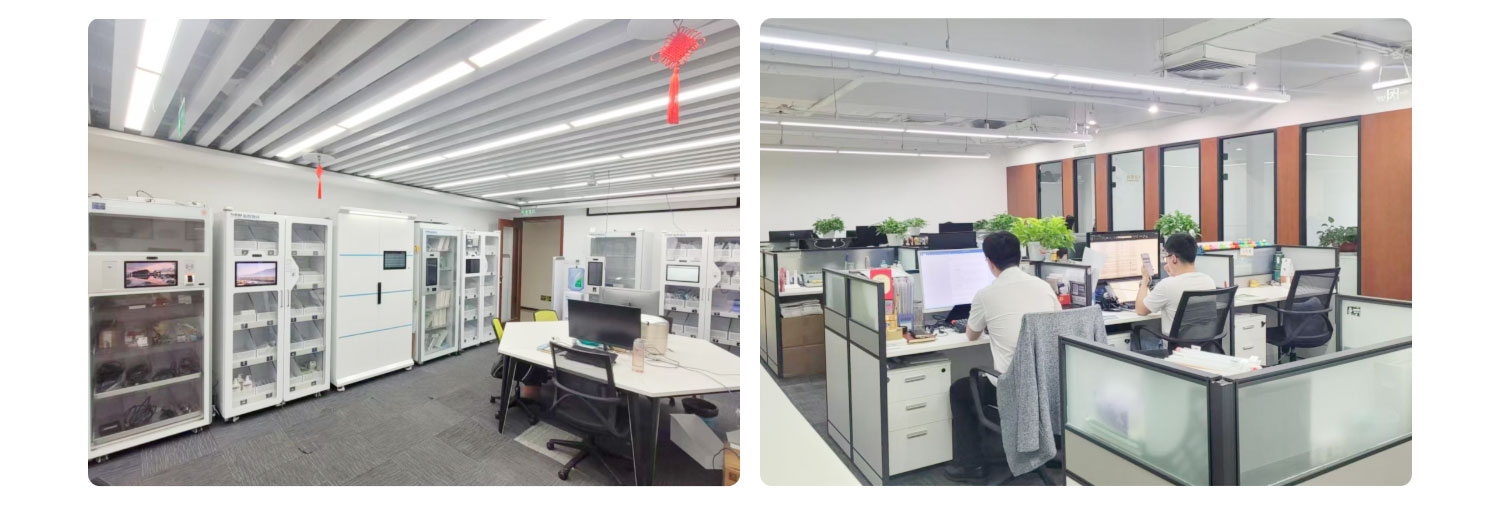

FACTORY INTRODUCTION
COOPERATIVE COMPANY

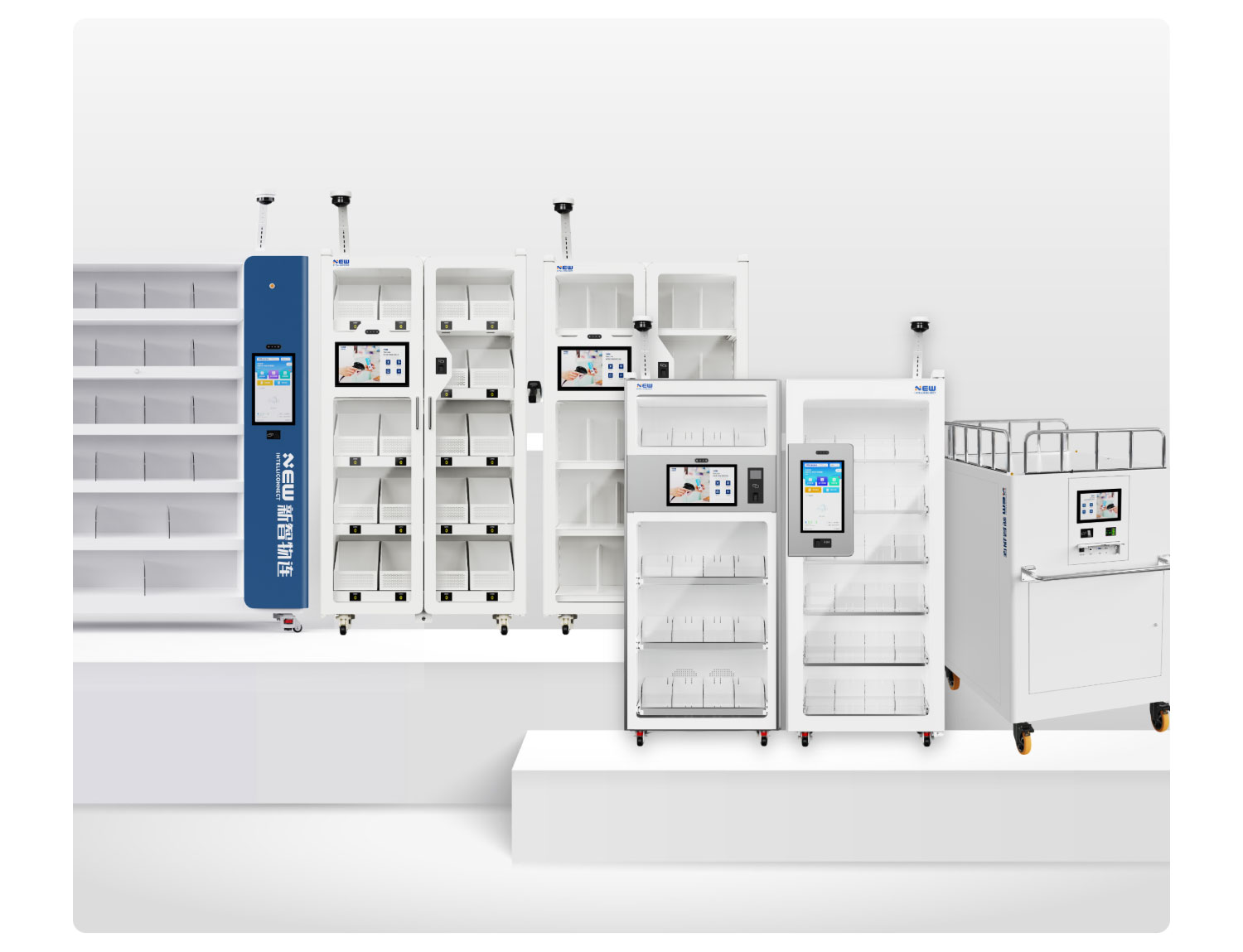

OUR PRODUCTS
SAFE, FAST AND EFFECTIVE DELIVERY
QUALIFICATION CERTIFICATION
EXHIBITION
FAQ
What are the main applications of your products?
Our RFID intelligent cabinet, weighing cabinet, intelligent security access control and other products are mainly used in healthcare, logistics, manufacturing, oil and gas, military, and other sectors. For example, in healthcare field, RFID intelligent cabinet can be used to manage pharmaceuticals and high-value consumables; weighing cabinet can be used to accurately manage inventory items; intelligent security access control can be used to prevent items from being stolen.
Does your product support customization?
Yes, we support OEM and ODM customization service. You can choose our existing products for customization based on your actual needs, or you can tell us your specific requirements, we will provide you with customized solution accordingly.
How do you guarantee the quality of your products?
Our company strictly follows quality management systems such as ISO 9001 for production management. Every process, from raw material procurement and production processing to product delivery, undergoes strict quality inspection to ensure the stability and reliability of product quality.
Do you provide after-sales service?
Yes, we provide customers with comprehensive after-sales service, including technical support, product repair, accessory replacement, etc. If you encounter any problems during the use, our customer service team will be happy to serve you.
How long is your lead time?
Our standard lead time is 15-30 days after receiving the payment, the specific lead time will be determined according to the order quantity and production schedule. We will do our best to ensure on-time delivery.
How do you arrange transportation?
We usually commission professional freight forwarders to provide us with international logistics transportation, mainly by sea. We will choose the most suitable shipping method according to your order quantity and destination, and provide real-time logistics information.
