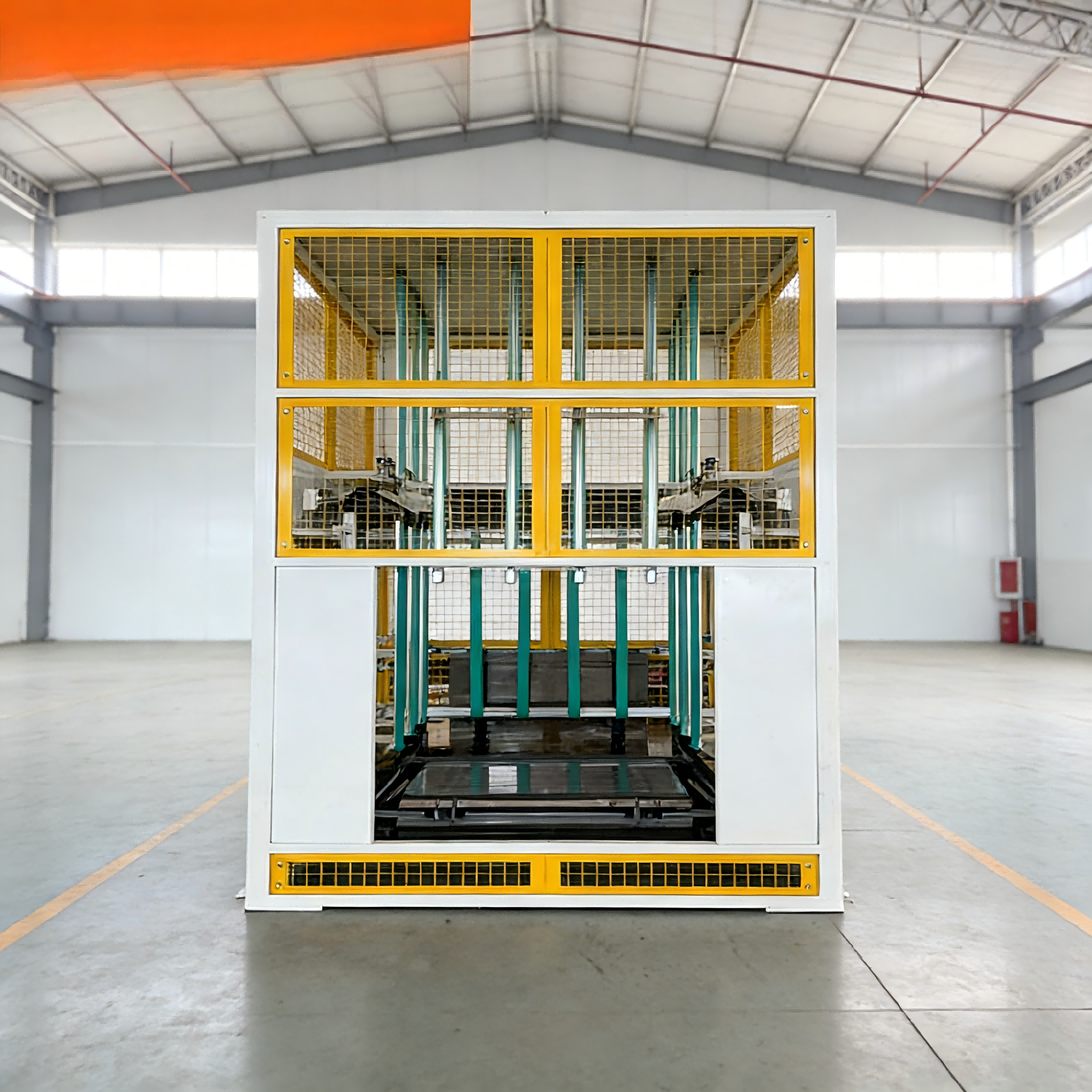

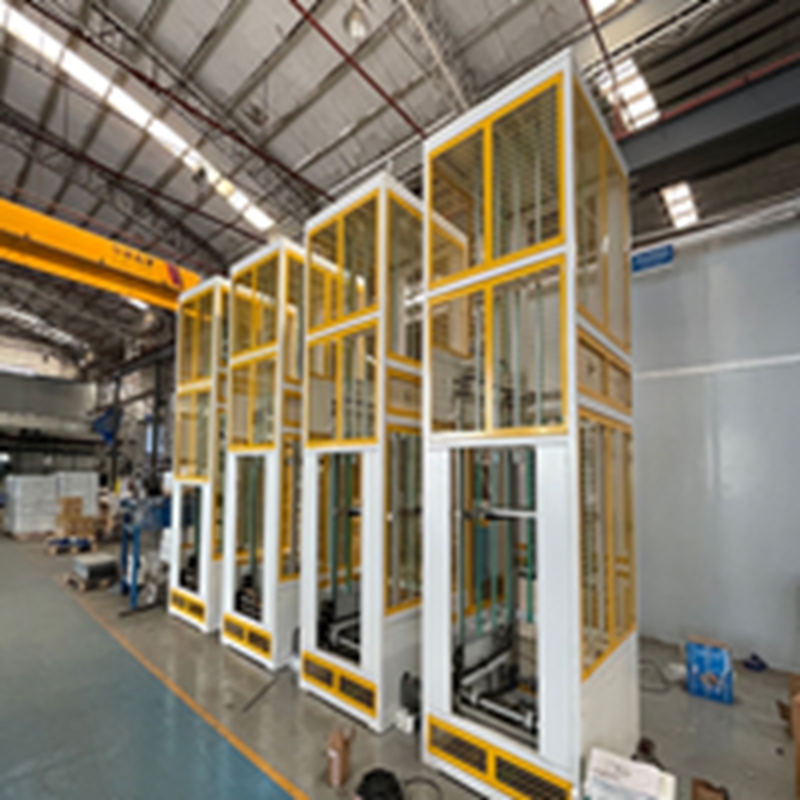

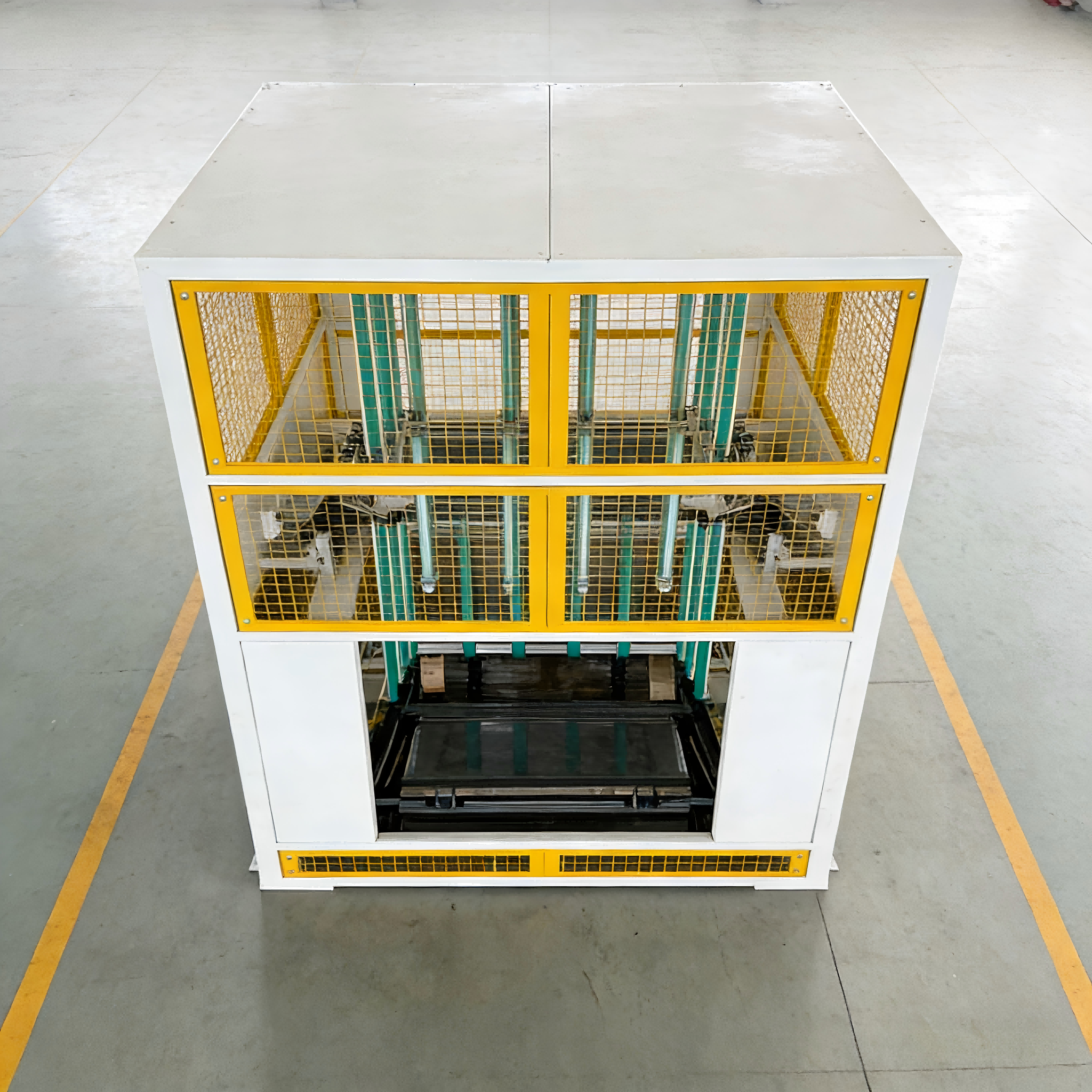

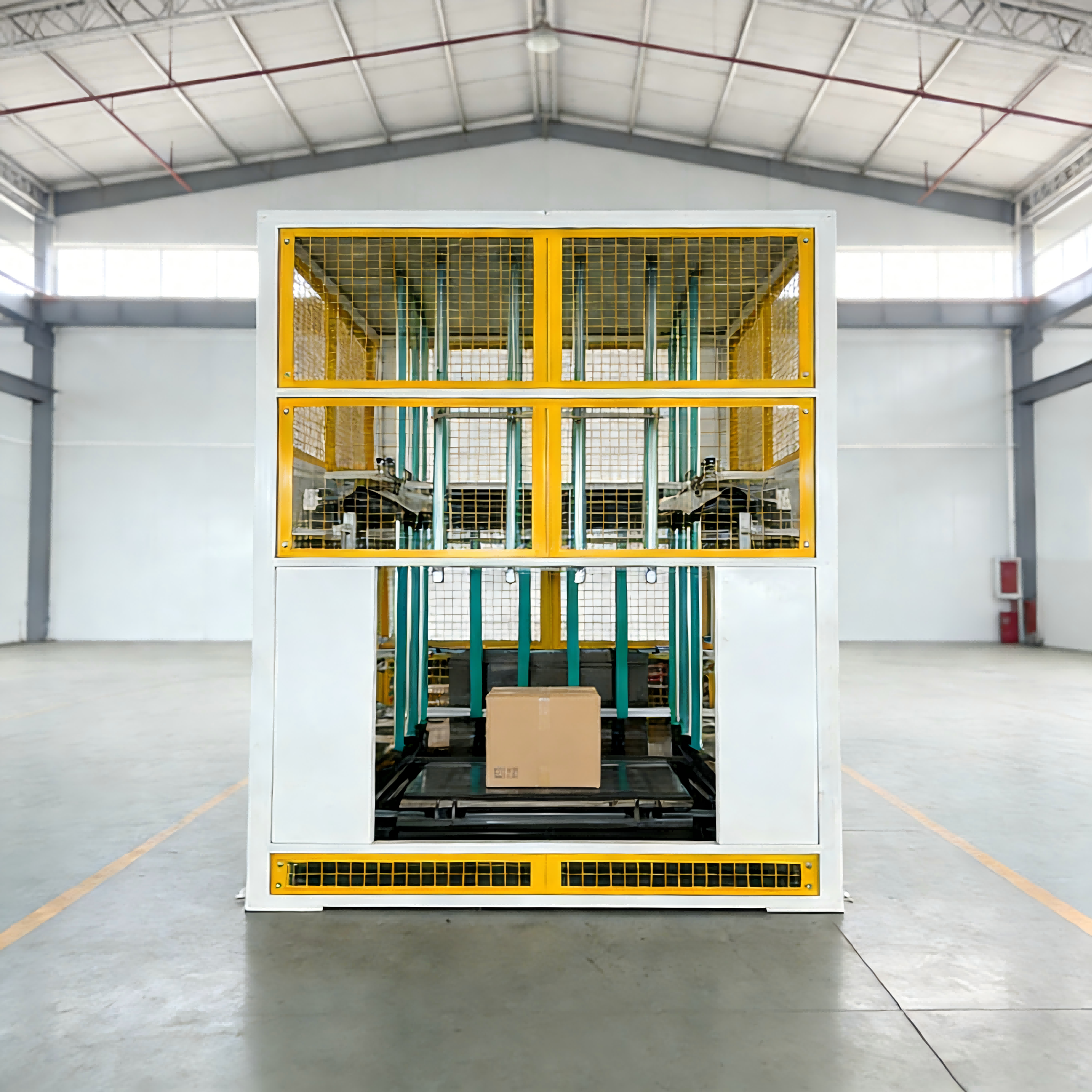

| Product Name | Reciprocating Vertical Elevator / Vertical Lift Conveyor |
| Type | Vertical Material Handling System |
| Operation Method | Intermittent reciprocating motion (up-down cycle) |
| Load Capacity | Standard: 100–2000 kg (Customizable up to 5000 kg) |
| Lifting Height | 2–20 m (adjustable according to floor height) |
| Platform Size (L×W) | Customizable (e.g., 1500×1200 mm, 2000×1800 mm) |
| Lifting Speed | 0.1–0.5 m/s (adjustable frequency control) |
| Motor Power | 1.5–15 kW (based on load & height) |
| Positioning Accuracy | ±1–3 mm (with encoder feedback) |
| Frame Material | Carbon steel (painted) or stainless steel (food/medical grade) |
| Gate Type | Manual/Safety interlocking/ Automatic roller shutter or sliding door |
| Optional Accessories | Barcode/RFID reader, weighing module, dust cover, safety light curtains |
| Communication Interface | PROFIBUS, Ethernet/IP, Modbus TCP (compatible with MES/ERP) |
| Special Environments | Dustproof, anti-corrosion, explosion-proof, cold storage, cleanroom design |
