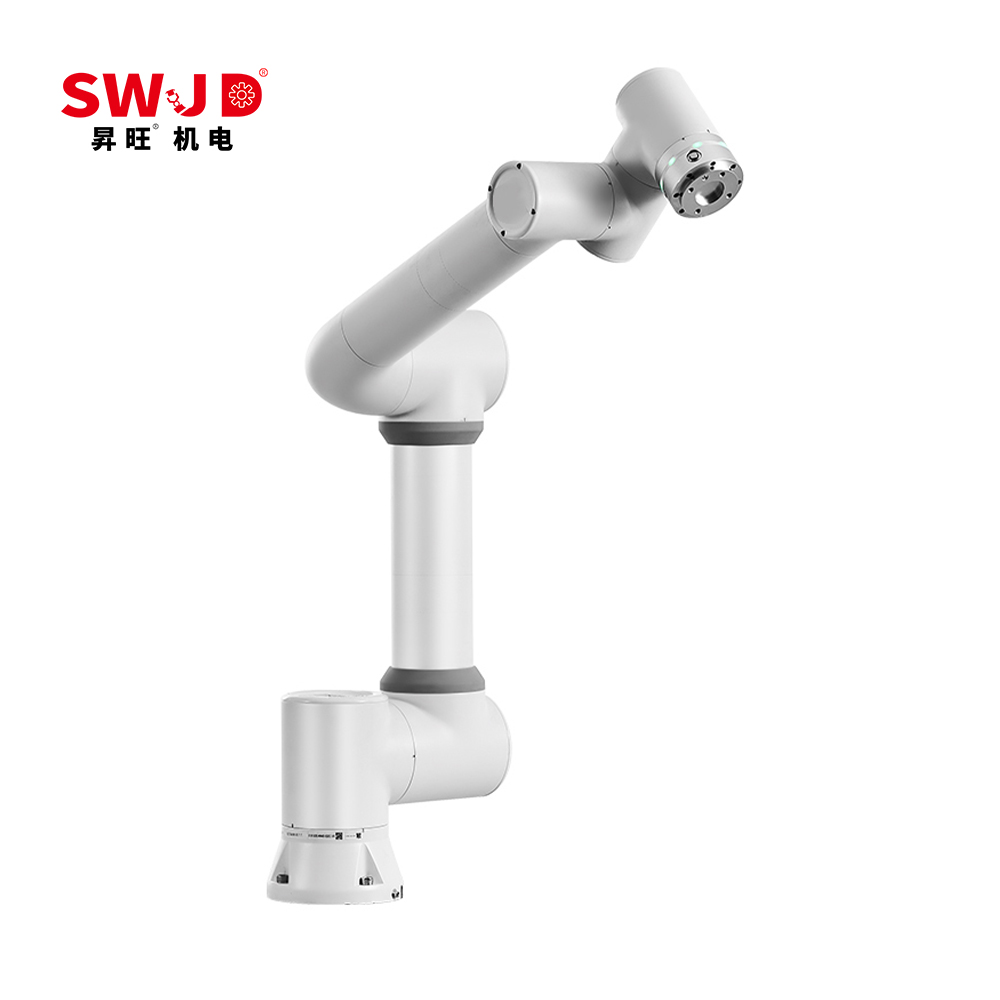

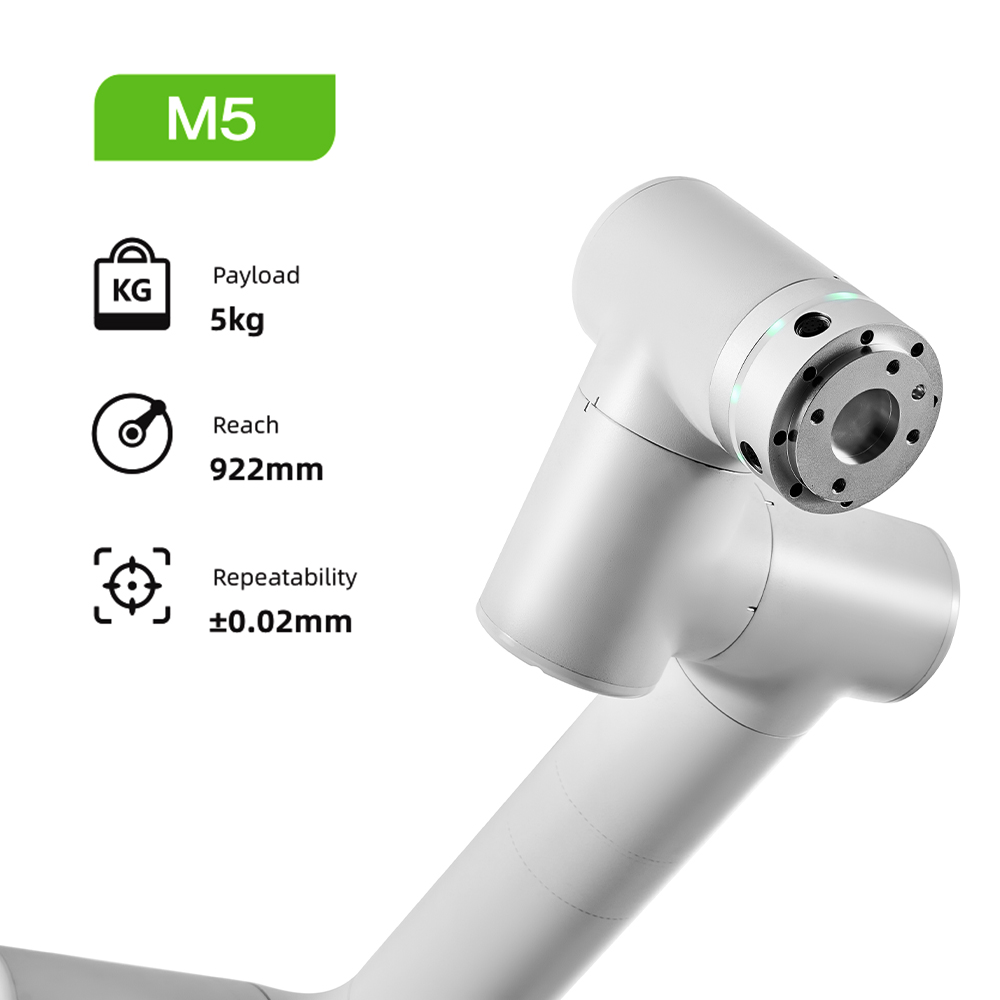

Chinese Factory 6 Axis Collaborative Robot Arm Pallet Mover Multifunctional Cobot Manipulator with Core Motor PLC Components

Send Inquiry

Product Description

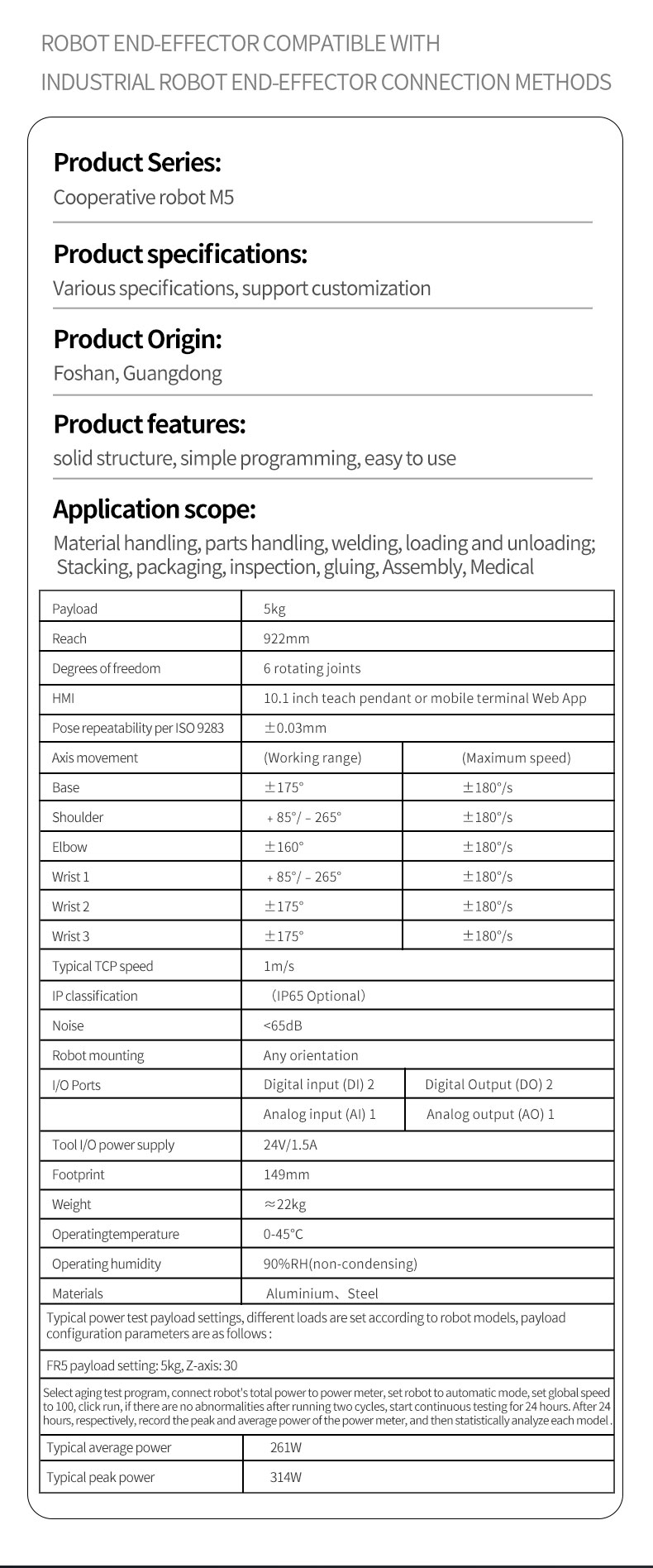

Technical Specifications

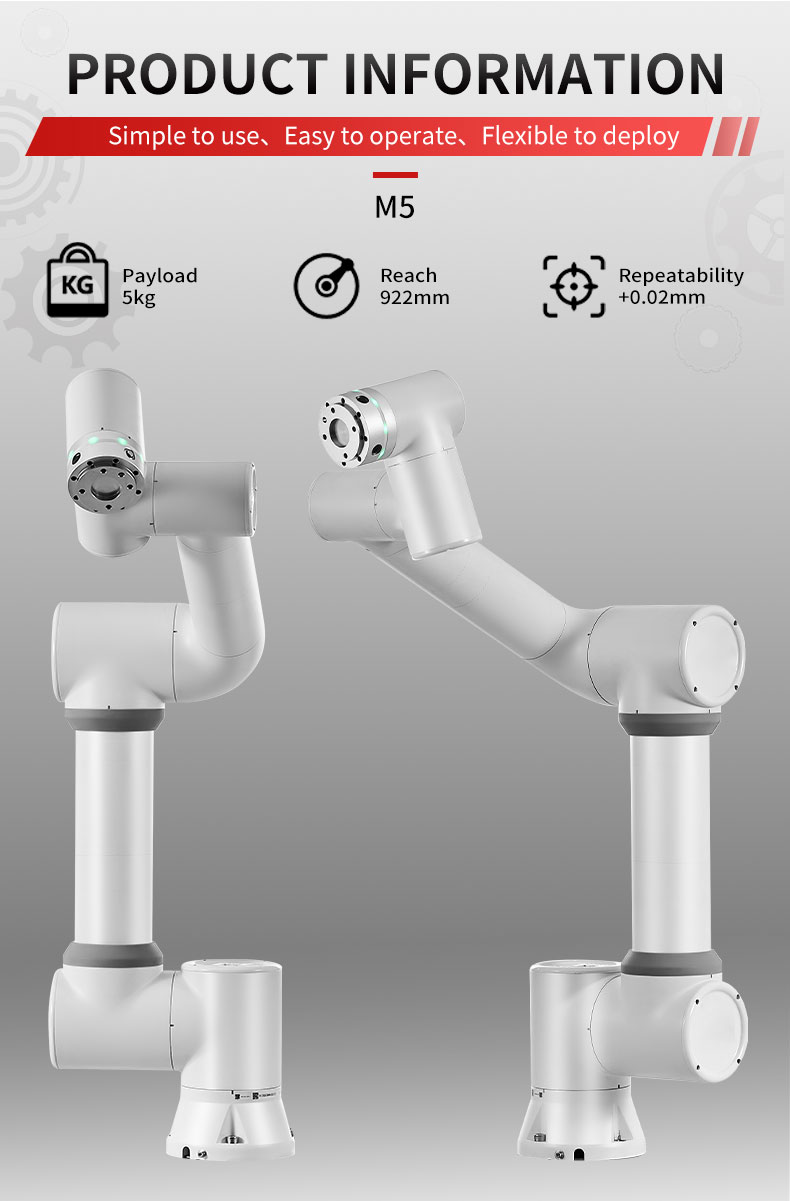

Payload	5 kg

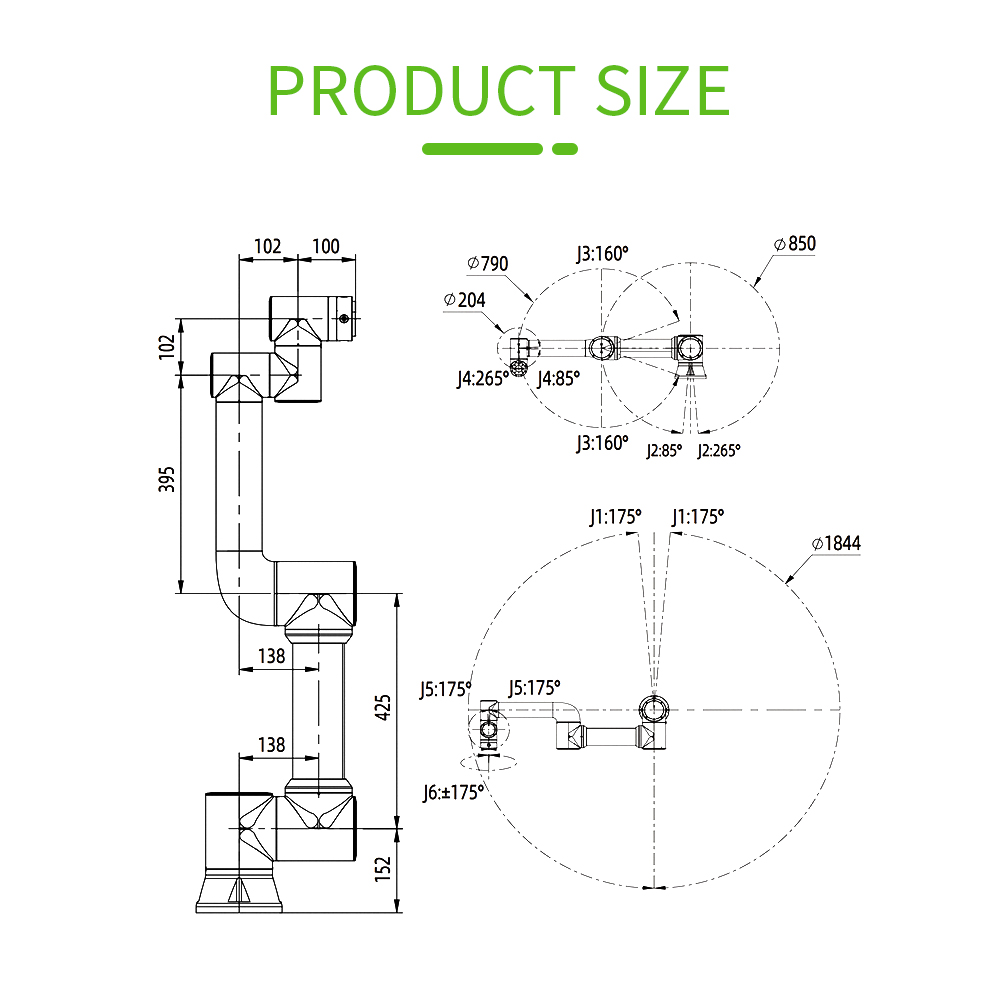

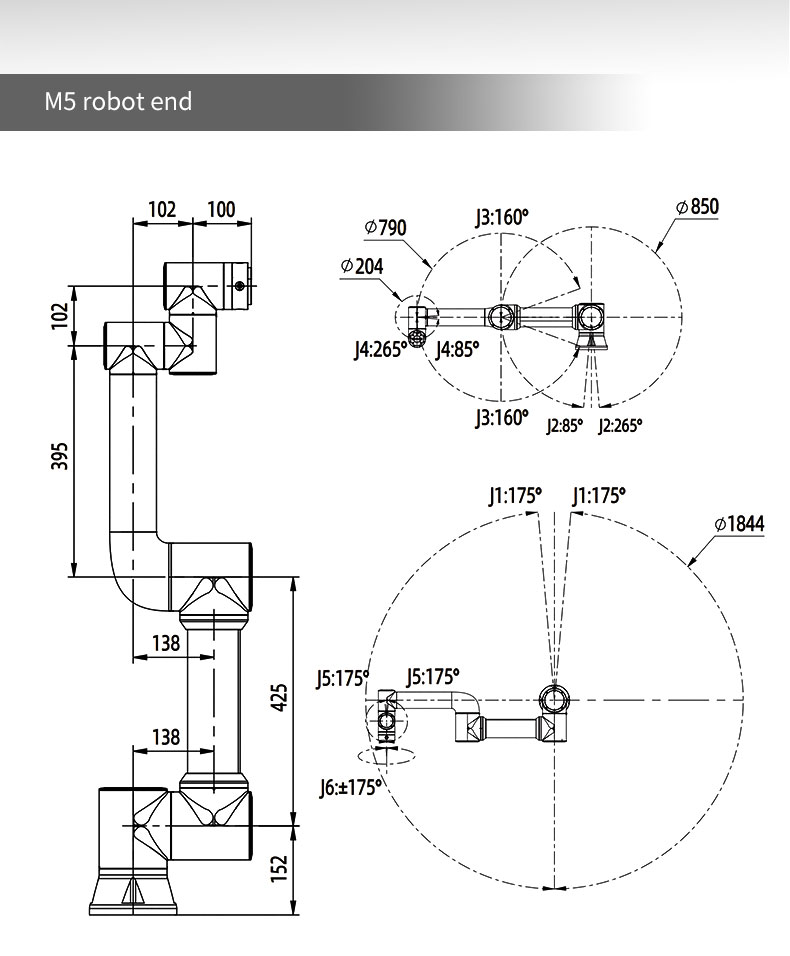

Reach	922 mm
Degrees of Freedom	6 rotating joints
HMI	10.1-inch teach pendant or mobile terminal Web App
Pose Repeatability (ISO9283)	±0.02 mm
Typical TCP Speed	1 m/s
IP Classification	AP65 (optional)
Noise Level	<65 dB
Mounting Orientation	Any orientation
Tool Power Supply	24V/1.5A
Footprint	149 mm × 149 mm
Weight	≈22 kg
Operating Temperature	0–45°C
Operating Humidity	≤90% RH (non-condensing)
Materials	Aluminum, Steel

Test Configuration & Power Data
Payload Configuration	5kg, Z-axis angle 30°, Aging test program selected
Measurement Method	Continuous 24-hour cycle testing at 100% global speed
Typical Average Power	261 W
Typical Peak Power	314 W

✔ What is the payload capacity of this robotic arm?

The robot is designed with a payload capacity of 5 kg, suitable for a variety of precise material handling tasks.

✔ What is the reach of this model?

It offers an operational reach of 922 mm, providing flexible workspace coverage.

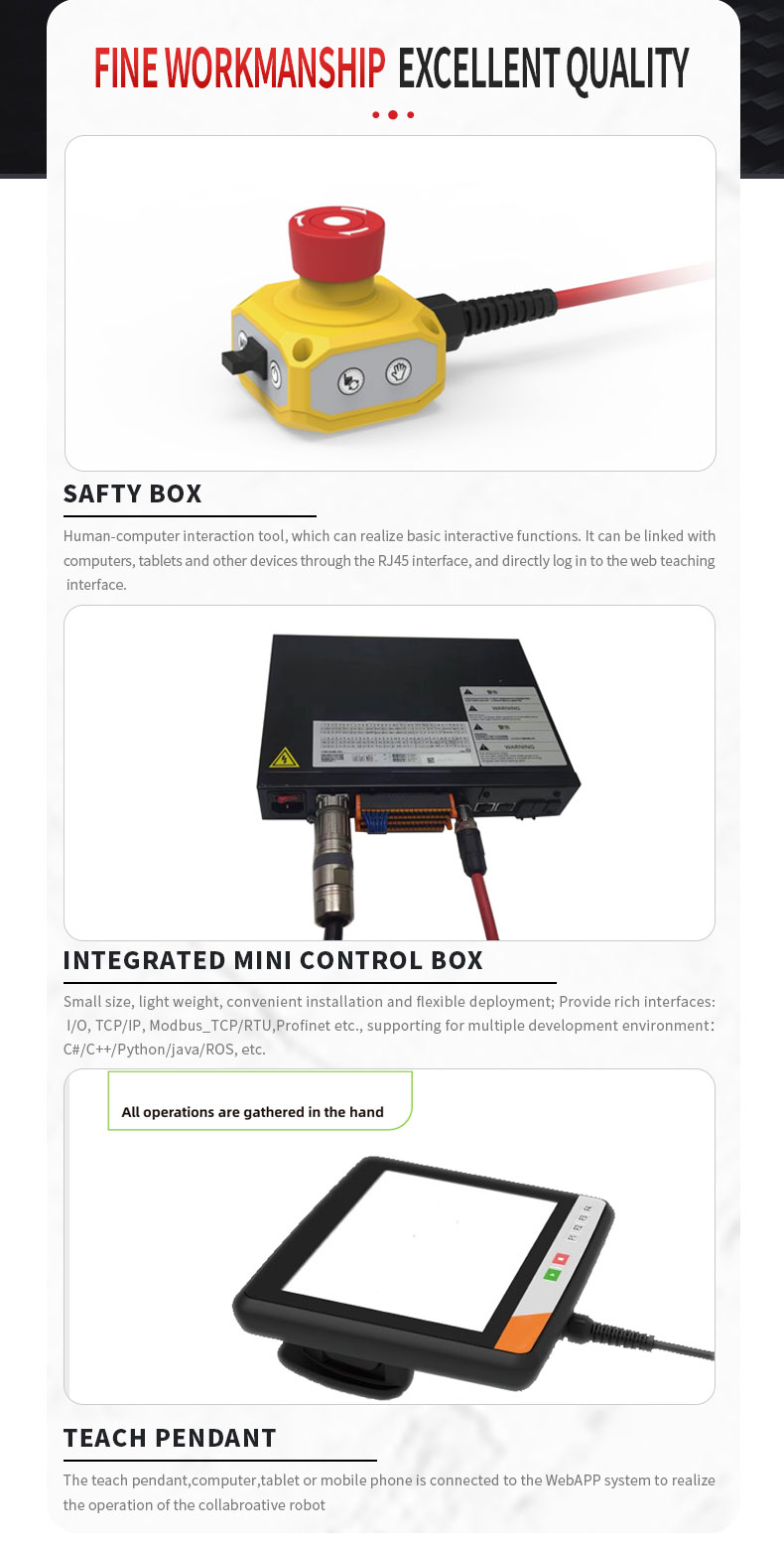

✔ How is the robot controlled?

The robot supports HMI control via a 10.1-inch teach pendant or a mobile terminal Web App for ease of use.

✔ Is the robot dust and water resistant?

Yes, it features an IP65 classification (optional), ensuring protection against dust and water jets.

✔ What are the power requirements?

The typical average power consumption is 261 W, with a peak power of 314 W during intensive operations.

✔ Can it be mounted in different orientations?

Yes, the robot is designed to support installation in any orientation, offering high deployment flexibility.
