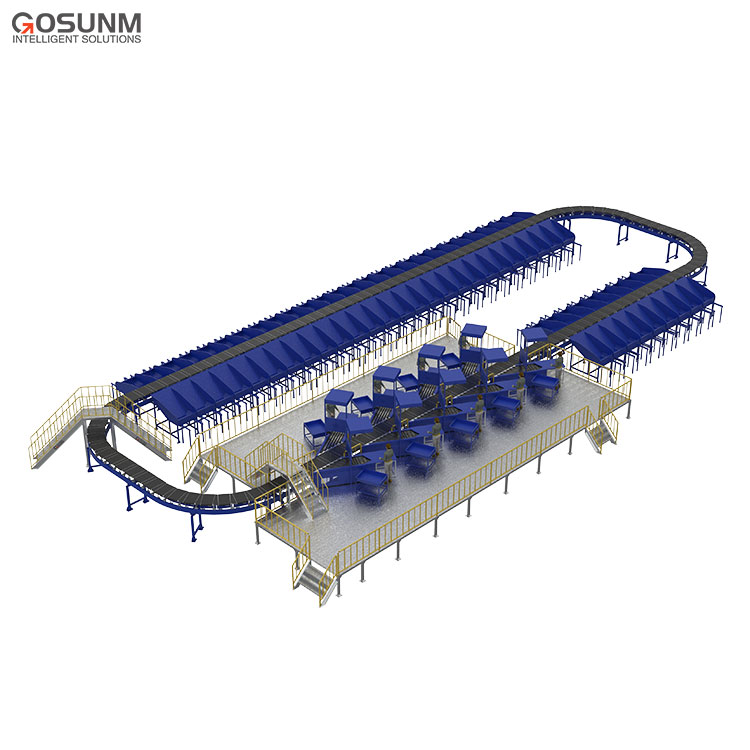

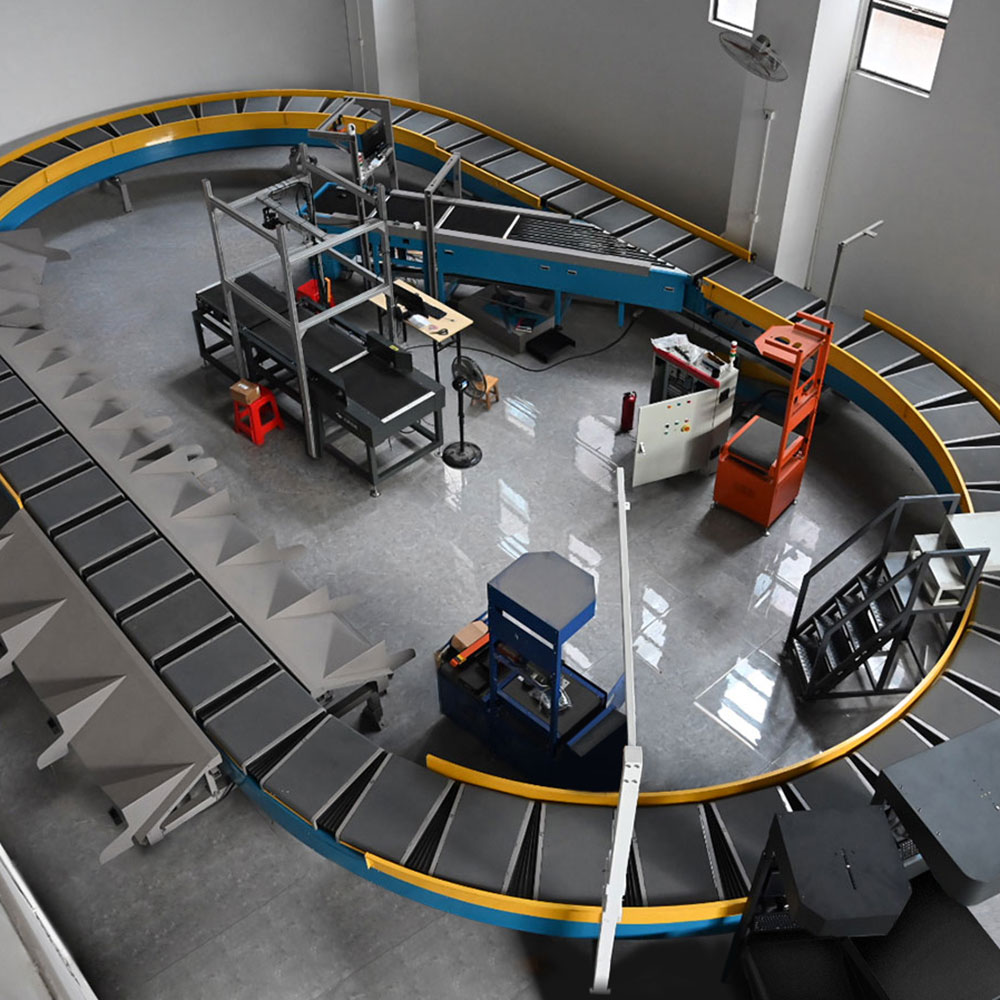

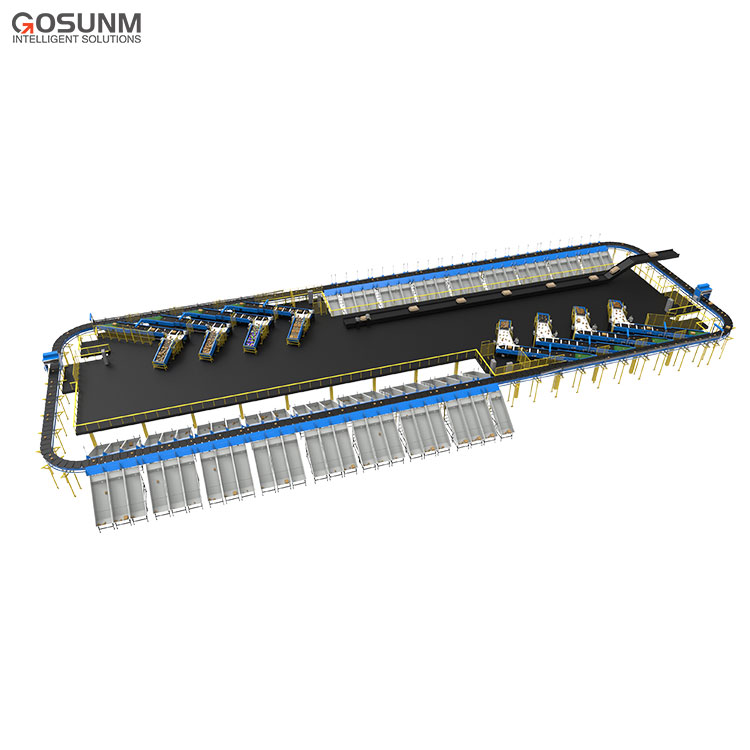

The loop crossbelt sorter is mainly composed of four parts: the supply system, the sorting trolley, the parcel of-loading system and the control system.
Under the coordinated control of the control system, the parcels are imported from the supply system into the sorting trolley for sorting, and the parcel off-loading system completes the physical location of the parcels for sorting storage, thus achieving the parcel sorting function.
There are three types of lines that are widely used: single-layer single trolley sorting systems, double-layer single trolley sorting systems, and single-layer double trolley sorting systems.
| Feature | Specification |
|---|---|
| Mainline Speed | 1.8-2.5m/s |
| Weighing Function | Front static weighing / upgradeable to dynamic weighing |
| Maximum Sorting Efficiency | 13200pcs/hour |
| Weighing Range | 10g-10KG |
| Trolley Size | 426mm*700mm |
| Trolley Pitch | 600mm |
| Width of Port | 750mm |
| Size Range of Sorted Goods | 10*50*50-200*400*400mm |
| Sorting Accuracy | 99.99% |
| Controller | Complete Siemens controller solutions (1500, 1200 series PLC) |
| Loop Drive | Linear motor (electromagnetic drive) |
| Trolley Drive Type | Drum Motor/Servo Roller |

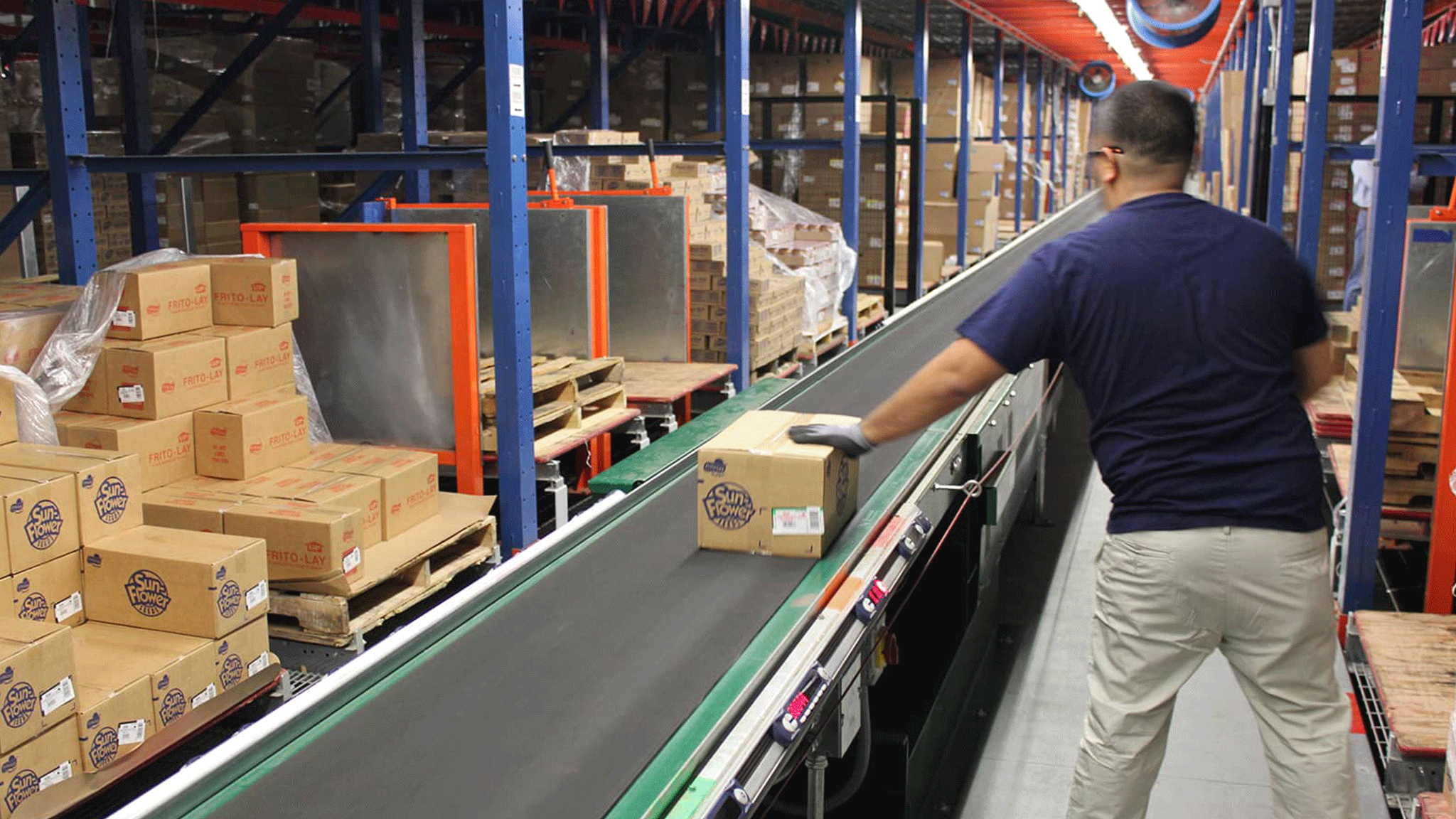

Postal, Express, E-Commerce

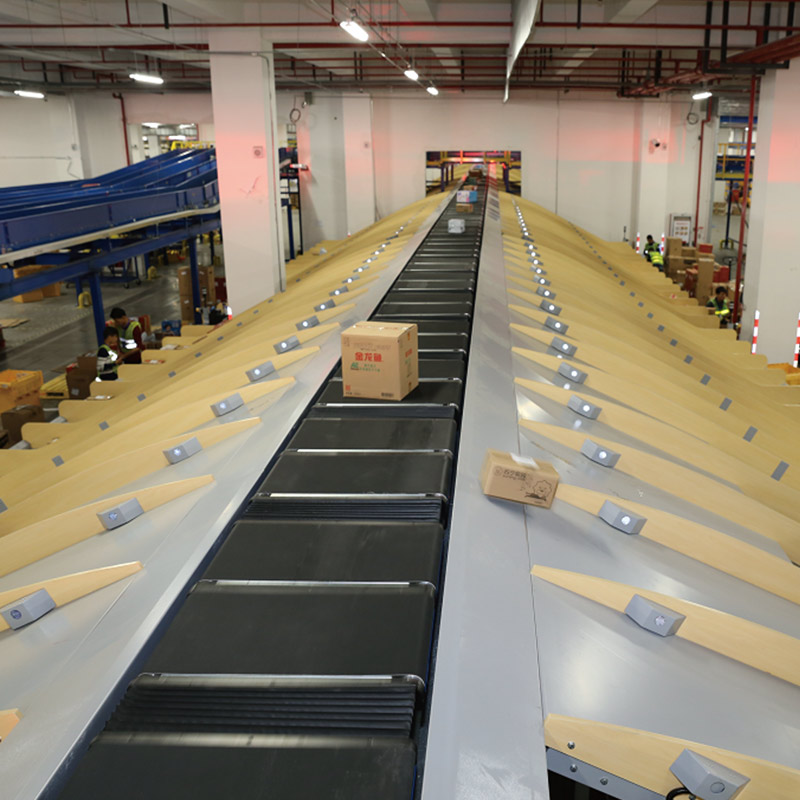

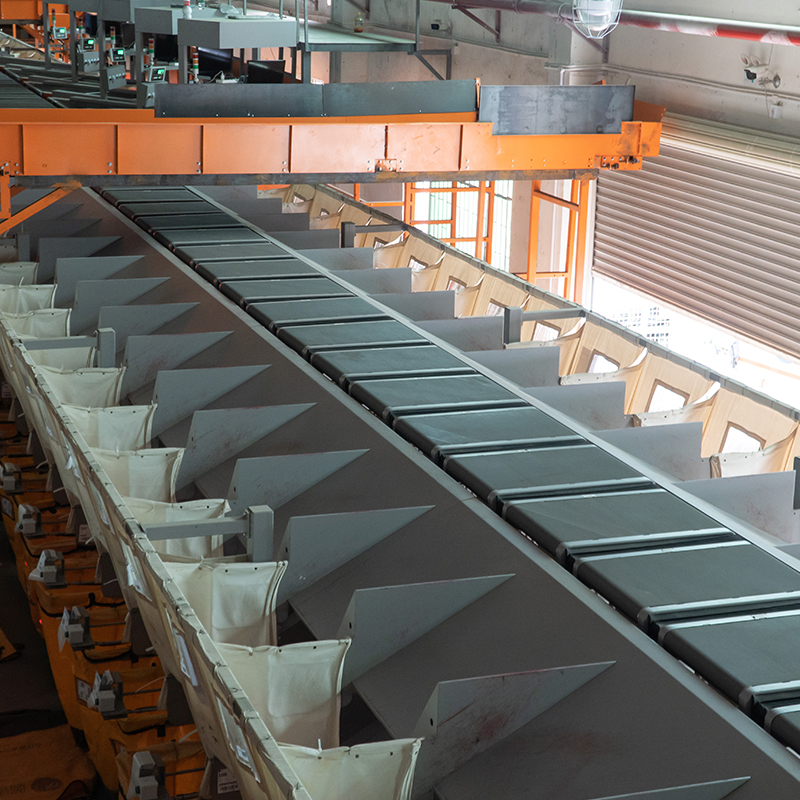

The parcels are placed manually, the scanning system gets and uploads the barcode information to the headquarters server, the headquarters feeds back the parcel drop grid information, the parcels enter the sorting trolley through the package supply platform, the sorting trolley runs on the track, runs to the designated port, slides the trolley belt left and right, and drops the parcels into the designated port for collection.
Linear cross belt is a sorting system with high performance, high precision and low energy consumption. Vertically combined with circular layout, the structure is compact and saves space. Standard modular design allows customization based on customer needs.
Narrow-Band Sorting Machine is a non-standard customized sorting line, composed of multiple narrow belts distributed at equal intervals. Driven by the sides to send goods to the designated grid for rapid sorting.
