Pick to light system is a set of electronic indicating devices installed on the storage position of the shelves. Through the control of computer and software, the light and digital display of the material location and quantity guide the pickers to complete the picking work correctly, quickly and easily.

The product can be customized in terms of size and personalized needs, please contact customer service for details.

The controller service system provides secondary development SDK to enable users to control the functions of the driving hardware equipment independently. Users can fully customize their own picking process. The SDK adopts the web socket protocol, and the control data is transmitted in json format.

• 1
  Improve efficiency: Quickly locate materials through electronic tag guidance, reduce picking intervals, and improve efficiency and accuracy.
• 2
  Reduce errors: Assist personnel in picking goods based on light colors and displayed numbers.
• 3
  Optimize Speed: Improve order response speed across the board.
• 4
  Smart Integration: Can be integrated with other intelligent devices to reduce reliance on manpower.
• 5
  User-Friendly: Lower operational threshold and exceptionally easy to use.

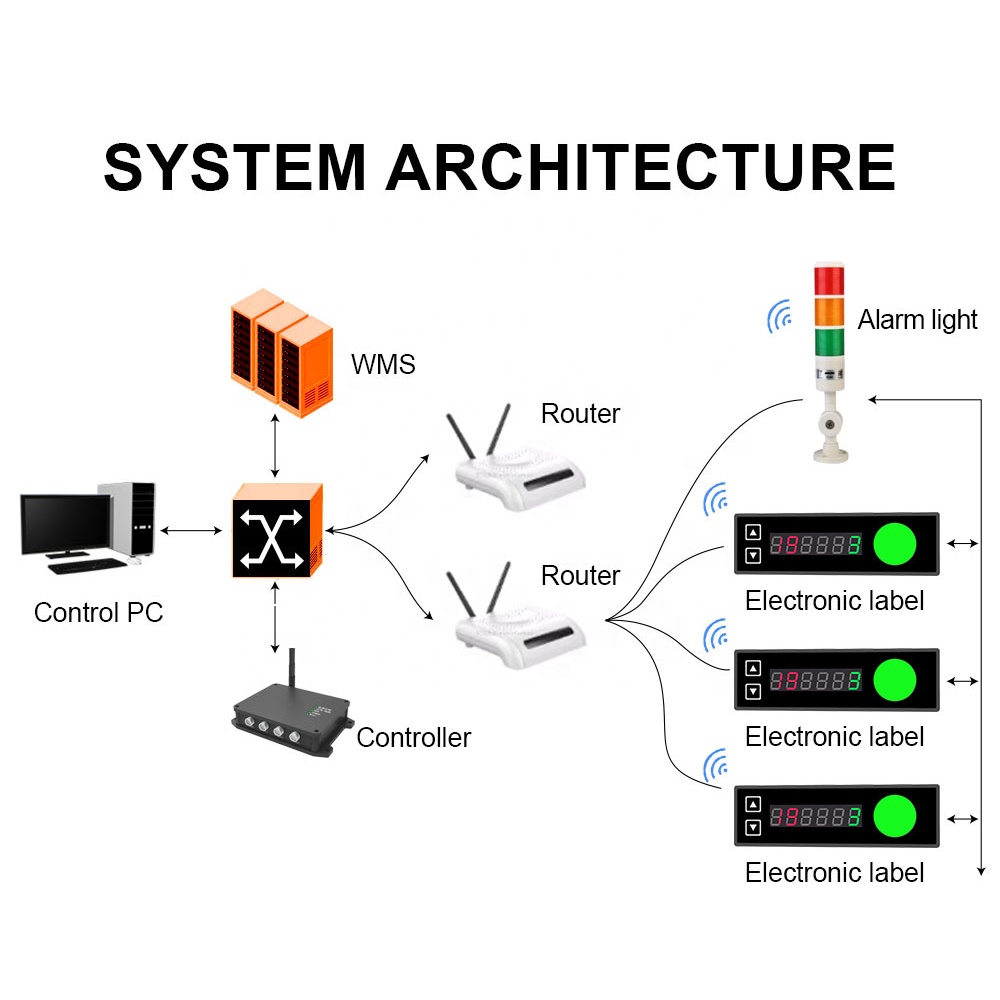

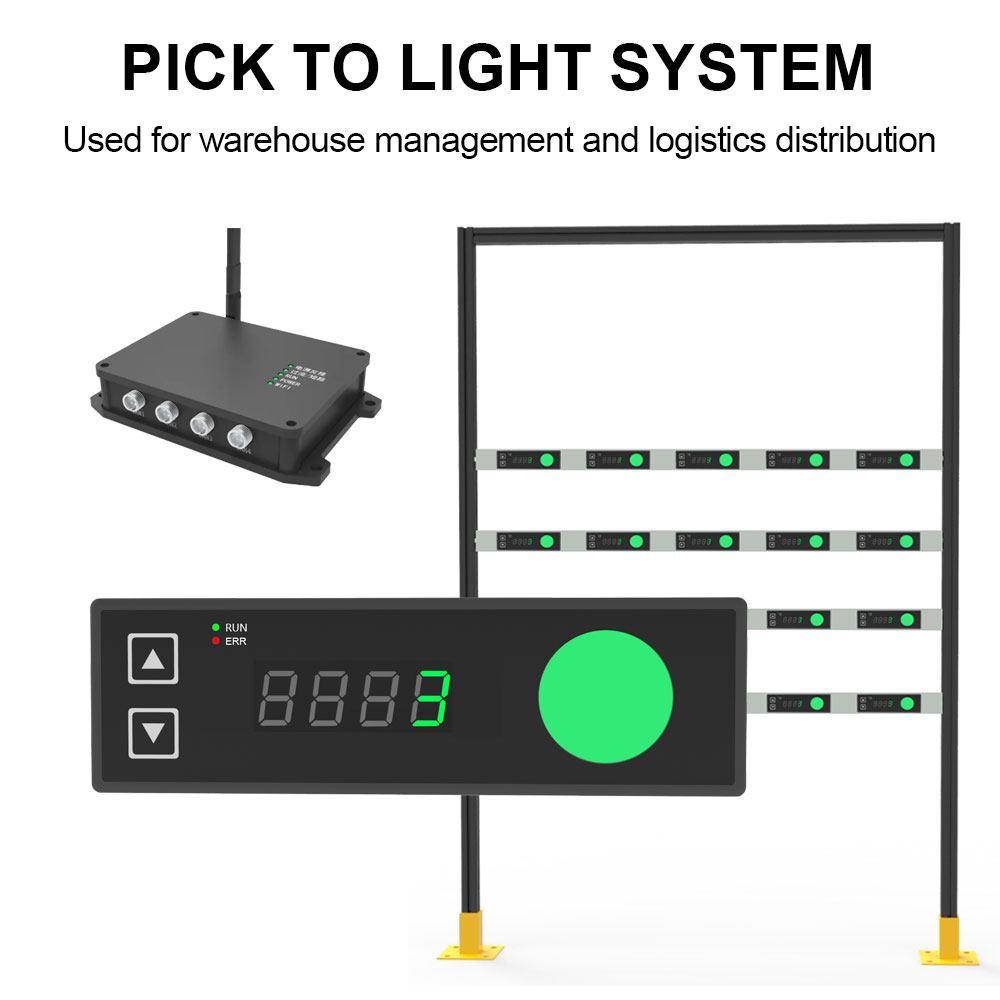

• 1 Data source: The existing WMS system, ERP, MIS, etc. or manually inputting the information.

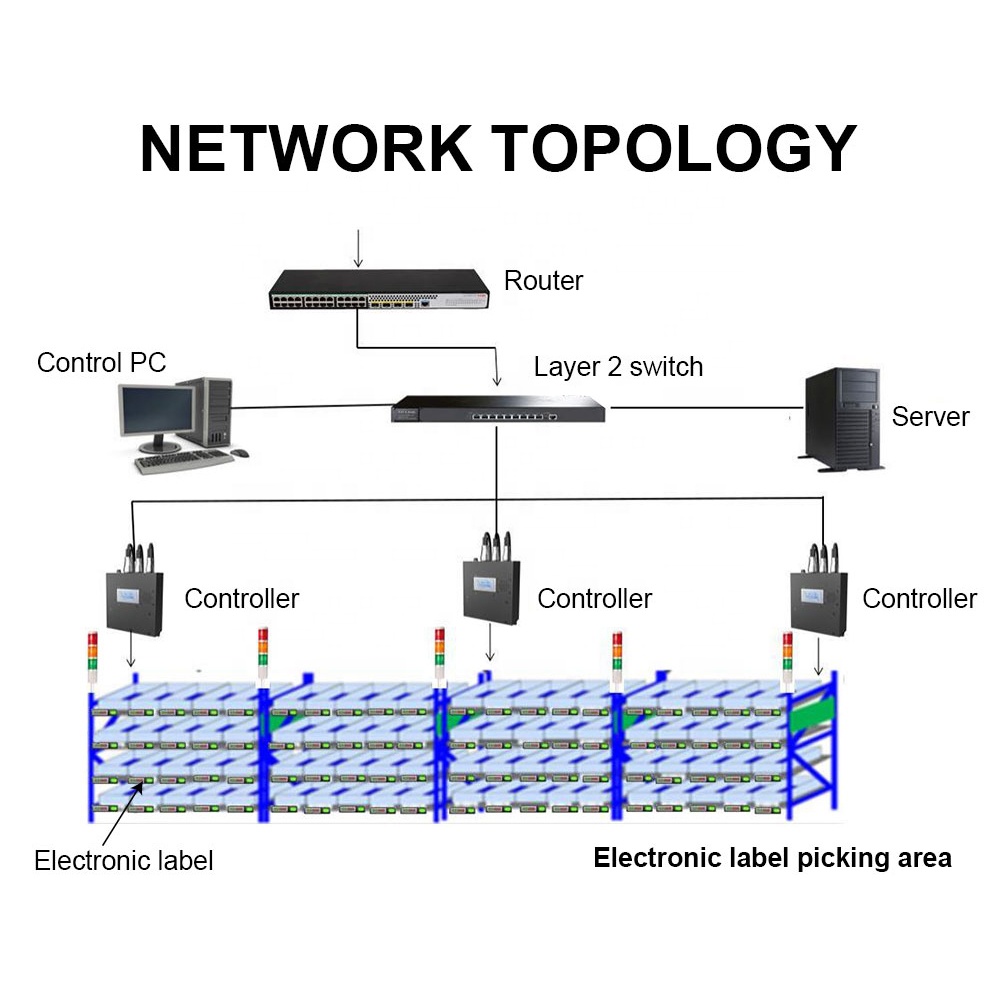

• 2 Control PC: Used to download the order from WMS and send the outbound information to Intelligent BUS module through network switch.
• 3 Network switch: From one interface to multiple interfaces, also known as the bridge.

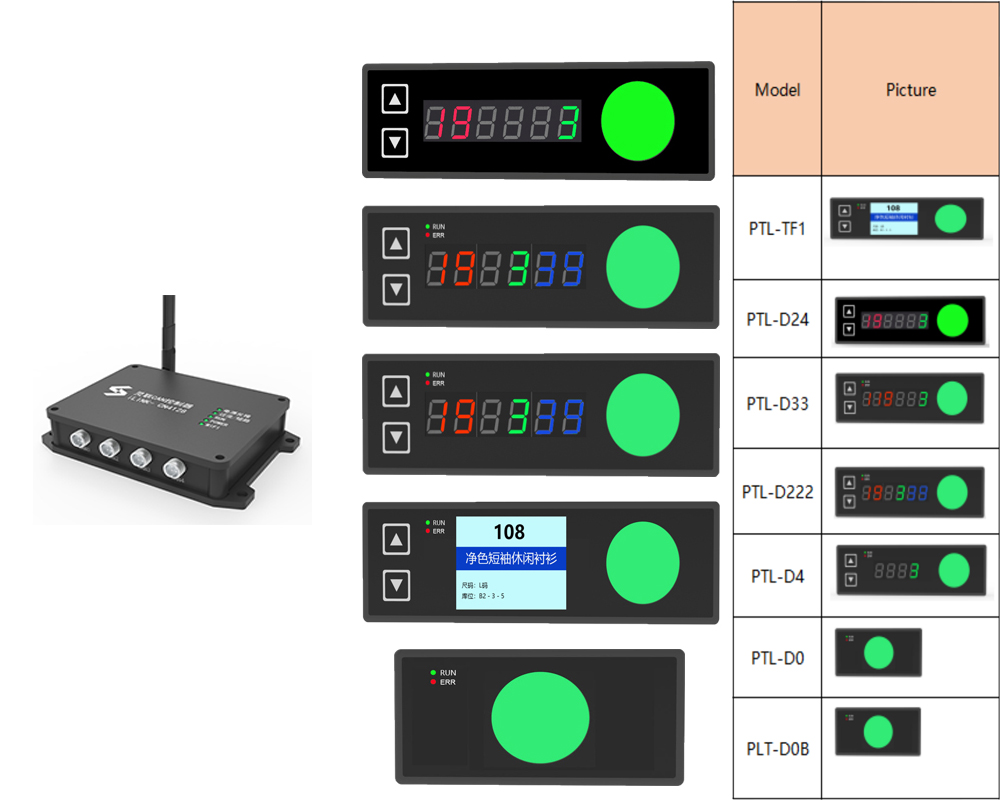

• 4 Intelligent BUS: Controls the work of signal lamp and electronic tags of captioning machine, and transmits the completed job information back to PC. Achieve two-way communication.
• 5 Alarm light: Used in the working area to prompt the task to be done in the area.

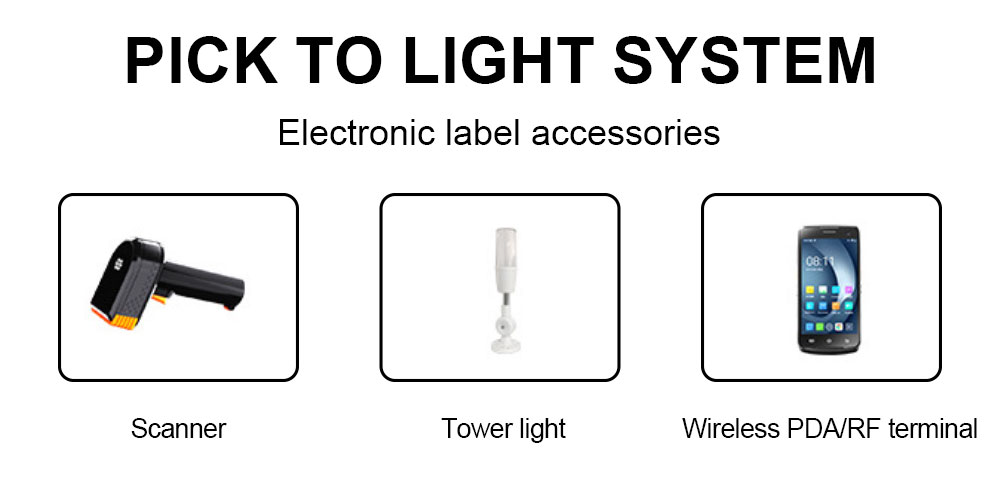

• 6 Multi-function label: Can be connected to the alarm light and scanning gun.

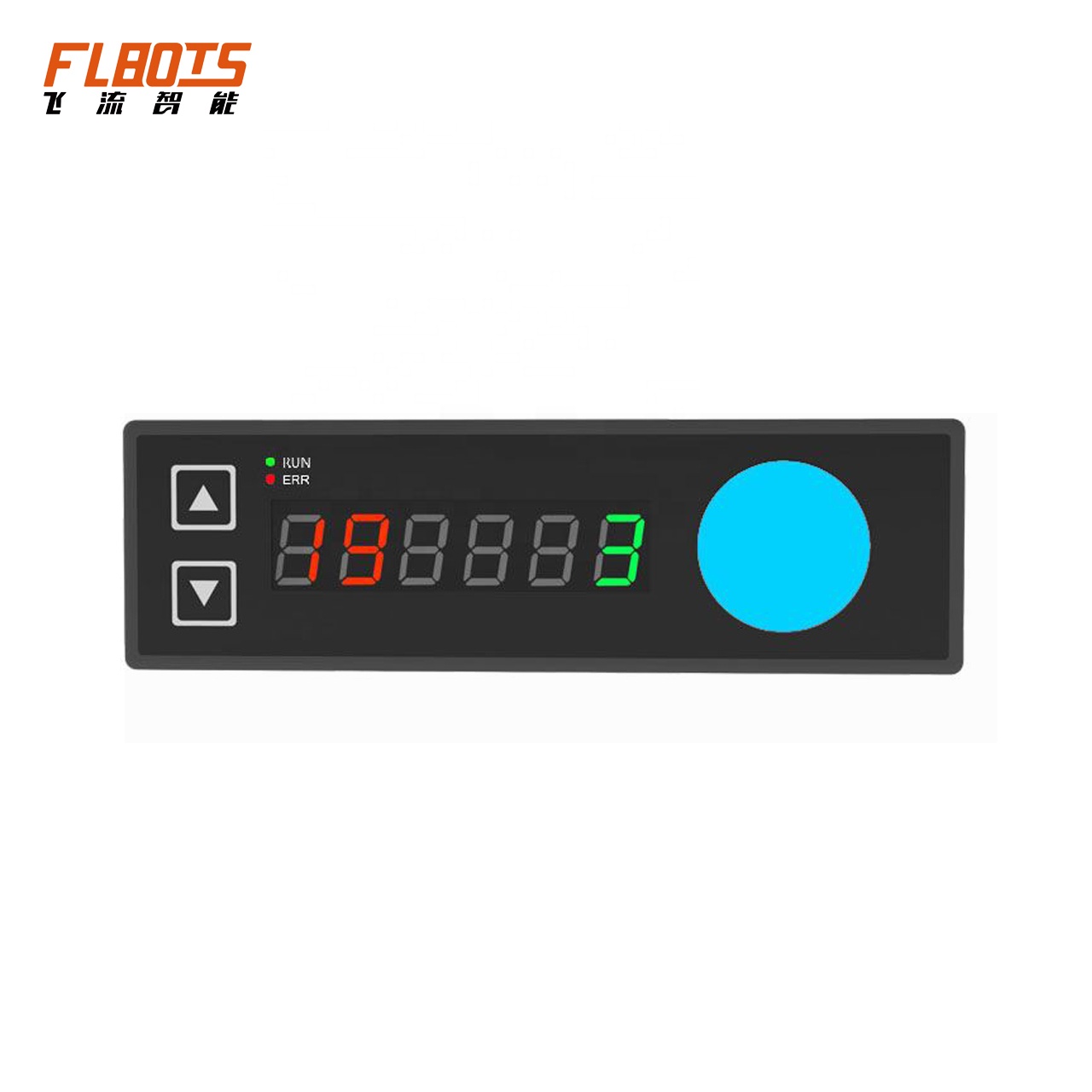

• 7 Electronic label: Used to display the goods location, quantity and send out indicating information.

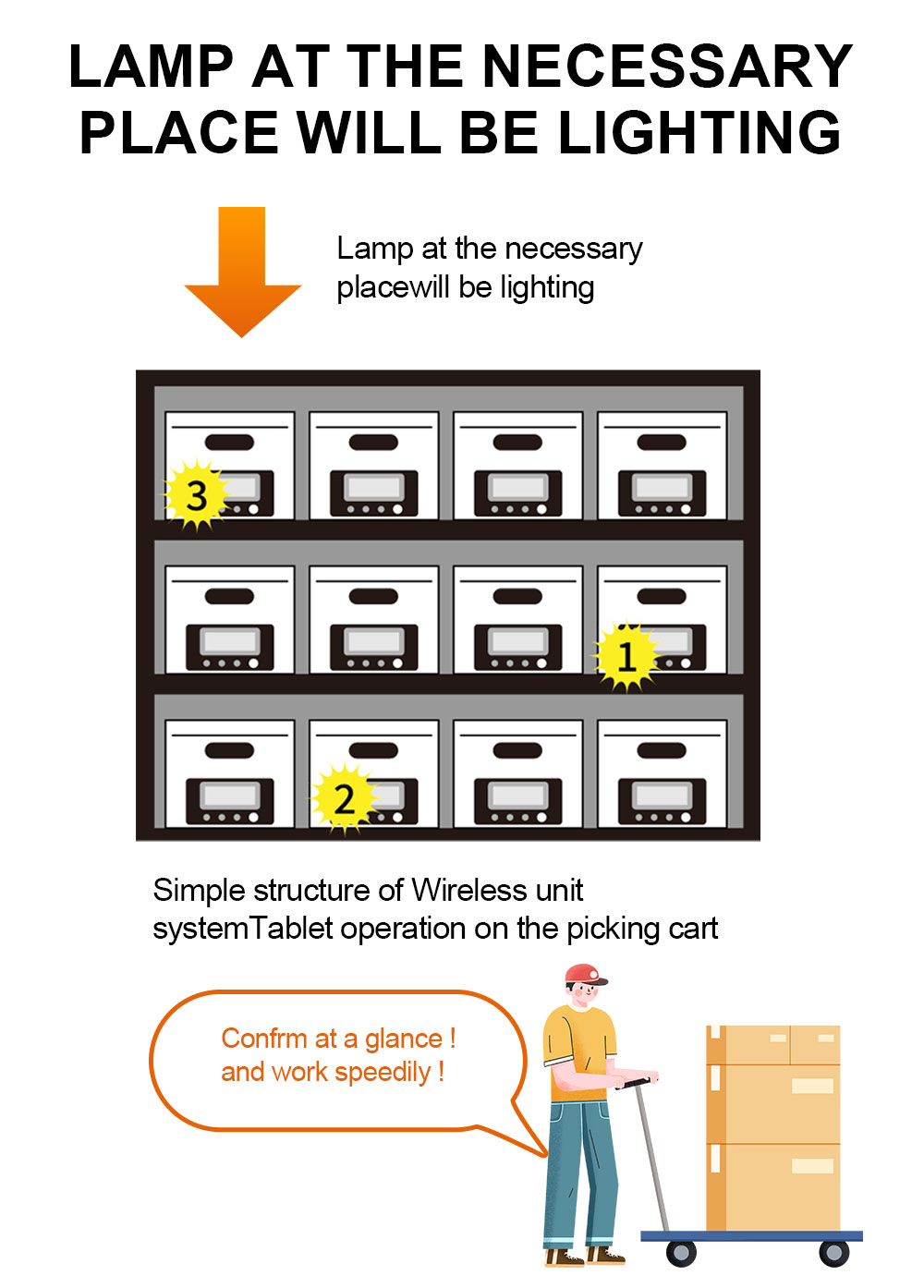

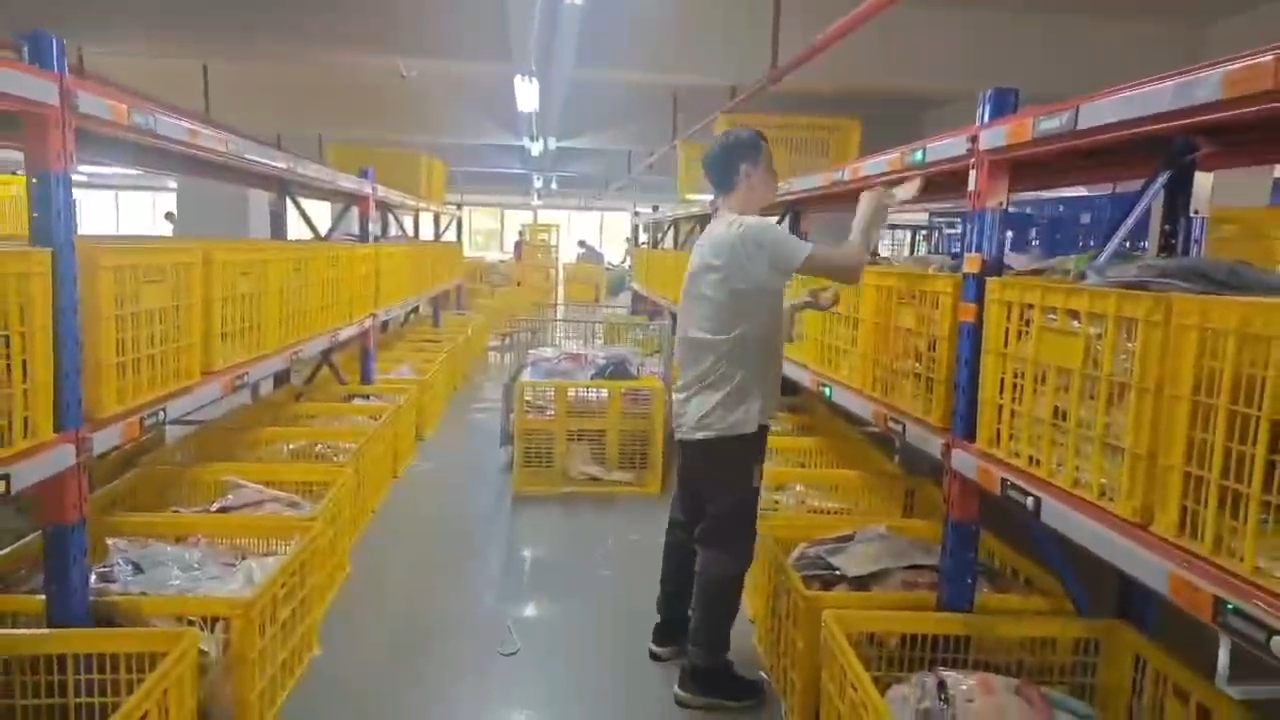

Install electronic labels on the shelf, in principle a place a product in the store (a label represents a product) and one order for a processing unit, the system causes the corresponding label to light up in the order, picking member according to the bright lights and digital display to take out the goods from the shelf. This is called pick to light according to the order.

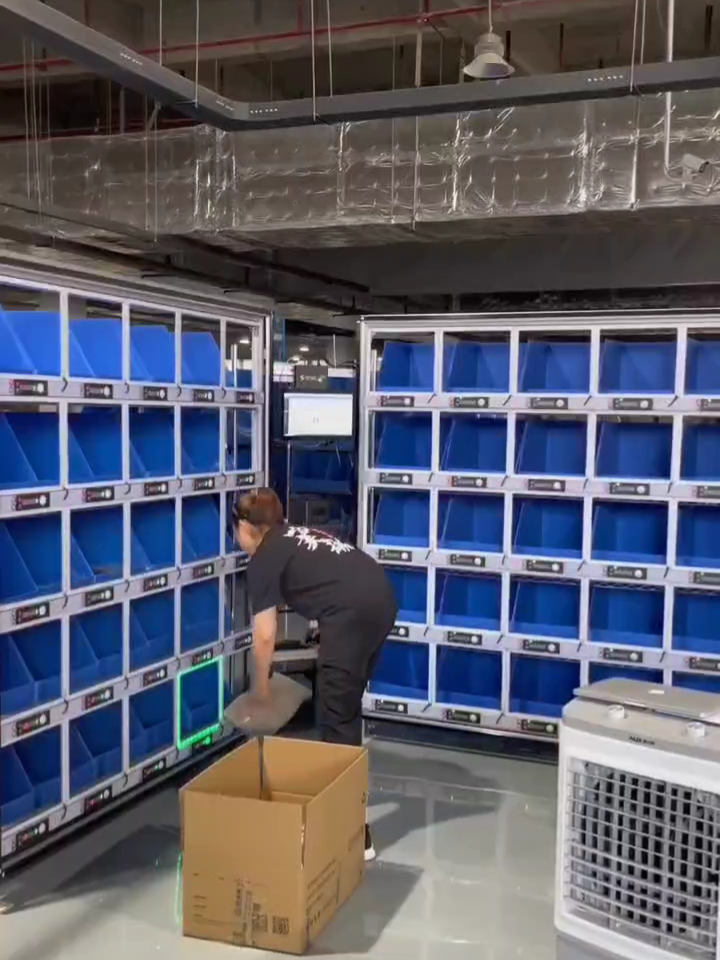

Each label represents an order customer or a distribution object. Taking out the total quantity of the ordered goods first, and scan the good's bar code to light up the according PTL label. The distributor can match the goods to the cargo space corresponding to the light or digital display of the PTL label. Put to light wall can be divided fixed type or mobile type.
