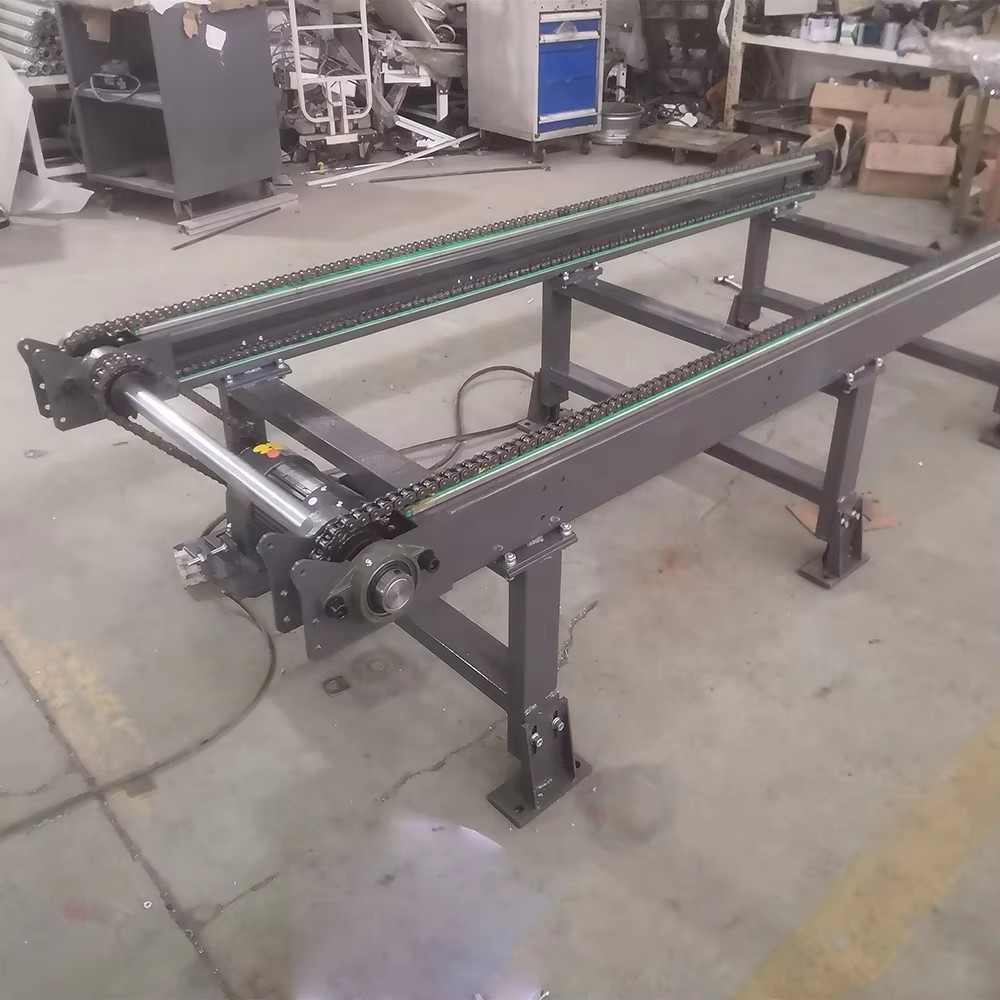

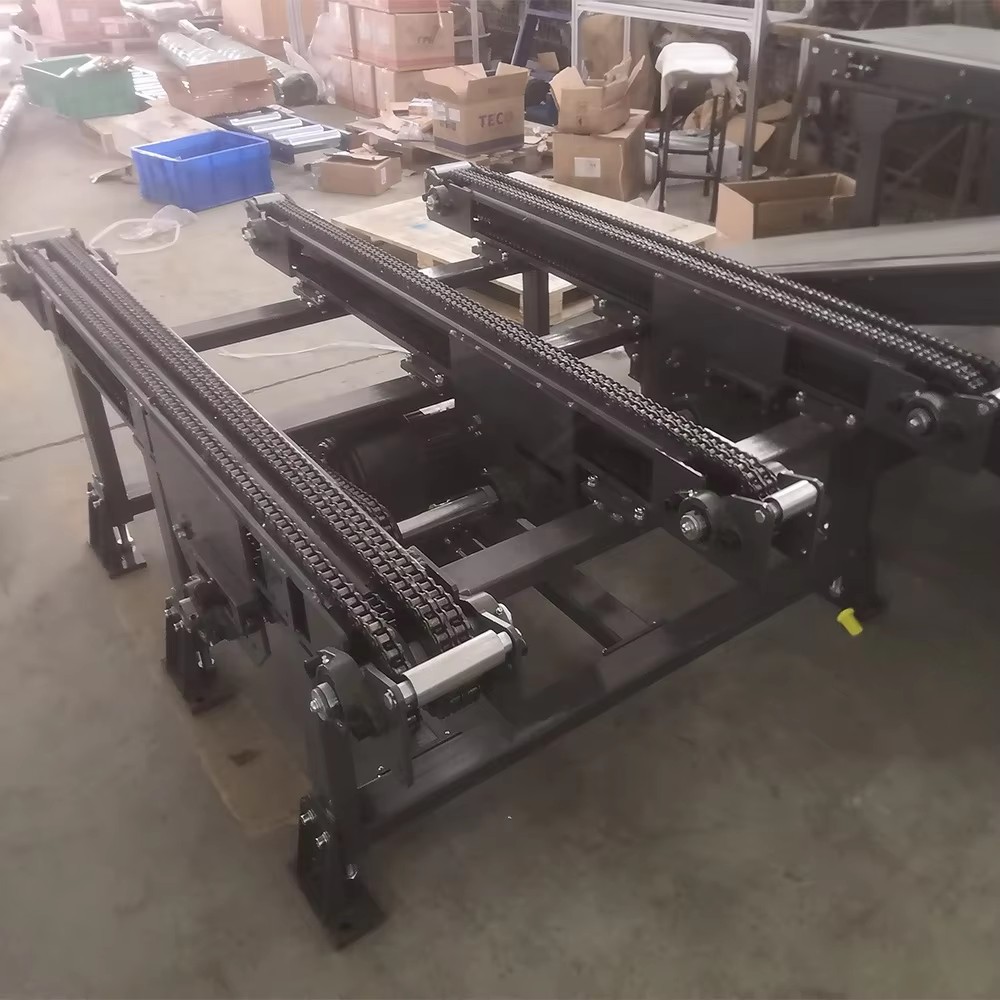

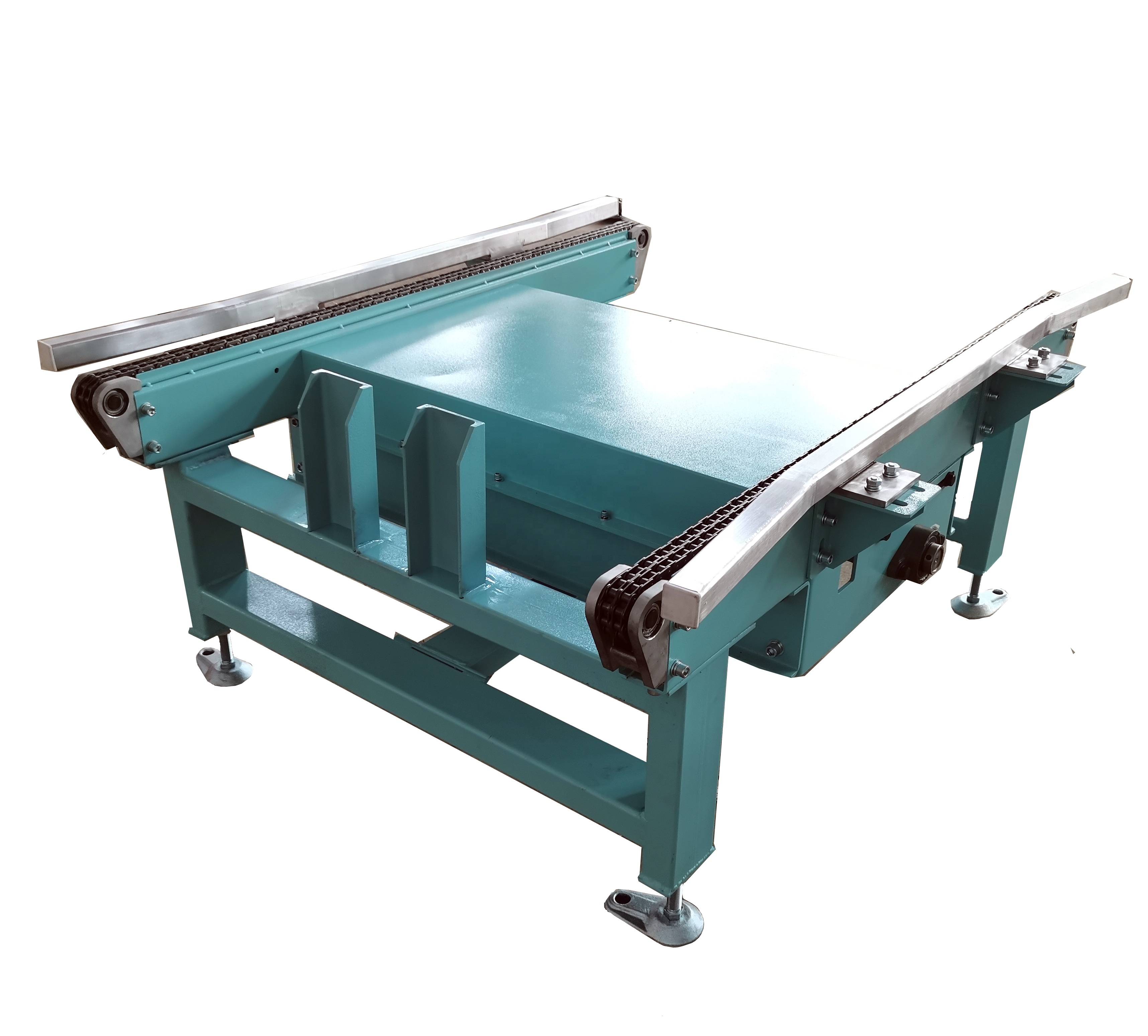

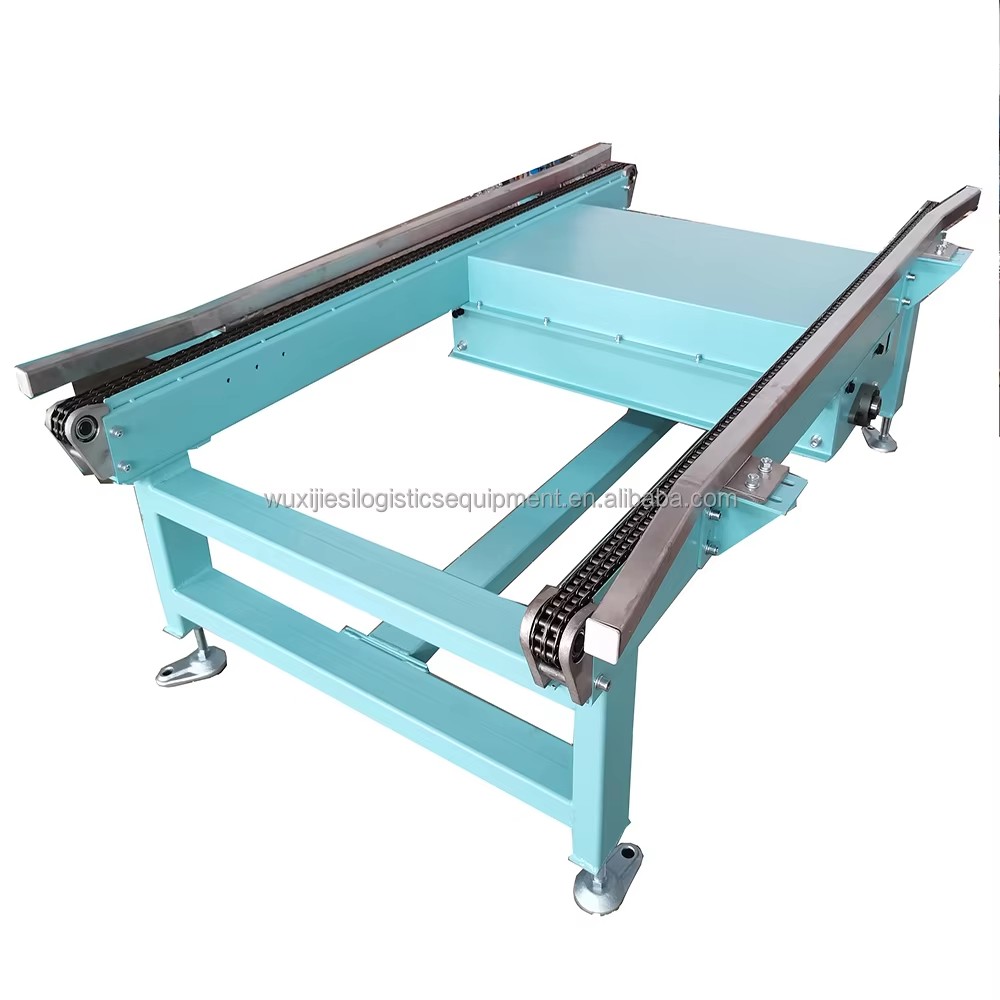

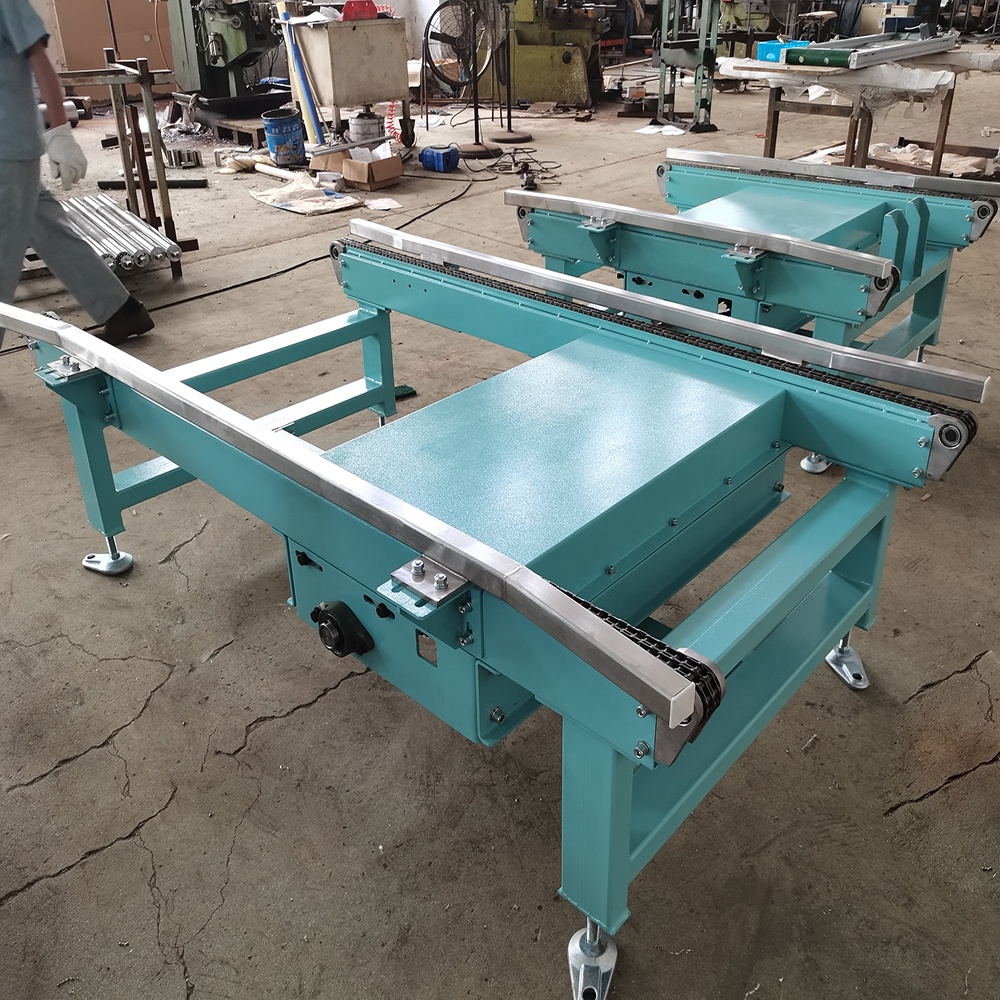

The chain machine is mainly composed of frame assembly, drive assembly, the outrigger, conveyor chain, and guardrail components. The motor on the driving frame drives the conveying chain through the transmission shaft, realizing the conveying action of goods on the conveying chain.
It is suitable for flat bottom, Sichuan bottom, and Tian bottom pallets, as well as the transport of large boxes and crates.

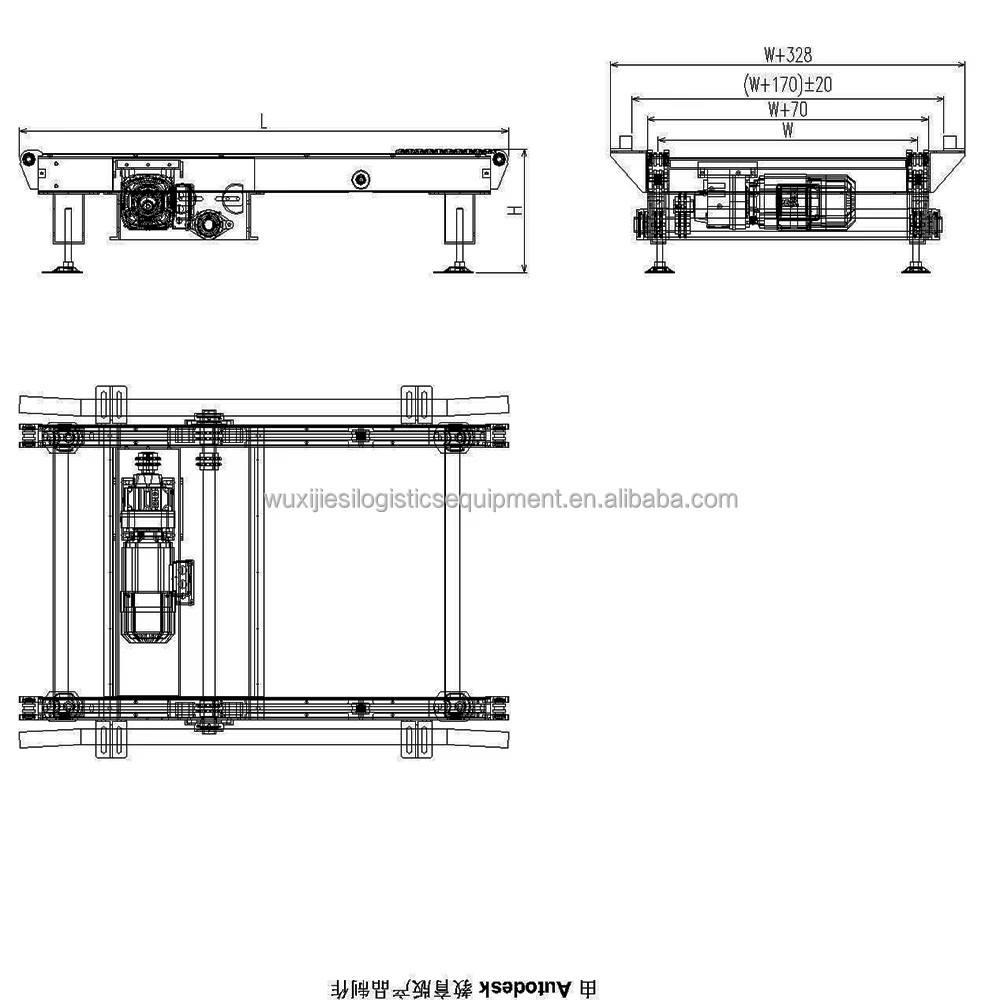

| Model | BDC-2 |
| Chain Model | 10B-2 |
| Width of chain(W) | 850~1450 |
| Frame Size | C120*70*15*4T |
| Length(L) | 1,200~6000 |
| Width of conveyor | W+70 |
| Height(H) | min500 |
| Capability(kg/m) | max1500 |
| Speed(m/min) | max20 |
| Power(kw) | 0.37 0.55 0.75 1.5 |
| Voltage | AC380V/3Ph/50Hz |
