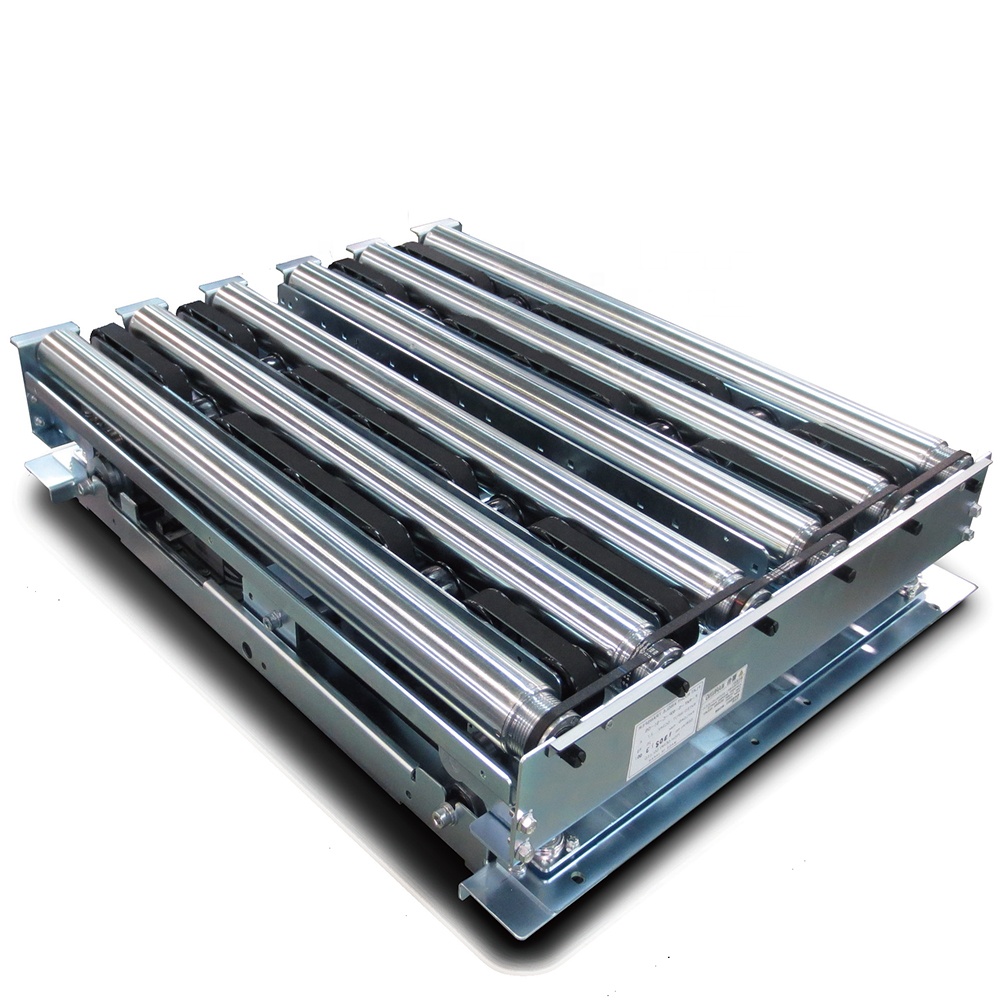

Flat-right angle transfer, Electrical Roller Transfer, Pop up transfer conveyor

Low Energy Consumption

• Driven by a high-quality DC Electrical Roller, the power consumption is very low.
• The start and stop of the equipment are controlled according to the arrival of packages, which is efficient and energy-saving.
• It has no cylinder drive, with low noise and little vibration, and is more environmentally friendly.

Standardized

• The complete machine adopts a standardized and modular design and supports fast assembly and disassembly.
• The standard conveying channels can be switched at a right-angle of 90° or merged at a right-angle of 90°.
• 24DC operation with pneumatic creates.
• Eliminates the need of the level adjustment with the adjacent conveyors, thanks to unique design transferring products without changing the conveying level. Plug & play simplified wiring.

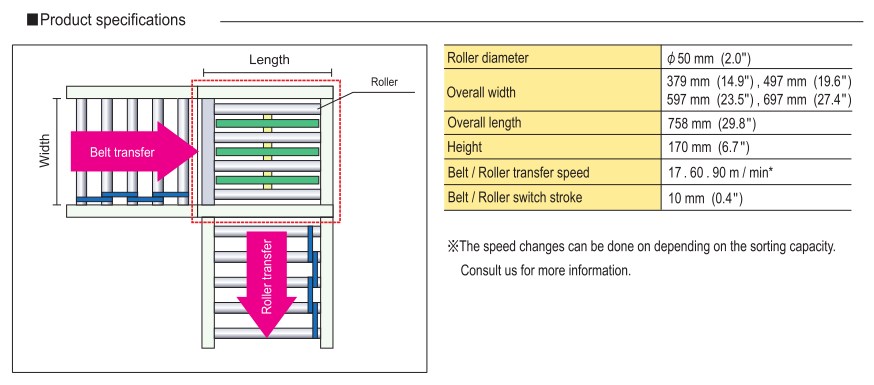

Technical parameter

Advantages

• Energy saving: "Run-on-Demand" operation of F-RAT and its unique using no pneumatic saves energy.
• Creating Comfortable Environment: 24V DC operation with no pneumatic creates comfortable environment (Silent and less vibration).
• Space Saving: Low profile (170mm from the bottom to the conveyor surface) design allows various applications.
• Simple Structure: Simple structure using only three MDRs (Motor-Driven Roller).
• Easy Installation / Wiring: Eliminates the need of the level adjustment with the adjacent conveyors. Plug & play simplified wiring.
• Expandable: Easy to expand the line because one module performs both straight forwarding and diverting.

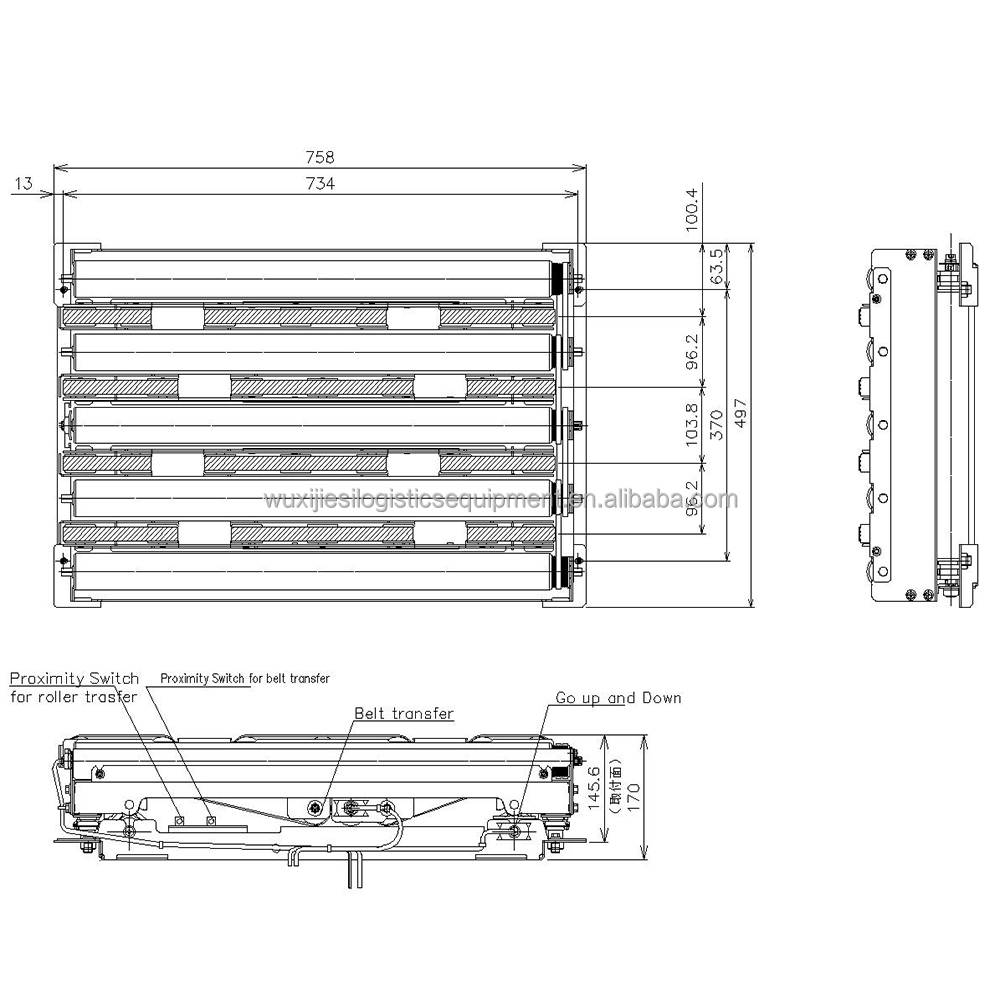

DWG

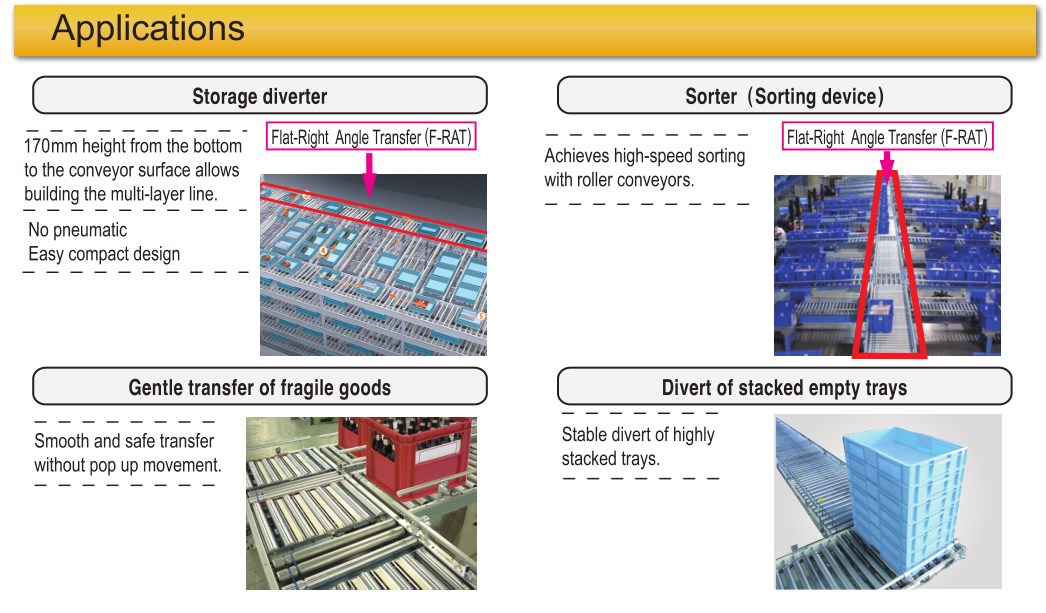

Applications
