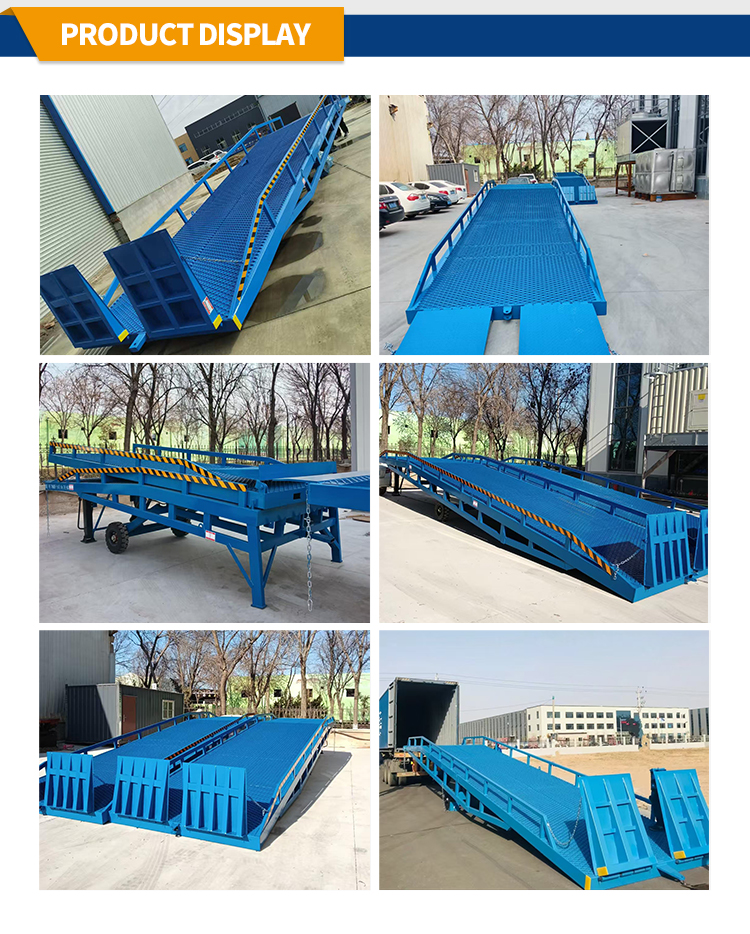

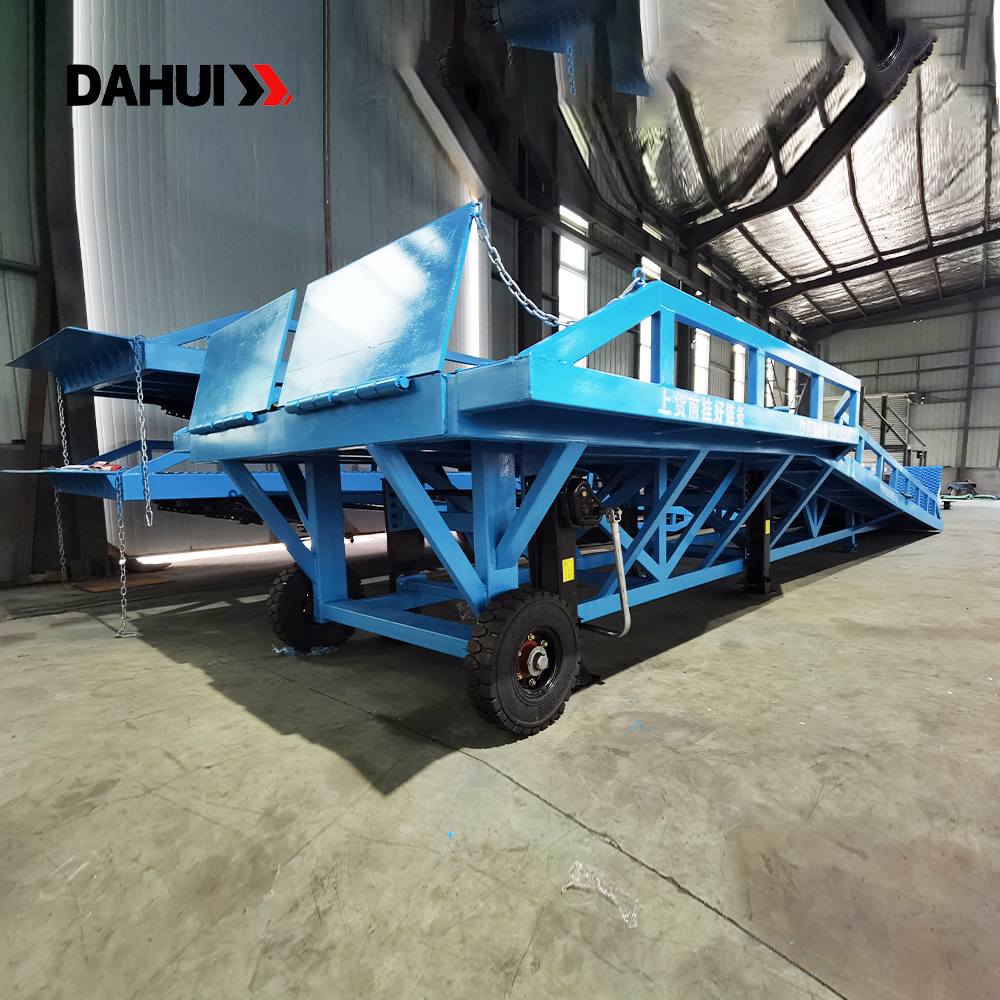

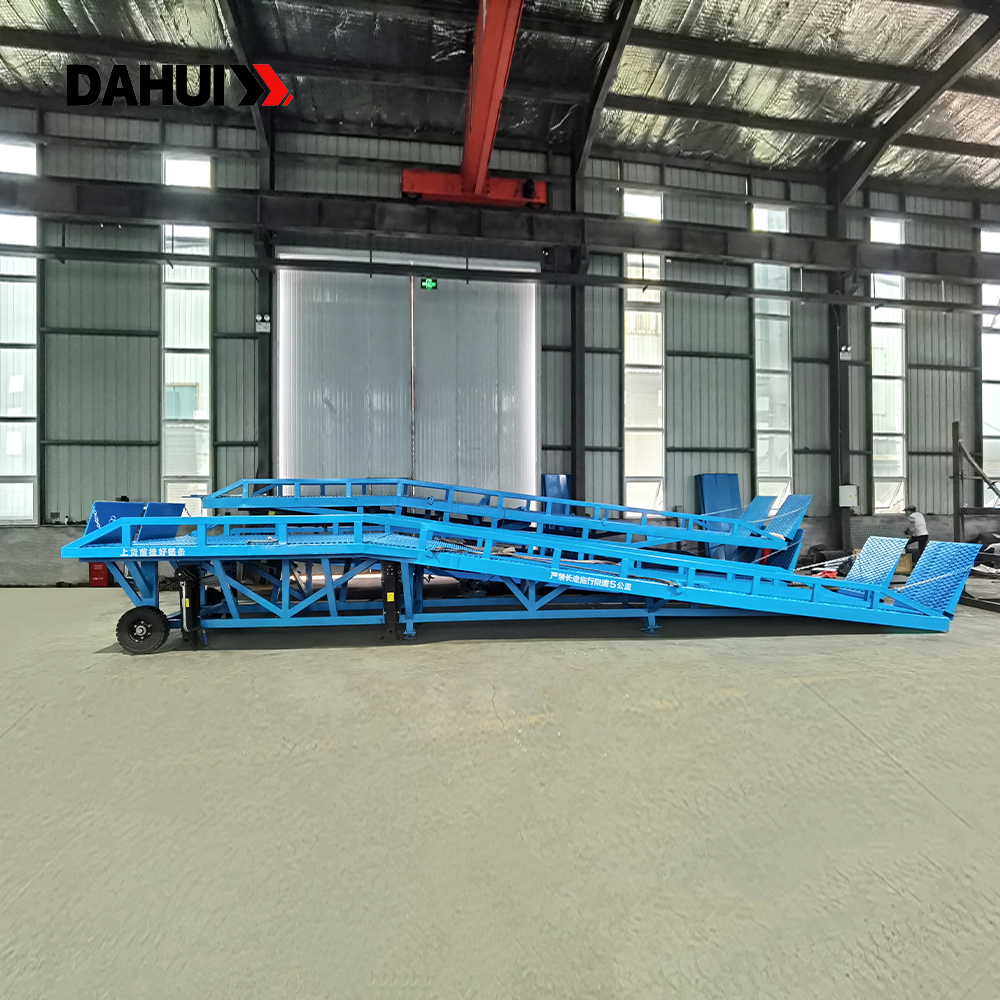

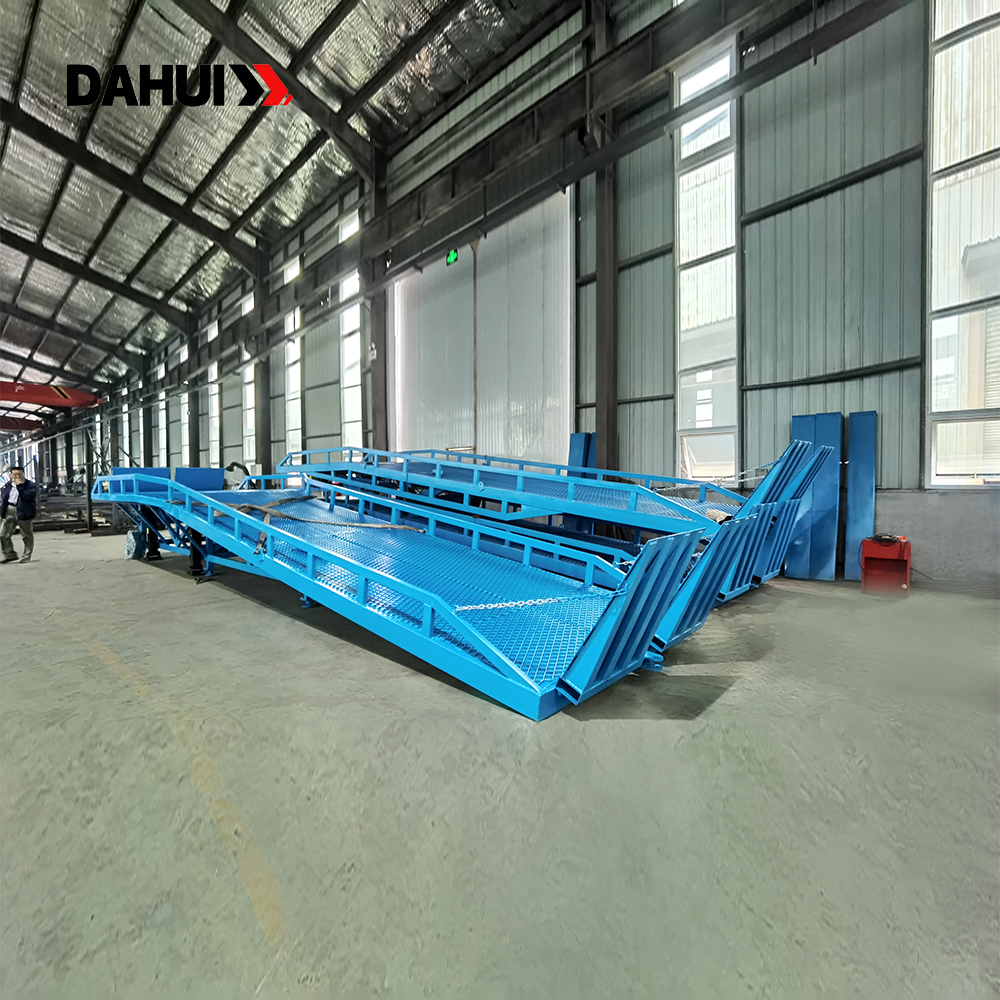

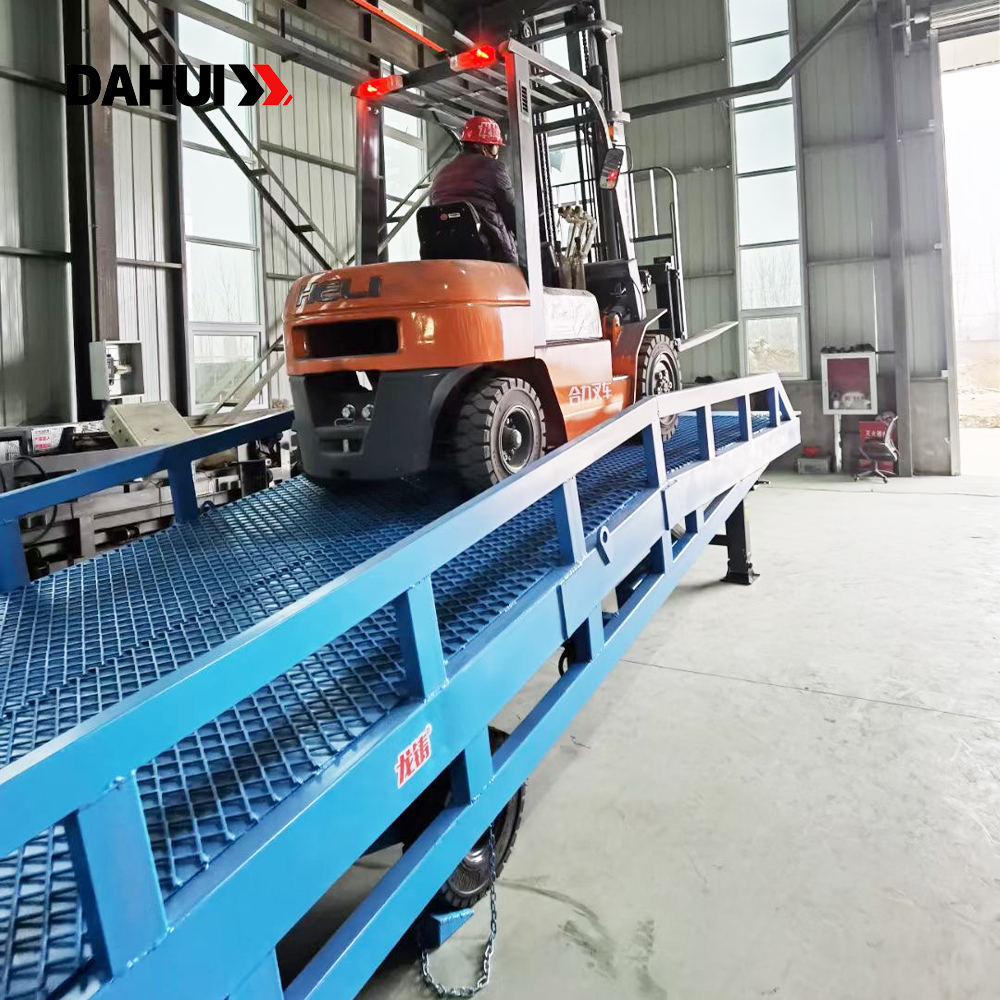

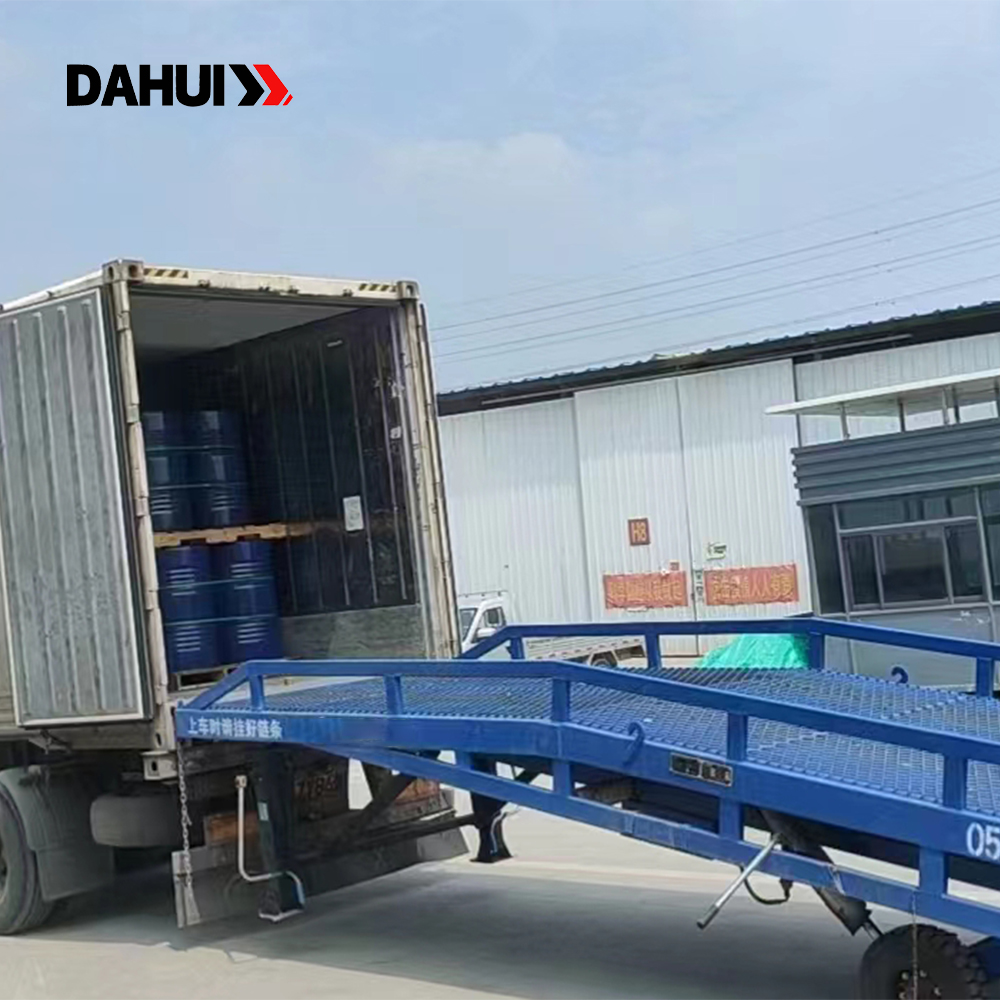

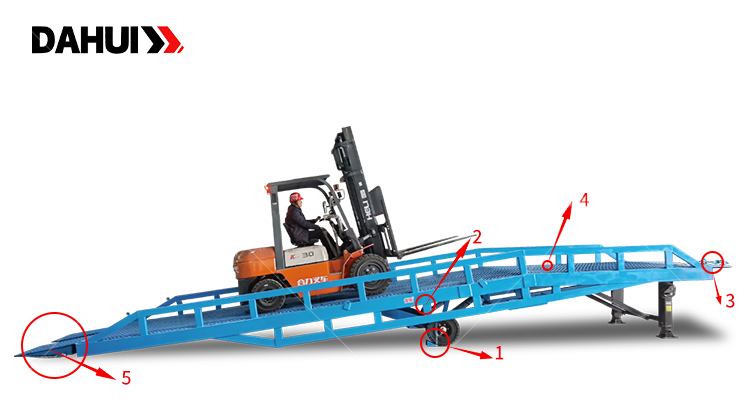

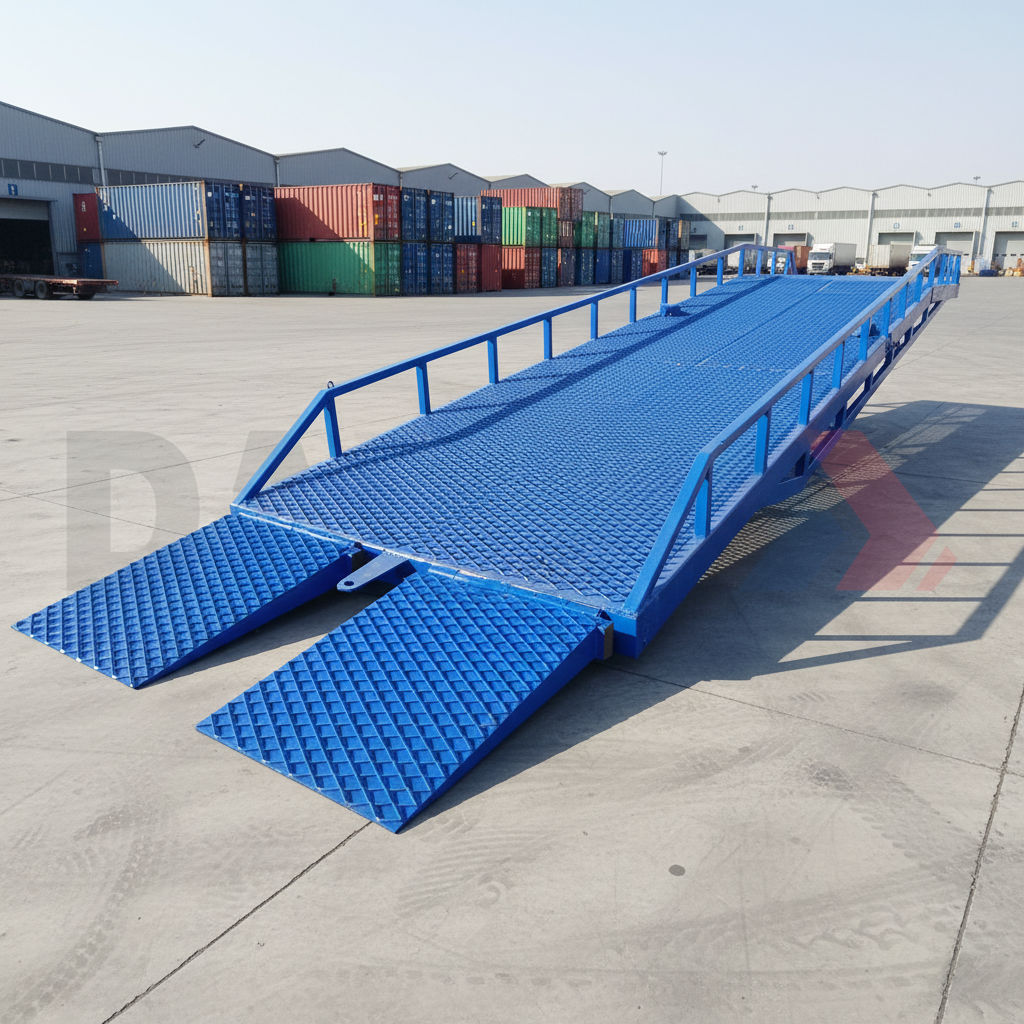

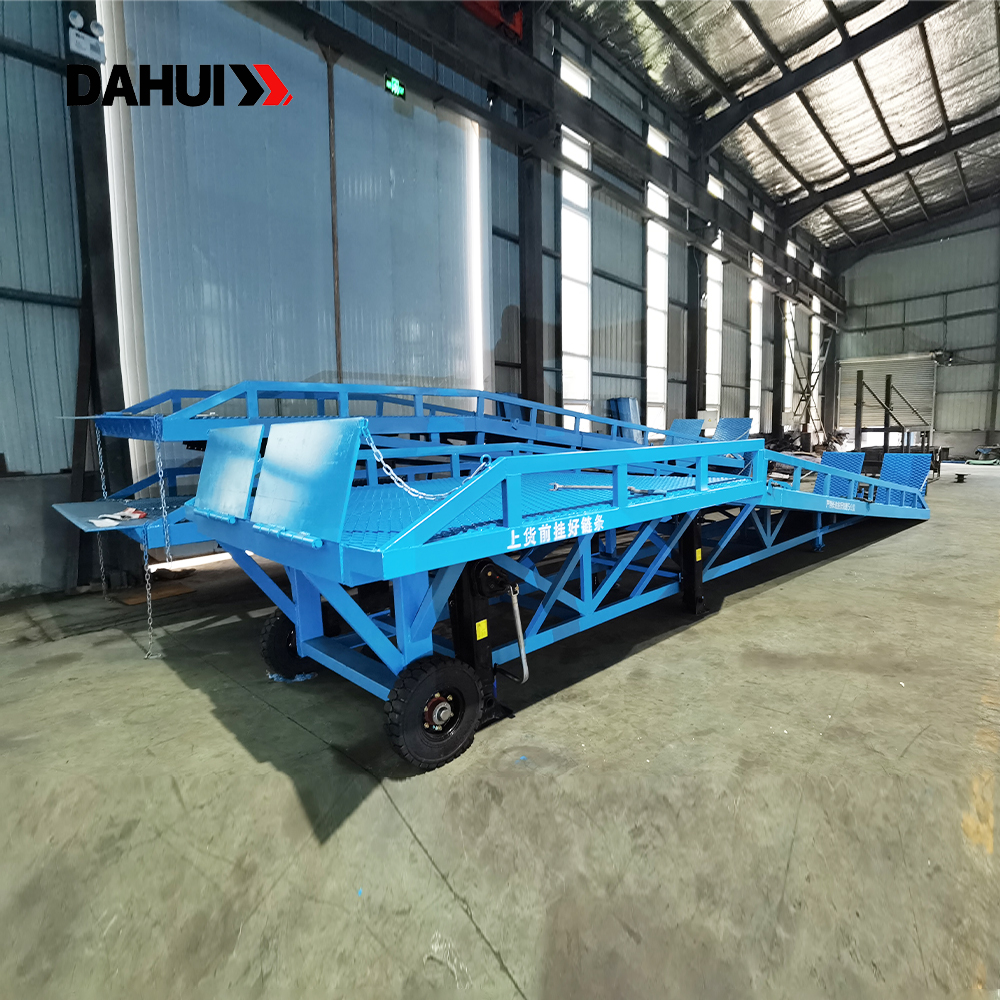

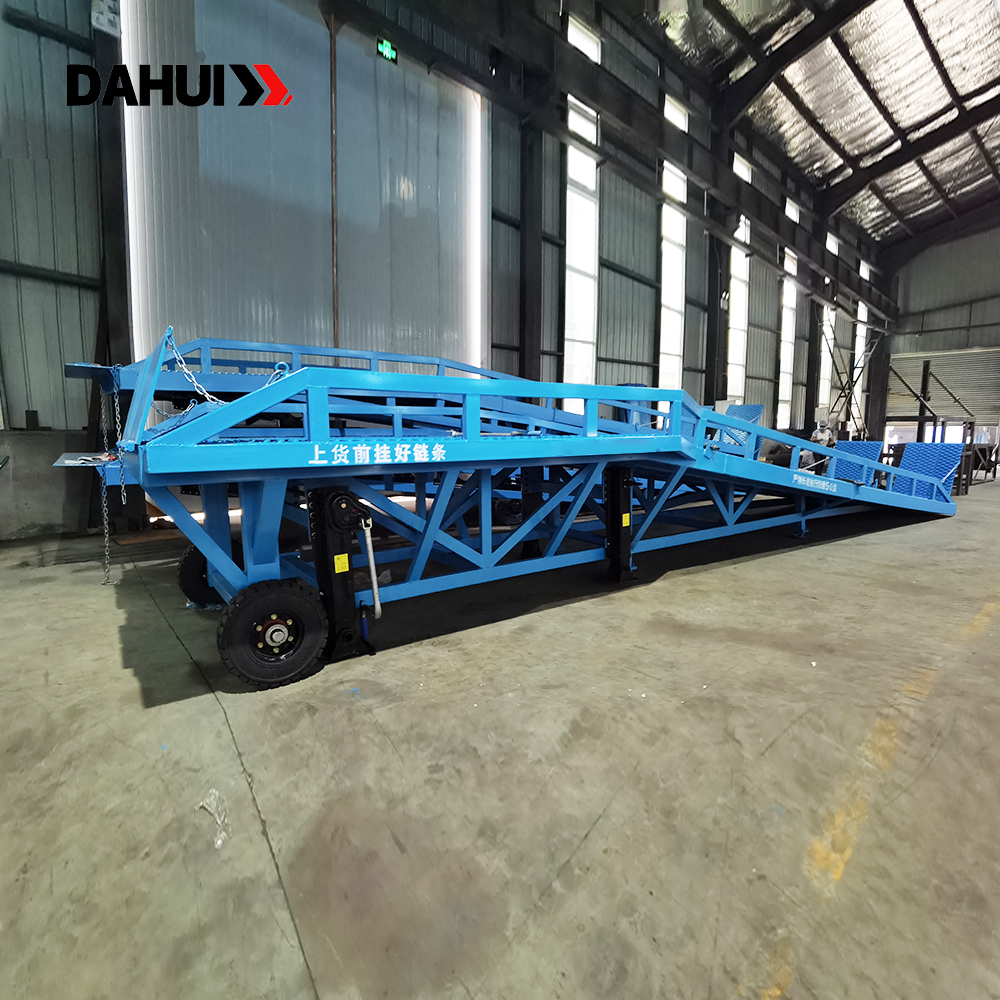

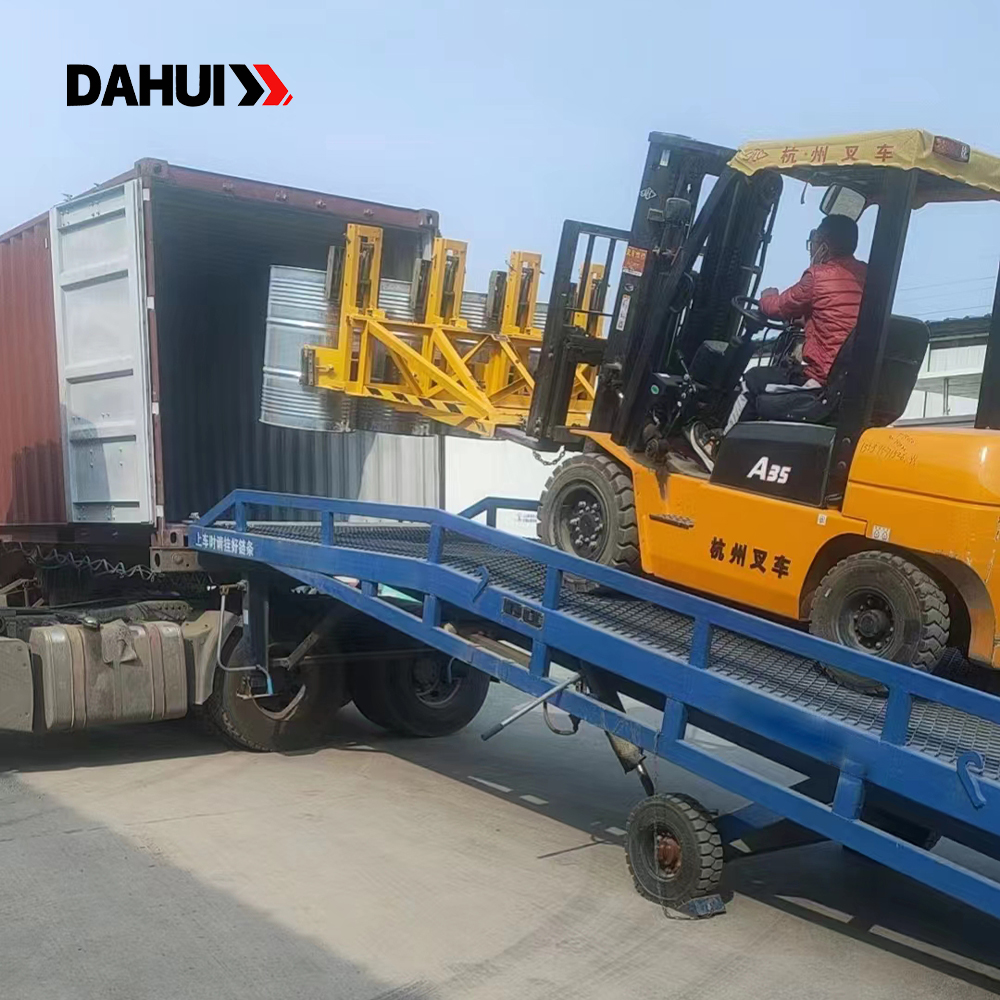

The mobile yard ramp is a loading equipment that works in conjunction with forklifts. The ramp's height can be adjusted according to the vehicle floor's height. With it, the forklifts can be driven into the inner area of the vehicle to handle cargo directly. With only one operator, you can achieve rapid loading and unloading of goods. It greatly improves the working efficiency and lowers labor numbers, achieving more economic benefits.

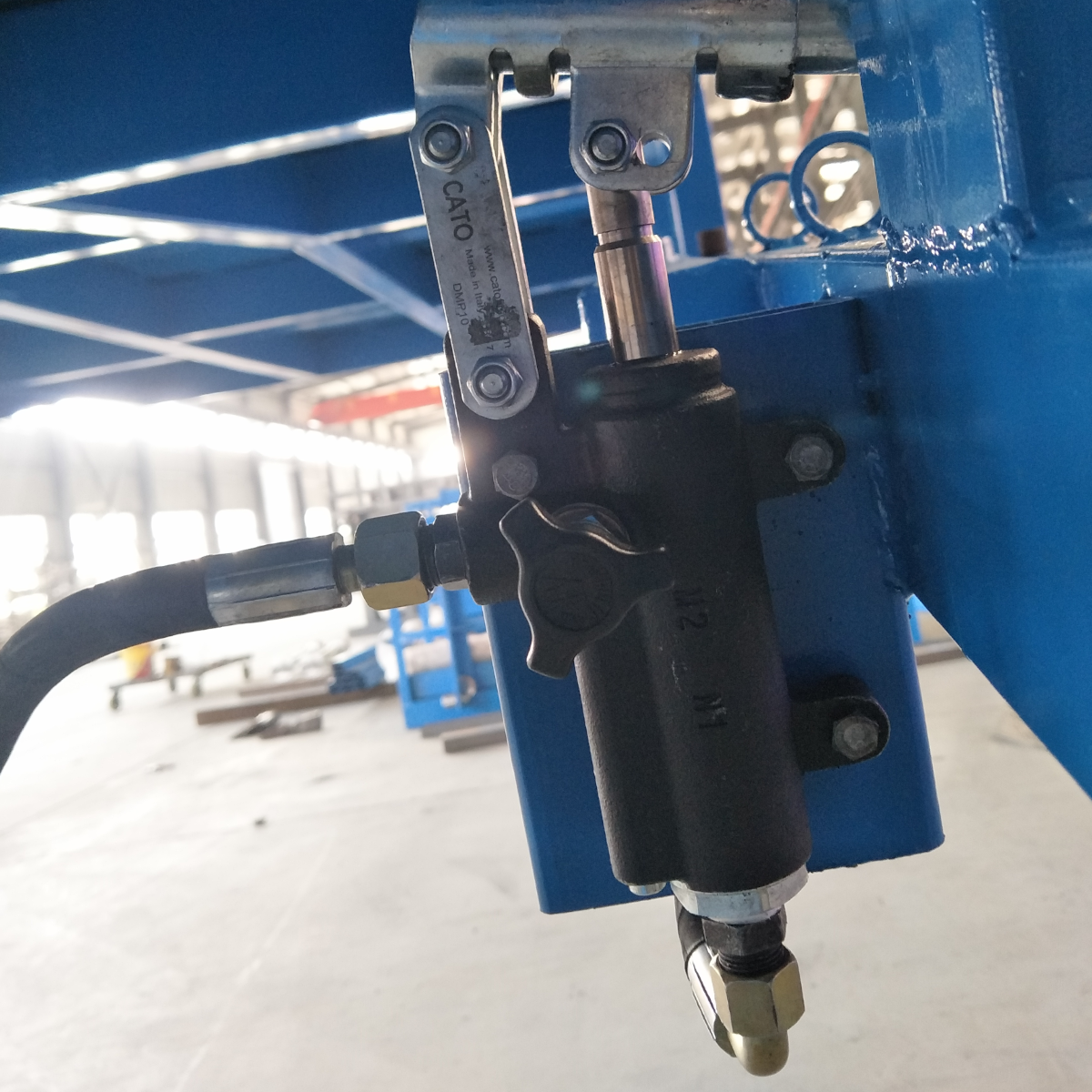

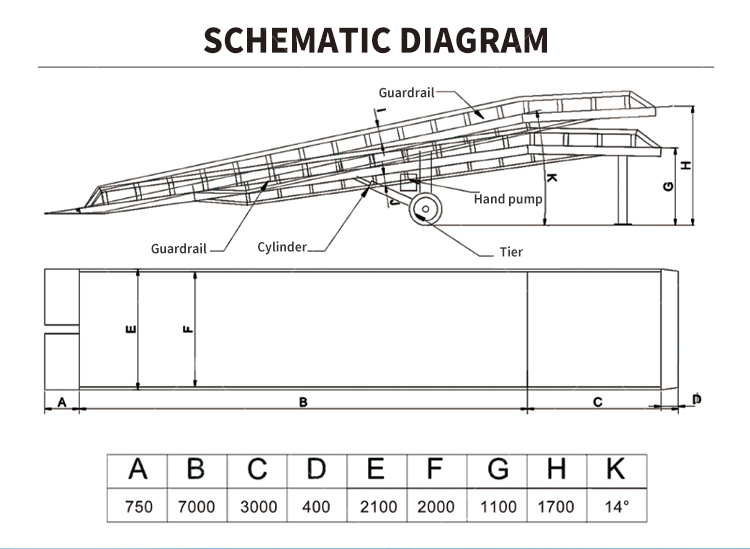

| Model | Load capacity | Adjustable height | Lifting System | Size | Dead load |
|---|---|---|---|---|---|
| DCQY-6T | 6T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 2200kg |
| DCQY-8T | 8T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 2300kg |
| DCQY-10T | 10T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 2400kg |
| DCQY-10T | 10T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 2500kg |
| DCQY-12T | 12T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 2800kg |
| DCQY-15T | 15T | 1.1-1.7M | manual hydraulic pump | 11.15*2.1*1.1M | 3200kg |
We are a modern, intelligent, specialized, and internationalized manufacturer of logistics loading and unloading equipment. Established in 2014, over the past 10 years, we have been deeply engaged in the research, development, production, and sales of logistics loading and unloading equipment, holding 20 national patents.

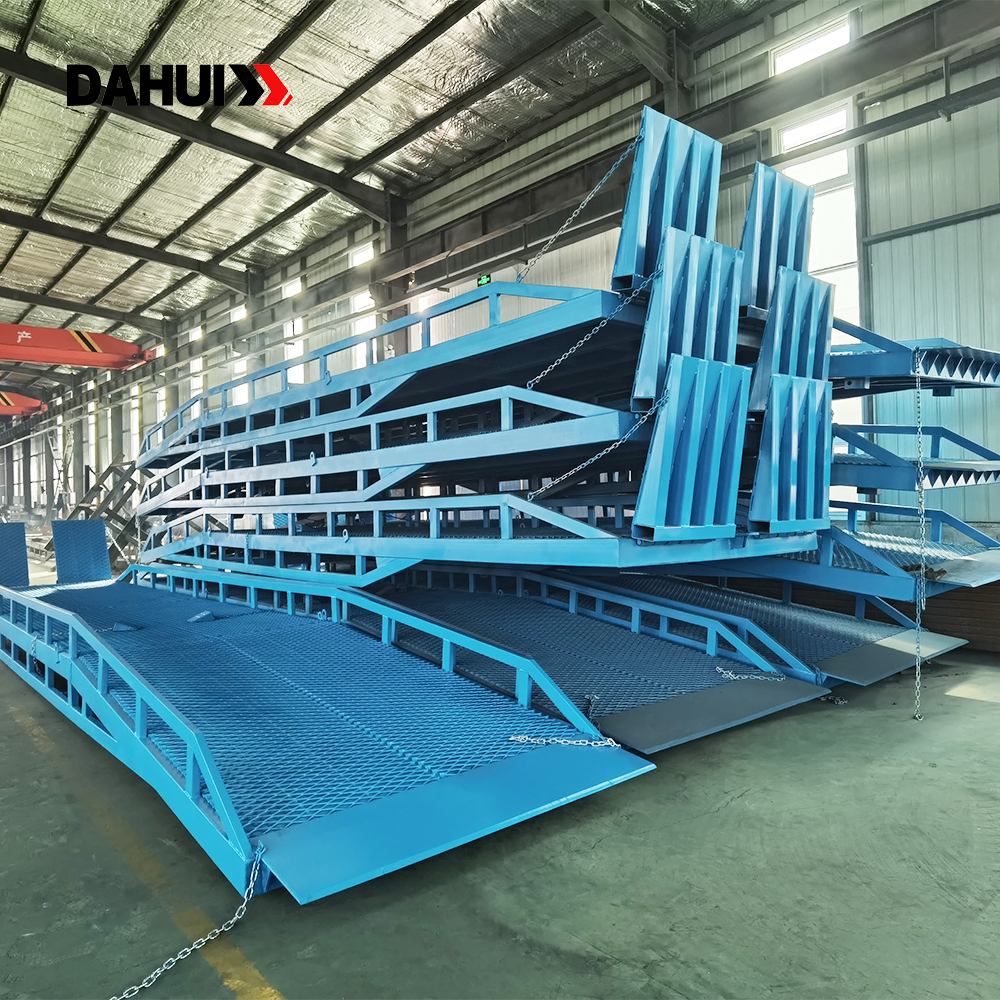

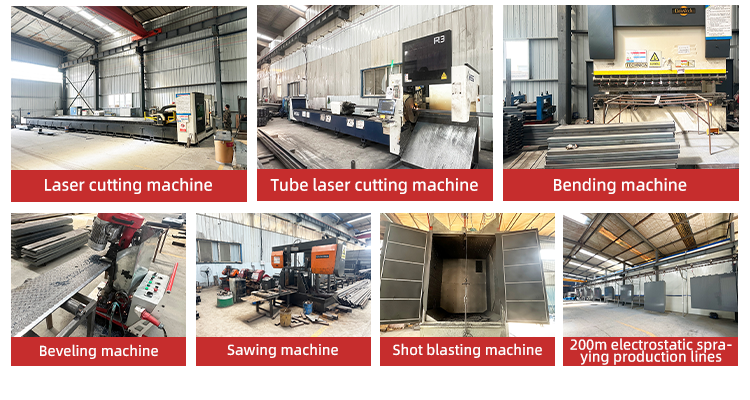

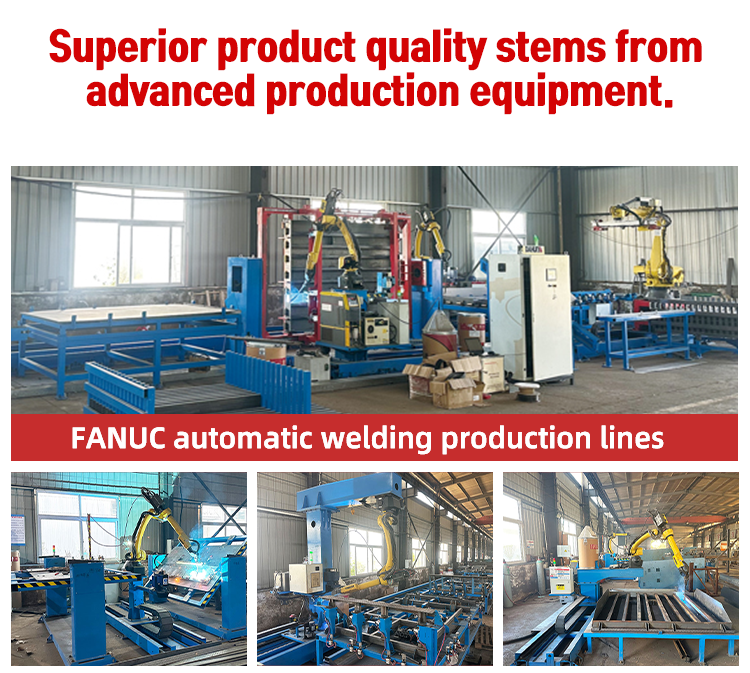

We support customization and OEM processing with an annual production of over 6,000 sets. Our facilities feature advanced laser cutting production lines, automatic welding production lines, and shot blasting and powder coating lines. Our products are widely used in logistics, warehousing, cold chain, food, industrial manufacturing, and other industries.
