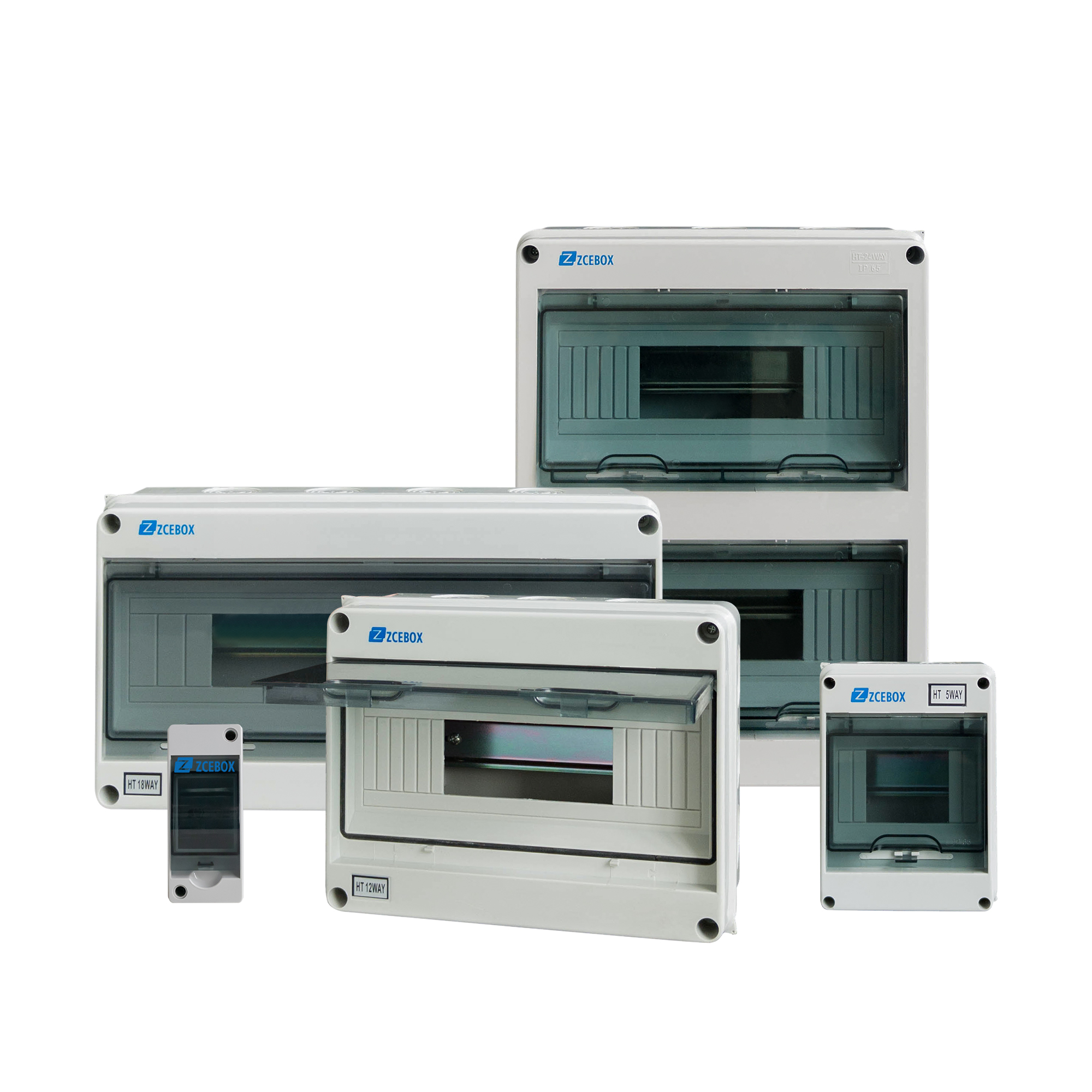

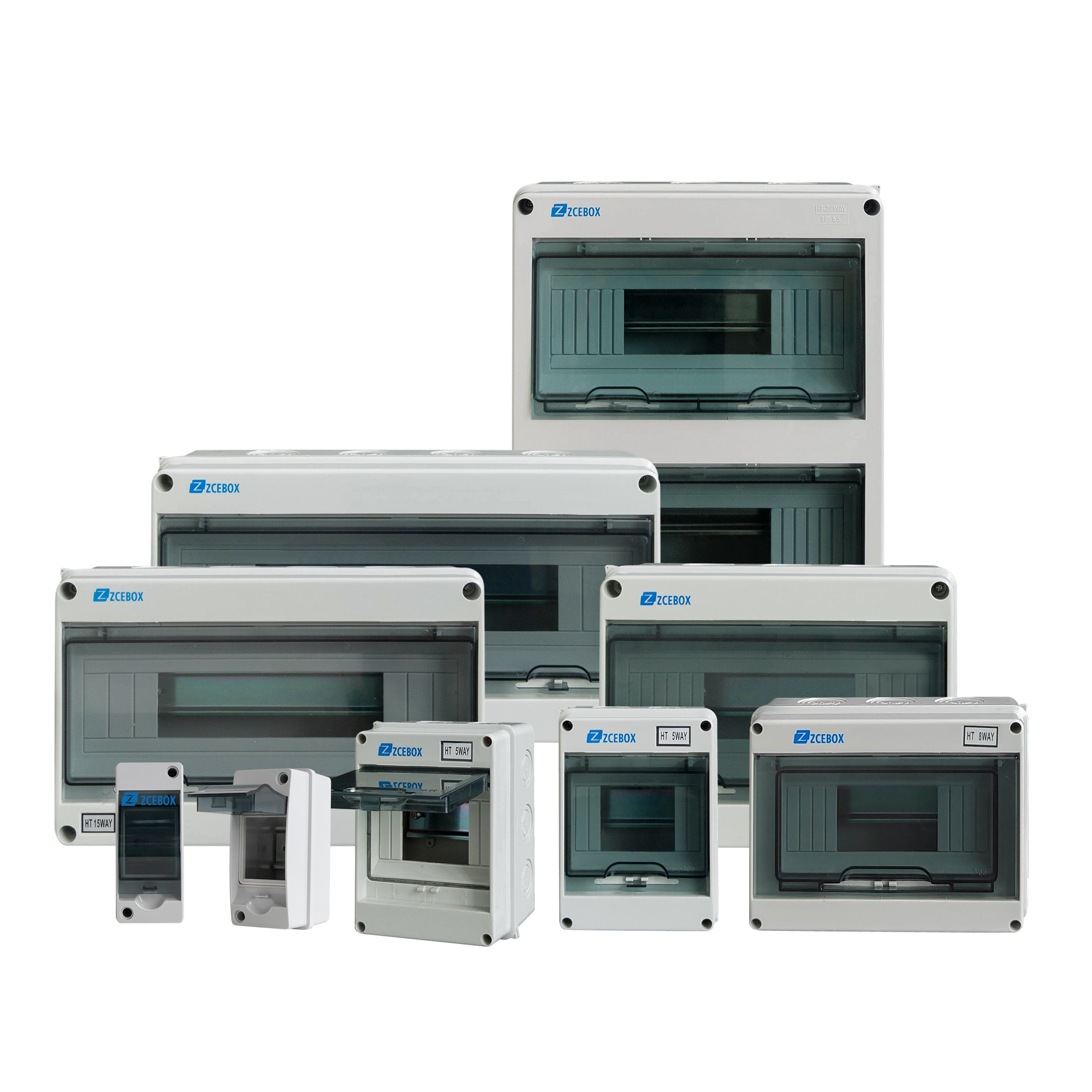

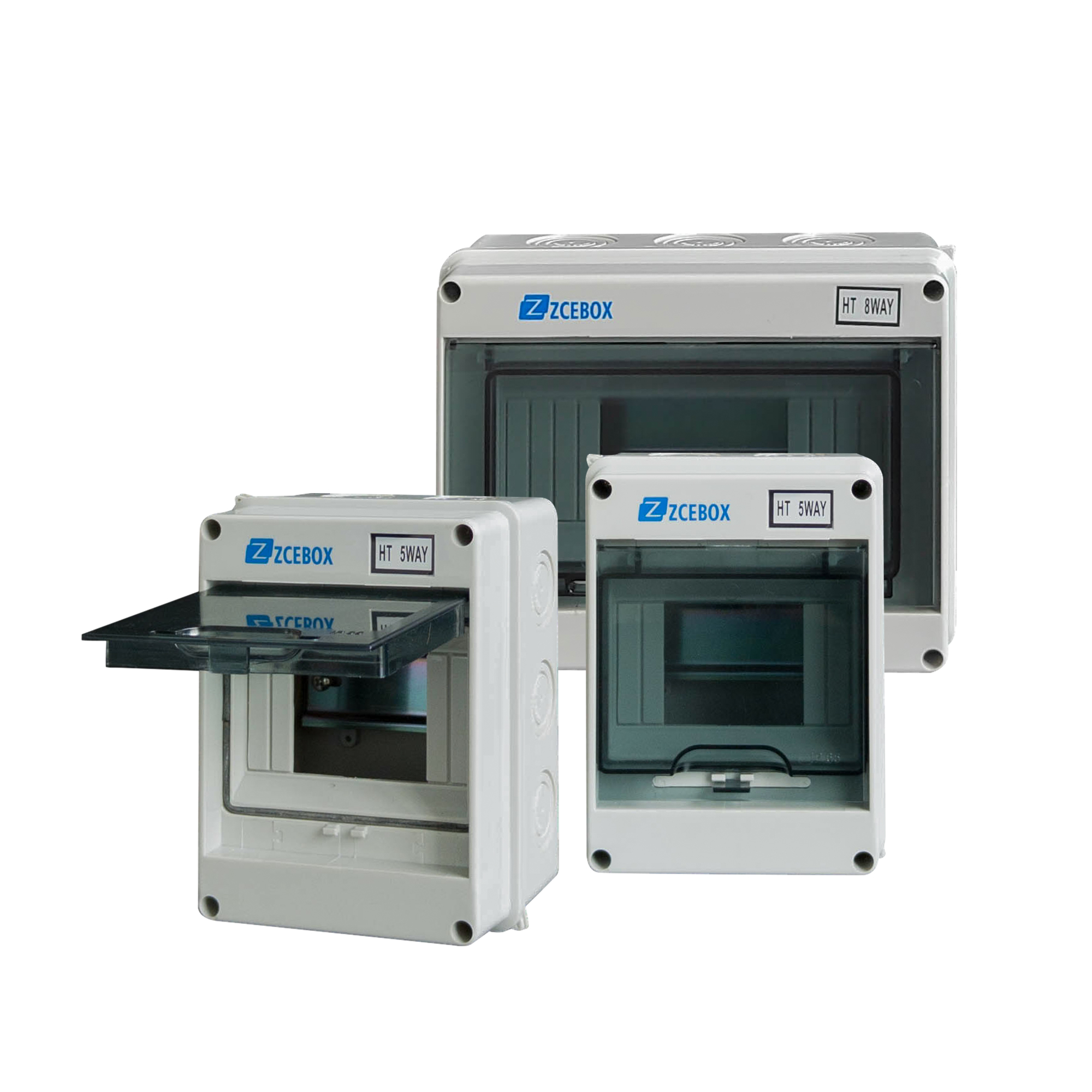

With IEC60439-3 standard, LWHT series distribution box is attractive and durable, safe and reliable, which is widely used in various places such as factories, mansions, residences, shopping centers and so on.

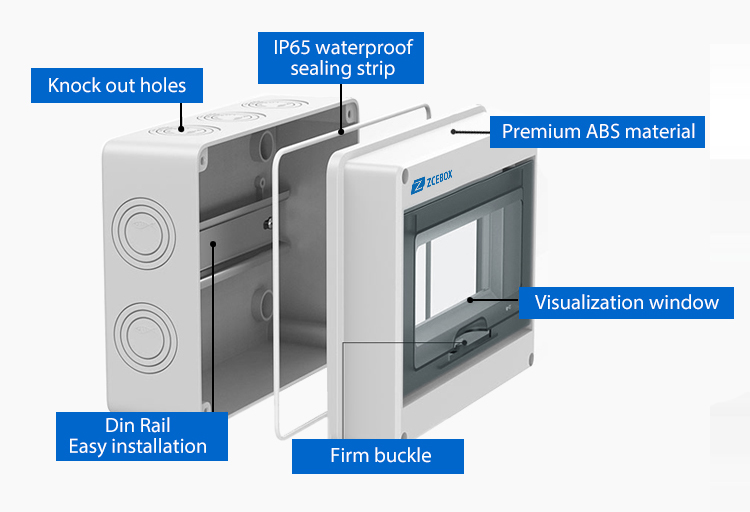

| Waterproof distribution box LWHT Series | |
| Standard | IEC60529 EN60309 |
| Approval | CE, RoHS, HF test, IK test, ISO9001 |
| Protection degree | IP66 |
| Material | PC box and PC door |
| Modules (No.) | 4; 6; 9; 12; 18 |
| Mounting type | Surface |
| Color of base | Gray |
| Accessory | Plastic support + copper terminals |
| Model | Din-rail (mm) | Terminal bar | (C)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |
|---|---|---|---|---|---|
| LWHT-2 | 45 | - | 120*55*90 | 100 | 535*260*465 |
| LWHT-5 | 105 | 3+3 | 119*159*90 | 40 | 495*335*475 |
| LWHT-8 | 175 | 4+5 | 20*155*90 | 30 | 480*480*420 |
| LWHT-12 | 230 | 8+5 | 255*198*108 | 20 | 550*400*530 |
| LWHT-15 | 290 | 8+6 | 309*198*108 | 15 | 613*555*325 |
| LWHT-18 | 320 | 8*8 | 363*198*100 | 15 | 610*560*380 |
| LWHT-24 | 230*2 | (8+5)*2 | 360*280*108 | 10 | 595*380*320 |
Free samples are available for small value.
We have CE, RoHS, HF, ISO9001 and other international quality tests.
Our standard warranty period is 2 years.
Generally 15-45 days, which depends on the order quantity and whether OEM service is needed.
Generally delivery by courier or by air for small orders, and by sea for full container loads.
Yes, we support professional OEM/ODM solutions, including logo customizations, packaging designs, and mould adjustments.
