Own factory, Strictly control quality. Injection machine: 20. Production Capacity: 10000 sets.
ODM: moulds adjustment, accessories customize. OEM: logo making, packing customize.
Packaging supports customized services. Close to port, lower forwarder cost.

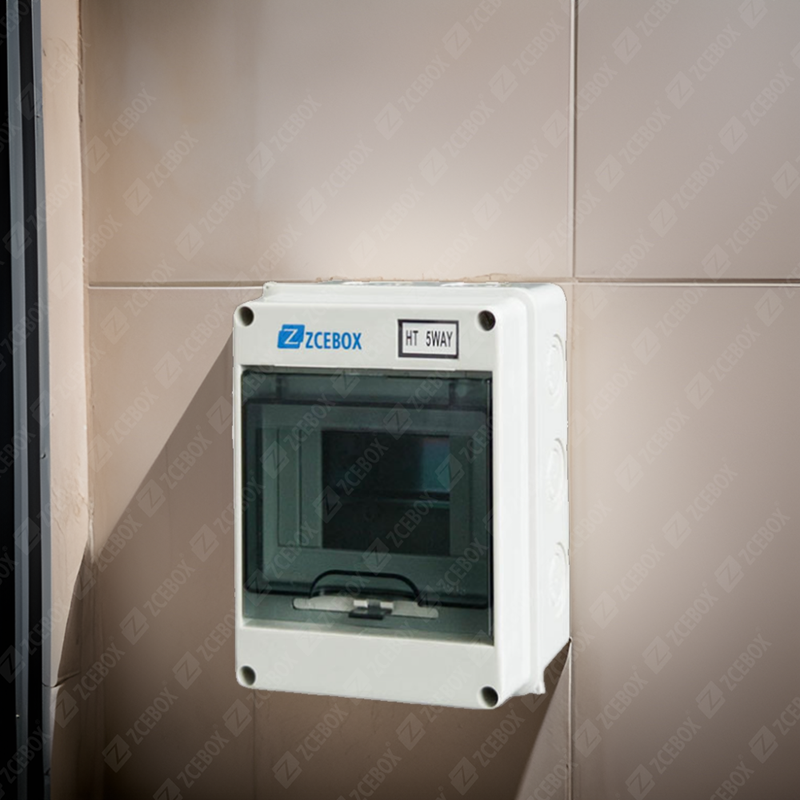

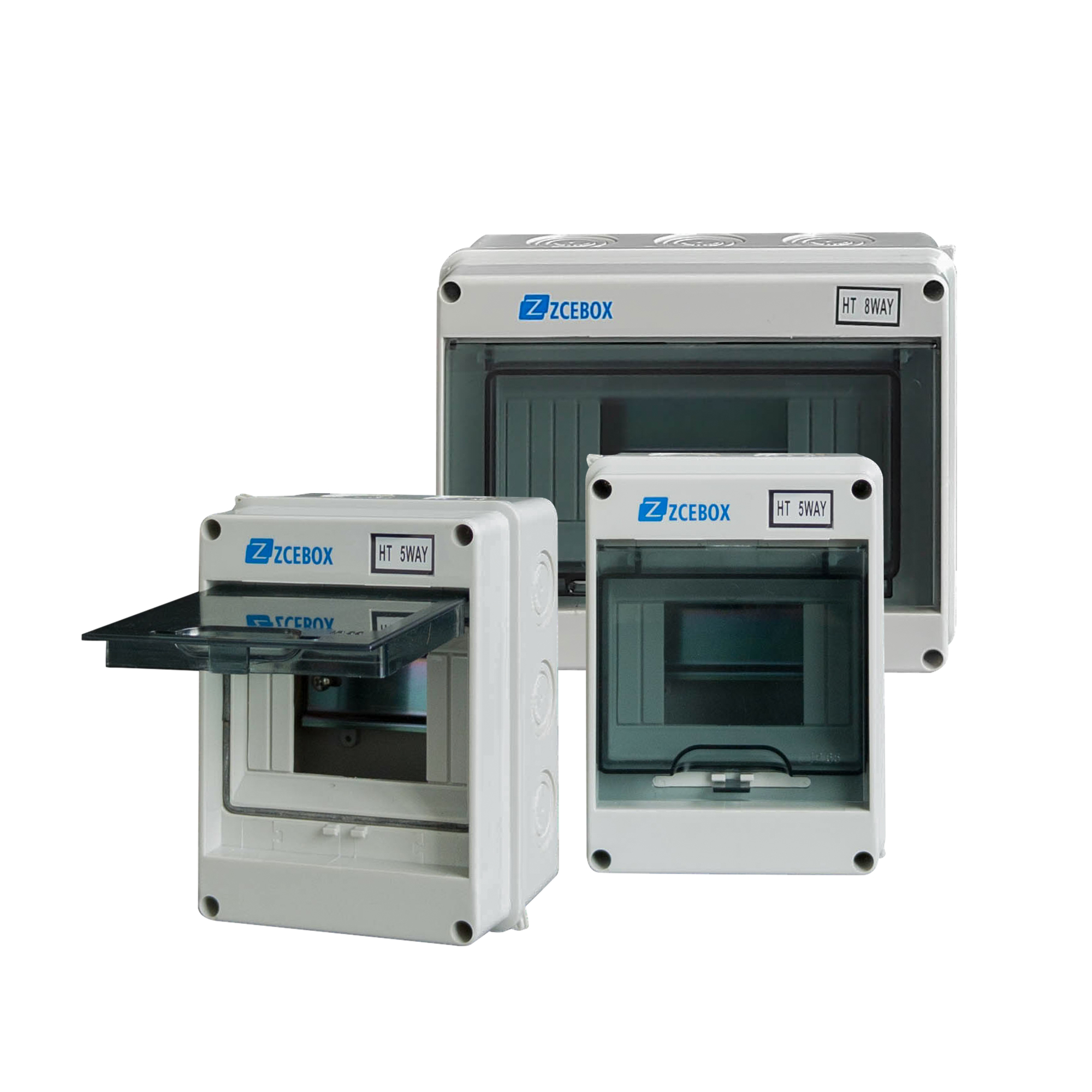

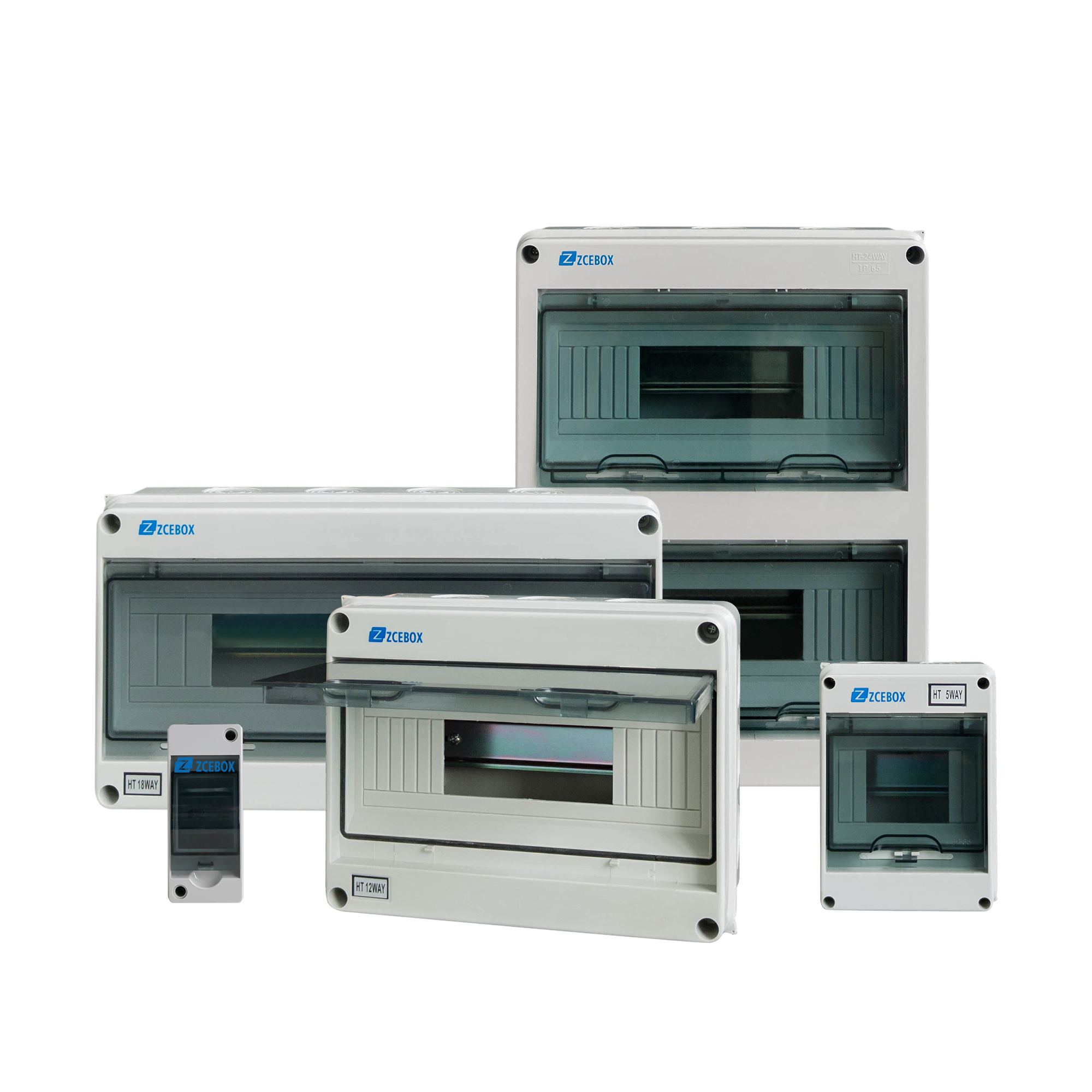

With IEC60439-3 standard, LWHT series distribution box is attractive and durable, safe and reliable, which is widely used in various places such as factories, mansions, residences, shopping centers and so on.
| Feature | Details |
|---|---|
| Standard | IEC60529 EN60309 |
| Approval | CE, RoHS, HF test, IK test, ISO9001 |
| Protection degree | IP66 |
| Material | PC box and PC door |
| Modules (No.) | 4; 6; 9; 12; 18 |
| Mounting type | Surface |
| Color of base | Gray |
| Accessory | Plastic support + copper terminals |
| Model | Din-rail (mm) | Terminal bar | (C)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |
|---|---|---|---|---|---|
| LWHT-2 | 45 | - | 120*55*90 | 100 | 535*260*465 |
| LWHT-5 | 105 | 3+3 | 119*159*90 | 40 | 495*335*475 |
| LWHT-8 | 175 | 4+5 | 20*155*90 | 30 | 480*480*420 |
| LWHT-12 | 230 | 8+5 | 255*198*108 | 20 | 550*400*530 |
| LWHT-15 | 290 | 8+6 | 309*198*108 | 15 | 613*555*325 |
| LWHT-18 | 320 | 8*8 | 363*198*100 | 15 | 610*560*380 |
| LWHT-24 | 230*2 | (8+5)*2 | 360*280*108 | 10 | 595*380*320 |
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics, and produce distribution box, junction box, MCB, consumer units with OEM and ODM services professionally. We have a professional technical team to provide customers with customized production and services. Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
