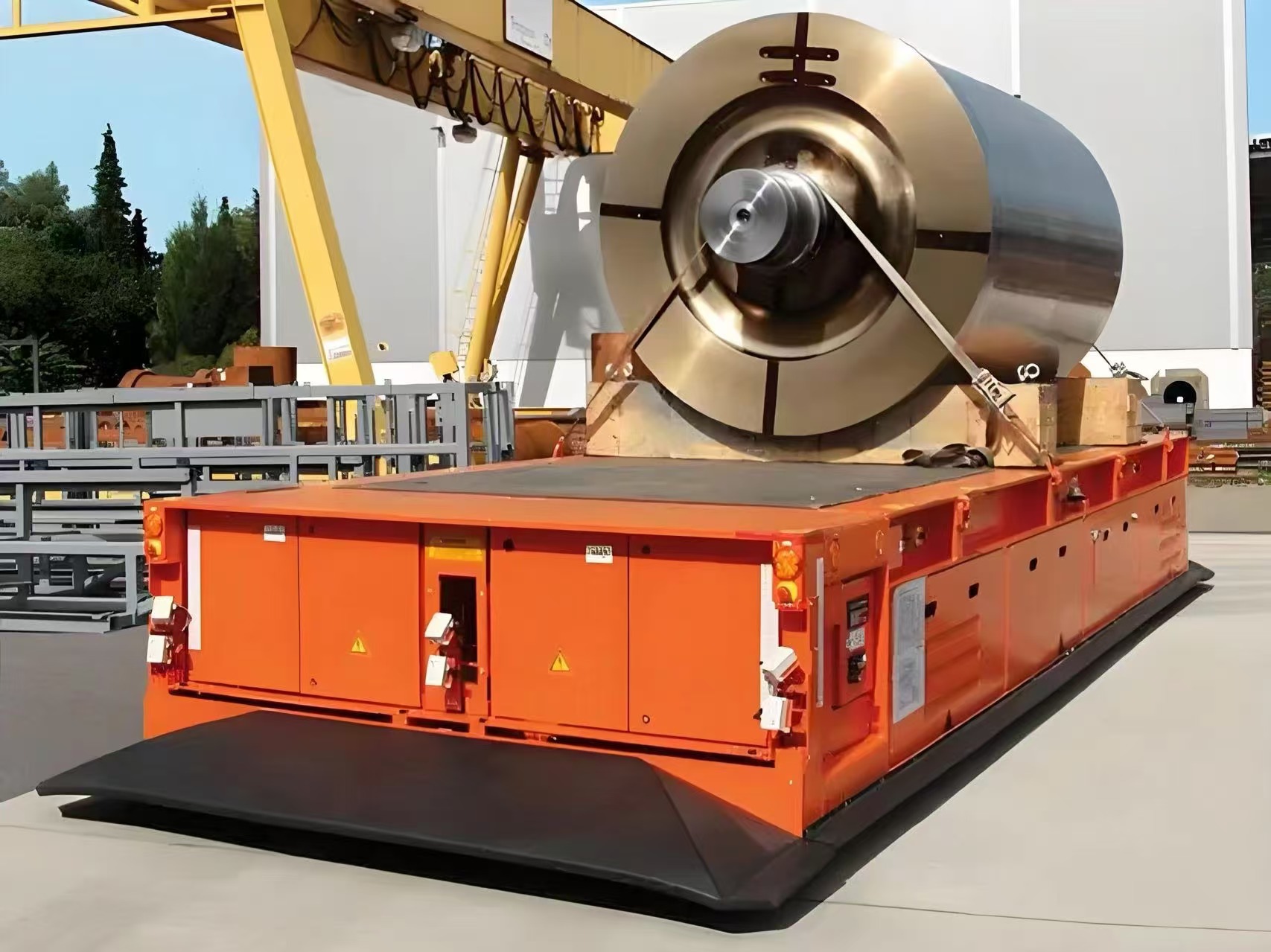

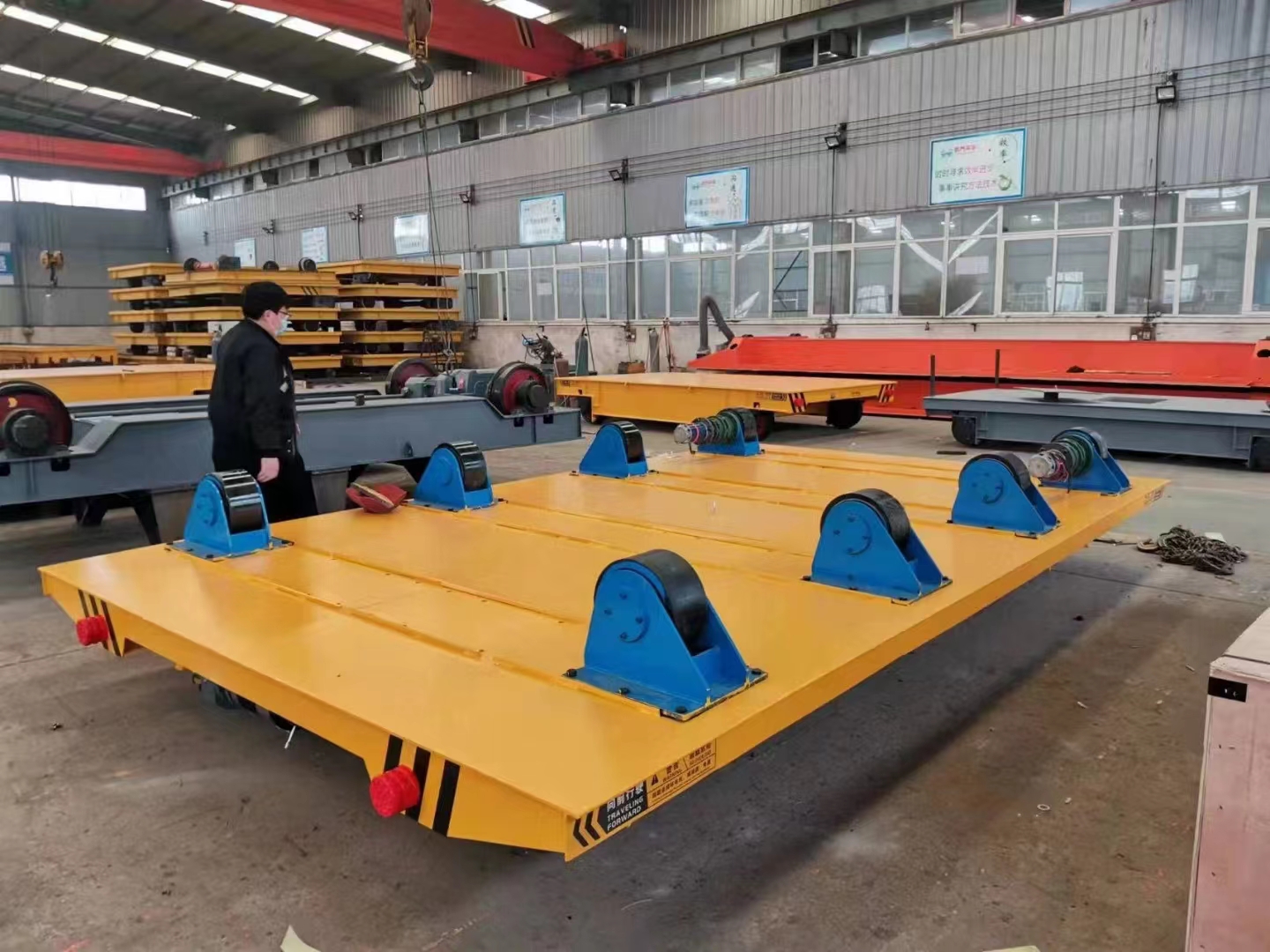

Features: Utilizes battery as power source, motor reducer as driving system, solid rubber wheels for unrestricted movement, and 360° rotation for operation in confined spaces.

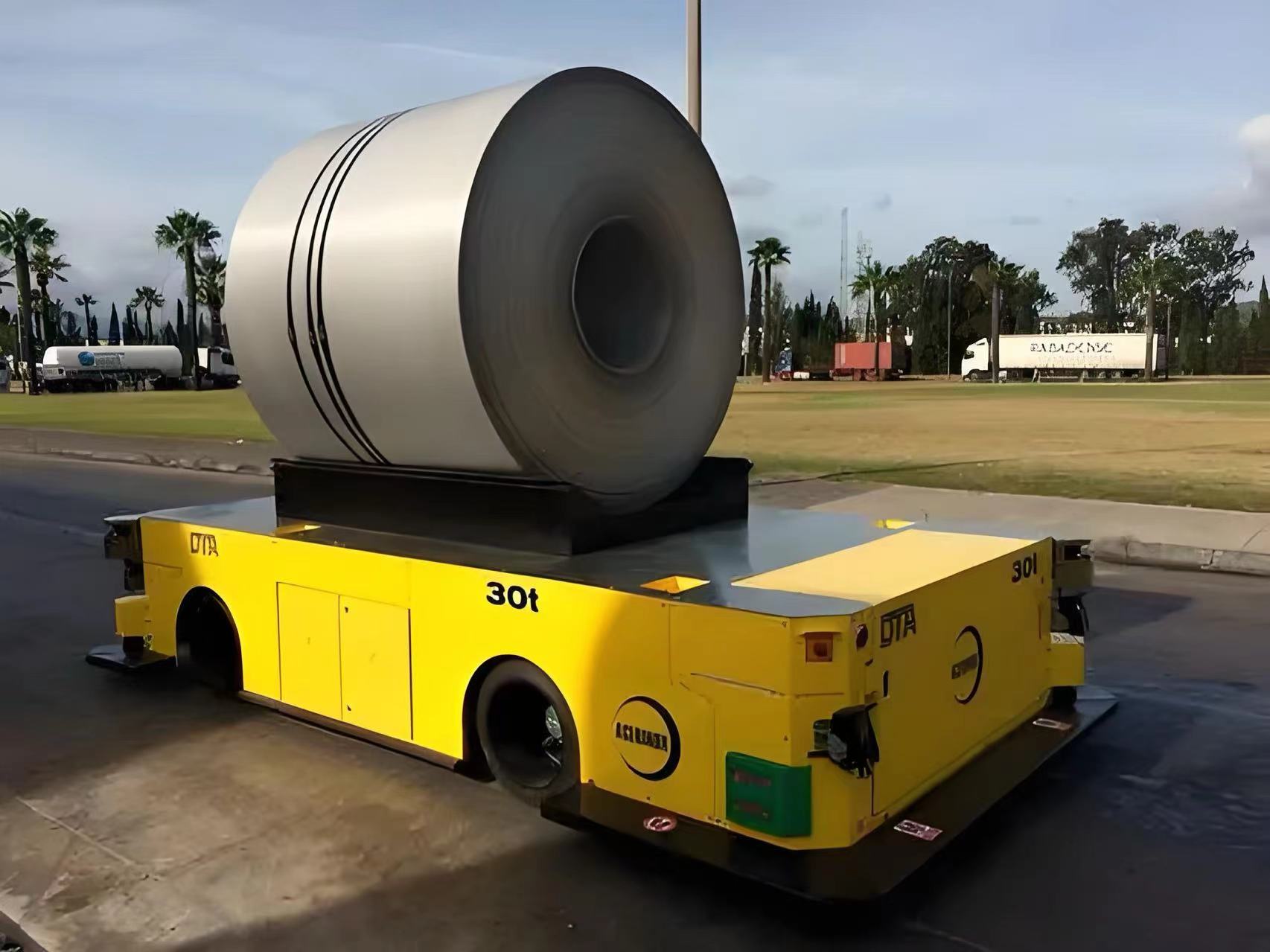

A trackless platform car, also known as a "trackless electric platform car", is a type of transportation equipment that is able to travel freely without a fixed track. Its main features include flexible turning: the car can turn 360 degrees flexibly, with forward, backward, left and right turn functions, which makes it more convenient for transportation in factory workshops and industrial areas.

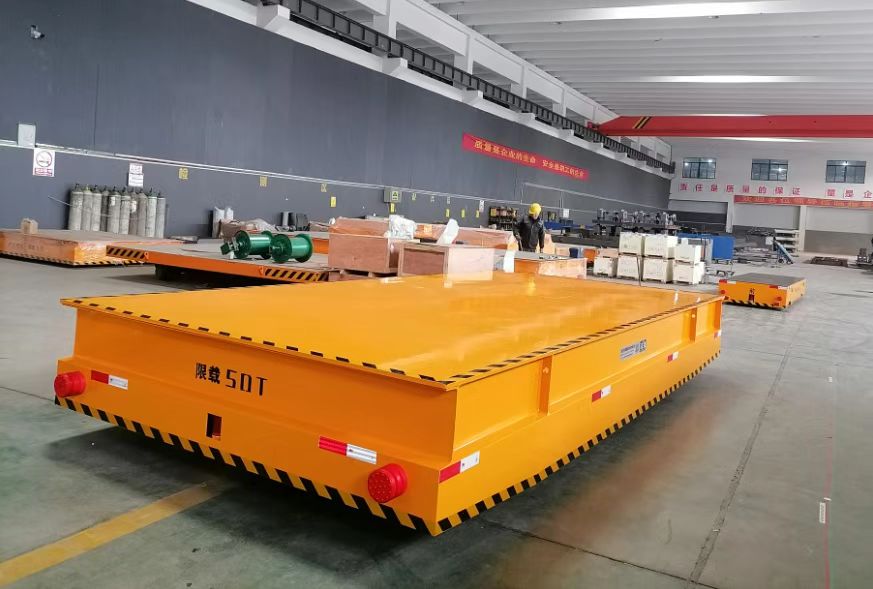

Easy Operation: Usually equipped with wireless remote control, suitable for manual operation.

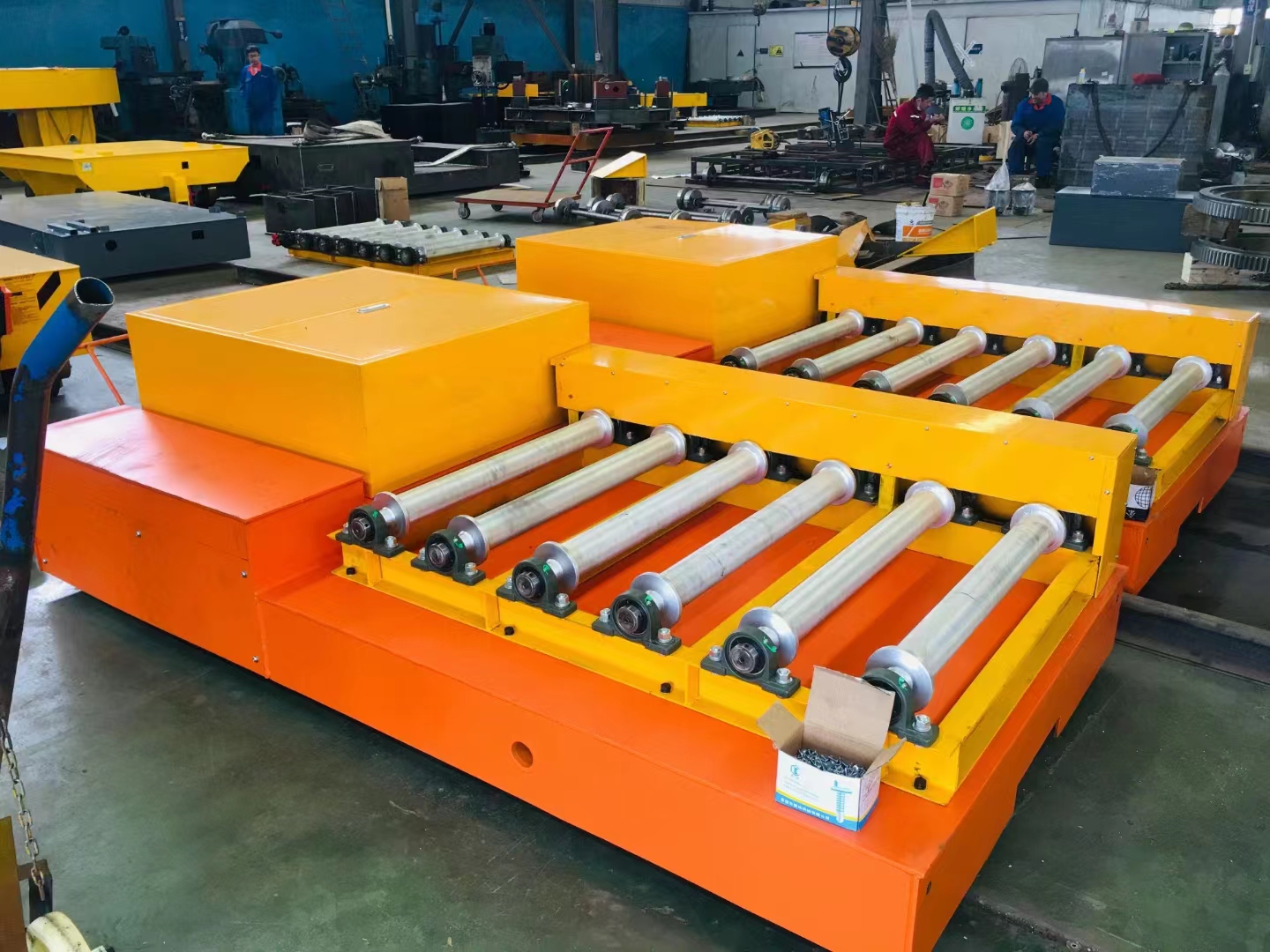

Versatility: Suitable for material handling and workpiece transfer across different workshops.
| Capacity (t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Maximum Impact Load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Chassis Structure | Steel plate welded beam structure | ||||||
| Steel Plate Thickness (mm) | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Gross Vehicle Weight (t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Overall Dimensions (mm) | 3000X2000 | 3600X2000 | 4000X2200 | 4500X2200 | 5000X2200 | 5500X2300 | 6000X2300 |
| Vehicle Height (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Motor Power (Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Travel Speed (m/min) | 0-15 | 0-12 | |||||
| Braking Method | Electromagnetic brake | ||||||

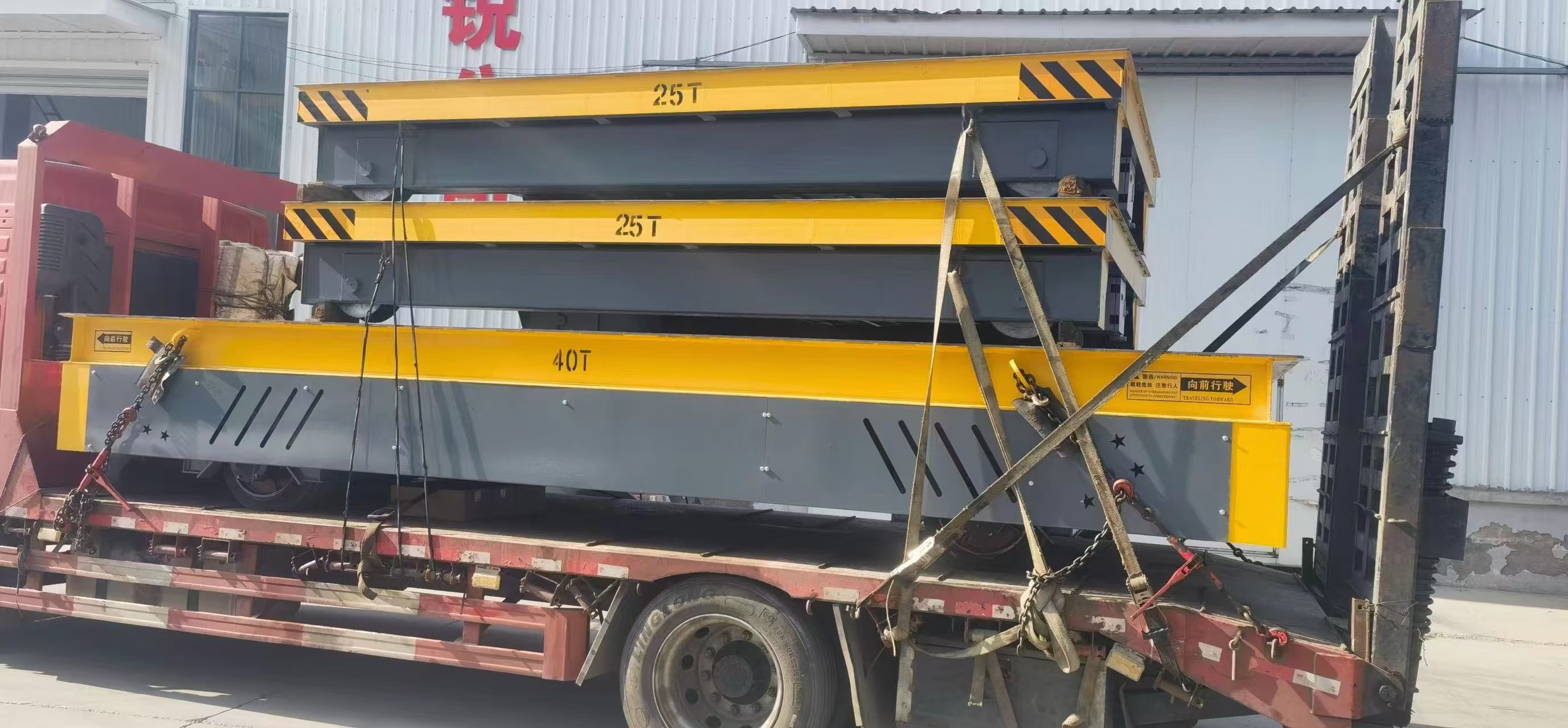

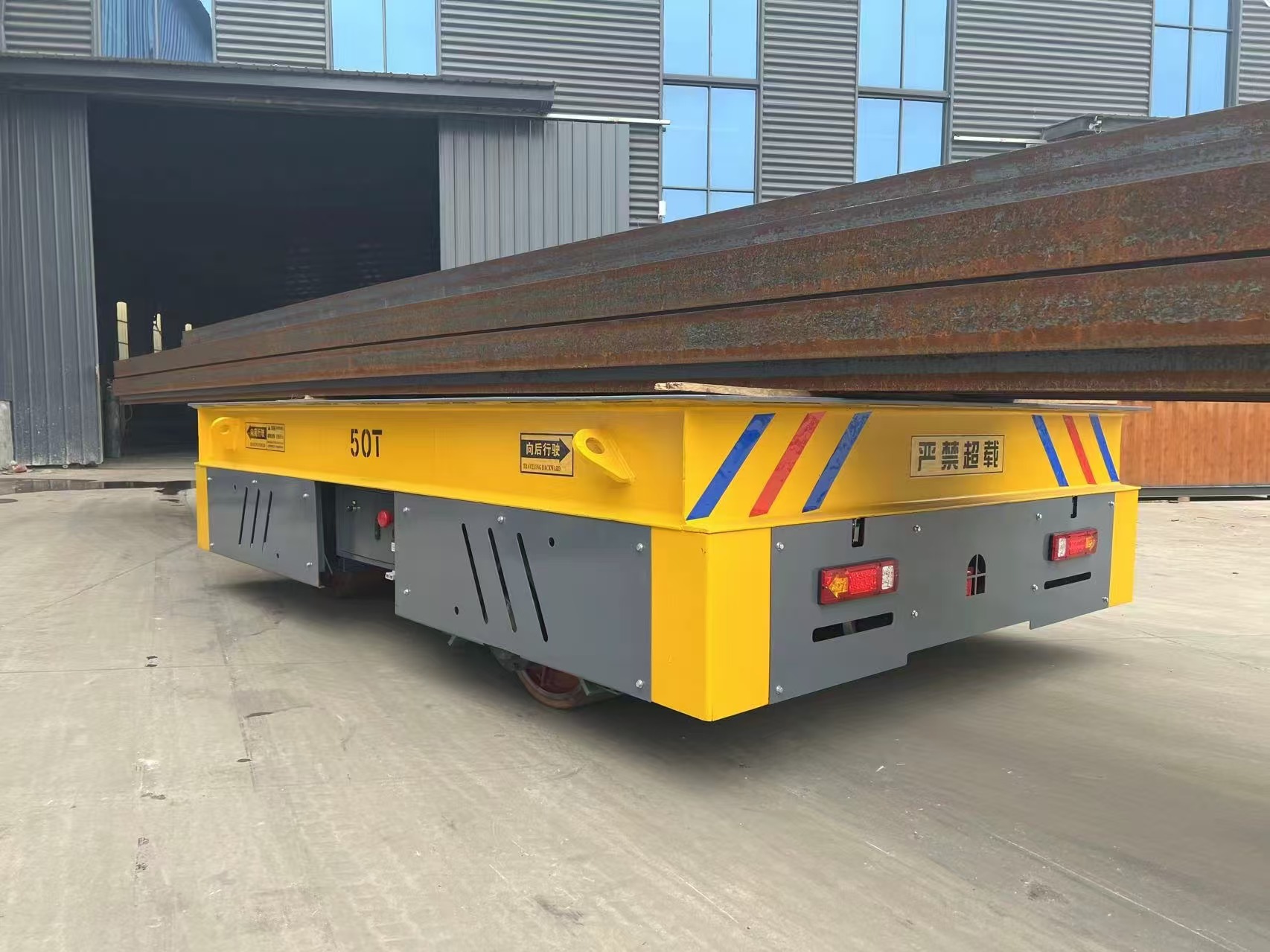

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

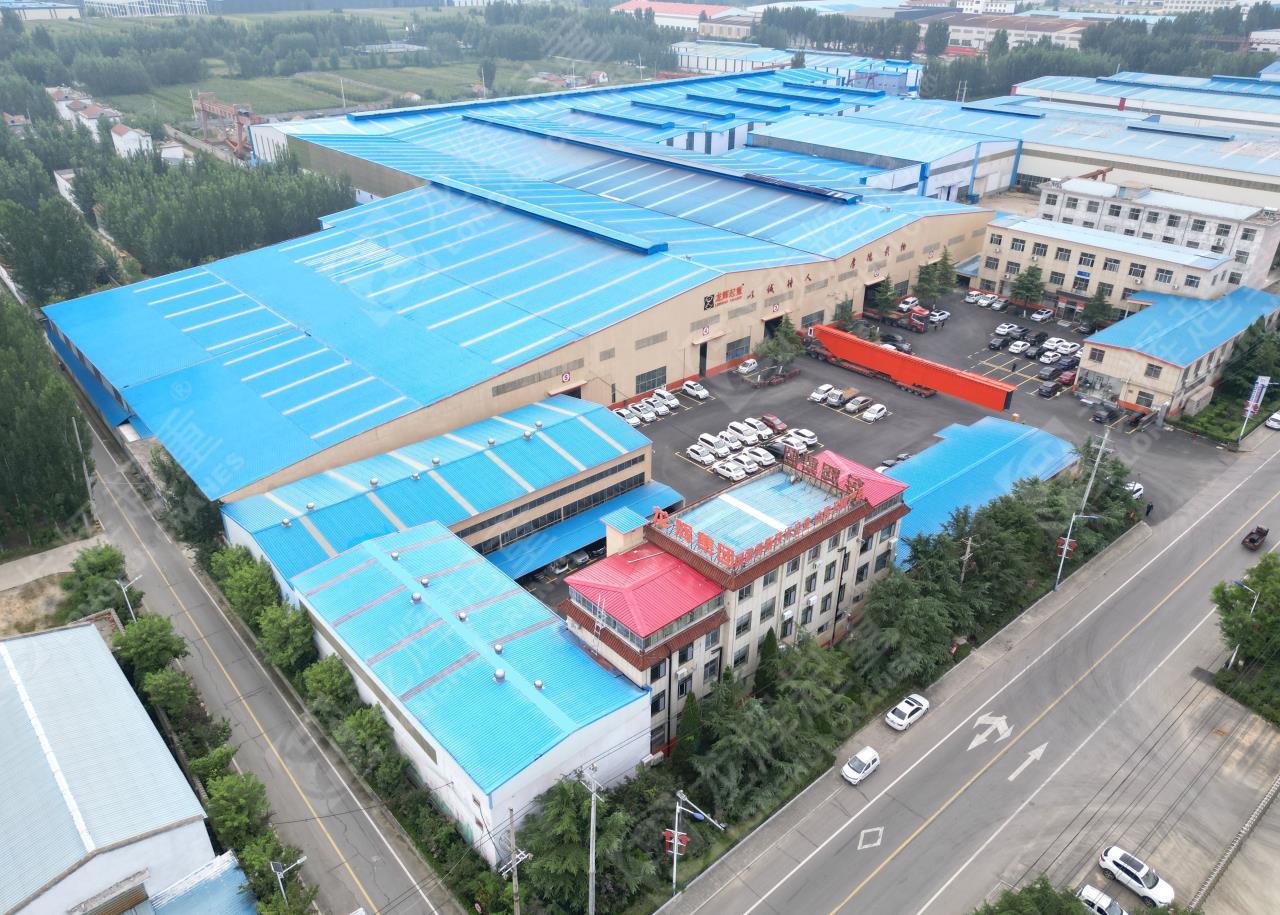

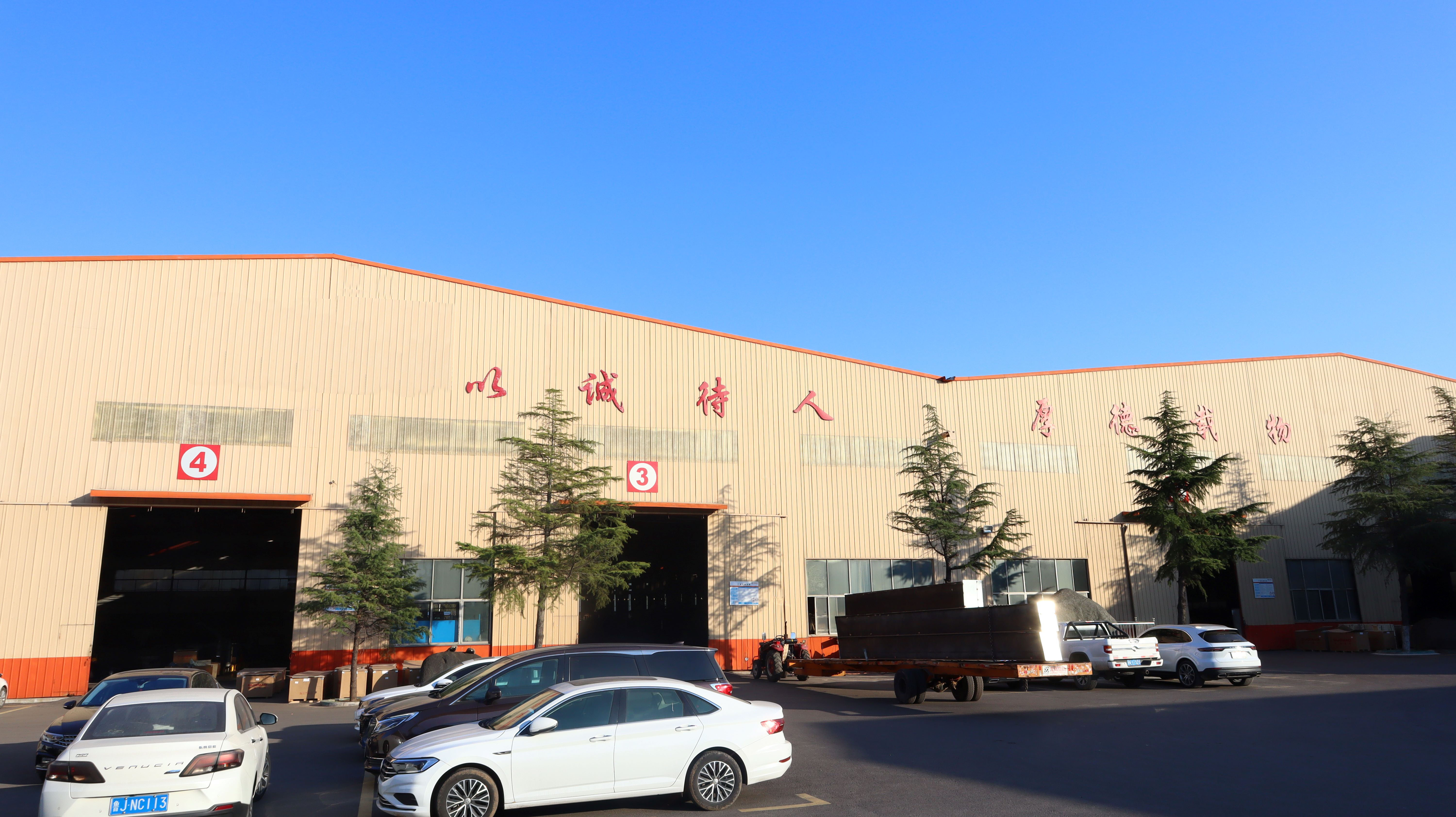

We are a professional manufacturer of all kinds of lifting and handling equipment. Our facilities include production and processing workshops spanning 120,000 square meters, equipped with advanced computer-aided design systems and high-precision testing instruments.
Our core expertise includes the design, manufacturing, installation, renovation, and maintenance of AGV intelligent cars, RGV cars, bridge cranes, gantry cranes, rail platform cars, trackless platform cars, and ladle cars. With an annual production capacity of 10,000 tons, our equipment serves major power stations, industrial enterprises, and ports worldwide.
