SEPPES Sectional Door

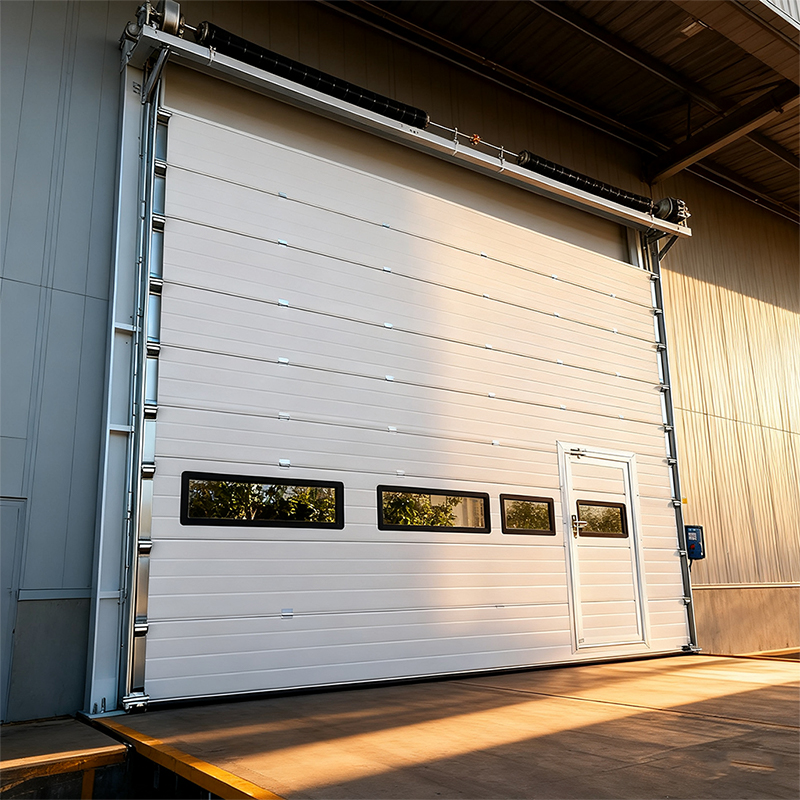

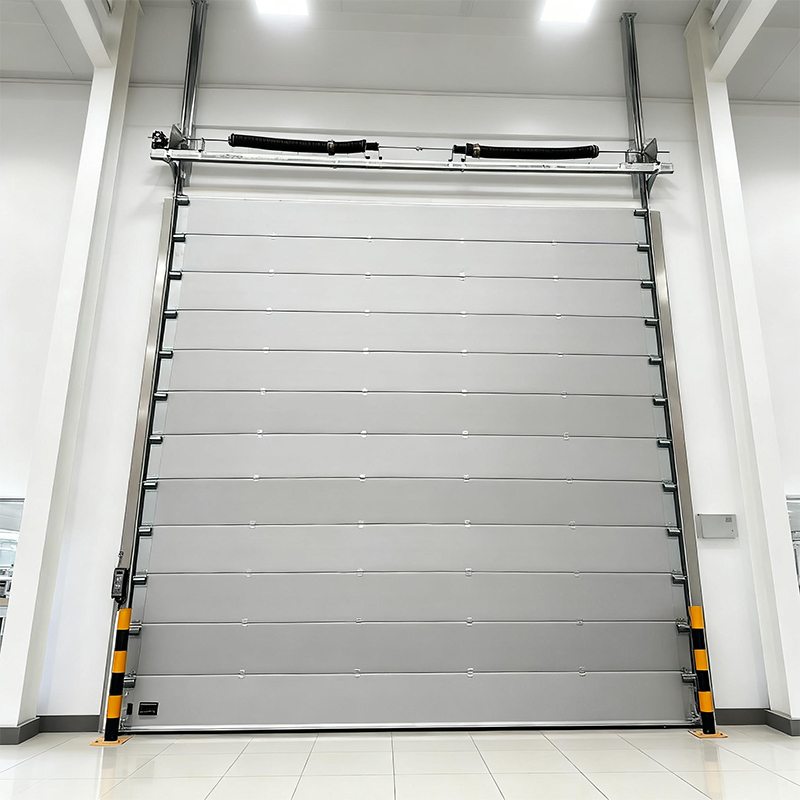

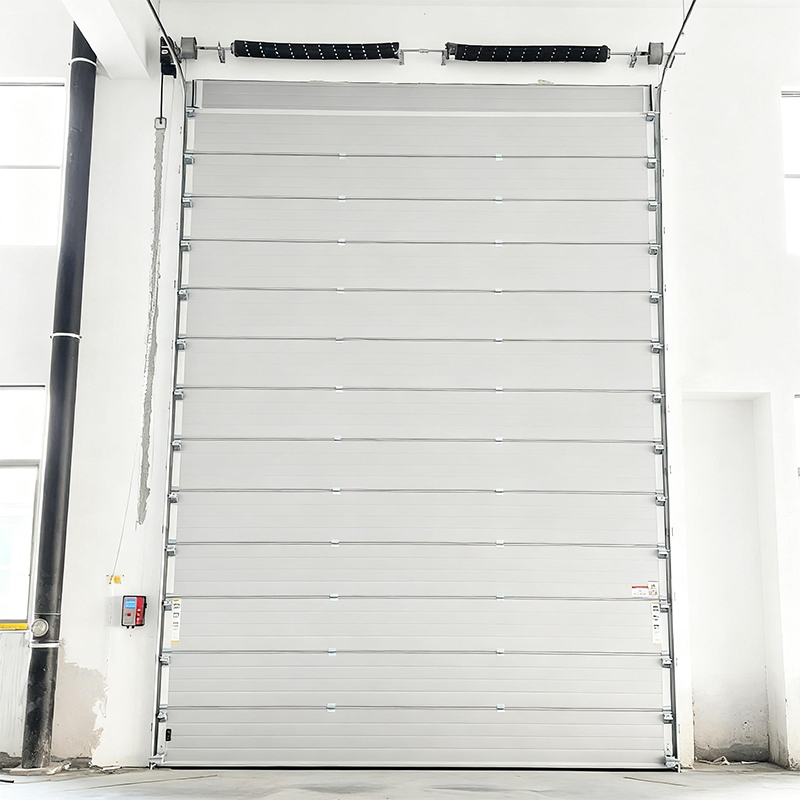

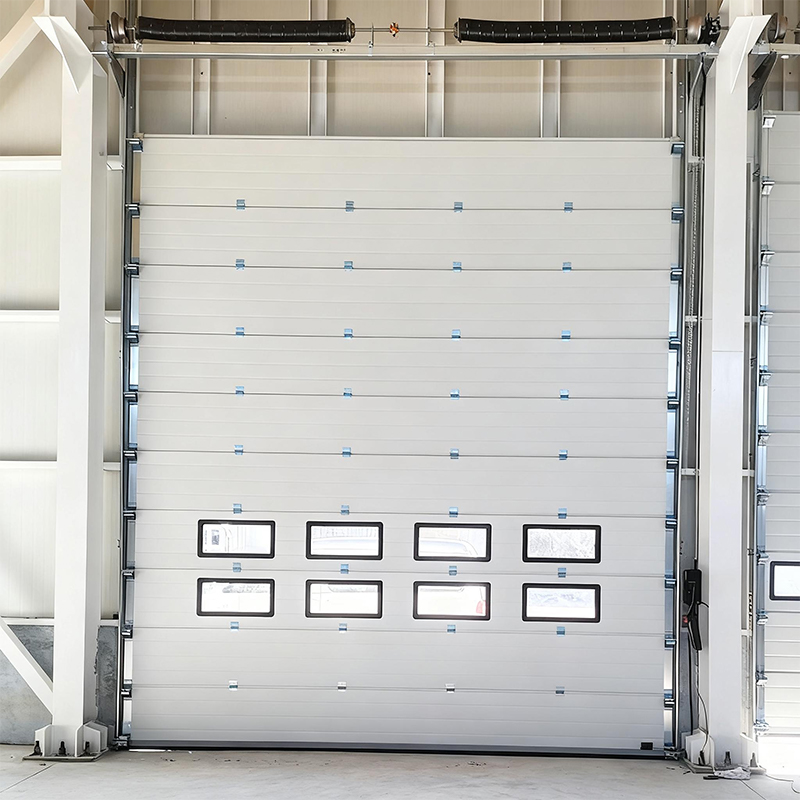

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.

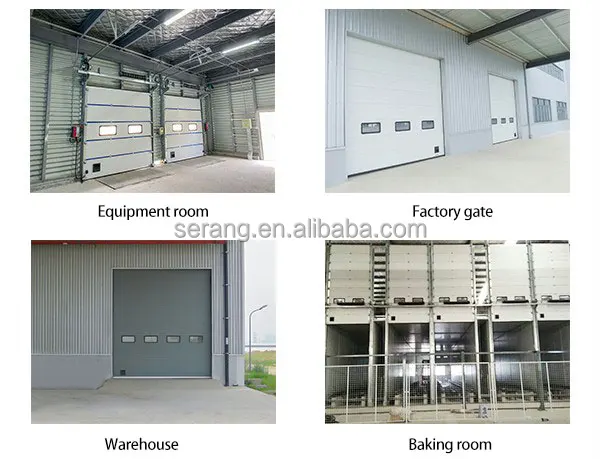

Application

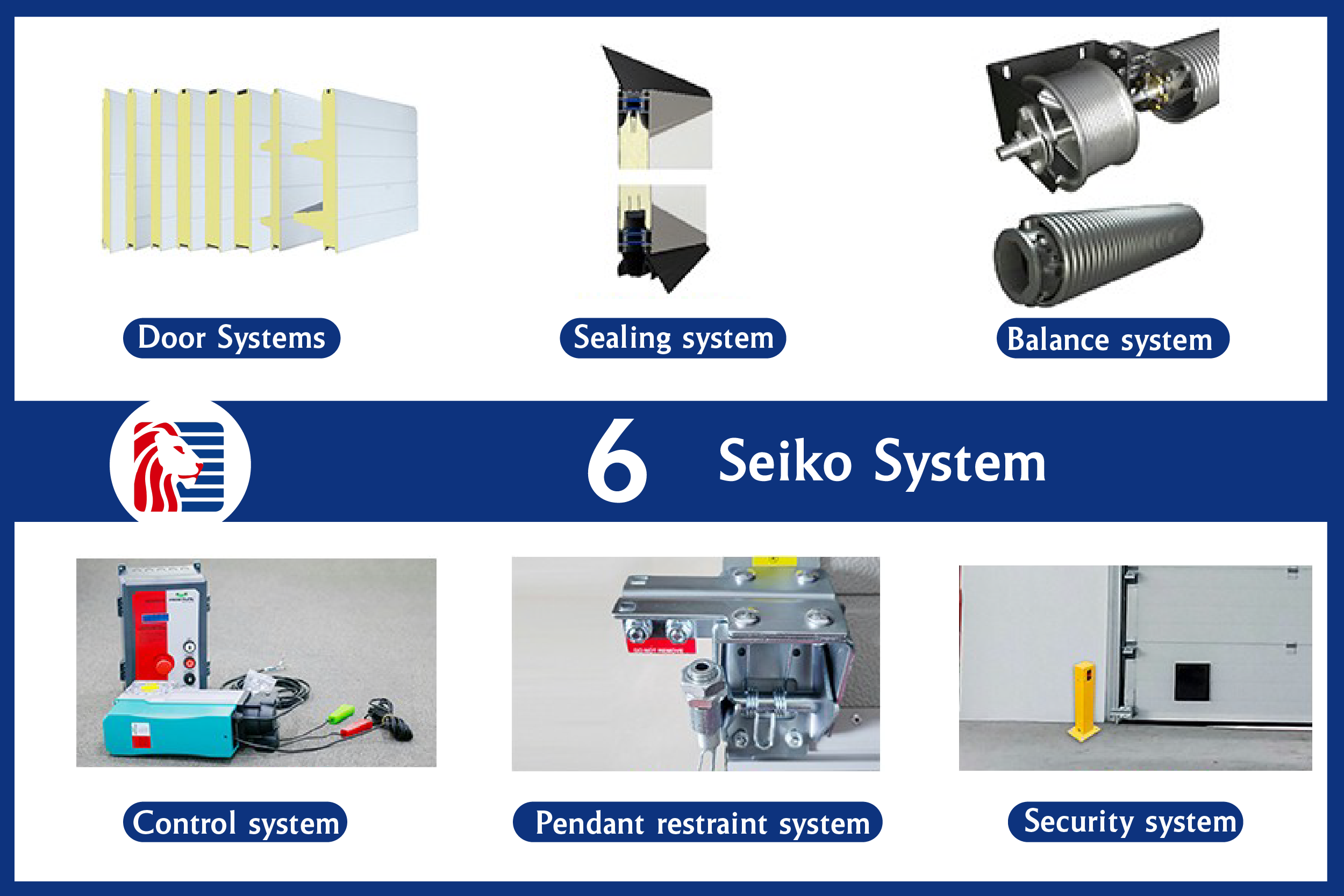

Product Advantages

Details Images

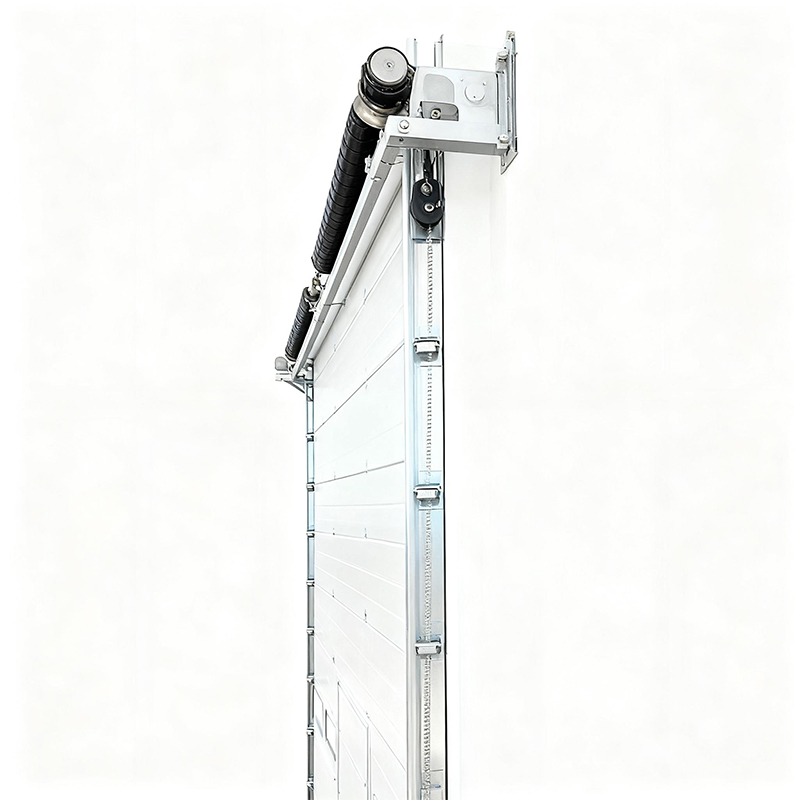

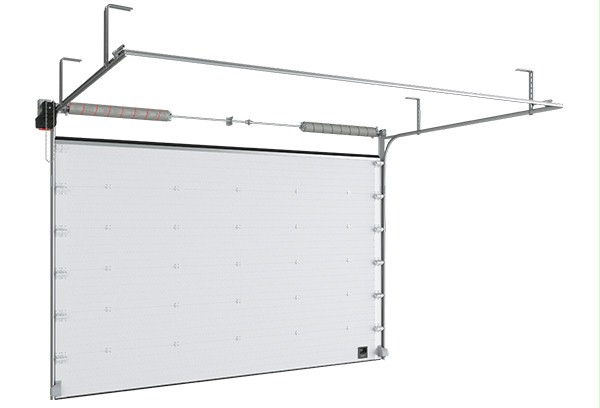

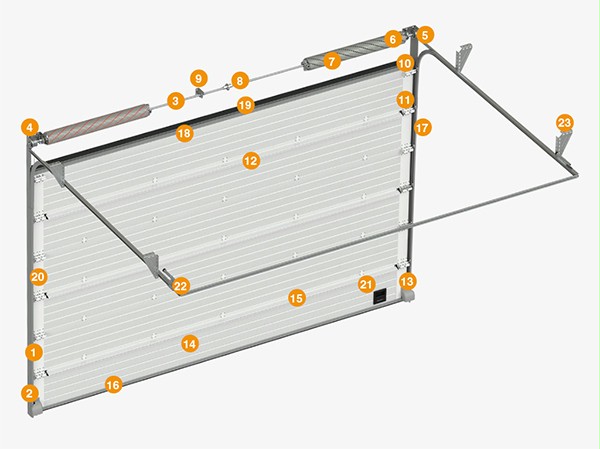

Key components:

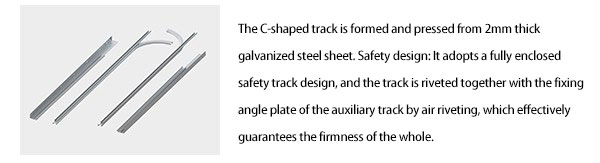

• Vertical guide rail, Vertical side frame, Door shaft

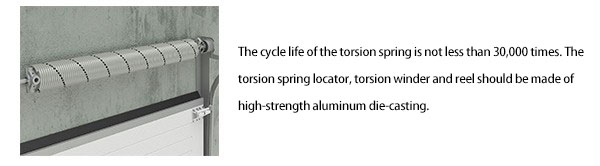

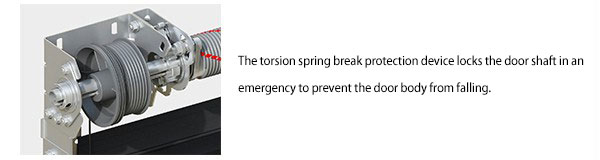

• Torsion spring fracture protection device, Sheave, Torsion spring sleeve
• Balance spring mechanism, Coupling, Inner bracket
• Top roller bracket, Roller bracket, Big back muscles (optional)

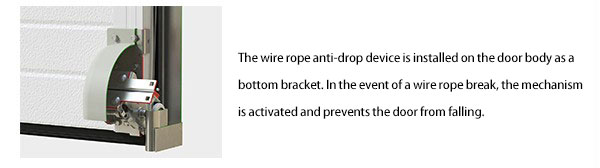

• Wire rope break protection device, Sandwich door panel, Inner hinge
• Bottom aluminum profile and bottom sealing strip, Side seal, Top aluminum profile

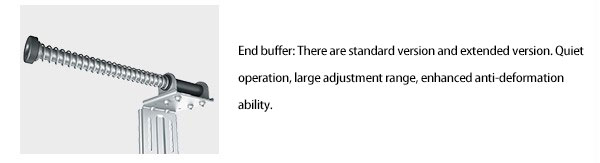

• Top sealing strip, Panel side cover with fixing holes, Step handle, End buffer, Ceiling mounting bracket

Installation Instructions

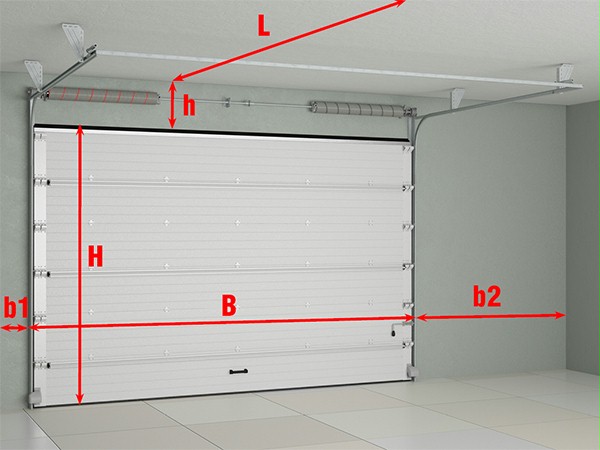

All measurements are made indoors and each value must be measured at at least three points:

• H: The height of the door opening (from ground to top). Take the maximum value.
• B: The width of the door opening (from left edge to right edge). Take the maximum value.
• h: At least 500 mm above the door opening (to the ceiling). Take the smallest value.
• b1/b2: Requires a lateral distance of at least 150 mm left and right. Take the smallest value.
• L: The depth of the room. Take the smallest value.

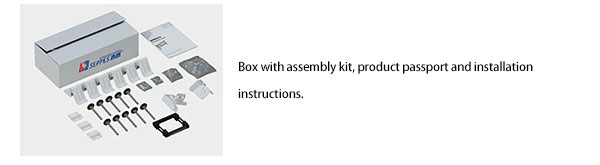

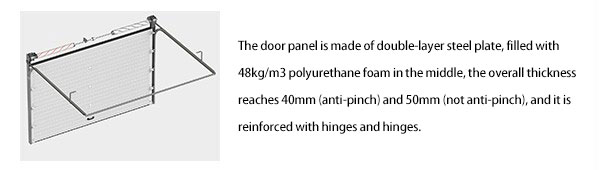

Basic Configuration

Cooperation Case

Certifications

Company Profile

We are a high-tech company focusing on the development, design and manufacturing of industrial door technology, headquartered in Suzhou, China. We manufacture complete customized entrance door system solutions for industrial customers. Our main products include high speed doors, automatic roller shutter doors, sectional doors, etc. All products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 quality management systems certification. With professional products and brand reputation, we have become a cooperative supplier of more than 60 Fortune 500 companies such as Volkswagen, Huawei, IKEA, Logitech, Thermo Fisher, AkzoNobel, etc. Products are exported to more than 50 countries and regions including the European Union, Australia, the United States, Canada, France, Japan, Dubai, and Russia, and have provided products and technical solutions as well as multiple product safety guarantees for more than 3,200 corporate customers!
