Automated Steel Structures Buildings Warehouse for Robotics Integration

Send Inquiry

Product Description

AISC APPROVED Steel Structure Warehouse

Steel structure warehouses are industrial storage facilities designed and manufactured integrating high structural stability, flexible space design, and cost-effectiveness. Tailored for modern logistics, manufacturing, and bulk goods storage scenarios, these warehouses have become a mainstream choice for small-to-large-scale storage projects due to their customizable solutions and fast construction cycles.

Key Features

⚡ Superior Structural Performance

Adopting high-strength steel materials and advanced welding/bolting technologies, the warehouses can withstand harsh natural conditions (e.g., strong winds, heavy snow) and heavy cargo loads, with a service life of up to 30–50 years under standard maintenance.

⏱️ Cost & Time Efficiency

Prefabricated steel components are produced in factories and assembled on-site, cutting on-site construction time by 40%–60% compared to traditional concrete warehouses and reducing overall project costs by 15%–25%.

📐 Flexible Space Layout

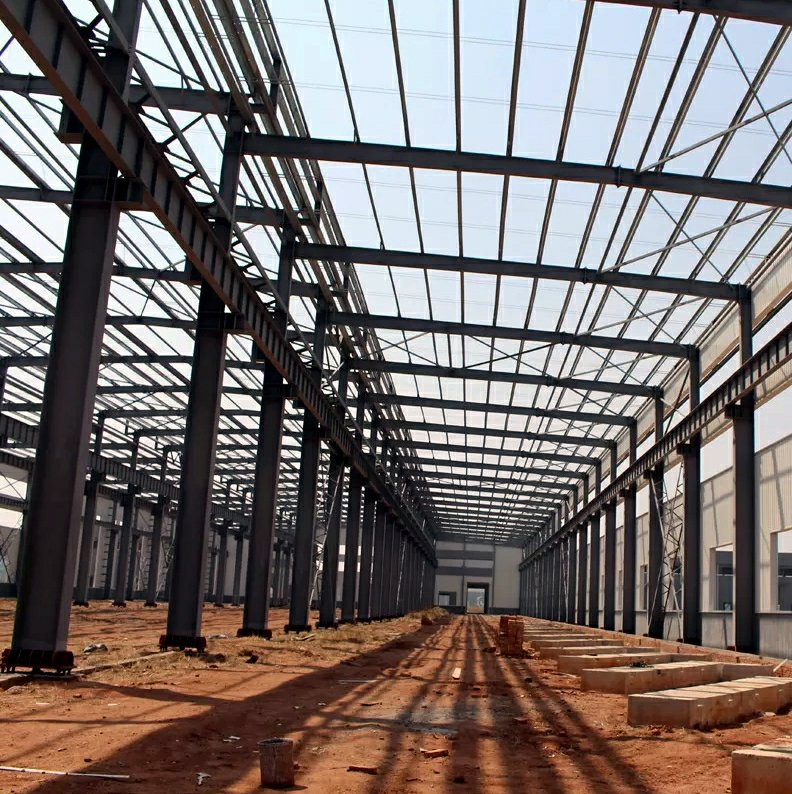

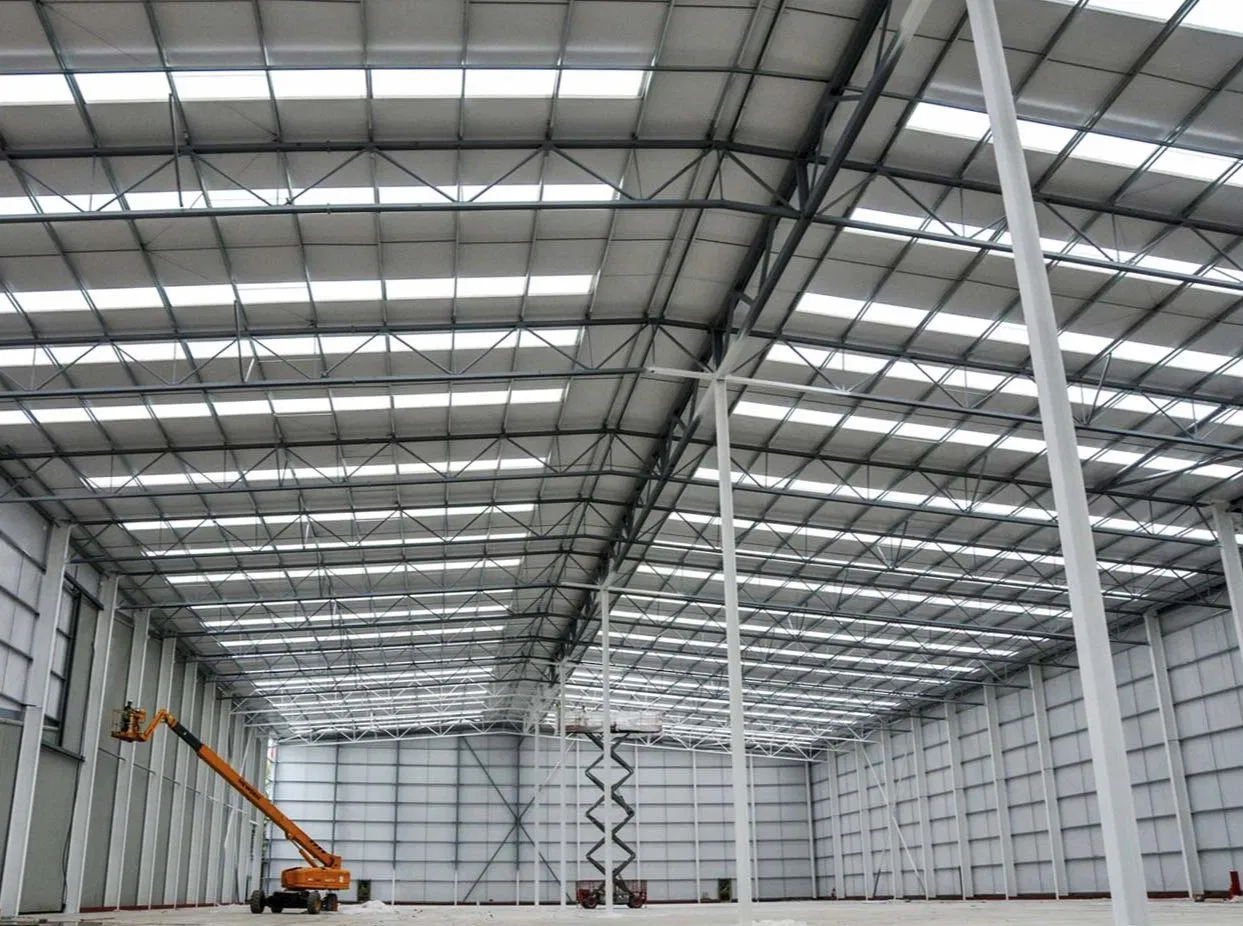

The steel frame design eliminates excessive internal columns, enabling large-span (up to 30m+) and high-clearance (up to 15m+) space, which can be freely partitioned for rack storage, automated logistics equipment deployment, or production workshop integration.

🌱 Eco-Friendly & Recyclable

Steel materials are 100% recyclable without construction waste during assembly, complying with green building standards and reducing the project's carbon footprint.

Structural Systems

SDI Metal Deck System + Roofing System

An SDI metal deck sheet refers to profiled steel flooring, commonly designed per Steel Deck Institute standards. These corrugated sheets are installed over the structural framework of a building to act as a permanent formwork for concrete slabs. In a composite deck system, the sheet bonds with the poured concrete to create a strong, integrated floor diaphragm. They provide a safe working platform during construction and contribute to the building's overall structural strength, fire resistance, and load distribution, primarily in commercial and industrial steel-framed buildings.

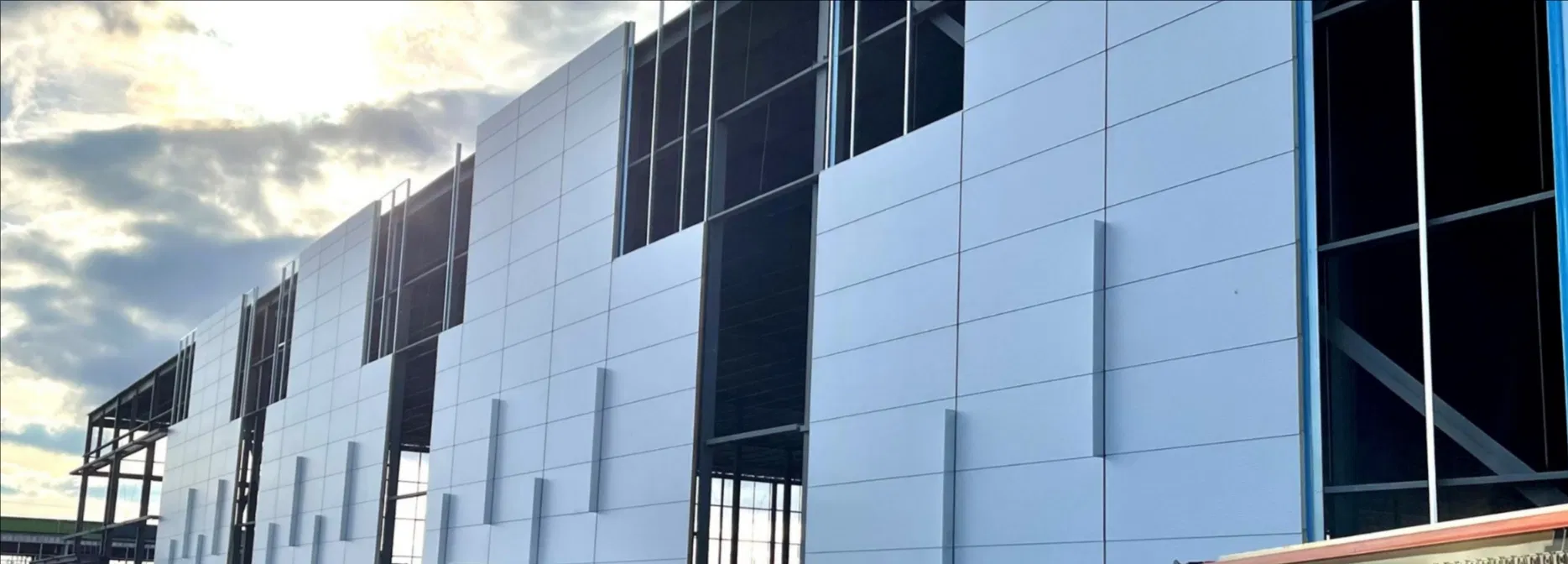

IMP Wall Panels

IMP (Insulated Metal Panel) wall panels are prefabricated building components consisting of two metal face sheets (typically steel or aluminum) bonded to a rigid insulating core (e.g., polyurethane, rockwool, or polyisocyanurate).

Engineered for efficiency, they integrate structural strength, thermal insulation, and weather resistance in one unit, cutting on-site installation time drastically. Fire-retardant cores meet safety codes, while the metal skins offer corrosion resistance and aesthetic versatility. Widely used in industrial facilities, cold storage, warehouses, and commercial buildings, IMP panels balance energy savings, durability, and cost-effectiveness for fast-track construction projects, fitting modern sustainable building standards.

Typical Application Scenarios

Logistics and distribution centers for e-commerce and third-party logistics (3PL)
Raw material and finished product warehouses for manufacturing industries (e.g., machinery, electronics, food)
Bulk goods storage facilities (e.g., grains, building materials)
Temporary or modular storage spaces for emergency material reserves

Specification

Product Series	Common Dimension Parameters	Core Implementation Standards	Main Structural Materials (ASTM Grade)	Auxiliary Component Materials	Application Scenarios	Core Features
Economy Storage Type	Span: 10-20m Height: 6-8m Column Spacing: 6m Length: Customizable (≤100m)	AISC 360-16 Specification for Structural Steel Buildings AISC 303-10 Specification for Steel Building Erection ASTM A6/A6M Standard Specification for General Requirements for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling	Steel Columns/Beams: A36 section steel Roof Beams: Lightweight A36 H-section steel	Roof/Wall: Single-layer color steel plate (0.376mm) Connectors: ASTM A307 ordinary bolts	Small parts storage, raw material warehouse for township workshops, small retail storage in North America	Low cost, fast construction, high cost-effectiveness
Standard Industrial Type	Span: 20-30m Height: 8-12m Column Spacing: 7.5-9m Length: Customizable (≤200m)	AISC 360-16 AISC 341-16 Seismic Provisions for Structural Steel Buildings ASTM A992/A992M Standard Specification for Structural Steel Shapes	Steel Columns/Beams: A992 H-section steel Roof Truss: A36 angle steel assembly	Roof/Wall: Rock wool sandwich color steel plate (50mm) Connectors: ASTM A490 Grade 10.9 high-strength bolts Windows/Doors: Plastic-steel/color steel sliding doors	Medium-sized manufacturing workshops, regional logistics distribution warehouses, supporting workshops in North American industrial parks	Wind resistance (≤Level 10), snow load (≤0.7kN/SQM), meets AISC Seismic Category D requirements
Large-span Logistics Type	Span: 30-45m Height: 12-15m Column Spacing: 9-12m Length: Customizable (≤300m)	AISC 360-16 AISI S100-16 Specification for the Design of Cold-Formed Steel Structural Members for Buildings ASTM A572/A572M Standard Specification for High-Strength Low-Alloy Columbium-Vanadium Structural Steel	Steel Columns/Beams: A572 Gr.50 heavy-duty H-section steel/box girder Grid: A500 Gr.B seamless steel pipe	Roof/Wall: Rock wool sandwich color steel plate (100mm, 0.5mm color steel surface) Crane: A36 steel rail (5-10t crane optional) Ventilation: Electric lighting and smoke exhaust skylight	Large e-commerce logistics warehouses, vehicle storage, heavy industry raw material warehouses, cross-border e-commerce distribution centers in North America	Column-free large space, compatible with automated shelves/cranes, meets UBC 97 seismic intensity requirements
Customized Special Type	Span: ≥45m Eave Height: ≥15m Column Spacing/Length: Fully customizable	AISC 360-16 + industry-specific specifications (e.g., AWS D1.1 Structural Welding Code - Steel, NFPA explosion-proof standards)	Main Steel Components: A514 Gr.Q high-strength low-alloy steel Anti-corrosion: Hot-dip galvanizing (ASTM A123 standard)/fluorocarbon paint	Roof: Anti-corrosion aluminum-magnesium-manganese plate Wall: Explosion-proof color steel plate/insulated polyurethane plate Fire Protection: Automatic sprinkler pipe support (meets AISC 341 seismic requirements)	Cold chain storage, hazardous chemical warehouses, large airport cargo warehouses, special industrial storage in North America	High customization, resistance to extreme weather, compliance with North American special industry safety specifications

Your Choice, Our Response

Thank you for choosing the AISC-approved steel structure warehouse. We firmly believe that this facility, combining superior quality and robust assurance, will provide a durable and reliable spatial solution for your operations. It is not just a secure storage space but also a solid cornerstone for your business growth. We look forward to this building perfectly meeting your needs and growing alongside your enterprise. Our team will continue to offer you professional support. We value this collaboration and hope to become your long-term, reliable partner.

Certifications

Frequently Asked Questions

❓ What are the primary advantages of AISC-approved steel structure warehouses?

They offer high structural stability, flexible space layouts, and fast construction cycles. Prefabricated structures are highly customizable and cost-effective, saving up to 15%–25% in overall costs compared to traditional concrete buildings.

❓ How long is the expected service life of these steel structures?

Using high-strength steel materials and advanced welding or bolting technologies, these steel warehouses are built to withstand harsh weather conditions (such as strong winds and heavy snow) and have a service life of 30 to 50 years under standard maintenance.

❓ What makes IMP wall panels suitable for industrial construction?

IMP (Insulated Metal Panel) wall panels integrate structural strength, thermal insulation, and weather resistance into one prefabricated unit. This drastically cuts down on-site installation time, meets safety codes with fire-retardant cores, and fits modern sustainable building standards.

❓ Can the layout of the warehouse be customized for automated systems?

Yes. The clear-span steel frame design eliminates the need for excessive internal columns. This allows for large spans (up to 30m+) and high clearances (up to 15m+), providing flexible, column-free spaces suitable for rack storage and automated logistics integration.

❓ What is the function of the SDI metal deck system?

The SDI metal deck sheet refers to profiled steel flooring designed per Steel Deck Institute standards. They act as permanent formwork for concrete slabs, bonding with poured concrete to create a strong floor diaphragm that improves load distribution, fire resistance, and overall structural strength.

❓ How much construction time can be saved compared to concrete structures?

Because all steel components are prefabricated in factory settings, they only require assembly on-site. This cuts construction time by 40% to 60% compared to traditional concrete methods.
