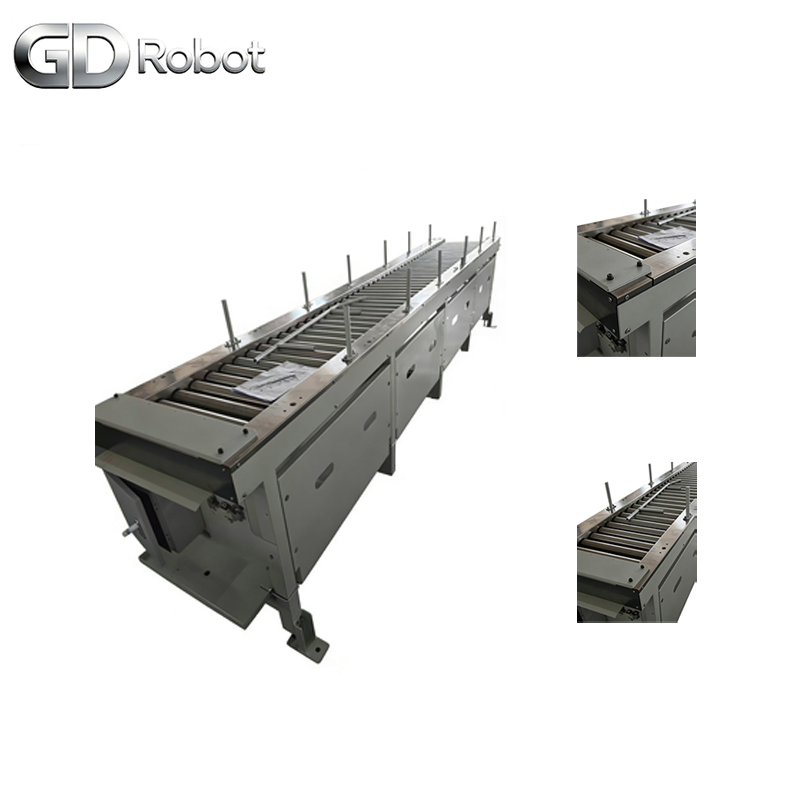

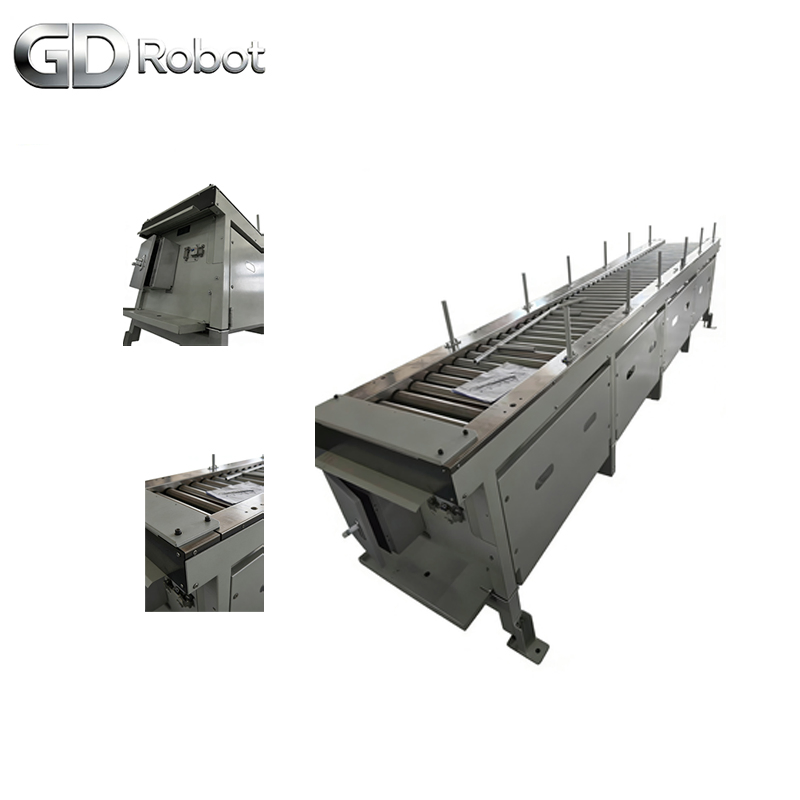

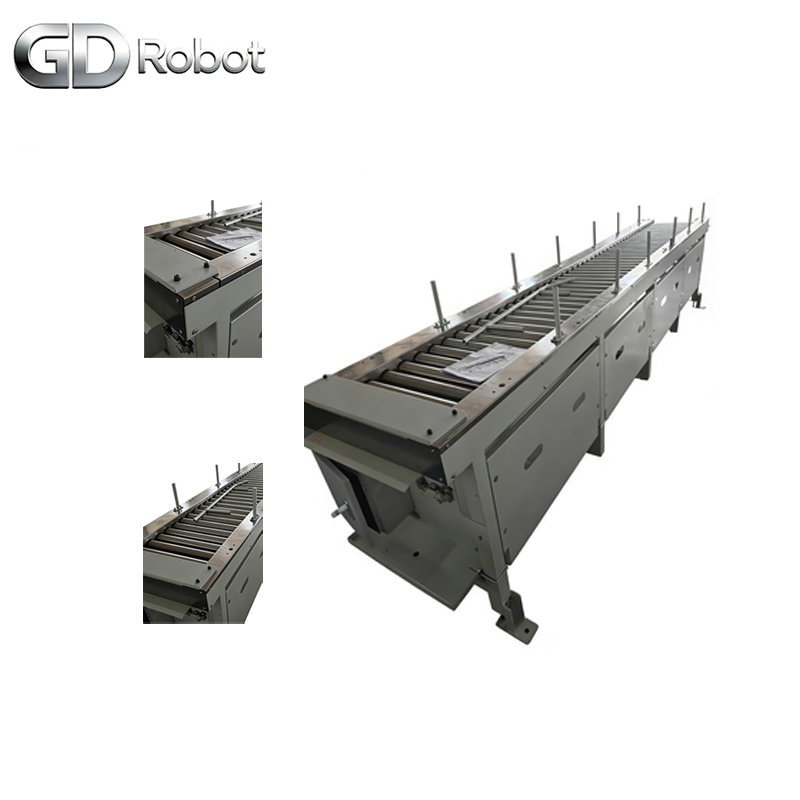

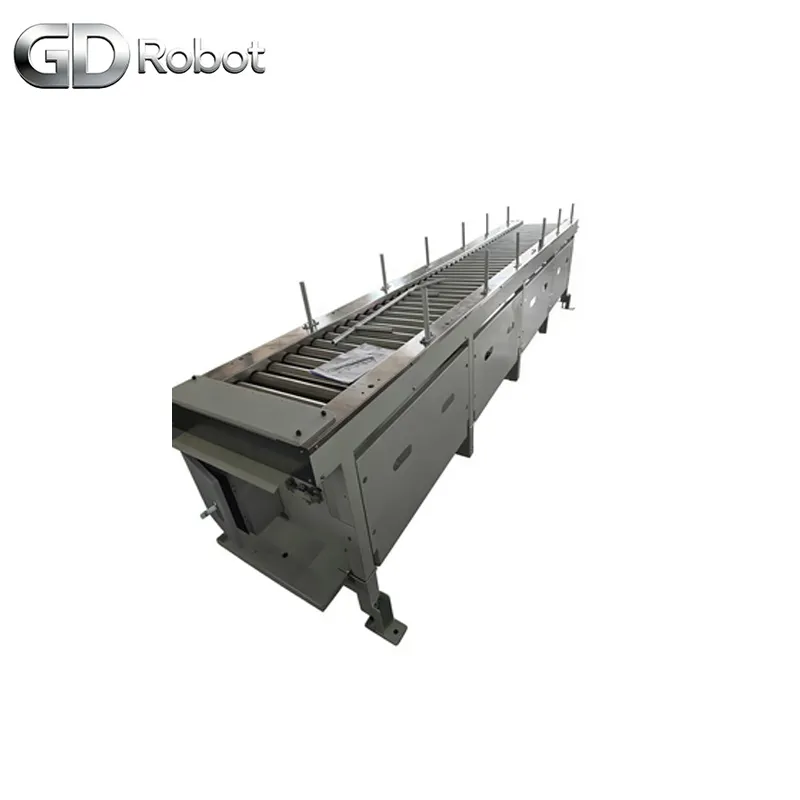

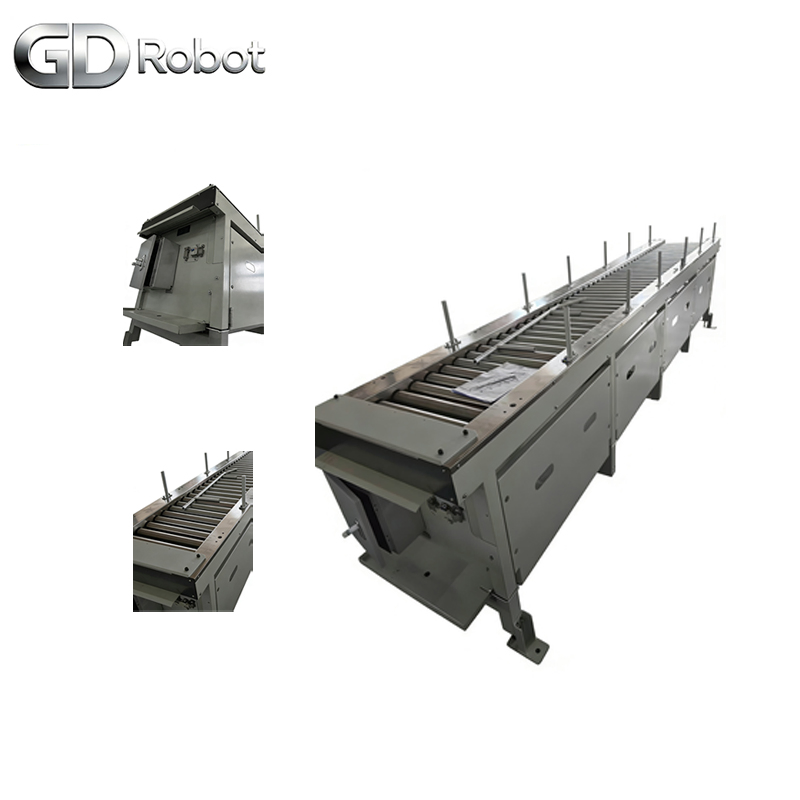

Cost Effective Factory Direct Automatic Roller Conveyor Line High Load Capacity Reliable Conveying for Logistics Distribution Center

Product Description

Our customizable roller conveyor line is designed for high-volume material handling in automated production systems. This system integrates easily with Robot Palletizer Machines, Robot Grippers, and other automated systems, creating a seamless material flow for maximum efficiency. It is ideal for use in high-speed production and distribution environments.

Specification

Model	GDRC
Conveyor Type	Gravity / Powered (motor-driven)
Mounting Type	Floor stand mounting / Suspended mounting
Drive Mode	Motorized roller drive / Chain drive (optional)
Working Voltage	380V AC (50/60Hz) / 220V AC
Motor Power	0.37–1.5 kW
Conveyor Speed	0.1–0.5 m/s
Control Mode	Manual / Automatic / PLC linkage
Protection Grade	IP54
Effective Width	300–1200 mm
Single Section Length	1000–6000 mm
Roller Diameter	50 / 60 / 76 mm
Roller Pitch	75 / 100 / 120 mm
Max Load per Section	50–500 kg/m
Overall Height	500–1000 mm
Frame Material	Carbon steel with paint / Stainless steel (optional)
Roller Material	Galvanized carbon steel / Stainless steel / Rubber coated (anti-slip)
Conveying Direction	Unidirectional / Bidirectional (reversible)
Accumulation Function	Optional (for powered type)
Side Guide / Guide Rods	Configurable (as shown in picture)
Net Weight per Section	50–200 kg
Gross Weight per Section	60–220 kg
Package Size	2000mm1000mm1000mm
Packing Method	Simple wooden frame / Fumigation-free wooden case (export standard)

Our Advantages

Precision

Offers accurate material handling, reducing the risk of damage during transport.

Energy Efficient

Designed to minimize power consumption while maximizing throughput.

Heavy Duty

Built to withstand heavy loads and continuous operation.

Automation Ready

Easily integrates with Robotic Palletizing Systems and Conveyor Lines for total automation.

Packing & Delivery

Packing and delivery of automatic roller conveyor line

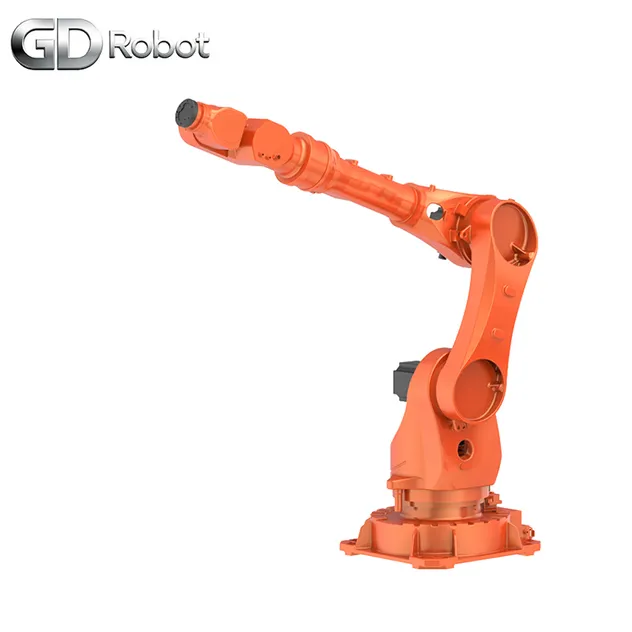

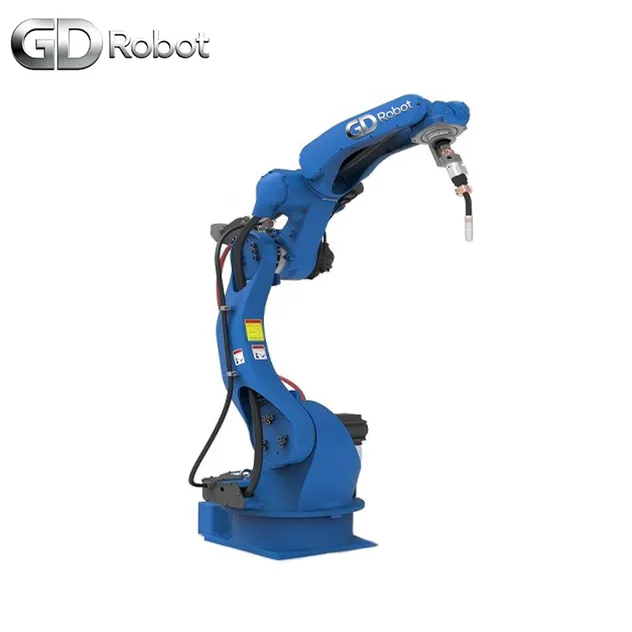

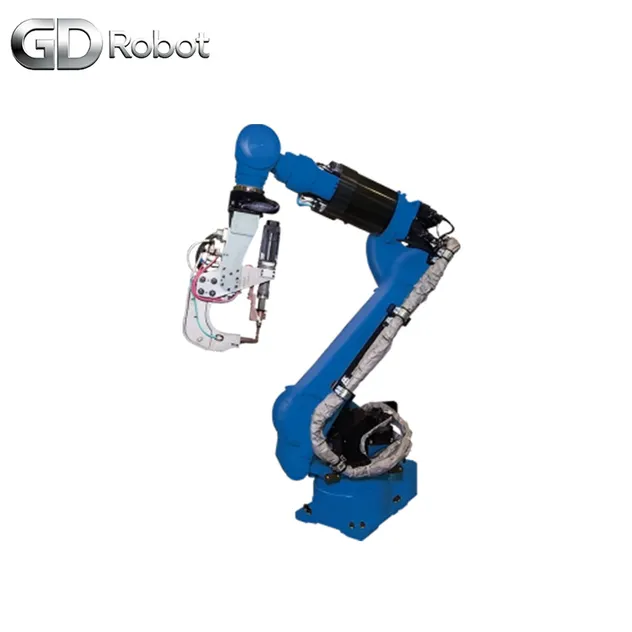

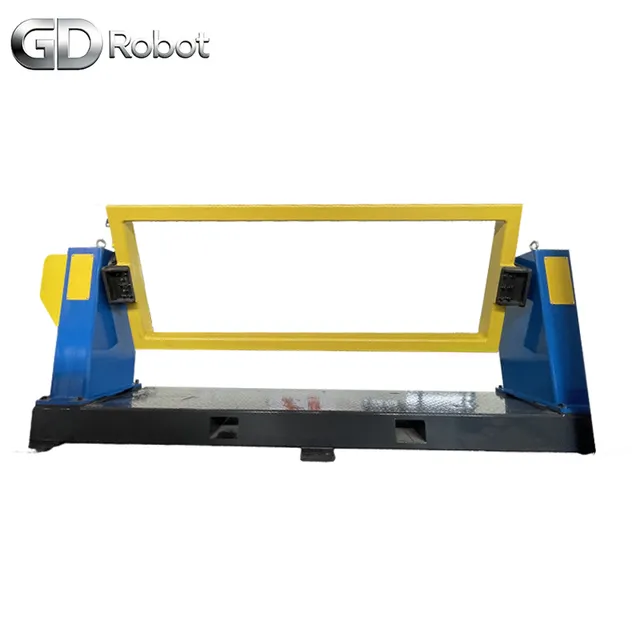

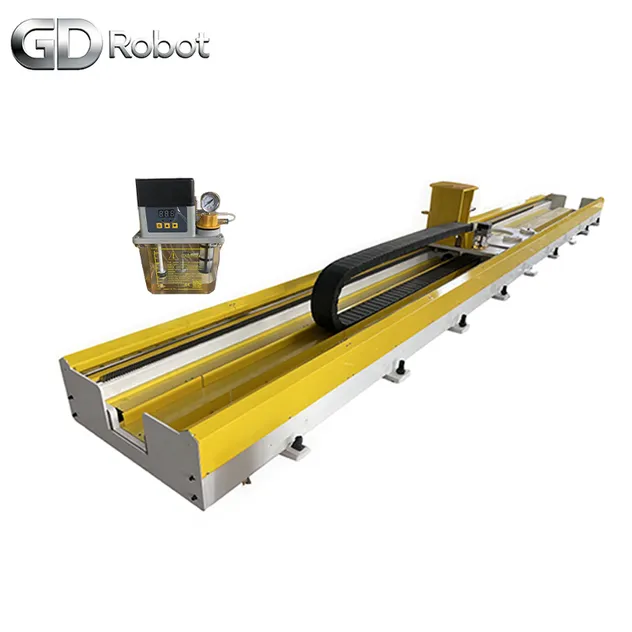

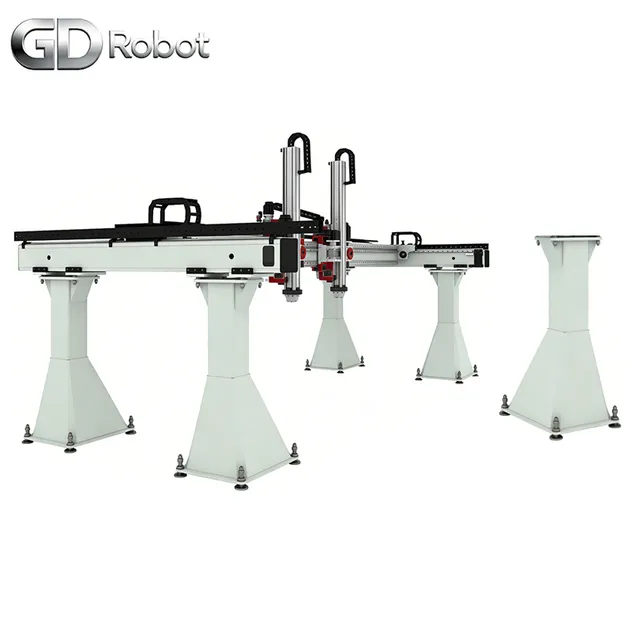

Hot Selling Products

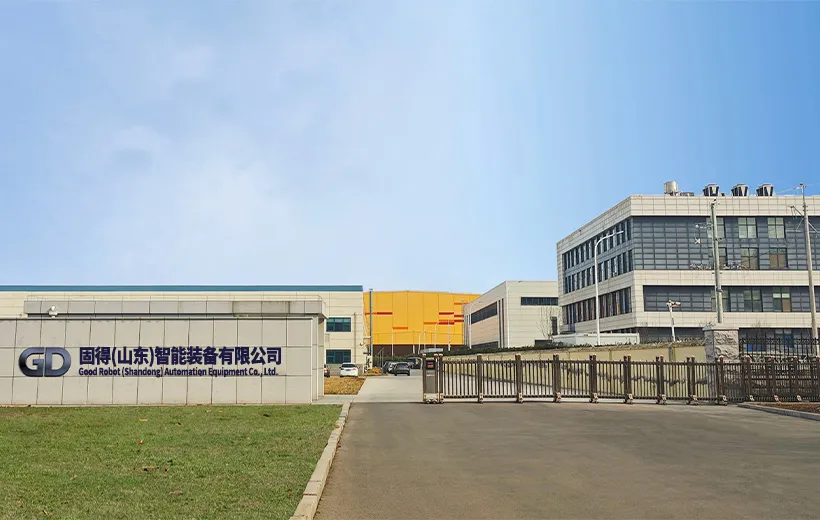

Company Profile

Established in 2018, our company is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners, while also providing customers with customized automation solutions. Our business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, spraying, etc. Our products are widely used in agricultural machinery, engineering machinery, petroleum machinery, forging processing, warehousing and logistics, food processing, and other industries.

As a core manufacturing base with strong production capacity, our company can produce more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. We provide over 50 types of automation solutions and more than 300 industrial robots each year, and offer customized production as well as OEM/ODM services for domestic and overseas customers.

Certifications

Frequently Asked Questions

1. How do I know if this conveyor is suitable for my materials?

Our team will assess your material handling needs and recommend the best configuration for your production line.

2. Can I integrate this system with existing conveyor lines?

Yes, the system can be seamlessly integrated with existing infrastructure.

3. How do I maintain the roller conveyor line?

We provide detailed maintenance guides and offer periodic inspections to ensure long-term performance.

4. What is the lead time for delivery?

Standard delivery times are between 4-6 weeks, depending on customization options.

5. Can the conveyor speed be adjusted for different materials?

Yes, the speed can be adjusted to accommodate different materials and production schedules.

6. Is it easy to replace components if needed?

Yes, our system is designed for easy maintenance, and components can be replaced quickly with minimal downtime.
