Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
1 / 5
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

Customization: Available
Transmission Type: Rigid
Rhythm: Non Flow Production Line
Send Inquiry

Product Description

Basic Information

Automatic Production Line
Comprehensive
Production Scope
Product Line
Flexible Production
Intelligent Manufacturing
Certification
ISO, CE, ABS
Automation
Full Automation
After-sales Service
1 Year Warranty
Transport Package
Wooden Box
Origin
China

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
500.000kg

Product Description

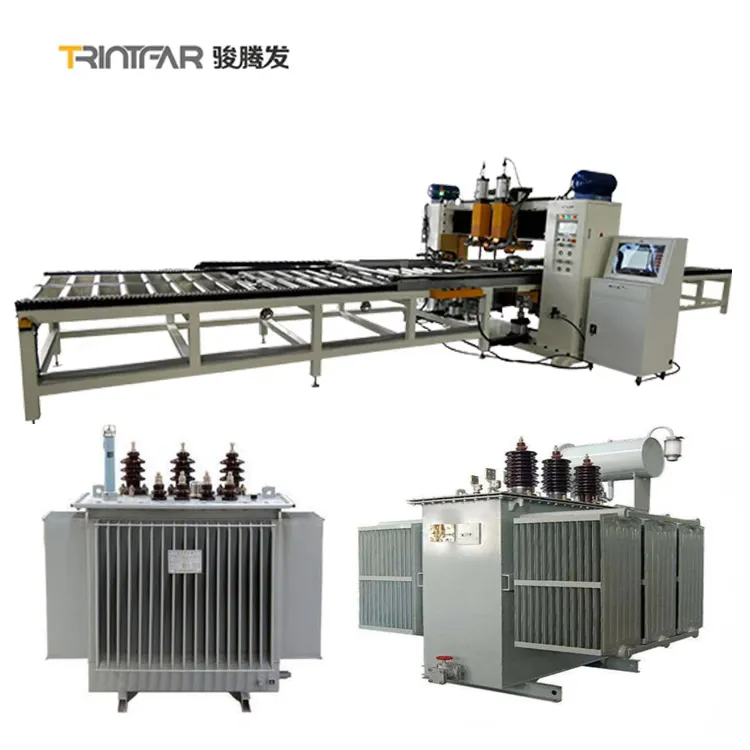

Production Line
⚙️

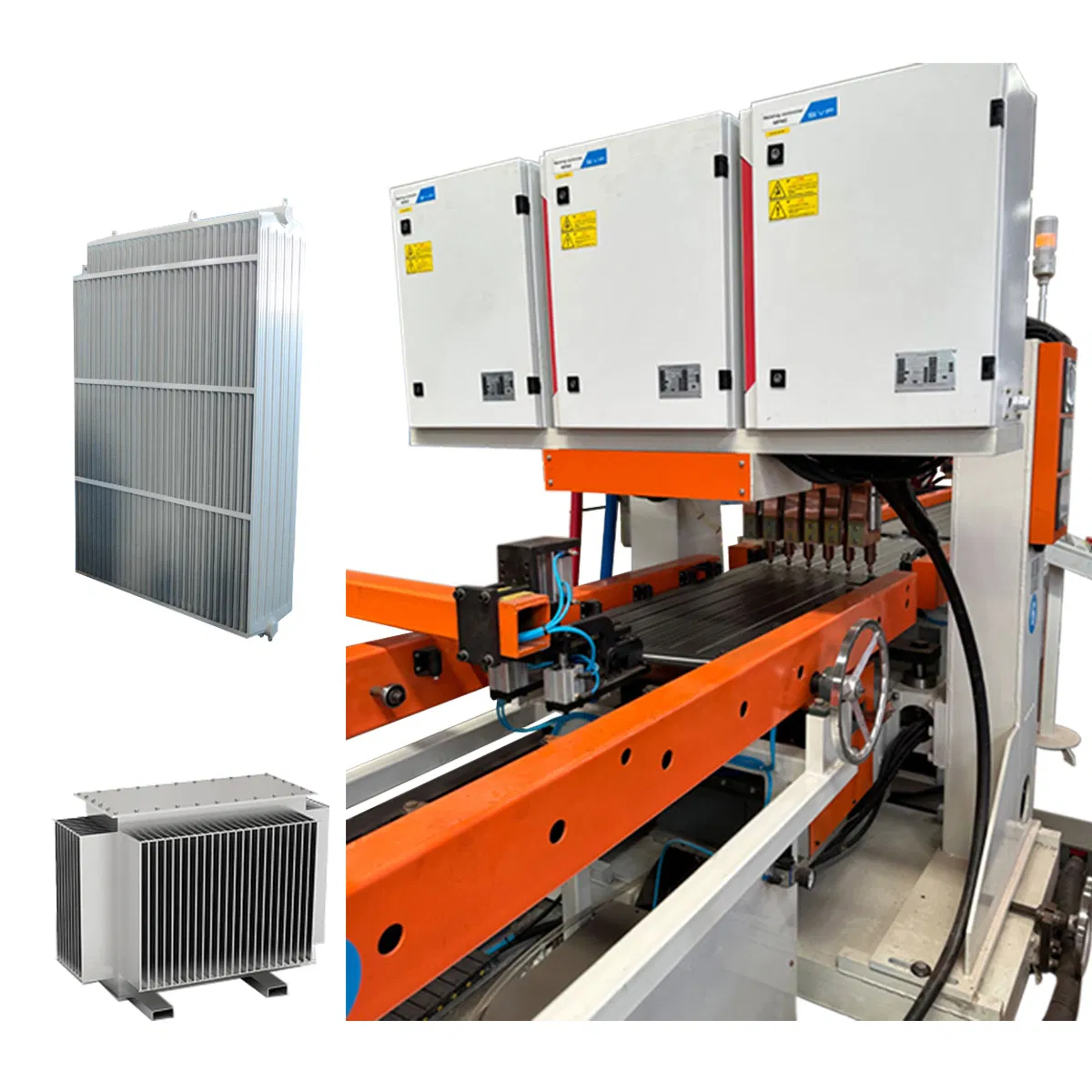

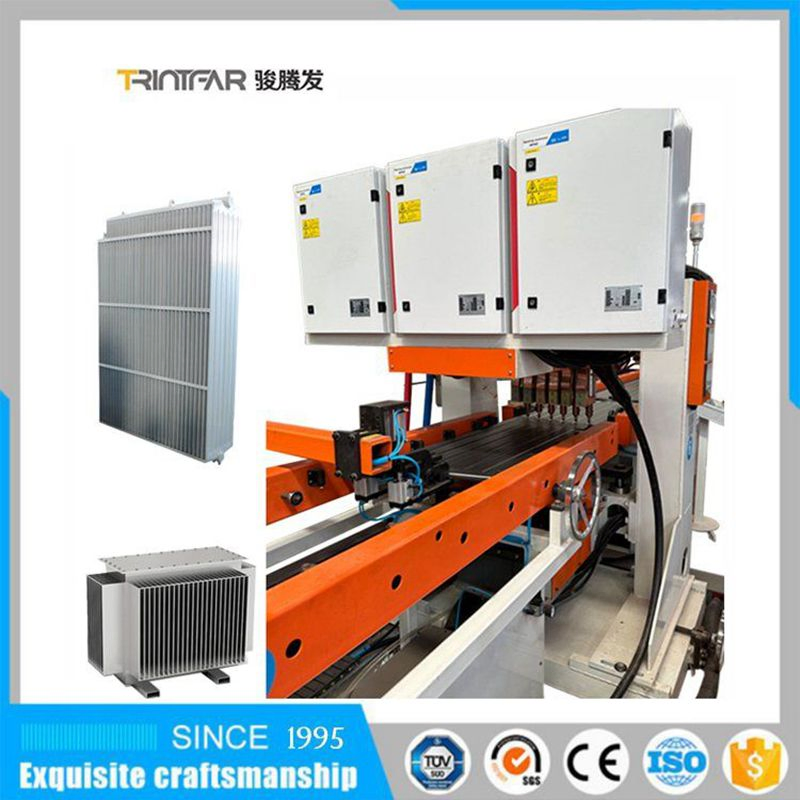

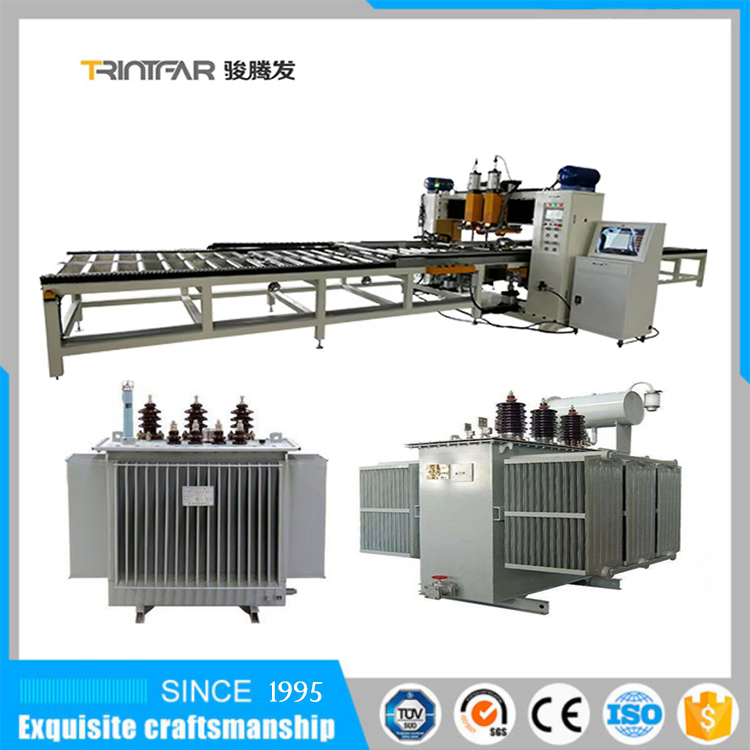

1. Roll Form Press: Controlled by a precision servomotor, the Roll Form Press machine produces panels of variable length according to the chosen profile and end detail. Forming and feeding rollers work in combination with a press tool to form panels in a fully automated process.
⚡
2. Multi-Spot Welder: The Multi-Spot Welder makes up to rows of spot welds along the ribs through the length of the panel. Software-controlled servo indexing of the panel assembly assures symmetrical positioning of spots for optimal pressure distribution.
🛠️
3. Seam Welder: The Seam Welder joins the edges of the panels through resistance welding. Each copper-welding wheel is internally cooled, without the need for an external water system. Automated longitudinal side welding by dual welders and third welder for panel ends.
🔄
Workflow:
Decoiling - roll forming - hydraulic press - turn over - multiple spot welding - side seam welding - head welding - side shearing - head cutting - end product - automatic panel stacking machine

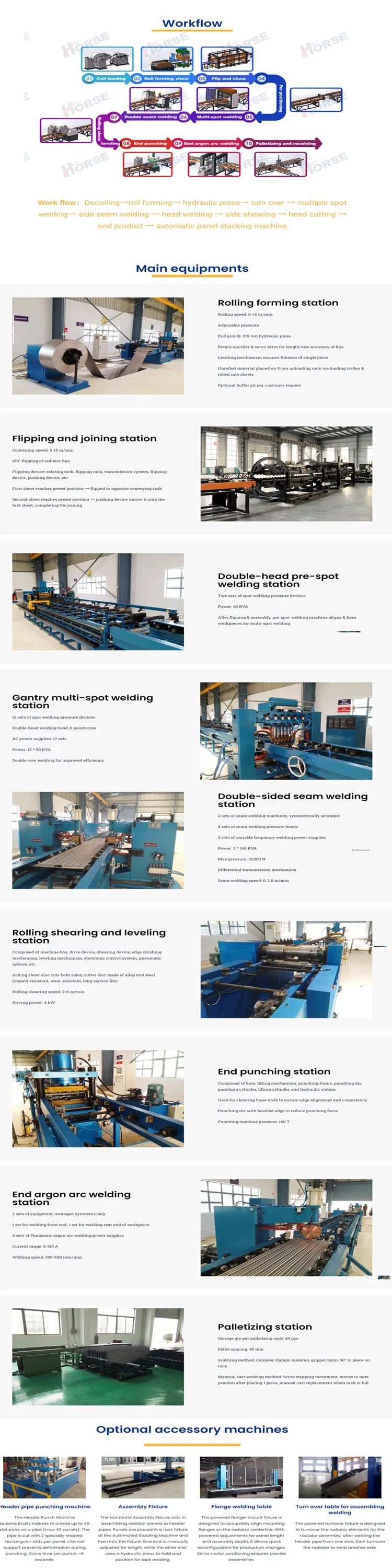

Workflow Diagram

Specifications

Model: BVM-170KVA Parameters
Input voltage380±10% (three-phase) 50HZ
Input power2x250KVA
Secondary Voltage11.3V
Maximum short circuit current50KA
Insulation resistance≥ 2.5MΩ
Working environmentTemperature ≤40ºC, Humidity ≤90%
Cylinder modelΦ160*80
Maximum working pressure12000N
Air source pressure0.6MPa
Water source pressure0.15MPa~0.30MPa
Water flow30L/min
Welding wheel diameter280mm

Equipment Gallery

Equipment View 1 Equipment View 2 Equipment View 3 Equipment View 4 Equipment View 5 Equipment View 6

Frequently Asked Questions

❓ What certifications does this production line hold?
The production line is certified with ISO, CE, and ABS, ensuring international standards for quality and safety.
❓ What is the warranty period for the machinery?
We provide a standard 1-year warranty for the equipment along with dedicated after-sales service.
❓ How is the welding process optimized for quality?
The Multi-Spot Welder uses software-controlled servo indexing to ensure symmetrical positioning of spots for optimal pressure distribution and structural integrity.
❓ Does the seam welder require an external water cooling system?
No, the copper-welding wheels are internally cooled, which simplifies the installation and reduces the need for external water systems.
❓ What is the typical production capacity?
The production capacity is rated at 500 units, utilizing intelligent manufacturing and flexible production techniques.
❓ How is the equipment protected during transport?
The equipment is packed securely in heavy-duty wooden boxes to prevent any damage during international shipping.
