Qingdao Yituo Machinery Metal Coil Straightening Servo Feeder Slitting Rewinding Machine Line

1 / 5

Qingdao Yituo Machinery Metal Coil Straightening Servo Feeder Slitting Rewinding Machine Line

Customization:	Available
Industry:	Steel Distribution, Automobile, Rolling Stock
Thickness Range:	0.5-6.0 mm

Send Inquiry

Product Description

Basic Info.

Model NO. YT-SR

Material Width 500-1850 mm

Coil Inner Diameter 508-610 mm

Coil Outer Diameter 2000 mm

Strip Thickness Tolerance 0.15mm

Coil Weight 30 Tons

Transport Package Water-Proof Film

Origin Qingdao

Product Description

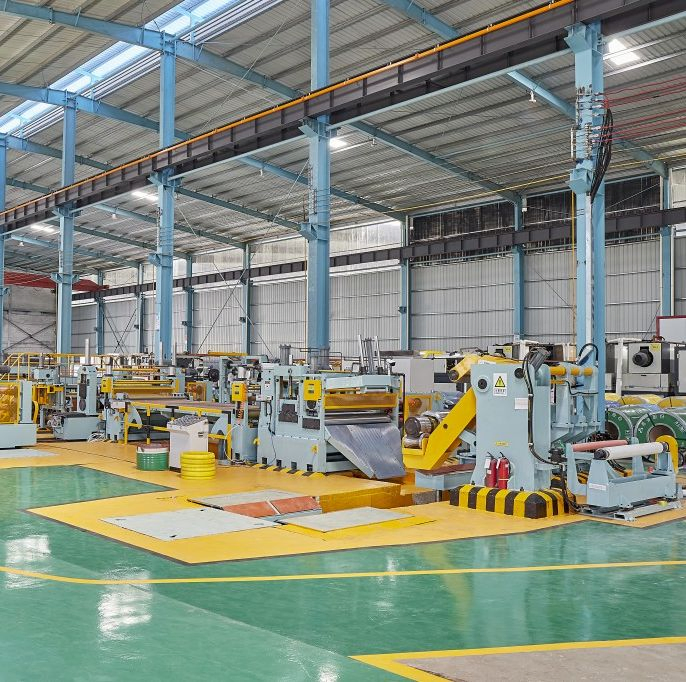

This production line is mainly used for uncoiling, leveling, and cross-cutting of pickled sheet coils, and is suitable for steel distribution, automobile, rolling stock, steel structure and other manufacturing industries.

1. Basic Conditions

This production line can run continuously in the following environment:

Ambient temperature: 0ºC~40ºC
Relative humidity: ≤ 80%
Air pressure: 0.4~0.7Mpa
Power supply: AC380V±10%, 50Hz, three-phase five-wire system

2. Technical Parameters

Material	Cold rolled steel sheet, Hot rolled carbon steel sheet, high strength steel sheet etc
Material thickness	0.5mm-6mm (various σs/σb specs)
Material width	500-1850mm
Coil weight	≤30T
Leveling speed	0~40m/min
Installation space	32m×8m

3. Process Flow

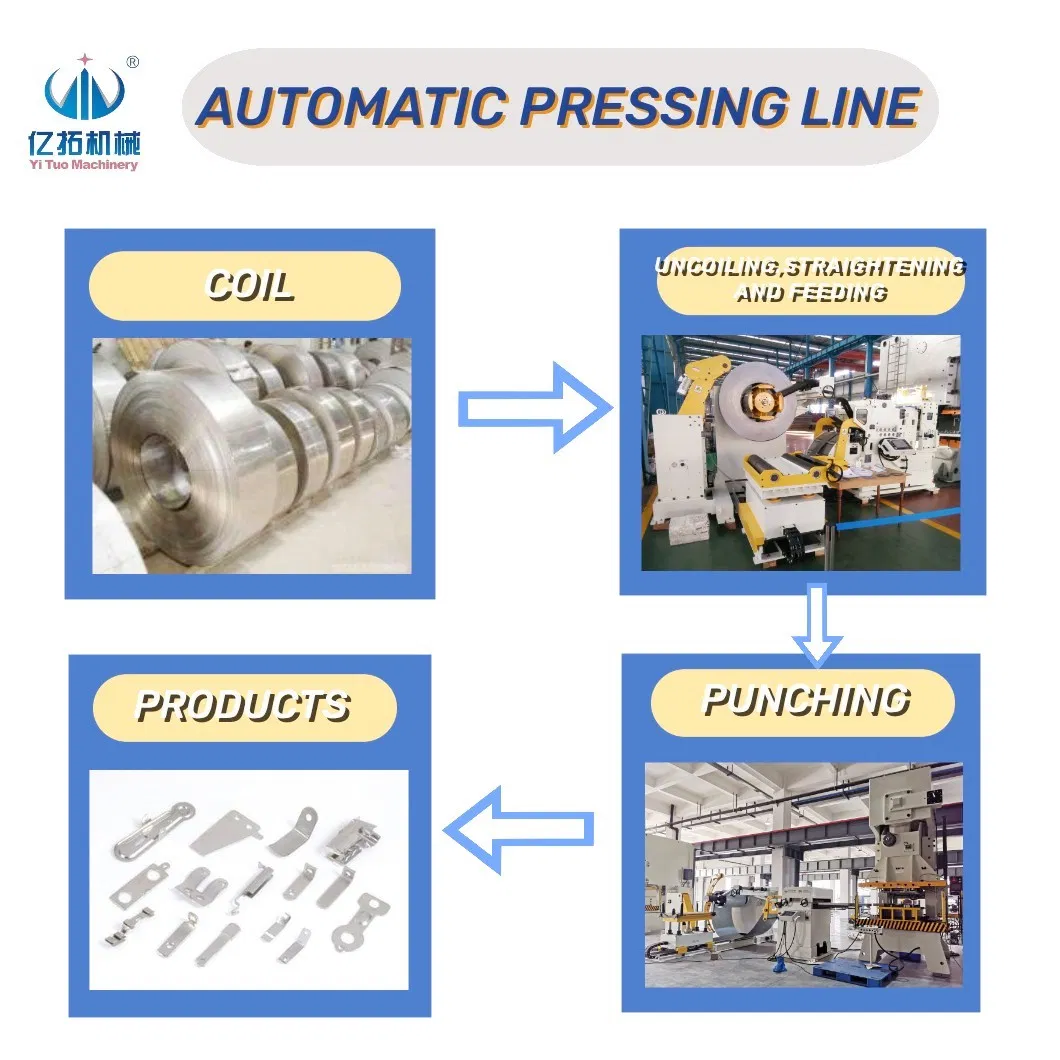

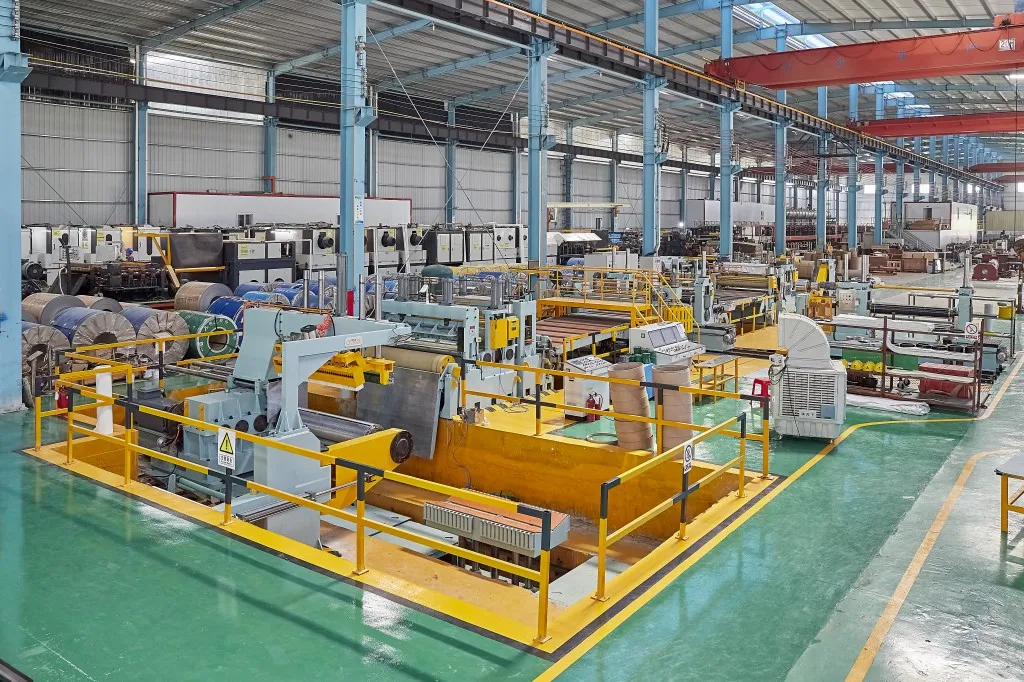

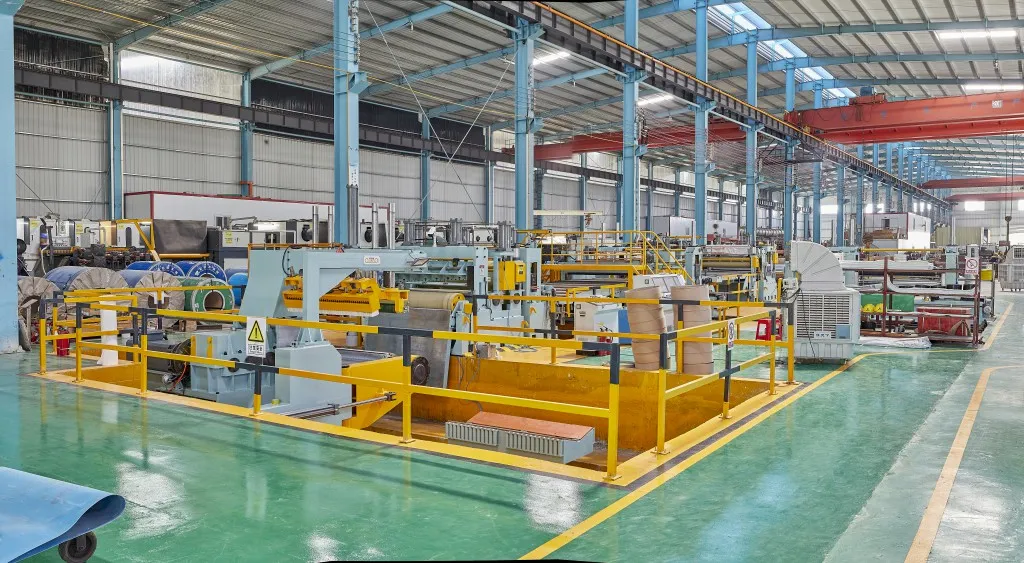

material roll up → decoiler → Lead-in device → straightener → Loop → coil side guiding → servo feeder → shearing machine → Stacker → Unloading cart

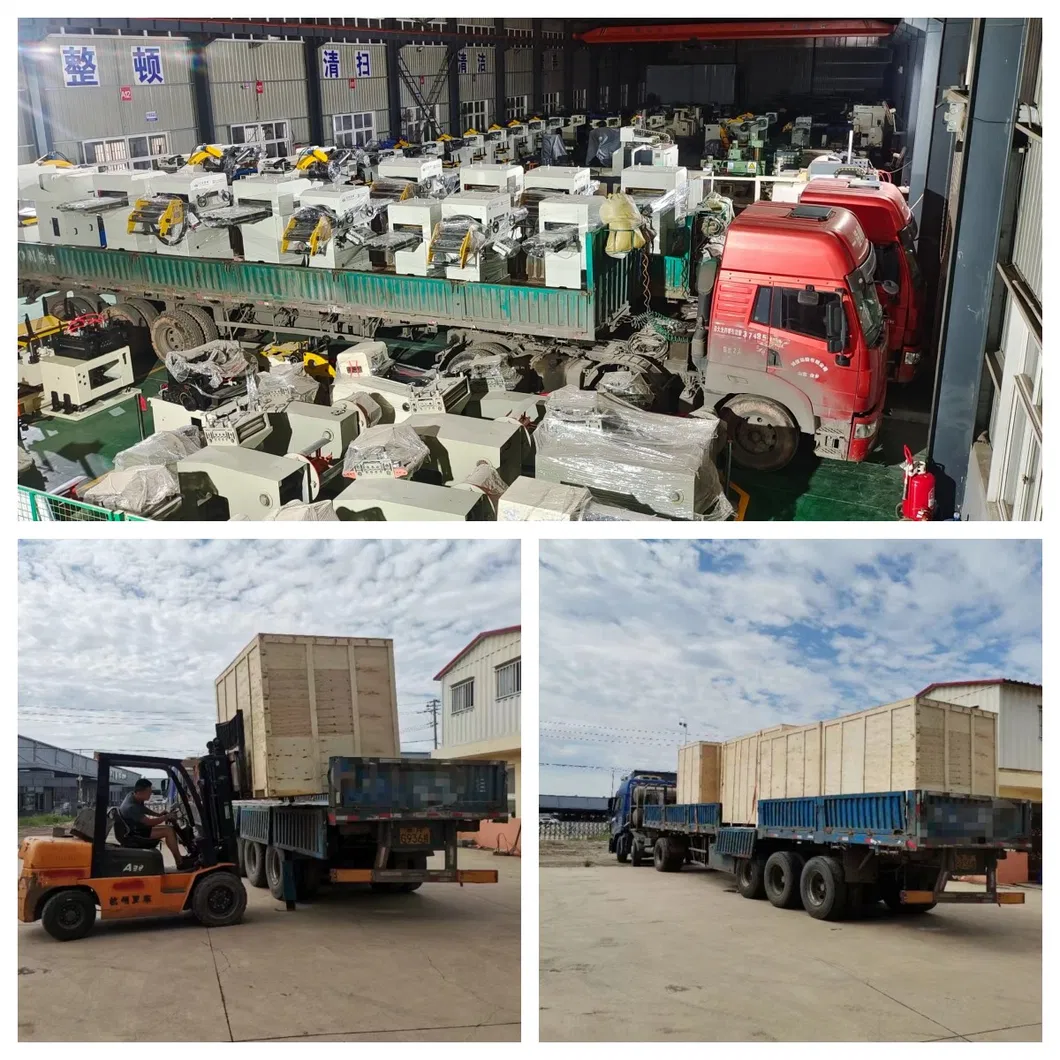

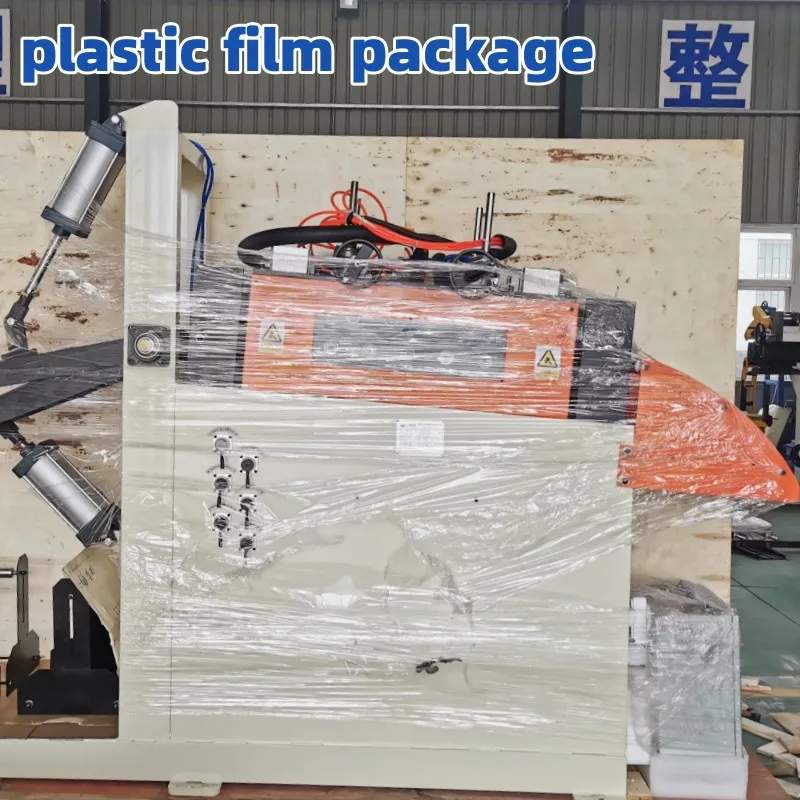

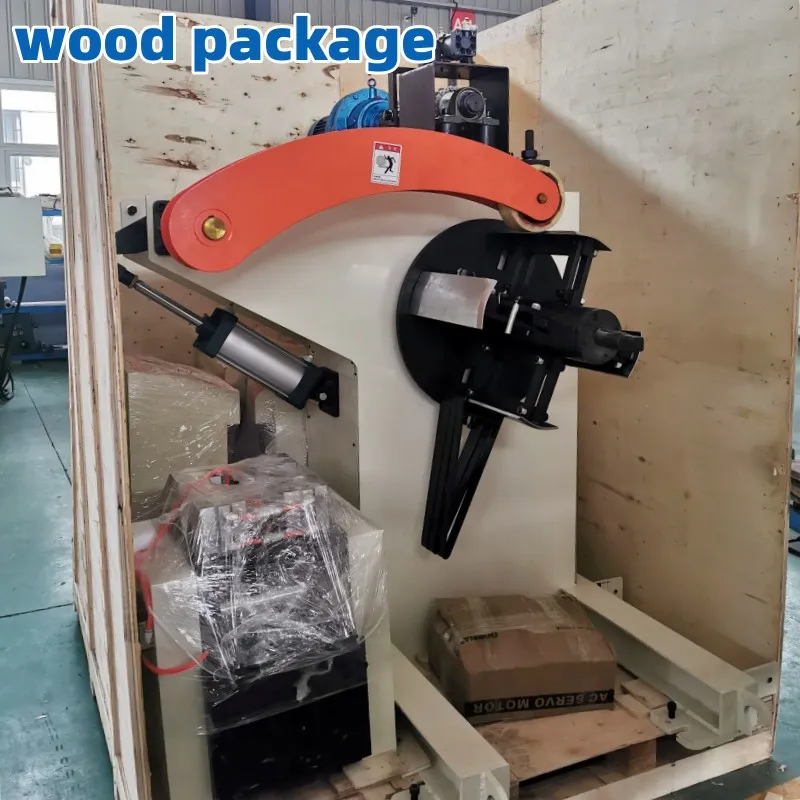

Packaging & Loading

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory which has been producing stamping automation machines for more than 20 years.

Q: What's the delivery time?

A: The standard machine is 25 to 30 working days. For complete lines, it depends on specific project requirements and our production schedule.

Q: Do you accept OEM or ODM orders?

A: Yes, we warmly welcome customers to utilize our OEM and ODM services.

Q: What is the warranty period?

A: The standard warranty period is 12 months, which can be extended according to specific project requirements.

Q: What technical support is provided after sales?

A: We provide online guidance for standard machines. For complex coil feed lines and stamping lines, we can arrange engineers to go overseas for installation and operator training.
