Incorrect parcel weight and dimension specification in the parcel handling industry are becoming a prevalent issue. Though verification can be done, it is slow and inefficient since it has to be manual.
Suppose your customers do not provide the correct weight and dimensional information. In that case, they are not paying the right amount and you are losing revenue.

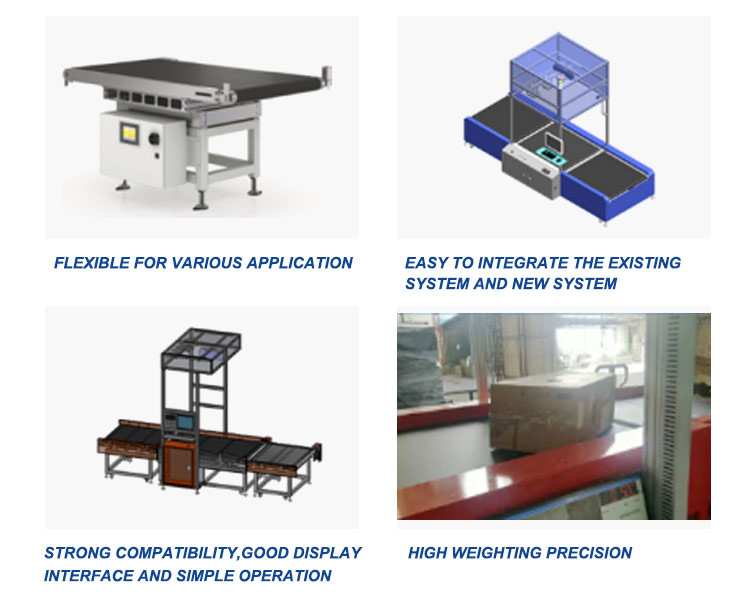

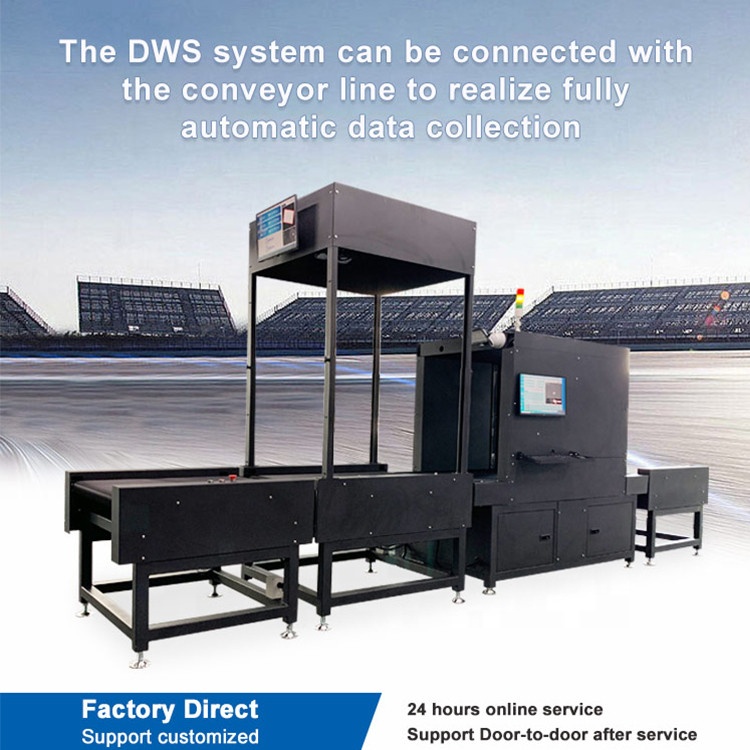

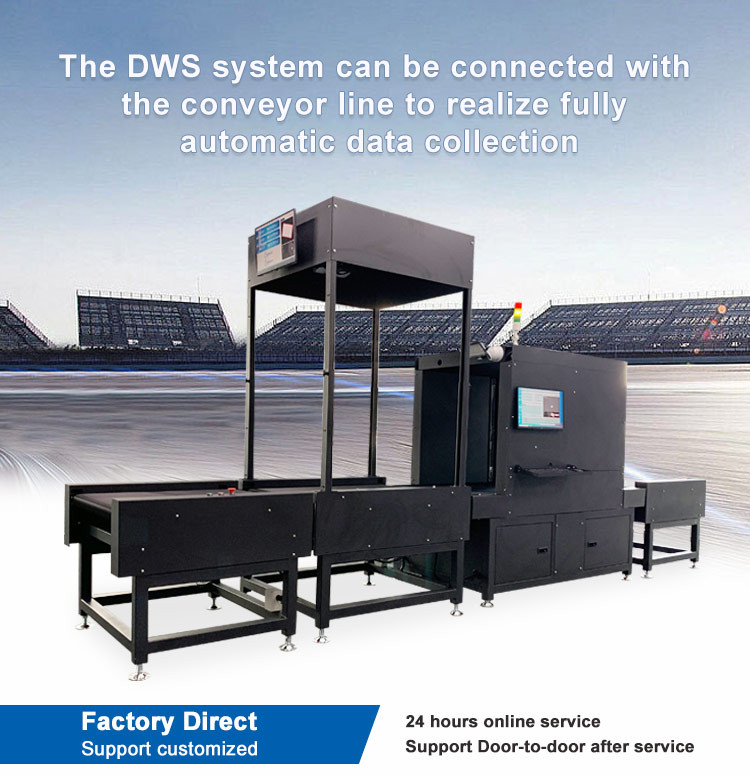

Dimensioning Weighing and Scanning (DWS) systems are a highly efficient way to capture parcel weight and dimensions for revenue protection and recovery. While capturing parcel specification, it also obtains information required for sortation purposes, optimal utilisation of space in transport vehicles or suitable temporary storage locations.

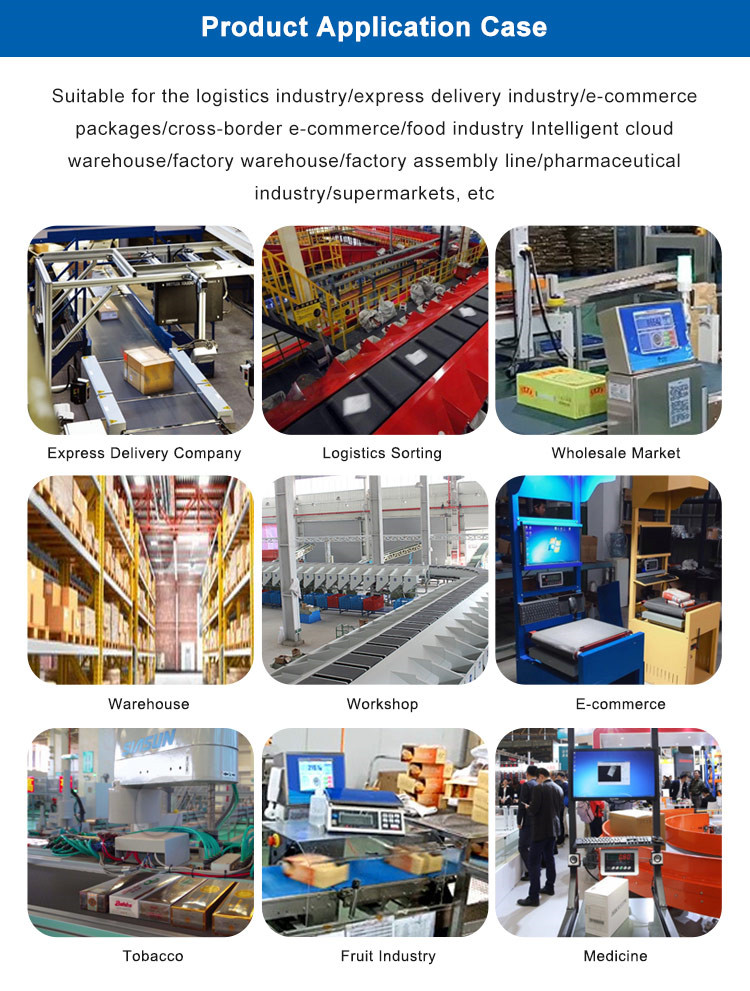

DWS systems are suitable for applications spanning from high-volume logistics and distribution companies to local shipping centres. The DWS systems bring value to all relevant operations involved in this industry.
The DWS systems are designed to be accurate, reliable, and efficient in capturing shipment and production data (dimensions, weight, barcodes). Accurate barcode data can be pushed in real-time for immediate information availability by seamlessly integrating with the DWS systems with existing warehousing and ERP systems.

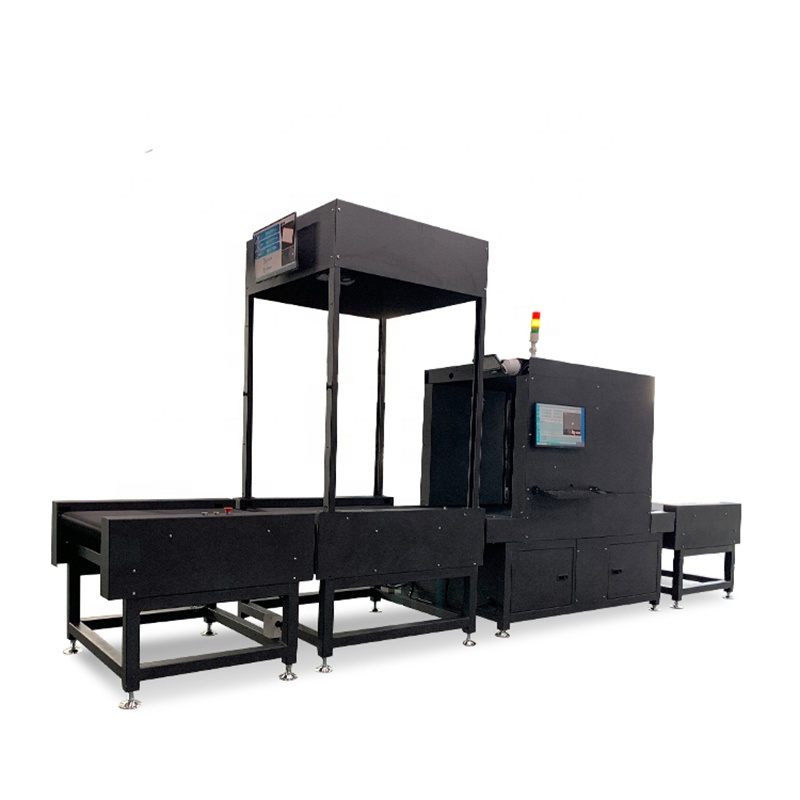

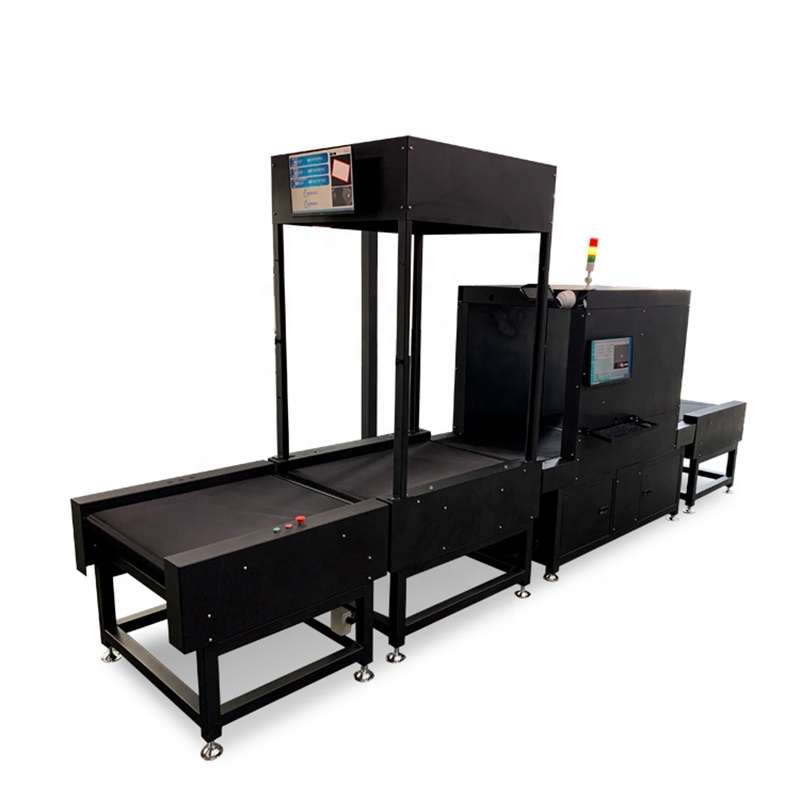

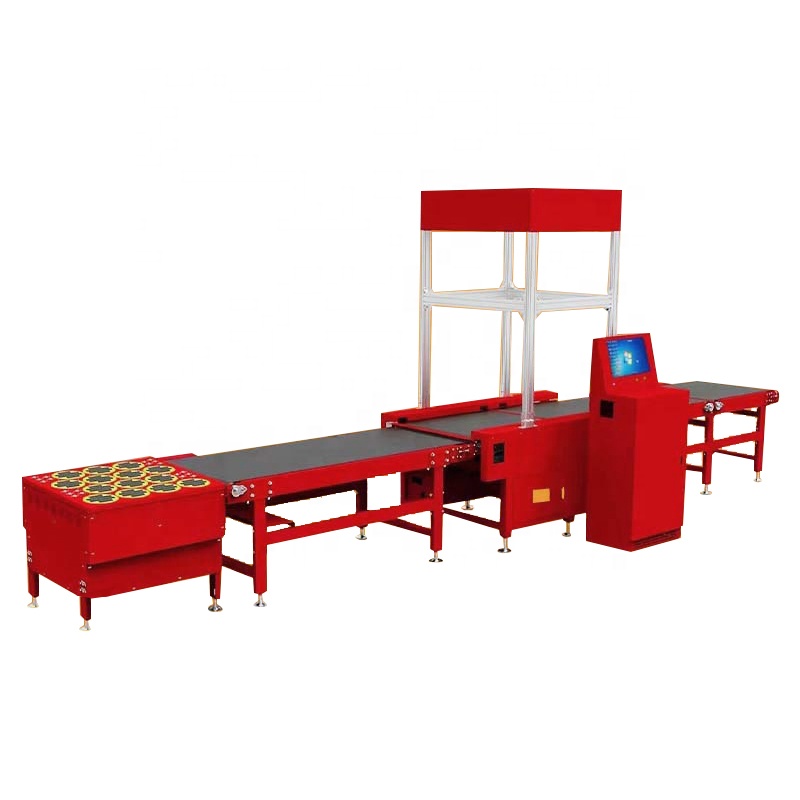

| Device name | High-speed scanning code weighing and volume measuring machine |
| Hardware |

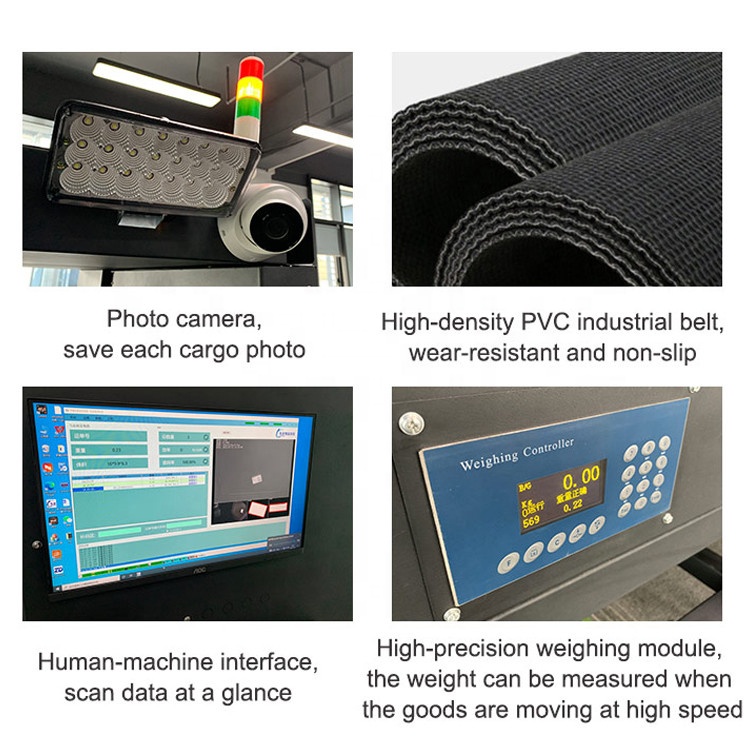

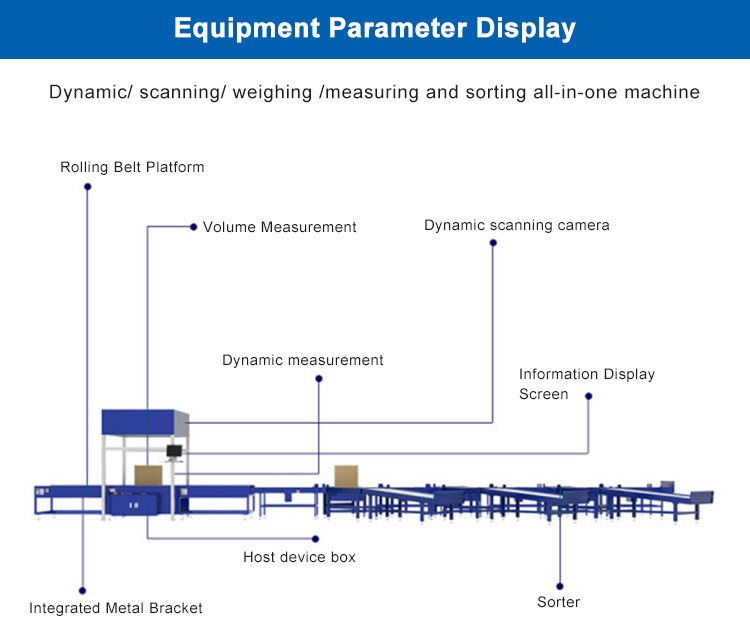

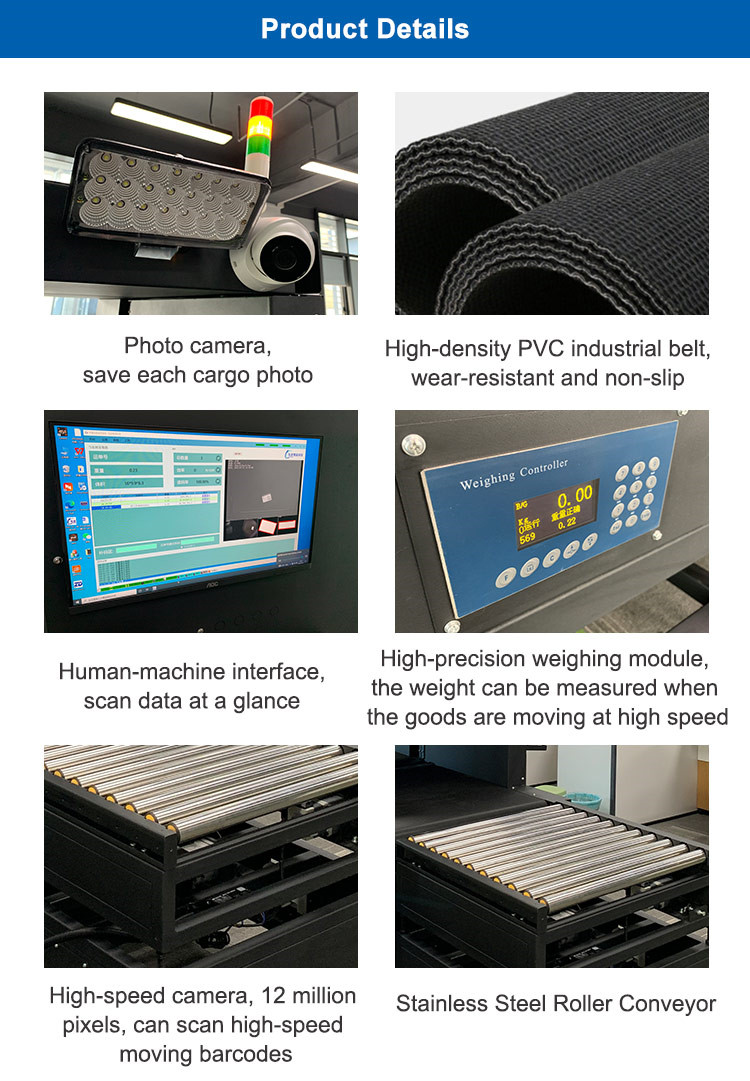

HD code scanning camera(DH-MV-SL4800-S5B0-16)+handheld code scanning gun (auxiliary spare, can be customized for 5-side code scanning and 6-side code scanning) Intelligent high precision dynamic scale Dynamic high-precision volume measurement line (1mm grating infrared measurement and control technology) Industrial computer + LCD display + camera + light source + bracket Electronic Control (Hechuan/Mitsubishi/Siemens PLC) Schneider Electronic Control Components Unpowered drum buffer section (1m) |
| Software |

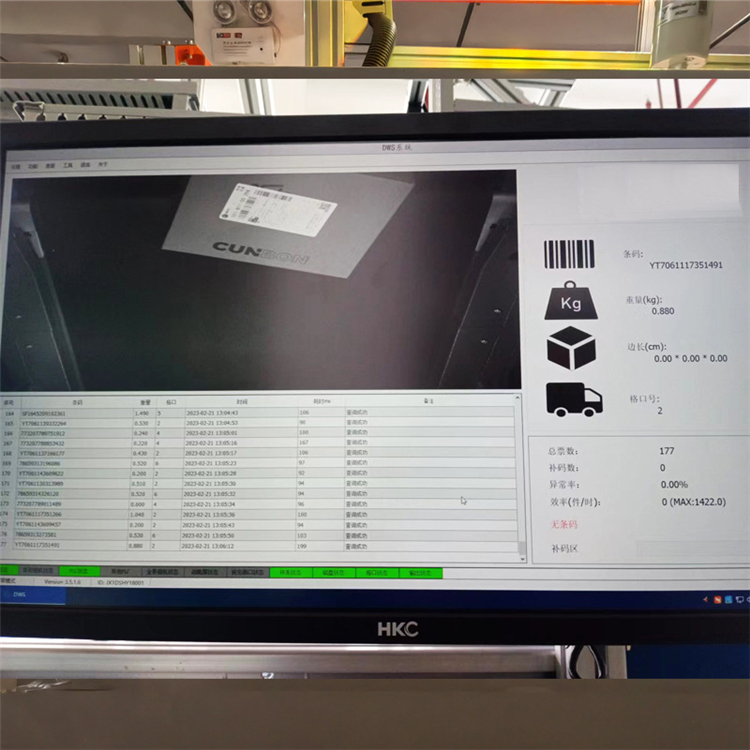

Image forensics and photography software (color watermark+image archive+barcode map) DWS Supporting Software |
| Service | Installation and commissioning + 1 year warranty + 24 hours full service response |
| Working Efficiency | 1200-2400 pieces/hour |
| Technical Parameter |
Bar code recognition rate: ≥99.5% Weighing range: 0.1-50kg Weighing accuracy: ±20g Dimensional measurement accuracy: average accuracy of flat wrapping +1mm, maximum error +5mm Cargo size (minimum): 100*10*10mm Cargo size (maximum): 1000*800*800mm |
| Abnormal Alarm | Intercept abnormal situations such as damaged face sheets, unread face sheets, and intercepted pieces, and handle exceptions manually |
| Display Type | LCD monitor |
Founded in 2009, our manufacturing facility spans over 40,000 square meters. We have established strategic branch operations in Beijing, Shanghai, Wuhan, and Shenzhen. The enterprise employs over 300 professionals, including a dedicated 20-member technical R&D team, and has successfully passed CE and ISO9001 quality system certifications.
We design, engineer, and manufacture a wide variety of conveyors including Telescopic belt conveyors, belt conveyors, roller conveyors, timing belt conveyors, chain conveyors, and flexible flat top chain conveyors, DWS, as well as workpiece pallet-handling conveyor systems, and extruded aluminum framing including guarding and linear motion systems. The variety and flexibility of our offering is unsurpassed, and our products have proven themselves worldwide in a broad variety of applications and industries.
Our experienced team works to design, develop, and implement solutions based on parameters unique to your business model. We provide complete design, layout, integration, installation, and project management services globally.
We welcome the opportunity to get involved early in your project. We have established strategic partnerships with engineering affiliates to offer complete design build capabilities. This often results in a streamlined project, based on input from the design team and engineering staff that delivers the efficiencies and storage requirements for the application.
Our regular products have a delivery time of 40 calendar days. Customized products delivery times depend on specific customer requirements.
Yes, the conveyor belt can be operated in reverse directions to support both loading and unloading operations.
Absolutely. We have a professional team of design engineers dedicated to structuring custom logistics and conveyor layouts.
You can share your cargo specifications, throughput volume, payload sizes, and warehouse layouts. Our engineers will draft a tailored integration plan for you.
Yes, our equipment is supported by a standard one-year warranty, alongside lifetime online technical support.
Yes, we provide OEM services, including printing your specific brand logo directly on the machinery.
