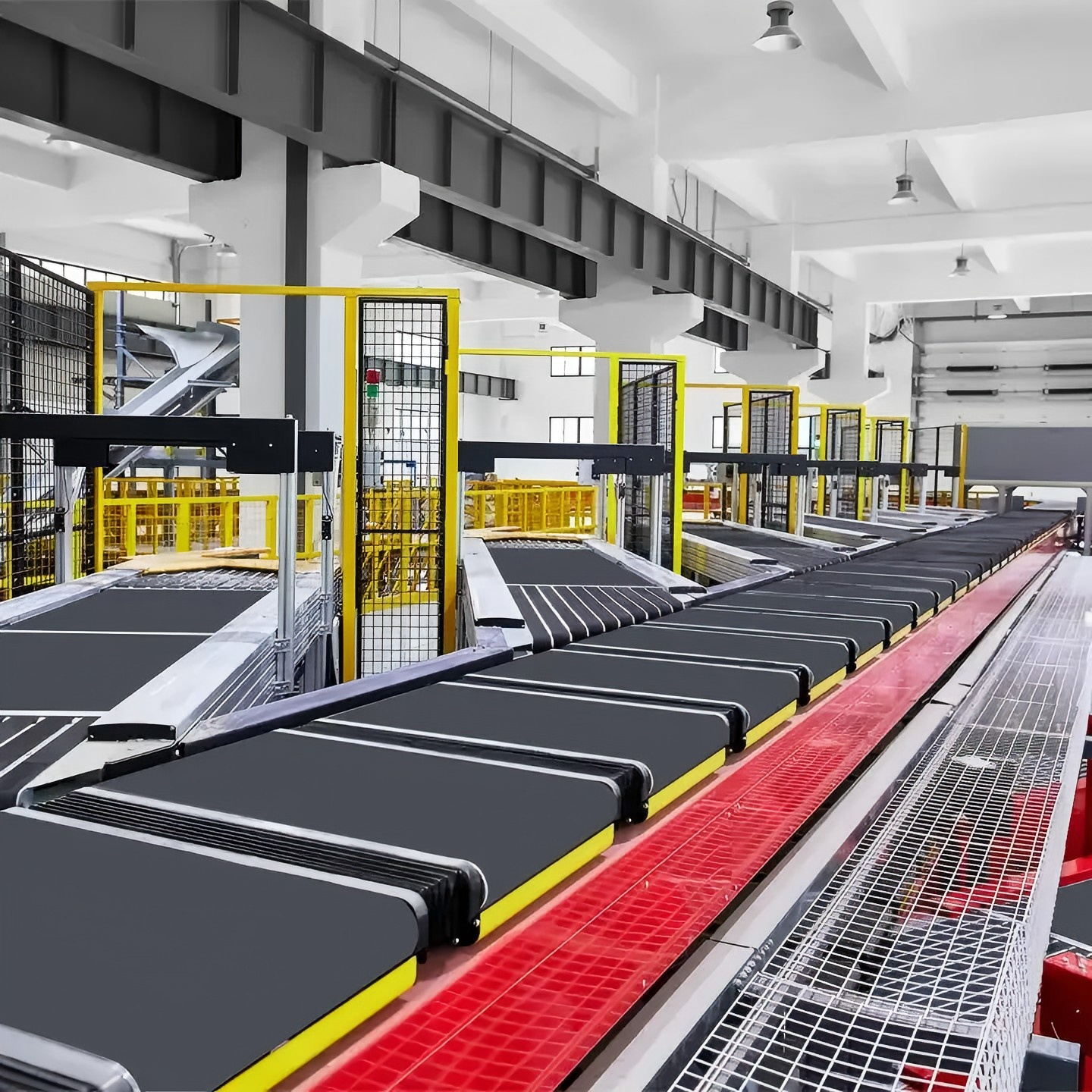

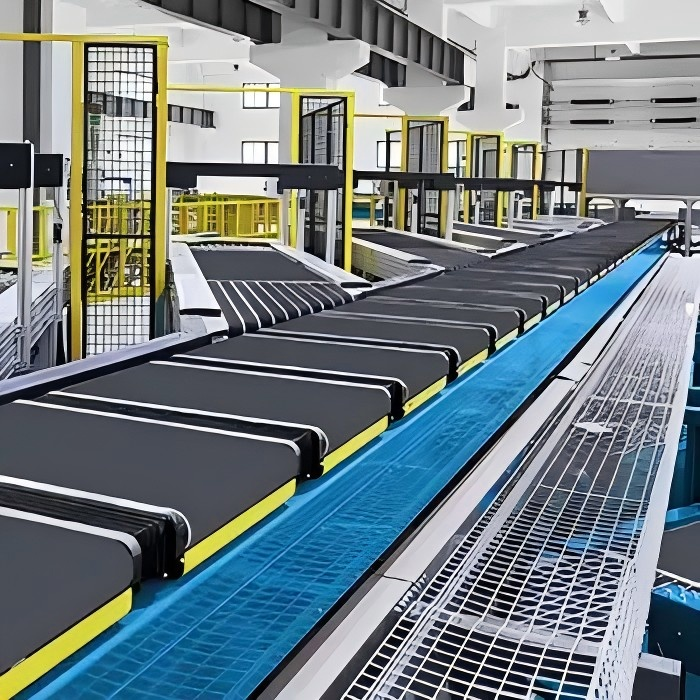

Linear cross belt sorter is an efficient sorting system widely used in logistics distribution centers. It is composed of several parallel conveyor belts, which can realize the fast sorting of goods in the process of linear movement.
| Main Parameters | |
|---|---|
| Features | Linear(electric)500 pitch (customizable) |
| Number of slots | 56(can be customized) |
| Grid width | 700mm |
| Grid type | Landslide (customizable chute) |
| Number of cars | 94 cars |
| Car size | Standard trolley, trolley length and width 428*700mm, pitch 500mm |
| main line speed | 1.2-1.5m/s (adjustable) |
| Line height | 1.8 meters |
| Package weight range | 0.1-10kg |
| Package size(minimum) | L100*W100*H10mm |
| Package Size (Maximum) | L400*W400*H350mm |
| Sorting time limit | Actual 8000, theoretical 10000 orders/hour |
| Equipment footprint | L24*W3.7*H1.8mm |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
