Product Description

Products Overview
Cross Belt Sorting Machine is a kind of intelligent sorting equipment which integrates code recognition, computer processing, database classification and automatic sorting. This equipment is used for automatic parcel sorting projects.
  • Robust & Fault-Tolerant: Provides unmatched 99.99% accuracy and high classification capability, regardless of project type.
  • Energy Efficient: Optimized power consumption and design for lower operational costs and easy maintenance.
  • Gentle Handling: Full control over package position and behavior, ensuring zero slippage or rolling.

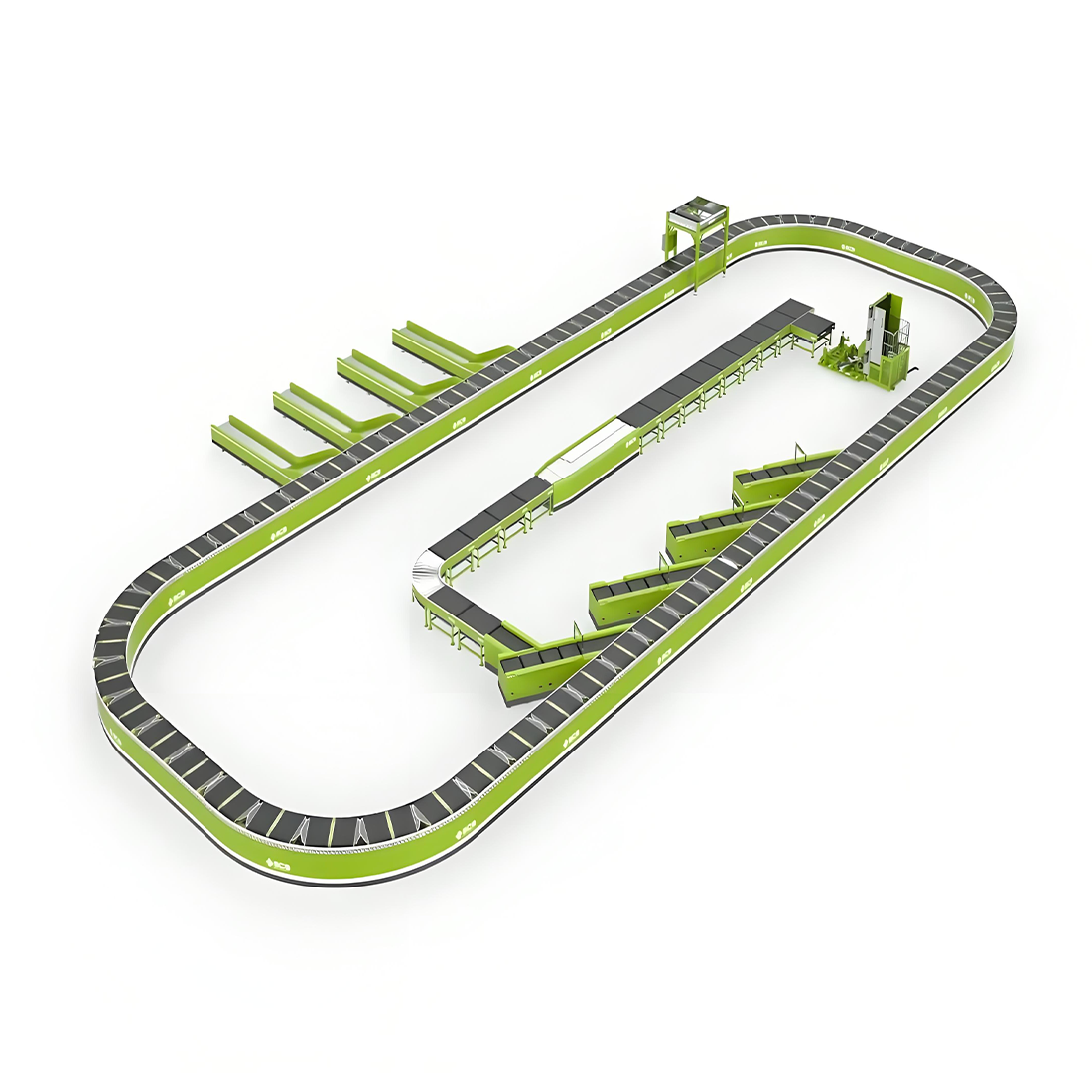

Cross Belt Sorting Machine Overview 1
Cross Belt Sorting Machine Overview 2
Main Parameters
Technical Index Parameter
Size Range of the Goods L120*W120*H10mm - L600*W600*H600mm
Weighing Range of the Goods ≤ 20KG
Sorting Efficiency 2500 - 3000 PCS/Hour
Bar Code Reading Rate > 99%
System Availability ≥ 99.5%
Sorting Error Rate ≤ 0.05%
Average Equipment Noise Level ≤ 80dB(A)
Indoor Ambient Temperature 0°C ~ 40°C
Indoor Environment Humidity (non-condensing) 40% ~ 95%
Power Supply 220V ± 10%, 50Hz ± 1Hz
Packaging Compatibility Suitable for all kinds of packaging envelopes, plastic bags, cartons, etc.
Cross Belt Sorting Details 1
Cross Belt Sorting Details 2
Cross Belt Sorting Details 3
Successful Project
Successful Project Highlight
Project Case Study 1
Project Case Study 2

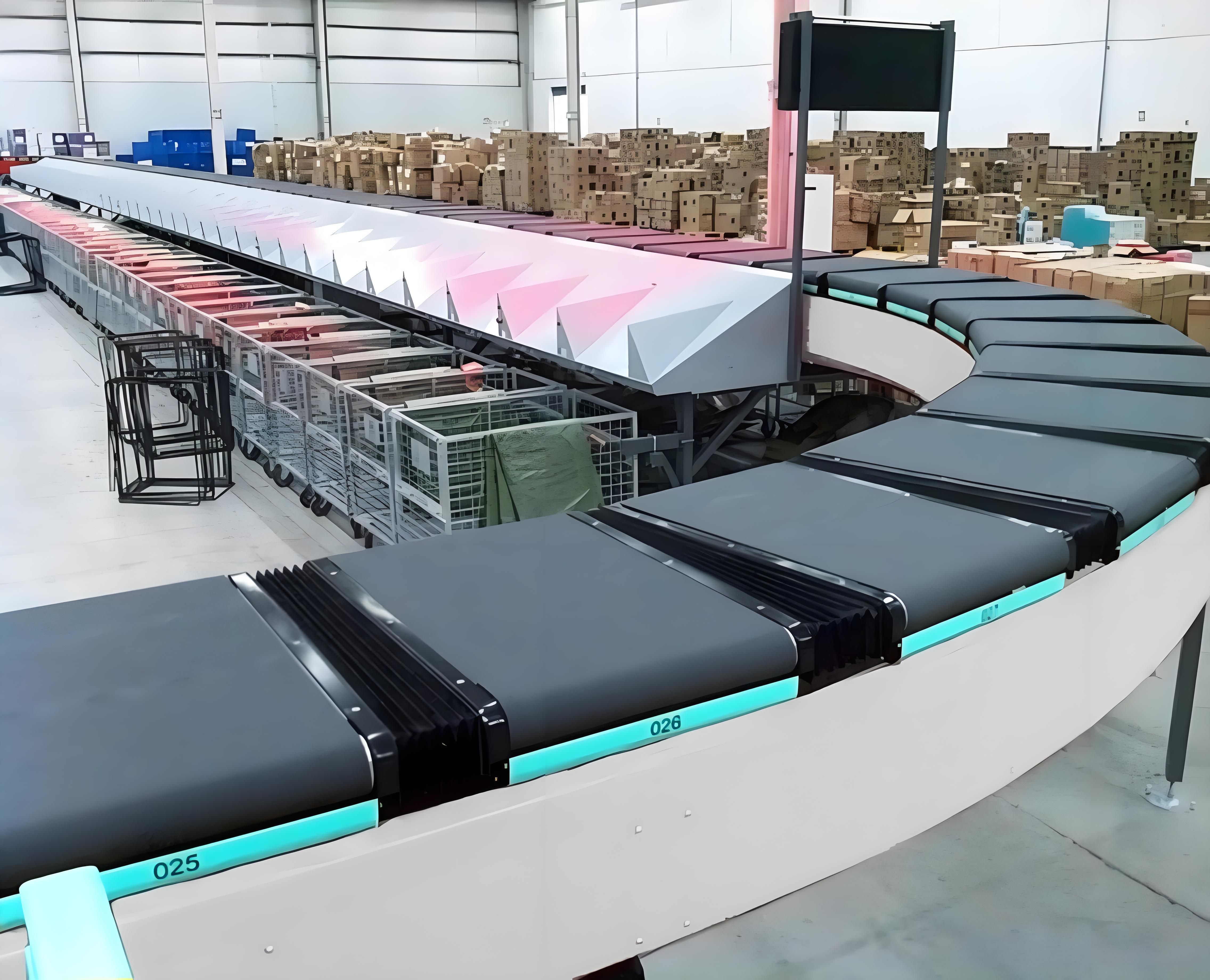

Project Installation 1
Project Installation 2
Project Installation 3
Project Operation 1
Project Operation 2
FAQ
System Specification Diagram
System Classification Flow
What is the primary function of the Cross Belt Sorting Machine?
It is an intelligent automatic sorting equipment designed for parcel sorting projects. It integrates advanced code recognition, database classification, computer processing, and mechanical tracking to sort various parcels dynamically.
What parcel sizes and weights can this system process?
The system handles a wide product size range from L120*W120*H10mm up to L600*W600*H600mm. The maximum load capacity per carrier is up to 20kg.
What are the sorting accuracy and system efficiency rates?
It provides a high sorting efficiency of 2500 to 3000 pieces per hour. It operates with a barcode reading rate greater than 99%, an overall sorting error rate of less than 0.05%, and system availability exceeding 99.5%.
Does it support different types of packaging?
Yes, the system is highly versatile and suitable for sorting all kinds of packaging formats including envelopes, soft plastic bags, bubble mailers, cartons, and boxes.
What are the operational environmental requirements?
The machine is designed to operate indoors in ambient temperatures ranging from 0°C to 40°C, and relative humidity levels between 40% and 95% (non-condensing).
