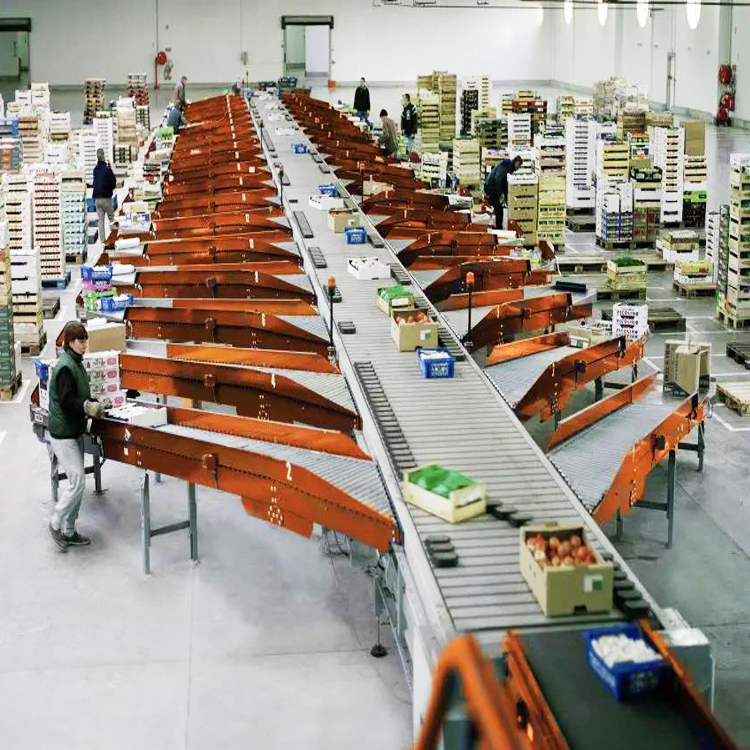

The automatic sorting system can identify the barcode of the waybill, and sort the parcels quickly and accurately according to the custom grid. It has the characteristics of high space utilization, high sorting efficiency and low error rate. It is widely used in express delivery and e-commerce industries. Reduce manpower by 40-70%.

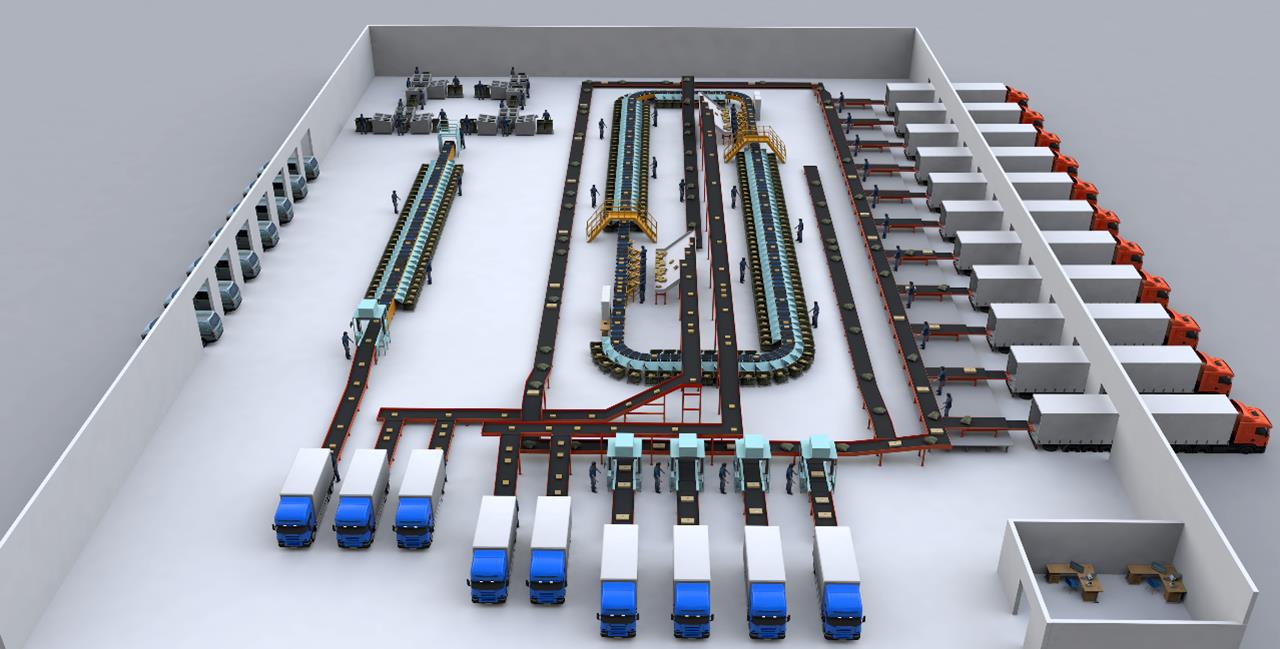

Used mainly in batch-picking processes, cross-docking systems, and as a shipping sorter, for example:

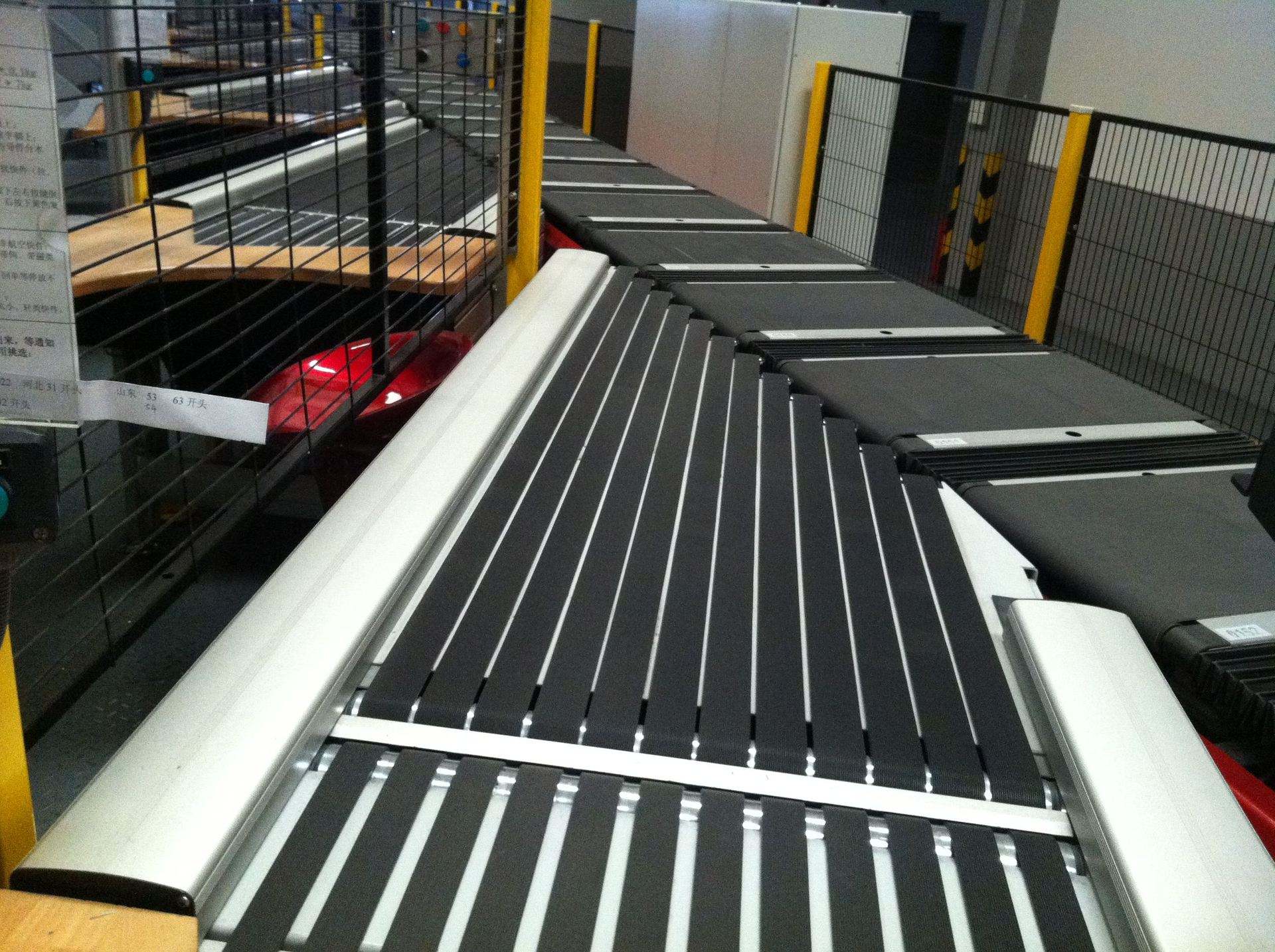

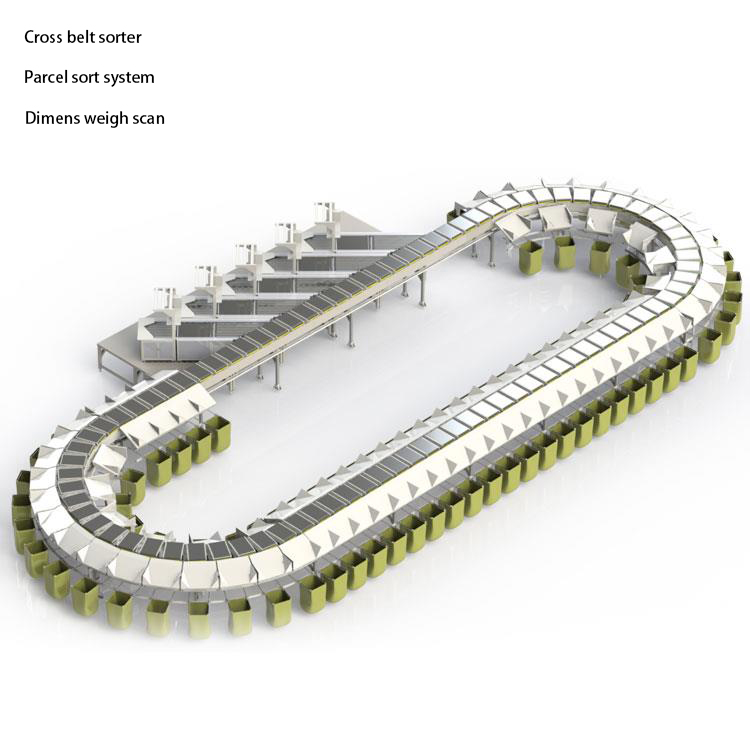

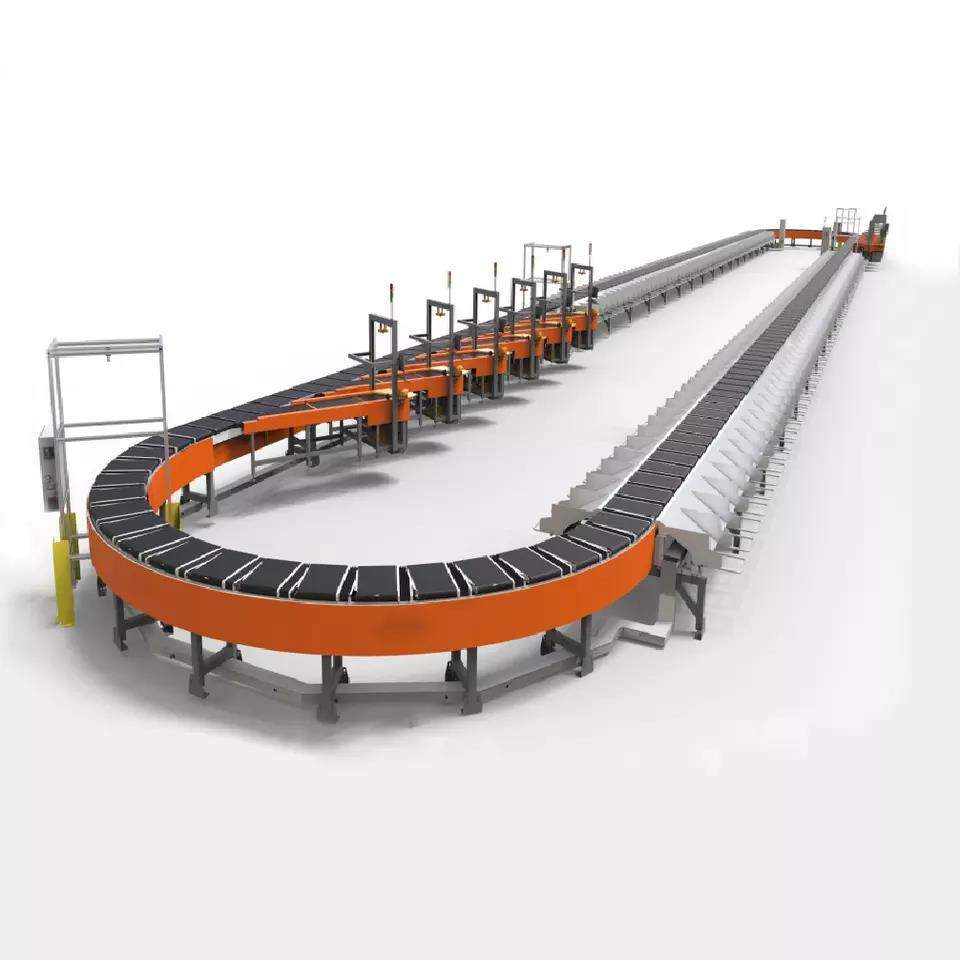

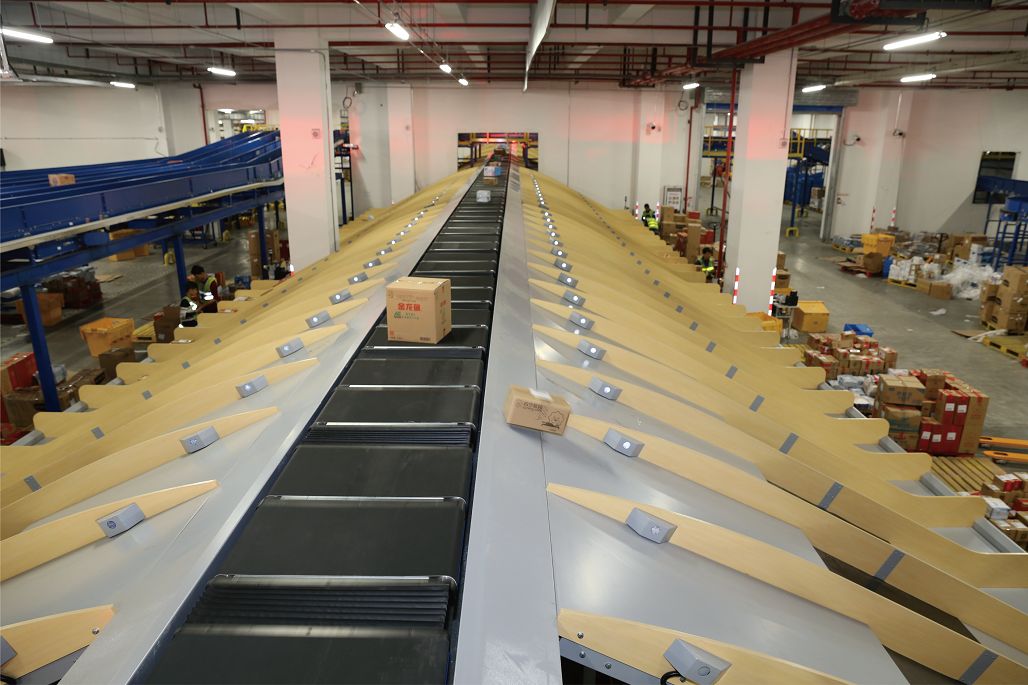

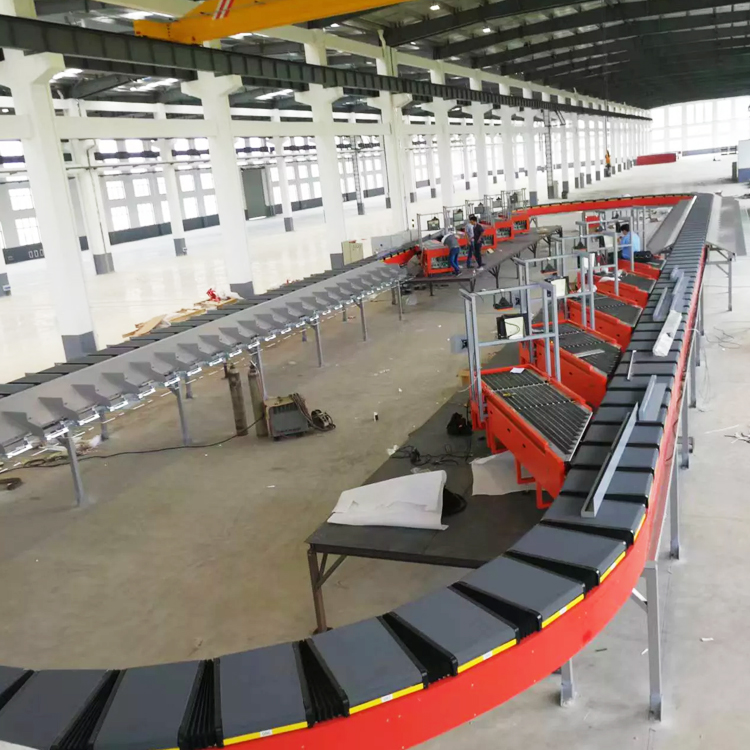

Crossbelt Sorter transports goods safely and gently to their destinations, regardless of their shape, size, or surface characteristics. It can convey and sort parcels, cartons, bags, trays, parts, cardboard discs, clothes, and envelopes.
| Item | Parameters |
|---|---|
| Exit port | 56 (customizable) |
| Exit width | 700mm |
| Exit type | Slider (Customizable) |
| Conveying cars | 94 |
| Car size | 428*700mm |
| Mainline speed | 1.2m/s |
| Conveying height | 1.8m |
| Package weight range | 0.1-10kg |
| Package size range | L100*W100*H10 ~ L400*W400*H400mm |
| Output | 8000-10000 pph |
| Overall occupancy | L24*W3.7*H1.8mm |
| System noise | ≤70dB |
| Recognition rate | 99% |
| Mean time between no failures | ≥1000h |
| Loading mode | Manual loading/Automatic feeding |
