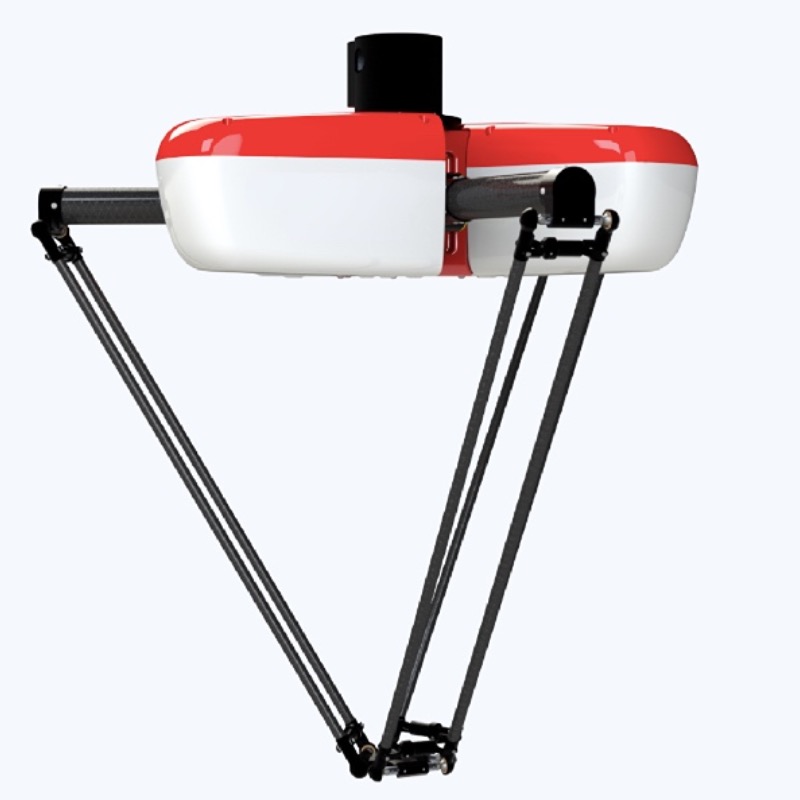

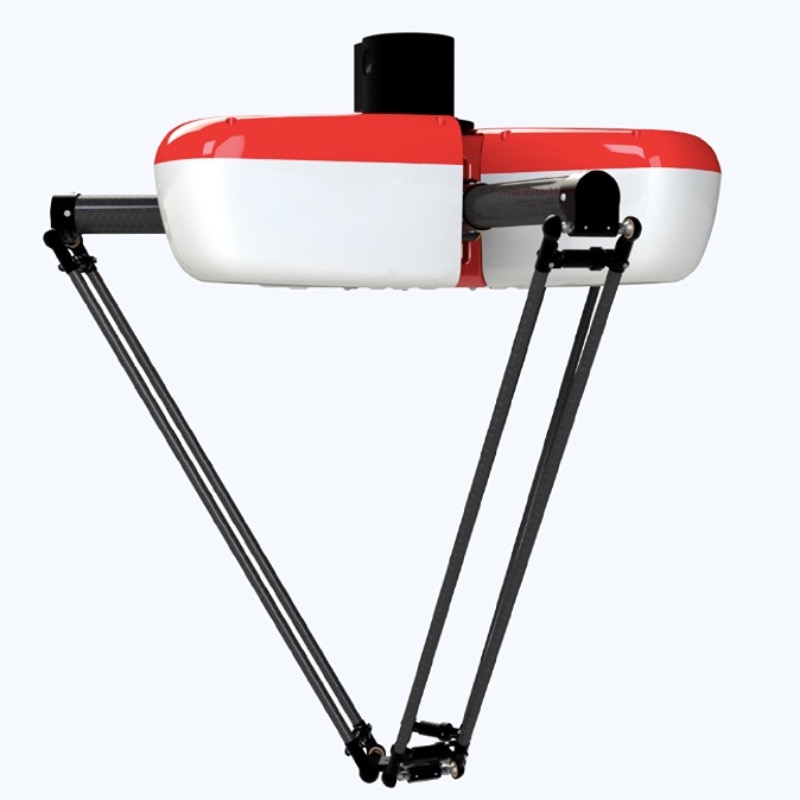

Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
1 / 5
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application
Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application

Intelligent Robot Arm 4 Axis Delta Parallel Packing Robot for Sorting/Picking/Placing/ Aligning/Boxing Application

Send Inquiry

Product Description

Banner
Products Description
Model D3W-1100-P5
Axes 4
Max Payload 5kg
Manipulator Weight 88kg
Reach 1100mm
Repeatability Position 0.05mm
Repeatability Rotation /
Maximum cadence 600pp/min
Rotation range ±360°
Allowable maximum moment of inertia 31×10⁻⁴ kg·m²
Angle range of actuated arm Up 32.5°
Angle range of actuated arm Down 68.5°
Power capacity 10KVA
Rated power 6kw
Protection rating IP55

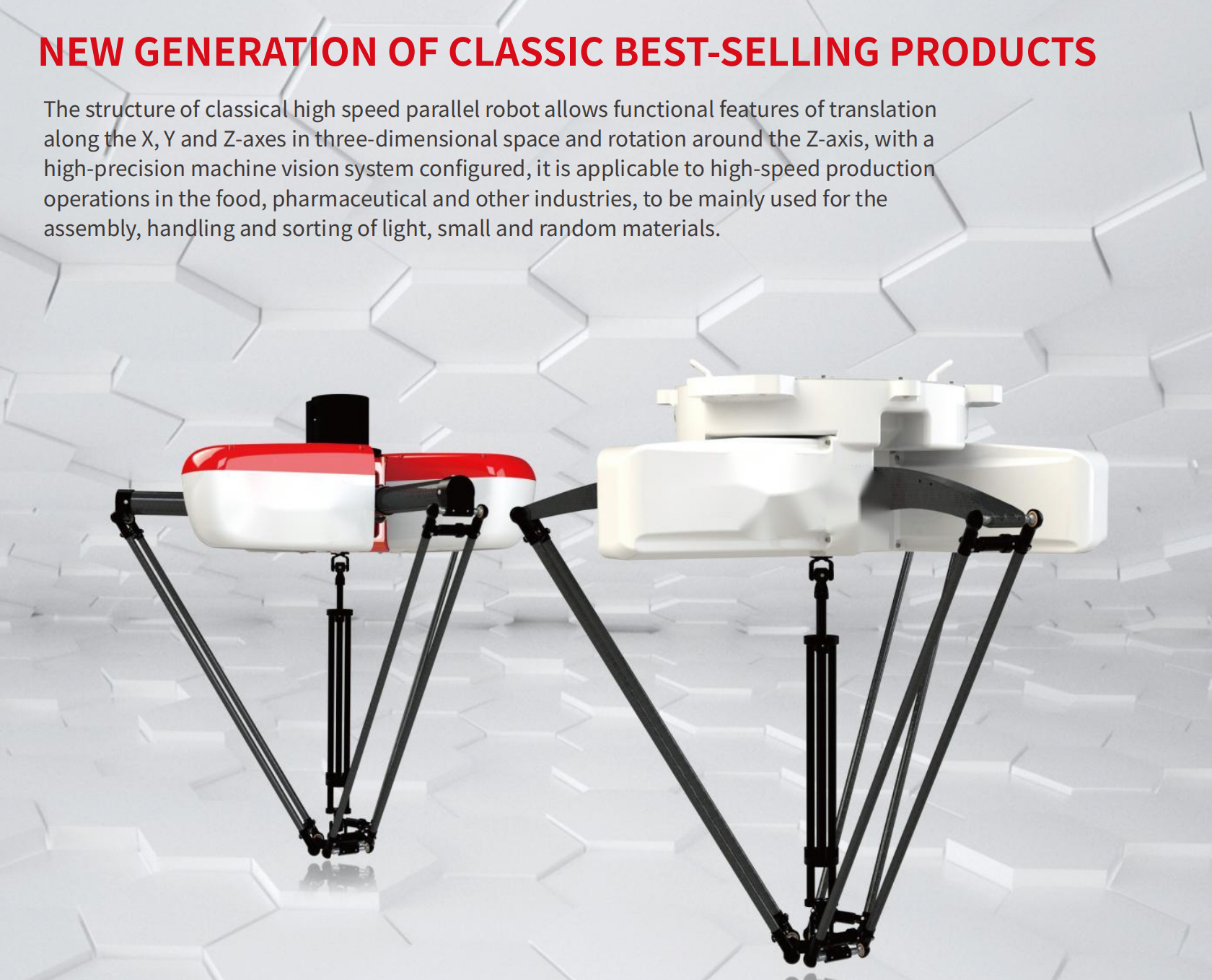

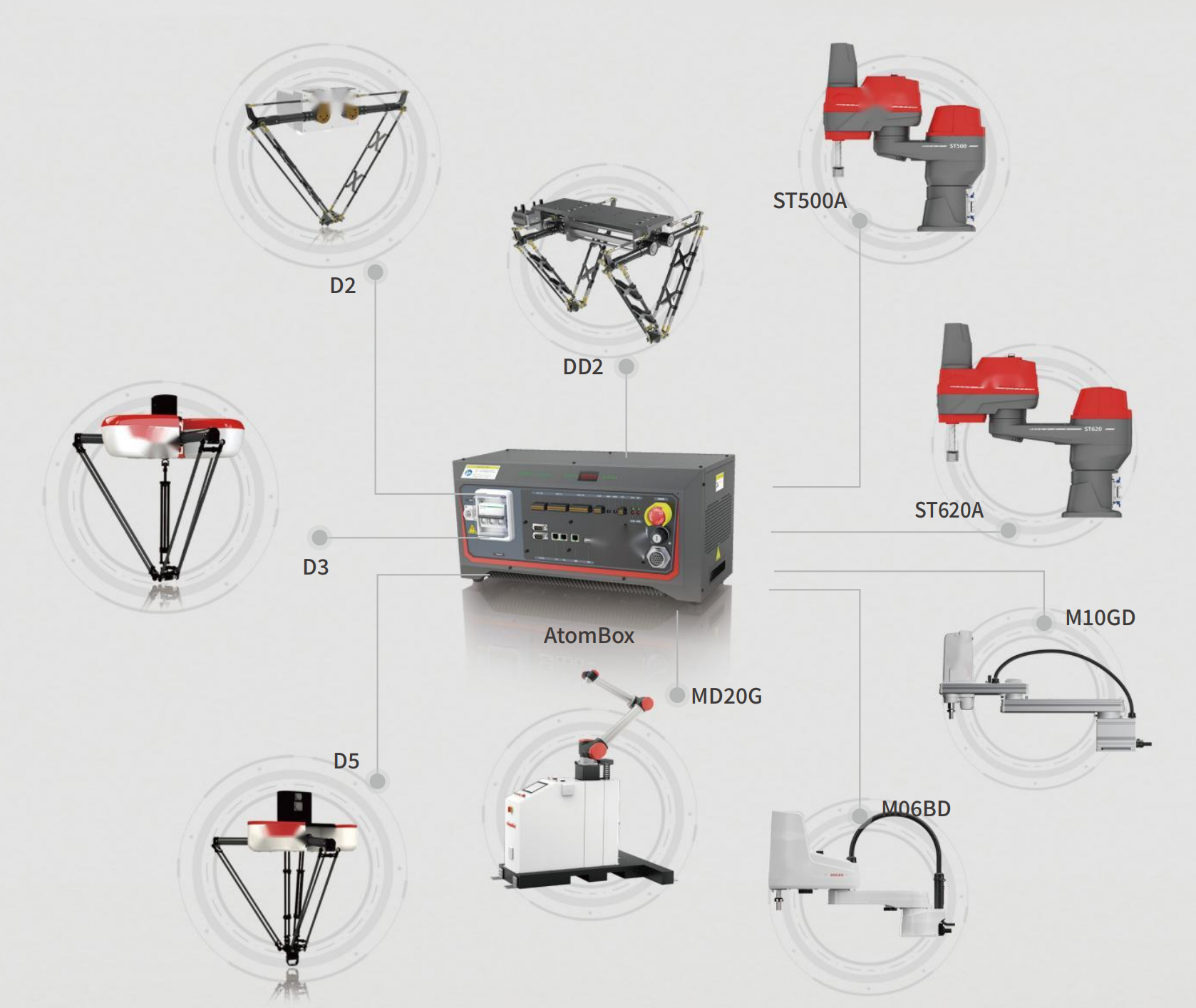

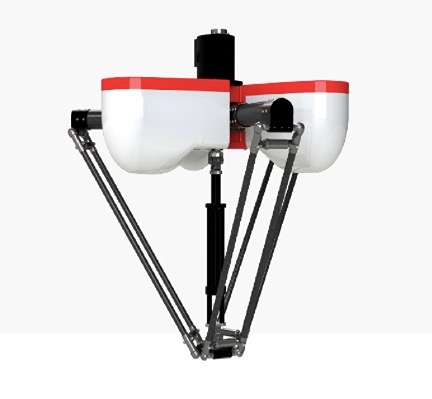

Product Image 1 Product Image 2 Product Image 3 Product Image 4 Product Image 5
Application scenarios

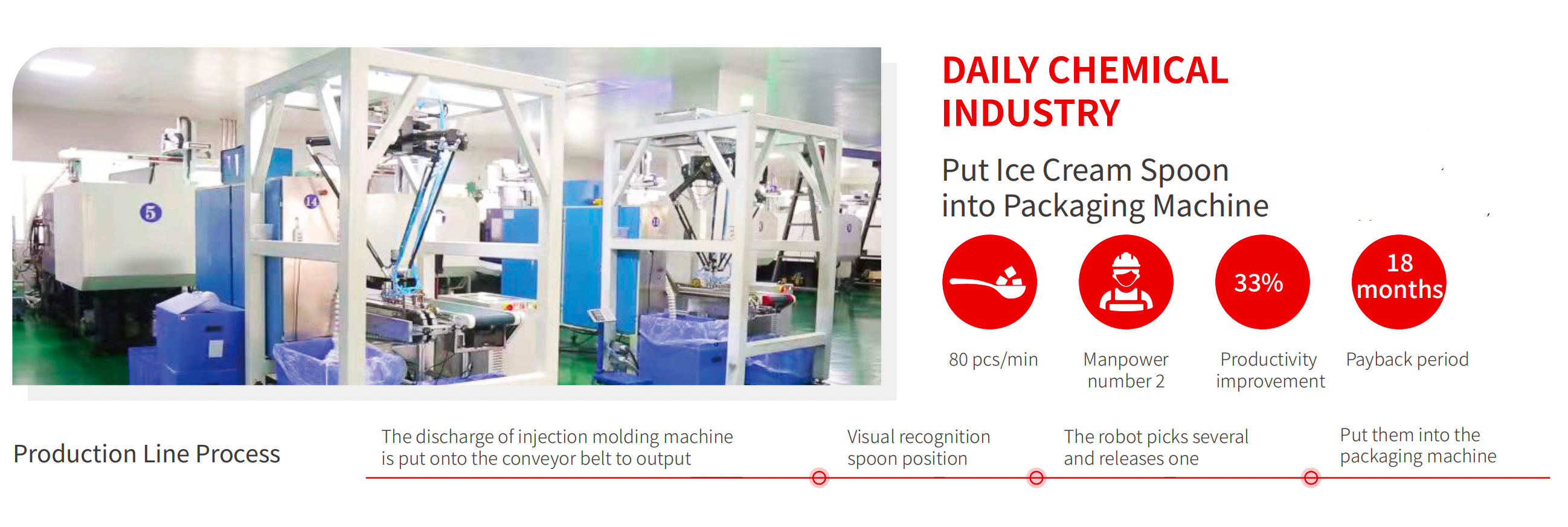

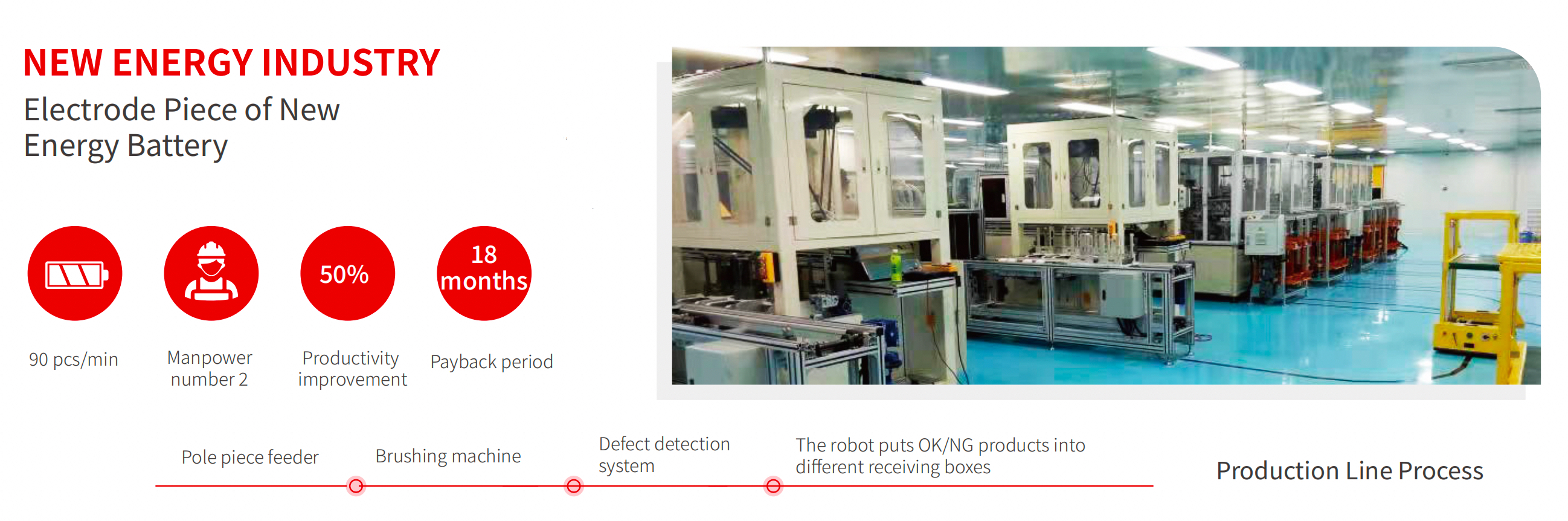

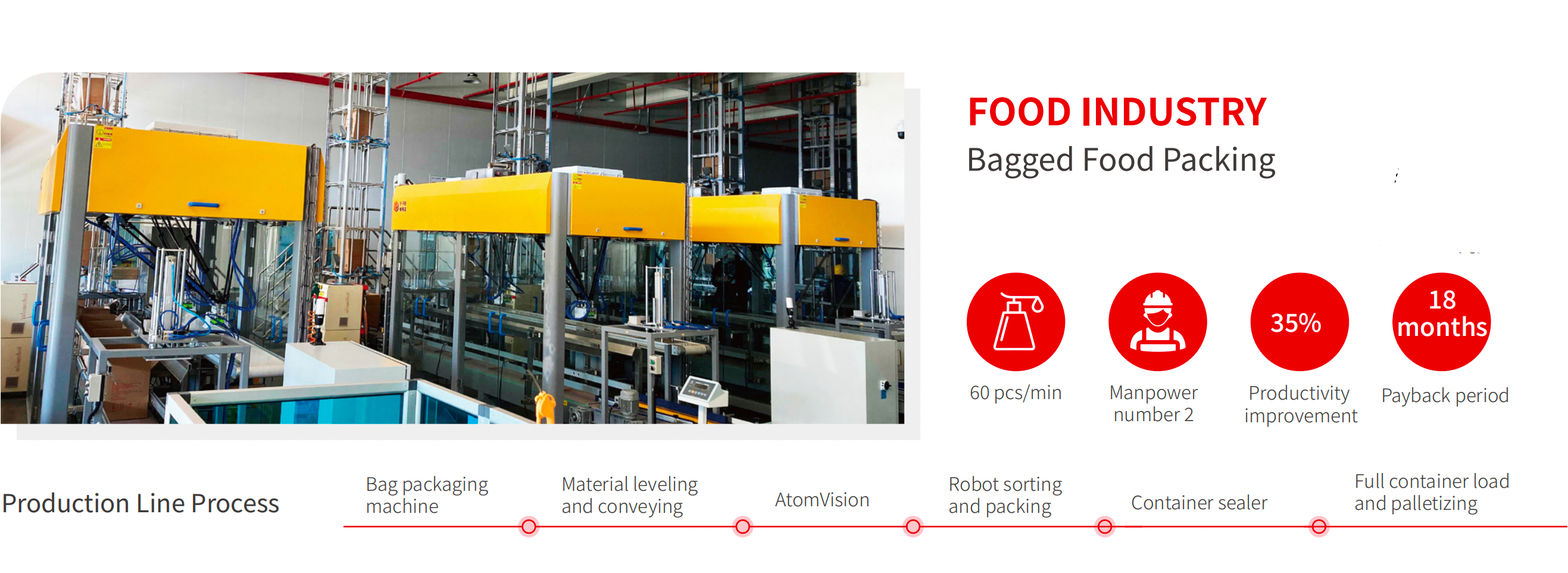

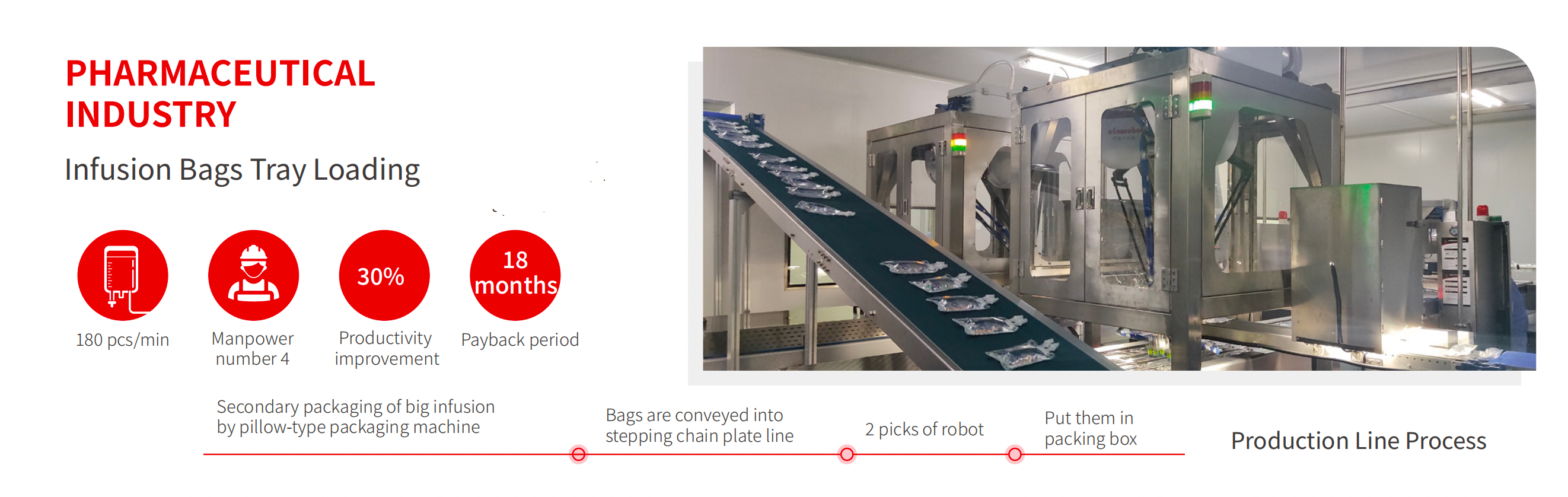

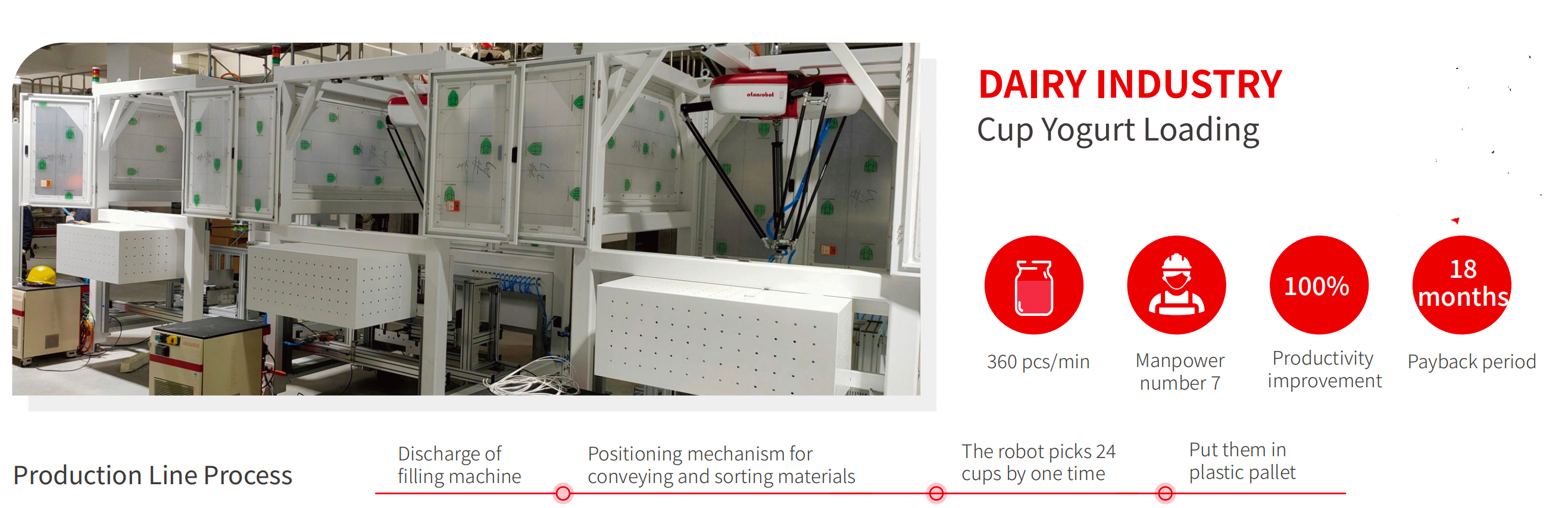

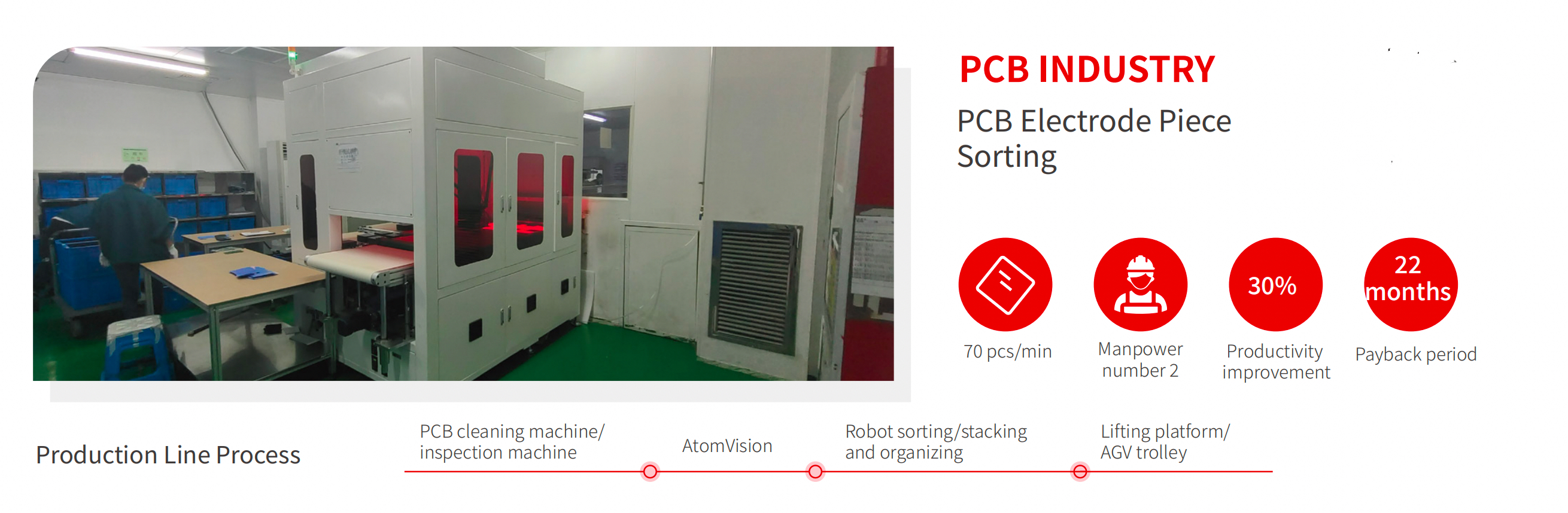

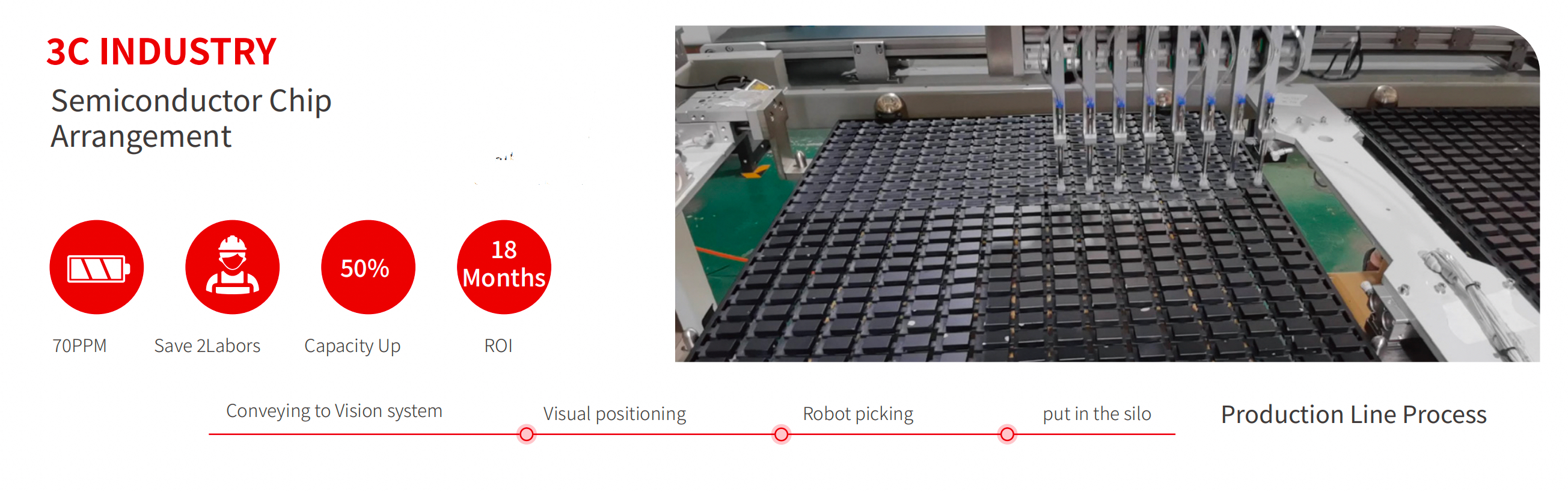

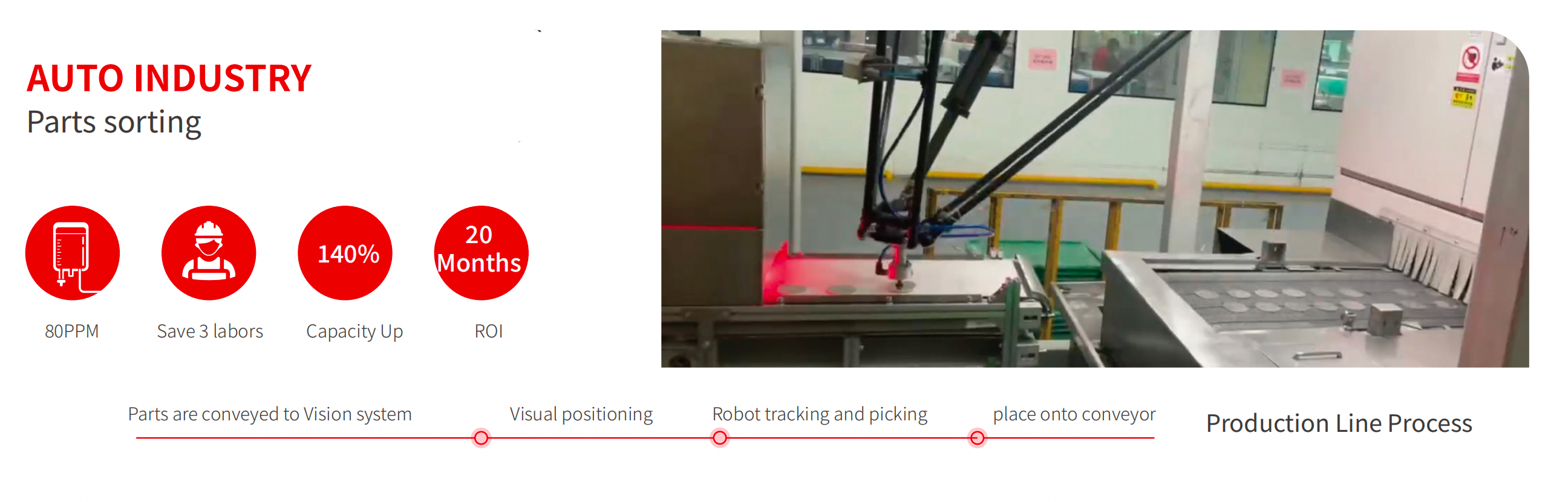

Scenario 1 Scenario 2 Scenario 3 Scenario 4 Scenario 5 Scenario 6 Scenario 7 Scenario 8
Company Profile
Company Profile 1 Company Profile 2
Why Choose Us
Why Choose Us
Our Advantages
Advantage 1 Advantage 2 Advantage 3
Product packaging
Product packaging
FAQ
FAQ Graphic 1
FAQ Graphic 2
What are the key technical specifications of the D3W-1100-P5?
The D3W-1100-P5 is a 4-axis manipulator with a maximum payload of 5kg, a reach of 1100mm, and a high repeatability position accuracy of 0.05mm. It has a total manipulator weight of 88kg and operates on a rated power of 6kw with a power capacity of 10KVA.
What is the maximum operating speed (cadence) of this manipulator?
This model can reach a maximum cadence of up to 600 pick-and-place cycles per minute (600pp/min), making it exceptionally suitable for high-speed industrial assembly and packaging workflows.
What is the rotation range and the allowable moment of inertia?
The D3W-1100-P5 supports a rotation range of ±360°. The allowable maximum moment of inertia for this system is rated at 31×10⁻⁴ kg·m².
What is the angle range of the actuated arm?
The actuated arm has a flexible range of motion, with an upward angle limit of 32.5° and a downward angle limit of 68.5°.
What is the protection rating of this equipment?
The equipment is built to meet an IP55 protection rating, which provides substantial defense against dust ingress and low-pressure water jets, ensuring durability in standard industrial environments.
