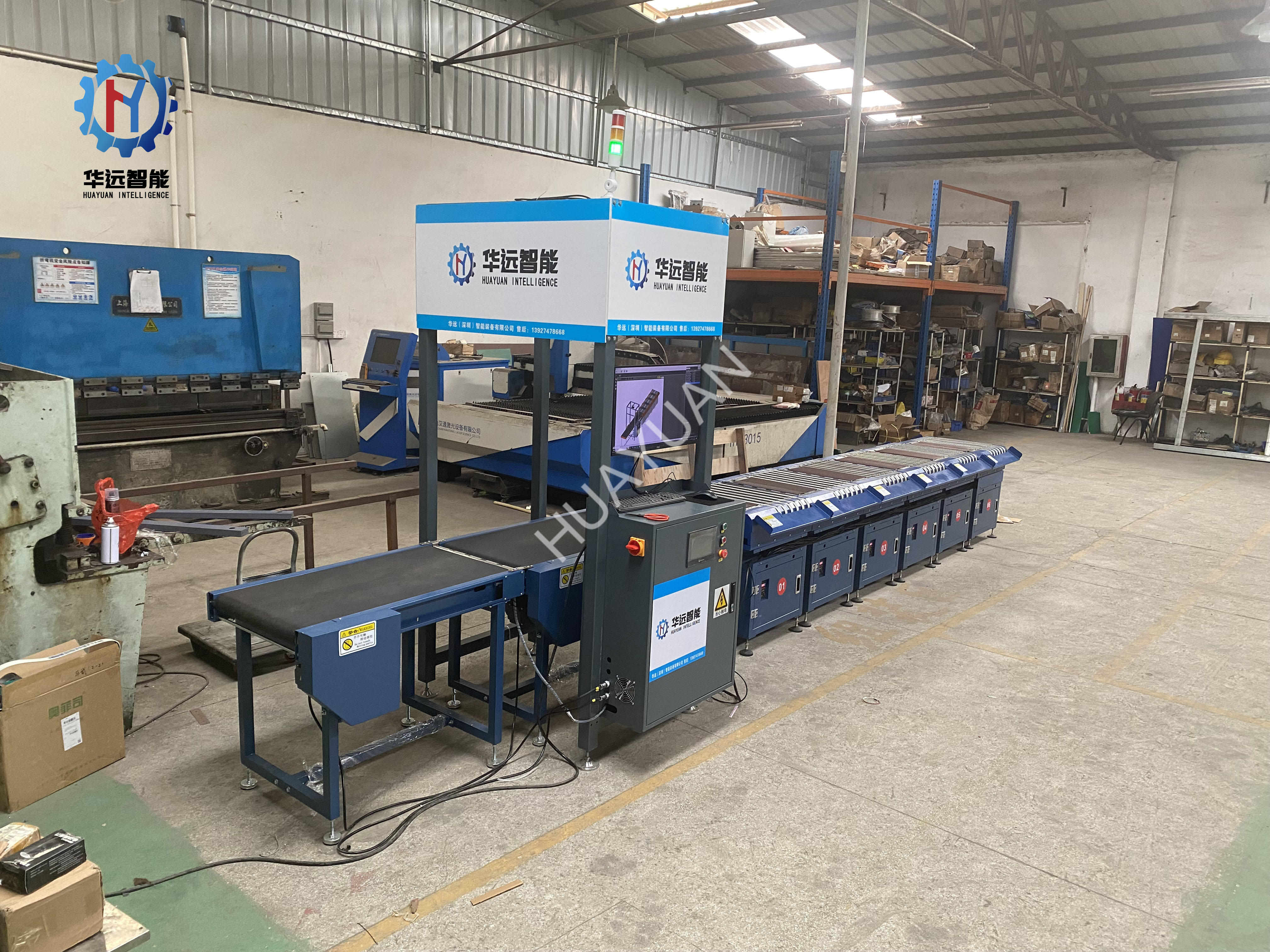

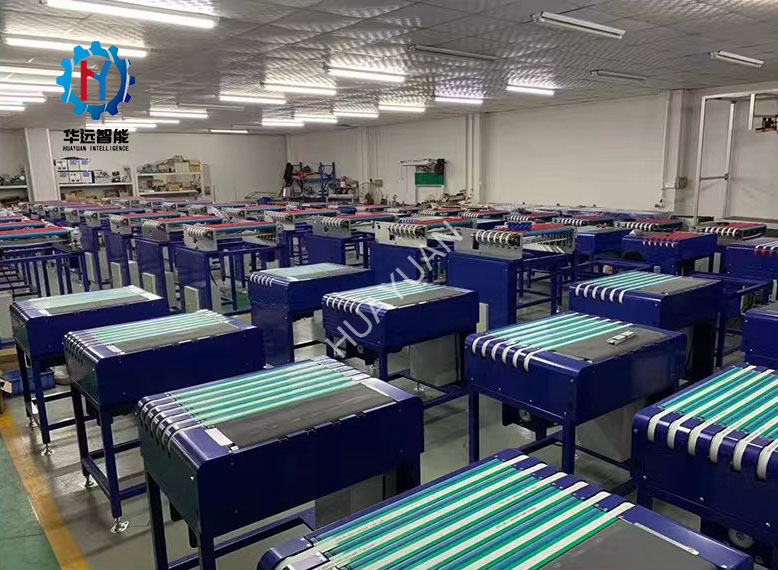

90 degree linear sorting machine is a kind of intelligent sorting equipment which integrates code recognition, computer processing, database classification and automatic sorting. This equipment is used for automatic parcel sorting projects.

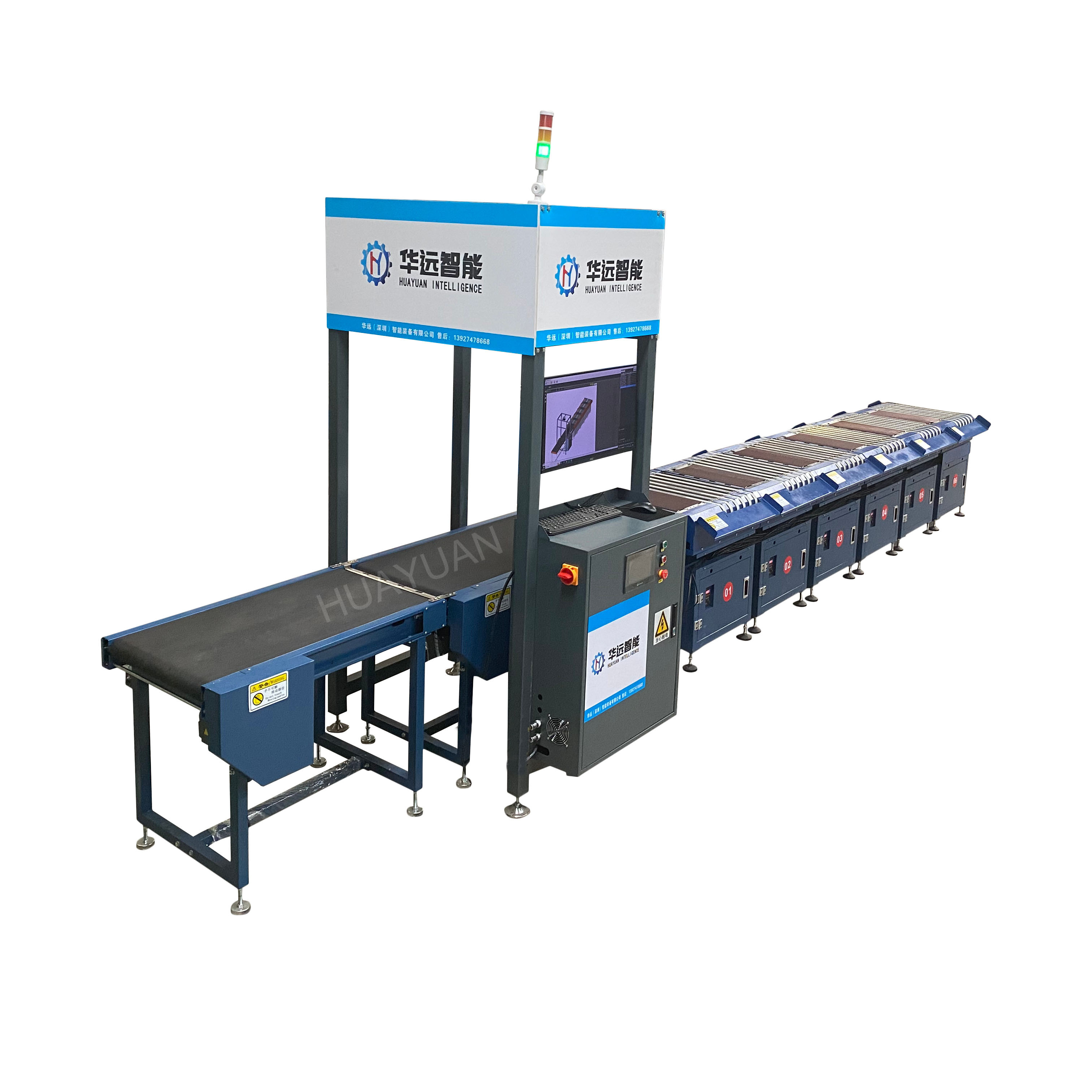

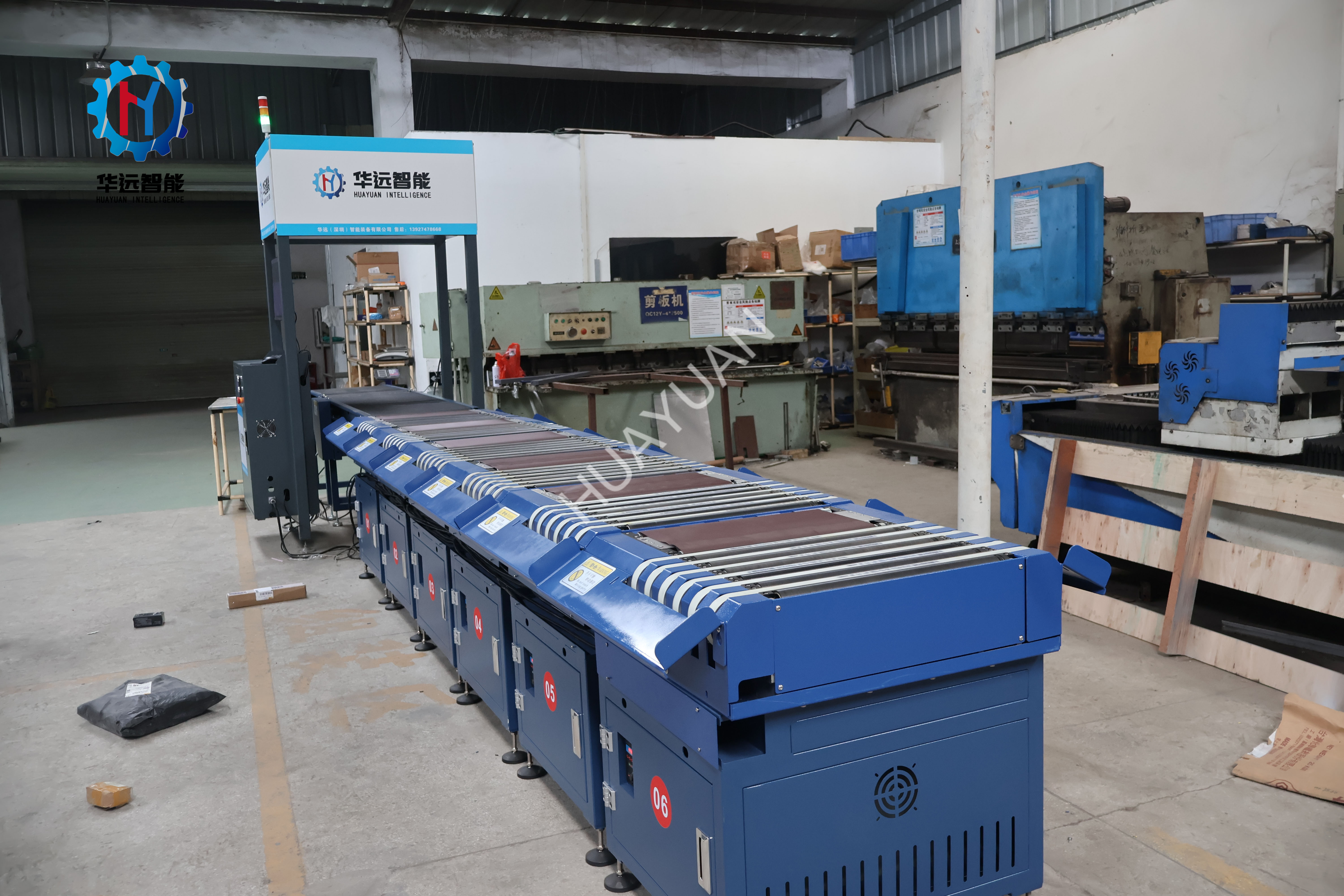

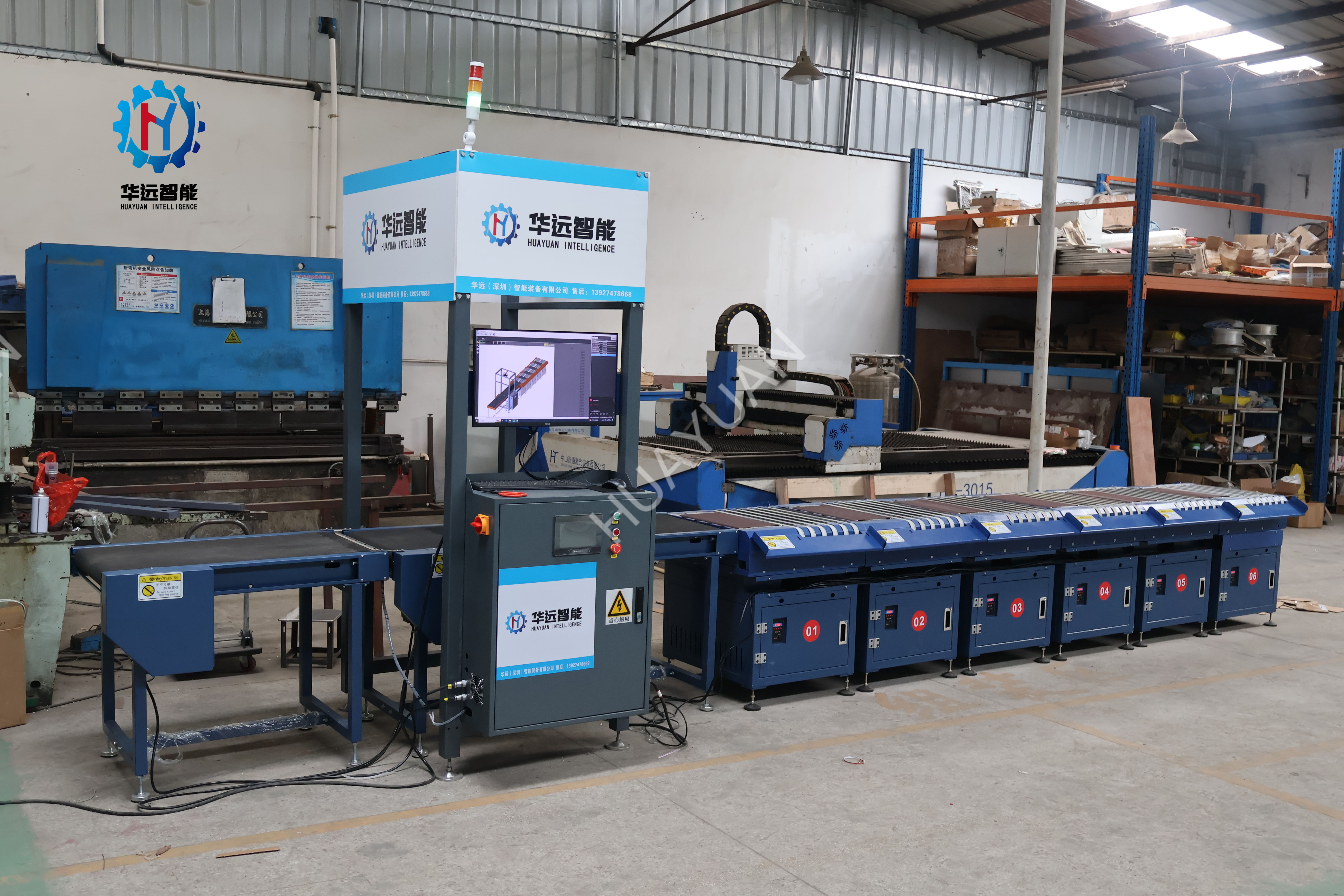

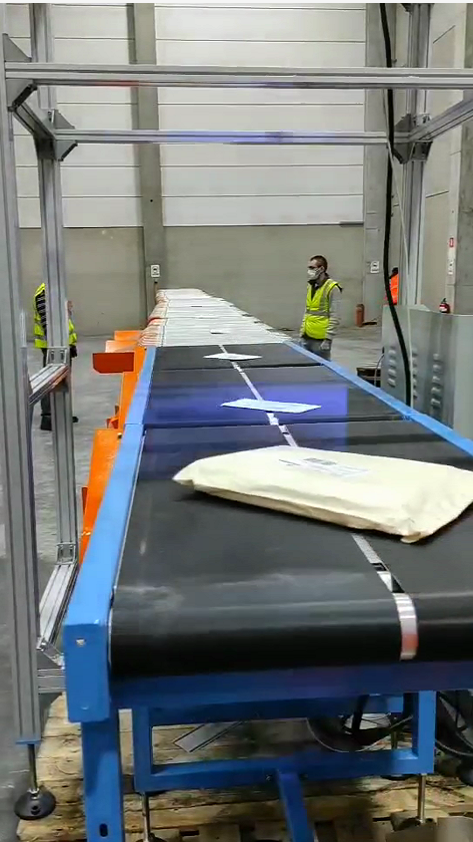

The first section is the belt conveyor belt pulling distance device: including 1.6m object conveyor, 1.6m conveyor pulling distance, camera bracket, camera, control box, pc system; The rear section is a linear sorting device: including a narrow band sorting machine and a material chute.

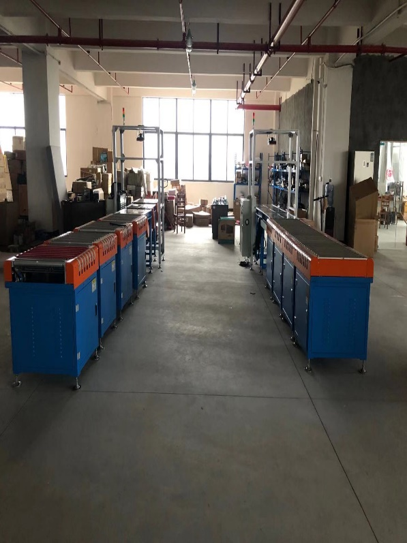

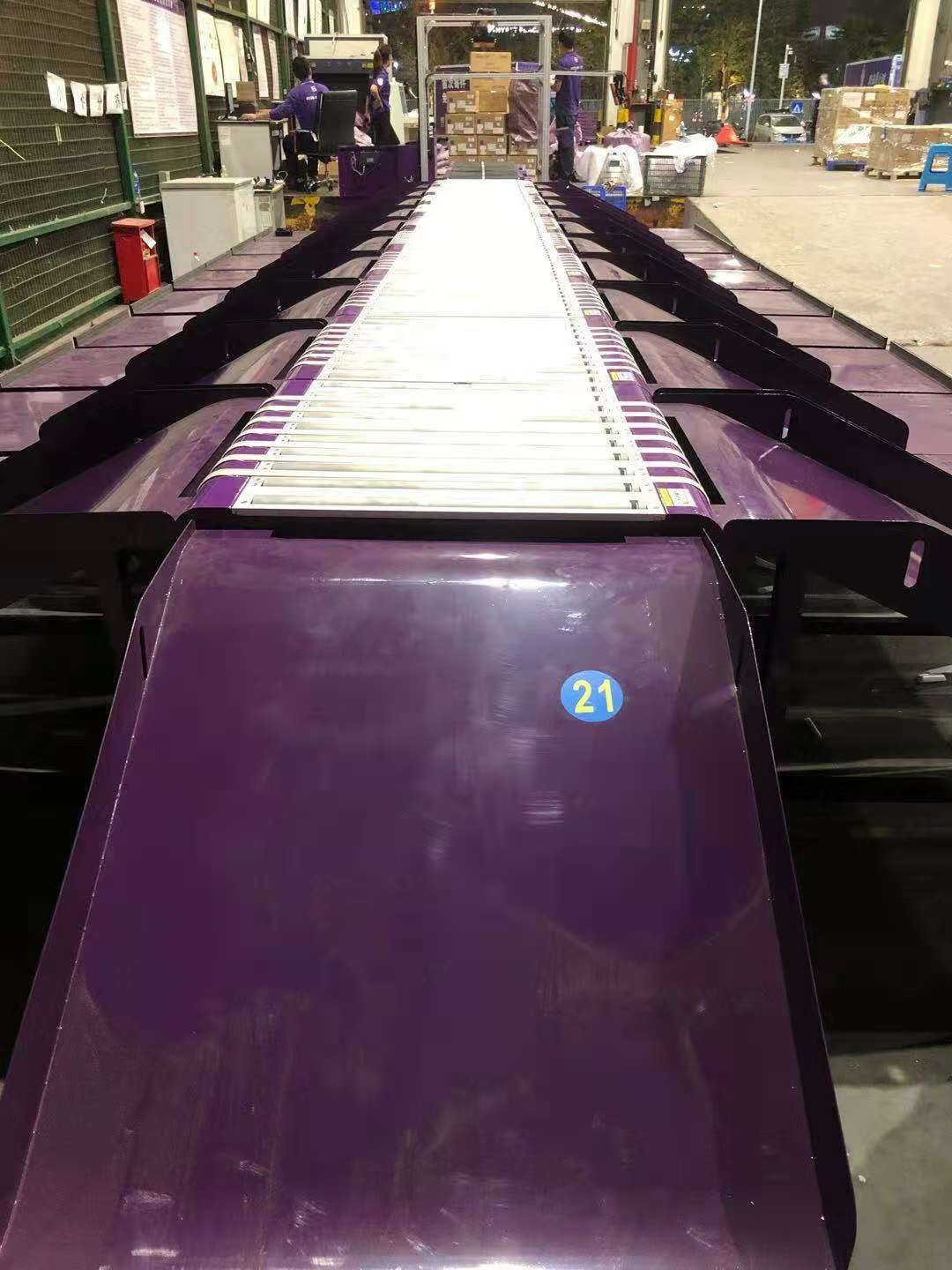

The sorting system consists of belt conveyor line, camera stand, camera reader, narrow band sorting machine, sorting frame (cage car), control system and WCS software.
1) Fuselage: The material thickness of the fuselage in the transmission part is 3mm, and there are cargo impact parts. The material thickness of the body is 3mm. The height of the bending slot is 100mm.
2) Support material: 40*40*2.0mm square pipe welding, welding polishing light, surface spray treatment;
3) Belt body support plate: 1.5mm steel plate integrated bending, the lower part welding with reinforcement, the height is greater than 50mm.

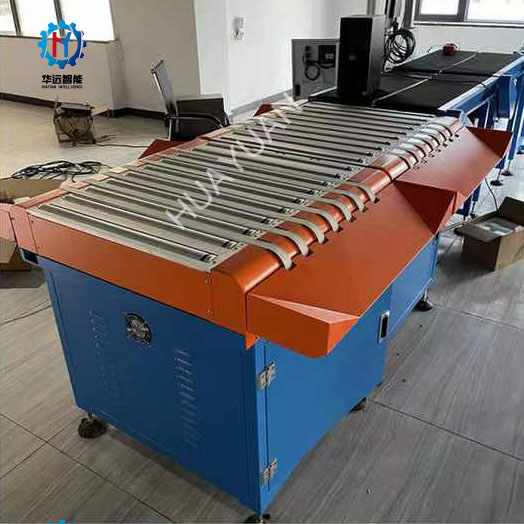

1) Vertical side machine: body quality thickness 3mm, through laser cutting precision, the error is controlled at 0.1mm;
2) Fuselage support plate: adopt 3mm steel plate integrated bending.
3) Frame material: 40*40*2.0mm square pipe welded, with doors and seals plate, weld polishing, surface spray treatment
Model: L1100mm * W800mm * H2300mm
Support material: 60*60*2.0 square pass welding assembly
Model: 20*20*1.5 square pass welding
Panel: Made of high quality plate 1.2mm bending, welding, grinding and polishing
| Type of sorter: 90° straight Narrowband sorters | |||
| Sorting module Dimension | 680*700mm | ||
| Efficient | 3000-5000 pph | 3000 pph | 2000-2500 pph |
| Power | 600w | 800w | 1000w |
| Sorting Volume | 3000-5000 pcs/h | 2500-3000 pcs/h | 2000-2500 pcs/h |
| Package size | L120*W120*H1 - L600*W600*H600 | L120*W120*H120 - L800*W800*H800 | L120*W120*H120 - L1000*W1200*H1000 |
| Weight | 0-20KG | 0-30KG | 0-30KG |
| Unit Sorter module size | L600*W600*H860mm | L820*W800*H800mm | L1000*W1000*H1000mm |
| Extensibility | Yes, can add more Chutes in the future | ||
| Other functions | Can add the weighting and volume measuring functions | ||
| Suitable for Parcels | Suitable for most of the packaging bags | ||
| Compared to Wheel Sorter | Small footprint - This Sorter only occupies a small area: 12M*1M can achieve 20 sorting grids | ||
| Main Parameters | |
| size Range of the Goods | L120*W120*H10mm-L600*W600*H600mm |
| Weighing Range of the Goods | ≤20KG |
| sorting Efficiency | 2500-3000 PCS/Hour |
| Height of the sorter | 900mm(±10%) Can Customize |
| System Availability | ≥99.5% |
| Sorting Error Rate | ≤0.05% |
| Average equipment Noise Level | ≤80dB(A) |
| Environmental Conditions | |
| Indoor Ambient Temperature | 0℃ ~ 40℃ |
| Indoor environment humidity (non-condensing) | 40% ~ 95% |
| Power | 220V±10%, 50Hz±1Hz |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
The sorting efficiency of the narrowband sorter typically ranges between 2,500 to 5,000 packages per hour (PPH), depending on the package characteristics and specific configuration chosen.
It can handle parcels ranging in size from a minimum of L120*W120*H10mm up to a maximum of L1000*W1200*H1000mm. The maximum parcel weight is up to 20KG or 30KG based on the configuration of the sorting modules.
Yes, the system supports excellent extensibility. You can add more chutes and extend the sorting lines in the future. Optional functions like dynamic weighing and volume measurement can also be integrated seamlessly.
Compared to traditional wheel sorters, the narrowband linear sorter has a significantly smaller footprint. For example, an area of just 12M*1M can achieve up to 20 sorting grids, making it ideal for facilities with limited space.
The system ensures high precision and reliable performance, featuring a sorting error rate of ≤0.05% and an overall system availability of ≥99.5%.
