Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
1 / 5
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes
Intelligent Scan Sorting Machine for Boxes

Intelligent Scan Sorting Machine for Boxes

Send Inquiry

Product Description

Product Show

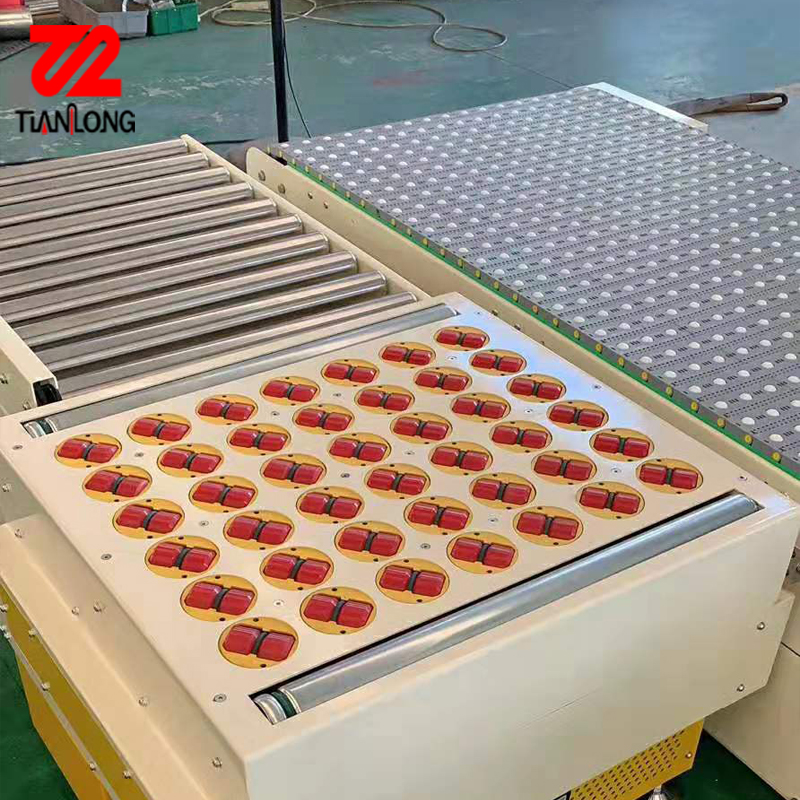

Wheel Sorter System View 1

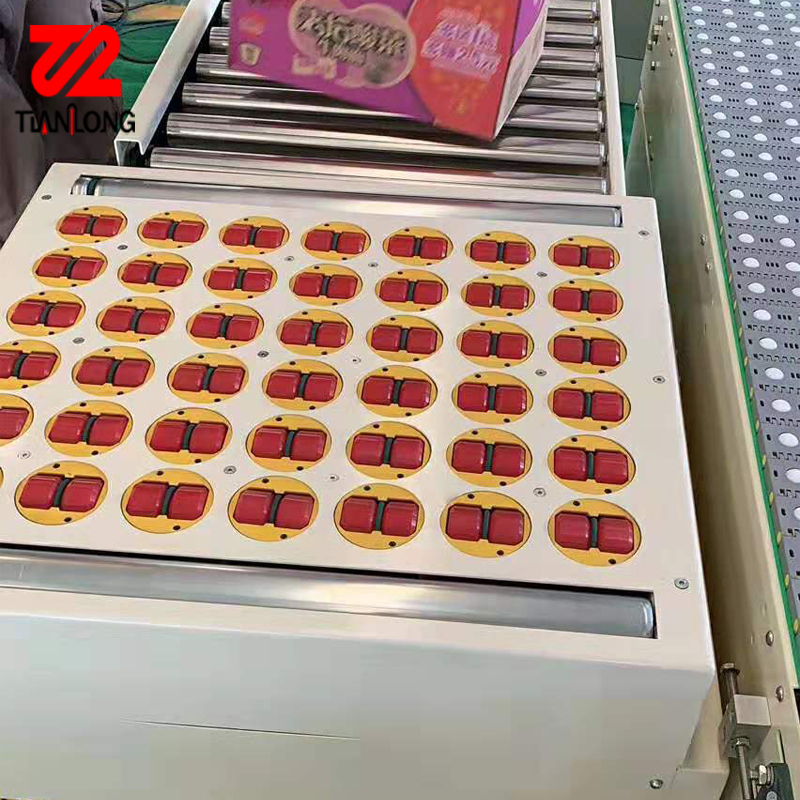

Wheel Sorter System View 2

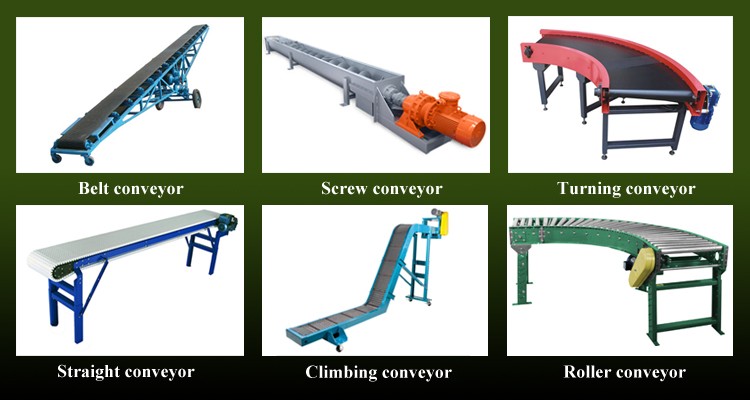

Wheel Sorter Front View
Product Description
The Wheel Sorter conveyor is suitable for sorting all kinds of logistics (distribution center), all kinds of boxes, bags, pallets, bottles, books, parcels, electronic products etc.
Structure
The roller conveyor is suitable for conveying the goods which surface is flat, It consists of wheels, synchronous steering controller, transmission device, frame and so on.

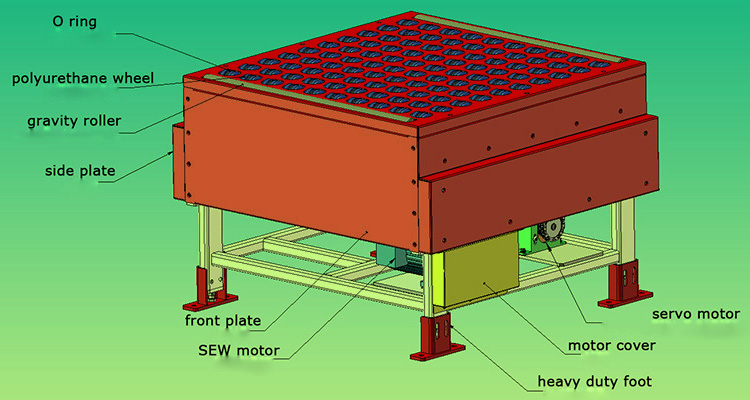

Conveyor Structure Diagram
Technical Parameters
Technical Specifications Blueprint
Conveyor Length 600mm-1200mm or according to the client's requirement
Conveyor Width According to the width of connecting conveyor
Conveyor Height According to the client's requirement
Frame Material Carbon steel, Stainless steel, Aluminum
Wheel Material Coated with rubber or polyurethane
Control Way PLC
Max. loading Weight 60kg/piece
Speed 90m/min
Voltage 220V, 380V or according to the client's requirement
Application

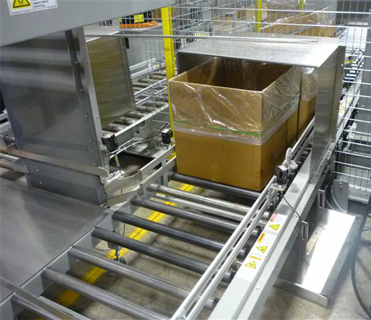

Sorting Application Case 1

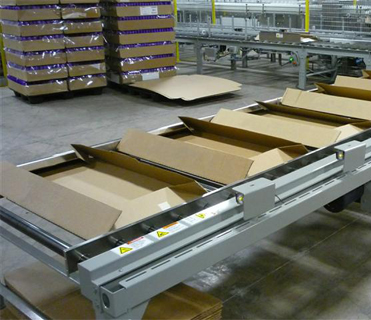

Sorting Application Case 2

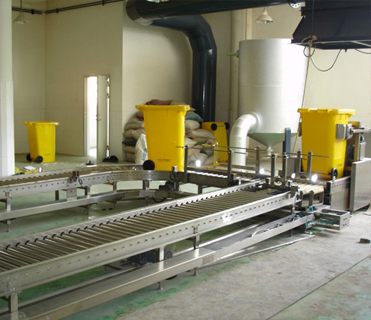

Sorting Application Case 3

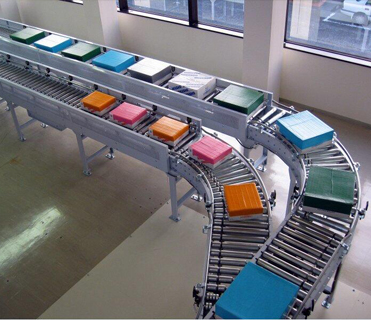

Sorting Application Case 4
Packaging & Shipping

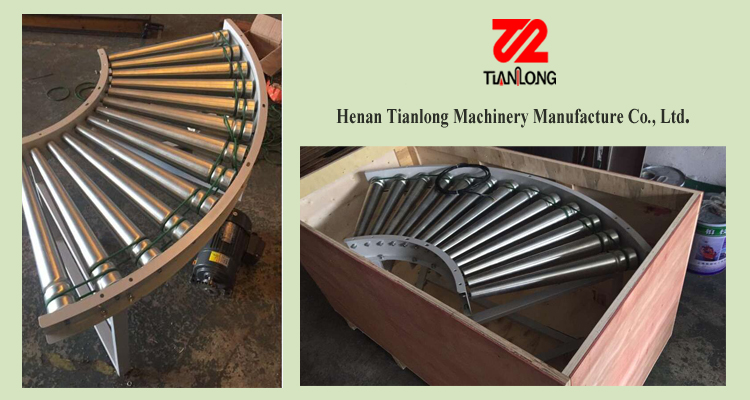

Packaging and Shipping Detail
Frequently Asked Questions
What types of products can the Wheel Sorter conveyor handle?
It is designed to sort a wide range of items with flat bottom surfaces, including boxes, bags, pallets, bottles, books, parcels, and electronic products within distribution centers.
Can the dimensions of the conveyor be customized?
Yes, the conveyor length (600mm to 1200mm), width, height, and operating voltage can be tailored according to specific layout demands and connectable systems.
What are the core materials used for construction?
The frame structure is constructed with high-durability Carbon Steel, Stainless Steel, or Aluminum. The sorting wheels are coated with premium rubber or polyurethane to ensure smooth operation and long wear life.
What is the speed performance and weight capacity?
The system handles a maximum loading weight of 60kg per piece and reaches a high-efficiency sorting speed of up to 90 meters per minute (90m/min).
How is the sorting steering process controlled?
It utilizes an advanced PLC control system coupled with a synchronous steering controller to direct items accurately and dynamically to different channels.
