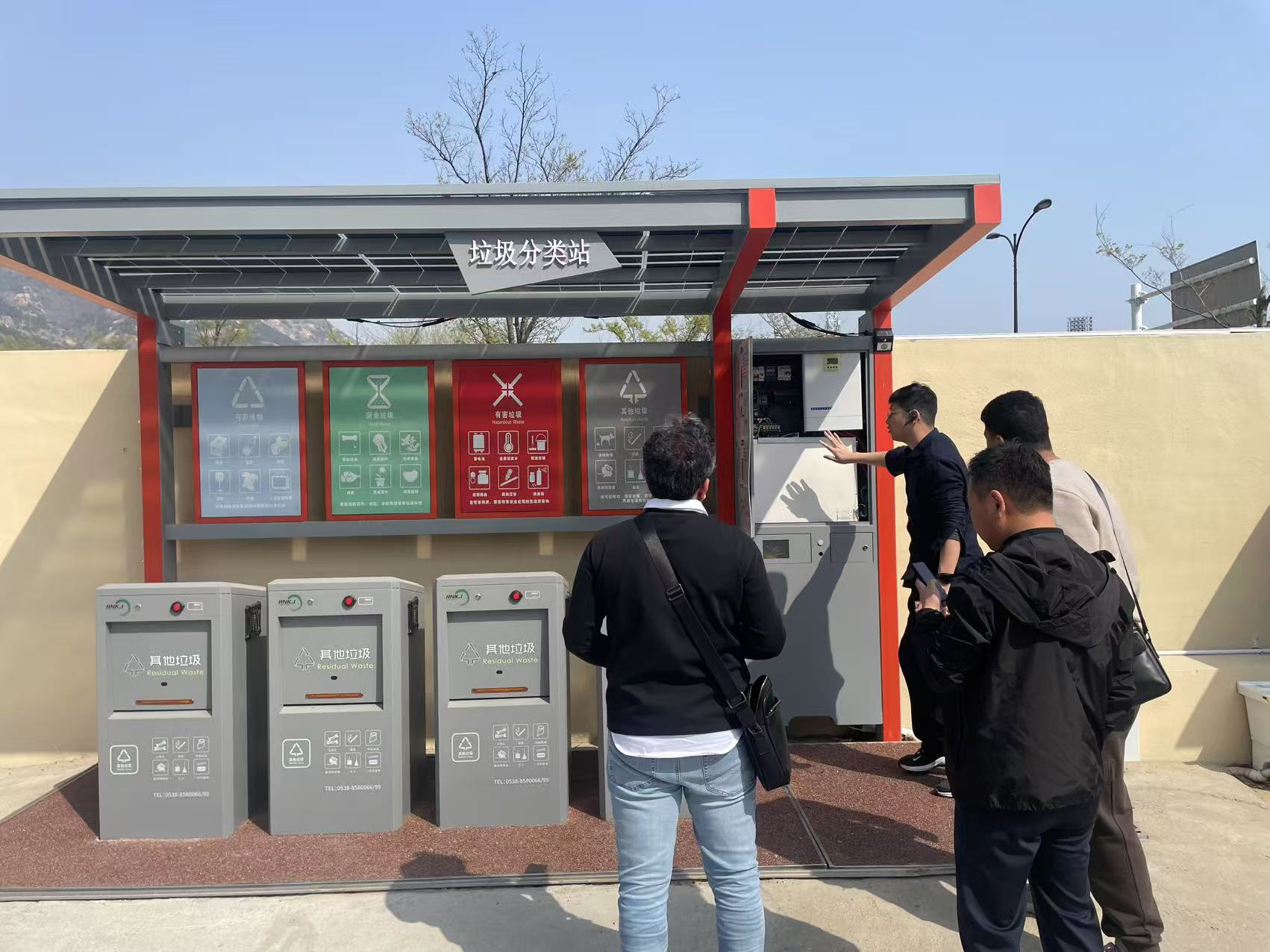

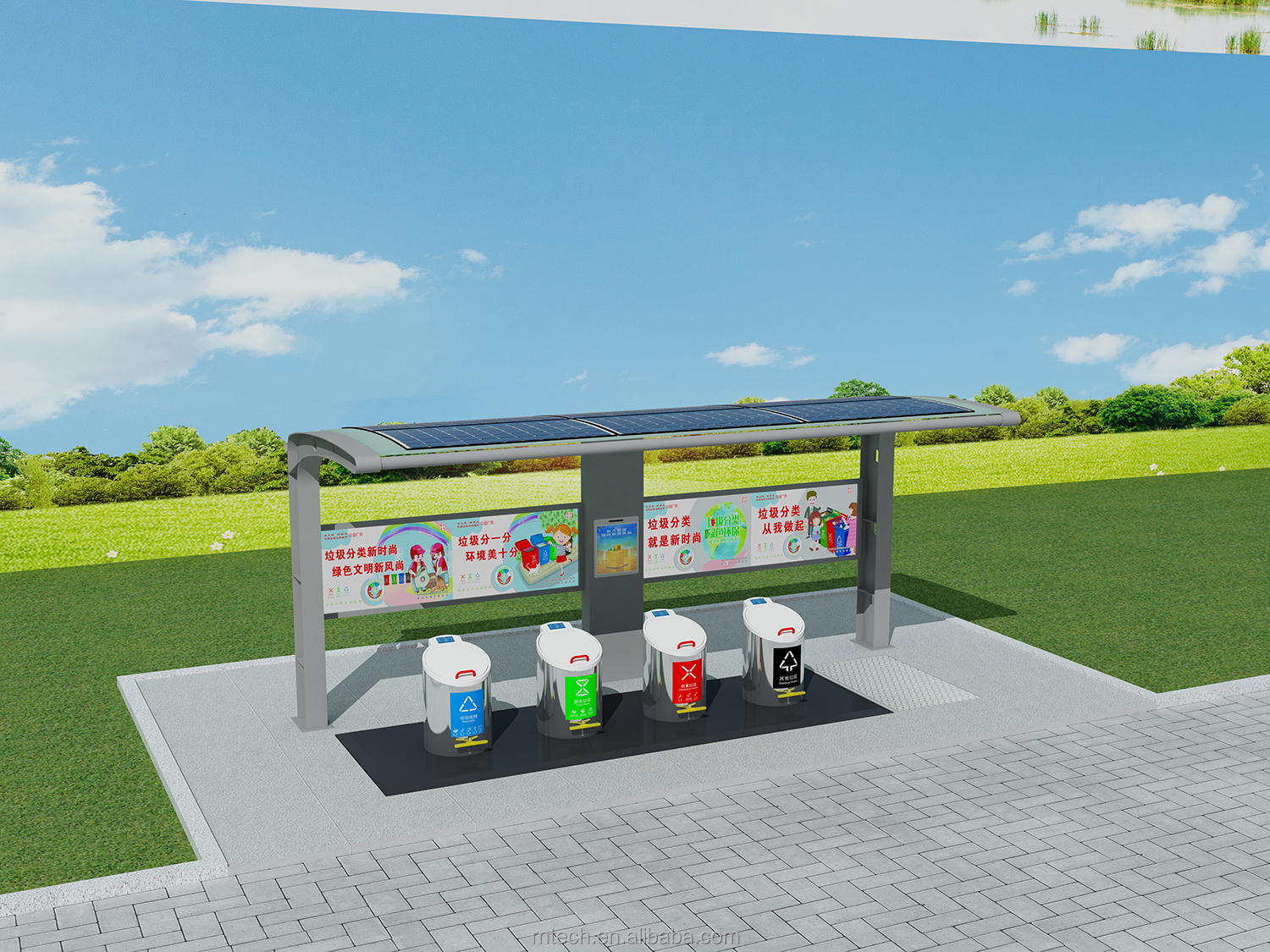

RNKJ Brand Smart Recycling Equipment Automatic Garbage Sorting Station Bin

Product Description

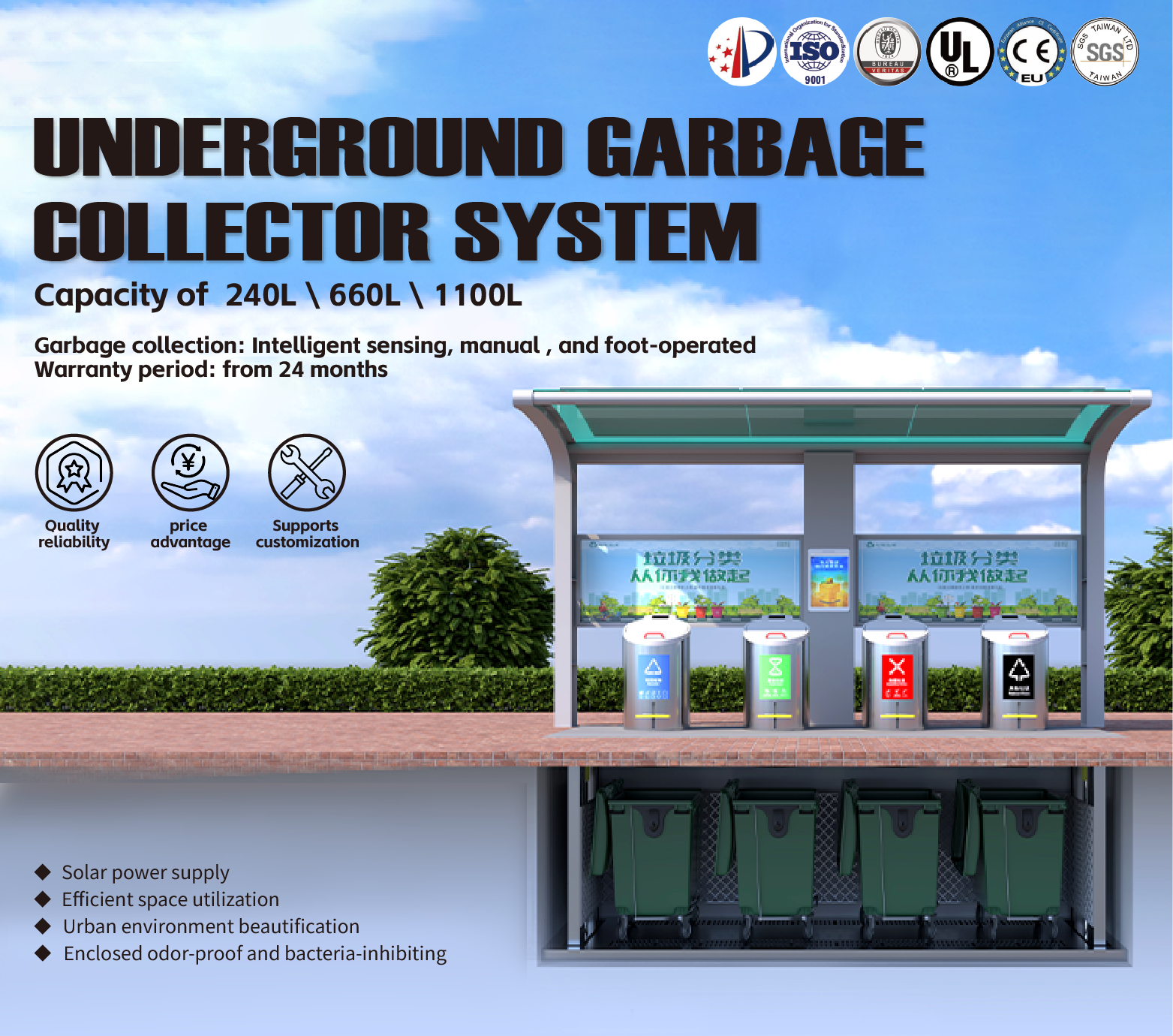

Underground Garbage System

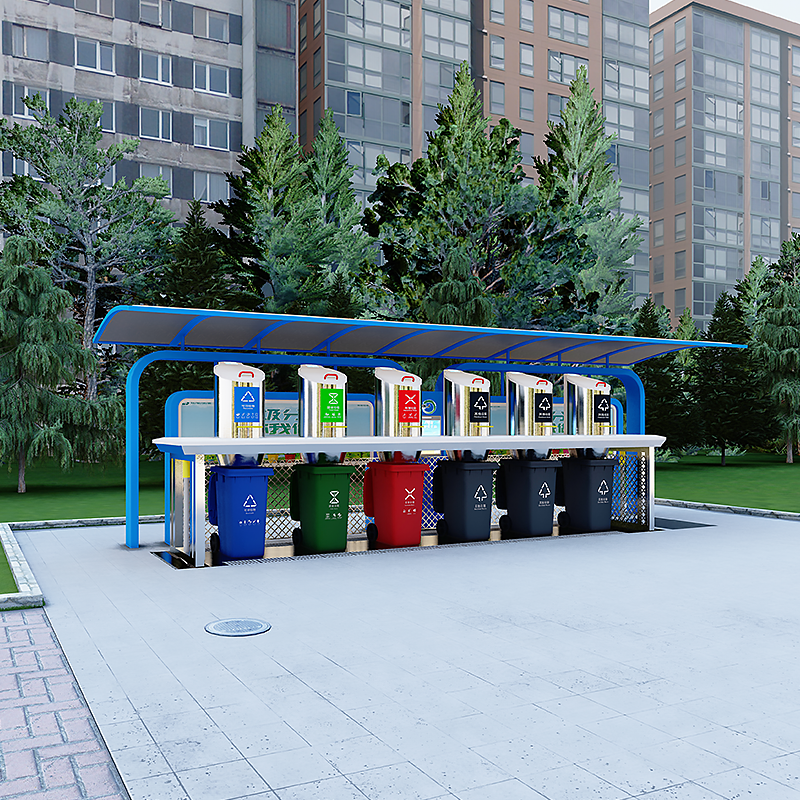

System Overview

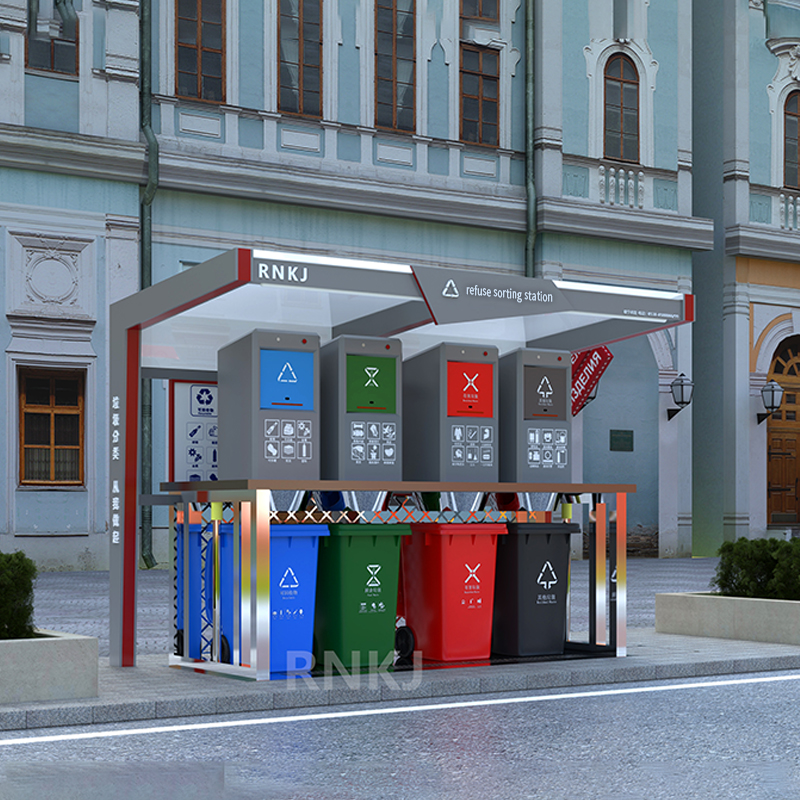

Collection Station

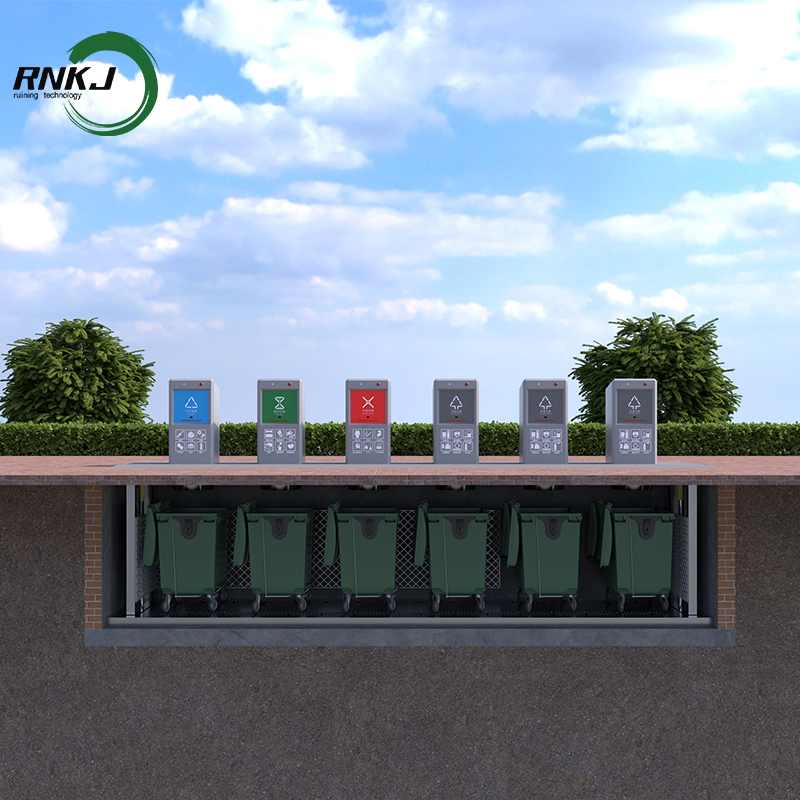

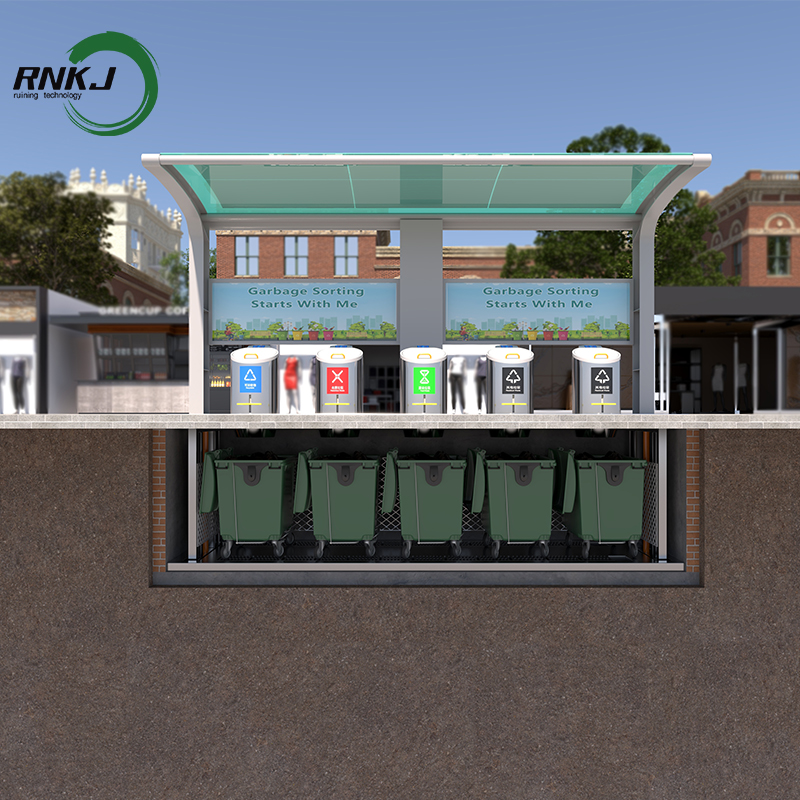

Intelligent Underground Garbage Sorting and Collection System
The structure of intelligent landscape buried garbage classification collection station includes classification publicity kiosks, garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Key Advantages:
  • All garbage cans fall into the ground with good concealability.
  • Effectively reduces visual pollution.
  • Convenient garbage dumping and significant odor reduction.
  • Flexible capacity options: 1100L / 660L / 240L garbage cans.
  • Customizable layouts: 1, 2, 4, or 6 barrels configurations.
We provide full range of personalized customized services, including site design, packaging, equipment matching, and customized procedures.
Personalized Solutions
FEATURES AT A GLANCE
Support Customization
Use: Semi-wet, wet and solid waste.
Capacity: 6~20 m3 (4.5-25 t).
  • Lifting platform technology
  • Compatible with hook arm trucks
  • Liquid proof construction
  • Intelligent SMART technology

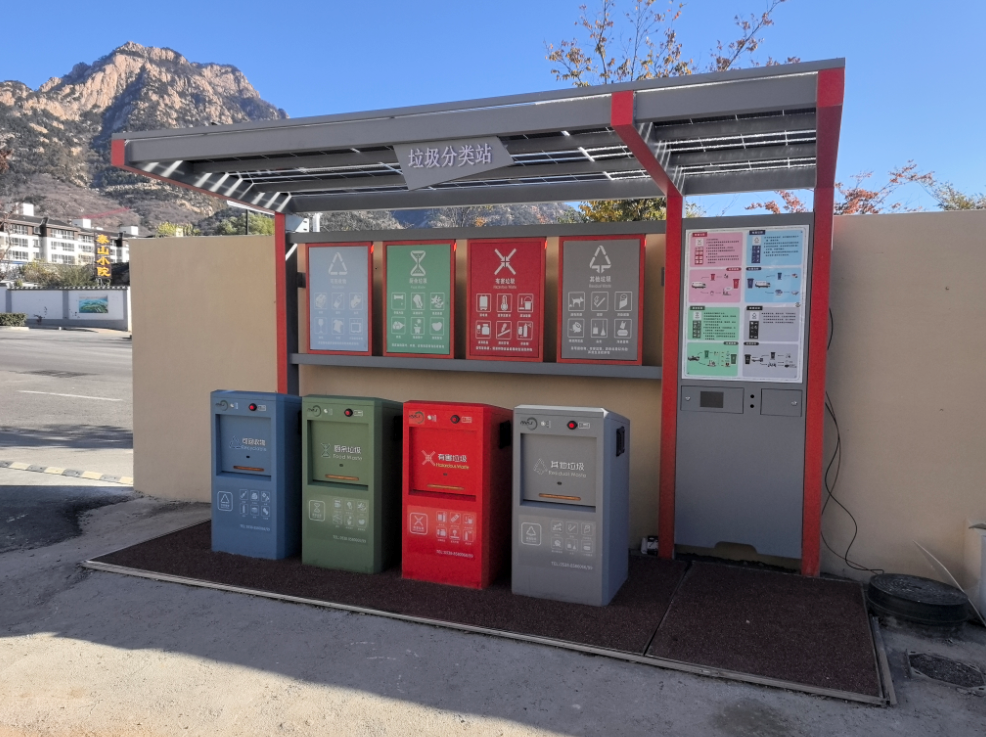

Technical Features
Technical Specifications
Model ZFDM-2404 ZFDM-2406 ZFDM-6604
Size of Kiosk (mm)4200×1600×26305580×1600×26306400×2300×3000
Size of Pit (mm)4130×1280×22805510×1280×22806220×1920×2680
Feeding Ports464
Capacity (L)960L (4×240L)1440L (6×240L)2640L (4×660L)
Weight (KG)2980KG3450KG4950KG
Lift Height (mm)132013201700
Lift Time (S)202020
Motor Power1.5KW1.5KW2.2KW
Opening ModeSensorSensorSensor
Lift Weight2.8T3.5T5.5T
System Features & Operation
Operation Steps
  1. Activate the hydraulic system when the trash can is full.
  2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
  3. Manually hauling out full trash cans and unloading trash directly into collection trucks.
  4. Place empty cans back in their original locations.
Our Advantages

New Design: Adopts internationally advanced fully enclosed floor layout with a beautiful appearance. Efficient for users to dump wastes.

Multiple Choices: Available with hoppers, flipping buckets, and dumping ports for large wastes, suitable for manual use and vehicles.

High Performance: Four-cylinder lifting system for stability. High-strength thick steel frame with excellent waterproof performance.

Standardization: Applicable for most standard hook arm garbage trucks worldwide.

Multiple Functions: Equipped with automatic fire fighting, deodorization, ventilation, and automatic cleaning facilities. High-pressure water gun for rinsing.

Global Successful Projects

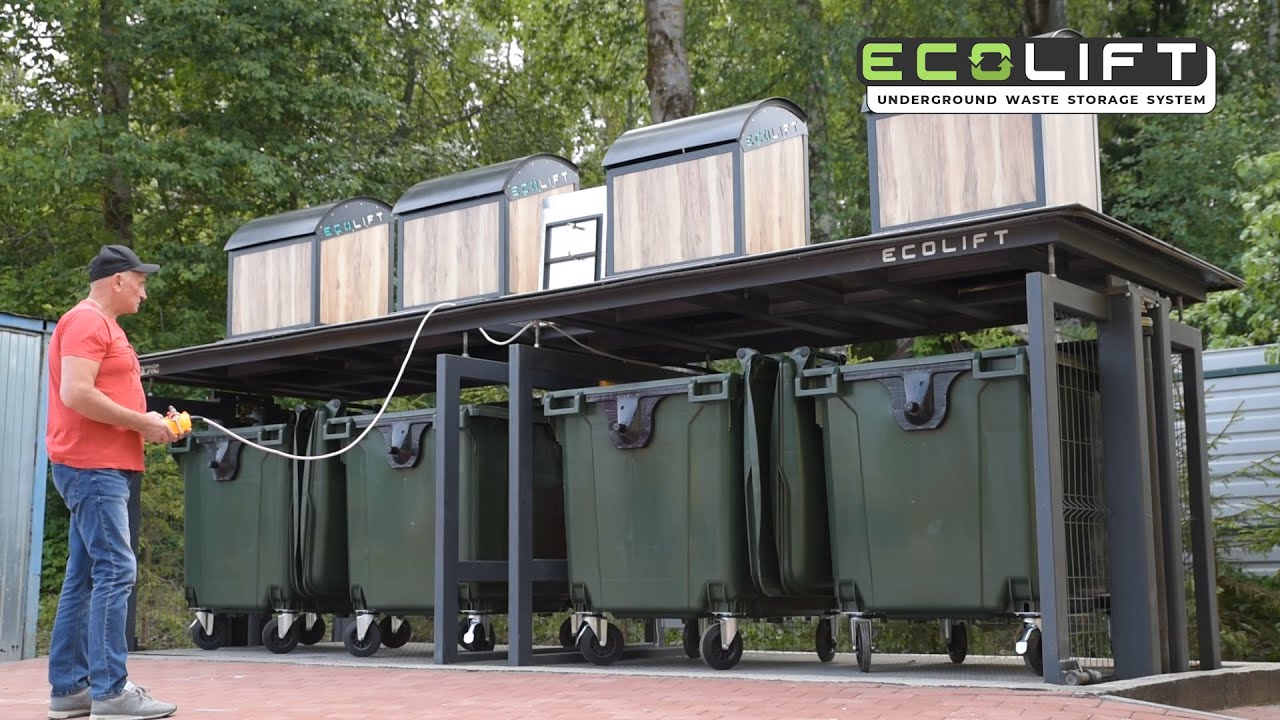

Australia Project

Project in Australia

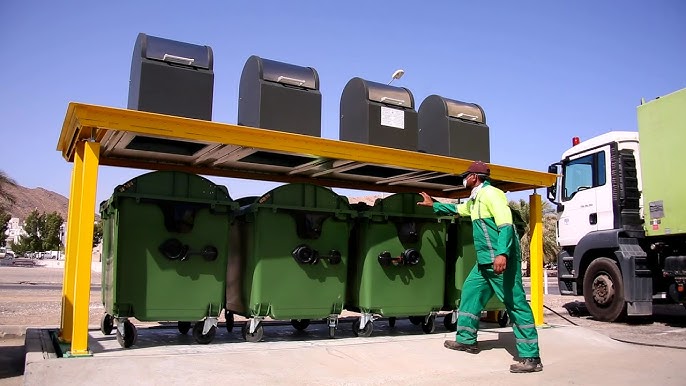

Canada Project

Project in Canada

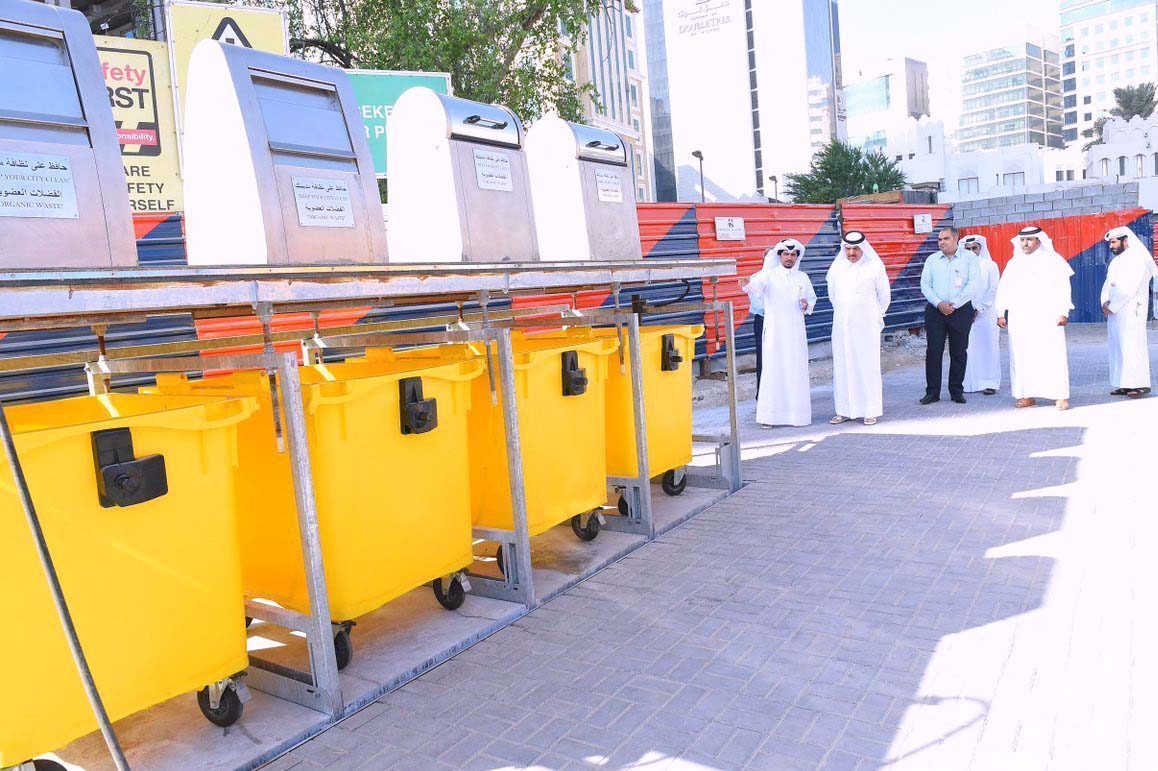

UAE Project

Project in United Arab Emirates

Thailand Project

Project in Thailand

Britain Project

Project in Britain

Russia Project

Project in Russia

Our Services
Pre-sales Service: Inquiry processing, technical assistance, feasibility analysis, technical drawings, and factory visits.

After-sales Service: On-time delivery, installation instructions, regular equipment tracking, and spare parts availability.
Service Standards
Frequently Asked Questions
1. Are you a manufacturer or trader? We are a professional manufacturer with our own R&D and sales teams, providing a comprehensive one-stop service.
2. What are your payment terms? We accept various payment methods including T/T, L/C at sight, Western Union, and PayPal.
3. How long is the delivery time? For products in stock, delivery is 5-10 days after deposit. For custom orders, it usually takes 10-30 days depending on the quantity.
4. Do you provide OEM/ODM services? Yes, we provide custom-made services to meet different global needs and budget requirements.
5. How do you ensure product quality? Final inspections are always performed before shipment. We also provide professional installation videos and manuals for guidance.
6. What is the warranty period? We offer a one-year guarantee on our products along with dedicated after-sales and technical support.
