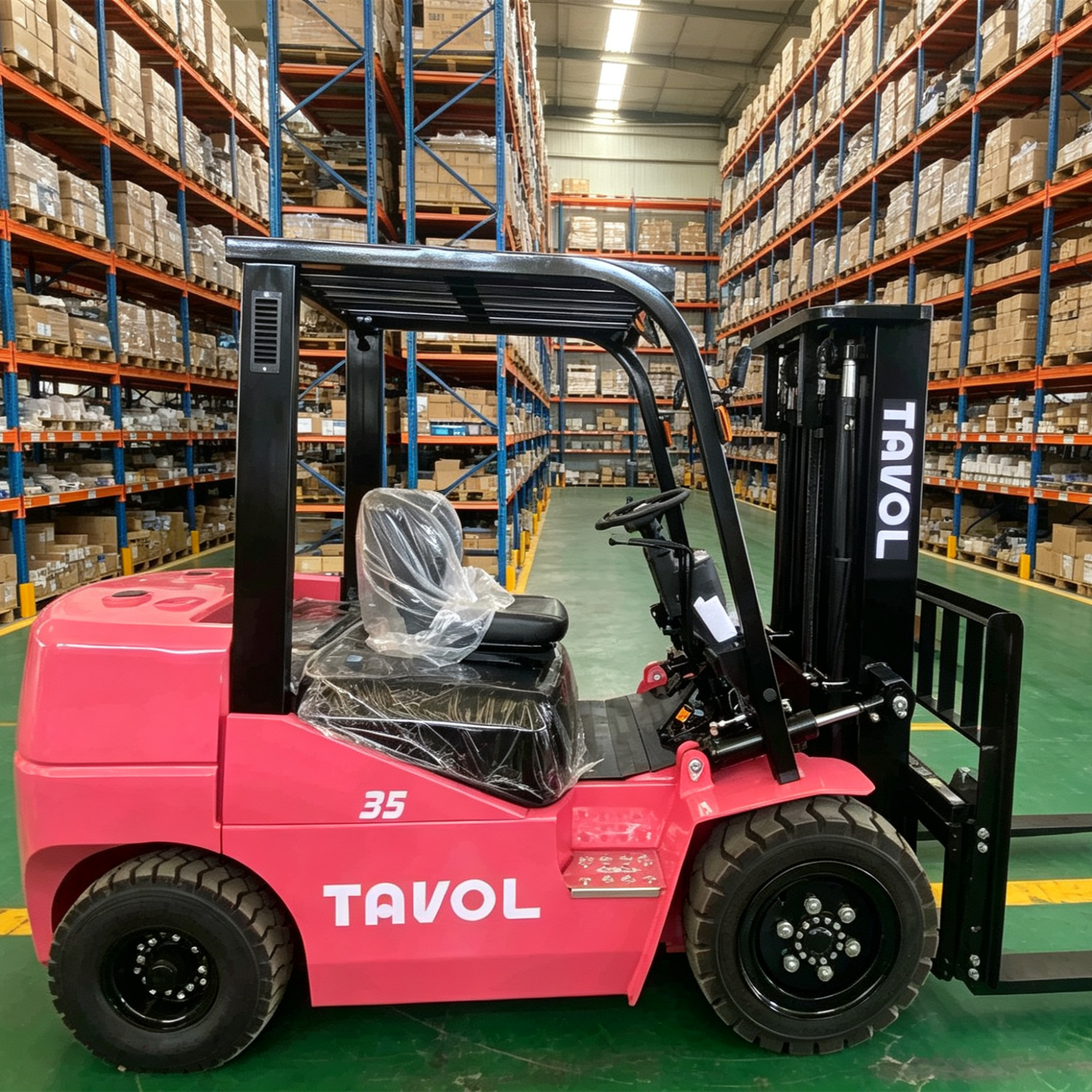

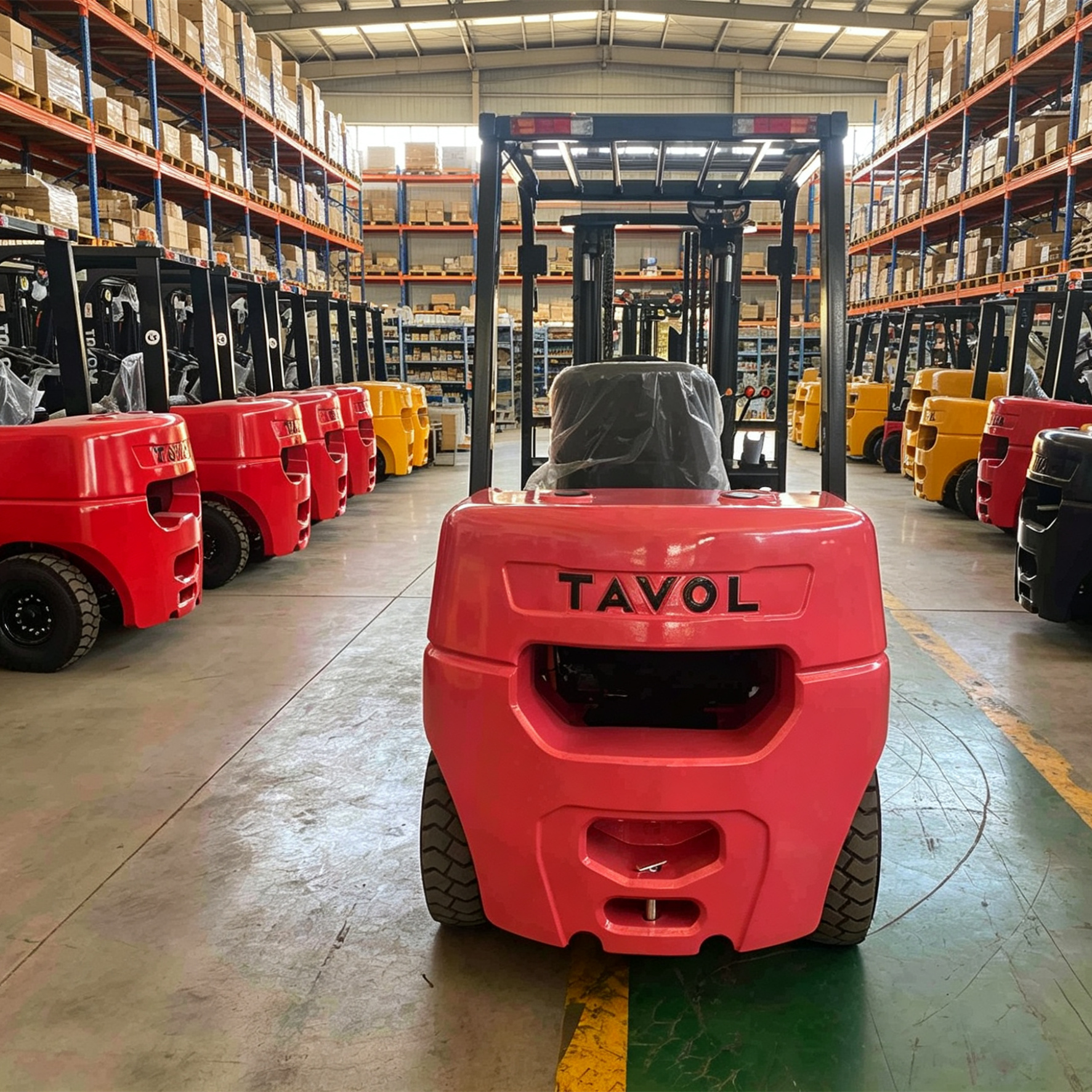

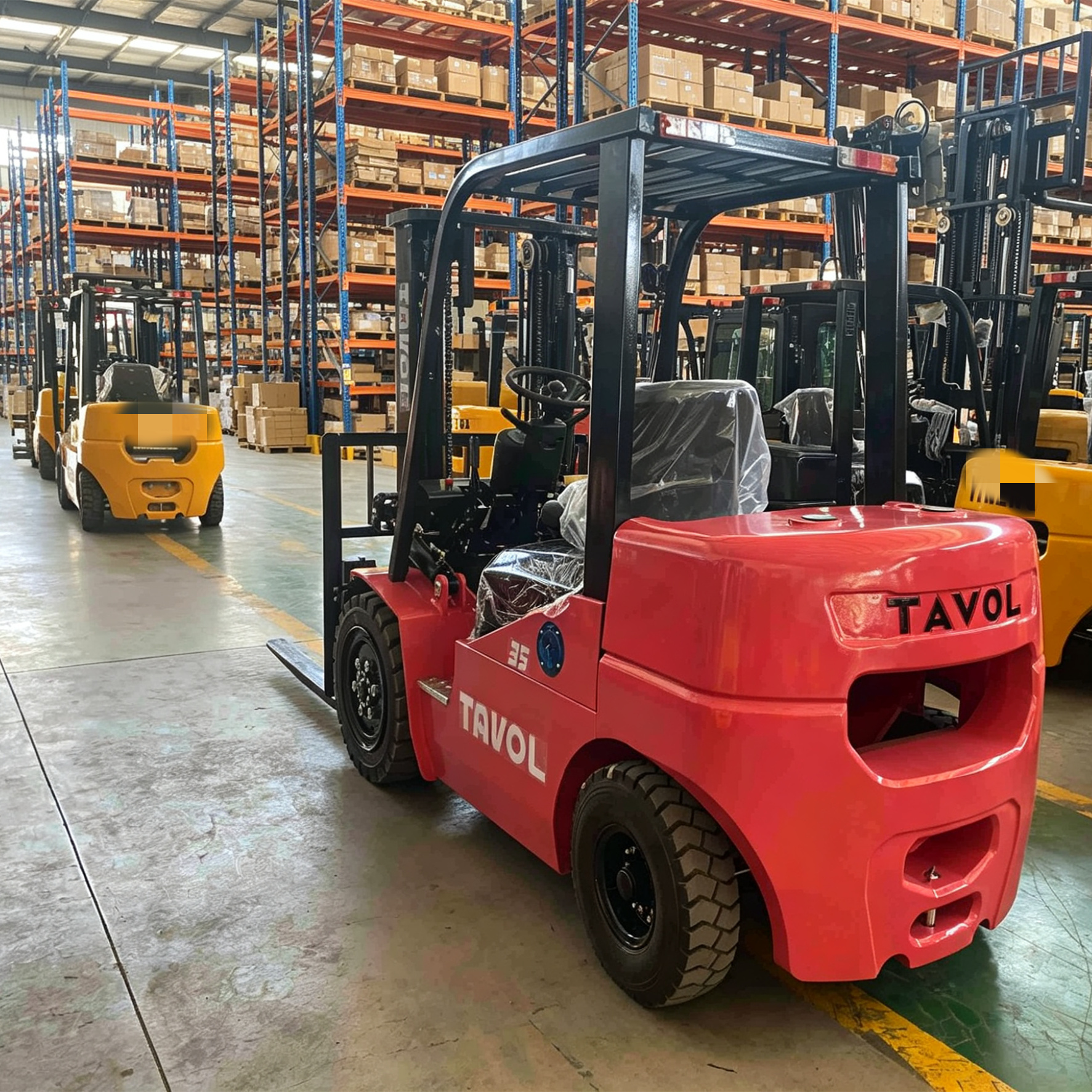

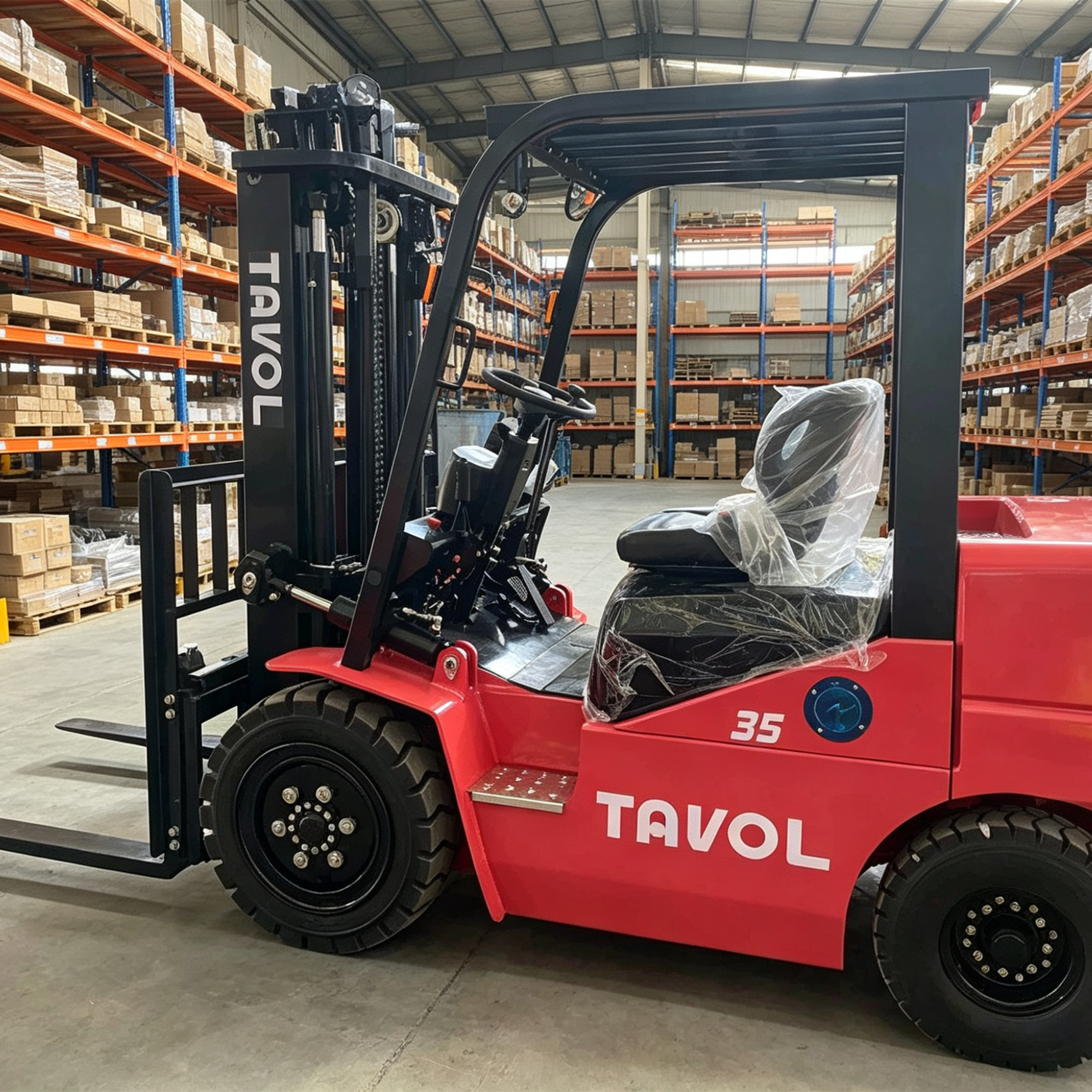

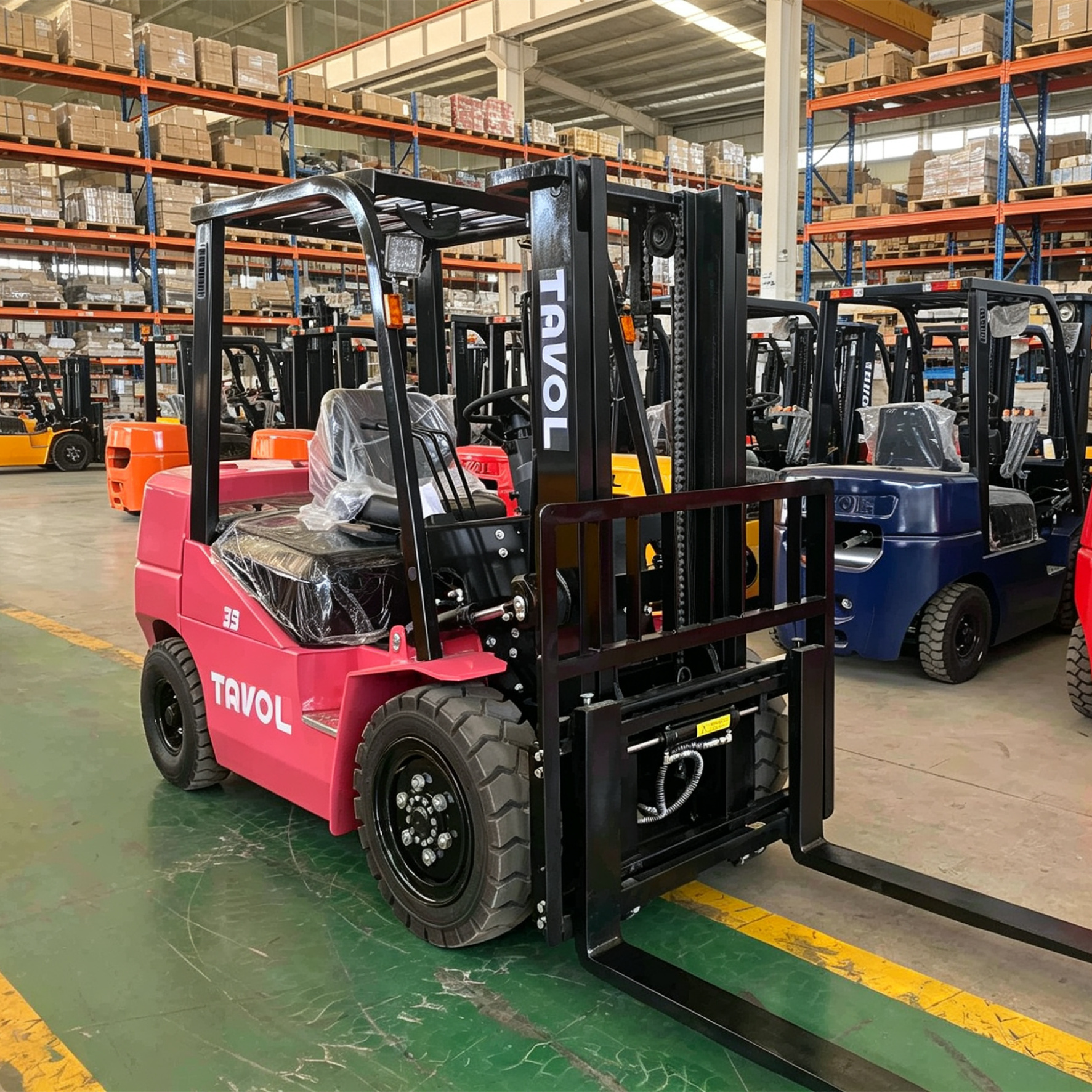

Heavy Duty 3Ton Electric Forklift Four Wheel Electric Forklift For Cargo Loading Unloading

Product Description

Heavy Duty 3Ton Electric Forklift Pneumatic Tire Four Wheel Electric Forklift for Cargo Loading Unloading

✔
Enhanced Performance: Boosts productivity and operational profitability.
✔
Lower Operating Costs: Features reduced fuel consumption and emissions.
✔
Ease of Maintenance: Engineered for straightforward servicing.

Experience a superior blend of power, economy, and reliability.

Choosing a high-quality forklift truck will help your career be more brilliant and create a better future.

Electric Forklift Key Attributes

▪
Appearance: Large arc streamlined surface shape, beautiful appearance and strong streamlined shape.
▪
Comfort: Joystick is moved to the vicinity of the seat to make the operation more comfortable. The new combined integrated instrument has complete functions and intuitive reading. Optimized design of the wide-view mast is adopted, which is not easy to block the operator's sight. Tilt-adjustable small-diameter steering wheel designed according to ergonomics makes the driver feel good, and the seat can be adjusted back and forth by 150 mm, so that the operator can choose a comfortable driving position. The advantages of quietness, no pollution, energy saving etc, meet the requirements of environmental protection.
▪
Reliability & Security: New large-screen LED instrument has good visibility, intuitive reading, and friendly human-computer interaction interface. An emergency power off switch is fitted as standard and complies with European safety standards.

Product Parameters

Model	CPD10	CPD15	CPD20	CPD25	CPD30	CPD35
Rated Loading Capacity (kg)	1000	1500	2000	2500	3000	3500
Load Center Distance (mm)	500	500	500	500	500	500
Dynamic mode	lithium battery	lithium battery	lithium battery	lithium battery	lithium battery	lithium battery
wheel base	1330	1550	1550	1550	1700	1700
Wheel distance (front/rear)	910/865	945/880	945/880	945/880	1000/970	1000/970
Maximum lifting height	3000	3000	3000	3000	4500	4500
Front overhang	308	325	325	325	465	465
Gantry Angle (front/rear)	5/10	5/10	5/10	5/10	6/12	6/12
Free lifting height	105	105	105	105	105	105
Full height of the door frame (floor to floor, vertical door frame)	3957	4055	4055	4055	2110	2110
Maximum height during operation	3957	4055	4055	4055	4270	4270
Top guard height	1847	2110	2110	2110	2105	2105
Body length (with fork)	3050	3150	3300	3400	4120	4120
Body width	1020	1096	1096	1096	1230	1230
Minimum ground clearance	77	88	88	88	135	135
Minimum turning radius	2050	2280	2280	2280	2530	2530
Fork size	301001070	401001070	401001070	401001070	122451070	122451070
Maximum travel speed (no load)	14	14	14	14	16	16
Maximum driving speed (full load)	12	12	12	12	15	15
Lifting speed (full load/no load)	10/12	10/12	10/12	10/12	270/300	270/300
Descent speed (full load/no load)	550	550	550	550	400/350	400/350
Maximum climbing capacity (full load/no load)	15/20	15/20	15/20	15/20	15/20	15/20
Machine weight	1800	2650	2850	3200	4400	4650
Number of wheels (front/rear)	2/2	2/2	2/2	2/2	2X/2	2X/2
Tire Type (front/rear)	solid tyre	solid tyre	solid tyre	solid tyre	pneumatic tire	pneumatic tire
Tire size (front/rear)	15*4 1\2-8	18&7-10 15*4 2\1-8	18&7-10 15*4 2\1-8	18&7-10 15*4 2\1-8	28*9-15-14PR/6.50-10-10PR	28*9-15-14PR/6.50-10-10PR
Service brake	Hydraulic - foot plate	Hydraulic - foot plate	Hydraulic - foot plate	Hydraulic - foot plate	Hydraulic - foot plate	Hydraulic - foot plate
Parking brake	Hydraulic-manual	Hydraulic-manual	Hydraulic-manual	Hydraulic-manual	Hydraulic - foot plate	Hydraulic - foot plate
Drive motor power (S2-60min)	4	4	5	6	15kw	15kw
Lifting motor power (S3-15%)	4.5	5	5	6	16kw	16kw
Drive motor control mode	mosfet\pmsm	mosfet\pmsm	mosfet\pmsm	AC	AC	AC
Lifting motor control mode	mosfet\pmsm	mosfet\pmsm	mosfet\pmsm	AC	AV	AC
Hydraulic system working pressure	18MP	18MP	18MP	18MP	18MP	18MP
Battery (voltage/capacity)	60v\120ah	72V\210ah	72V\210ah	72V\210ah	210AH	210AH

Detailed Photographs

Suspension Adjustable Seat

Anti-Fatigue Seat. More comfortable when working.

Date Display

Three speeds.

Compound Chain

Strong pull and easy lifting, thickening. To prevent safety accidents.

Durable Battery

Work long time and adapt to different situations.

LED Light & Overhead Guard

Save electricity, longer service life and protect the driver.

Electric Switch

Simple and convenient lighting control.

Optional Configurations

Batteries: Lithium Battery or Lead-acid batteries.
Fork Options: Standard 1070 mm fork; optional 1220 mm, 1370 mm, 1520 mm, and 1670 mm forks.
Forklift Attachments: Optional side shift, fork positioner, paper roll clamp, bale clamp, rotating clamp, etc.

4. Lift Height for Forklift: The lifting height of the forklift can be customized according to your needs. The standard lifting height is 3 meters. We can also provide heights of 3.5 meters, 4 meters, 4.5 meters, 5 meters, 5.5 meters, 6 meters, and even higher.

5. Mast Types: Forklift's mast has 2-stage mast, 2-stage 3-meter full-free mast, and 3-stage mast.

2 stages mast

2 stages full free mast

3 stages full free mast

Production Overview

Dedicated to driving your professional growth, our product line includes the design, development, and manufacture of 1-10 tons diesel forklifts, 1-3.5 tons electric forklifts, 1-4 tons dual gas/gasoline forklifts with lifting heights of 3-6 meters, as well as high-altitude lifting equipment.

Our focus includes manufacturing and global distribution of lifting machinery, material handling machinery, construction machinery, and agricultural equipment. With 5 manufacturing plants and an intelligent technology facility, products have been exported to more than 100 countries and regions worldwide, achieving strong brand recognition in regions such as Southeast Asia and Eastern Europe.

Customer Visits

Frequently Asked Questions

QAre you a manufacturer, trader or agent?

A: We are a manufacturer of diesel forklifts and electric forklifts under 10 tons.

QWhere is your main market?

A: Southeast Asia, South America, Africa, Europe and all of China.

QWhat is the MOQ?

A: 1 set is okay. More quantity will have nice discount.

QHow long is your product warranty?

A: The product warranty period is 12 months.

QWhat is the payment item?

A: The terms of payment are negotiable. There are favorable payment terms for long-term customers. Wire transfer or letter of credit depends on time of cooperation, country and contract value.

QWhat lift heights are customizable for the forklift?

A: The standard lift height is 3 meters, and we can customize it to 3.5 meters, 4 meters, 4.5 meters, 5 meters, 5.5 meters, 6 meters, or even higher according to your application needs.
