| Rated load | 400KG |
| Number of axes | Dual-axis single robot (X + Y axis version) |
| X axis rated power/torque | 2.0KW / 9.5n.m |
| X axis rated speed | 220mm/sec |
| X axis max speed | 330mm/sec |
| X axis hardware | Taiwan Airtac 45 guide rail / Taiwan Jingte M4 helical gear / Taiwan Baoteng automatic lubrication system |
| Y axis rated power/torque | 2.0KW / 9.5n.m |
| Y axis rated speed | 800mm/sec |
| External hanging | Electrical boxes, welding equipment, wire spools, gun cleaners, etc. |

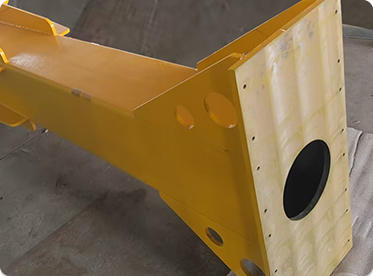

| Beam specification | 500*300 double-spliced high-rigidity column / 400*400 crossbeam |

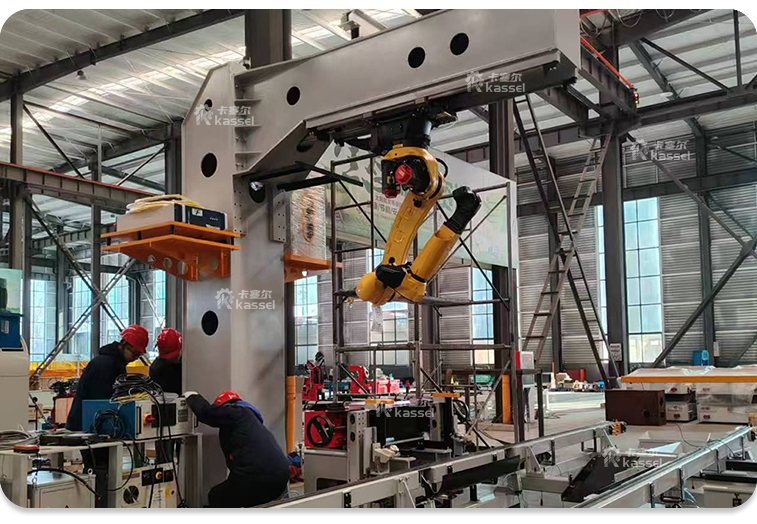

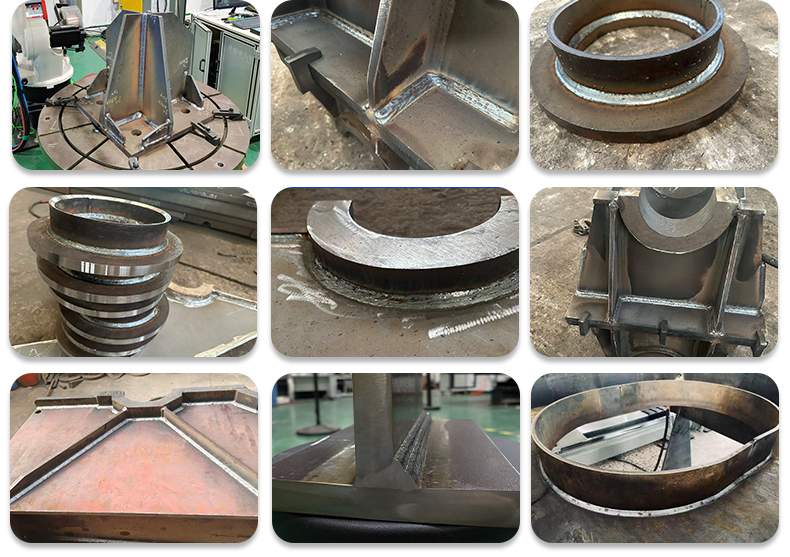

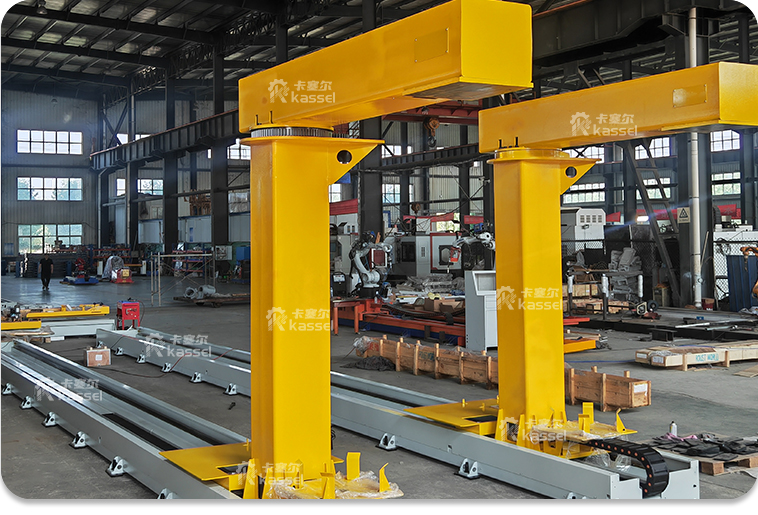

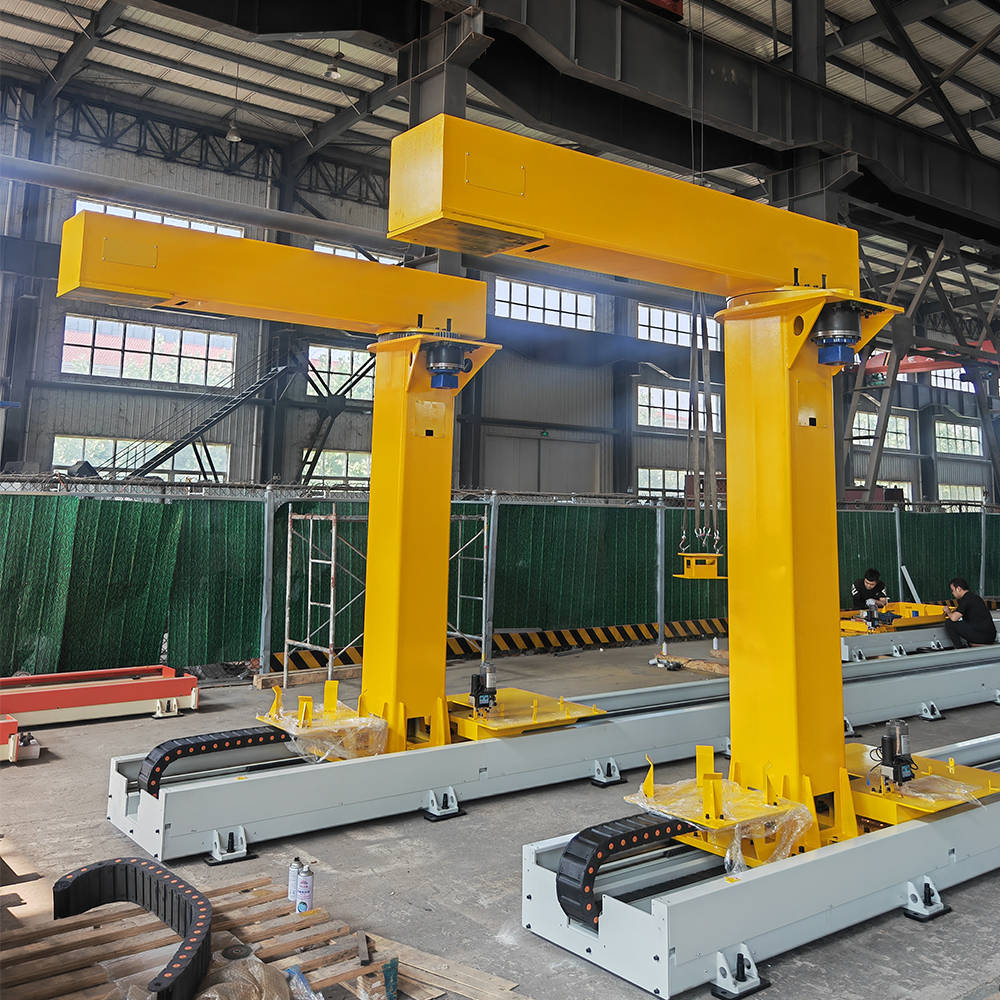

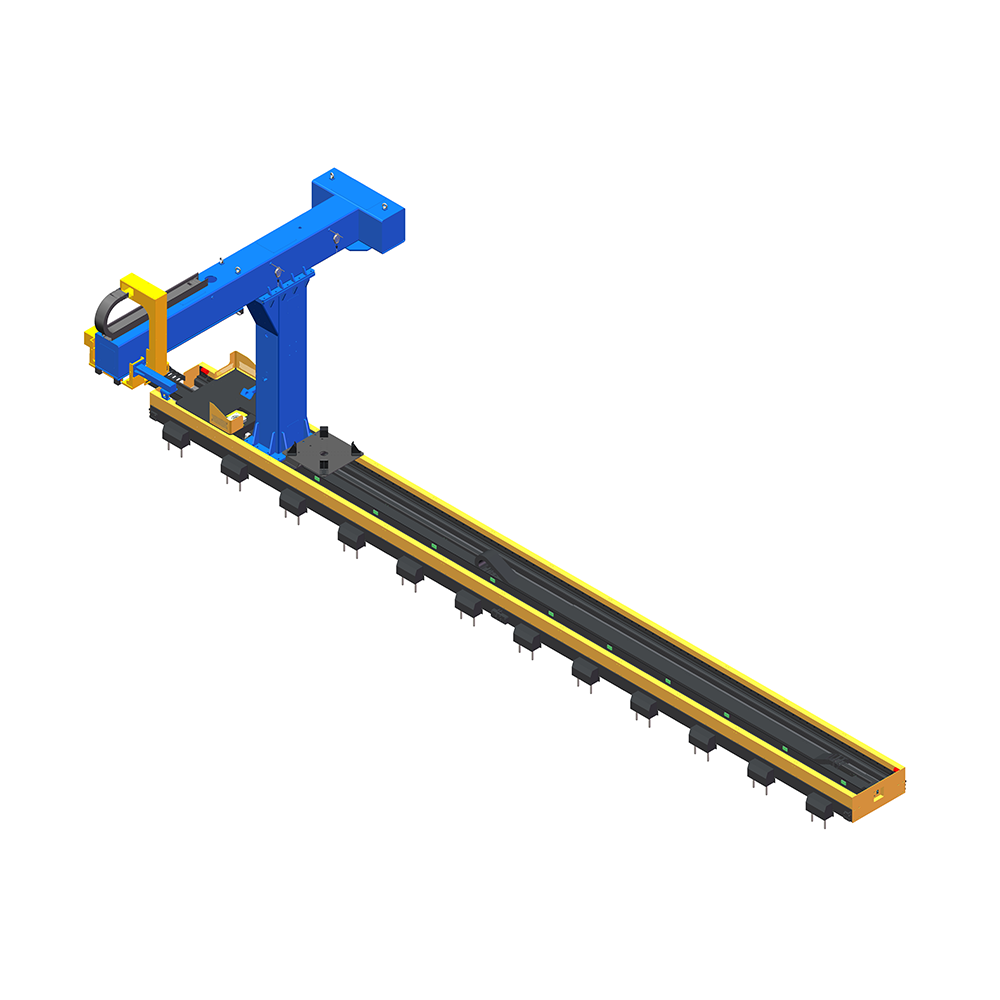

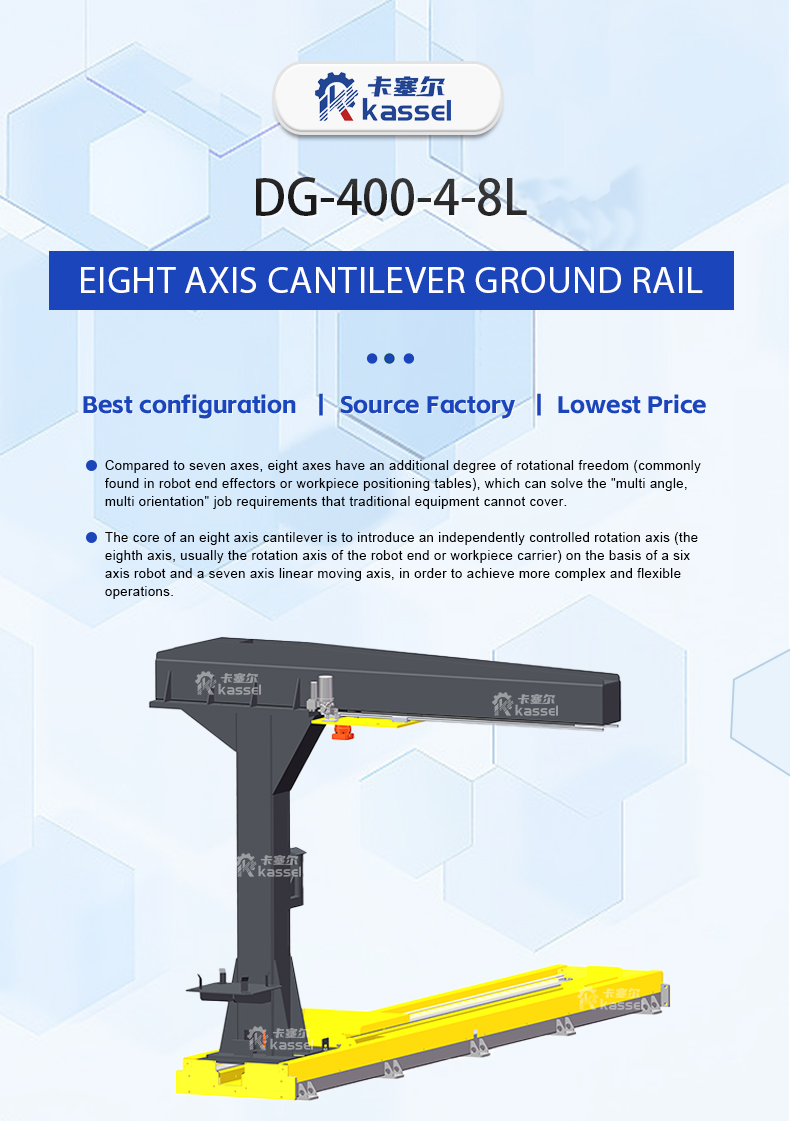

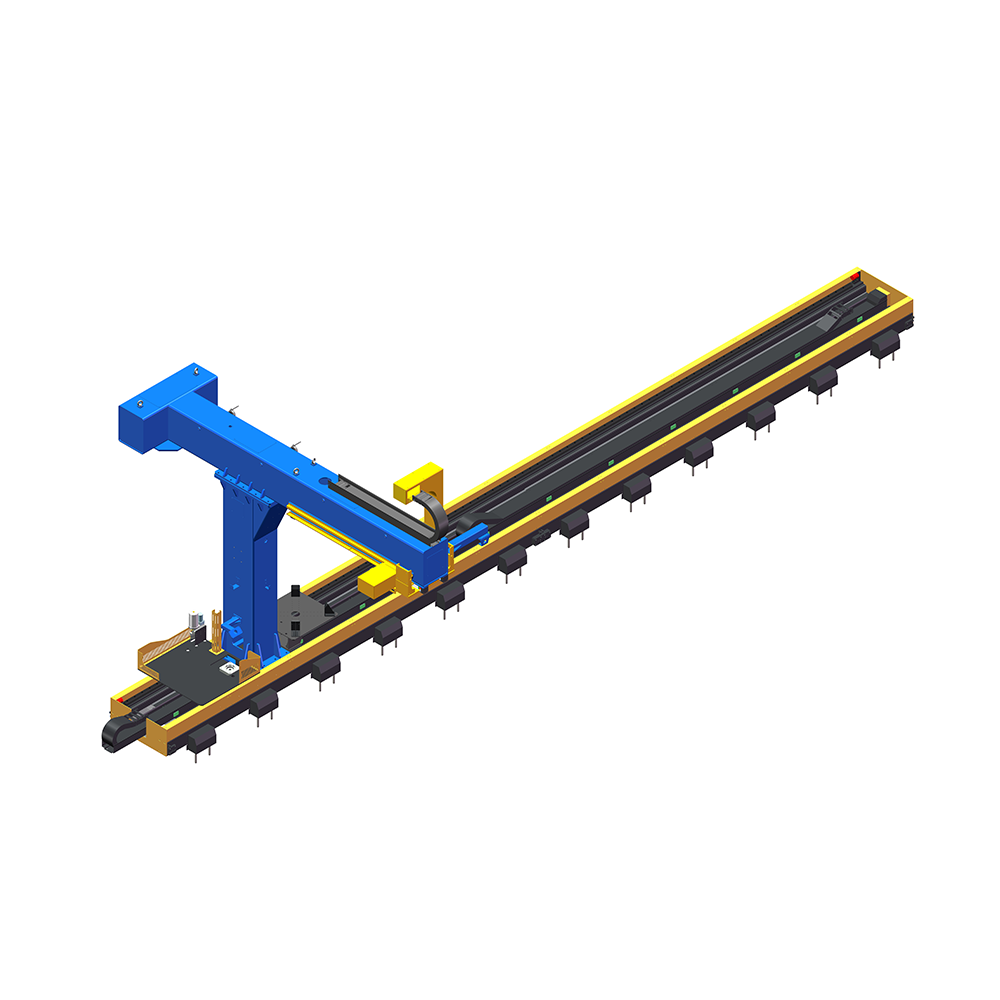

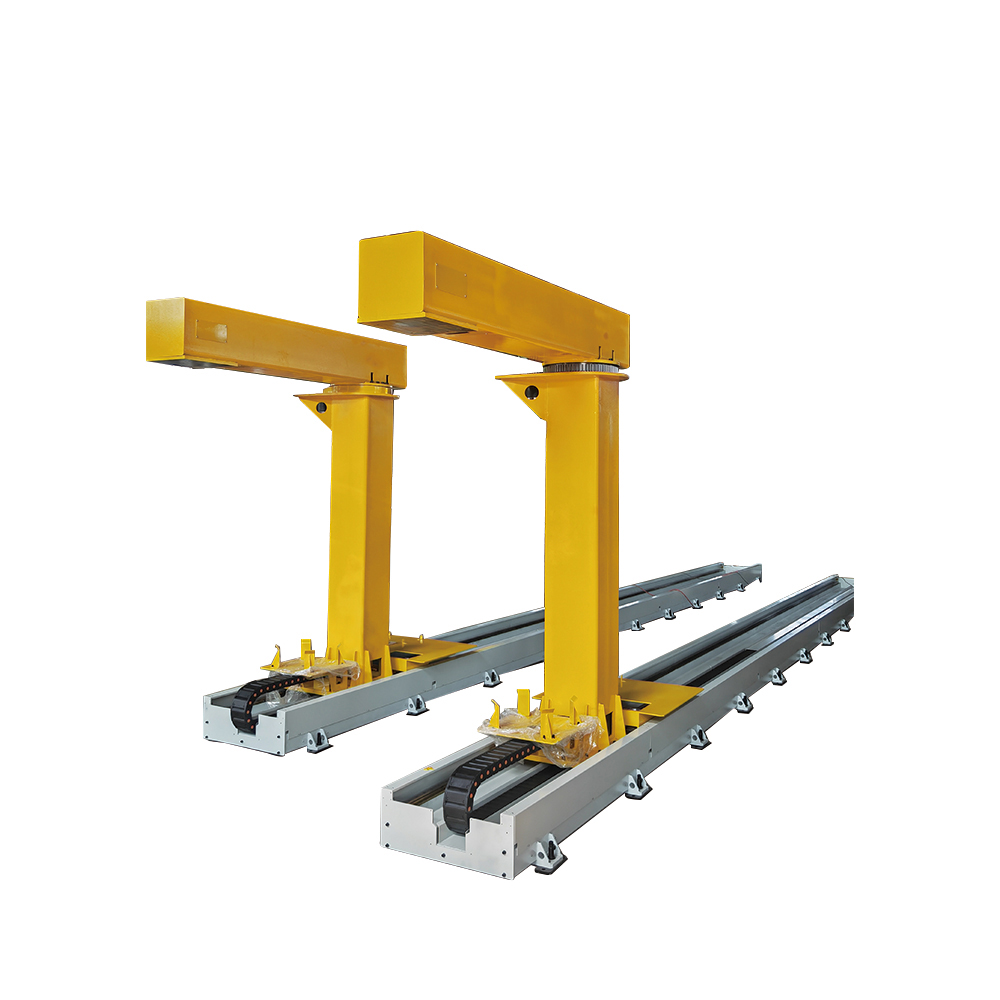

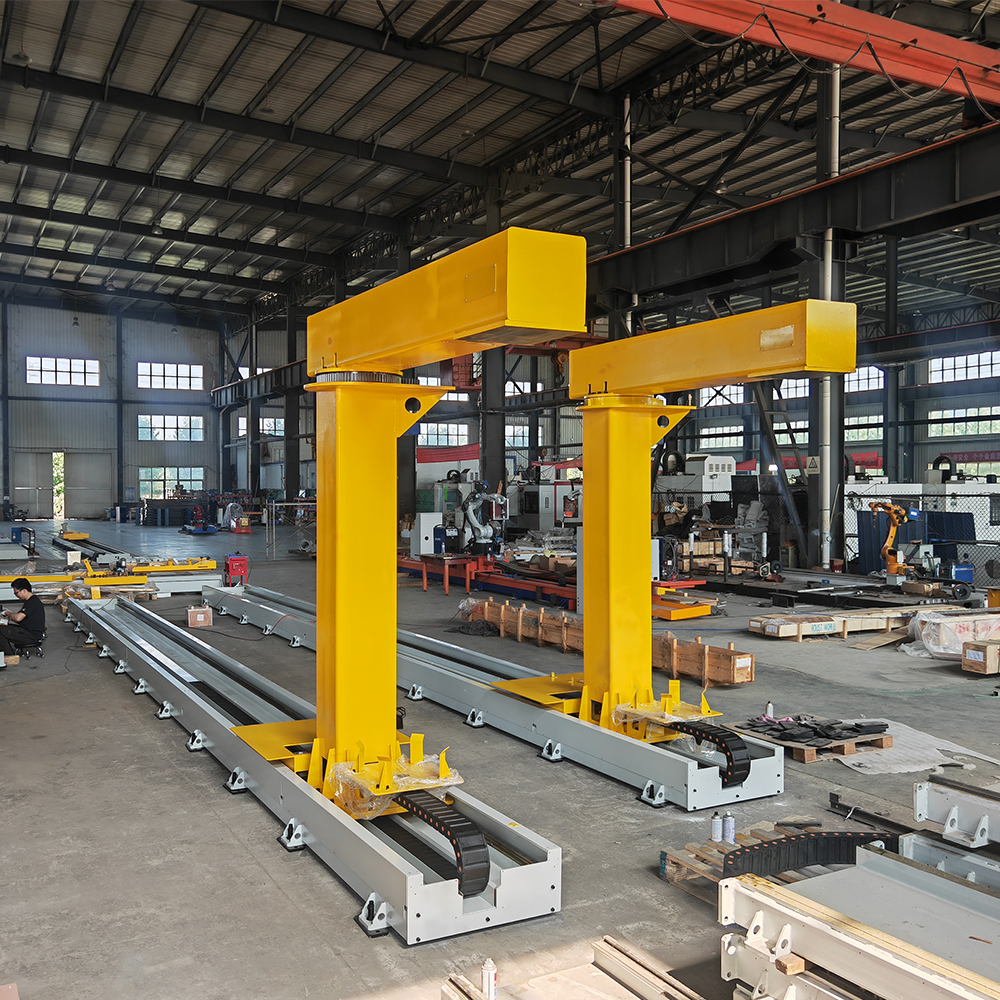

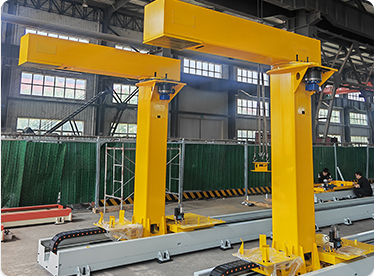

The 8-axis cantilever ground rail is particularly suitable for welding large-sized, multi-weld, high-precision metal components. Efficient and stable welding operations can be achieved for stainless steel or lightweight high-strength alloys.
Additional rotational degree of freedom for multi-angle and multi-directional operation.

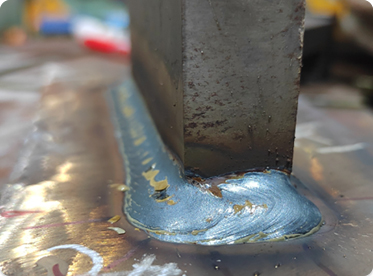

Optimized weld positions significantly improve quality for complex structural polyhedrons.

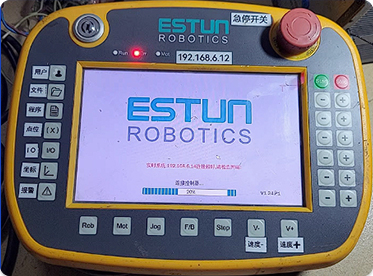

Precision positioning (±0.1mm) with CNC/PLC systems for second-level posture switching.
Efficient processing of large/irregular workpieces like aero-engine blades and marine propellers.
High space utilization with single-side support, ideal for narrow sites or proximity to other equipment.
Flexible integration for multi-variety production and complex flexible production lines.

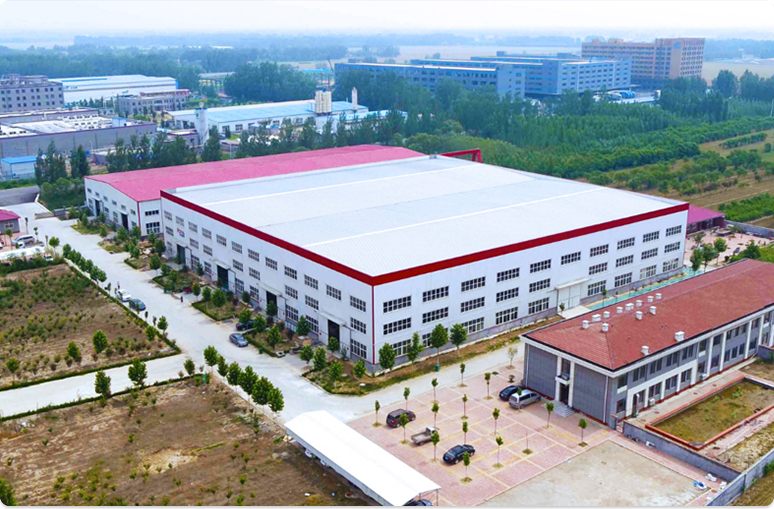

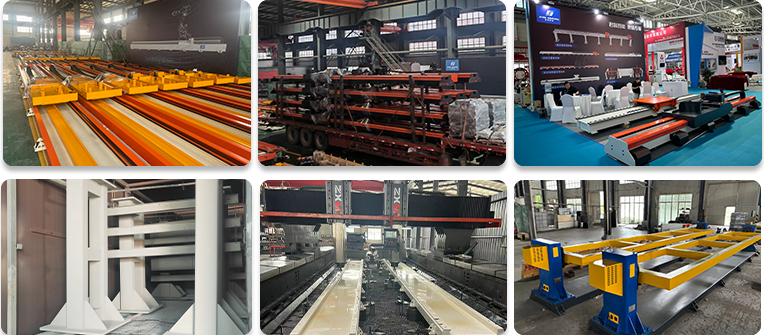

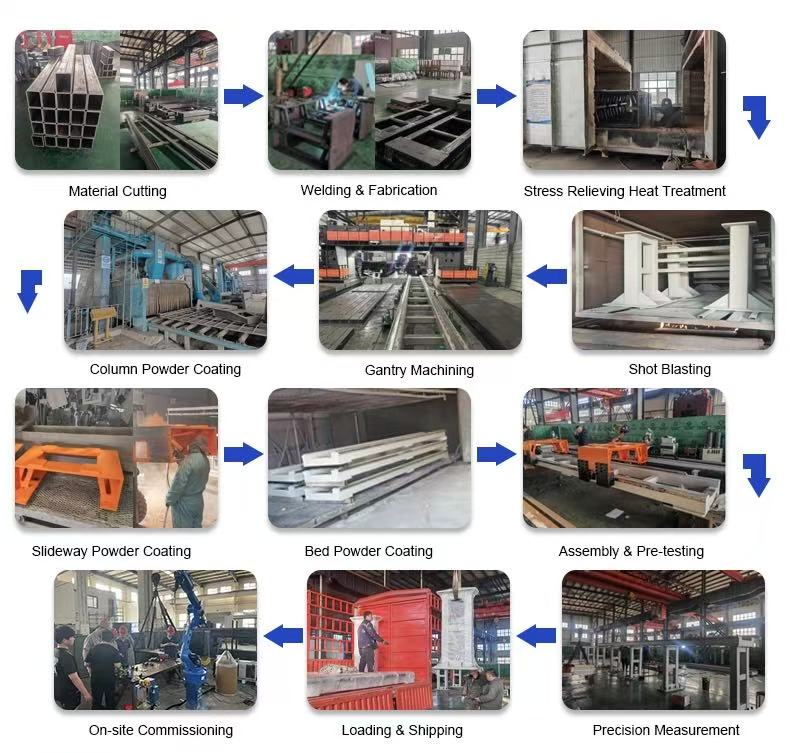

The facility covers 20,000 square meters and is equipped with over 50 advanced imported high-precision CNC machining centers (brands like Haas, Mazak, Okuma) and large gantry machining centers. All core components are processed in-house to ensure product quality and precision.
