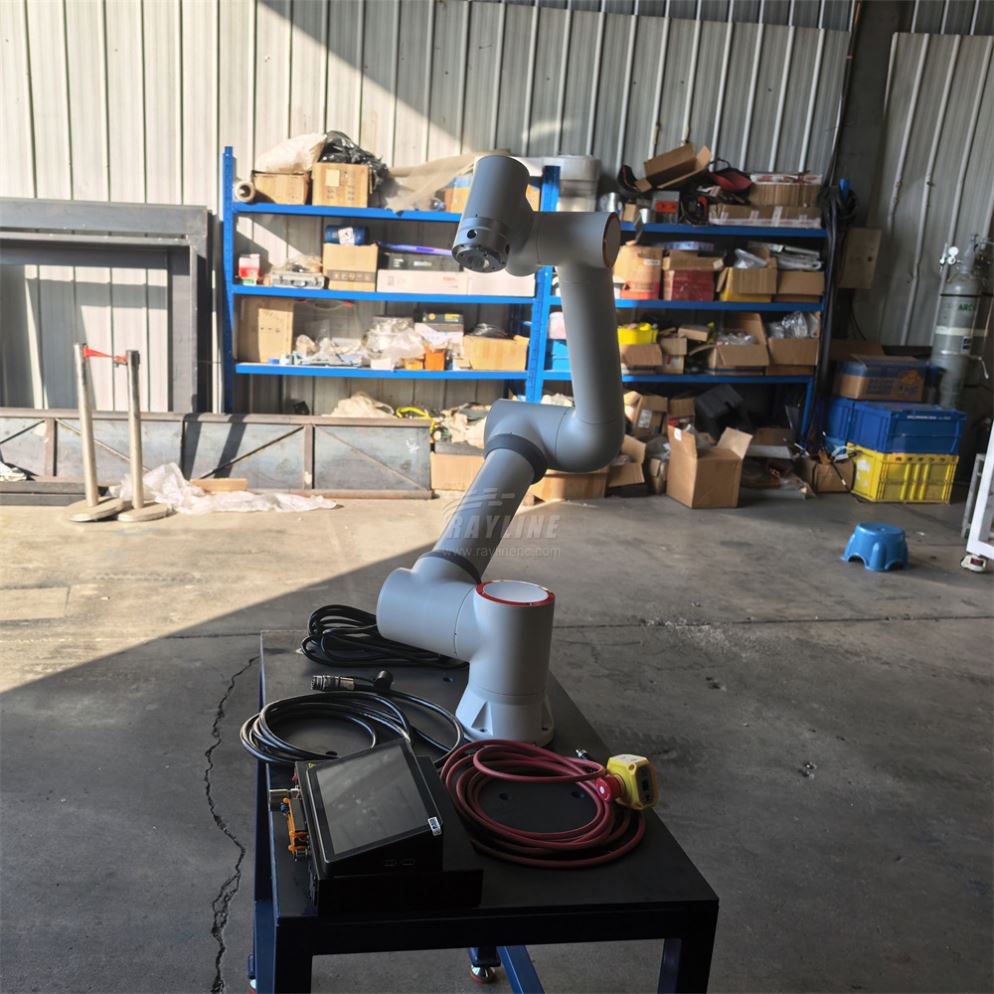

High-precision 6-axis collaborative robotic arm designed for automated industrial tasks, featuring dynamic reach capacities, customizable controls, and reliable repeatability.
Equipped with 6 degrees of freedom to support complex spatial paths and orientations.
Fully supports English, Chinese, Russian, Korean, Japanese, French, and customization.
Delivers industrial precision up to ±0.02 mm across multiple axis ranges.

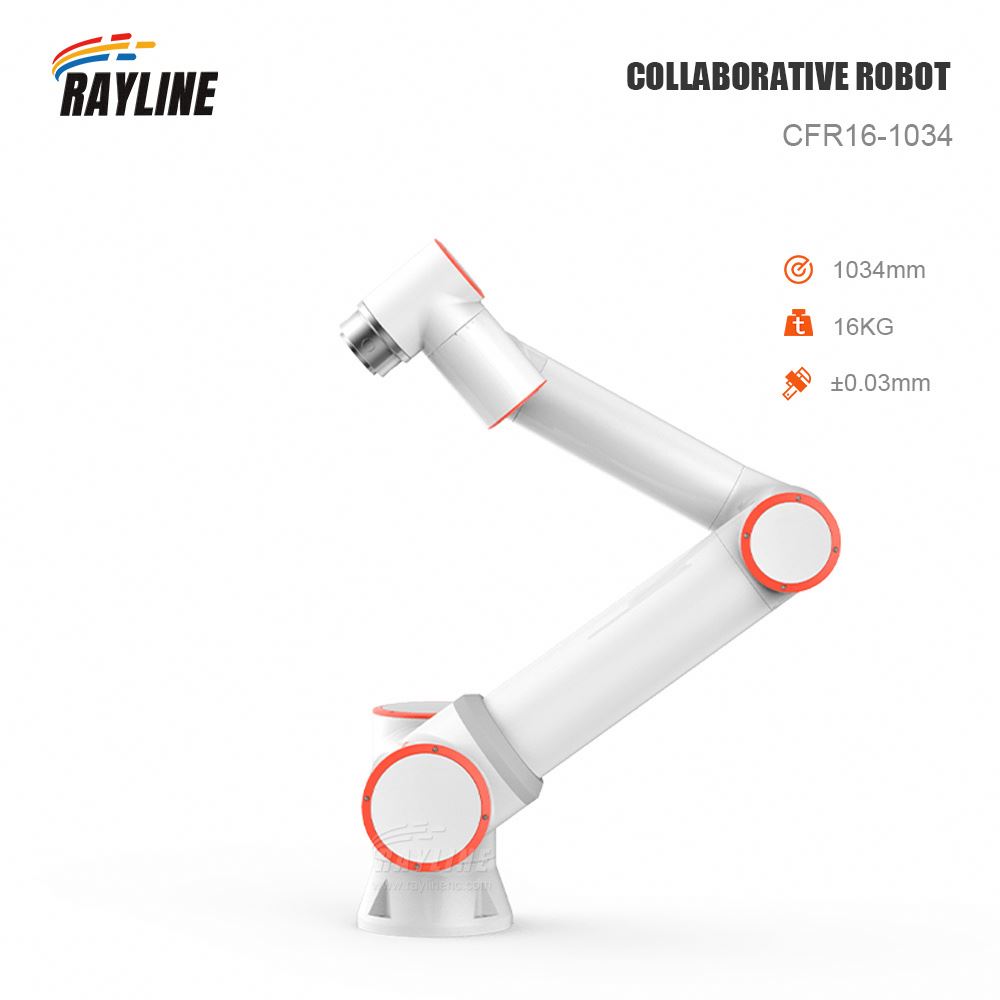

| Specification | CFR3-622 | CFR5-922 | CFR10-1400 | CFR16-1034 |
|---|---|---|---|---|
| Payload | 3kg | 5kg | 10kg | 16kg |
| Reach | 922mm | 922mm | 1400mm | 1034mm |
| Degrees of freedom | 6 rotating joints | |||
| Repeatability | ±0.02mm | ±0.02mm | ±0.05mm | ±0.03mm |

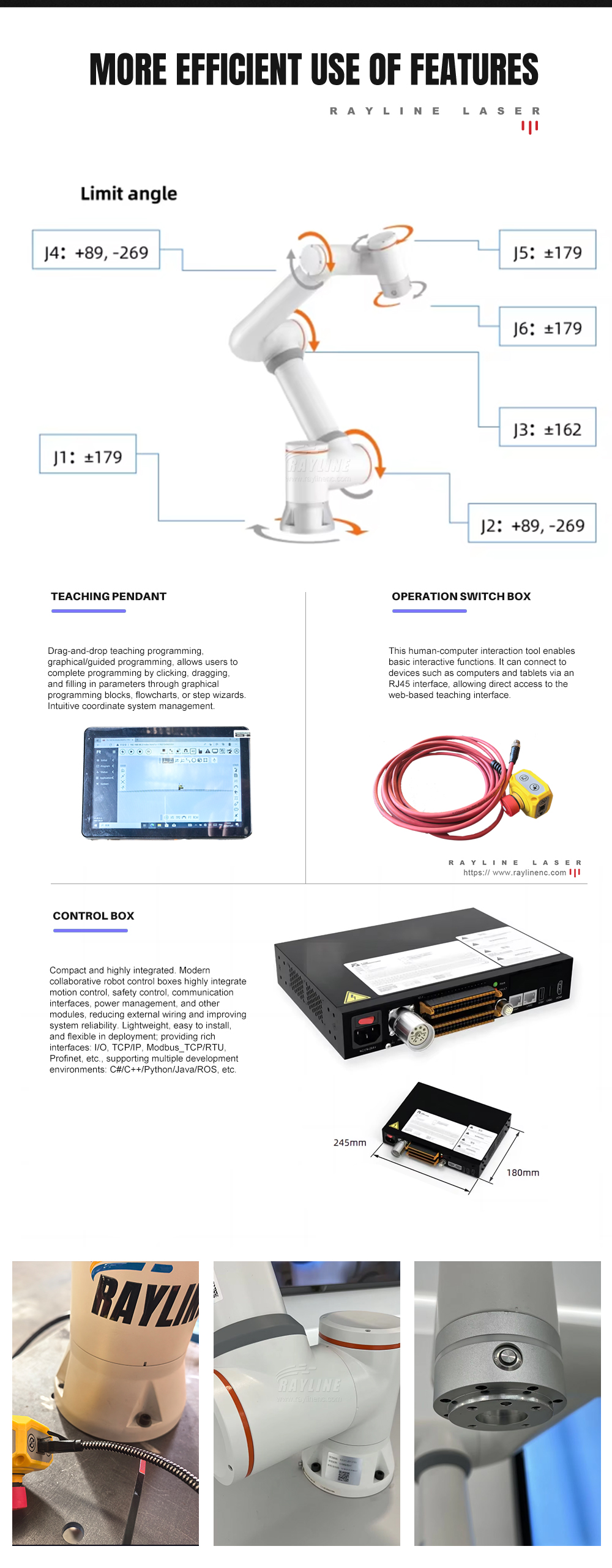

| 1 Axis Range (Max Speed) | 175° (180°/s) | 175° (180°/s) | 175° (120°/s) | 175° (120°/s) |
| 2 Axis Range (Max Speed) | 85°/265° (180°/s) | 85°/265° (180°/s) | 85°/265° (120°/s) | 85°/265° (120°/s) |
| 3 Axis Range (Max Speed) | 150° (180°/s) | 160° (180°/s) | 160° (180°/s) | 160° (180°/s) |
| 4 Axis Range (Max Speed) | 85°/265° (180°/s) | 85°/265° (180°/s) | 85°/265° (180°/s) | 85°/265° (180°/s) |
| 5 Axis Range (Max Speed) | 175° (180°/s) | 175° (180°/s) | 175° (180°/s) | 175° (180°/s) |
| 6 Axis Range (Max Speed) | 175° (180°/s) | 175° (180°/s) | 175° (180°/s) | 175° (180°/s) |
| Machine Language | English, Chinese, Russian, Korean, Japanese, French, etc. Customization supported. | |||
