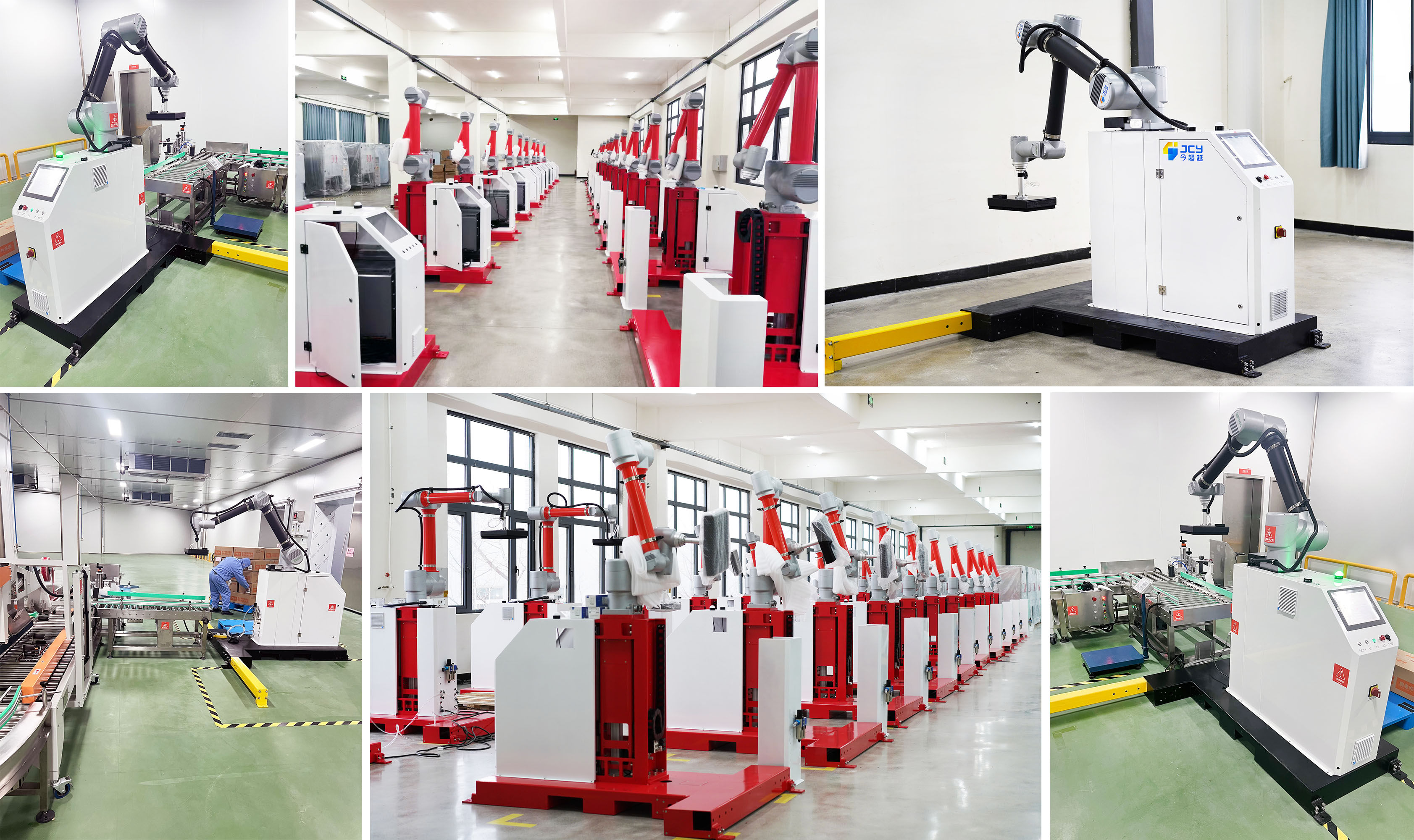

20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
1 / 5
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine
20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine

20Kg 25Kg 30Kg Automatic Loading and Unloading Stacking Robot Palletizer Machine

Send Inquiry

Product Description

Products Description

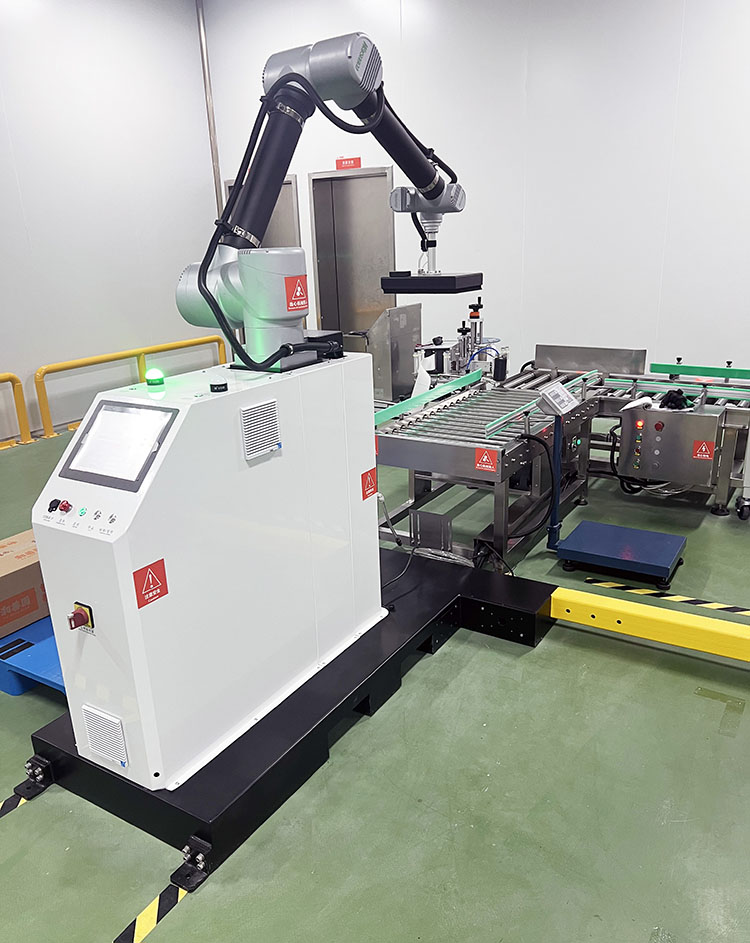

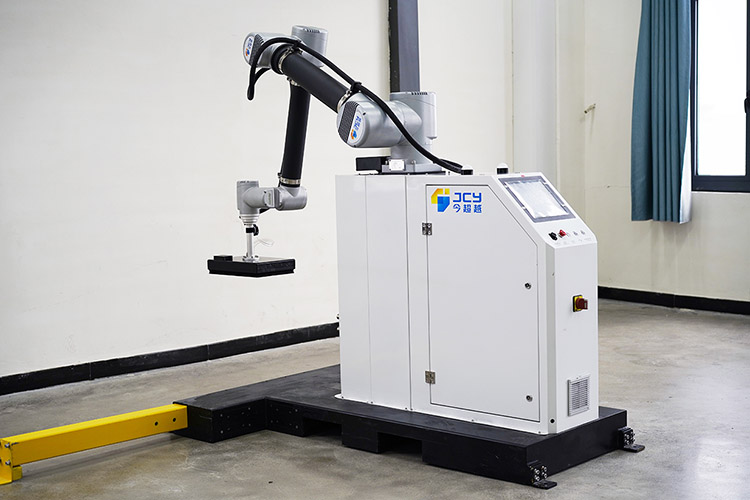

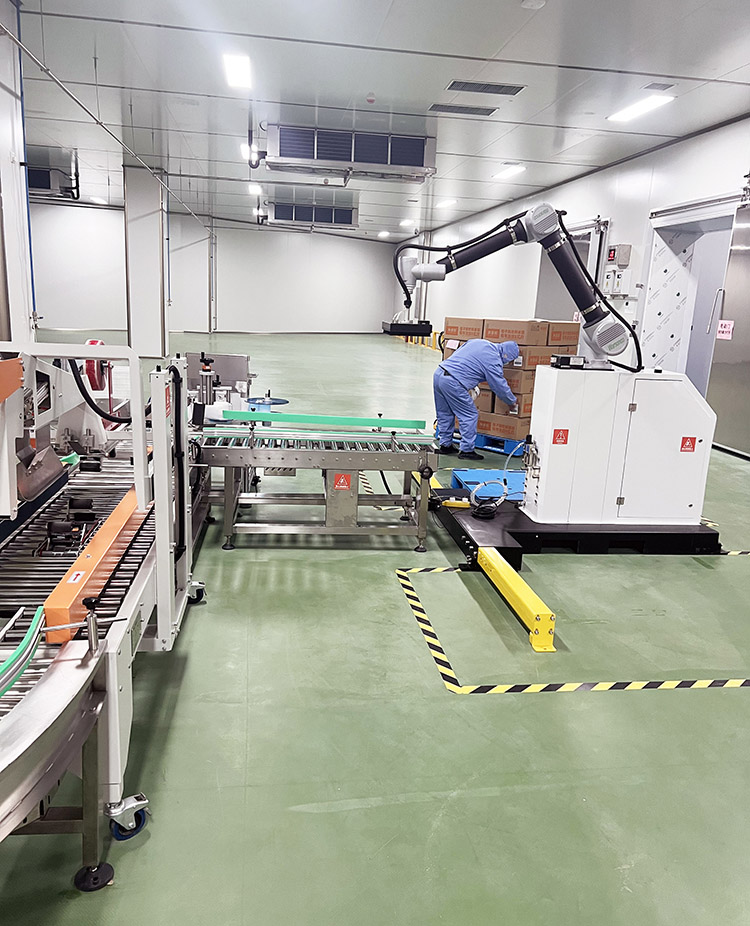

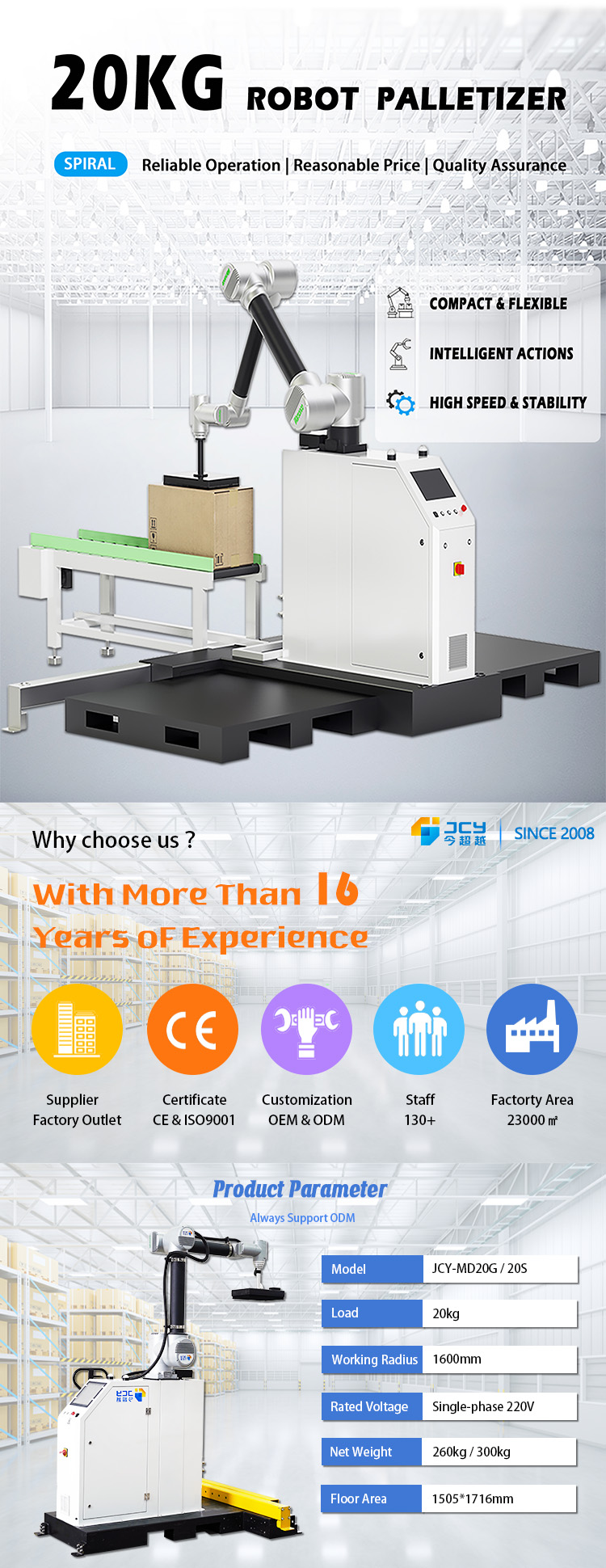

Collaborative Palletizer Robot
The collaborative palletizer robot is a device that automatically stacks bags, cartons or other packaging materials sent by the conveyor into pallets according to the working method required by the customer's process, and transports the palletized materials. Realize intelligent operation management, simple and easy to master. It can greatly reduce labor force and reduce labor intensity.
Robot Operation Palletizing System

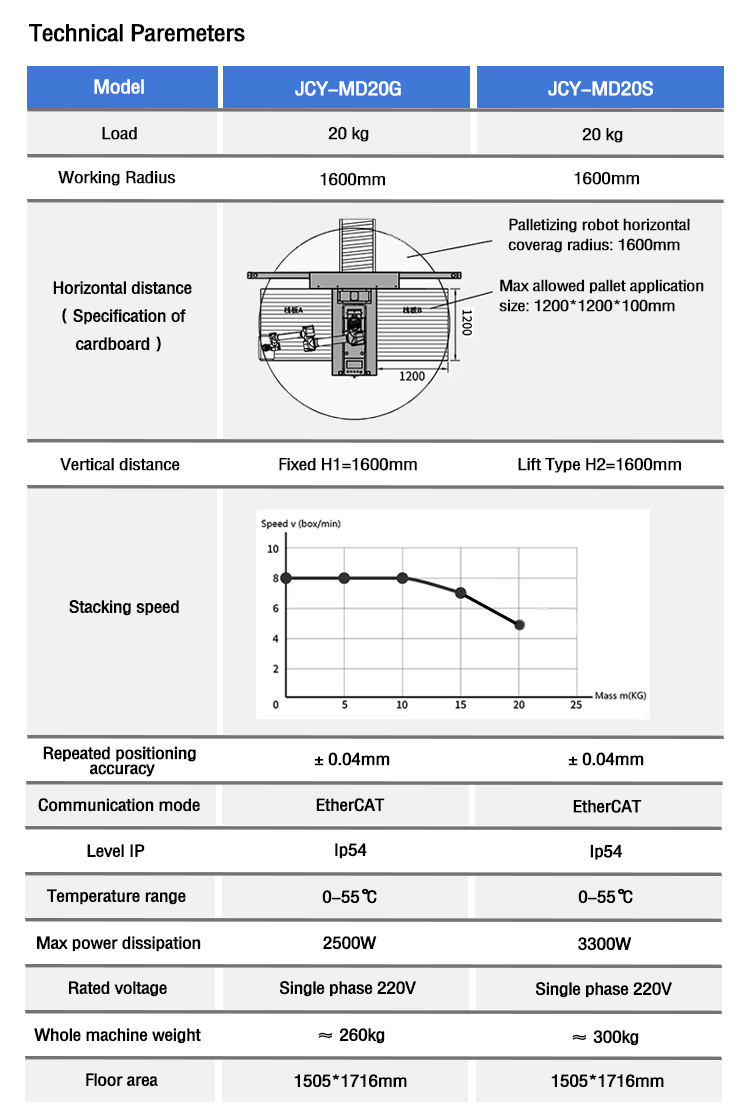

Product Parameters
Feature JCY-MD20G JCY-MD20S
Load20KG20KG
Working Radius1600MM1600MM
Vertical DistanceFixed H1=1600MMFixed H2=2100MM
Accuracy± 0.04MMFixed
CommunicationEtherCATEtherCAT
IP LevelIP54IP54
Temperature0-55℃0-55℃
Max Power2500W3300W
Voltage220V220V
Net WeightAbout 260KGAbout 300KG
Floor Area1505*1716MM1505*1716MM
Details Images
Detail 1 Detail 2
Production Process
Production Process Flow
Related Products
Related Product 1 Related Product 2 Related Product 3 Related Product 4
Profile & Capabilities
Facility 1 Facility 2 Facility 3
Certifications & Partners
Certifications
Partner 1 Partner 2 Partner 3
FAQ - Frequently Asked Questions
What is the maximum payload for these palletizer robots?
Both models JCY-MD20G and JCY-MD20S support a maximum load of 20KG.
What is the working radius of the equipment?
The collaborative palletizer robots have a standard working radius of 1600MM.
How precise is the positioning of the robot?
Model JCY-MD20G features a high repeated positioning accuracy of ± 0.04MM.
Can it operate in industrial environments with dust or moisture?
Yes, the equipment is rated at IP54, making it suitable for standard industrial conditions.
What communication mode does the system use?
The robots utilize the EtherCAT communication protocol for fast and reliable industrial connectivity.
What power supply is required for operation?
The robots are designed to operate on a rated voltage of 220V with a power dissipation between 2500W and 3300W depending on the model.
