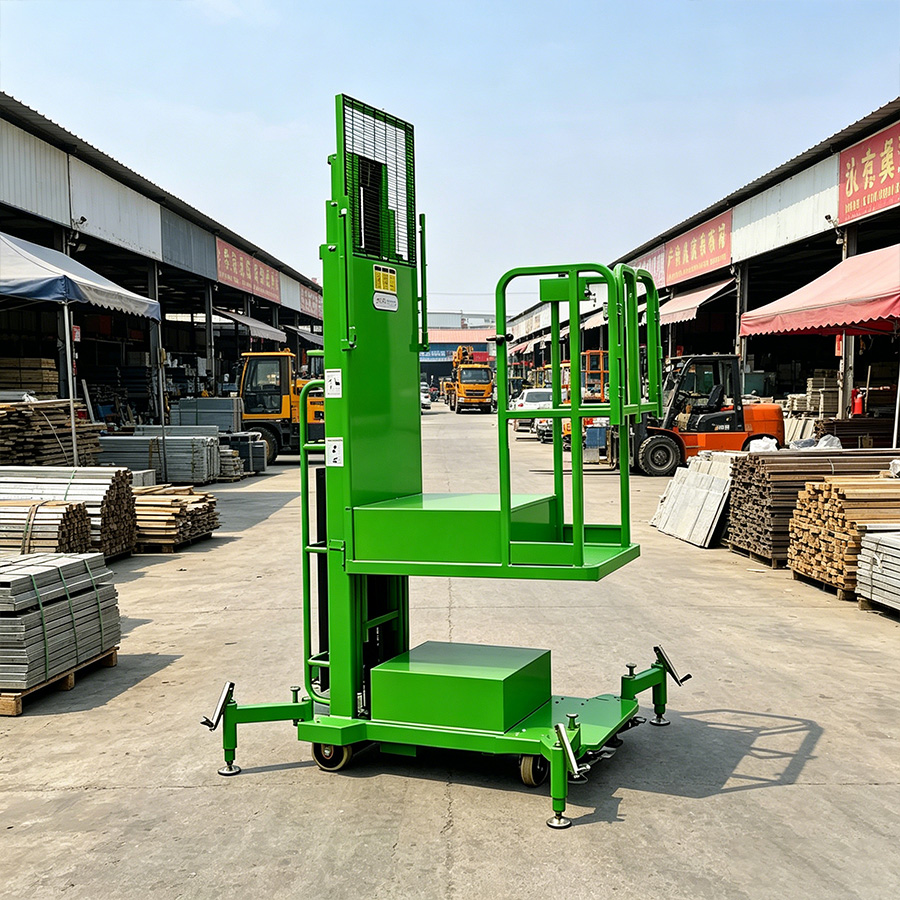

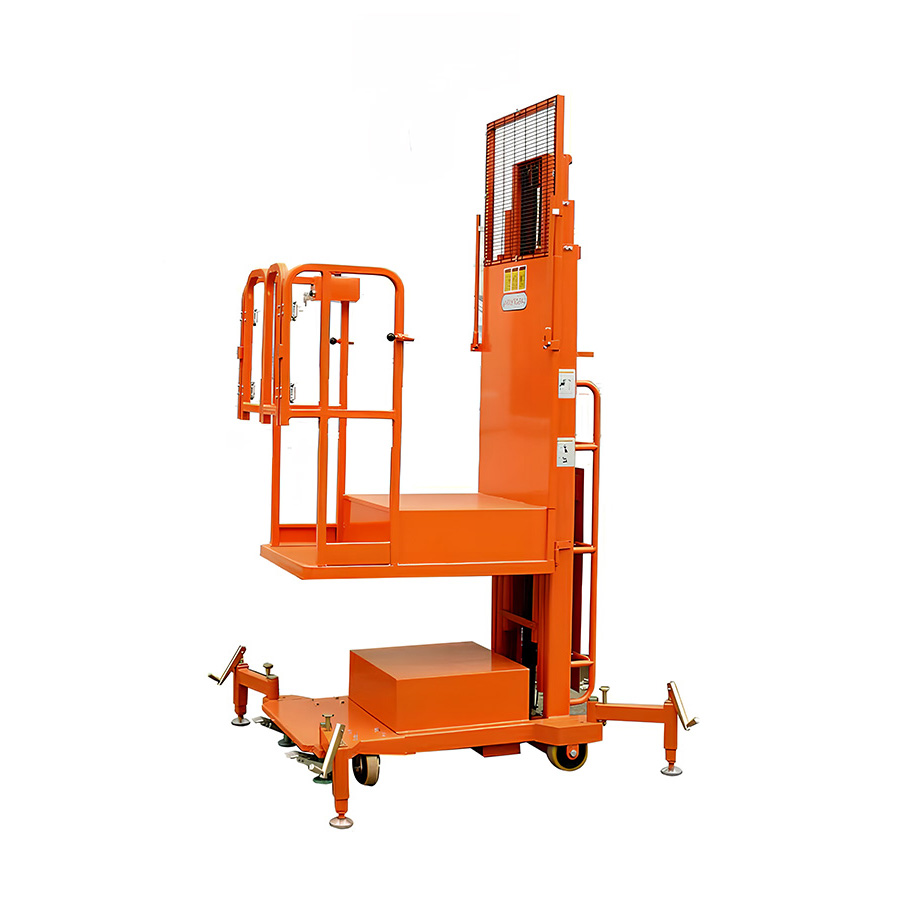

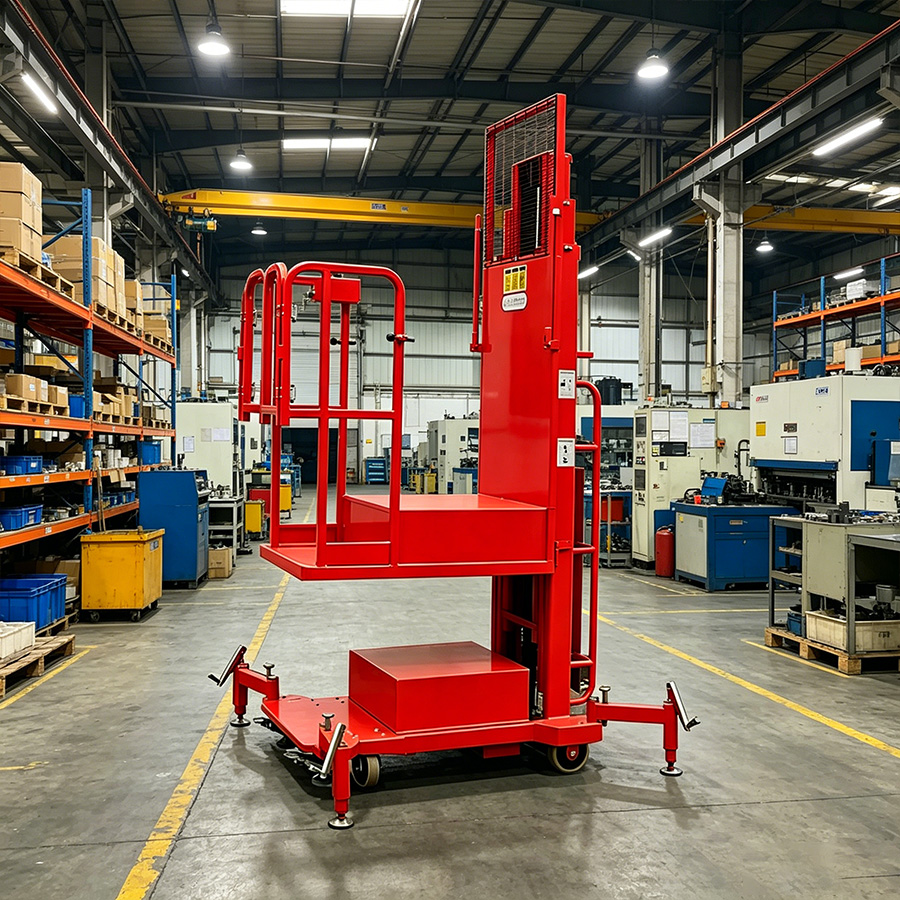

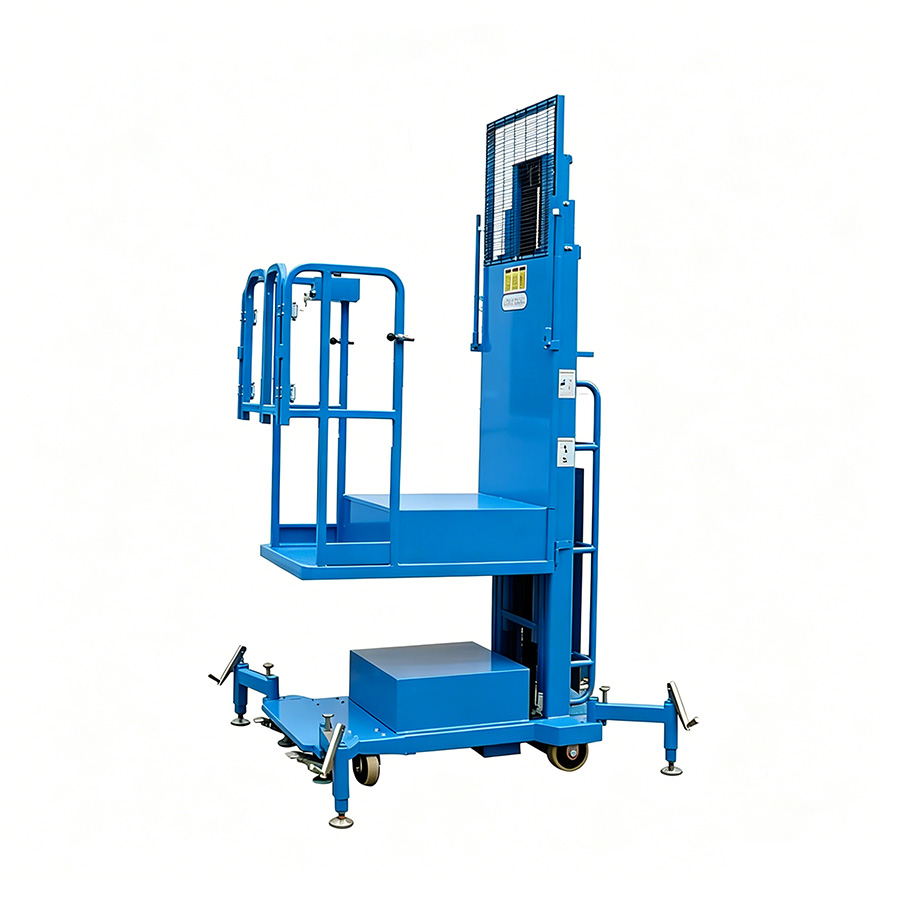

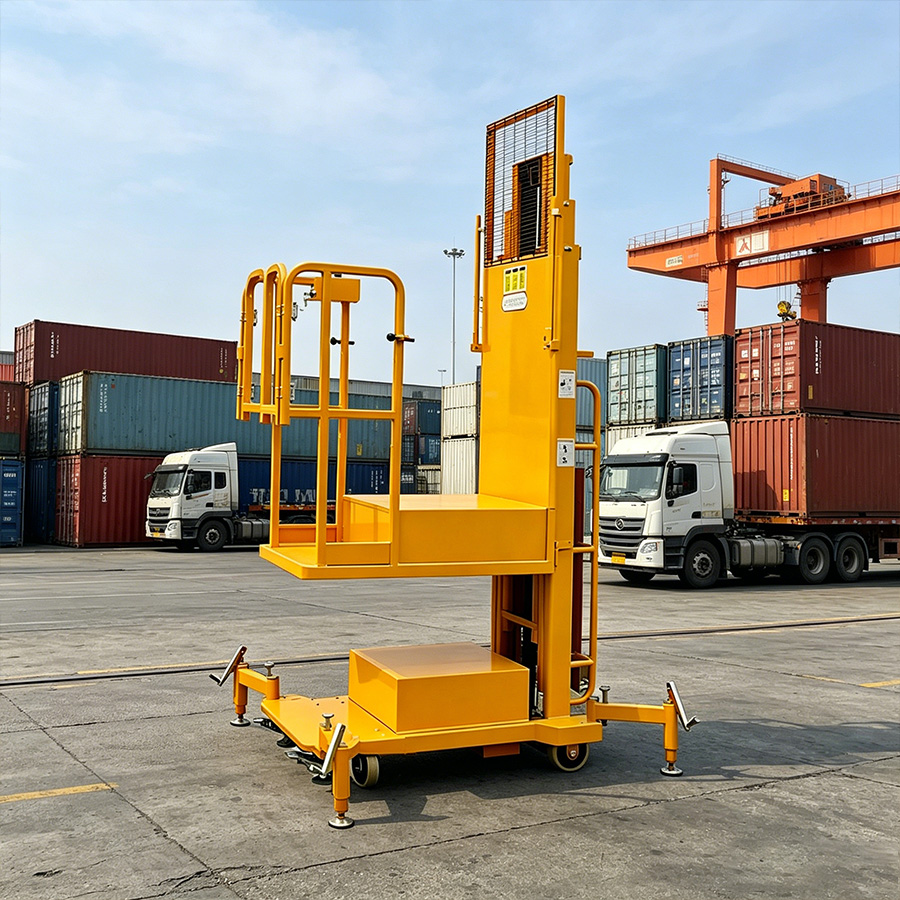

The fully electric high-level picking vehicle is an ideal choice for efficient warehouse picking and material handling. It is stable in lifting and smooth in movement. It supports long-term operation and can be flexibly operated in narrow passages. It has simple joystick control, a safe emergency stop, and is suitable for flat ground in distribution.
| Model Number | Unit | TLS2-2.7 | TLS2-3.3 | TLS2-4 | TLS2-4.5 |
|---|---|---|---|---|---|
| Max. Platform Height | mm | 2720 | 3300 | 4000 | 4500 |
| Max. Machine Height | mm | 4020 | 4900 | 5360 | 6050 |
| Ground Clearance | mm | 30 | 30 | 30 | 30 |
| Lift Rated Capacity | kg | 200 | 200 | 200 | 200 |
| Platform Size | mm | 600x640 | 600x640 | 600x640 | 600x640 |
| Lifting Motor | V/kW | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
| Aneroid Battery | V/Ah | 12/120 | 12/120 | 12/120 | 12/120 |
| Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length | mm | 1300 | 1300 | 1320 | 1320 |
| Overall Width | mm | 850 | 850 | 850 | 850 |
| Overall Height | mm | 1760 | 2040 | 1830 | 2000 |
| Overall Net Weight | kg | 270 | 320 | 380 | 420 |
Based on our unique "warehouse logistics ecosystem," we deliver full-scenario, one-stop solutions covering equipment, smart warehousing, software, and services.

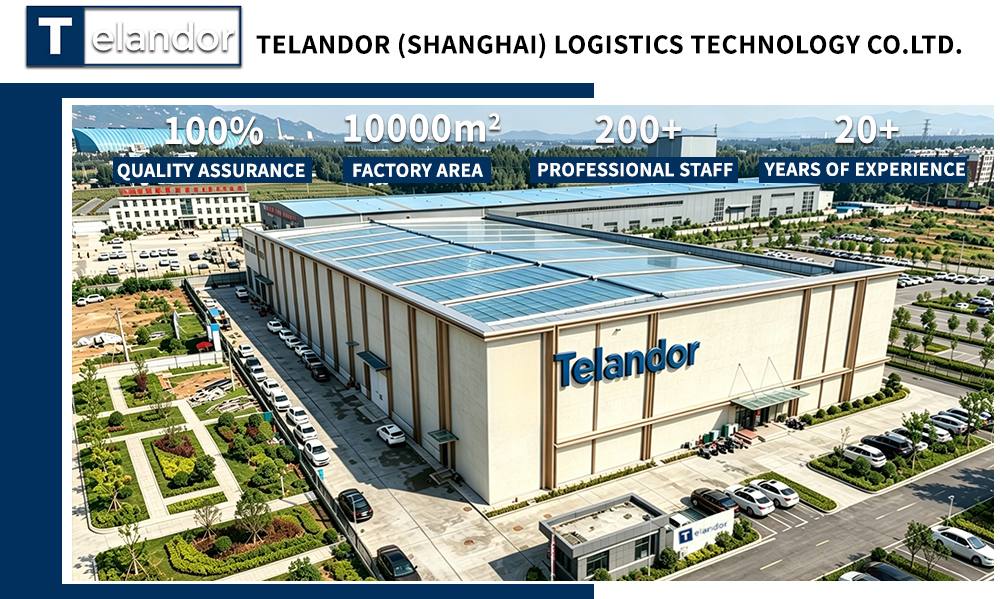

With industry experience since 2005 and annual turnover nearing RMB 300 million, we ensure full in-house control from design and production to after-sales, delivering precision through advanced technology and strict quality control.
Passed the CE certification, in accordance with standards such as 98/37/EC, EN92-1:1991, EN292-2-1991/EN280, CE/UKCA, 2006/42/EC, EN 280-1, ANSI A92, OSHA, AS/NZS, etc.
