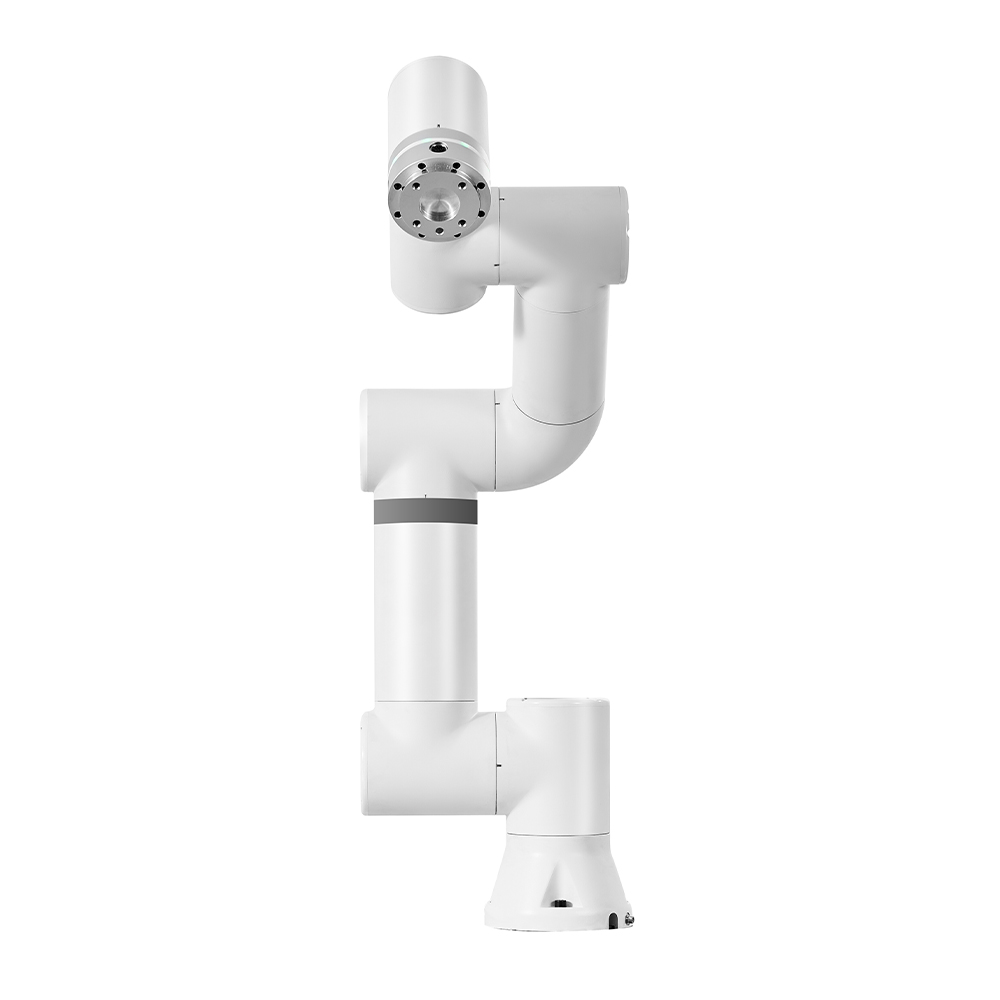

SWJD-M3 Automated Pick & Place System with Robotic Arm OpenCV Vision for Industrial Stacking Applications Collaborative Robots

Product Description

Products Description

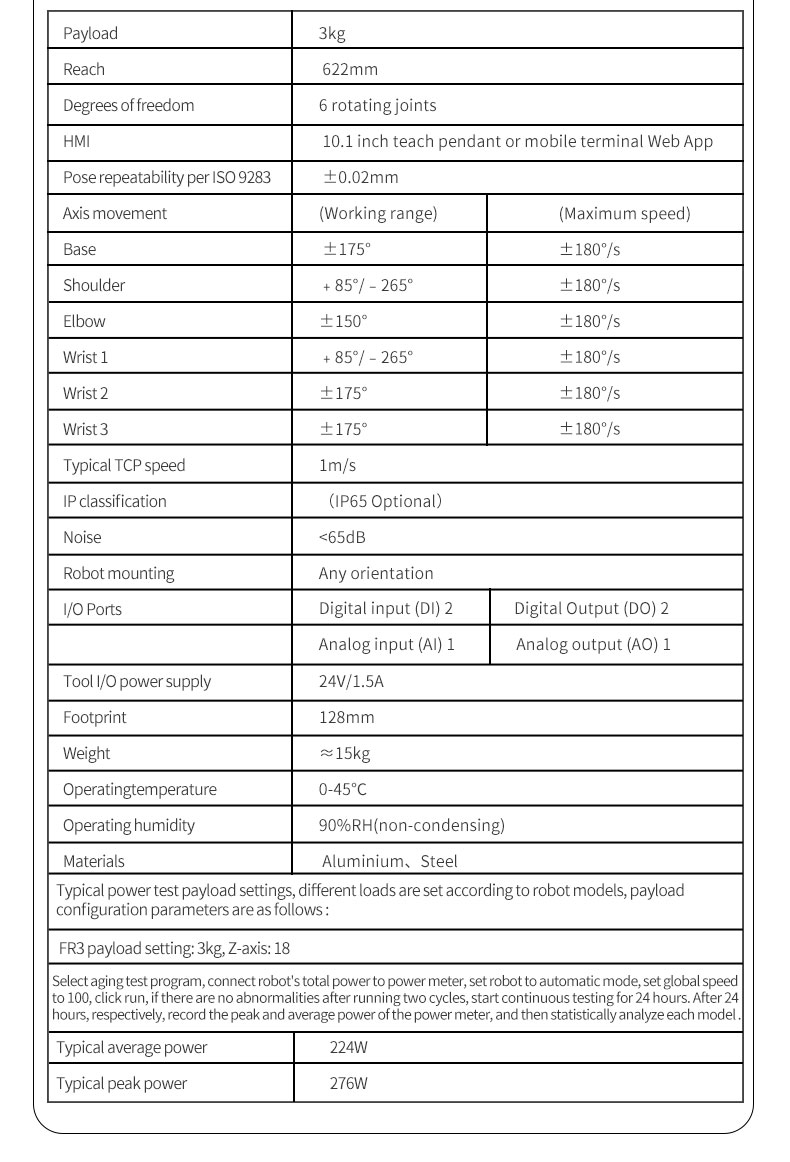

Specification Value
Payload 3 kg
Reach 622 mm
Degrees of Freedom 6 rotating joints
HMI 10.1-inch teach pendant or mobile terminal Web App
Pose Repeatability ±0.02 mm (per ISO 9283)
Axis Movement
  • Base: ±175°, ±180°/s
  • Shoulder: +85°/-265°, ±180°/s
  • Elbow: ±150°, ±180°/s
  • Wrist 1: +85°/-265°, ±180°/s
  • Wrist 2: ±175°, ±180°/s
  • Wrist 3: ±175°, ±180°/s
Typical TCP Speed 1 m/s
IP Classification IP65 (Optional)
Noise <65 dB
Robot Mounting Any orientation
I/O Ports
  • Digital Input (DI): 2
  • Digital Output (DO): 2
  • Analog Input (AI): 1
  • Analog Output (AO): 1
Tool I/O Power Supply 24V/1.5A
Footprint 128 mm
Weight ≈15 kg
Operating Temperature 0–45°C
Operating Humidity 90% RH (non-condensing)
Materials Aluminium, Steel
Typical Power Test Configuration
Parameter Setting
Payload FR3: 3 kg, Z-axis: 18
Test Program Aging test program with continuous operation for 24 hours after 2 cycles
Measurement Peak and average power recorded using a power meter
Results
  • Typical Average Power: 224W
  • Typical Peak Power: 276W
Robot details 1

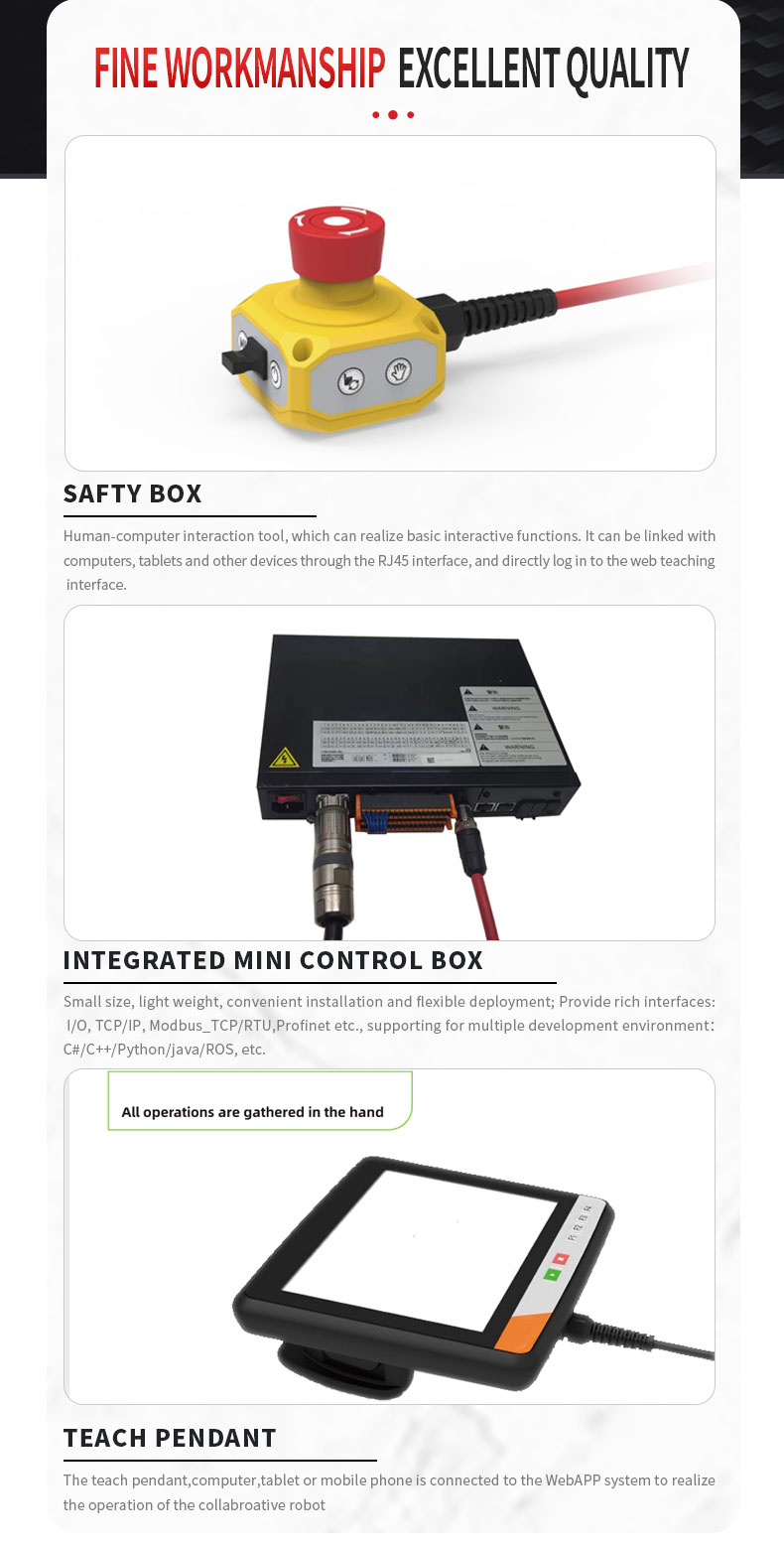

Robot details 2
Robot details 3

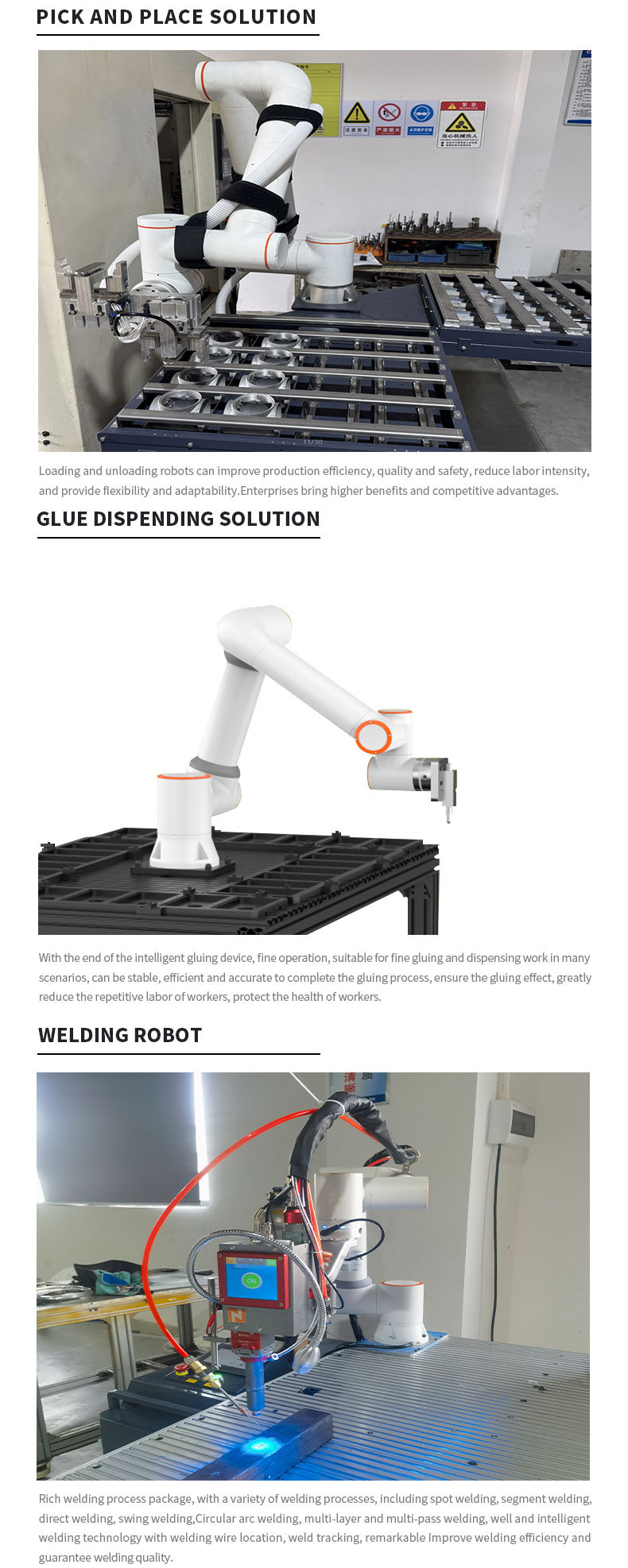

Robot details 4

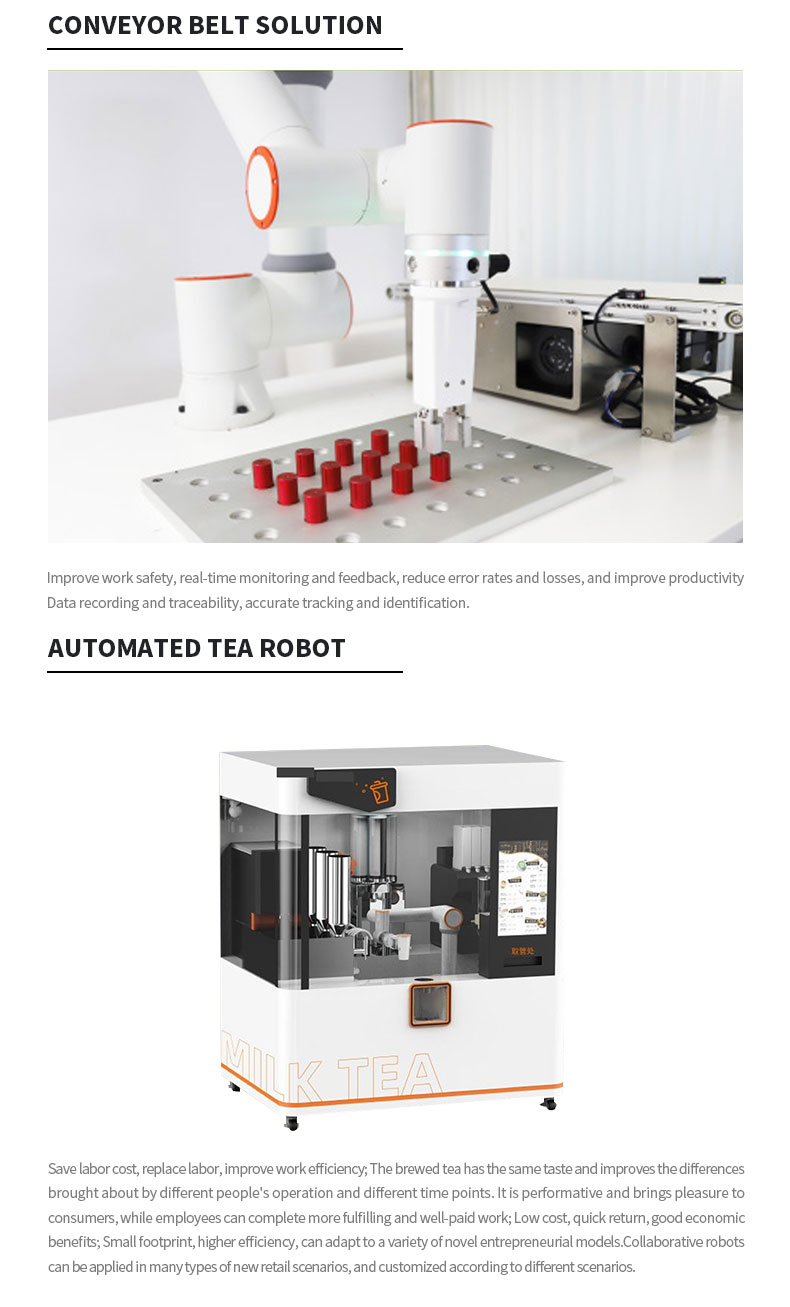

Robot details 5

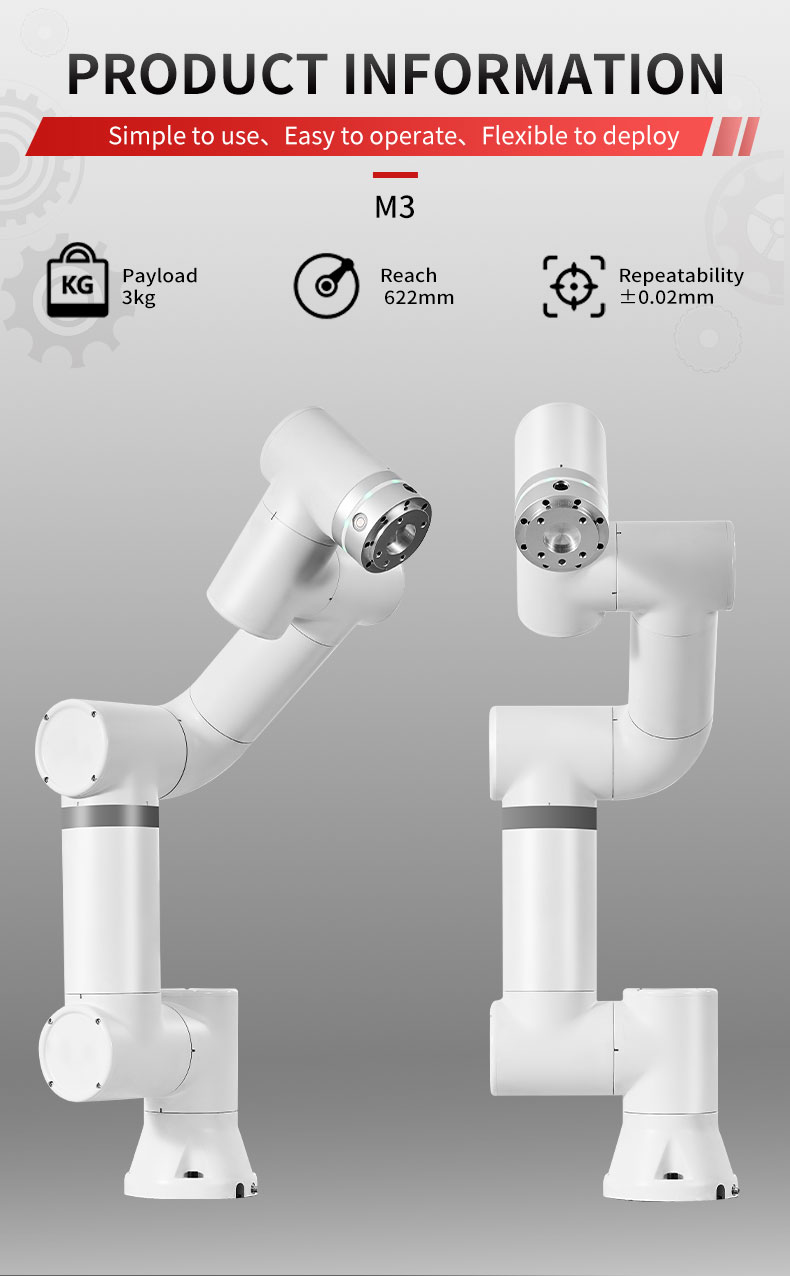

Robot details 6

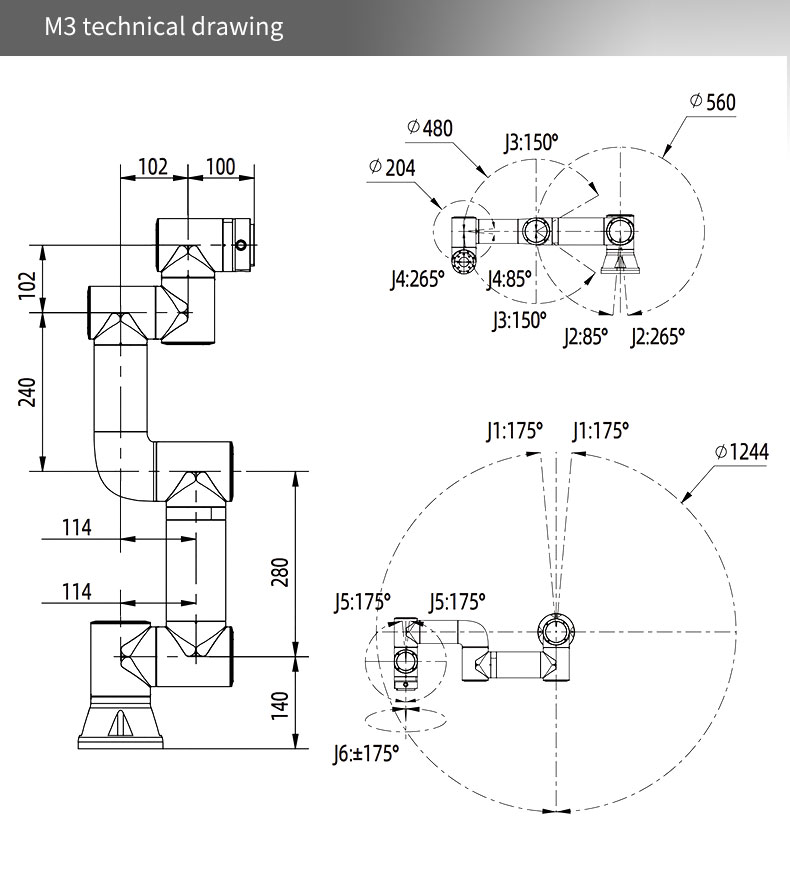

Robot details 7

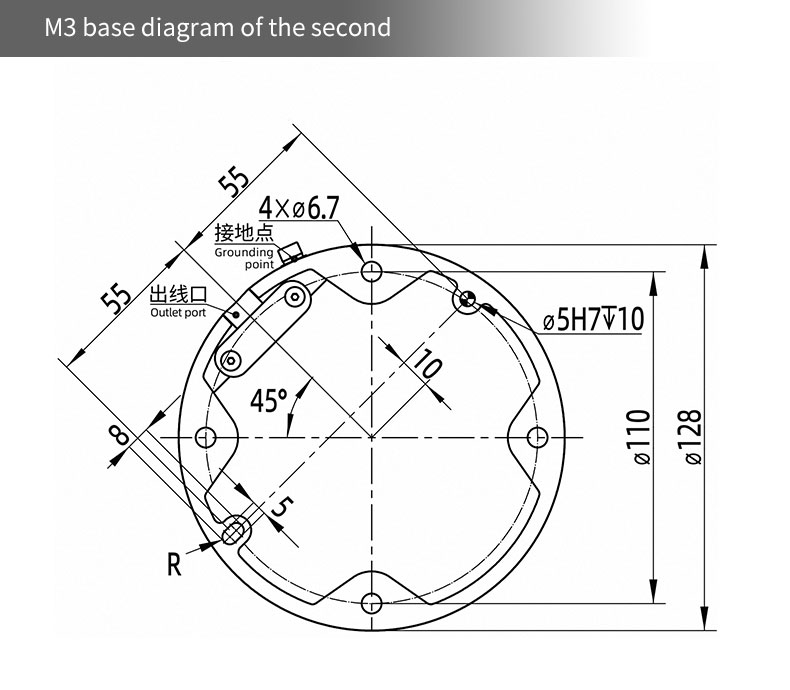

Robot details 8

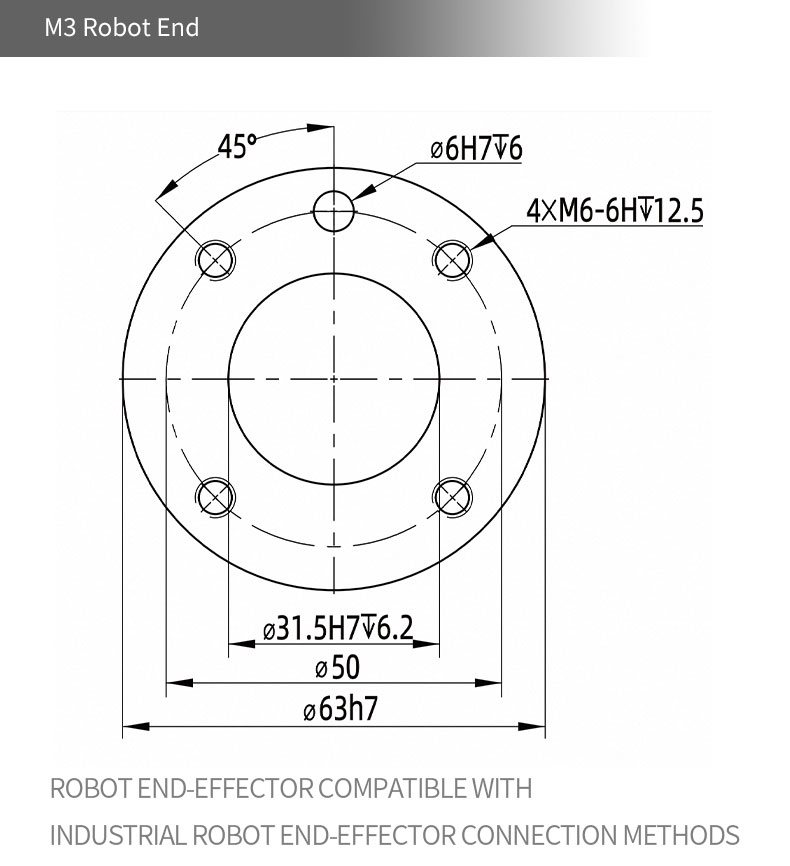

Robot details 9
Robot details 10
Product view 1

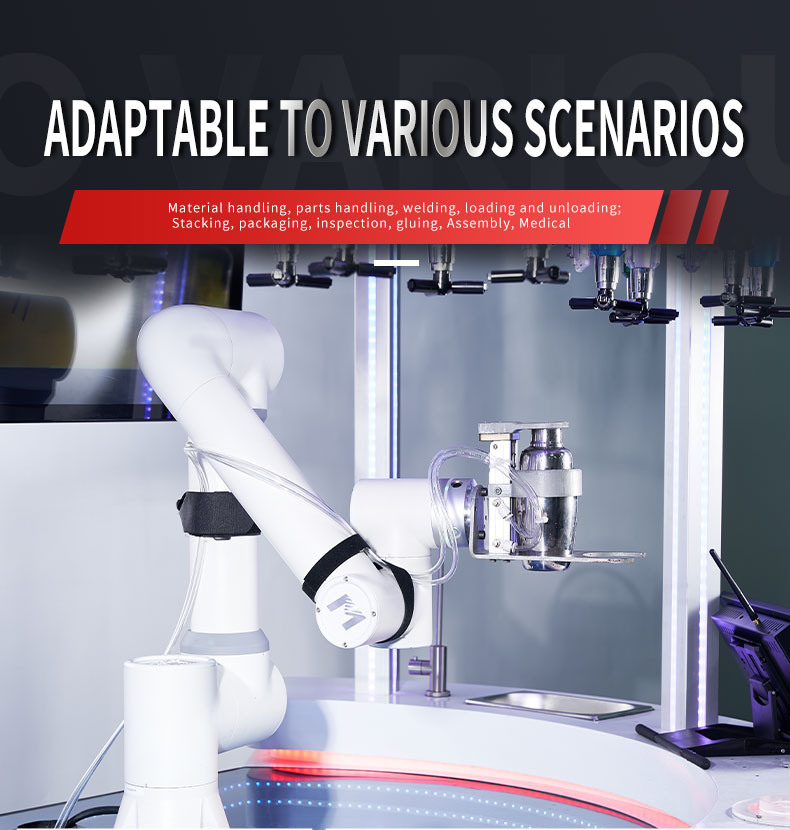

Product view 2

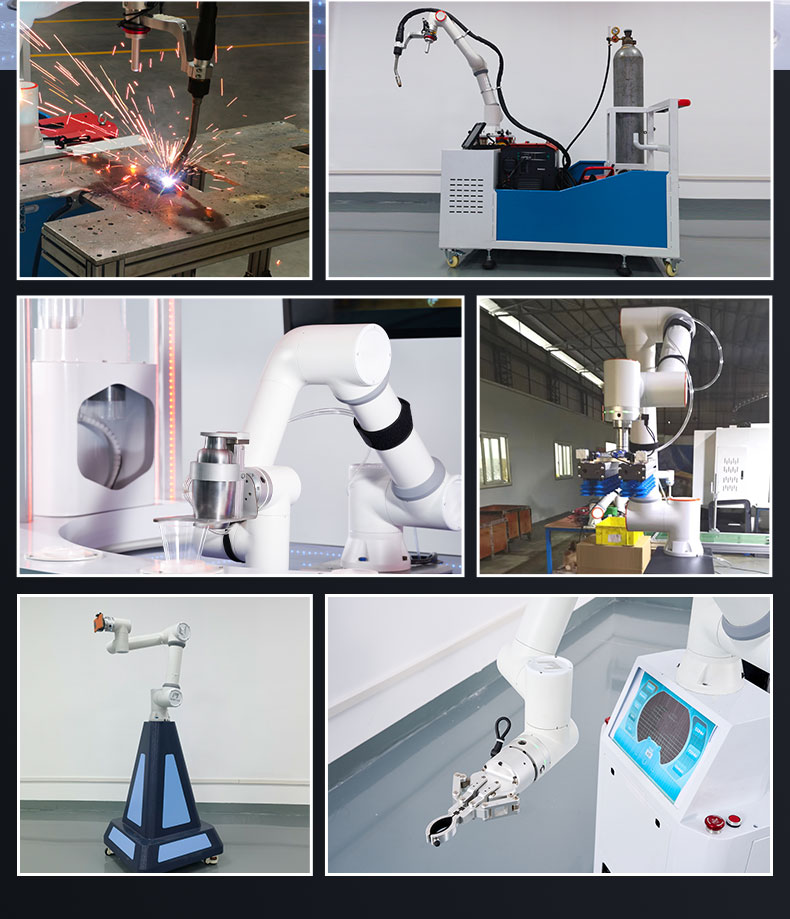

Product view 3
Product view 4
FAQ
Q How to choose the right robot model?
According to the application, your products weight and the needs of arm length. You can send us the video of your workers' operation, and then we will recommend the most suitable model for you.
Q Can I have my own customized product?
Yes. OEM are available, including logo, package etc.
Q What's the delivery time?
Within 20 days for normal order. The exact time depends on actual situation.
Q What can you buy from us?
Industrial Robot Arms for welding, painting & palletizing, handling materials/Pick and place, or grinding or other customized solution.
Q How do I install the machine? What services do you provide?
We have prepared a detailed user manual, installation guide, and installation video. These documents will be sent to you in advance for your reference. Upon arrival of your machine, we will immediately establish a dedicated online support team, and our engineers will provide guidance and assistance. We are available 24/7 to provide comprehensive support.
Q What should I do if there's something wrong with this machine?
We offer a one-year warranty on all machines. During this period, if any problem occurs with the machine, we will provide free parts (except for damage caused by human error). Even after the warranty period, we continue to offer lifetime service. If you have any questions, let us know and we guarantee a response within two hours, a solution within six hours, and a troubleshooting service within 24 hours.
