Product Description

Products Description

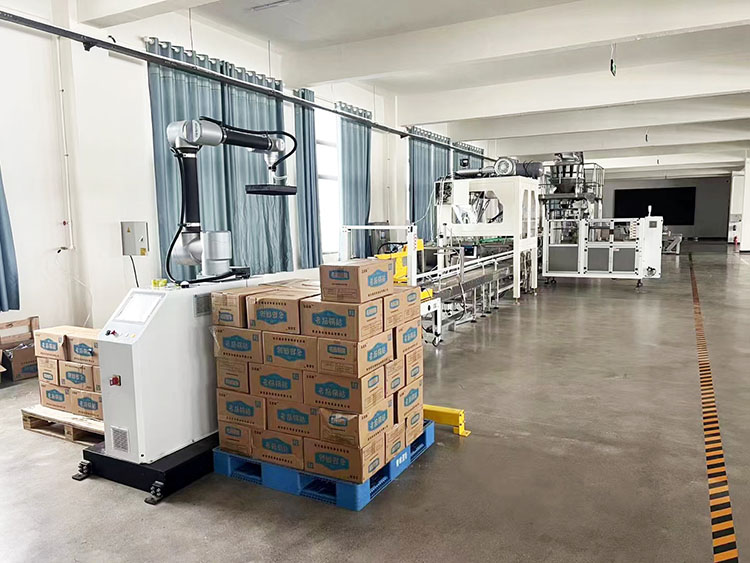

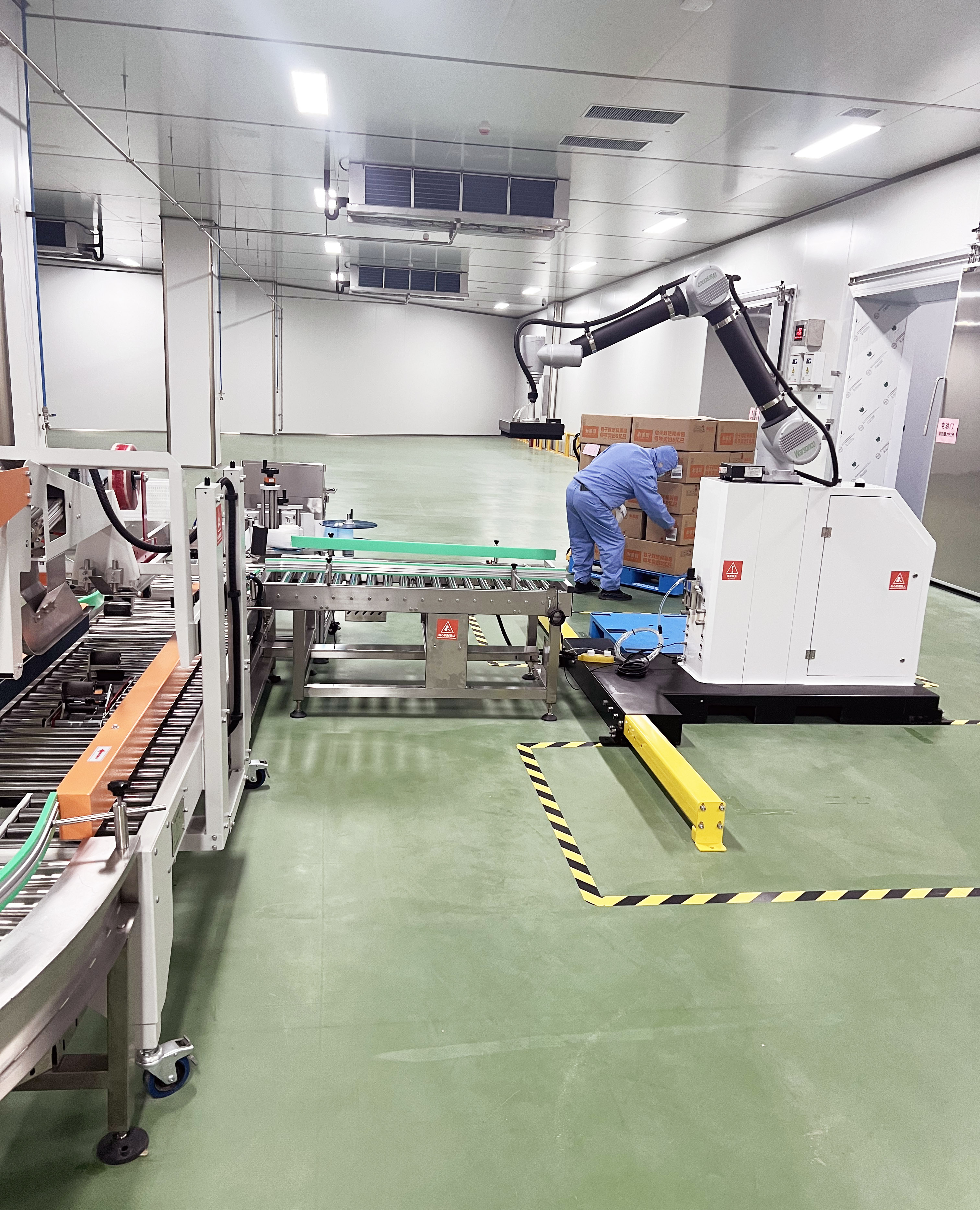

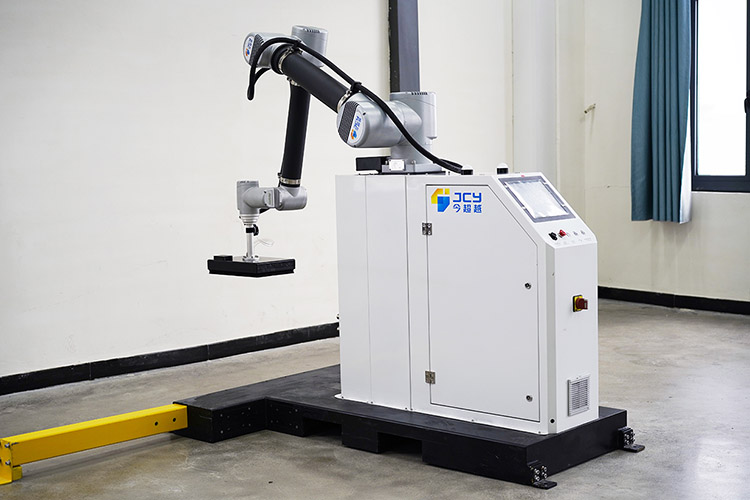

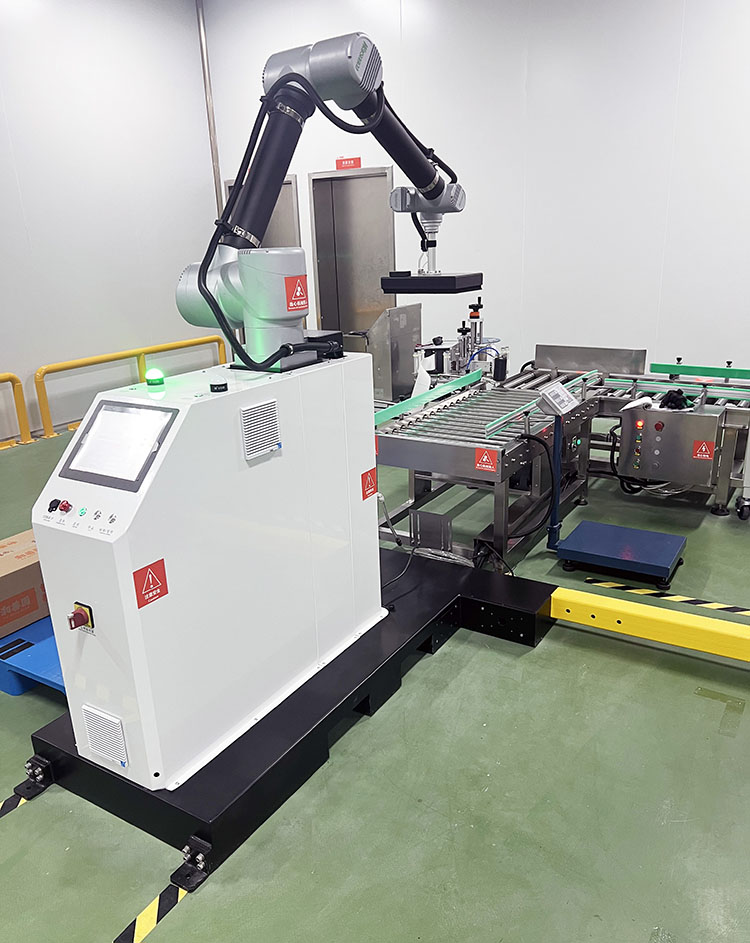

The collaborative palletizer robot is a device that automatically stacks bags, cartons or other packaging materials sent by the conveyor into pallets according to the working method required by the customer's process, and transports the palletized materials. Realize intelligent operation management, simple and easy to master. It can greatly reduce labor force and reduce labor intensity.

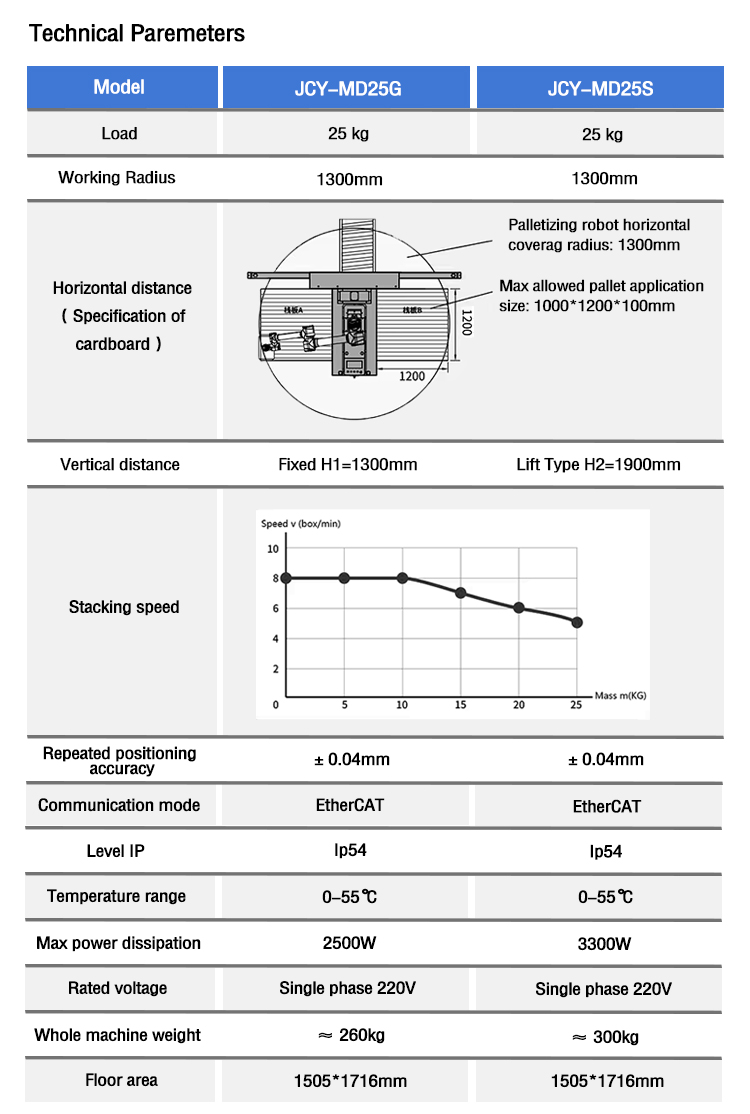

Product Parameters

Model	JCY-MD25G	JCY-MD25S
Load	25KG	25KG
Working Radius	1300MM	1300MM
Vertical Distance	Fixed H1=1300MM	Fixed H2=1900MM
Repeated Positioning Accuracy	± 0.04MM	Fixed
Communication Mode	EtherCAT	EtherCAT
Level IP	IP54	IP54
Temperature Range	0-55℃	0-55℃
Max Power Dissipation	2500W	3300W
Rated Voltage	220V	220V
Net Weight	About 260KG	About 300KG
Floor Area	1505*1716MM	1505*1716MM

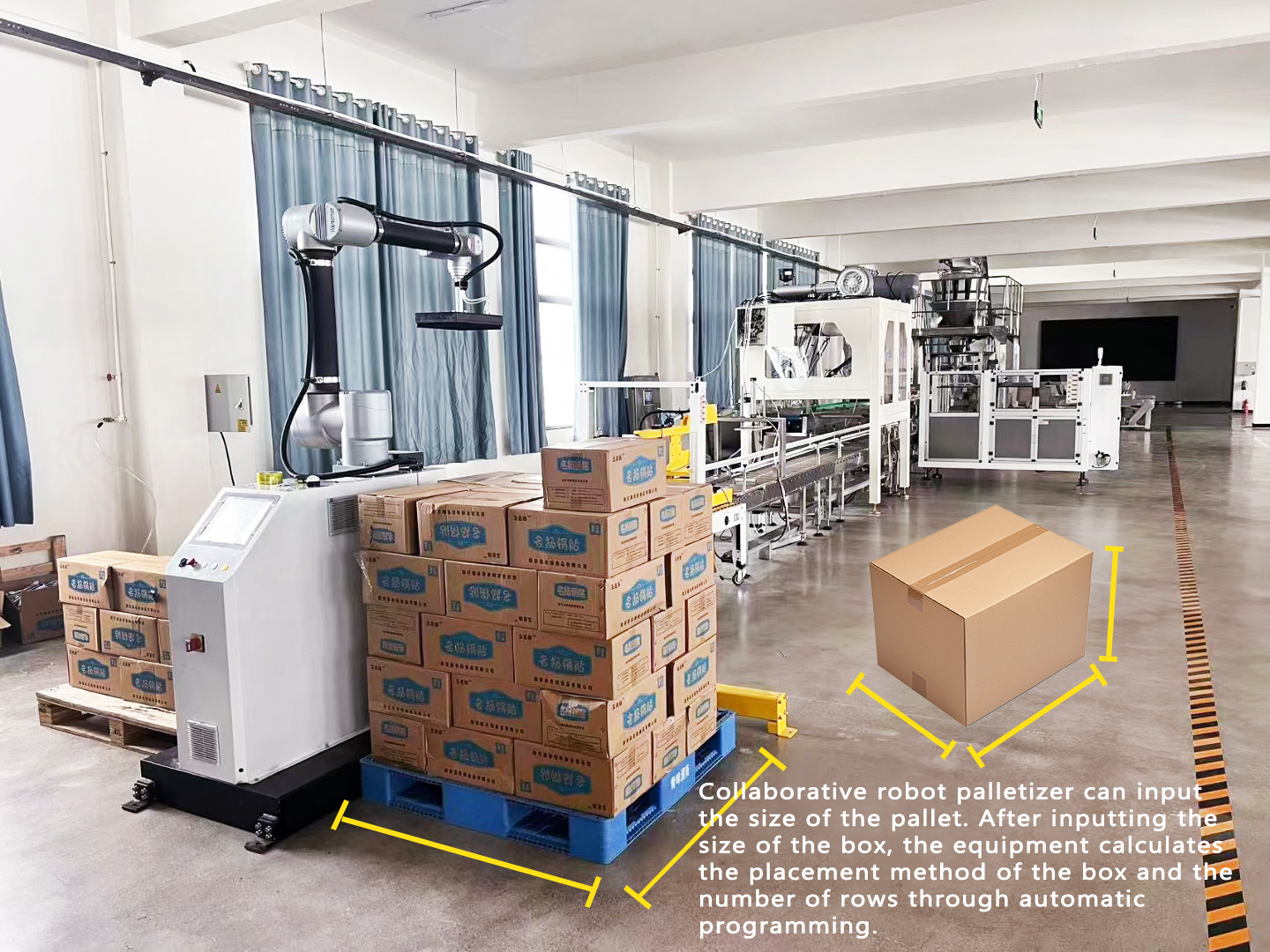

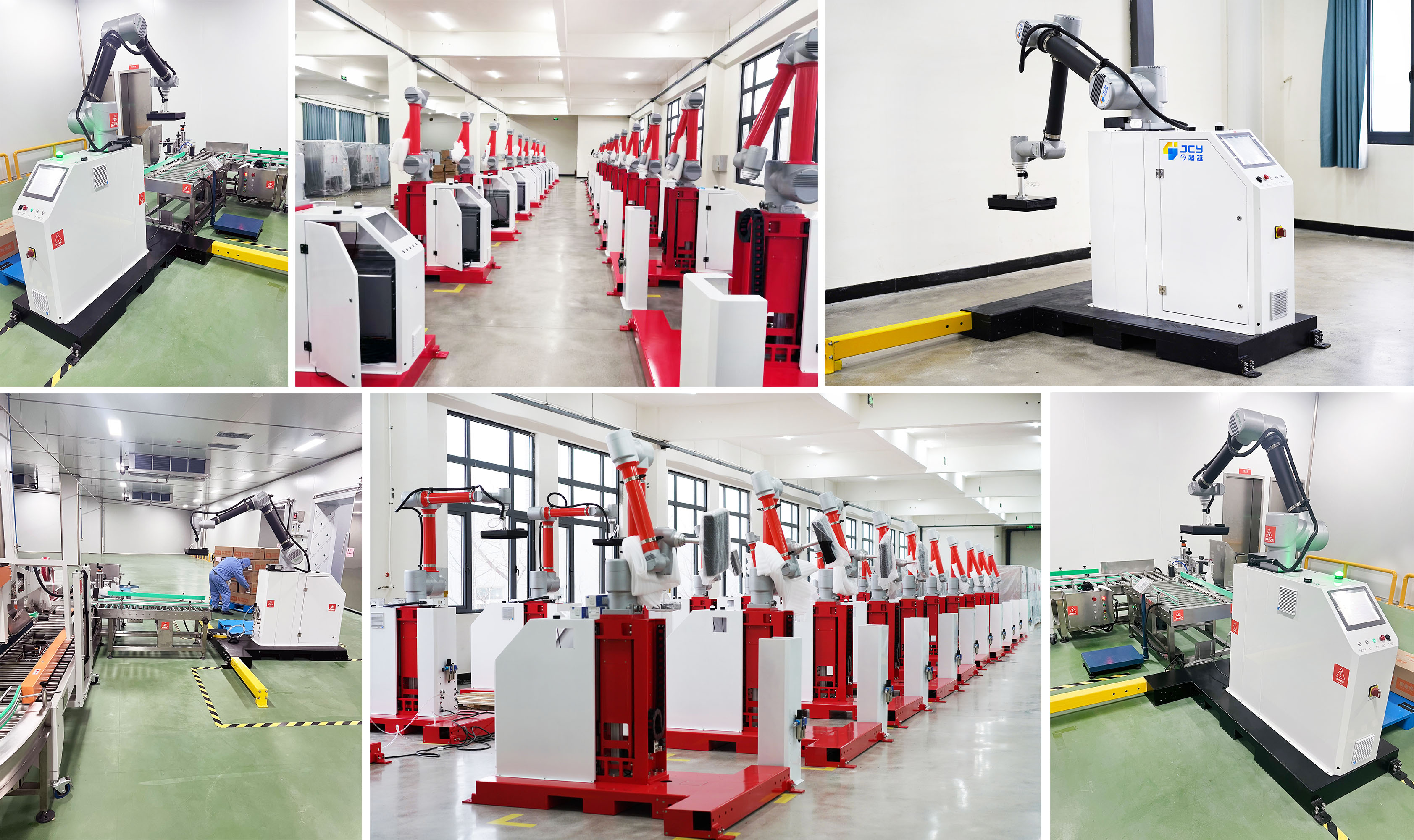

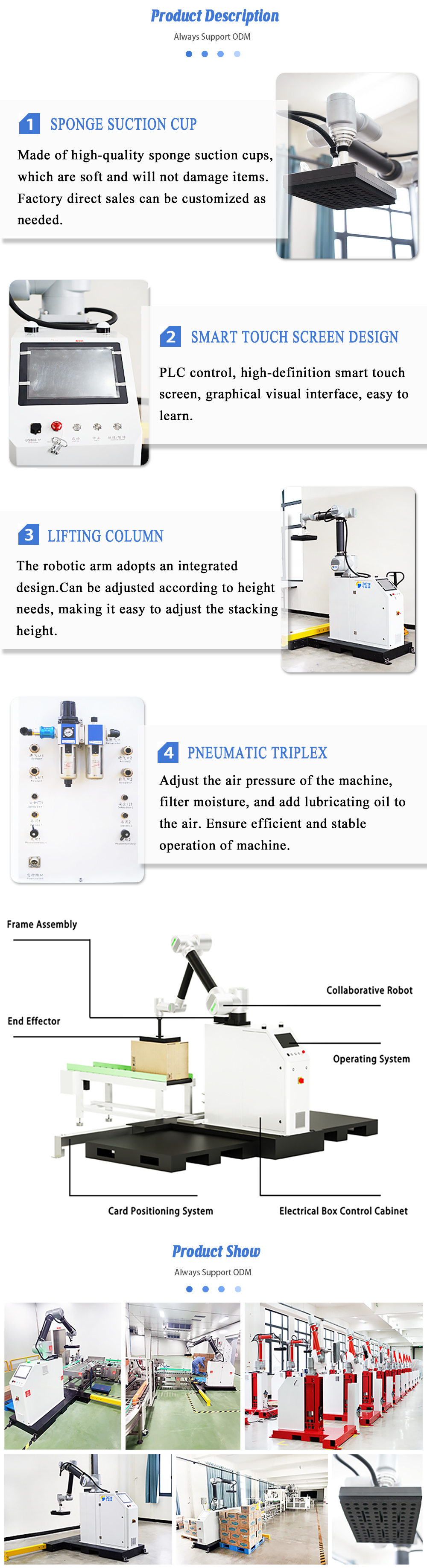

Details Images

Production Process

Related Products

Customer Photos

Certifications

Partners

Frequently Asked Questions

What is a collaborative palletizer robot?

A collaborative palletizer robot is an intelligent automation device designed to automatically stack bags, cartons, or other packaging materials onto pallets from a conveyor based on preset processes, reducing manual labor and increasing operational efficiency.

What is the payload capacity of these palletizers?

Both the JCY-MD25G and JCY-MD25S models feature a maximum load capacity of 25KG, making them suitable for handling standard heavy-duty packaging units.

What are the key differences between model JCY-MD25G and JCY-MD25S?

The primary differences are their vertical distance range and power consumption. The JCY-MD25G has a fixed vertical distance of 1300MM with a maximum power dissipation of 2500W, while the JCY-MD25S extends to a fixed vertical distance of 1900MM and has a maximum power dissipation of 3300W.

How accurate is the robotic positioning?

The JCY-MD25G model offers high-precision operation with a repeated positioning accuracy of ± 0.04MM, ensuring precise and neat stacking layouts.

What communication protocols and environment standards are supported?

The robots utilize EtherCAT for high-performance communication, feature an IP54 protection level, and are rated to operate safely within a temperature range of 0°C to 55°C.

Is the system easy to operate and manage?

Yes, the system is designed for intelligent operation management, making it simple and easy to master, which significantly reduces standard setup time and operator training requirements.
