Automated Storage Retrieval Systems (ASRS)

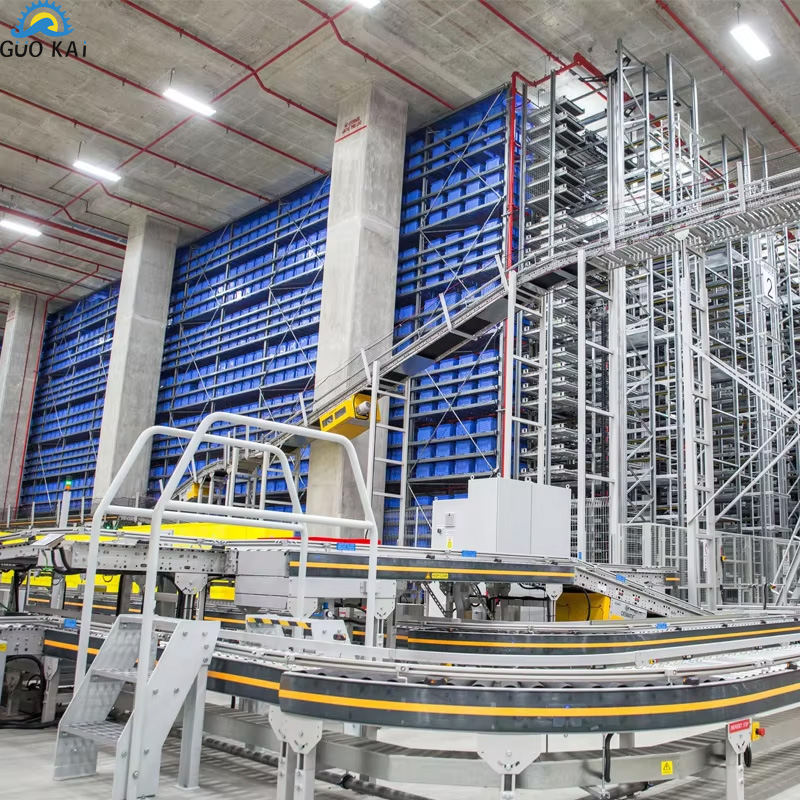

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.

Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.

Advantages

• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises

Manufacturing Technique

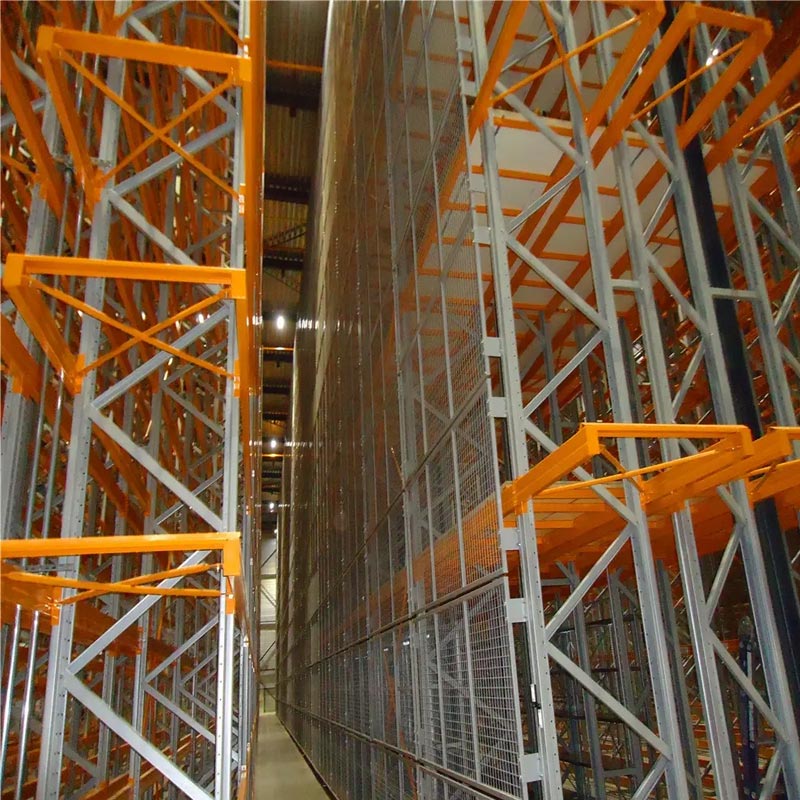

Racking

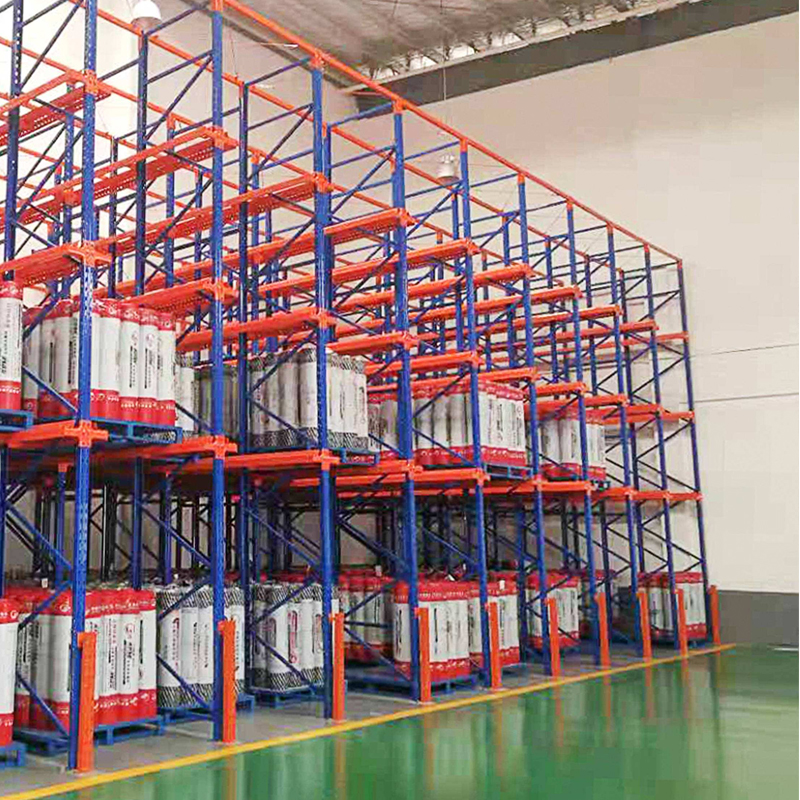

ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity.

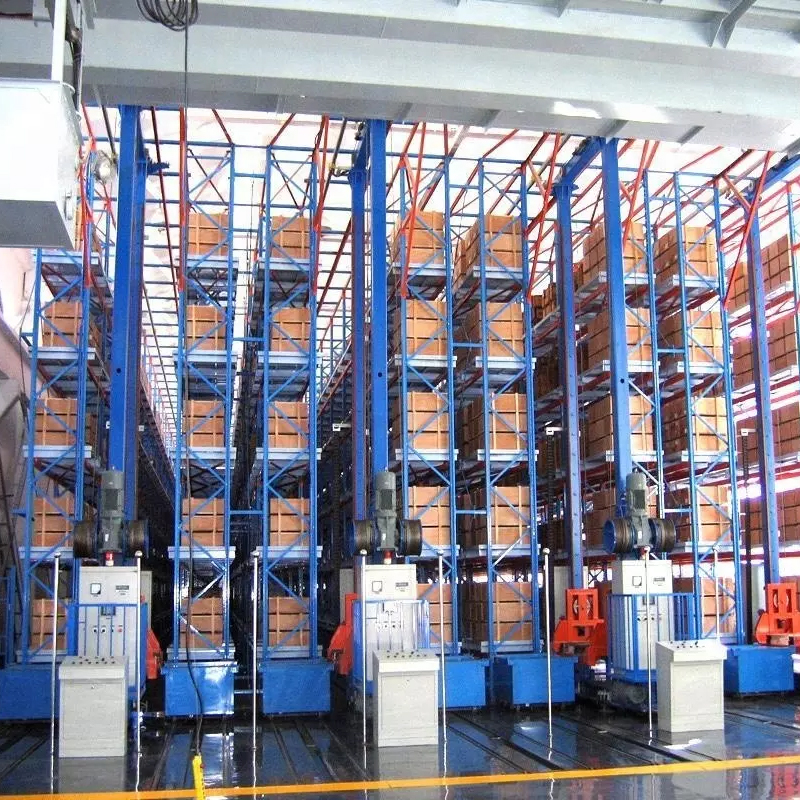

Stacker

Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system.

Conveying system

Conveying system is usually equipped in the front or back of warehouse for conveying goods, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor.

Controlling system

Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline.

Product Parameters

Gallery & Configuration
