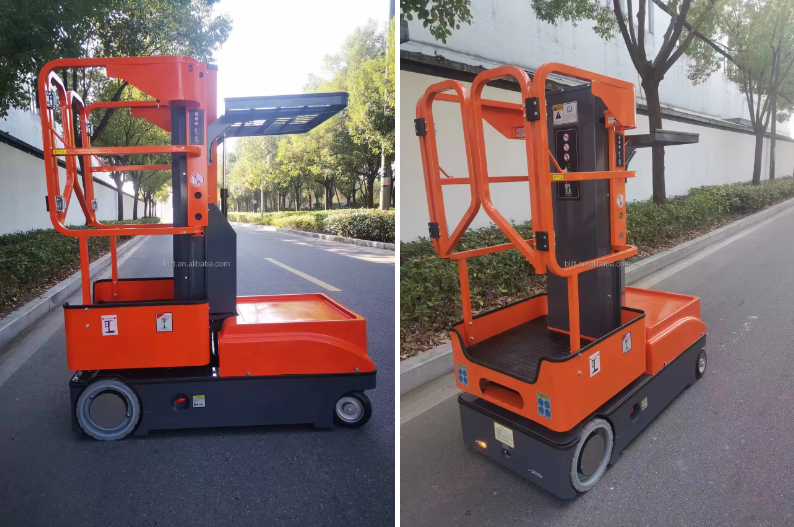

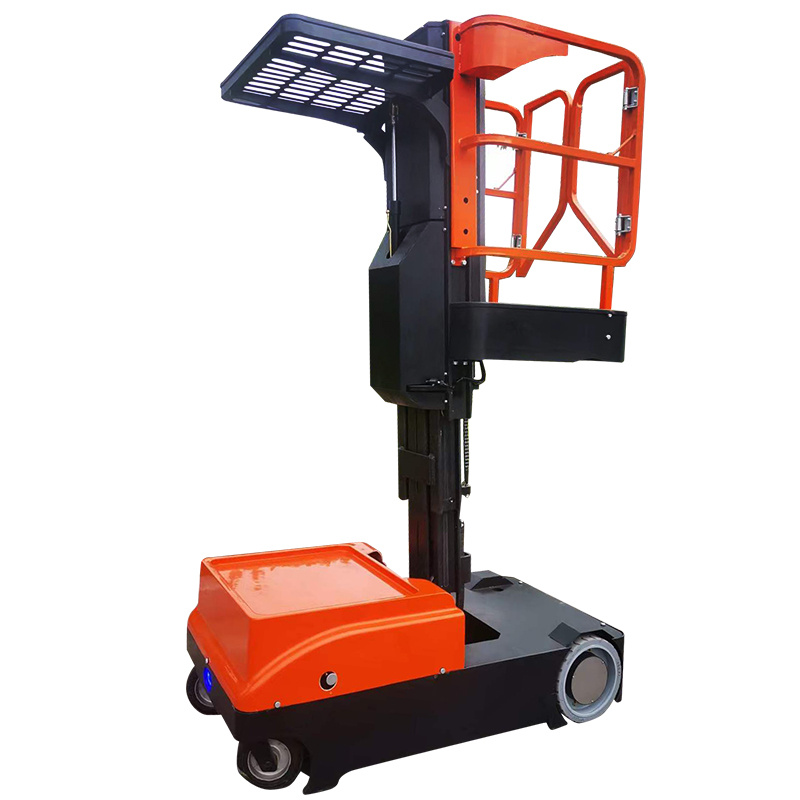

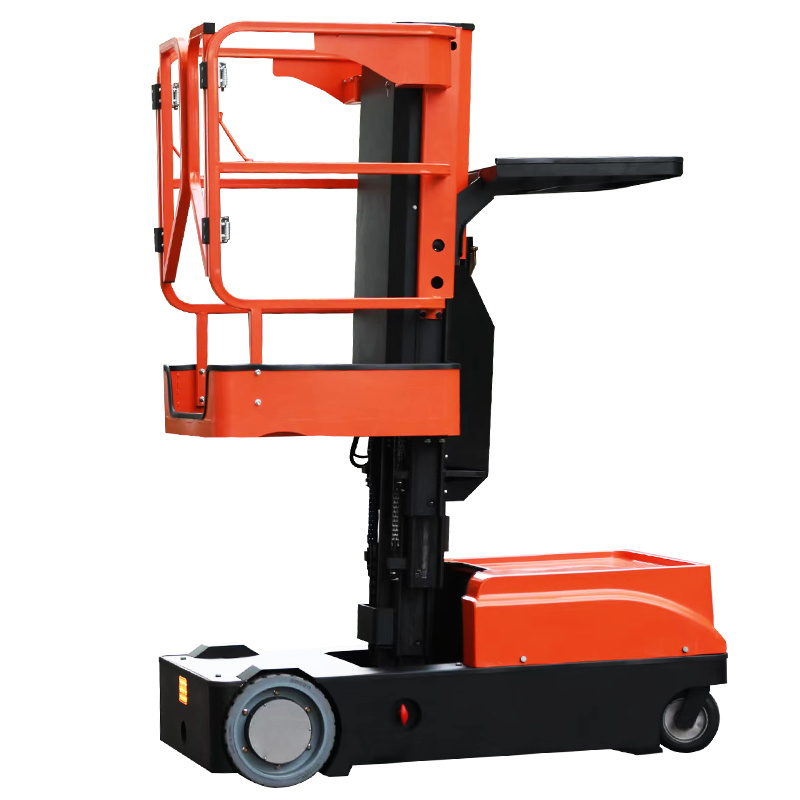

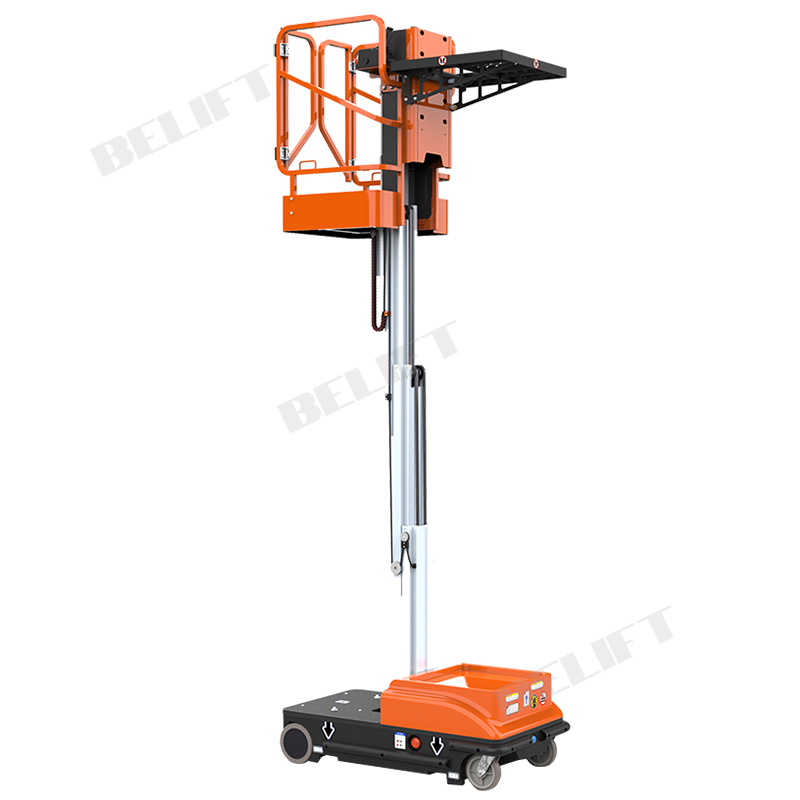

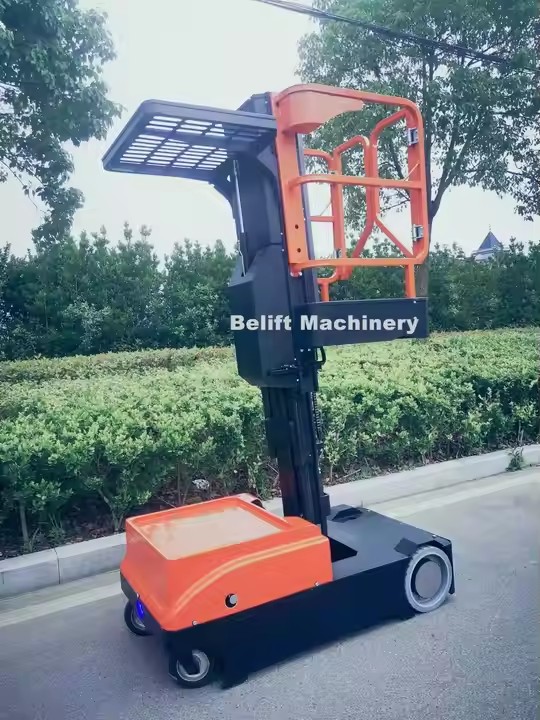

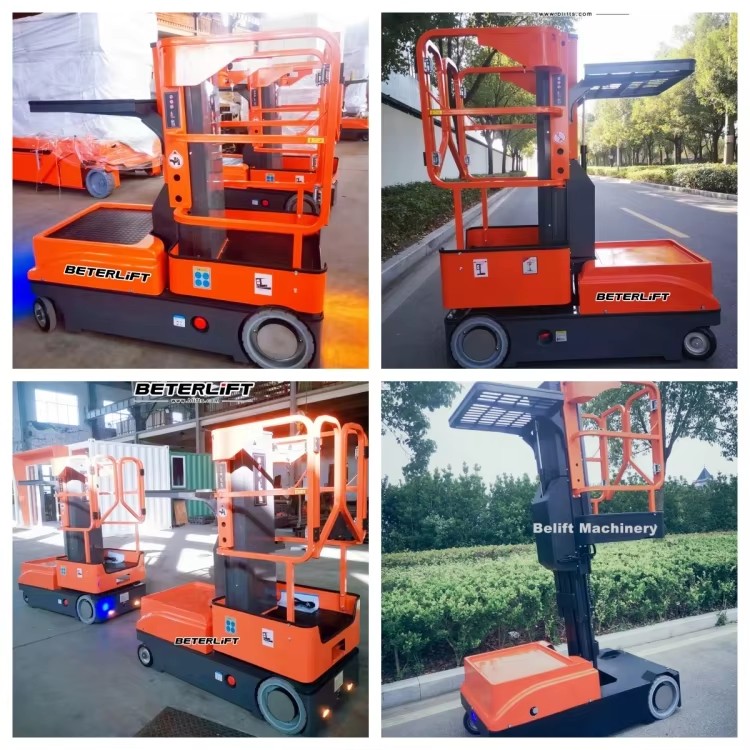

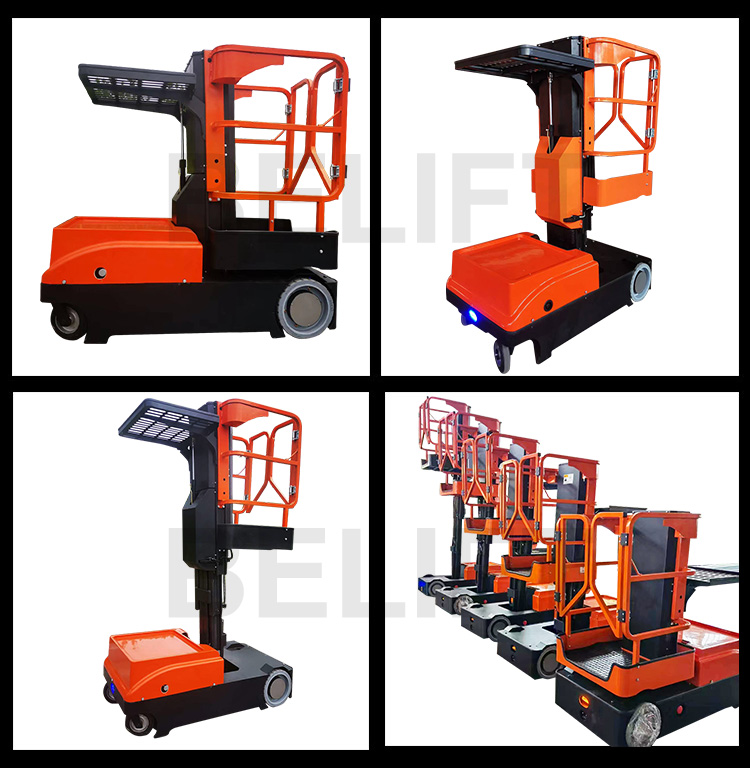

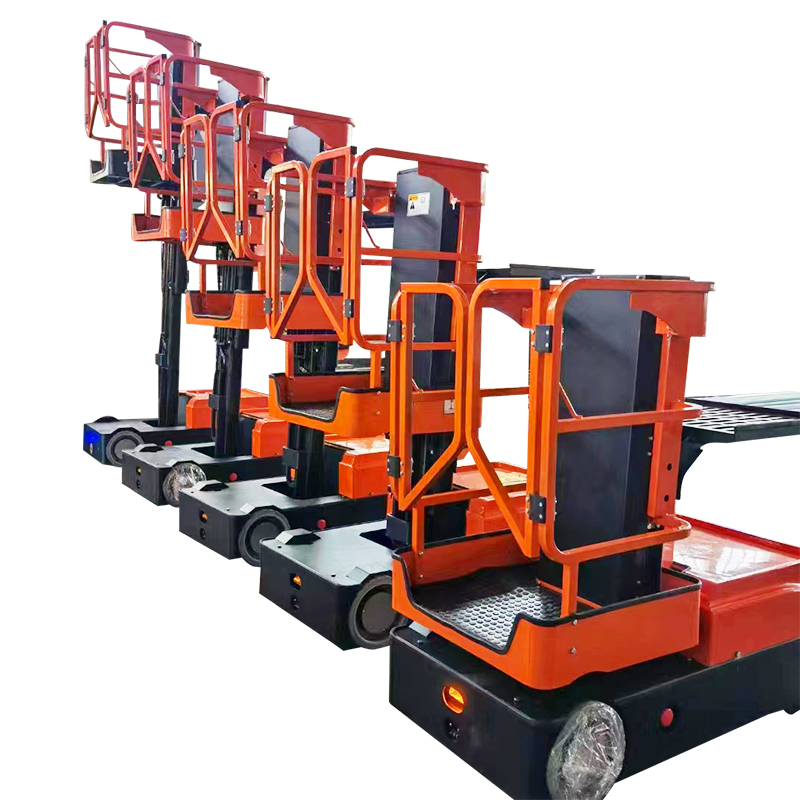

This high end electric self propelled order picker is specially designed for indoor and outdoor aerial works with lower heights and narrow spaces. Featuring compact sizes, lightweight build, and a strengthened structure, it is portable and easy to operate.

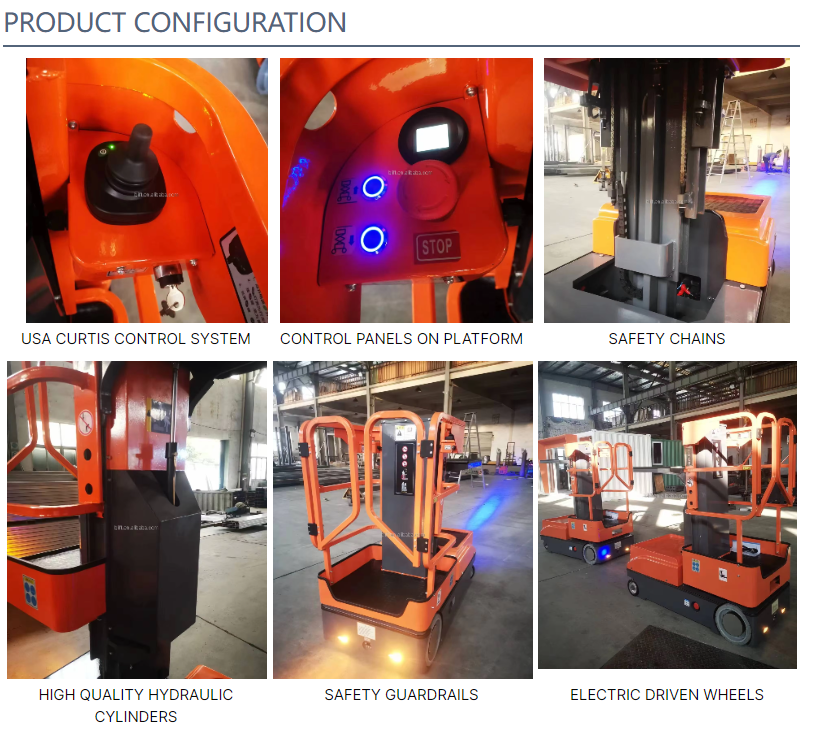

Safety precautions are equipped to keep the machinery stable and steady. With automatic walking, turning, and lifting functions, this self-propelled order picker significantly improves operational working efficiency.
Currently, this self-propelled order picker is widely implemented in supermarkets, warehouses, workshops, theaters, galleries, and similar environments.
| Body Parameters | ||
|---|---|---|
| Model Specifications | EAP-H5 | EAP-H6 |
| Maximum platform height (mm) | 3000mm | 4000mm |
| Max working height(mm) | 5000mm | 6000mm |
| Max machine height (mm) | 4125mm | 5125mm |
| Overall machine length (mm) | 1480mm | |
| Overall machine width (mm) | 756mm | |
| Overall machine height (mm) | 1475mm | 1805mm |
| Standing platform size (mm) | 695*720mm | |
| Grid platform size (mm) | 550*740mm | |
| Standing platform load (kg) | 150kg | |
| Grid platform load (kg) | 90kg | |
| Grid platform travel (mm) | 480mm | |
| Minimum turning radius (mm) | 1700mm | |
| Guardrail height (mm) | 1100mm | |
| Ground clearance (mm) | 15mm | |
| Overall machine weight (kg) | 840kg | 870kg |
| Performance Parameters | ||
| Ascending/descending time (sec) | 30/40sec | 40/50sec |
| Maximum climbing ability | 5° - 8° | |
| Front tire size (mm) | Φ200*50mm | |
| Rear tire size (mm) | Φ305*100mm | |
| Lifting motor (V/Kw) | 24V/0.8kw | |
| Drive motor (V/lkw) | 24V/0.5kwx2 | |
| Driving speed (Km/h) | 0-4Km/h | |
| DC battery voltage/capacity (V/Ah) | 2×12V/100Ah | |
| DC charger (V/A) | 24V/15A | |
