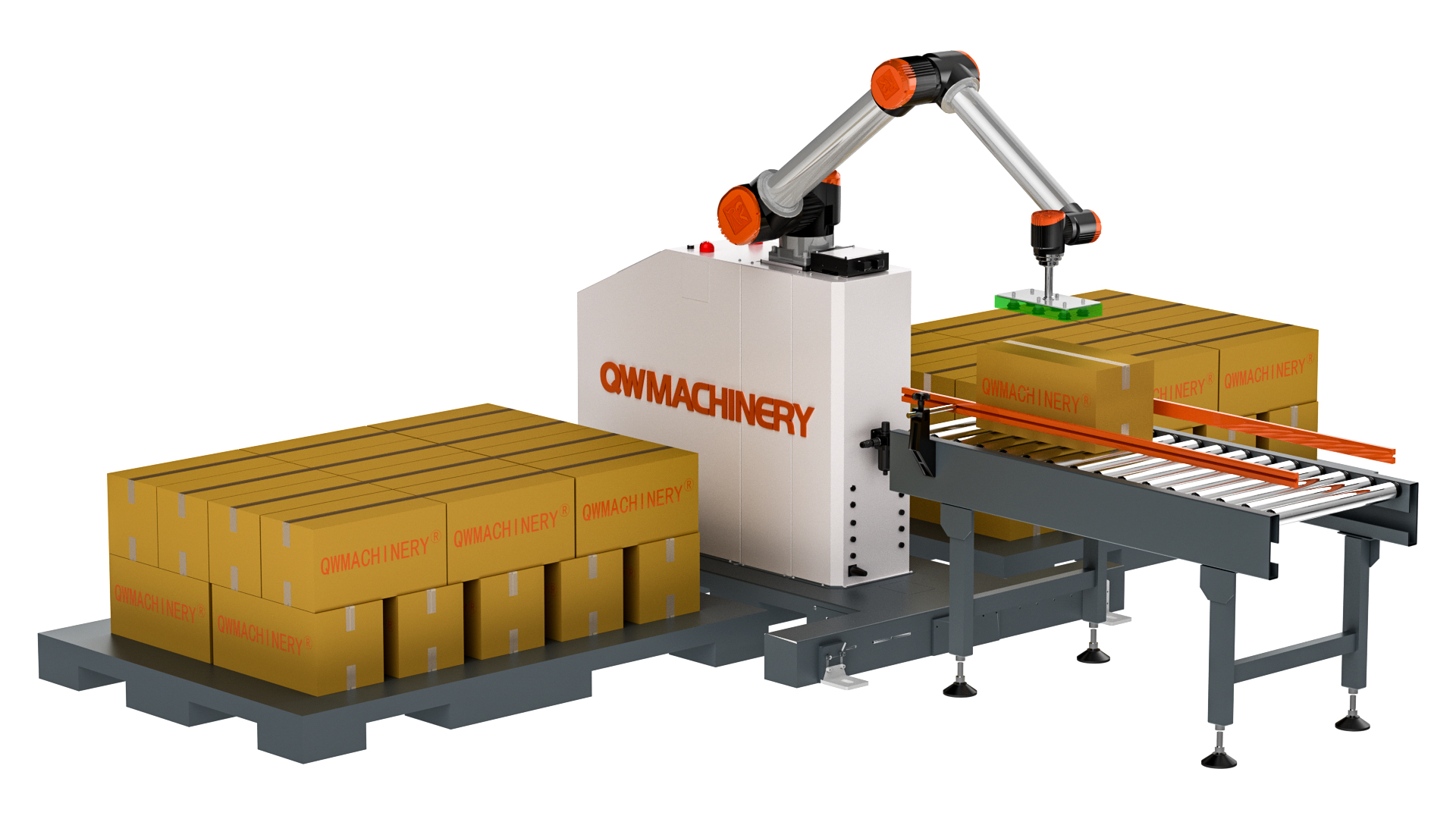

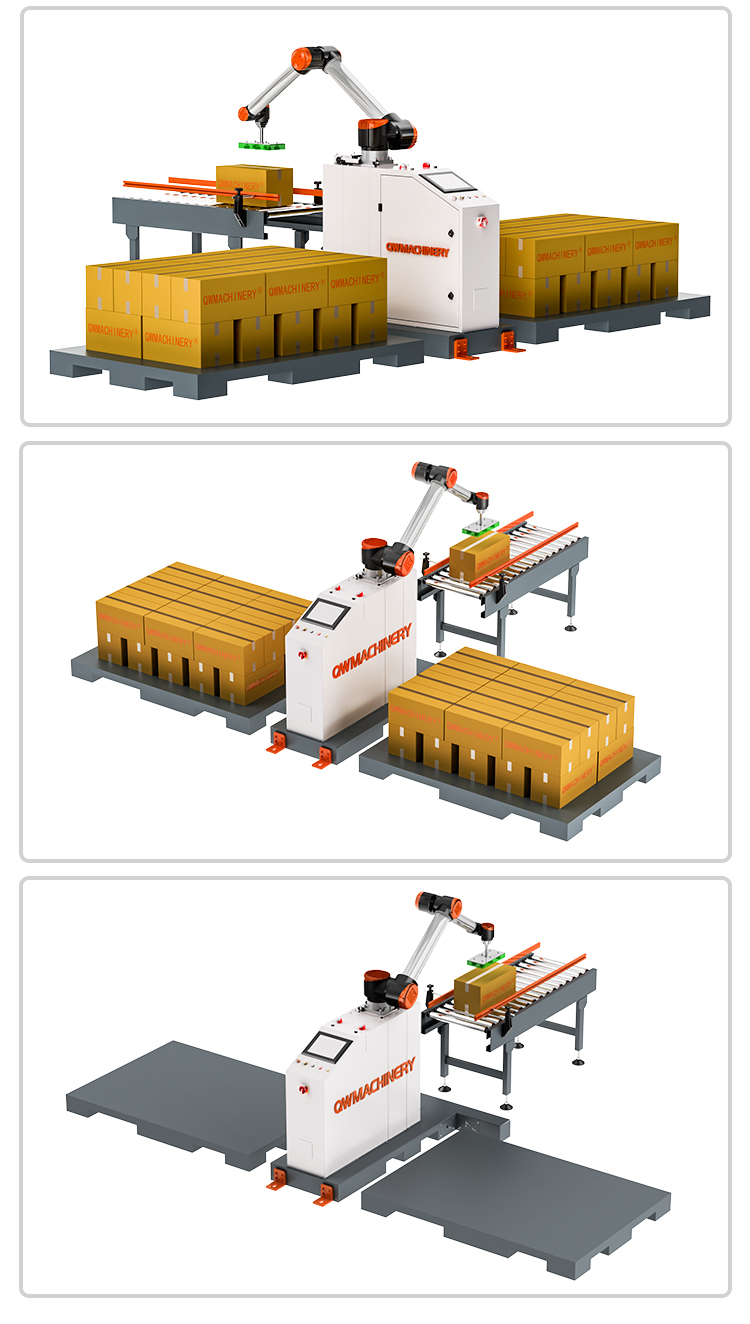

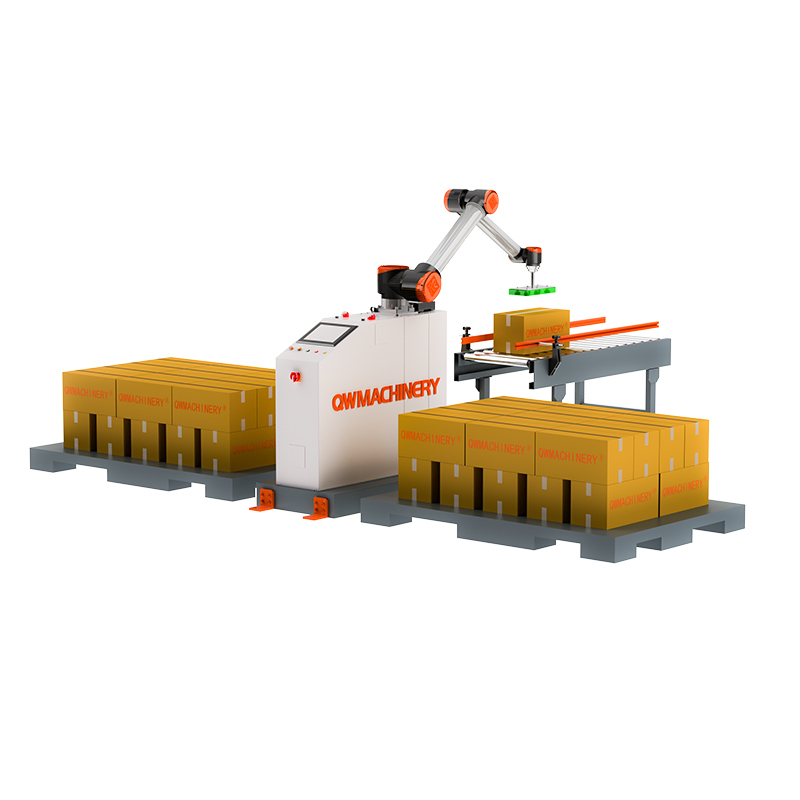

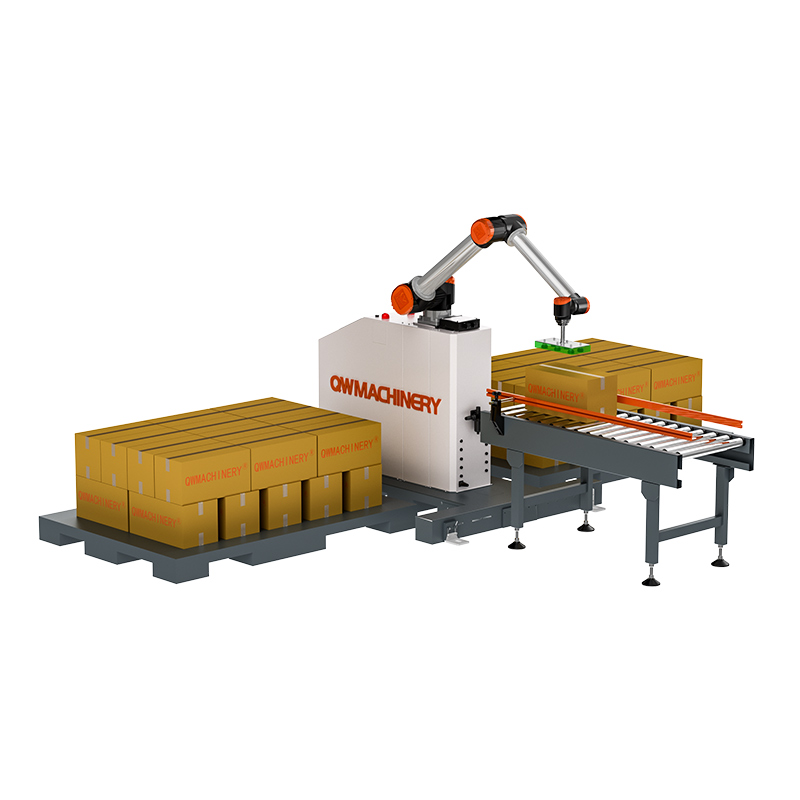

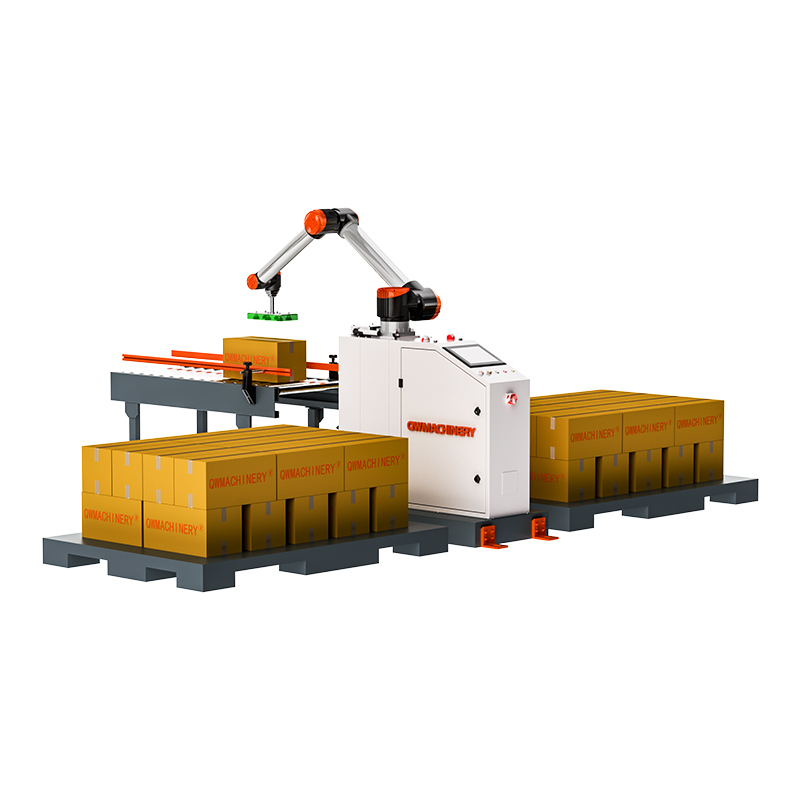

Collaborative Robot Portable Palletizer

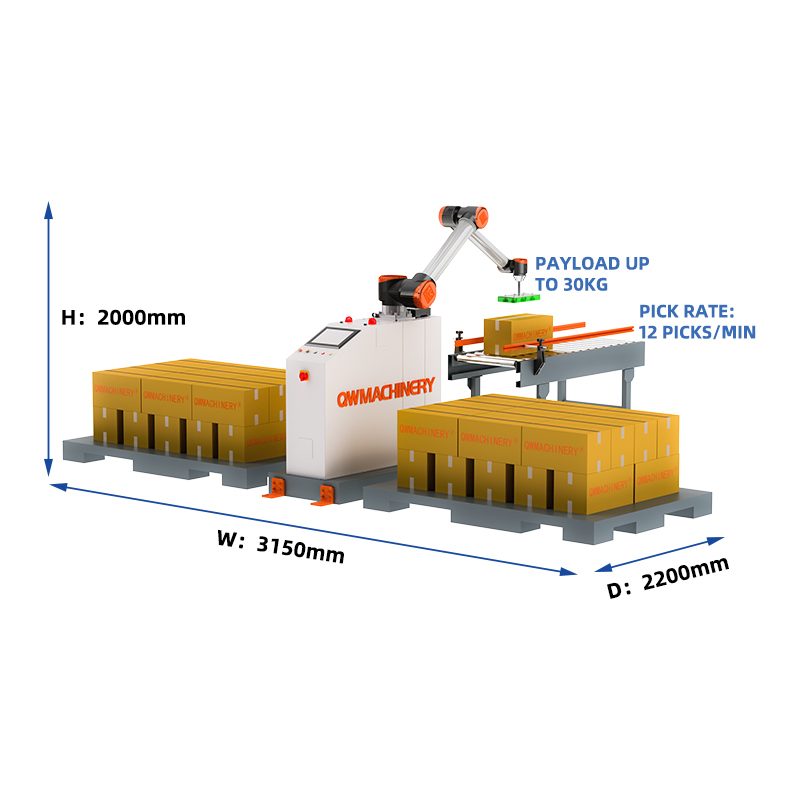

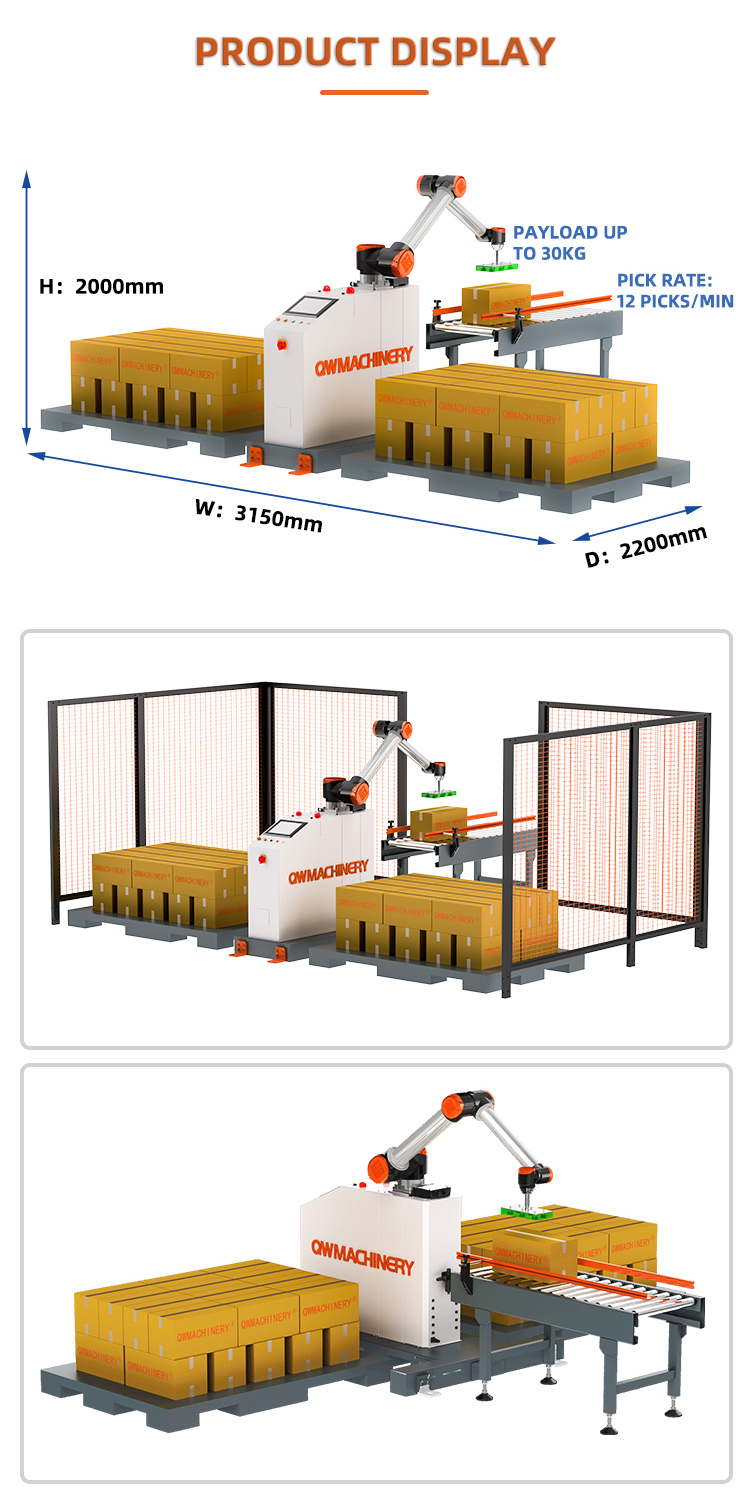

30kg payload cooperative robot palletising work cell, speed up to 12 cycles/min, can work in any production environment without fencing and other safety protection equipment, easy to operate and install.
Technical Specifications
| Payload | 20Kg(up to 30kg) |
| Working space diameter | 1650mm |
| Pallet size | 1200*1200*200(max) |
| Vertical Stroke | 1700mm(up to 2000mm) |
| Palletizing speed | 10pcs/min |
| Air consumption | 440L/min |
| Repeatability accuracy | ±0.02mm |
| Communication | EtherCAT、10 |
| IP grade | IP65 |
| Temperature | 0~50℃ |
| Max power | 2500W |
| Rated voltage | 220V |
| Weight | 350Kg |
| Area | 1260*780 (not including pallet and conveyor) |
Company Profile
The advanced manufacturer and integrator of automation equipments in China. We focus on secondary packaging system, intelligent conveying system, robot applications, visual system ASRS and other related logistic equipments. We have rich experience in food industry for the secondary packaging solutions. Our technical team is young and energetic. The average experience in the automation industry is more than 8 years. We learn the advance programming theory from Germany KUKA at regular intervals and practice into our real design and manufacture work.
We applied more than 10 patents for invention in the past years. All our products are CE certificate and got the safety test report. We have strictly system from design manufacture, quality testing to after-sale service. We offer on-site and after-sale service for the oversea customers. All our projects are turn-key projects from design to installation. Until now, our machinery have been exported to 53 countries of 5 continents. Our core competencies are the ability of development and design for customers specially. Whether requiring complete solutions or "stand alone machines, we offer the best solution for every level of automation.
Recommended Products

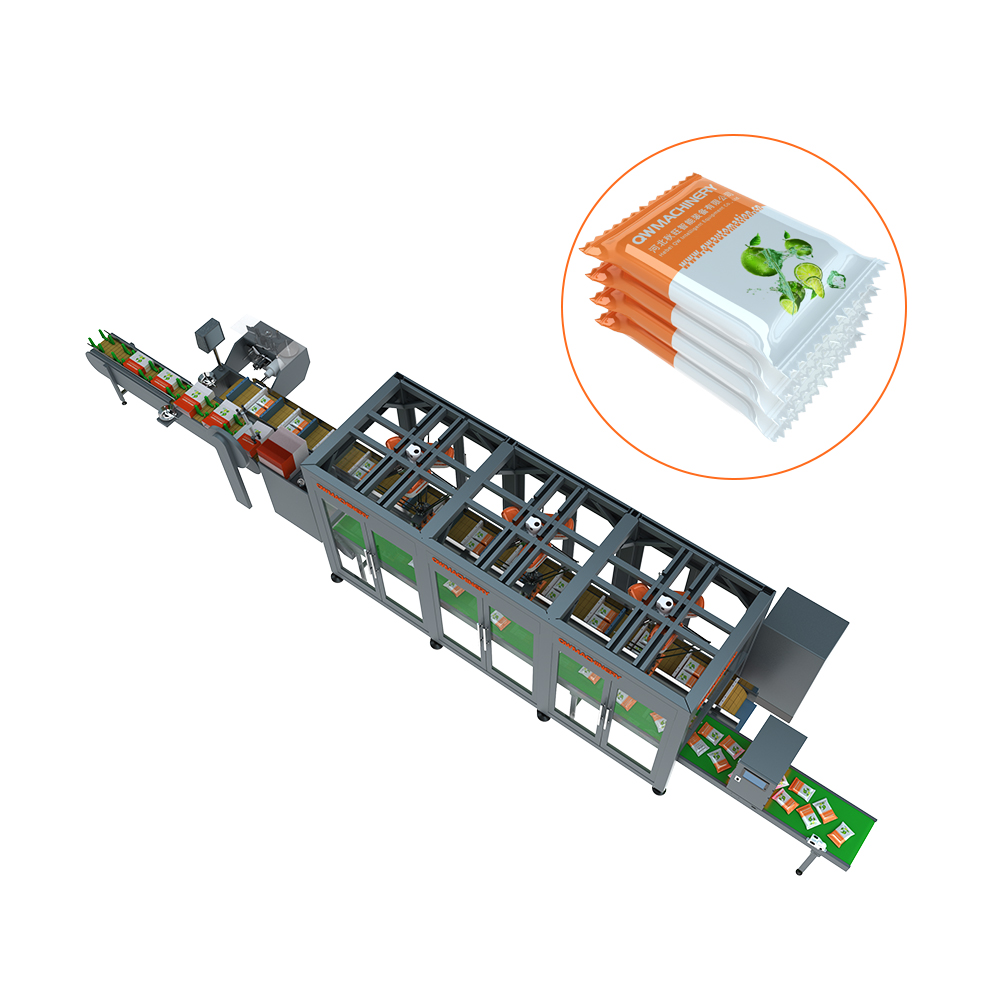

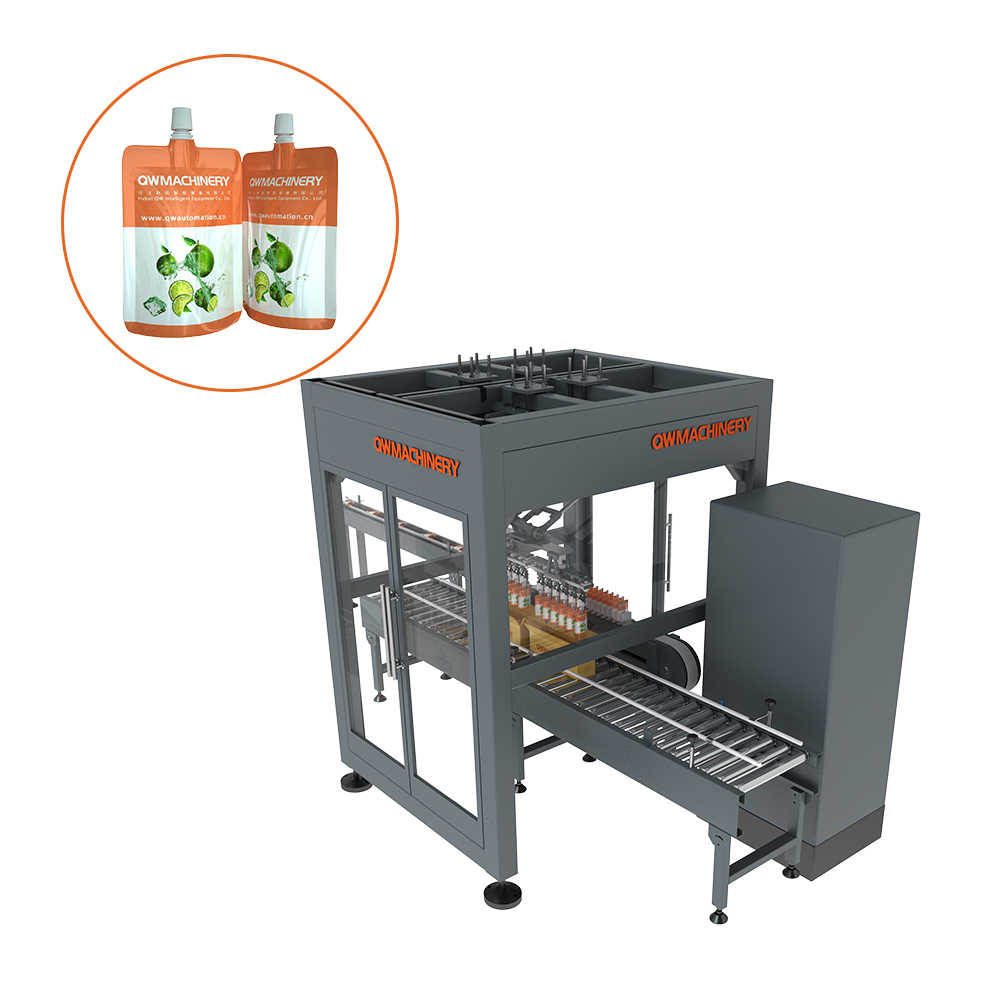

2 Axis Vertical Pouches Packaging System
3 Axis Packaging System

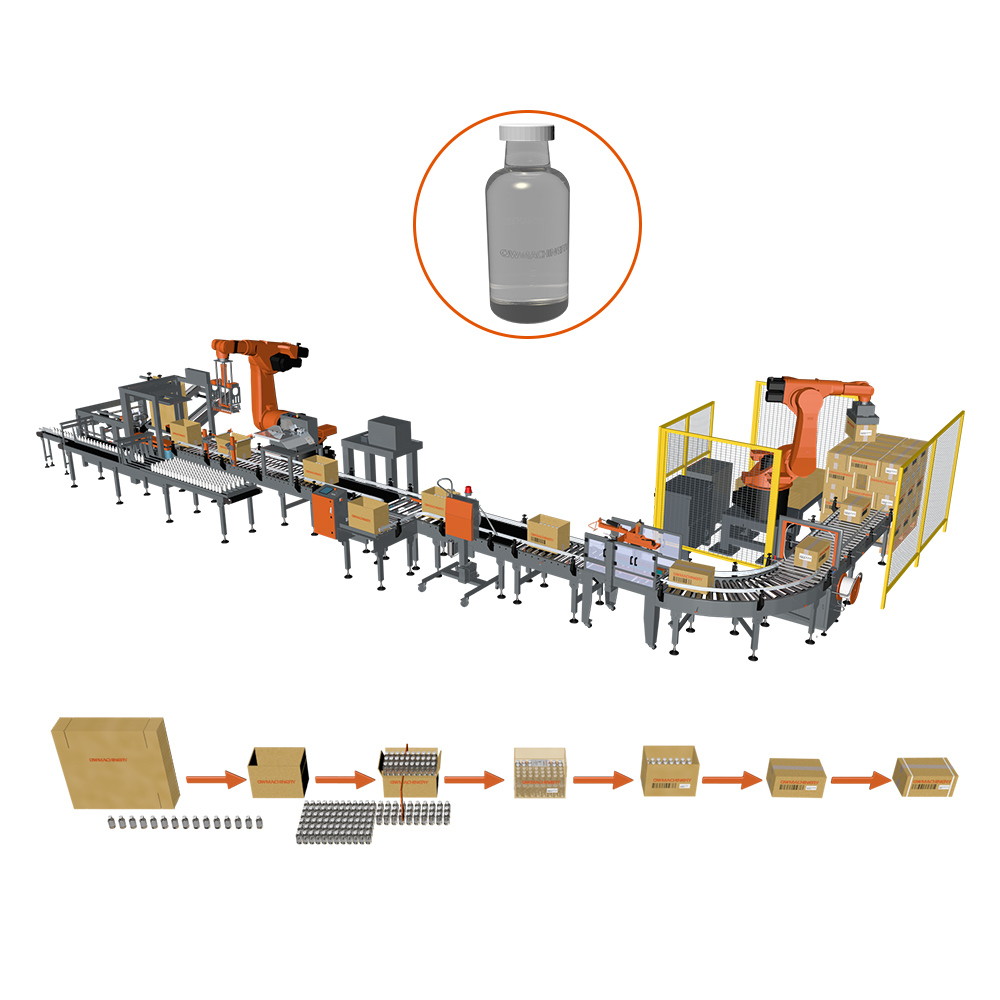

6 Axis Bottles Packaging System

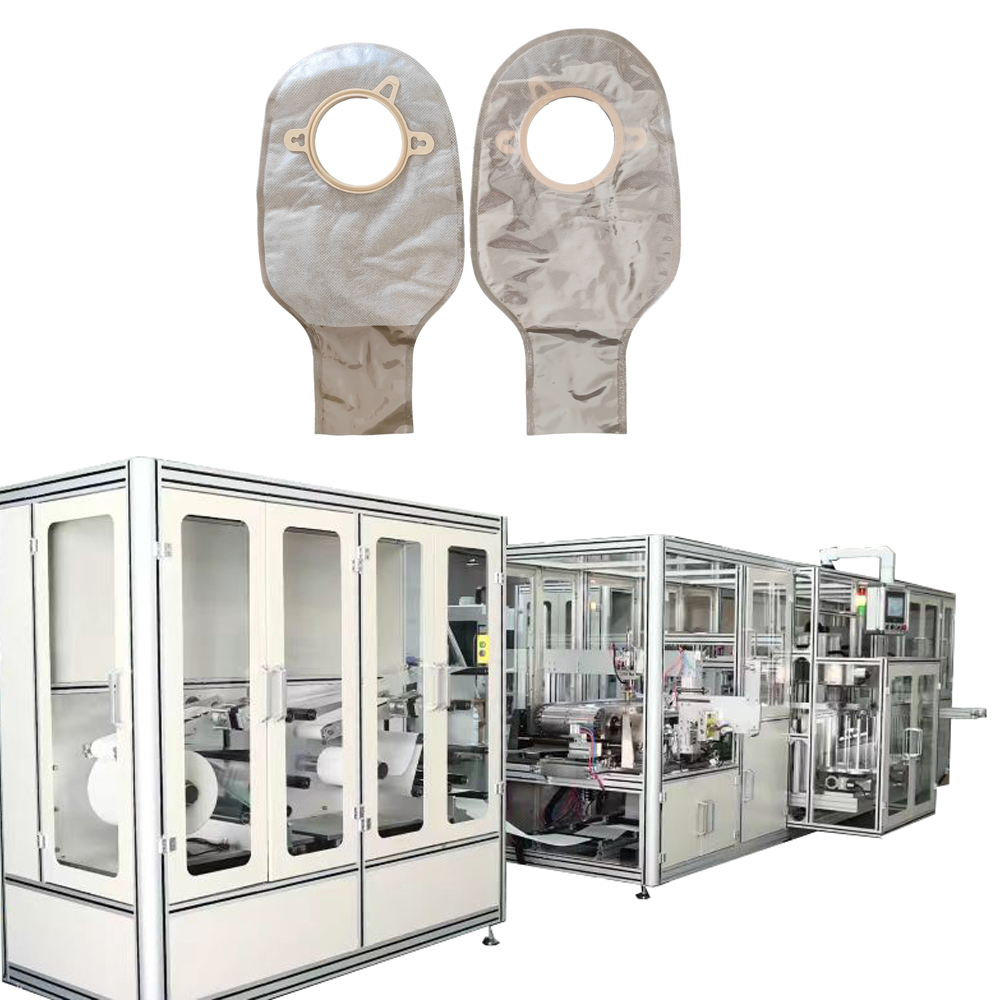

Ostomy Bag Production Machine

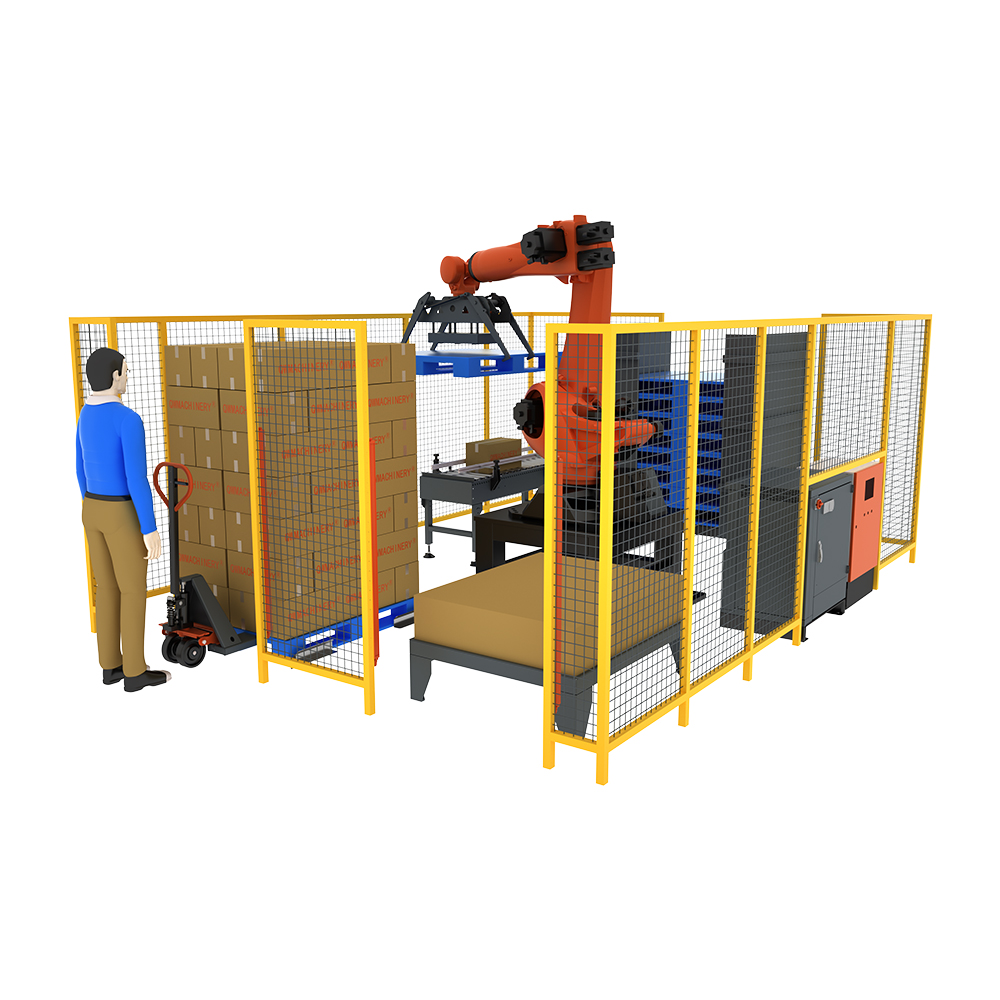

Palletizing System
3+1 Axis Packaging System
Frequently Asked Questions
What if I cannot find a machine that exactly meets our requirements?
All our machines can be custom-built to meet your specific and special needs.
We are not sure what design fits us best, can you help?
Yes, our engineers can visit your factory to work out a suitable design. We offer full service from design to installation.
Do you offer training services for operators?
Yes. We will instruct your engineers and operators before delivery in our factory, or train them after installation in your factory. Training is free of charge.
What are the warranty terms for the equipment?
A comprehensive 12-month structural and components warranty is offered. Cost-price spare parts are available for 15 years.
How is your after-sale service handled?
We provide 24/7 support and respond within 24 hours. Our engineers are available for overseas service if necessary.
Are your projects "turn-key"?
Yes, all our projects are turn-key projects, covering everything from the initial design phase to final installation and testing.
