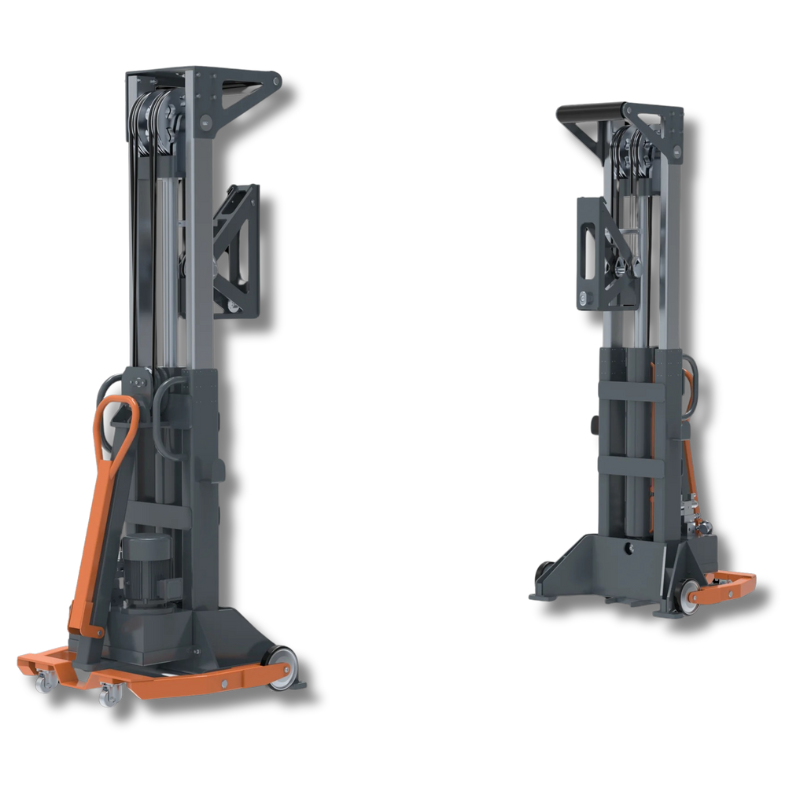

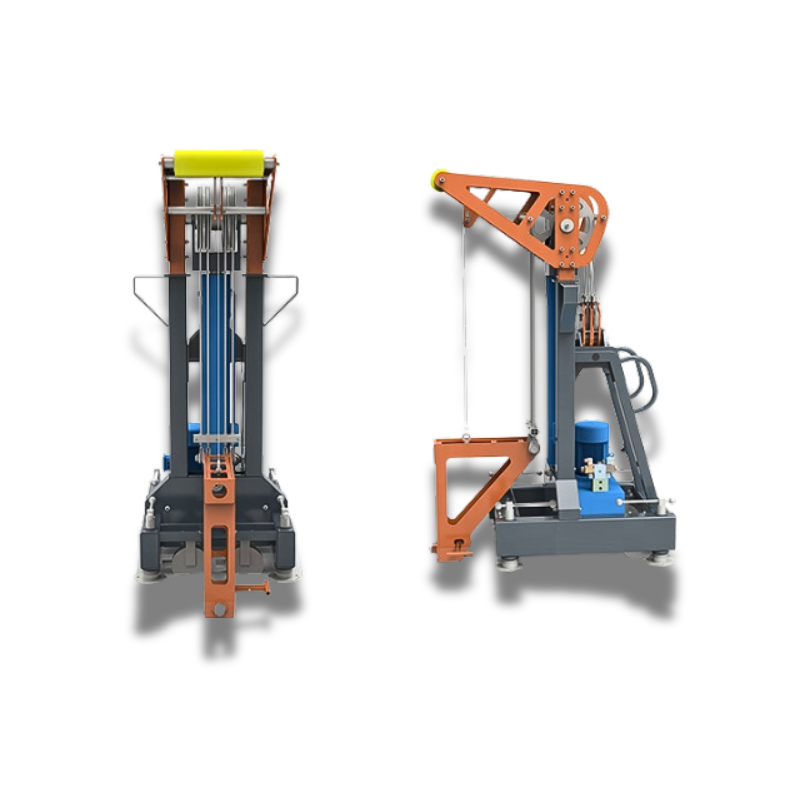

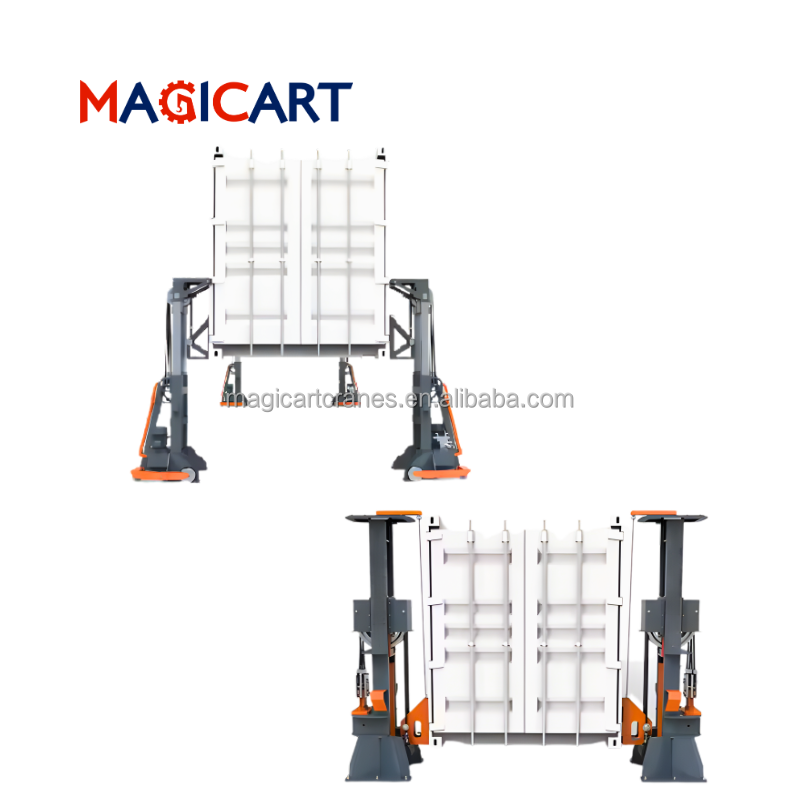

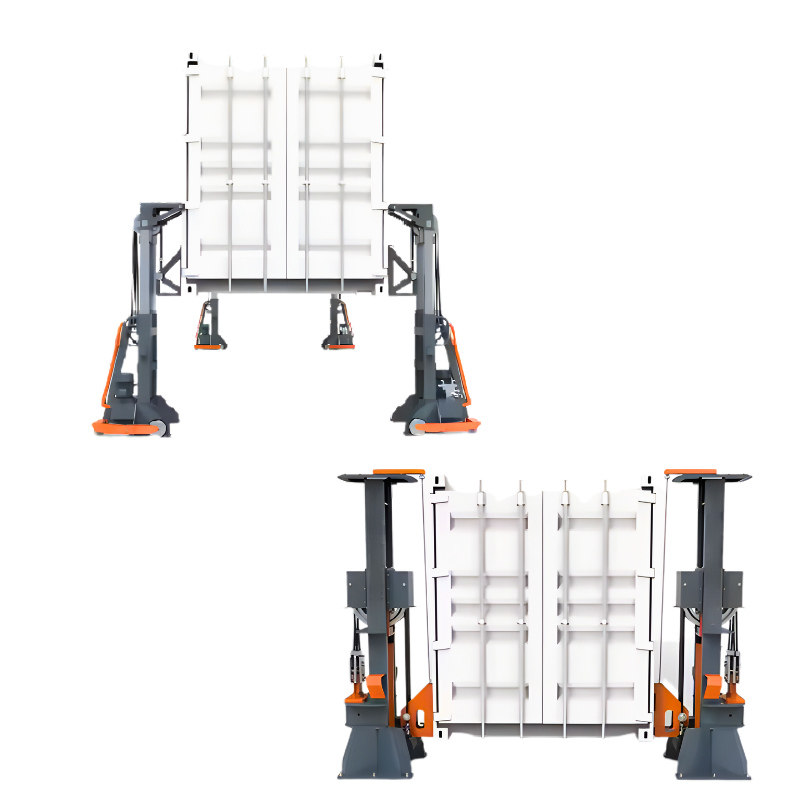

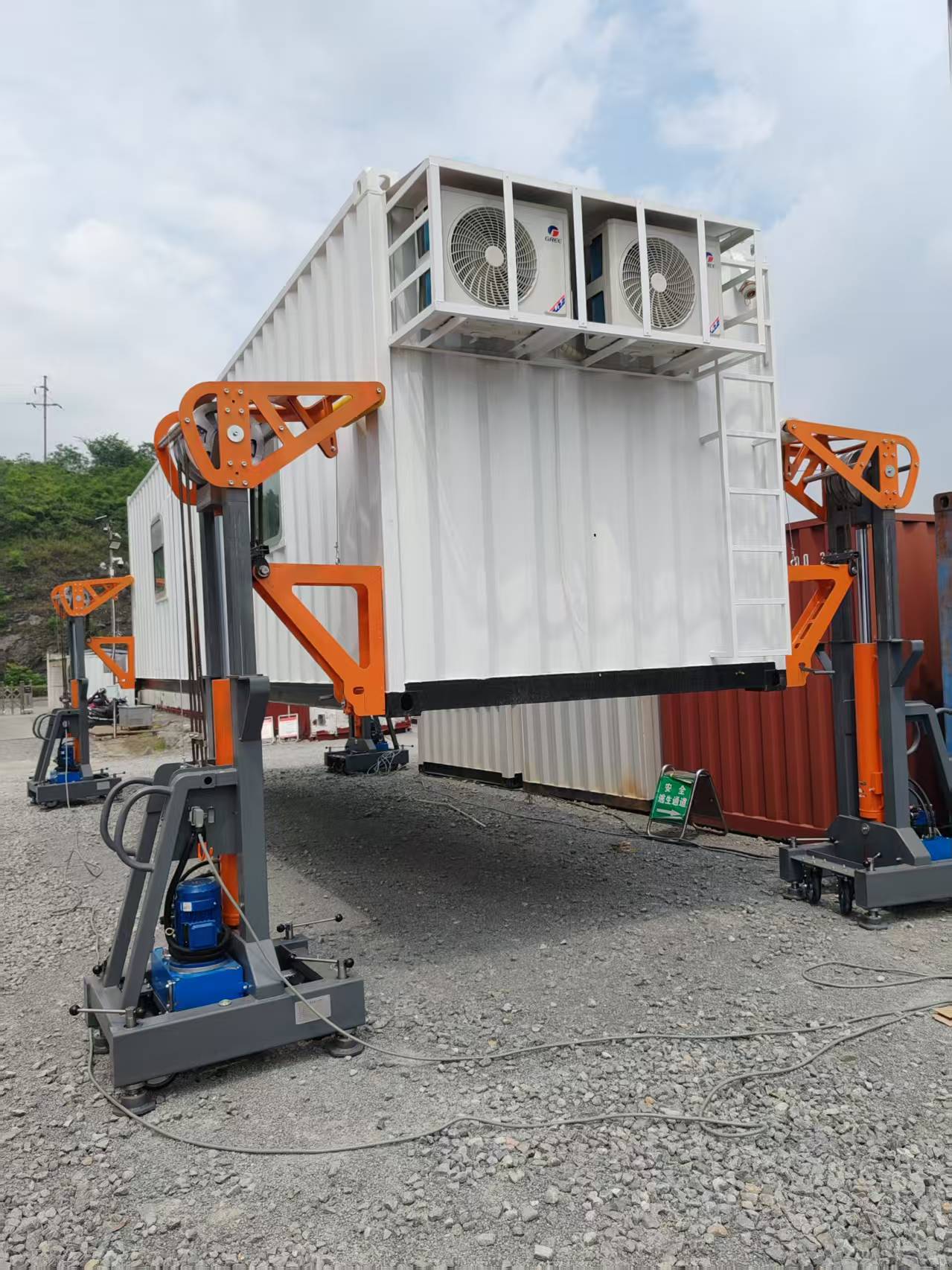

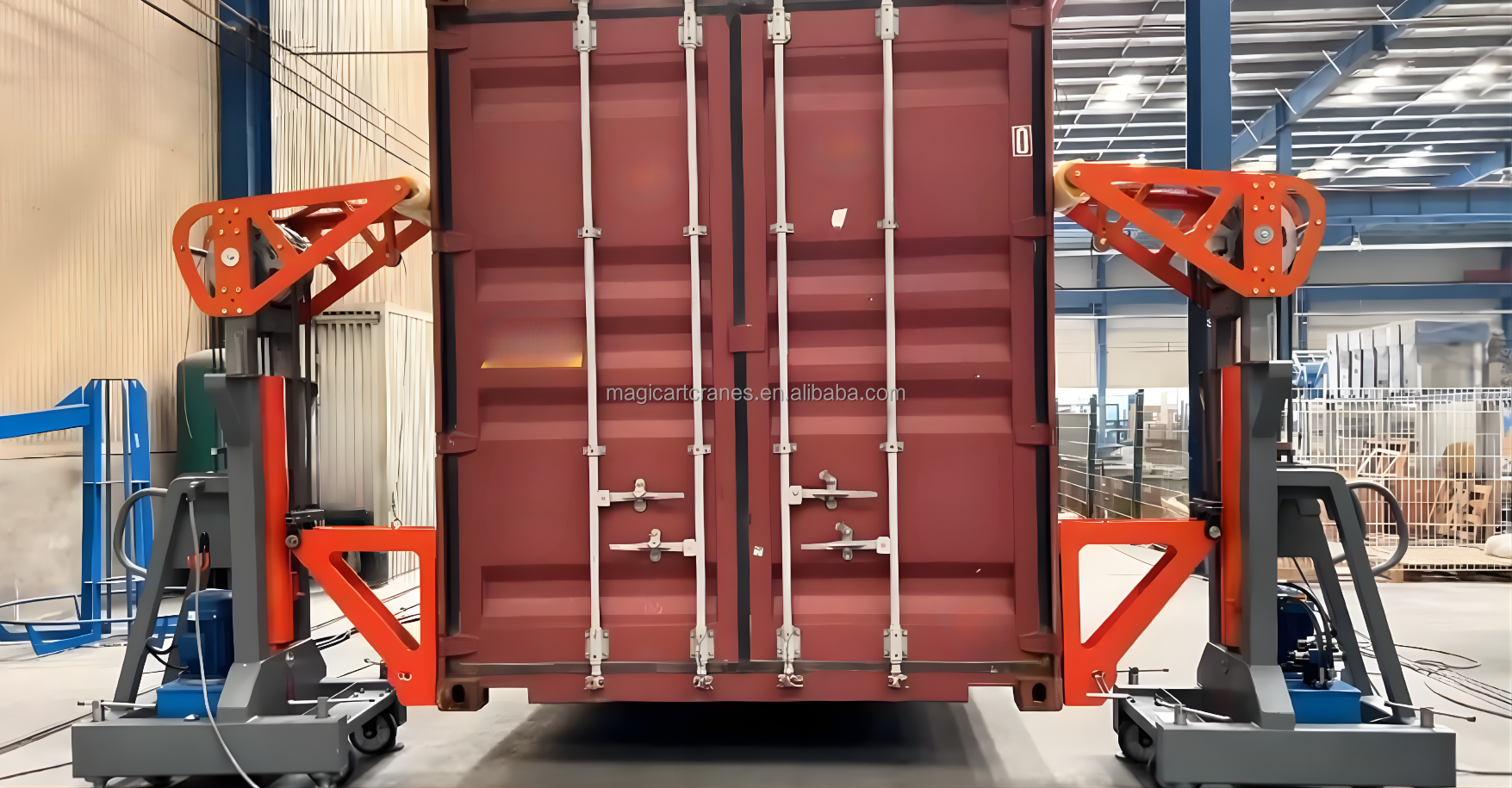

Container Lifting Jack is a manual or powered lifting device designed to raise ISO containers for loading, unloading, maintenance, or adding/removing trailers and chassis.
Higher reverse clearance up to 2900 mm.
Equipped with a manual push-and-roll wheel set, allowing the equipment to be easily moved to any working position without additional tools. Ideal for sites without forklifts or other handling equipment.
Significantly enhances container loading and unloading efficiency, reducing both labor and time costs. The simple structure ensures fast operation and higher safety when handling goods at ground level. It also helps save rental expenses for cranes, forklifts, and other loading equipment.
| Load capacity | 8t/unit, total 32t, safety factor 1.25, max load: 40t |
| Lifting height | 1650mm |
| Lifting speed | 22mm/s |
| Motor power | 2kw |
| Voltage | 24/220/380V |
| Dimensions | 1200*1090*2568mm |
| Synchronous or not | Synchronous |
| Hydraulic cylinder acting type | Double acting |
| Cylinder material | 20#/45# Steel |
| MOQ | 1 Set. |
Customizable tonnages are available, ranging from small, lightweight loads to large, heavy loads.
Multiple lift height configurations are supported, adapting to different loading and unloading scenarios.
The frame size can be adjusted to suit container specifications, accommodating both standard and non-standard containers.
Safety systems such as fall arrest devices, overload protection, and emergency stop buttons can be added.
Available with either a fixed or mobile base to accommodate diverse working environments.
