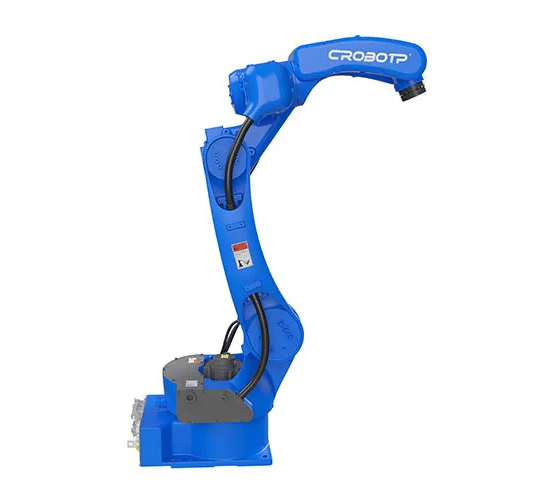

CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
1 / 5
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V
CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V

CRP Energy-Saving Handing Robot for Load Automatic Picking and Palletizer Stacking 1 kW Power 220V/380V

Send Inquiry

Product Description

📋 Product Overview

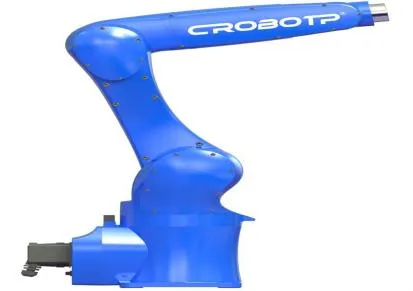

CRP-RH14-10 Laser Welding Robot
The laser welding robot system is primarily composed of the robot body and a specialized electrical cabinet. It is integrated with a dedicated laser welding software package, making it highly versatile for industrial applications including laser welding, laser cutting, and laser cladding.
Video Presentation
⚙ Functional Features

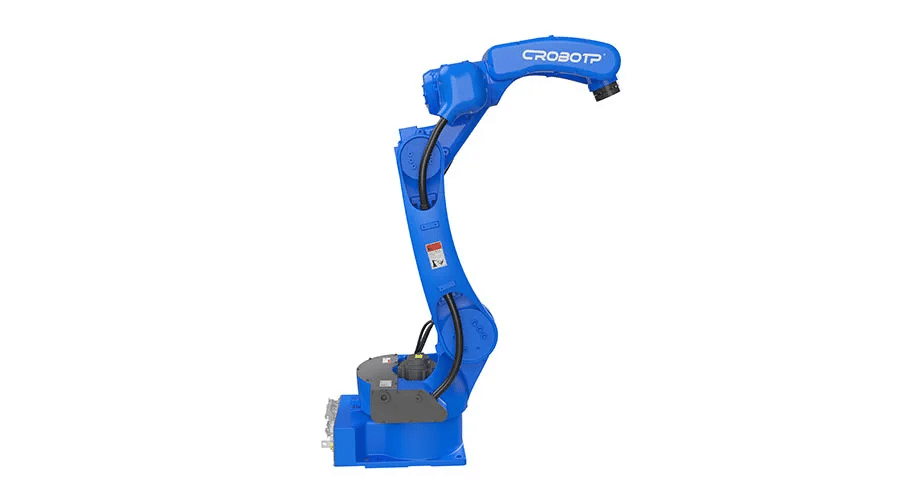

Robot Feature
✔
Safety Excellence: Equipped with a safety emergency stop board independent of the control system. Imported forced disconnection relays provide double-circuit emergency stop for maximum reliability.
✔
Stable Power Supply: Features a built-in three-phase transformer to isolate 380V and 220V. An integrated three-phase filter effectively isolates external interference and prevents internal output noise.
✔
High Flexibility: The robot body utilizes highly flexible specialized cables designed for long-term industrial durability.
✔
Integrated Pneumatics: Built-in dual-circuit gas pipes are included to meet various handling and process demands.
✔
Optimized Structure: The body structure has been enhanced for higher rigidity, specifically optimized for handling and precision applications.

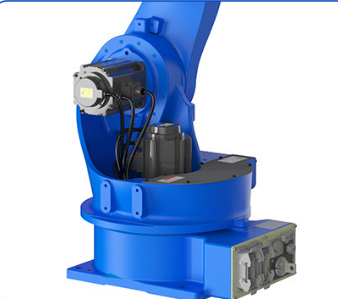

Showcase 1

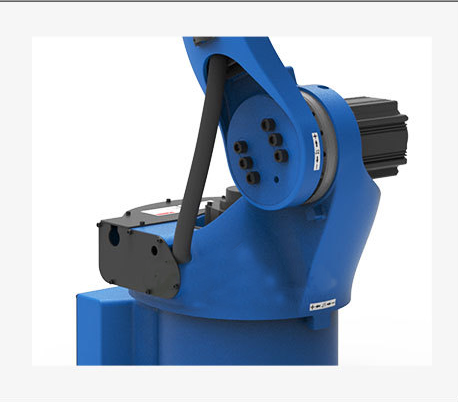

Showcase 2

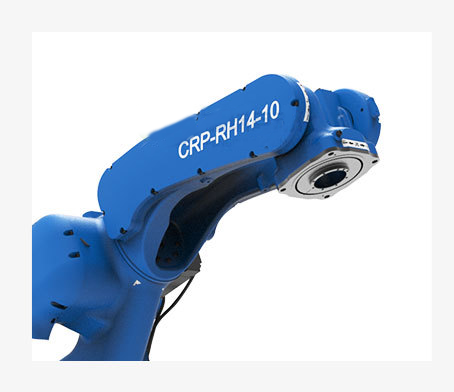

Showcase 3
💻 Product Specifications
ModelCRP-RH14-10
Arm FormVertical multiple joints
Degree of Freedom6 axis
Maximum Payload10kg
Repeated Positioning Accuracy±0.08mm
Maximum Reaching Distance1454mm
Robot Body Weight170kg
Installation ModeGround, upside down mounting, wall mounting

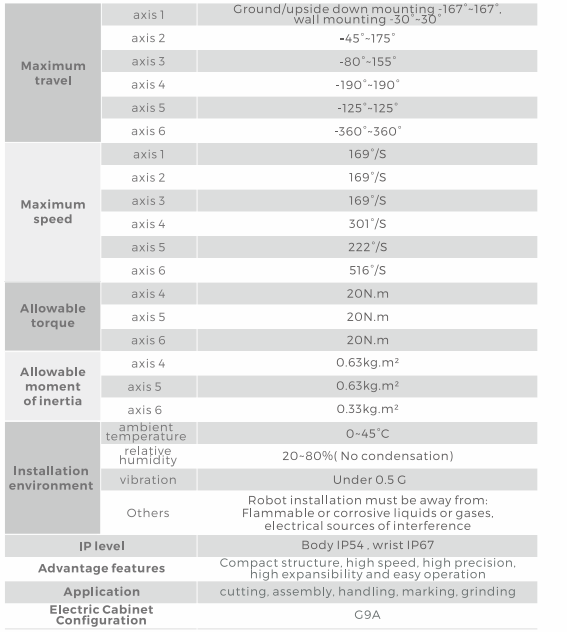

Dimensional Drawing
📐 Dimensional Drawings

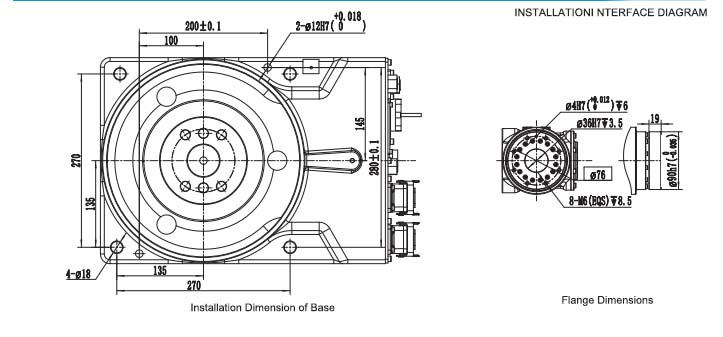

Dimensions 1

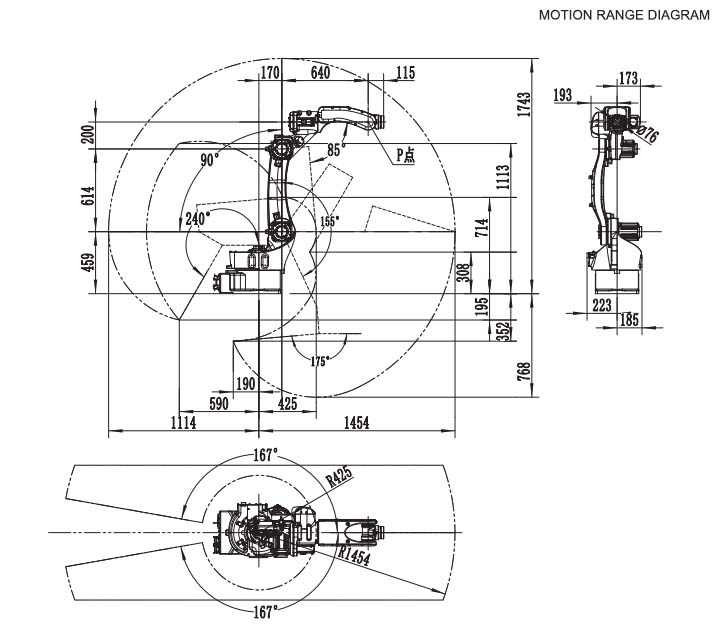

Dimensions 2
📸 Production & Application Cases
Case 1
Case 2

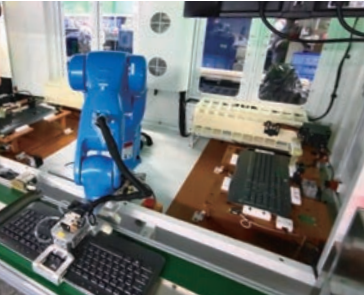

Case 3
Case 4

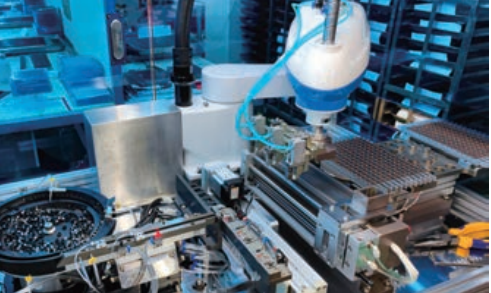

Case 5

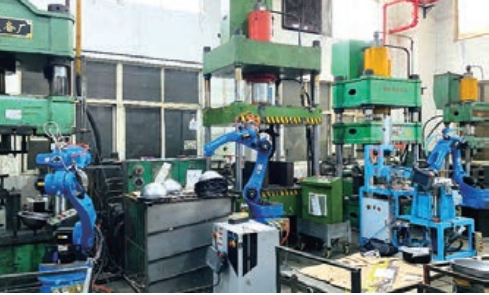

Case 6

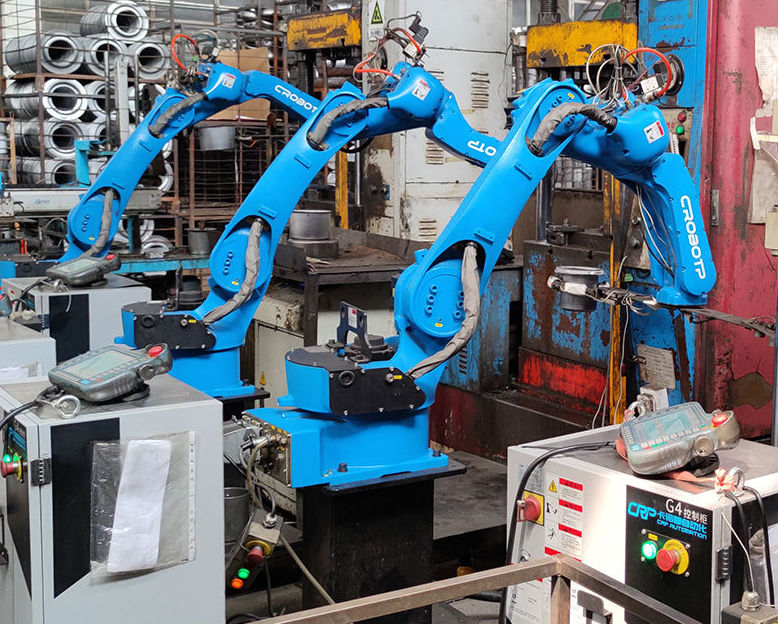

Case 7
Case 8
❓ Frequently Asked Questions
What are the primary applications of the CRP-RH14-10 robot?
The CRP-RH14-10 is primarily designed for laser welding, but it is also highly effective for laser cutting, laser cladding, and various material handling applications.
What is the payload and reach of this robot model?
This model features a maximum payload of 10kg and a maximum reaching distance of 1454mm, making it suitable for a wide range of medium-sized industrial tasks.
How does the system ensure operational safety?
Safety is ensured through an independent emergency stop board and imported forced disconnection relays, providing a double-circuit emergency stop mechanism that works regardless of the control system status.
What installation options are available for this robot?
The CRP-RH14-10 is highly versatile and supports ground installation, wall mounting, and upside-down (ceiling) mounting to fit different factory layouts.
How does the robot handle electrical interference?
It includes a built-in three-phase transformer for voltage isolation and a three-phase filter that effectively blocks external interference and prevents internal signal noise.
What kind of after-sales support is provided?
Comprehensive support is available, including installation and debugging video guides, remote technical assistance, warranty services, and material handling solutions tailored to your needs.
