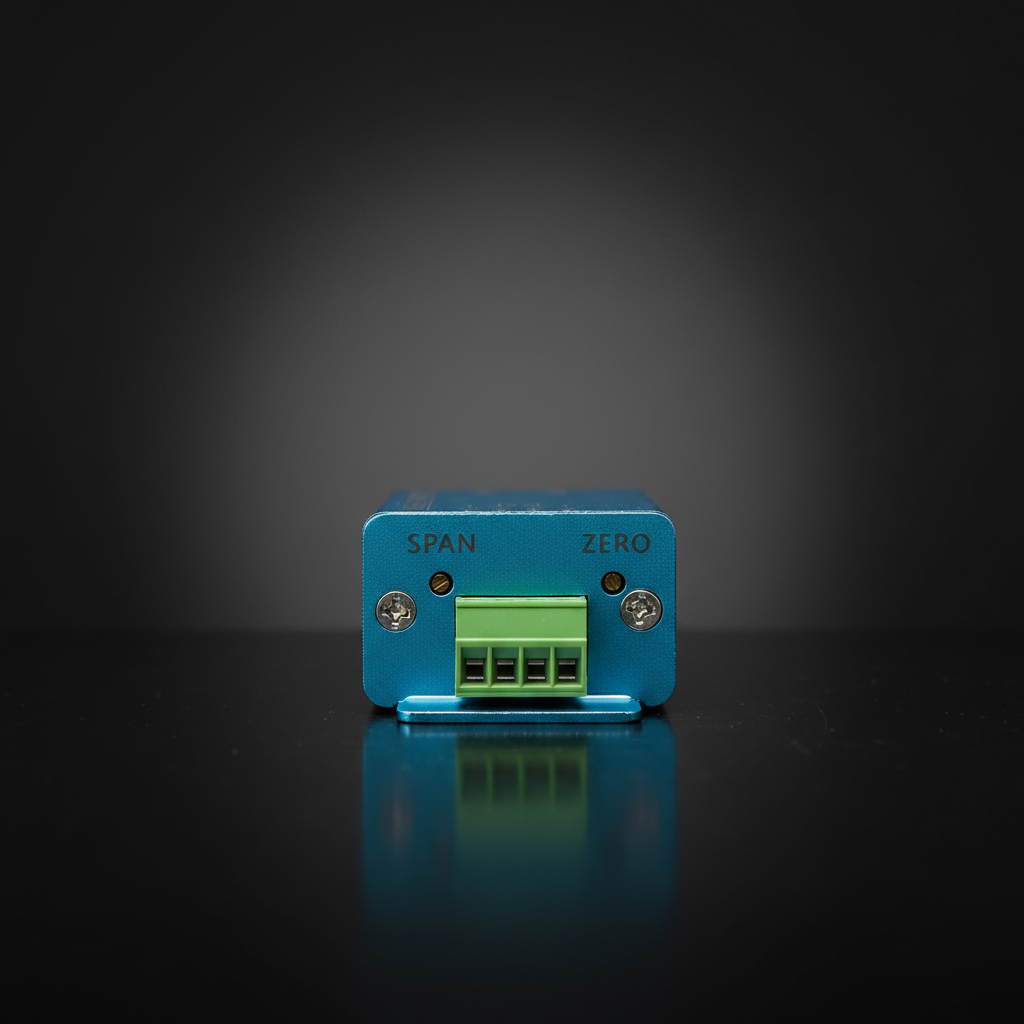

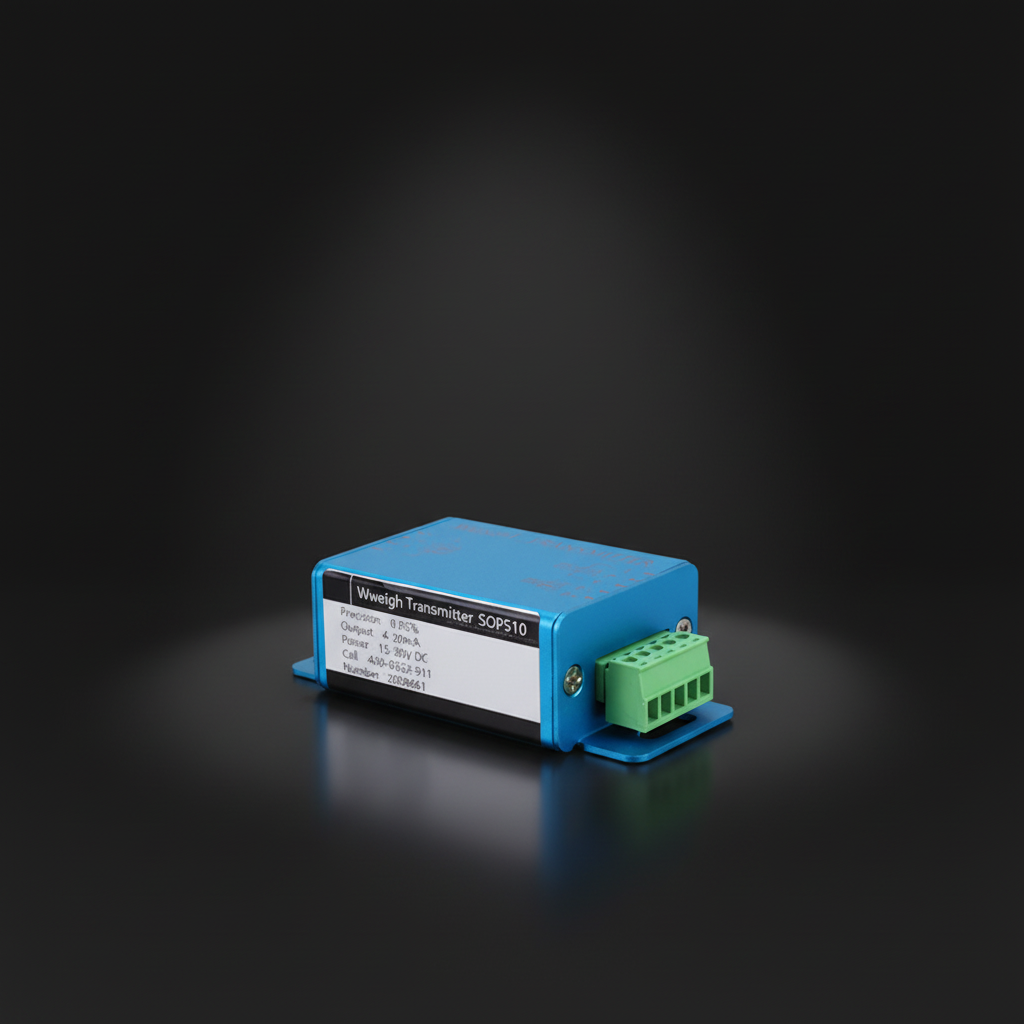

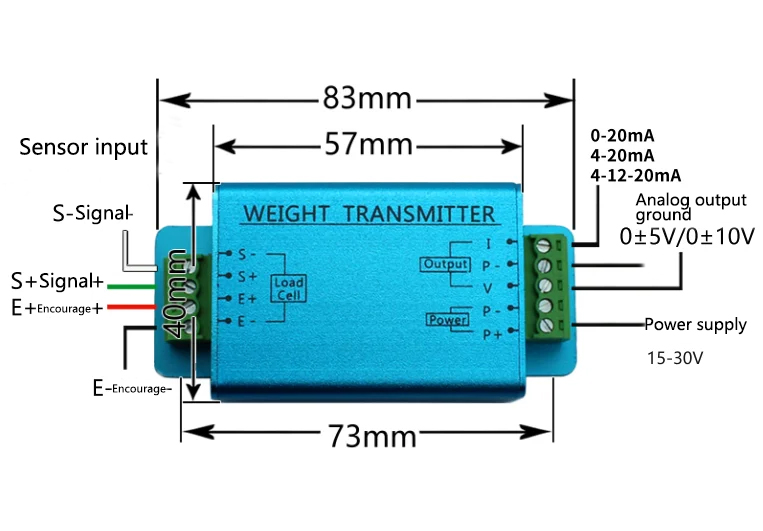

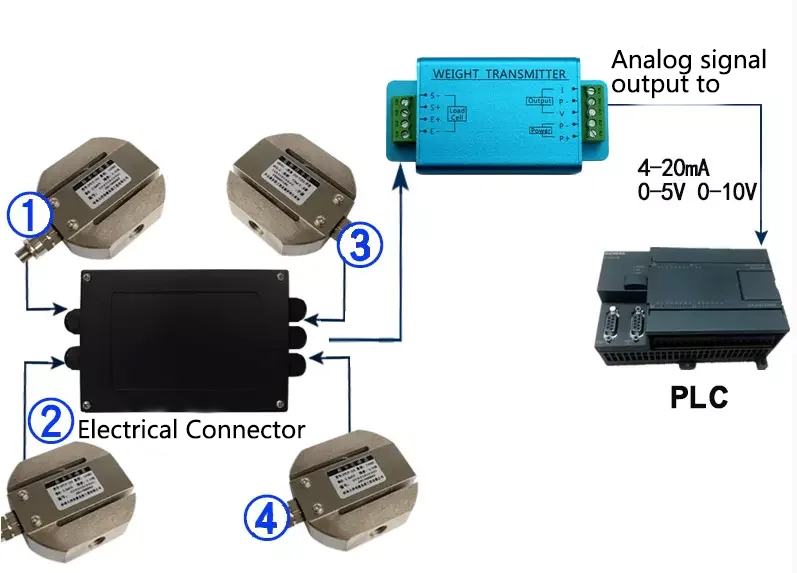

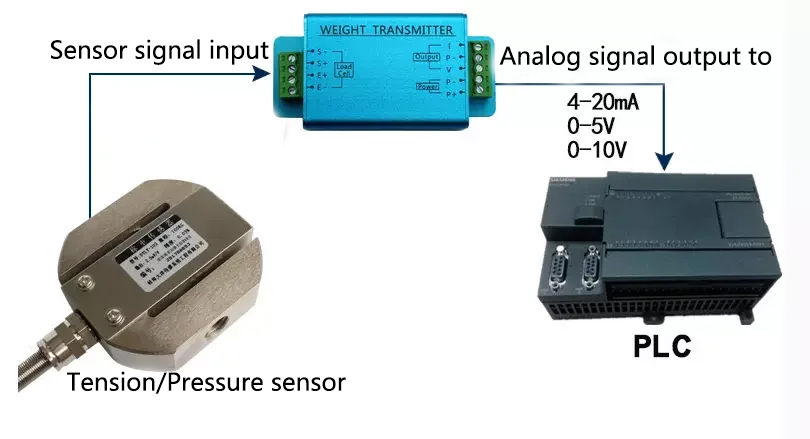

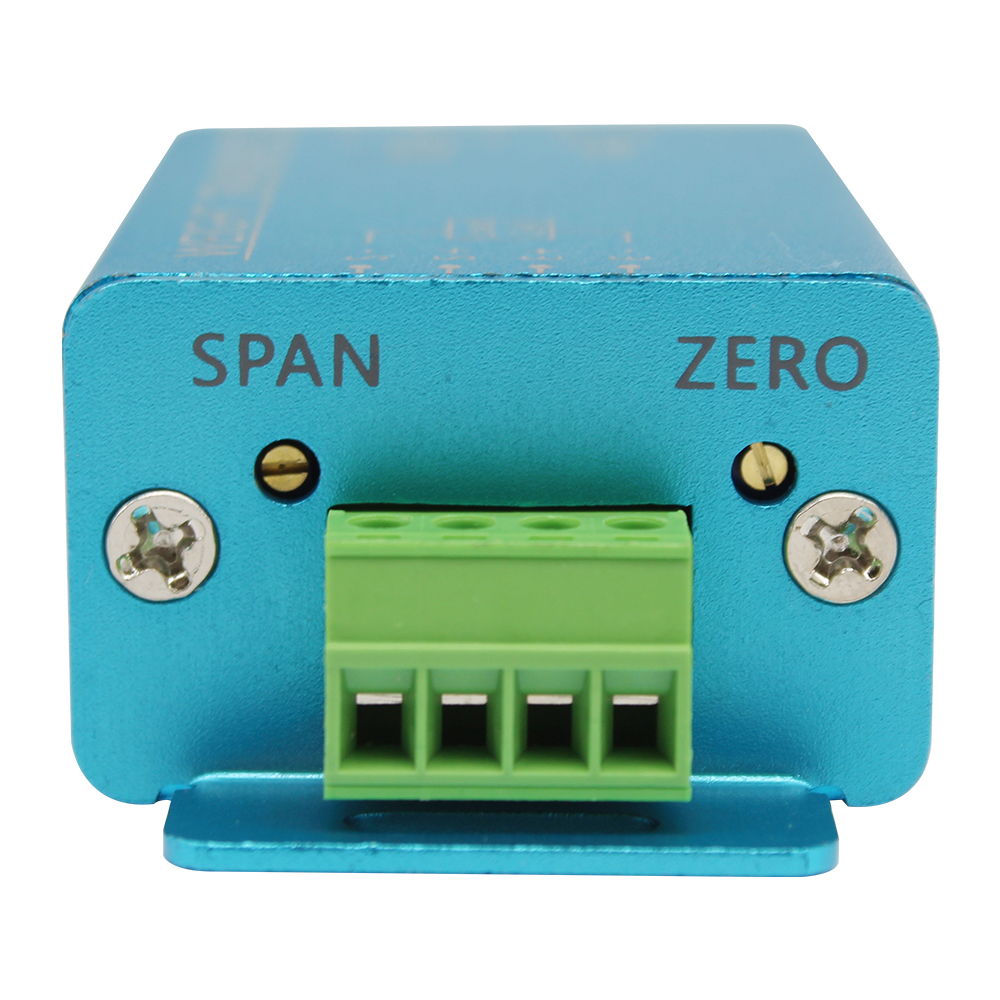

Our transmitter adopts aluminum profile housing. The internal imported high-performance device is used to accurately amplify the sensor output signal. The internal voltage regulation, constant current supply bridge, voltage and current conversion, impedance matching, linear compensation, humidity compensation, etc. Convert the mechanics and quantity into standard current and voltage signal output, which can switch 0-5V/0-10V, 4-20mA. It can be directly connected to the interface of the automatic control device PLC MCU, host computer terminal, or computer. With standard signal external zero adjustment, external adjustment gain function, input over protection, output short circuit protection.
| Item | Load Cell Transmitter |
| Voltage - Supply | 15-30VDC |
| Operating Temperature | -30~80 ℃ |
| Input signal | 1.0mV/V, 2.0mV/V |
| Accuracy | ≤±0.05%F.S |
| Output signal | 0-5V,0-10V,4-20mA,0-20mA |
| Sampling frequency | ≥100KHz |
| Working humidity | 10%RH-90%RH |

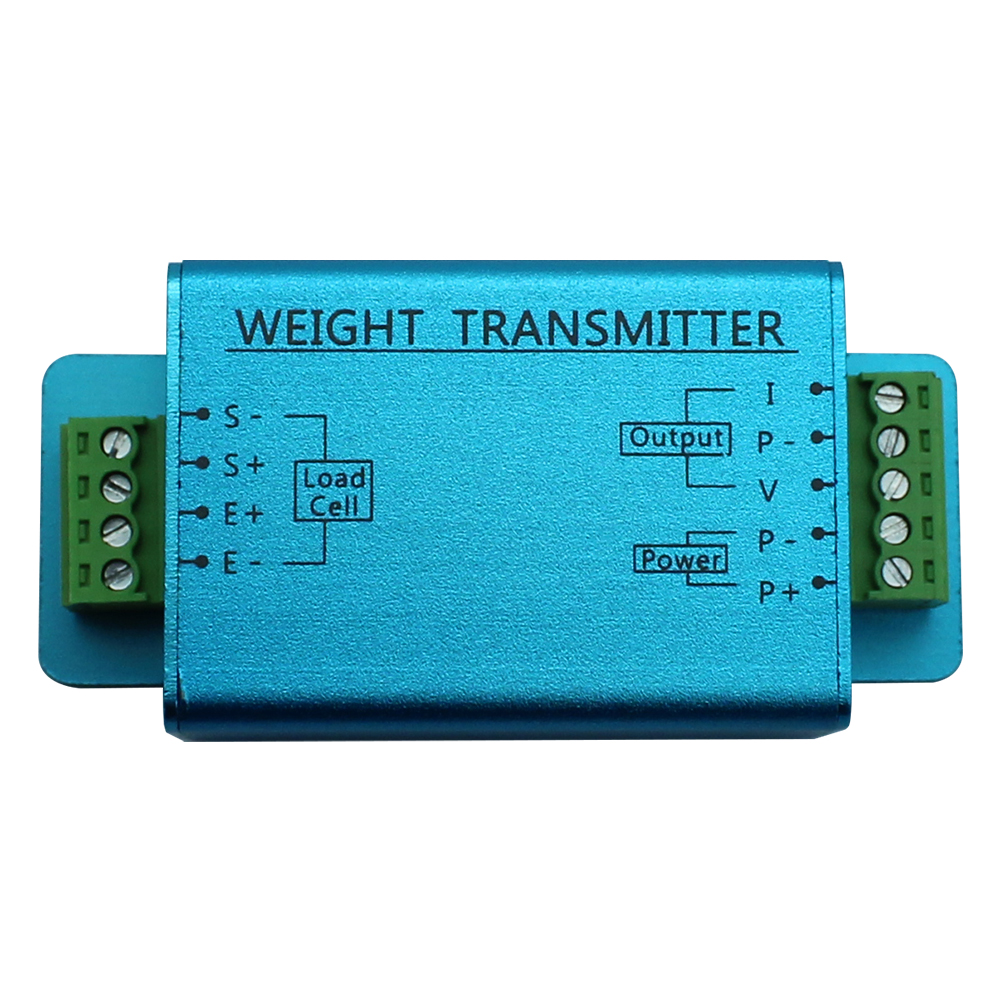

ANALOG WEIGHT TRANSMITTER 0-20mA/ 4-20mA/ 0-5V/0-10V LOAD CELL TRANSMITTER
♦ Package List: 1 * Load cell transmitter
♦ Packing: Packing materials are eco-friendly and protect your product well. Every item has their own independent packing with Carton box.
♦ Delivery: A wide range of options: Express (Fedex, DHL, TNT, EMS, UPS etc.) air and shipping.
